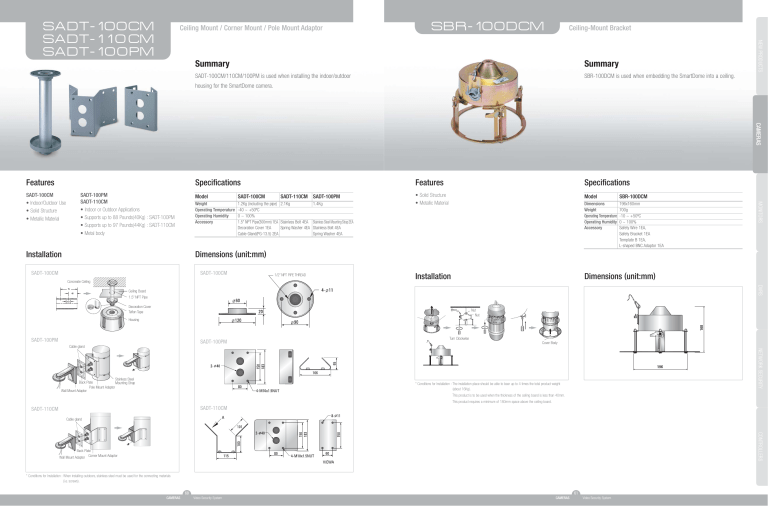

Ceiling Mount / Corner Mount / Pole Mount Adaptor
SBR-100DCM
Ceiling-Mount Bracket
NEW PRODUCTS
SADT-100CM
SADT-1 1 0 CM
SADT-100PM
Summary
Summary
SADT-100CM/110CM/100PM is used when installing the indoor/outdoor
SBR-100DCM is used when embedding the SmartDome into a ceiling.
housing for the SmartDome camera.
CAMERAS
Features
Specifications
SADT-100PM
SADT-110CM
• Indoor or Outdoor Applications
• Supports up to 88 Pounds(40Kg) : SADT-100PM
• Supports up to 97 Pounds(44Kg) : SADT-110CM
• Metal body
Model
SADT-100CM
SADT-110CM SADT-100PM
Weight
Operating Temperature
Operating Humidity
Accessory
1.2Kg (including the pipe) 2.1Kg
-40 ~ +50ºC
0 ~ 100%
1.5" NPT Pipe(300mm) 1EA Stainless Bolt 4EA
Decoration Cover 1EA
Spring Washer 4EA
Cable Gland(PG-13.5) 2EA
1.4Kg
Specifications
• Solid Structure
• Metallic Material
Model
SBR-100DCM
Dimensions
Weight
Operating Temperature
Operating Humidity
Accessory
196x160mm
700g
-10 ~ +50ºC
0 ~ 100%
Safety Wire 1EA,
Safety Bracket 1EA
Template B 1EA,
L-shaped BNC Adaptor 1EA
Installation
Dimensions (unit:mm)
Stainless Steel Mounting Strap2EA
Stainless Bolt 4EA
Spring Washer 4EA
MONITORS
SADT-100CM
• Indoor/Outdoor Use
• Solid Structure
• Metallic Material
Features
Dimensions (unit:mm)
Installation
SADT-100CM
SADT-100CM
Concreate Ceiling
1/2” NPT PiPE THREAD
DVRS
Ceiling Board
1.5” NPT Pipe
Decoration Cover
Teflon Tape
Nut
Nut
Housing
SADT-100PM
SADT-100PM
Turn Clockwise
Cover Body
Stainless Steel
Back Plate
Mounting Strap
Pole Mount Adaptor
Wall Mount Adaptor
NETWORK SECURITY
Cable gland
* Conditions for Installation : The installation place should be able to bear up to 4 times the total product weight
(about 16Kg).
This product is to be used when the thickness of the ceiling board is less than 40mm.
This product requires a minimum of 180mm space above the ceiling board.
SADT-110CM
SADT-110CM
Cable gland
CONTROLLERS
Back Plate
Wall Mount Adaptor Corner Mount Adaptor
* Conditions for Installation : When installing outdoors, stainless steel must be used for the connecting materials
(i.e. screws).
