Write the serial number in the space above for reference.

Serial Number Decal

CUSTOMER SERVICE

UNITED KINGDOM Call:

0330 123 1045

From Ireland:

053 92 36102

Website:

www.iconsupport.eu

E-mail:

[email protected]

Write:

ICON Health & Fitness, Ltd.

Unit 1D, The Gateway Fryers Way, Silkwood Park OSSETT WF5 9TJ UNITED KINGDOM

AUSTRALIA Call:

1800 993 770

E-mail:

[email protected]

Write:

ICON Health & Fitness PO Box 635 WINSTON HILLS NSW 2153 AUSTRALIA

CAUTION

Read all precautions and instruc tions in this manual before using this equipment. Save this manual for future reference.

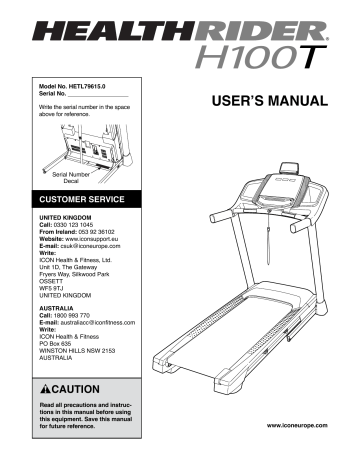

USER’S MANUAL

www.iconeurope.com

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

HOW TO USE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover RECYCLING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

WARNING DECAL PLACEMENT

This drawing shows the locations of the warning decals.

If a decal is missing or illegible, call the telephone number on the front cover of this manual and request a free replacement decal. Apply the decal in the location shown.

Note: The decals may not be shown at actual size.

305284 The BLUETOOTH ® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. HEALTHRIDER is a registered trademark of ICON Health & Fitness, Inc.

2

IMPORTANT PRECAUTIONS WARNING:

To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sus tained by or through the use of this product.

1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

2. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

3. Use the treadmill only as described in this manual.

12. When connecting the power cord (see page 16), plug the power cord into an earthed circuit. No other appliance should be on the same circuit. When replacing the fuse in the power cord adapter, insert an ASTA-approved BS1362, 13-amp fuse into the fuse carrier.

13. If an extension cord is needed, use only a 3-conductor, 14-gauge (1 mm 2 ) cord that is no longer than 5 ft. (1.5 m).

4. The treadmill is intended for home use only. Do not use the treadmill in any commercial, rental, or institutional setting.

14. Keep the power cord away from heated surfaces.

5. Keep the treadmill indoors, away from mois ture and dust. Do not put the treadmill in a garage or covered patio, or near water.

15. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See MAINTENANCE AND TROUBLESHOOTING on page 24 if the treadmill is not working properly.) 6. Place the treadmill on a level surface, with at least 8 ft. (2.4 m) of clearance behind it and 2 ft. (0.6 m) on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

16. Read, understand, and test the emergency stop procedure before using the treadmill (see HOW TO TURN ON THE POWER on page 18). Always wear the clip while using the treadmill.

7. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

17. Always stand on the foot rails when starting or stopping the walking belt. Always hold the handrails while using the treadmill.

8. Keep children under age 12 and pets away from the treadmill at all times.

18. When a person is walking on the treadmill, the noise level of the treadmill will increase.

9. The treadmill should be used only by per sons weighing 300 lbs. (136 kg) or less.

19. Keep fingers, hair, and clothing away from the moving walking belt.

10. Never allow more than one person on the treadmill at a time.

20. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.

11. Wear appropriate exercise clothes while using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recom mended for both men and women.

sandals.

Always wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in

21. The heart rate monitor is not a medical device. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determin ing heart rate trends in general.

3

22. Never leave the treadmill unattended while it is running. Always remove the key, press the power switch into the off position (see the drawing on page 5 for the location of the power switch), and unplug the power cord when the treadmill is not in use.

23. Do not attempt to move the treadmill until it is properly assembled. (See ASSEMBLY on page 7 and HOW TO FOLD AND MOVE THE TREADMILL on page 23.) You must be able to safely lift 45 lbs. (20 kg) to move the treadmill.

24. When folding or moving the treadmill, make sure that the storage latch is holding the frame securely in the storage position.

25. Do not change the incline of the treadmill by placing objects under the treadmill.

26. Never insert any object into any opening on the treadmill.

27. Inspect and properly tighten all parts of the treadmill regularly.

28.

DANGER:

Always unplug the power cord immediately after use, before clean ing the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized ser vice representative only.

29. Over exercising may result in serious injury or death. If you feel faint, if you become short of breath, or if you experience pain while exercising, stop immediately and cool down.

SAVE THESE INSTRUCTIONS

4

BEFORE YOU BEGIN

Thank you for selecting the new HEALTHRIDER workouts at home more effective and enjoyable.

® H100T treadmill. The H100T treadmill provides an impressive selection of features designed to make your

For your benefit, read this manual carefully before you use the treadmill.

If you have questions after reading this manual, please see the front cover of this manual. To help us assist you, note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

Length: 6 ft. 1 in. (185 cm) Width: 3 ft. (91 cm) Handrail Tablet Holder Console Heart Rate Monitor Key/Clip Walking Belt Foot Rail Motor Hood Power Switch Wheel Platform Cushions

5

PART IDENTIFICATION CHART

Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly.

Note: If a part is not in the hardware kit, check to see whether it is preattached. Extra parts may be included.

#8 x 1/2" Silver Screw (10)–1 5/16" Star Washer (11)–6 3/8" Star Washer (13)–6 #8 x 3/4" Screw (2)–4 5/16" x 3" Screw (28)–4 3/8" x 4" Screw (7)–6

6

ASSEMBLY

• Assembly requires two persons.

• Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing materials until you finish all assembly steps.

• After shipping, there may be an oily substance on the exterior of the treadmill. This is normal. If there is an oily substance on the treadmill, wipe it off with a soft cloth and a mild, non-abrasive cleaner.

• Left parts are marked “L” or “Left” and right parts are marked “R” or “Right.” • To identify small parts, see page 6.

• Assembly requires the following tools: the included hex keys one Phillips screwdriver one adjustable wrench To avoid damaging parts, do not use power tools. 1.

Go to www.iconsupport.eu on your computer and register your product.

• activates your warranty • saves you time if you ever need to contact Customer Service • allows us to notify you of upgrades and offers Note: If you do not have Internet access, call Customer Service (see the front cover of this manual) and register your product.

1

7

2.

Make sure that the power cord is unplugged.

Press a Base Cap (74) into each side of the Base (62).

Identify the Right Upright (90). Have a second person hold the Right Upright near the Base (62).

See the inset drawing.

Right Upright. Tie the wire tie in the Right Upright (90) securely around the end of the Upright Wire (81). Then, insert the Upright Wire into the lower end of the Right Upright as you pull the other end of the wire tie through the 2 Wire Tie 81 74 90 74 81 90 62 3. Lay the Right Upright (90) near the Base (62). Press the Grommet (77) into the square hole in the Right Upright.

Make sure not to pinch the ground wire.

If there is a screw (A) preattached to the Right Upright (90), remove and discard it.

Then, attach the ground wire to the Right Upright (90) with a #8 x 1/2" Silver Screw (10).

3 A 62 10 90 77

8

4. Hold the Right Upright (90) against the Base (62).

Be careful not to pinch the wires.

Partially tighten three 3/8" x 4" Screws (7) with three 3/8" Star Washers (13) into the Right Upright and the Base;

do not fully tighten the Screws yet.

Attach the Left Upright (not shown) in the same way.

Note: There are no wires on the left side.

4 90 5.

Identify the Left and Right Base Covers (82, 83). Slide the Left and Right Base Covers onto the Left and Right Uprights (89, 90) as shown.

Do not press the Base Covers into place yet.

5 62 Wires 13 7 89 82 90 83

9

6. Identify the Right Handrail (84).

Attach the Right Handrail (84) to the Right Upright (90) with two 5/16" x 3" Screws (28) and two 5/16" Star Washers (11);

pinch the Upright Wire (81). start both Screws, and then tighten them. Make sure not to Attach the Left Handrail (not shown) to the Left Upright (not shown) in the same way.

Note: There are no wires on the left side.

6 84 28 11 90 81 7. Set the Console Base (64) face down on a soft surface to avoid scratching the Console Base. Remove and discard the two indicated screws (A). Then, remove the Pulse Crossbar (31).

7 A 31 A 64

10

8. If there are four screws (B) preattached inside the Handrails (84, 85), remove and discard the screws.

IMPORTANT: To avoid damaging the Pulse Crossbar (31), do not use power tools and do not overtighten the #10 x 1 1/4" Screws (9).

Orient the Pulse Crossbar (31) as shown. Attach the Pulse Crossbar to the Right and Left Handrails (84, 85) with four #10 x 1 1/4" Screws (9) and four #10 Star Washers (5);

start all four Screws, and then tighten them.

8 5 9 85 B 31 9 B 84 5 9. With the help of a second person, hold the con sole assembly near the Right Handrail (84) and the Left Handrail (not shown).

Connect the ground wire from the console assembly to the Console Ground Wire (58) on the Pulse Crossbar (31).

Upright Wire (81) to the console wire.

connectors should slide together easily and snap into place.

connector and try again.

Next, connect the

The

If they do not, turn one

IF YOU DO NOT CONNECT THE CONNECTORS PROPERLY, THE CONSOLE MAY BECOME DAMAGED WHEN YOU TURN ON THE POWER.

Then, remove the wire tie from the Upright Wire.

9 84 81 Wire Tie Console Assembly 31 58 Ground Console Wire 81 Wire

11

10. Set the console assembly on the Right and Left Handrails (84, 85).

Make sure that no wires are pinched.

Insert the excess Upright Wire (81) into the Right Upright (90).

Attach the console assembly to the brackets on the Handrails (84, 85) with four 1/4" x 1/2" Screws (4);

do not tighten the Screws yet.

10 84 4 81 90 Console Assembly 85 4 11. Attach the Pulse Crossbar (31) to the console assembly with six #8 x 1/2" Screws (1);

start all six Screws, and then tighten them.

Then, firmly tighten the four 1/4" x 1/2" Screws (4).

11 Console Assembly 4 1 31 1 4

12

12. Attach the Right and Left Trays (27, 36) with four #8 x 1/2" Screws (1).

12 27 13.

Firmly tighten all six 3/8" x 4" Screws (7).

Then, slide the Left and Right Base Covers (82, 83) downward.

13 82 7 1 1 36 1 83 7

13

14. Raise the Frame (56) to the upright position.

Have a second person hold the Frame until step 16 is completed.

Remove the two 5/16" x 3/4" Screws (41) from the Latch Crossbar (96).

Orient the Latch Crossbar (96) as shown.

(B) is facing the treadmill.

removed and two 5/16" Star Washers (11).

Make sure that the “This side toward belt” sticker

Attach the Latch Crossbar to the brackets on the Frame (56) with the two 5/16" x 3/4" Screws (41) that you just 14 11 41 56 Brackets 96 B 41 11 15. Remove the 5/16" Nut (94) and the 5/16" x 1 3/4" Bolt (6) from the bracket on the Base (62). Next, orient the Storage Latch (63) as shown. Attach the lower end of the Storage Latch (63) to the bracket on the Base (62) with the 5/16" x 1 3/4" Bolt (6) and the 5/16" Nut (94).

Then, raise the Storage Latch (63) to a vertical position, and remove the tie.

15 Tie 63 94 62 6

14

16. Remove the 5/16" Nut (94) and the 5/16" x 2 1/4" Bolt (95) from the bracket on the Latch Crossbar (96).

Align the upper end of the Storage Latch (63) with the bracket on the Latch Crossbar (96), and insert the 5/16" x 2 1/4" Bolt (95) through the bracket and the Storage Latch.

spacer.

This will push a spacer (C) out of the other end; discard the

Next, tighten the 5/16" Nut (94) onto the 5/16" x 2 1/4" Bolt (95);

do not overtighten the Nut; the Storage Latch (63) must be able to pivot.

Then, lower the Frame (56) (see HOW TO LOWER THE TREADMILL FOR USE on page 23).

16 56 94 C 96 95 63 17. Attach the Tablet Holder (25) to the back of the console assembly with four #8 x 3/4" Screws (2);

start all four Screws, and then tighten them. Do not overtighten the Screws.

17 2 2 25 18.

Make sure that all parts are properly tightened before you use the treadmill.

If there are sheets of plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex key in a secure place; the hex key is used to adjust the walking belt (see pages 15 and 26). Note: Extra hardware may be included.

15

UK FR/SP IT

HOW TO USE THE TREADMILL

HOW TO PLUG IN THE POWER CORD This product must be earthed.

If it should malfunc tion or break down, earthing provides a path of least resistance for electric current to reduce the risk of electric shock. This product’s power cord has an equipment-earthing conductor and an earthing plug.

IMPORTANT: If the power cord is damaged, it must be replaced with a manufacturer-recommended power cord.

Follow the steps below to plug in the power cord.

1. Plug the indicated end of the power cord into the socket on the treadmill.

Socket on Treadmill

AUS

Power Cord

DANGER:

Improper connection of the equipment-earthing conductor can result in an increased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly earthed. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

GR

2. Plug the power cord into an appropriate outlet that is properly installed and earthed in accordance with all local codes and ordinances.

UK

Outlet

Australia

Outlet

UK AUS FR/SP

16

GR HU IT IT UK FR/SP

CONSOLE DIAGRAM FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of features designed to make your workouts more effec tive and enjoyable. When you use the manual mode, you can change the speed and incline of the treadmill with the touch of a button. As you exercise, the console will display instant exercise feedback. You can even measure your heart rate using the handgrip heart rate monitor or the optional chest heart rate monitor.

In addition, the console features a selection of onboard workouts. Each workout automatically controls the speed and incline of the treadmill as it guides you through an effective exercise session.

You can even listen to your favorite workout music or audio books with the console’s sound system while you exercise.

To turn on the power,

see page 18.

To use the man ual mode,

see page 18.

To use an onboard workout,

see page 20.

To use the 8-week weight loss pro gram,

see page 21.

To use the information mode,

see page 21.

To use the sound system,

see page 22.

To use the tablet holder,

see page 22.

Note: The console can display speed and distance in either miles or kilometers. To find which unit of measurement is selected, see THE INFORMATION MODE on page 21. For simplicity, all instructions in this manual refer to kilometers.

IMPORTANT: If there are sheets of plastic on the console, remove the plastic. To prevent damage to the walking platform, wear clean athletic shoes while using the treadmill. The first time you use the treadmill, observe the alignment of the walking belt, and center the walking belt if necessary (see page 26).

ETGNE79715

17

ETGNE79715

HOW TO TURN ON THE POWER IMPORTANT: If the treadmill has been exposed to cold temperatures, allow it to warm to room tem perature before you turn on the power. If you do not do this, you may damage the console displays or other electrical components.

Plug in the power cord (see page 18). Next, locate the power switch on the treadmill frame near the power cord. Press the power switch into the reset position.

Reset Next, stand on the foot rails of the treadmill. Find the clip attached to the key, and slide the clip onto the waistband of your clothes. Then, insert the key into the console. After a moment, the displays will light. Key Clip

IMPORTANT: In an emergency, the key can be pulled from the console, causing the walking belt to slow to a stop. Test the clip by carefully tak ing a few steps backward; if the key is not pulled from the console, adjust the position of the clip.

IMPORTANT: Before you use the treadmill, take the following steps to ensure that the console shows the correct incline level of the treadmill: First, press the Incline increase button once. Next, press either the Incline decrease button or the lowest Quick incline button to set the treadmill to its lowest setting. When the frame stops moving, the treadmill is ready for use.

HOW TO USE THE MANUAL MODE 1. Insert the key into the console.

See HOW TO TURN ON THE POWER at the left.

2. Select the manual mode.

Press the Manual Control button on the console to select the manual mode.

3. Start the walking belt.

To start the walking belt, press the Start button, the Speed increase button, or one of the Quick speed buttons numbered 2 through 18.

If you press the Start button or the Speed increase button, the walking belt will begin to move at 2 Km/H. As you exercise, change the speed of the walking belt as desired by pressing the Speed increase and decrease buttons. Each time you press one of the buttons, the speed setting will change by 0.1 Km/H; if you hold down the button, the speed setting will change in increments of 0.5 Km/H. Note: After you press the button, it may take a moment for the walking belt to reach the selected speed setting.

If you press one of the numbered Quick speed but tons, the walking belt will gradually change speed until it reaches the selected speed setting.

To stop the walking belt, press the Stop button. The time will begin to flash in the display. To restart the walking belt, press the Start button or the Speed increase button.

4. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the Incline increase or decrease button or one of the Quick incline buttons numbered 0 through 10. Each time you press one of the buttons, the treadmill will gradually adjust to the selected incline setting.

18

5. Follow your progress with the displays.

—This display will show the incline setting for several seconds, each time the incline changes. This display will also show the approximate amount of calories you have burned.

—When the manual mode is selected, this display will show the elapsed time. When a workout is selected, the display will show the time remaining in the workout rather than the elapsed time. This display will also show the dis tance that you have walked or run.

heart rate when you use the handgrip heart rate monitor. This display will also show the speed of the walking belt.

—This display will show your To reset the displays, press the Stop button, remove the key, and then reinsert the key.

6. Measure your heart rate if desired.

You can measure your heart rate using either the handgrip heart rate monitor or an optional chest heart rate monitor

monitor).

BLUETOOTH ®

(see page 22 for infor mation about the optional chest heart rate

Note: The console is compatible with Smart heart rate monitors.

Note: If you use both heart rate monitors at the same time, the console will not display your heart rate accurately.

Before using the handgrip heart rate monitor, remove the sheets of plastic from the metal con tacts on the pulse bar. In addition, make sure that your hands are clean. To measure your heart rate,

stand on the foot rails

and hold the pulse bar with your palms on the contacts;

avoid moving your hands.

Contacts When your pulse is detected, several dashes will appear and then your heart rate will be shown.

For the most accurate heart rate reading, continue to hold the contacts for about 15 seconds.

7. Turn on the fan if desired.

The fan features several speed settings. Press the fan buttons repeatedly to select a fan speed or to turn on or turn off the fan.

8. When you are finished exercising, remove the key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to zero. The incline must be at zero or you may damage the treadmill when you fold it to the storage posi tion.

Next, remove the key from the console and put it in a secure place. When you are finished using the treadmill, press the power switch into the off position and unplug the power cord.

IMPORTANT: If you do not do this, the treadmill’s electrical components may wear prematurely.

19

GGTL59613

HOW TO USE AN ONBOARD WORKOUT 1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 18.

2. Select an onboard workout.

To select an onboard workout, press the Performance Workouts button or one of the Onboard Quick Calorie buttons repeatedly until the desired workout appears in the display.

When you select an onboard workout, the displays will show the maximum incline, the maximum speed, and the duration of the workout.

3. Start the workout.

Press the Start button or the Speed increase button to start the workout. A moment after you press the button, the treadmill will automatically adjust to the first speed and incline settings of the workout. Hold the handrails and begin walking.

Each workout is divided into segments. One speed setting and one incline setting are programmed for each segment. Note: The same speed setting and/ or incline setting may be programmed for consecu tive segments.

If the speed or incline setting is too high or too low at any time during the workout, you can manu ally override the setting by pressing the Speed or Incline buttons;

however, when the next seg ment of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

To stop the workout at any time, press the Stop button. The time will begin to flash in the display. To resume the workout, press the Start button or the Speed increase button. The walking belt will begin to move at 2 Km/H. When the next segment of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

4. Follow your progress with the displays.

See step 5 on page 19.

5. Measure your heart rate if desired.

See step 6 on page 19.

6. Turn on the fan if desired.

See step 7 on page 19.

7. When you are finished exercising, remove the key from the console.

See step 8 on page 19.

20

HOW TO USE THE 8-WEEK WEIGHT-LOSS PROGRAM 1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 18.

2. Select the desired week of the program.

To select the desired week of the program, press the Select Week button repeatedly until the number of the desired week appears in the display.

3. Select the desired day of the program.

There are three day workouts for each week of the program. To select the desired day of the program, press the Select Day button repeatedly until the number of the desired day appears in the display.

4. Enter your weight.

To allow the console to calculate the amount of cal ories you will burn more accurately, press the Enter Weight increase and decrease buttons to enter your weight. The console will adjust the workout’s intensity level according to the weight entered.

5. Start the workout.

Press the Commit button, and then press the Start button to start the workout.

The workout will function in the same way as an onboard workout (see step 3 on page 20).

6. Follow your progress with the displays.

See step 5 on page 19. The Time/Distance display will show the time remaining instead of the elapsed time.

7. Measure your heart rate if desired.

See step 6 on page 19.

8. Turn on the fan if desired.

See step 7 on page 19.

9. Whenyouarefinishedexercising,removethe key from the console.

See step 8 on page 19.

THE INFORMATION MODE

The console features an information mode that keeps track of the total number of hours that the treadmill has been used and the total distance that the walking belt has moved. The information mode also allows you to select kilometers or miles as the unit of measurement.

To select the information mode, hold down the Stop button while inserting the key into the console and then release the Stop button. When the information mode is selected, the following information will be shown: The Incline/Calories display will show the total number of hours the treadmill has been used. The Time/Distance display will show the total number of kilometers or miles that the walking belt has moved. An E for English miles or an M for metric kilometers will appear in the Pulse/Speed display. Press the Speed decrease button to change the unit of measurement if desired. To exit the information mode, remove the key from the console.

21

HOW TO USE THE SOUND SYSTEM

To play music or audio books through the console sound system while you exercise, plug a 3.5 mm male to 3.5 mm male audio cable (not included) into the jack on the console and into a jack on your MP3 player, CD player, or other personal audio player;

store.

make sure that the audio cable is fully plugged in. Note: To purchase an audio cable, see your local electronics

Next, press the play button on your MP3 player, CD player, or other personal audio player. Adjust the volume on your per sonal audio player or press the volume increase and decrease buttons on the console.

If you are using a personal CD player and the CD skips, set the CD player on the floor or another flat surface instead of on the console.

THE OPTIONAL CHEST HEART RATE MONITOR

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the best results is to maintain the proper heart rate during your workouts. The optional chest heart rate monitor will enable you to continuously monitor your heart rate while you exercise, helping you to reach your personal fitness goals.

To purchase a chest heart rate moni tor, please see the front cover of this manual.

Note: The console is compatible with all BLUETOOTH Smart heart rate monitors.

HOW TO USE THE TABLET HOLDER

You can use your tablet to browse media while you exercise. Place your tablet on the tablet holder and let the tablet holder hold your tablet in place.

GGTL59613

22

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline to zero before you fold the treadmill. Then, remove the key and unplug the power cord. CAUTION: You must be able to safely lift 45 lbs. (20 kg) to raise, lower, or move the treadmill.

1. Hold the metal frame firmly in the location shown by the arrow below.

CAUTION: Do not hold the frame by the plastic foot rails. Bend your legs and keep your back straight.

Before moving the treadmill, fold it as described at the left.

CAUTION: Make sure that the latch knob is locked in the storage position. Moving the treadmill may require two people.

1. Hold the frame and one of the handrails, and place one foot against a wheel.

1 1 Frame Handrail Frame Wheel 2. Raise the frame until the storage latch locks in the storage position.

CAUTION: Make sure that the storage latch locks.

2 Frame Latch treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° F (30° C).

2. Pull back on the handrail until the treadmill will roll on the wheels, and carefully move it to the desired location.

CAUTION: Do not move the tread mill without tipping it back, do not pull on the frame, and do not move the treadmill over an uneven surface.

3. Place one foot against a wheel, and carefully lower the treadmill.

HOW TO LOWER THE TREADMILL FOR USE

1. Push the upper end of the frame forward, and gently press the upper part of the storage latch with your foot at the same time.

1 2. While pressing the storage latch with your foot, pull the upper end of the frame toward yourself.

3. Step back and let the frame lower to the floor.

2

23

MAINTENANCE AND TROUBLESHOOTING

MAINTENANCE

Regularly clean the treadmill and keep the walking belt clean and dry. First,

press the power switch into the off position and unplug the power cord.

a small amount of mild soap.

console.

Wipe exterior parts of the treadmill with a damp cloth and

IMPORTANT: Do not spray liquids directly onto the treadmill. To avoid damage to the console, keep liquids away from the

Then, thoroughly dry the treadmill with a soft towel.

TROUBLESHOOTING Most treadmill problems can be solved by follow ing the simple steps below. Find the symptom that applies, and follow the steps listed. If further assis tance is needed, see the front cover of this manual. SYMPTOM: The power does not turn on

a. Make sure that the power cord is plugged into a properly earthed outlet (see page 16). If an exten sion cord is needed, use only a 3-conductor, 14-gauge (1 mm 2 ) cord that is no longer than 5 ft. (1.5 m).

b. After the power cord has been plugged in, make sure that the key is inserted into the console.

c. Check the power switch located on the treadmill frame near the power cord. If the switch protrudes as shown, the switch has tripped. To reset the power switch, wait for five minutes and then press the switch back in.

SYMPTOM: The power turns off during use

a. Check the power switch (see drawing c at the left). If the switch has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five minutes, and then plug it back in.

c. Remove the key from the console, and then reinsert it.

d. If the treadmill still will not run, please see the front cover of this manual.

SYMPTOM: The displays of the console do not function properly

a.

UNPLUG THE POWER CORD.

Hood (65).

Next, r emove the five #8 x 3/4" Screws (2), and carefully pivot off the Motor a 2 65 2 2 2 c Tripped Reset

24

Next, locate the Reed Switch (52) and the Magnet (50) on the left side of the Pulley (49). Turn the Pulley until the Magnet is aligned with the Reed Switch.

mm).

Make sure that the gap between the Magnet and the Reed Switch is about 1/8 in. (3

If necessary, loosen the #8 x 3/4" Tek Screw (14), move the Reed Switch slightly, and then retighten the Tek Screw. Reattach the Motor Hood (not shown), and run the treadmill for a few minutes to check for a correct speed reading.

Top View

1/8 in.

52 14 50 49

SYMPTOM: The walking belt slows when walked on

a. ductor, 14-gauge (1 mm 2 ) cord that is no longer than 5 ft. (1.5 m).

b. If the walking belt is overtightened, treadmill per formance may decrease and the walking belt may become damaged. Remove the key and

UNPLUG THE POWER CORD.

Using the hex key, turn both idler roller screws counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walk ing belt is properly tightened.

b 2–3 in.

SYMPTOM: The incline of the treadmill does not change correctly

a. button, insert the key into the console, and then release the Stop button and the Speed increase button. Next, press the Stop button, and then press the Incline increase or decrease button. The treadmill will automatically rise to the maximum incline level and then return to the minimum level. This will recalibrate the incline system. If the incline system does not begin calibrating, press the Stop button again, and then press the Incline increase or decrease button again. When the incline system is calibrated, remove the key from the console.

Idler Roller Screws c. Your treadmill features a walking belt coated with high-performance lubricant.

IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking platform unless instructed to do so by an authorized service representative. Such substances may deterio rate the walking belt and cause excessive wear.

If you suspect that the walking belt needs more lubricant, see the front cover of this manual.

d. If the walking belt still slows when walked on, see the front cover of this manual.

25

SYMPTOM: The walking belt is not centered between the foot rails. IMPORTANT: If the walking belt rubs against the foot rails, the walking belt may become damaged.

a. First, remove the key and

UNPLUG THE POWER CORD.

If the walking belt has shifted to the left,

use the hex key to turn the left idler roller screw clockwise 1/2 of a turn;

if the walking belt has shifted to the right,

turn the left idler roller screw counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt.

centered. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is

SYMPTOM: The walking belt slips when walked on

a. First, remove the key and

UNPLUG THE POWER CORD.

Using the hex key, turn both idler roller screws clockwise, 1/4 of a turn. When the walk ing belt is correctly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat until the walk ing belt is properly tightened.

a a Foot Rails

26

EXERCISE GUIDELINES WARNING:

or any exercise program, consult your physi cian. This is especially important for persons over age 35 or persons with pre-existing health problems.

Before beginning this The heart rate monitor is not a medical device. Various factors may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determin ing heart rate trends in general.

These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper inten sity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level. The chart below shows recommended heart rates for fat burning and aerobic exercise.

To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the near est ten years). The three numbers listed above your age define your “training zone.” The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.

Burning Fat

—To burn fat effectively, you must exer cise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.

Aerobic Exercise

zone.

—If your goal is to strengthen your cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training

WORKOUT GUIDELINES Warming Up

for exercise. —Start with 5 to 10 minutes of stretch ing and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation

Training Zone Exercise

—Exercise for 20 to 30 min utes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise; never hold your breath.

Cooling Down

—Finish with 5 to 10 minutes of stretch ing. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exer cise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.

27

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.

1

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.

3 2

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.

4 5

28

NOTES

29

NOTES

30

PART LIST

Model No. HETL79615.0 R0415A

Key No. Qty. Description

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 40 41 42 43 44 45 46 47 48 12 31 2 4 4 1 6 1 4 11 6 4 6 9 3 1 2 1 4 2 2 2 4 2 1 1 1 4 1 4 1 2 6 4 4 1 6 2 2 1 1 1 1 2 1 4 1 #8 x 1/2" Screw #8 x 3/4" Screw Base Pad 1/4" x 1/2" Screw #10 Star Washer 5/16" x 1 3/4" Bolt 3/8" x 4" Screw 1/4" Nut #10 x 1 1/4" Screw #8 x 1/2" Silver Screw 5/16" Star Washer #8 x 1" Tek Screw 3/8" Star Washer #8 x 3/4" Tek Screw 1/4" x 2 1/2" Screw 3/8" x 1 1/2" Bolt 3/8" x 1 1/2" Wheel Bolt Console Frame #8 x 7/16" Screw 1/4" Motor Screw 3/8" Pin 3/8" x 1" Bolt 5/16" x 1 3/4" Shoulder Bolt #8 Star Washer Tablet Holder Console Clamp Right Tray 5/16" x 3" Screw 3/8" x 1 3/4" Hex Bolt 5/16" Flat Washer Pulse Crossbar Incline Motor Spacer 3/8" Jam Nut 5/16" Nut 1/4" x 1 1/4" Screw Left Tray #8 x 5/8" Screw 38 2 Wheel 39 4 Isolator Rear Foot 5/16" x 3/4" Screw Left Foot Rail Warning Decal Walking Platform Walking Belt Belt Guide Right Rear Foot Cable Tie 49 Drive Roller/Pulley 50 1 Magnet

Key No. Qty.

51 52 53 54 55 56 1 Frame 57 58 59 60 61 63 64 65 66 67 68 69 70 71 74 75 76 78 79 81 82 83 84 85 86 87 89 1 1 2 1 1 1 1 4 1 1 2 1 1 1 2 1 1 1 1 1 2 2 1 1 2

Description

Reed Switch Clip Reed Switch 1/4" x 1 1/2" Screw Drive Motor Motor Belt Left Rear Foot Console Ground Wire Rubber Cushion Right Foot Rail Idler Roller 62 1 Base 1 1 1 4 2 5 1 1 2 Storage Latch Console Base Motor Hood Cushion Bottom Incline Frame Spacer Hood Clip Incline Motor Incline Frame 73 1 Frame Spacer 72 1 Controller Controller Plate Base Cap Power Switch Power Cord 77 1 Grommet Belly Pan Handrail Grip 80 1 Console Upright Wire Left Base Cover Right Base Cover Right Handrail Left Handrail Cable Tie Handrail Cap 88 1 Key/Clip Left Upright 90 91 92 1 Receptacle 93 8 Right Upright Caution Decal M5 Washer 94 95 96 97 98 * 2 1 1 1 2 – 5/16" Nut 5/16" x 2 1/4" Bolt Latch Crossbar Motor Isolator Motor Bushing 99 1 Filter User’s Manual Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual. *These parts are not illustrated.

31

EXPLODED DRAWING A

Model No. HETL79615.0 R0415A 14 93 14 93

32

30 34

EXPLODED DRAWING B

2 Model No. HETL79615.0 R0415A 2 65 2 2 2 68 71 2 67 2 68 29 33 69 70 16 32 33 33 33 67 71 72 76 68 92 75 68 68 2 78 2 2

33

EXPLODED DRAWING C

9 5 28 11 85 4 1 79 1 87 31 10 1 1 58 89 Model No. HETL79615.0 R0415A 1 79 28 11 84 9 5 4 81 7 82 13 22 87 74 38 33 17 91 12 3 17 38 33 62 91 90 22 81 77 12 10 3 83 74 13 7

34

EXPLODED DRAWING D

36 64 1 2 Model No. HETL79615.0 R0415A 86 2 2 1 2 1 1 2 80 1 1 27 18 2 2 25 2 88 2

35

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) • the name of the product (see the front cover of this manual) • the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING near the end of this manual)

RECYCLING INFORMATION

This electronic product must not be disposed of in municipal waste. To preserve the environment, this product must be recycled after its useful life as required by law.

Please use recycling facilities that are authorized to collect this type of waste in your area. In doing so, you will help to conserve natural resources and improve European standards of environmental protection. If you require more information about safe and correct disposal methods, please contact your local city office or the establishment where you purchased this product.

Part No. 368592 R0415A Printed in China © 2015 ICON Health & Fitness, Inc.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
