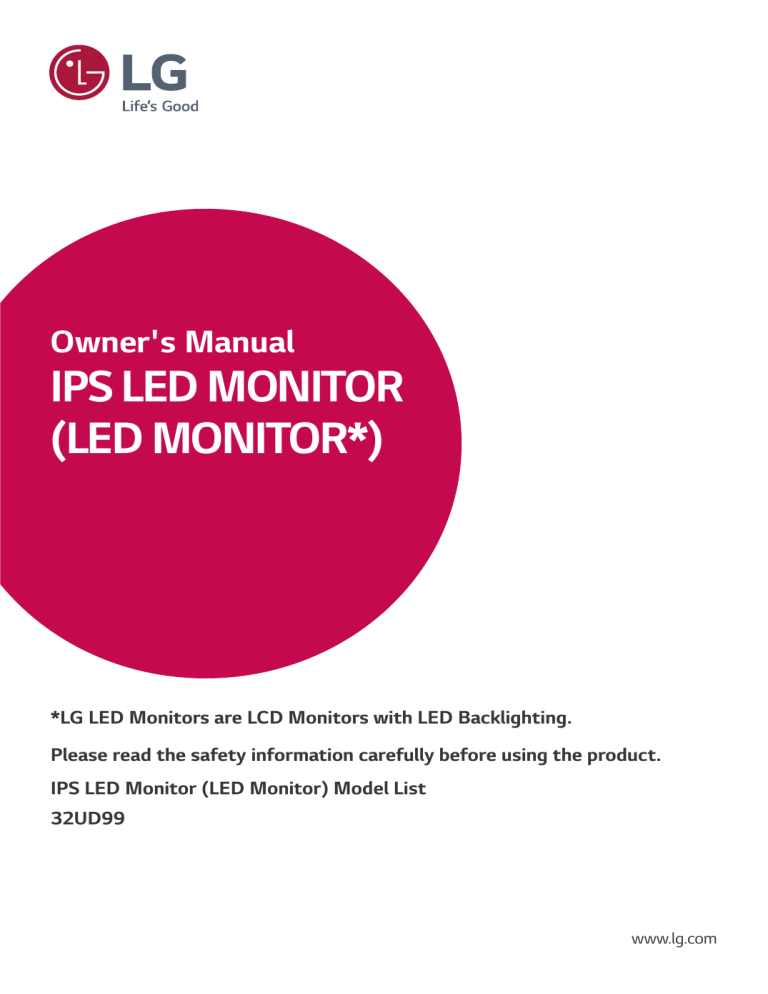

Owner's Manual
IPS LED MONITOR
(LED MONITOR*)
*LG LED Monitors are LCD Monitors with LED Backlighting.
Please read the safety information carefully before using the product.
IPS LED Monitor (LED Monitor) Model List
32UD99
www.lg.com
2
CONTENTS
LICENSE
ASSEMBLING AND PREPARING
5 Supported Drivers and Software
6 Component and Button Description
6 - How to Use the Joystick Button
8 Moving and Lifting the Monitor
12 - Adjusting the Stand Height
14 - Using the Kensington lock
15 - Installing the wall mount plate
USING THE MONITOR
19 - USB Cable connection - PC
19 Connecting to External Devices
USER SETTINGS
TROUBLESHOOTING
SPECIFICATIONS
30 Factory Support Mode (Preset Mode, PC)
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
VESA, VESA logo, DisplayPort compliance logo and DisplayPort compliance logo for dual-mode source devices are all registered trademarks of the Video Electronics Standards Association.
3
The SuperSpeed USB Trident logo is a registered trademark of USB Implementers
Forum, Inc.
The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP
Directive:
* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to display.
* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.
4
ASSEMBLING AND PREPARING
Product Components
Please check whether all the components are included in the box before using the product. If there are missing components, contact the retail store where you purchased the product. Note that the product and components may look different from those shown here.
CD(Owner's Manual) /
Card
Power Cord AC-DC Adapter
( Depending on the country )
HDMI Cable
( This cable is not included in all countries. )
DisplayPort Cable USB C-C cable USB C-A Gender
Stand Body Stand Base Cable Holder
CAUTION y y
Always use genuine components to ensure safety and product performance.
The product warranty will not cover damage or injury caused by the use of counterfeit components.
y It is recommend that use the supplied components.
y If you use generic cables not certified by LG, the screen may not display or there may be image noises.
NOTE y Note that the components may look different from those shown here.
y Without prior notice, all information and specifications in this manual are subject to change to improve the performance of the product.
y To purchase optional accessories, visit an electronics store or online shopping site or contact the retail store where you purchased the product.
5
Supported Drivers and Software
Check the drivers and software supported by your product and refer to the manuals on the CD enclosed in the product package.
Drivers and Software
Monitor Driver
OnScreen Control
Dual Controller
True Color Pro
Installation Priority
Recommended
Recommended
Optional
Optional
32UD99
O
O
O
O y Required and Recommended: You can download and install the latest version from the enclosed CD or from the
LGE website (www.lg.com).
y Optional: You can download and install the latest version from the LGE website (www.lg.com).
6
Component and Button Description
Joystick Button
Power LED y On: power is on y Off: power is off
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your finger.
Basic Functions
Power on
Press the joystick button once with your finger to turn on the monitor.
Power off
Press and hold the joystick button once with your finger to turn off the monitor.
◄ / ►
Volume
Control
You can control the volume by moving the joystick button left/right.
NOTE y The joystick button is located at the bottom of the monitor.
Input Connector
7
8
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation regardless of its shape or size.
y It is advisable to place the monitor in the original box or packing material before attempting to move it.
y Before moving or lifting the monitor, disconnect the power cord and all cables.
y Hold the top and bottom of the monitor frame firmly. Do not hold the screen itself.
CAUTION y As far as possible, avoid touching the monitor screen. This may result in damage to the screen or some of the pixels used to create images.
y When holding the monitor, the screen should face away from you to prevent it being scratched.
y If you use the monitor panel without the stand base, its joystick button may cause the monitor to become unstable and fall, resulting in damage to the monitor or human injury. In addition, this may cause the joystick button to malfunction.
y When moving the monitor, avoid any strong shock or vibrations to the product.
y When moving the monitor, keep it upright, never turn the monitor on its side or tilt it sideways.
Installing the Monitor
Assembling the stand base
1 Please put a soft cloth on a low table or box to protect the screen of the monitor.
4 Turn the screw clockwise to secure the stand base .
9
2 Please put the monitor on the soft cloth with the screen facing down.
3 1 2 Head and Stand body .
CAUTION y To avoid injury to your fingers or feet when you
Assembly the Stand Body and Base, you should hold the Stand Base firmly.
NOTE y Press the stand until the button reaches the top.
1 2 Assemble the Stand body and Stand base .
10
CAUTION y Illustrations in this document represent typical procedures, so they may look different from the actual product.
y Do not carry the monitor upside down by just holding the stand base. This may cause the monitor to fall off the stand and could result in personal injury.
y When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen may cause damage to it.
y Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.) y Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.
Using the cable holder
Arrange the cables using the cable holder as shown in the illustration.
Cable Holder
NOTE y You can disassemble the stand in the reverse order of the assembly.
11
Installing onto a table
1 Lift the monitor and place it on the table in an upright position.
Place at least 3.94 inches away from the wall to ensure sufficient ventilation.
3.94 inches
3.94 inches
3.94 inches
3.94 inches
Cautions When Connecting Power Cord
100-240 V ~ y Make sure to use the power cord that is provided in the product package and connect it to a grounded power outlet. y If you need another power cord, please contact your local dealer or the nearest retail store.
2 Connect the Power cord to the monitor, then plug the power cord into the wall outlet.
3 Press the joystick button on the bottom of the monitor to turn on the monitor.
CAUTION y Unplug the power cord prior to moving or installing the monitor. There is risk of electric shock.
12
Adjusting the angle
1 Place the monitor in an upright position, mounted on the stand base.
2 Adjust the angle of the screen. The angle of the screen can be adjusted forwards or backwards for a comfortable viewing experience.
Adjusting the Stand Height
1 Handle the monitor with both hands for safety.
2 The height can be adjusted up to 4.33 inches.
4.33 inches
Rear Side Front Side
WARNING y To avoid injury to the fingers when adjusting the screen, do not hold the lower part of the monitor's frame as illustrated below.
WARNING y Do not put your fingers or hand between the screen and the base
(chassis) when adjusting the screen's height.
y Be careful not to touch or press the screen area when adjusting the angle of the monitor.
Pivot Feature
The pivot feature allows the monitor to rotate 90° clockwise.
Head
13
3 Rotate the monitor clockwise as shown in the figure.
Stand
WARNING y To avoid scratching the stand base, make sure that when rotating the monitor using the pivot feature, the stand does not make contact with the monitor.
1 Raise the monitor to the maximum height.
4 Complete the installation by rotating the monitor
90° as shown below.
2 Adjust the angle of the monitor in the direction of the arrow as shown in the figure.
NOTE y Auto Pivot feature of the display is not supported.
y The screen can be rotated easily using the screen pivot shortcut key provided with your Windows operating system. Note that some Windows versions and some graphics card drivers may use different settings for the screen pivot key or may not support the pivot key at all. y Windows screen pivot shortcut keys
0°: Ctrl + Alt + Up arrow key ( ↑ )
90°: Ctrl + Alt + Left arrow key ( ← )
180°: Ctrl + Alt + Down arrow key ( ↓ )
270°: Ctrl + Alt + Right arrow key ( → )
14
WARNING y Take care when rotating the monitor if the cable is connected.
y To avoid injury when rotating the display, do not place your fingers between the display and the stand base.
NOTE y The left or right side of the monitor head can be slightly rotated up or down (up to 3°). Adjust the horizontal level of the monitor head.
Monitor head
Using the Kensington lock
The Kensington security system connector is located at the back of the Monitor set.
For more information on installation and usage, refer to the Kensington lock user manual or visit the website at http://www.kensington.com.
Connect the Kensington security system cable between the Monitor set and a table.
NOTE y Use of the Kensington lock is optional.
The accessories can be purchased at your local electronics store.
15
Detaching the Stand Body
1 Place the monitor’s screen face down. To protect the screen from scratches, cover the surface with a soft cloth.
2 Remove the stand from the monitor by pressing the button on the bottom center of the back of the monitor.
1
Installing to a wall
Install the monitor at least 3.94 inches away from the wall and leave about 3.94 inches of space at each side of the monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail store. Please refer to the manual to install and set up a tilting wall mounting bracket.
3.94 inches
3.94 inches
3.94 inches
3.94 inches
Installing the wall mount plate
This monitor supports the specification of the standard wall mount plate or compatible device.
1 Place the screen face down. To protect the screen from scratches, cover the surface with a soft cloth.
2 Place the wall mount plate onto the monitor and align it with the screw holes.
3 Tighten the four screws to fix the plate to the monitor using a screwdriver.
To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.
1 If you use screw longer than standard, the monitor might be damaged internally.
2 If you use improper screw, the product might be damaged and drop from mounted position.
In this case, LG Electronics is not responsible for it.
Wall Mount (A x B)
Standard screw
Number of screws
Wall Mount Plate
(Optional)
100 x 100
M4 x L10
4
RW120
NOTE y The wall mount plate is sold separately. y For more information on installation, refer to the wall mount plate's installation guide.
y Be careful not to use excessive force when mounting the wall mount plate, as this can damage the monitor's screen.
16 y Wall Mount (A x B)
A
B
CAUTION y Unplug the power cord before moving or installing the monitor to avoid electric shocks.
y Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. Please use the genuine LG wall mounting bracket. For more information, contact your local retail store or a qualified installer.
y Applying excessive force when fastening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty. y Use the wall mounting bracket and screws that conform to the VESA standard. Damage caused by the use or misuse of inappropriate components will not be covered by the product warranty.
y Screw length from outer surface of back cover should be under Max. 0.31 inches.
Wall mount Pad
Back Cover
Wall mount Pad
Back Cover
Standard screw
Max. 0.31 inches
NOTE y Use the screws specified by the VESA standard.
y The wall mount kit includes the installation guide and all necessary parts.
y The wall mounting bracket is optional. The accessories can be purchased at your local retail store.
y The length of the screw may differ for each wall mounting bracket. Ensure the correct length screw is used.
y For more information, please refer to the user manual for the wall mounting bracket.
17
USING THE MONITOR
Connecting to a PC
y This monitor supports the *Plug and Play feature.
*Plug and Play: A feature that allows you to add a device to your computer without having to reconfigure anything or install any manual drivers.
HDMI connection
Transmits the digital video and audio signals from your
PC and A/V devices to the monitor. Connect your PC and AV device to the monitor with the HDMI cable as illustrated below.
Press the menu button and then select the input option from the input menu.
DisplayPort connection
Transmits the digital video and audio signals from your
PC to the monitor. Connect your PC to the monitor using the Displayport cable as illustrated below.
Press the menu button and then select the input option from the input menu.
NOTE y There may be no video or audio output depending on the DP version of the PC.
y If you use generic cables not certified by LG, the screen may not display or there may be image noises.
NOTE y If you use HDMI PC, it can cause compatibility problem.
y Use a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
y Recommended HDMI cable types
- High-Speed HDMI ® / TM Cable
- High-Speed HDMI ® / TM Cable with Ethernet
18
USB-C connection
Transmits digital video and audio signals from your PC to the monitor.
Connect the monitor to your PC using the USB-C cable as shown in the illustration below.
Press the menu button and then select the input option from the input menu.
Connecting to AV Devices
HDMI connection
Transmits the digital video and audio signals from your
PC and A/V devices to the monitor. Connect your PC and AV device to the monitor with the HDMI cable as illustrated below.
Press the menu button and then select the input option from the input menu.
(USB C-C cable)
NOTE y PD(Power Delivery) and DP Alternate Mode(DP over USB-C) are supported via USB-C Port. y Features may not work properly depending on the connected device’s specifications and the environment.
y USB-C port is not for the Monitor Power source but for a PC power source.
Connect Adapter to supply power to the Monitor
NOTE y Use a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
y Recommended HDMI cable types
- High-Speed HDMI ® / TM
- High-Speed HDMI ® / TM
Cable
Cable with Ethernet
(USB C-C cable +
USB C-A Gender)
(sold separately)
19
Connecting Peripherals
USB Cable connection - PC
The USB port on the product functions as a USB hub.
Please connect the USB C-C or USB C-A cable to the
PC.
NOTE y Make sure to install the most recent Windows OS service pack before using the product.
y Peripheral devices are sold separately.
y A keyboard, mouse, or USB device can be connected to the USB port.
y When Quick Charge is set to On and upstream cable is not connected, data transmission through the USB1/2 port is not available (e.g. connecting your keyboard, mouse, or other USB storage devices to the monitor).
(Go to General > Quick Charge to set Quick y
Charge to On or Off .)
The charging speed may vary depending on the device.
Connecting to External Devices
Connecting Headphones
Connect peripherals to the monitor via the headphones port. Connect as illustrated.
(sold separately)
NOTE y Peripheral devices are sold separately.
y If you use angled earphones, it may cause a problem with connecting another external device to the monitor. Therefore, it is recommended to use straight earphones.
(sold separately)
CAUTION
Cautions When Using a USB Device y A USB device with an automatic recognition program installed, or that uses its own driver, may not be recognized.
y Some USB devices may not be supported or may not work properly.
y It is recommended to use a USB hub or hard disk drive with power supplied. (If the power supply is not adequate, the USB device may not be recognized properly.) y If Quick Charge is off and the upstream Port is not connected with Host PC, monitor may not support ‘Charge’ .
Angled Straight y Depending on the audio settings of the PC and external device, headphones and speaker functions may be limited.
20
USER SETTINGS
Activating the Main Menu
1 Press the joystick button on the bottom of the monitor.
2 Move the joystick up/down ( ▲ / ▼ ) and left/right( ◄ / ► ) to set the options.
3 Press the joystick button once more to exit the main menu.
Joystick Button
Button Menu Status
Main menu disabled
Main menu enabled
◄
►
▲
▼
Main menu disabled
Main menu enabled
Main menu disabled
Main menu enabled
Main menu disabled
Main menu enabled
Main menu disabled
Main menu enabled
Description
Enables the main menu.
Exits the main menu.
(Holding down the button to turn off the monitor. You can turn off the monitor this way at any time, including when the OSD is on.)
Adjusts the monitor volume level.
Enters the Input feature.
Adjusts the monitor volume level.
Enters the Menu features.
Displays information on the current input.
Turns off the monitor.
Displays information on the current input.
Enters the Game features.
Main Menu Features
Power Off
Power Off
Input
Input
Exit
Exit
Menu
Menu
Main Menu
Menu
Game Mode
Input
Power Off
Exit
Description
Configures the screen settings.
You can change Picture Mode to a gaming mode.
Sets input mode.
Turns off the monitor.
Exits the main menu.
Input
Power Off
Game Mode
Game Mode
Exit Menu
Input
Power Off
Game Mode
Exit Menu
Game Mode
Input
Power Off
Exit Menu
Game Mode
User Settings
Menu Settings
1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.
2 Configure the options by moving the joystick up/down/left/right.
3 To return to the upper menu or set other menu items, move the joystick to ◄ or pressing ( / Ok) it.
4 If you want to exit the OSD menu, move the joystick to ◄ until you exit. y When you enter the menu, instructions on how to use the button will appear in the bottom right corner of the screen.
Quick Settings Input Picture General
CAUTION y Your monitor’s OSD (On Screen Display) may differ slightly from that shown in this manual.
Each option is described below.
Menu > Quick Settings
Brightness
Contrast
Volume Adjusts the volume level.
Description
Adjusts the color contrast and brightness of the screen.
NOTE y You can adjust Mute / Unmute by moving the joystick button to ▼ in the Volume menu.
Menu > Input
Input List
Aspect Ratio
PBP
Main/Sub Screen
Change
Main/Sub Sound
Change
Description
Selects the input mode.
Adjusts the aspect ratio of the screen.
Full Wide Displays the video in wide-screen, regardless of the video signal input.
Original
1:1
Displays video according to the aspect ratio of the video signal input.
The aspect ratio is not adjusted from the original.
NOTE y The display may look the same for Full Wide , Original, and 1:1 options at the recommended resolution (3840 x 2160).
y There is no 1:1 menu on FreeSync Mode. ( Go to Picture → Game Adjust → FreeSync, to set Free-
Sync On or Off)
Displays the screens of two input modes on one monitor.
Toggles between the main screen and sub screen in PBP mode.
Toggles between the audio of the main screen and sub screen in PBP mode.
21
22
[PBP]
Menu > Input
Input List
Aspect Ratio
PBP
Main/ Sub
Screen Change
Main/ Sub
Sound Change
Description
Main Input List
Sub Input List
Displays the screens of two input modes on one monitor.
Main Screen
(Left)
PBP Connection
HDMI 1
HDMI 2
DisplayPort
USB-C
HDMI 1
-
O
O
O
HDMI 2
O
-
O
O
Sub Screen (Right)
DisplayPort
O
O
-
O
USB-C
O
O
O
-
Adjusts the aspect ratio of the screen.
Main Aspect
Ratio
Full Wide
Original
Displays the video to fit the PBP screen, regardless of the video signal input.
Displays the video in the aspect ratio of the video signal input on the PBP screen.
Sub Aspect
Ratio
Full Wide
Original
Displays the video to fit the PBP screen, regardless of the video signal input.
Displays the video in the aspect ratio of the video signal input on the PBP screen.
You can disable the feature that displays images from two input modes simultaneously on one monitor.
Toggles between the main screen and sub screen in PBP mode.
Toggles between the audio of the main screen and sub screen in PBP mode.
NOTE y If not using the PBP feature, Main/Sub Screen Change and Main/Sub Sound Change are deactivated.
23
Picture Mode on SDR(Non-HDR) signal.
Menu > Picture
Picture Mode Custom
Reader
Description
Allows the user to adjust each element. The color mode of the main menu can be adjusted.
Optimizes the screen for viewing documents. You can brighten the screen in the OSD menu.
Cinema
HDR Effect Optimizes the screen for high dynamic range.
Color Weakness This mode is for users who cannot distinguish between red and green. It enables users with color weakness to easily distinguish between the two colors.
FPS Game 1
FPS Game 2
Optimizes the screen for photos.
Optimizes the screen for video.
This mode is optimized for FPS games.
It has a higher Black Stabilizer value than FPS Game 1. It is suitable for very dark FPS games.
RTS Game This mode is optimized for RTS Game.
Custom (Game) In this mode, users can customize various elements including game-related options.
sRGB
EBU
REC709
A standard RGB color space for the monitor and printer.
A standard TV PAL color space for broadcasting.
A standard HDTV color space for broadcasting.
A standard TV NTSC color space for broadcasting.
SMPTE-C
Calibration 1
Calibration 2
Adjusts to the last calibrated screen.
Adjusts to the previously calibrated screen.
NOTE y If the picture mode is changed, the screen may flicker or the resolution of your PC screen may be affected.
y Calibration 2 : Installation of TRUE COLOR PRO and proceeding Calibration will enable this menu.
Picture Mode on HDR signal.
Menu > Picture
Picture Mode HDR Vivid
HDR Standard Optimized the screen for HDR.
HDR Game
HDR Cinema
Description
Optimized the screen for HDR vivid colors.
Optimized the screen for HDR Games.
Optimized the screen for HDR video.
24
Picture Adjust Brightness
Contrast
Sharpness
SUPER
RESOLUTION+
Adjusts the brightness of the screen.
Adjusts the contrast of the screen.
Adjusts the sharpness of the screen.
High Optimized picture quality is displayed when a user wants crystal clear images.
It is effective for high quality video or game.
Middle
Low
Off
The optimized picture quality is displayed when a user wants images between low and high modes for comfortable viewing. It is effective for UCC or SD video.
The optimized picture quality is displayed when a user wants smooth and natural images. It is effective for slow-moving pictures or still images.
Select this option for everyday viewing. SUPER RESOLUTION+ is turned off in this mode.
NOTE y Because this is a function to increase the sharpness of low resolution pictures, it is not recommended to use the function for normal text or for desktop icons.
Doing so may result in unnecessarily high sharpness.
Black Level
HDMI ULTRA HD
Deep Color
Sets the offset level (for HDMI only). y Offset : as a reference for a video signal, this is the darkest color the monitor can display.
High Keeps the current contrast ratio of the screen.
Low Lowers the black levels and raises the white levels from the current contrast ratio of the screen.
Provides sharper images when connected to a device supporting ULTRA HD Deep Color.
Resolution
Frame rate
(Hz)
4K@60 Hz Support Format 1)
8 bit
Color Depth / Chroma Sampling
10 bit
YCbCr 4:2:0
3840 x 2160
59.94
60.00
YCbCr 4:4:4
RGB 4:4:4
YCbCr 4:2:2
1) Supported when HDMI ULTRA HD Deep Color is set to On.
-
-
NOTE y If the connected device does not support ULTRA HD Deep Color, the feature may not work properly.
y If a problem occurs, set the HDMI ULTRA HD Deep Color option to Off.
DFC
Uniformity
On
Off
Adjusts the brightness automatically according to the screen.
Disables the DFC feature.
Adjusts uniformity of the image.
NOTE y The Uniformity menu is activated only in Custom. Enabling Uniformity may reduce the overall brightness of the image.
25
Game Adjust
Color Adjust
Picture Reset
Response Time Sets a response time for displayed pictures based on the speed of the screen.
For a normal environment, it is recommended that you use Normal . For a fast-moving picture, it is recommended that you use Fast .
Setting to Fast may cause image sticking.
Fast
Normal
Sets the response time to Fast.
Sets the response time to Normal.
FreeSync
Slow
Off
Sets the response time to Slow.
Does not use the response time improvement feature.
Provides seamless and natural images by synchronizing the vertical frequency of the input signal with that of the output signal.
CAUTION y Supported Interface: DisplayPort,HDMI.
y Supported Graphic Card : A graphic card that supports AMD’s FreeSync is necessary.
y Supported Version : Make sure to update the graphic card to the latest driver.
y For more information and requirement, refer to AMD website at http://www.amd.com/
FreeSync y FreeSync and 1ms Motion Blur Reduction cannot be enabled simultaneously.
Extended Enable wider frequency range of FreeSync function than basic mode.
The screen may flicker during the game play.
Basic Enable basic frequency range of FreeSync function.
Off FreeSync function off.
Black Stabilizer You can control the black contrast to have better visibility in dark scenes.
Increasing the Black Stabilizer value brightens the low gray level area on the screen. (You can easily distinguish objects on dark game screens.)
Reducing the Black Stabilizer value darkens the low gray level area and increases the dynamic contrast on the screen.
Gamma Mode 1, Mode 2,
Mode 3
The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter the image becomes.
Color Temp
Mode 4
Custom
6500K
If you do not need to adjust the gamma settings, select Mode 4.
The user can adjust it to red, green, or blue by customization.
Sets the screen color to a reddish tone.
7500K
9300K
Sets the screen color between a red and blue tone.
Sets the screen color to a bluish tone.
Manual Adjusts the color temperature in 500K increments. (Note that 9300K is supported instead of 9500K.)
You can customize the picture color using Red , Green , and Blue colors.
Red
Green
Blue
Six Color Meets the user requirements for colors through adjusting the color and saturation of the six colors(Red_Hue, Red_Saturation, Green_Hue, Green_Saturation, Blue_Hue, Blue_Saturation,
Cyan_Hue, Cyan_Saturation, Magenta_Hue, Magenta_Saturation, Yellow_Hue, Yellow_Saturation) and saving the settings.
Hue
Saturation
Adjusts the tone of the screen colors.
Adjusts the saturation of the screen colors. The lower the value, the less saturated and brighter the colors become. The higher the value, the more saturated and darker the colors become.
Do you want to Picture reset your settings?
Yes
No
Returns to the default settings.
Cancel the select.
26
Menu > General
Language
SMART ENERGY
SAVING
Power LED
Automatic Standby
DisplayPort 1.2
Quick Charge
OSD Lock
OSD Size
Reset
Sets the menu screen to the desired language.
Description
Saves energy using the high-efficiency SMART ENERGY SAVING feature.
High
Low
Off
Saves energy using the low-efficiency SMART ENERGY SAVING feature.
Disables the SMART ENERGY SAVING feature.
Turns the power LED on the front of the monitor on or off.
On
Off
The power LED turns on automatically.
The power LED turns off.
Feature that automatically turns off the monitor when there is no movement on the screen for a period of time. You can set a timer for the auto-off function. (Off, 4 H, 6 H, and 8 H)
Enables or disables DisplayPort 1.2.
NOTE y Be sure to configure this option according to the DisplayPort version supported by your graphics card. Set this option to Disable if your graphics card does not support DisplayPort 1.2.
Quick Charge is a feature that rapidly charges the device connected to the USB 3.0 port.
On Enables Quick Charge .
Off Disables Quick Charge .
NOTE y When Quick Charge is set to On and upstream cable is not connected, data transmission through the USB1/2 port is not available (e.g. connecting your keyboard, mouse, or other USB storage devices to the monitor).
This feature disables the configuration and adjustment of menus.
On Enables OSD Lock.
Off Disables OSD Lock.
NOTE y All features are disabled except Brightness, Contrast, Volume, Input, OSD Lock in General and the Exit button.
User can select OSD Size to Large or Small.
Do you want to reset your settings?
Yes Returns to the default settings.
No Cancel the select.
NOTE y Saving Data depends on the Panel. So, these values may be different from each panel and/or panel vendor. If the SMART EN-
ERGY SAVING option is High or Low, monitor luminance become higher or lower depending on the source.
TROUBLESHOOTING
Nothing is displayed on the screen.
Is the monitor's power cord plugged in?
y Check if the power cord is correctly plugged into the power outlet.
Is the power LED on?
Is the power on and the power LED displaying white?
Is the power LED blinking?
Is the OUT OF RANGE message being displayed?
Is the No Signal message being displayed?
y Check the power cable connection and press the power button. y Check that the connected input is enabled (Menu > Input > Input list).
y If the monitor is in sleep mode, move the mouse, or press any key on the keyboard, to switch the display on. y Check if the computer is turned on.
y This occurs when signals transferred from the PC (graphics card) are out of the horizontal or vertical frequency range of the monitor. Please see the Product Specification section of this manual to set the appropriate frequency.
y This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it.
The OSD lock message is being displayed.
Are some functions not available when you press the Menu button?
y The OSD is locked. Go to Menu > General and set OSD Lock to Off.
27
The screen retains an image.
Does image sticking occur even when the monitor is turned off?
y Displaying a still image for a prolonged time may cause damage to the screen, resulting in the retention of the image. y To extend the lifetime of the monitor, use a screensaver.
Screen display is unstable and shaky / Images displayed on the monitor leave shadow trails.
Did you select the appropriate resolution?
y If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the screen may be flickering. Change the resolution to 1080P or the recommended resolution.
NOTE y Vertical frequency In order to display an image, the screen must be refreshed dozens of times per second, like a fluorescent lamp. The number of times the screen is refreshed per second is called vertical frequency, or refresh rate, and is represented by
Hz.
y Horizontal frequency The time it takes to display one horizontal line is called the horizontal cycle. If 1 is divided by the horizontal interval, the result is the number of horizontal lines displayed per second. This is called horizontal frequency and is represented by kHz.
y LED can be lighted with Set OSD Menu.
Menu – General – Power LED – On
28
NOTE y Check if the graphics card's resolution or frequency is within the range allowed by the monitor and set it to the recommended (optimal) resolution in Control Panel > Display > settings .
y Not setting the graphics card to the recommended (optimal) resolution may result in blurred text, a dimmed screen, a truncated display area, or misalignment of the display.
y The setting methods may be different depending on the computer or operating system, and some resolutions may not be available depending on the performance of the graphics card. If this is the case, contact the manufacturer of the computer or graphics card for assistance.
y Some graphics cards may not support 3840 x 2160 resolution. If the resolution cannot be displayed, contact the manufacturer of your graphics card.
The display color is abnormal.
Does the display appear discolored (16 colors)?
Does the display color appear unstable or monochrome?
Are there spots on the screen?
y Set the color to 24 bit (true color) or higher. In Windows, go to Control
Panel > Display > Settings > Color Quality.
y Check if the signal cable is connected properly. Reconnect the cable or reinsert the PC's graphics card.
y When using the monitor, pixilated spots (red, green, blue, white, or black) may appear on the screen. This is normal for an LCD screen. It is not an error, nor is it related to the monitor's performance.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display driver?
y Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lg.com.
y Make sure to check if the video card supports Plug&Play function.
No sound from the headphone port or speaker.
Are images displayed using DisplayPort or HDMI input without sound?
y y
Try increasing the volume using the button on the monitor.
Set the audio output of the PC to the monitor you are using. On Microsoft
Windows, go to Control Panel > Hardware and Sound > Sound > set the monitor as default device.
SPECIFICATIONS
32UD99
LCD Screen
Resolution
Power input
Power consumption (Typ.)
AC/DC adaptor
Type
Pixel Pitch
Maximum Resolution
TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
0.18159 mm x 0.18159 mm
3840 x 2160 @ 60 Hz
Recommended Resolution 3840 x 2160 @ 60 Hz
Video Signal Horizontal Frequency 30 kHz to 135 kHz
Vertical Frequency 56 Hz to 61 Hz
Input Connector HDMI IN1, HDMI IN2 , DP(DisplayPort) IN, H/P, USB-C
19 V 9.0 A
On mode: 38 W Typ. (ENERGY STAR® standard)*
52 W Typ. (Outgoing condition)**
Sleep Mode ≤ 1.2 W
Off Mode ≤ 0.3 W
Type DA-180C19, Asian Power Devices Inc. production
Output: 19 V 9.48 A
Environmental
Conditions
Dimension
Weight (Without
Packaging)
Operating Condition
Storing Condition
Temperature: 0°C to 40°C (32 °F to 104 °F); Humidity: < 80%
Temperature: -20°C to 60°C (-4 °F to 140 °F); Humidity: < 85%
Monitor Size (Width x Height x Depth)
With Stand
Without Stand
28.10 inches x 19.11 inches x 10.20 inches
28.10 inches x 16.15 inches x 1.76 inches
With Stand
Without Stand
18.52 lbs
14.33 lbs
The specifications are subject to change without notice.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR® test standard.
** The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum resolution).
29
30
Factory Support Mode (Preset Mode, PC)
HDMI
Display Modes (Resolution)
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 720
1280 x 1024
1600 x 900
1920 x 1080
1920 x 2160
2560 x 1440
3840 x 2160
3840 x 2160
Horizontal
Frequency(kHz)
31.469
37.879
48.363
54.347
45
63.981
60
67.5
133.29
88.79
67.5
135
60
60
59.95
30
60
Vertical
Frequency(Hz)
59.94
60.317
60
60.05
60
60.02
60
Polarity(H/V) Remarks
+/-
+/-
+/-
+/-
+/-
-/-
+/+
-/-
+/+
+/+
+/+
+/+
Only Supported at PBP mode
DisplayPort / USB-C
Display Modes (Resolution)
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 720
1280 x 1024
1600 x 900
1920 x 1080
1920 x 2160
2560 x 1440
3840 x 2160
3840 x 2160
Horizontal
Frequency(kHz)
31.469
37.879
48.363
54.347
45
63.981
60
67.5
133.32
88.79
66.66
133.32
60
60
59.95
30
60
Vertical
Frequency(Hz)
59.94
60.317
60
60.05
60
60.02
60
Polarity(H/V) Remarks
+/-
+/-
+/-
+/-
+/-
-/-
+/+
-/-
+/+
+/+
+/+
+/+
Only Supported at PBP mode
HDMI Timing (Video)
Factory support mode
(Preset Mode)
480p
720p
1080p
2160p
Horizontal
Frequency(kHz)
31.5
45.0
67.5
135
Vertical
Frequency(Hz)
60
60
60
60
Remarks
Power LED
Mode
On Mode
Sleep Mode
Off Mode
LED Color
White
Off
Off
31
Declaration of Conformity
Trade Name: LG
Model : 32UD99
Responsible Party: LG Electronics Inc.
Address : 1000 Sylvan Ave. Englewood Cliffs
NJ 07632 U.S.A
TEL: 201-266-2534
*above information is only for USA FCC Regulatory
This device meets the EMC requirements for home appliances (Class B) and is intended for home usage.
This device can be used in all regions. Read the owner's manual (CD) carefully and keep it at hand.
Please note that the label attached to the product provides information for technical support.
MODEL
SERIAL
ENERGY STAR is a set of power-saving guidelines issued by the U.S.Environmental
Protection Agency(EPA).
As an ENERGY STAR Partner LGE U. S.
A.,Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
Refer to ENERGY STAR.gov for more information on the ENERGY STAR program.
advertisement
Key Features
- 80 cm (31.5") LED IPS
- 4K Ultra HD 3840 x 2160 pixels 16:9
- 60 Hz 5 ms 350 cd/m² 1300:1
- AMD FreeSync
- 38 W
Related manuals
advertisement
Table of contents
- 1 Owner's Manual
- 2 CONTENTS
- 3 LICENSE
- 4 ASSEMBLING AND PREPARING
- 4 Product Components
- 5 Supported Drivers and Software
- 6 Component and Button Description
- 6 How to Use the Joystick Button
- 7 Input Connector
- 8 Moving and Lifting the Monitor
- 9 Installing the Monitor
- 9 Assembling the stand base
- 10 Using the cable holder
- 11 Installing onto a table
- 12 Adjusting the angle
- 12 Adjusting the Stand Height
- 13 Pivot Feature
- 14 Using the Kensington lock
- 15 Detaching the Stand Body
- 15 Installing the wall mount plate
- 15 Installing to a wall
- 17 USING THE MONITOR
- 17 Connecting to a PC
- 17 HDMI connection
- 17 DisplayPort connection
- 18 USB-C connection
- 18 Connecting to AV Devices
- 18 HDMI connection
- 19 Connecting Peripherals
- 19 USB Cable connection - PC
- 19 Connecting to External Devices
- 19 Connecting Headphones
- 20 User Settings
- 20 Activating the Main Menu
- 20 Main Menu Features
- 21 User Settings
- 21 Menu Settings
- 27 TROUBLESHOOTING
- 29 SPECIFICATIONS
- 29 32UD99
- 30 Factory Support Mode (Preset Mode, PC)
- 30 HDMI
- 30 DisplayPort / USB-C
- 31 HDMI Timing (Video)
- 31 Power LED
