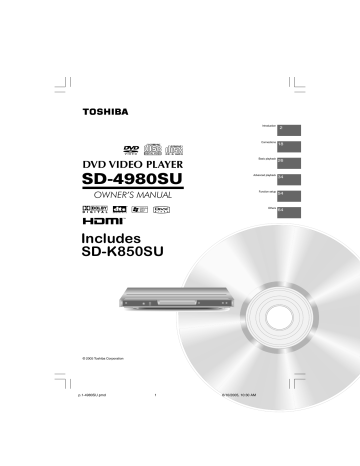

DIGITAL VIDEO

DVD VIDEO PLAYER

SD-4980SU

OWNER’S MANUAL

Includes

SD-K850SU

Introduction

2

Connections

18

Basic playback

26

Advanced playback

34

Function setup

54

Others

64

© 2005 Toshiba Corporation p.1-4980SU.pmd

1 6/10/2005, 10:30 AM

Introduction

SAFETY PRECAUTIONS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The symbol for CLASS II (Double Insulation)

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT

INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO

QUALIFIED PERSONNEL ONLY.

2

CAUTION:

ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA

FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

This Digital Video Disc Player employs a Laser System.

To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure.

Visible and invisible laser radiation when open and interlocks defeated.

DO NOT STARE INTO BEAM.

FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rule. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications made to this equipment, not expressly approved by Toshiba, or parties authorized by Toshiba, could void the user’s authority to operate the equipment.

p2-17-4980SU.pmd

2 6/10/2005, 10:31 AM

The instructions shall state that an ALL-POLE MAINS SWITCH with a contact separation of at least 3 mm in each pole shall be incorporated in the electrical installation of the building.

CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

In the spaces provided below, record the Model and Serial No. located on the rear panel of your DVD video player.

Serial No.

Model No.

Retain this information for future reference.

Location of the required label

MANUFACTURED

SERIAL NO.

Be aware that this equipment is still powered even after the ON/STANDBY indicator turns off (standby mode) by pressing the ON/STANDBY button. To disconnect this equipment completely from the mains power, pull out the power plug from the wall outlet.

p2-17-4980SU.pmd

3 6/10/2005, 10:31 AM

3

Introduction

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

4 p2-17-4980SU.pmd

4 6/10/2005, 10:31 AM

CTIONS

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

S3125A p2-17-4980SU.pmd

5 6/10/2005, 10:31 AM

5

Introduction

IMPORTANT SAFETY INSTRUCTIONS

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

ADDITIONAL SAFETY INSTRUCTIONS

15. When you use headphones, keep the volume at a moderate level. If you use the headphones continuously with high volume sound, it may cause hearing damage.

16. Do not overload wall outlets; extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

17. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

6 p2-17-4980SU.pmd

6 6/10/2005, 10:31 AM

CTIONS

18. Keep your fingers well clear of the disc tray as it is closing. Neglecting to do so may cause serious personal injury.

19. Do not place a heavy object on or step on the apparatus. The object may fall, causing serious personal injury and serious damage to the apparatus.

20. Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious personal injury and apparatus malfunction.

21. If the apparatus should smoke or smell, immediately disconnect the power cord from the wall outlet. Wait until the smoke or smell stops, then ask your dealer for a check and repair. Neglecting to do so may cause fire.

22. While it is thundering, do not touch the connecting cables or the apparatus.

23. The apparatus includes lead, an ingredient of solder used on the PCB, which is a harmful substance to human and the environment. When disposing of this apparatus, follow the rules and regulations in your area.

p2-17-4980SU.pmd

7 6/10/2005, 10:31 AM

7

Introduction

Precautions

Notes on handling

When shipping the DVD video player, the original shipping carton and packing materials come in handy.

For maximum protection, repack the unit as it was originally packed at the factory. Take care not to give it a shock or shake when carrying.

Do not use volatile liquids, such as insect spray, near the DVD video player. Do not leave rubber or plastic products in contact with the DVD video player for a long time. They will leave marks on the finish.

The top and rear panels of the DVD video player may become warm after a long period of use. This is not a malfunction.

When the DVD video player is not in use, be sure to remove the disc and turn off the power.

If you do not use the DVD video player for a long period, the unit may not function properly in the future. Turn on and use the DVD video player occasionally.

Notes on moisture condensation

Moisture condensation damages the DVD video player.

Please read the following carefully.

Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day. Drops of water form on the outside of the glass. In the same way, moisture may condense on the optical pick-up lens inside this unit, one of the most crucial internal parts of the DVD video player.

Notes on locating

Place the DVD video player on a level surface. Do not use it on a shaky or unstable surface such as a wobbling table or inclined stand. The loaded disc may come off the proper position and cause damage to the DVD video player.

When you place this DVD video player near a TV, radio, or VCR, the playback picture may become poor and the sound may be distorted. In this case, place the DVD video player away from the TV, radio, or

VCR.

Moisture condensation occurs during the following cases.

When you bring the DVD video player directly from a cold place to a warm place.

When you use the DVD video player in a room where you just turned on the heater, or a place where the cold wind from the air conditioner directly hits the unit.

In summer, when you use the DVD video player in a hot and humid place just after you move the unit from an air conditioned room.

When you use the DVD video player in a humid place.

Notes on cleaning

Use a soft, dry cloth for cleaning.

For stubborn dirt, soak the cloth in a weak detergent solution, wring well and wipe. Use a dry cloth to wipe it dry.

Do not use any type of solvent, such as thinner and benzine, as they may damage the surface of the DVD video player.

If you use a chemical saturated cloth to clean the unit, follow that product’s instructions.

Do not use the DVD video player when moisture condensation may occur.

If you use the DVD video player in such a situation, it may damage discs and internal parts. Remove the disc, connect the power cord of the DVD video player to the wall outlet, turn on the DVD video player, and leave it for two or three hours. After two or three hours, the DVD video player will have warmed up and evaporated any moisture. Keep the DVD video player connected to the wall outlet and moisture condensation will seldom occur.

Inspection and Maintenance

8

This DVD video player is a high technology, precision device. If the optical pick-up lens and disc drive parts become dirty or worn down, the picture quality may be reduced. To avoid reduction in picture quality, it is recommended that regular inspection and maintenance

(cleaning or parts replacement) be performed every

1,000 hours of use. For further details, contact your nearest consumer electronics dealer.

p2-17-4980SU.pmd

8 6/10/2005, 10:31 AM

Notes on Discs

On handling discs

Do not touch the playback side of the disc.

Structure of disc contents

Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters. VIDEO CDs and audio CDs are divided into tracks.

DVD video disc

Title 1

Chapter 1 Chapter 2

DVD video disc

Title 2

Chapter 1 Chapter 2 Chapter 3

Do not attach paper or tape to discs.

Playback side

VIDEO CD/audio CD

Track 1

VIDEO CD/audio CD

Track 2 Track 3 Track 4 Track 5

On cleaning discs

Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the center outwards with a soft cloth. Always keep the disc clean.

Each title, chapter or track is assigned a number, which is called “title number”, “chapter number” or “track number” respectively.

There may be discs that do not have these numbers.

If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.

Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray for vinyl LPs. It may damage the disc.

On storing discs

Do not store discs in a place subject to direct sunlight or near heat sources.

Do not store discs in places subject to moisture and dust such as a bathroom or near a humidifier.

Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause warping.

Notes on copyright

The unauthorized recording, use, distribution, or revision of copyrighted materials including, without limitation, television programs, videotapes, and DVDs, is prohibited under the Copyright Laws of the United

States and other countries, and may subject you to civil and criminal liability.

This product incorporates copyright protection technology that is protected by method claims of certain

U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision

Corporation. Reverse engineering or disassembly is prohibited.

9 p2-17-4980SU.pmd

9 6/10/2005, 10:31 AM

Introduction

Notes on Discs (continued)

About this owner’s manual

This owner’s manual explains the basic instructions of this DVD video player. Some DVD video discs are produced in a manner that allows specific or limited operation during playback. As such, the DVD video player may not respond to all operating commands. This is not a defect in the DVD video player. Refer to instruction notes of discs.

“ ” may appear on the TV screen during operation.

A “ ” means that the operation is not permitted by the

DVD video player or the disc.

Playable discs

This DVD video player can play the following discs.

Disc Mark Contents

Disc

Size

Maximum playback time

Approx. 4 hours

(single sided disc)

12 cm

DVD video discs

Audio

+ video

(moving pictures)

Approx. 8 hours

(double sided disc)

Approx. 80 minutes

(single sided disc)

8 cm

Approx. 160 minutes

(double sided disc)

Notes on region numbers

The region number of this DVD video player is 1. If region numbers, which stand for their playable area, are printed on your DVD video disc and you do not find or , disc playback will not be allowed by the player.

(In this case, the DVD video player will display a message on-screen.)

Some DVDs that have no region code label may still be subject to area restrictions and therefore not playable.

VIDEO

CDs

DIGITAL VIDEO

Audio

+ video

(moving pictures)

12 cm Approx. 74 minutes


On VIDEO CDs

This DVD video player supports VIDEO CDs equipped with the PBC (Version 2.0) function. (PBC is the abbreviation of Playback Control.) You can enjoy two playback variations depending on types of discs.

• VIDEO CD not equipped with PBC function

(Version 1.1)

Sound and movie can be played on this DVD video player in the same way as an audio CD.

• VIDEO CD equipped with PBC function

(Version 2.0)

In addition to operation of a VIDEO CD not equipped with the PBC function, you can enjoy playback of interactive software with search function by using the menu displayed on the TV screen (Menu Playback).

Some of the functions described in this owner’s manual may not work with some discs.


Audio

CDs

Audio

8 cm

(CD single)

Approx. 20 minutes

The following discs are also available.

DVD-R discs of DVD video format

CD-R/CD-RW discs of CD-DA, Video CD, MP3, WMA or JPEG format

Some of these discs may be incompatible.

• You cannot play discs other than those listed above.

• You cannot play DVD-RAM discs or non-standardized discs, etc., even if they may be labeled as above.

• This DVD video player uses the NTSC color system, and cannot play DVD video discs recorded in any other color system (PAL, SECAM, etc.).

Because of problems and errors that can occur during the creation of DVD and Video CD software and/or the manufacture of DVD and Video CD discs, Toshiba cannot guarantee that this DVD video player will play every feature of every DVD bearing the DVD logo and/or every Video CD bearing the CD logo. As one of the creators of DVD technology, Toshiba DVD players are manufactured using the highest standards of quality, and as a result, such incompatibilities are rare. If you happen to experience any difficulty playing a DVD on a

Toshiba DVD player, please feel free to call our Call

Centre (see page

67

).

10 p2-17-4980SU.pmd

10 6/10/2005, 10:31 AM

Table of Contents

Introduction

SAFETY PRECAUTIONS .......................... 2

IMPORTANT SAFETY INSTRUCTIONS ... 4

Precautions .............................................. 8

Notes on Discs ......................................... 9

Notes on region numbers ............................... 10

Table of Contents ................................... 11

Identification of Controls ....................... 12

Front panel ..................................................... 12

Rear panel ...................................................... 12

DVD display .................................................... 13

Remote control ............................................... 14

Loading batteries ........................................... 15

Operating with the remote control .................. 15

Connections

Connecting to a TV ................................. 18

Connecting to a TV ......................................... 18

Connecting to an audio system and TV equipped with component video inputs ....... 19

Connecting to a display

(Using a HDMI cable) ................................... 20

Connecting to Optional Equipment ...... 21

Connecting to an amplifier equipped with a

Dolby Digital decoder ................................... 22

Connecting to an amplifier equipped with

Dolby Surround Pro Logic ............................ 22

Connecting to an amplifier equipped with a

DTS decoder ................................................ 23

Connecting to an amplifier equipped with an

MPEG2 audio decoder ................................. 23

Connecting to an amplifier equipped with a digital audio input ......................................... 24

Basic playback

Playing a Disc ......................................... 26

Basic playback ............................................... 26

Variable Speed Playback ....................... 28

Playing in fast reverse or fast forward directions ...................................................... 28

Playing frame by frame .................................. 28

Playing in slow-motion ................................... 29

Resuming playback from the same location .. 29

Locating a Desired Section ................... 30

Locating a title using the top menu ................ 30

Locating a desired section by entering the corresponding number ................................. 31

Locating a specific chapter or track ............... 31

Advanced playback

Accessing a Specific Location Directly ... 34

Entering the time counter of the desired location ......................................................... 34

Repeating a Specific Segment .............. 35

Repeating a specific segment ........................ 35

Playing in a Varied Order ....................... 36

Playing titles, chapters or tracks in a varied order ............................................................. 36

Playing in a Favorite Order .................... 37

Setting titles, chapters, or tracks in a favorite order ............................................................. 37

Zooming a Picture .................................. 38

Zooming a picture .......................................... 38

Selecting the Picture Enhancement

(E.P.M.) .................................................... 39

Selecting the picture enhancement ................ 39

Selecting the Sound Enhancement

(E.A.M.) ................................................... 40

Selecting the sound enhancement ................. 40

Selecting the Camera Angle .................. 41

Changing the camera angle ........................... 41

Selecting Subtitles ................................. 42

Selecting a subtitle language ......................... 42

Selecting a Language ............................ 43

Selecting a playback audio setting ................. 43

On-screen Display Operation ................ 44

On-screen display operation .......................... 44

Playing MP3/WMA Files ......................... 46

Playing MP3/WMA files .................................. 46

Viewing JPEG Files ................................ 48

Viewing JPEG files ......................................... 48

Viewing a thumbnail view ............................... 49

Playing DivX ® MPEG-4 Files .................. 51

Playing DivX ® MPEG-4 files ........................... 51

Function setup

Customizing the Function Settings ...... 54

Setting procedure ........................................... 54

Setting details ................................................. 56

Table of Languages ................................ 62

Others

Before Calling Service Personnel ......... 64

Specifications ......................................... 65

United States Warranty .......................... 66

11 p2-17-4980SU.pmd

11 6/10/2005, 10:31 AM

Introduction

Identification of Controls

See the page in for details.

Front panel

26

26

13

15

HDMI button

20

HDMI indicator

20

26

27

26

Rear panel

HDMI OUT jack 20

18

19

12 p2-17-4980SU.pmd

OPTICAL OUT jack 22 23 24

S VIDEO OUT jack

18

12

22 23 24

18 19

6/10/2005, 10:31 AM

DVD display

DVD display and the blue dvd door brightness can be set to 3 different mode: Normal - Dim - Off.

See settings in

60

.

Title number indicator

Play mode indicator

Total playing time indicator

Chapter number indicator

Memory playback indicator

Track number indicator

Shuffle playback indicator

TOTAL T I T L E

GROUP

CHP TRK M R A-B

DVD

VCD

Multifunctional indicator (indicates operating status or messages, etc.

DVD / VIDEO CD /

CD indicator

Angle icon indicator

Repeat playback indicator

The indicators vary depending on the kinds of discs you play.

DVD video disc VIDEO CD

• During playback:

Example

DVD

T I T L E CHP


Example

TRK

VCD

Audio CD


Example

TRK

CD

Some discs may not display chapter numbers or elapsed time.

Some discs may not display chapter numbers or elapsed time.

p2-17-4980SU.pmd

13 6/10/2005, 10:31 AM

13

Introduction

Identification of Controls (continued)

The instructions in this manual describe the functions on the remote control. See the page in for details.

Remote control

26

27

31

28

40

45

44

41

42

30

30

31

19

31

54

37

26

HDMI button

20

38

43

/

30

26

31

26

31

28

29

39

54

27 28

35

36

* MENU/PBC button

Use the MENU/PBC button to display the menu included on many DVD video discs. To operate a menu, follow the instructions in “Locating a title using the top menu.”

30

14 p2-17-4980SU.pmd

14 6/10/2005, 10:31 AM

Loading batteries

1 Open the cover.

Operating with the remote control

Point the remote control at the remote sensor and press the buttons.

2 Insert batteries (AAA size).

Distance: About 7 m (23 feet) from the front of the

Angle: remote sensor

About 30° in each direction of the front of the remote sensor

* Do not expose the remote sensor of the DVD video player to a strong light source such as direct sunlight or other illumination. If you do so, you may not be able to operate the DVD video player via the remote control.

Make sure to match the + and – on the batteries to the marks inside the battery compartment.

Caution:

Never throw batteries into a fire.

Note:

• Be sure to use AAA size batteries.

• Dispose of batteries in a designated disposal area.

• Batteries should always be disposed of with the environment in mind. Always dispose of batteries in accordance with applicable laws and regulations.

• If the remote control does not operate correctly, or if the operating range becomes reduced, replace batteries with new ones.

• When necessary to replace batteries in the remote control, always replace both batteries with new ones.

Never mix battery types or use new and used batteries in combination.

• Always remove batteries from remote control if they are dead or if the remote control is not to be used for an extended period of time. This will prevent battery acid from leaking into the battery compartment.

Notes on the remote control

• Direct the remote control at the remote sensor of the DVD video player.

• When using the remote control, press the buttons at intervals of about 1 second to ensure the correct mode of operation.

• Do not drop or give the remote control a shock.

• Do not leave the remote control near an extremely hot or humid place.

• Do not spill water or put anything wet on the remote control.

• Do not open the remote control.

15 p2-17-4980SU.pmd

15 6/10/2005, 10:31 AM

p2-17-4980SU.pmd

16 6/10/2005, 10:31 AM

Connections

Read this chapter first to make all necessary preparations.

Connecting to a TV

Connecting to an audio system and TV equipped with component video inputs

Connecting to a display (Using a

HDMI cable)

Connecting to an amplifier equipped with a Dolby Digital decoder

Connecting to an amplifier equipped with Dolby Surround

Pro Logic

Connecting to an amplifier equipped with a DTS decoder

Connecting to an amplifier equipped with an MPEG2 audio decoder

Connecting to an amplifier equipped with a digital audio input p2-17-4980SU.pmd

17 6/10/2005, 10:31 AM

Connections

Connecting to a TV

Connect the DVD video player to your TV.

For details of output sound, see

43

.

Connecting to a TV

• Make the following setting.

On-screen display

“Digital Output”

“Video Output”

Select:

“PCM” or

“Bitstream”

Composite

* Component

Page

54 59

54 58

* Only for analog video out jack (yellow) connection with progressive scan off.

Notes

• Refer to the owner’s manual of the connected TV as well.

• When you connect the DVD video player to your TV, be sure to turn off the power and unplug both units from the wall outlet before making any connections.

• If your television set has one audio input, connect the left and right audio outputs of the DVD video player to a Y cable adapter (not supplied) and then connect to your TV.

• Connect the DVD video player directly to your TV. If you connect the DVD video player to a VCR, TV/VCR combination or video selector, the playback picture may be distorted as DVD video discs are copy protected.

• Analog audio out will not have sound if DTS playback is selected.

18 p18-24-4980SU.pmd

18 6/10/2005, 10:31 AM

Interlaced outputs (ColorStream

®

)

Some TVs or monitors are equipped with component video inputs. Connecting to these inputs allows you to enjoy higher quality picture playback.

Actual labels for component video inputs may vary depending on the TV manufacturer. (ex. Y, R-Y, B-Y or Y,

C B , C R )

In some TVs or monitors, the color levels of the playback picture may be reduced slightly or the tint may change. In such a case, adjust the TV or monitor for optimum performance.

Progressive outputs (ColorStream Pro

®

)

Some TVs or monitors are equipped with component video inputs that are capable of reproducing a progressively scanned video signal. Connecting to these inputs allows you to view the highest quality pictures with less flicker.

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 525 progressive scan picture problems, it is recommended that the user switch the connection to the

“standard definition” output. If there are questions regarding our TV set compatibility with this model 525p

DVD player, please contact our Customer Service Center.

Connecting to an audio system and TV equipped with component video inputs

Switching the output signal (interlaced/progressive) using the remote control

You can temporarily switch the output signal for better picture quality.

Press PROGRESSIVE on the remote control during stop mode.

Press PROGRESSIVE again to turn off progressive mode.


On-screen display


Select:

“PCM” or

“Bitstream”

Page

54 59

Notes

• Refer to the owner’s manual of the connected equipment as well.

“Video Output” Component

54 58

• When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

• If you place the DVD video player near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the

DVD video player away from the tuner and radio.

• The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, high volume sound may damage your hearing as well as the speakers.

• Turn off the amplifier before you connect or disconnect the DVD video player’s power cord. If you leave the amplifier power on, the speakers may be damaged.

• Progressive can be on/off only when “Video Output” is set to Component

58

.

• In component connections, the screen might become pinkish in color when the “Video Output” is set to Composite. This is not a defect of this unit

58

.

• When Progressive is on, only component video will be output.

• Analog audio out will not have sound if DTS playback is selected.

• When using component video cables, do not connect the S video cable.

ColorStream ® and ColorStream Pro ® are registered trademarks of Toshiba America Consumer Products, L.L.C.

19 p18-24-4980SU.pmd

19 6/10/2005, 10:31 AM

Connections

Connecting to a TV (Continued)

About HDMI TM

HDMI stands for High Definition Multimedia Interface. HDMI transfers digital audio and uncompressed digital video on a single cable. As a result, audio cables and video cables don’t need to be connected separately to a device. In addition, HDMI is compatible with HDCP (High Bandwidth

Digital Content Protection).

HDMI, the HDMI logo and High-Definition Multimedia

Interface are trademarks or registered trademarks of HDMI licensing LLC.

Connecting to a display (Using a HDMI cable)

To HDMI

Output

HDMI Cable

Available output signals are below:

• 480p (progressive)

• 720p (progressive)

• 1080i (interlace) illuminates “ • 1080i”

Press illuminates “ • 720p”

Press illuminates “ • 480p”

(not included)

Set the output resolution for the HDMI output that best matches your TV’s capabilities

Set an output signal from the HDMI terminal of the DVD

Player in accordance with your TV’s input signal.

Press HDMI button on the front panel or the remote control changes output signals as below. See the HDMI indicator and select the appropriate output signal.

Press

HDMI indicator Video output signal

1080i (interlace)

720p (progressive)

480p (progressive)

480p, 720p and 1080i are signals created with this

DVD Player from original 480i signal. The resolution of the picture may not be increased even if they are selected.

HDMI-compatible display


On-screen display


Select:

“PCM” or

“Bitstream”

Page

54 59

“Video Output” Component 54 58

Notes

• Refer to the owner’s manual of the connected TV as well.

• When you connect the DVD video player to your TV, be sure to turn off the power and unplug both units from the wall outlet before making any connections.

• Select HDMI mode through the HDMI button of the front panel, analog video out jack (yellow) will not have video signal.

• If you have a HDMI (with HDCP) equipped monitor or display, you can connect it to this player using a HDMI cable.

• The HDMI connector outputs uncompressed digital video, as well as almost every kind of digital audio that the player is compatible with, including DVD-Video, Video CD/Super VCD,

CD and MP3.

• This unit has been designed to be compliant with HDMI (High

Definition Multimedia Interface) Version 1.1 depending on the component you have connected. Using a HDMI connection may result in unreliable signal transfers.

• When using HDMI cable, do not connect to other analog video outputs.

• Becasue HDMI is an evolving technology, it is possible that some devices with an HDMI input may not operate properly with this DVD video player.

20 p18-24-4980SU.pmd

20 6/10/2005, 10:31 AM

Connecting to Optional Equipment

You can enjoy high quality dynamic sounds by connecting the DVD video player to optional audio equipment.

• For connection to your TV, see “Connecting to a TV”

18 19 20

.

• For details of output sound, see

43

.

• This section uses the following reference marks.

: Front speaker

: Rear speaker

: Sub woofer

: Center speaker

: Signal flow

Notes

• DO NOT connect the OPTICAL or COAXIAL DIGITAL

AUDIO OUT jack of the DVD video player to the AC-3 RF input of a Dolby Digital Receiver. This input on your A/V

Receiver is reserved for Laserdisc use only and is incompatible with the OPTICAL or COAXIAL DIGITAL

AUDIO OUT jack of the DVD video player.

• Connect the COAXIAL DIGITAL AUDIO OUT jack of the

DVD video player to the “DIGITAL (COAXIAL)” input of a

Receiver or Processor.

• Connect the OPTICAL DIGITAL AUDIO OUT jack of the

DVD video player to the “DIGITAL (OPTICAL)” input of a

Receiver or Processor.

• Refer to the owner’s manual of the connected equipment as well.

• When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

• The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.

• Turn off the amplifier before you connect or disconnect the DVD video player’s power cord. If you leave the amplifier power on, the speakers may be damaged.

Warning

• When you are connecting (via the OPTICAL or

COAXIAL DIGITAL AUDIO OUT jack) an AV decoder that does not have Dolby Digital, Digital Theater

Systems (DTS) or MPEG2 decoding function, be sure to set “Digital Output” to “PCM” from the on-screen displays

54 59

. Otherwise, high volume sound may damage your hearing as well as the speakers.

• When playing DTS-encoded discs (audio CDs), excessive noise may be output from the analog audio output jacks. To avoid possible damage to the audio system, you should take proper precautions when the analog audio output jacks of the DVD video player are connected to an amplification system. To enjoy DTS

Digital Surround™ playback, an external 5.1 channel

DTS Digital Surround™ decoder system must be connected to the OPTICAL or COAXIAL DIGITAL

AUDIO OUT jack of the DVD video player.

p18-24-4980SU.pmd

21 6/10/2005, 10:31 AM

21

Connections

Connecting to Optional Equipment

Connecting to an amplifier equipped with a Dolby Digital decoder

Dolby Digital

Dolby Digital is the surround sound technology used in theaters showing the latest movies, and is now available to reproduce this realistic effect in the home.

You can enjoy motion picture and live concert DVD video discs with this dynamic realistic sound by connecting the DVD video player to a 6 channel amplifier equipped with a Dolby Digital decoder or Dolby Digital processor. If you have a

Dolby Surround Pro Logic decoder, you will obtain the full benefit of Pro Logic from the same DVD movies that provide full 5.1-channel Dolby Digital soundtracks, as well as from titles with the Dolby Surround mark.

Manufactured under license from Dolby

Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby

Laboratories. Confidential unpublished works. Copyright 1992-1997 Dolby

Laboratories. All rights reserved.

• Use DVD video discs encoded via the Dolby Digital recording system.


Amplifier equipped with a

Dolby Digital decoder

To

COAXIAL type digital audio input

To OPTICAL type digital audio input

Optical digital cable

Connect either.

On-screen display


Recording system

Select:

“PCM” or

“Bitstream”

D

Page

54

59

43

75 Ω coaxial cable

Connecting to an amplifier equipped with Dolby Surround Pro Logic

Dolby Surround Pro Logic

You can enjoy the dynamic realistic sound of Dolby Surround Pro Logic by connecting an amplifier and speaker system (right and left front speakers, a center speaker, and one or two rear speakers).

With an amplifier equipped with Dolby Digital

Connect the equipment the same way as described in “Connecting to an amplifier equipped with a Dolby Digital decoder.” Refer to that amplifier’s owner’s manual and set the amplifier so you can enjoy Dolby Surround Pro

Logic sound.

With an amplifier not equipped with Dolby Digital

Connect the equipment as follows.

*

Amplifier equipped with

Dolby Surround Pro Logic

To audio input

To ANALOG

AUDIO OUT


On-screen display


Select:

“PCM” or

“Bitstream”

Page

54

59

* Connect one or two rear speakers.

The output sound from the rear speakers will be monaural even if you connect two rear speakers.

Audio cable

22 p18-24-4980SU.pmd

22 6/10/2005, 10:31 AM

Connecting to an amplifier equipped with a DTS decoder

Digital Theater Systems (DTS)

DTS is a high quality surround technology used in theaters and now available for home use, on DVD video discs or audio CDs.

If you have a DTS decoder or processor, you can obtain the full benefit of 5.1

channel DTS encoded sound tracks on DVD video discs or audio CDs.

Amplifier equipped with a DTS decoder

To




Connect either.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems,

Inc.

• Use DVD video discs or audio

CDs encoded via the DTS recording system.


On-screen display Select:

“Digital Output” “Bitstream”

Page

54

59

Recording system DTS

43

75 Ω coaxial cable

Connecting to an amplifier equipped with an MPEG2 audio decoder

MPEG2 sound

You can enjoy motion picture and live concert DVD video discs with dynamic realistic sound by connecting an amplifier equipped with an

MPEG2 audio decoder or MPEG2 audio processor.

• Use DVD video discs encoded via the MPEG2 recording system.


On-screen display


Select:

“PCM” or

“Bitstream”

Page

54

59

Recording system MPEG2 43

To

Amplifier equipped with an

MPEG2 audio decoder




Connect either.

75 Ω coaxial cable p18-24-4980SU.pmd

23 6/10/2005, 10:31 AM

23

Connections

Connecting to Optional Equipment (Continued)

Connecting to an amplifier equipped with a digital audio input

2 channel digital stereo

You can enjoy the dynamic sound of 2 channel digital stereo by connecting an amplifier equipped with a digital audio input and speaker system (right and left front speakers).


On-screen display Select:

“Digital Output” “PCM”

Page

54

59

To

Amplifier equipped with a digital audio input




75

Ω

coaxial cable

Connect either.

24 p18-24-4980SU.pmd

24 6/10/2005, 10:31 AM

Basic playback

Begin your operation.

Playing a Disc

Variable Speed Playback

Locating a Desired Section p25-32-4980.pmd

25 6/10/2005, 10:31 AM

Basic playback

Playing a Disc

This section shows you the basics on how to play a disc.

CAUTION

Keep your fingers well clear of the disc tray as it is closing.

Neglecting to do so may cause serious personal injury.

Basic playback

Preparations

• When you want to view a disc, turn on the TV and select the video input connected to the DVD video player.

• When you want to enjoy the sound of discs from the audio system, turn on the audio system and select the input connected to the DVD video player.

1 Press the ON/STANDBY button.

The DVD video player turns on.

The blue light on the DVD tray door of the player will light up.

4 Press OPEN/CLOSE to close the disc tray.

Playback starts.

2 Press OPEN/CLOSE.

The disc tray opens.

If you insert a DVD video disc that contains a top menu, a menu may appear. Use the / /

/ to select the title you want to view, then press ENTER to start playback. See “Locating a title using the top menu.”

30

• You may need to press the TOP MENU or MENU button to display disc menu (depending on the actual DVD video disc.)

3 Place the disc on the disc tray.

With the playback side down

Notes

• If the disc tray is holding a disc you have already played, playback will begin from the location where you last stopped. For resuming playback, see

29

.

• There are two different disc sizes. Place the disc in the correct guide on the disc tray. If the disc is out of the guide, it may damage the disc and cause the

DVD video player to malfunction.

• Do not place a disc which is unplayable in this DVD video player.

• Some video CD are recorded with PBC (Playback

Control), a menu with recorded contents may appear on the TV if you have turned the PBC on. You can make your selection according to its PBC menu. Press the MENU/PBC button on the remote control to turn PBC on or off anytime during Video CD playback. When switching from PBC off to

PBC on mode, playback will start from the beginning of the disc.

To start playback in the stop mode

Press PLAY.

26 p25-32-4980.pmd

26 6/10/2005, 10:31 AM

2, 4

1

TOP MENU

MENU

ENTER

STOP

PLAY

PAUSE

To obtain a higher quality picture

Occasionally, some picture noise not usually visible during a normal broadcast may appear on the TV screen while playing a DVD video disc because the high resolution pictures on these discs include a lot of information. While the amount of noise depends on the TV you use with this DVD video player, you should generally reduce the sharpness adjustment on your TV when viewing DVD video discs.

About

The icons on the heading bar show the playable discs for the function described under that heading.

DVD

CD

: You can use this function with DVD video discs.

: You can use this function with VIDEO CDs.

: You can use this function with audio CDs.

To pause playback (still mode)

Press PAUSE/STEP during playback.

To stop playback

Press STOP .

To resume normal playback, press the PLAY button.

• The sound is muted during still mode.

To remove the disc

Press OPEN/CLOSE.

Remove the disc after the disc tray opens completely.

To turn the power off (To enter the standby mode)

Press ON/STANDBY to turn the unit to standby mode.

Note

Be aware that this equipment is still powered even after the

ON/STANDBY indicator turns off (standby mode) by pressing the ON/STANDBY button. To disconnect this equipment completely from the main power, pull out the power plug from the wall outlet.

About the screen saver

When you leave the unit in DVD stop mode for approximately 2 minutes, the screen saver of the DVD video player automatically appears. To turn off the screen saver, press the PLAY button.

Automatic Power Off function

If the DVD video player is stopped, or the screen saver is engaged for approximately 20 minutes, the DVD video player will automatically turn itself off.

Be sure to press the OPEN/CLOSE button to close the disc tray after you remove the disc.

Notes

• Do not move the DVD video player during playback. Doing so may damage the disc.

• Use the OPEN/CLOSE button to open and close the disc tray. Do not push the disc tray while it is moving. Doing so may cause the DVD video player to malfunction.

• Do not push up on the disc tray or put any objects other than discs on the disc tray. Doing so may cause the DVD video player to malfunction.

• In many instances, a menu screen will appear after playback of a movie is completed. Prolonged display of an on-screen menu may damage your television set, permanently etching that image onto its screen. To avoid this, be sure to press the

STOP button on your remote control once the movie is completed.

27 p25-32-4980.pmd

27 6/10/2005, 10:31 AM

Basic playback

Variable Speed Playback

You can play discs at various speeds, and resume playback from the location where you stopped playback.

STOP

PAUSE

PLAY

REV

FWD

SLOW

Playing in fast reverse or fast forward directions

Press REV or FWD during playback.

To resume normal playback

Press PLAY .

REV: Fast reverse playback

FWD: Fast forward playback

Each time you press the REV or

FWD button, the playback speed changes.

Notes

• The DVD video player mutes sound and subtitles during reverse and forward scan of DVD video discs.

• The playback speed may differ depending on the disc.

Playing frame by frame

Press PAUSE/STEP during still playback.

Each time you press the PAUSE/

STEP button, the picture advances one frame.


Press PLAY .

Note

The sound is muted during frame by frame playback.

28 p25-32-4980.pmd

28 6/10/2005, 10:31 AM

Playing in slow-motion

Press SLOW during playback.

Each time you press the SLOW button, the slow-motion speed changes in the following sequence:

4 8


Press PLAY .

Notes

• The sound is muted during slow-motion playback.

• 3 speeds are available.

1

2

Resuming playback from the same location

Press STOP at the location where you want to interrupt playback.

The DVD video player memorizes the location where playback is stopped.

Press PLAY.

The DVD video player resumes playback from the location where you stopped playback.

To start playback from the beginning regardless of the location where you stopped playback

1 Press STOP twice.

The DVD video player deletes the memory of the location.

2 Press PLAY.

DVD

Playback starts from the beginning of the current title.

Playback starts from the beginning of the disc.

• If you want to return to the beginning of a DVD video disc, open and close the disc tray once with the

OPEN/CLOSE button before pressing the PLAY button.

Notes

• Resuming cannot function when:

– you play a PBC-featured VIDEO CD while “PBC” is set to

“On”.

– you open the disc tray.

– you disconnect the power plug of the DVD video player.

• There may be a difference in the location where playback resumes depending on the disc.

• Settings you changed using the on-screen displays while the DVD video player keeps a location in the memory may function only after the memory is cleared.

29 p25-32-4980.pmd

29 6/10/2005, 10:31 AM

Basic playback

Locating a Desired Section

TOP MENU

ENTER

Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters. VIDEO CDs and audio CDs are divided into tracks. You can quickly locate any specific title, chapter, or track.

DVD video disc

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3

Track 1

VIDEO CD/audio CD

Track 2 Track 3 Track 4 Track 5

DVD

Locating a title using the top menu

1 Press TOP MENU.

The top menu appears on the TV screen.

e.g.

3 Press ENTER.

Playback starts from chapter 1 of the selected title.

2 Press / / / to select the title you want.

If the titles in the top menu are assigned a number, you can directly locate a specific title by pressing its designated number with the number buttons.

Notes

• The instructions above describe basic procedures which may vary depending on the contents of the DVD video disc.

If different instructions appear on the TV screen, follow those instructions.

• If you display the top menu during playback and press the

TOP MENU button again without selecting any title, the DVD video player may resume playback from the point where you first pressed the TOP MENU button (depending on the actual DVD video disc.)

• This method of locating a title is available only on a disc that contains a top menu.

• Instruction notes of discs may refer to the button that displays the top menu as TITLE button.

30 p25-32-4980.pmd

30 6/10/2005, 10:31 AM

CLEAR

ENTER

PLAY

SKIP

T

Number buttons

Locating a desired section by entering the corresponding number

1 Press T.

Press / to highlight the Title/Chapter or Track.

If you are using a VIDEO CD/audio CD, skip step 2.

Then at step 3, enter the number for the track you want using the number buttons.

e.g.

DVD

Search

Time

Title/Chapter

Search

Time

Track

3 Press the number buttons to enter title, chapter or track number.

4 Press ENTER.

Playback starts from the selected section.

2 Press / to select a section you want to locate.

e.g. When you want to locate a chapter.

DVD

Accessing chapters/tracks using number buttons:

You can play any chapter/track you want by pressing the corresponding number button. For the chapters/ tracks number greater than “9”, use “+10” button.

Each press increases the number by 10. Then key in the second digit of chapter/track number.

Notes

• Pressing the CLEAR button resets the numbers. To clear the display, press the T button several times.

• This method of locating a title is available only on a disc that contains title numbers.

Locating a specific chapter or track

Press SKIP or repeatedly to access the chapter or track number you want.

Playback starts from the selected chapter or track.

To locate succeeding chapters or tracks.

Playback starts from the beginning of the current chapter or track.

When you press twice in quick successions, playback starts from the beginning of the preceding chapter or track.

Notes

• Some titles may not display chapter numbers.

• If you press and hold the SKIP or button on the front panel during playback, the DVD video player performs fast reverse or fast forward playback. You can vary the speed by pressing the button repeatedly.

To locate chapters or tracks during fast reverse or fast forward playback, first press the PLAY button to resume normal playback, then use the SKIP or button.

31 p25-32-4980.pmd

31 6/10/2005, 10:31 AM

p25-32-4980.pmd

32 6/10/2005, 10:31 AM

Advanced playback

Customizing the performance of your DVD video player.

Accessing a Specific Location

Directly

Repeating a Specific Segment

Playing in a Varied Order

Playing in a Favorite Order

Zooming a Picture

Selecting the Picture Enhancement

(E.P.M.)

Selecting the Sound Enhancement

(E.A.M.)

Selecting the Camera Angle

Selecting Subtitles

Selecting a Language

On-screen Display Operation

Playing MP3/WMA Files

Viewing JPEG Files

Viewing DivX ® MPEG-4 Files p.33-38-4980.pmd

33 6/10/2005, 10:31 AM

Advanced playback

Accessing a Specific Location Directly

The unit stores the points that you want to watch again up to 3 points.

You can resume playback from each scene.

CLEAR

ENTER

PLAY

T

1

Entering the time counter of the desired location

Press T.

Press / button to highlight the time counter.

To set and play favourite bookmark during playback

1. Press T twice, the display of Bookmark appears, then press ENTER to mark the desired scene.

DVD

Track

2 Press the number buttons to enter the time.

e.g.

2. Press ENTER to play the favourite bookmark.

To set other bookmarks.

Follow step 1 and move through the menu by pressing the or button.

Press T again to remove this display.

• The first number you entered represents hours.

• The second two numbers you entered represent minutes.

• The third two numbers you entered represent seconds.

• If you input a wrong number, press CLEAR.

3 Press ENTER.

Playback starts from the desired location.

To cancel the Bookmark

Follow step 1, then press CLEAR to cancel the bookmark. Move through the menu by pressing the or

button to cancel other bookmarks.

Notes

• Some discs may not respond to this process.

• Some scenes may not be located precisely as you specified.

• This method for accessing specific locations is available only within the current title of the DVD video disc or within the current track of the VIDEO CD / audio CD.

Notes

• Some discs may not work with marking operation.

• The marking is cancelled when you open the disc tray or turn the power off.

• Some subtitles recorded around the marker may fail to appear.

34 p.33-38-4980.pmd

34 6/10/2005, 10:31 AM

Repeating a Specific Segment

You can specify a desired segment and repeat it.

A-B RPT

Repeating a specific segment

1 Press A-B RPT at the beginning of the segment (point A) you want to play repeatedly.


Press A-B RPT until Rep off is displayed .

2 Press A-B RPT again at the end of the segment (point B).

The DVD video player automatically returns to point A and starts repeat playback of the selected segment

(A-B).

Notes

• Some discs may not permit A-B repeat operation.

• You cannot set the A-B repeat function for a segment that includes multiple camera angles

41

.

• You can specify a segment only within the current title or track (VIDEO CD).

• There may be a slight difference between point A and the location where playback actually resumes depending on the disc.

p.33-38-4980.pmd

35 6/10/2005, 10:31 AM

35

Advanced playback

Playing in a Varied Order

You can play titles, chapters within a title, or tracks in a varied order.

ENTER

2

1

1

Playing titles, chapters or tracks in a varied order

Press PLAY MODE.

e.g.

Press / button to select desired features and then press ENTER button to toggle desired mode.

Play mode

Mode

Repeat

Off

Off

2 Press PLAY.

Press the PLAY button, the DVD video player starts playback in the selected mode.


Press ENTER until the Off is displayed.

Off

Shuffle

Note

Some discs may not permit these operations.

Off

Chapter

Title

Off

Track

All

Chapter:

Repeats the chapters within the current title.

Title:

Repeats the current title.

Track:

Repeats the current track.

All:

Repeats the entire disc.

Off:

Resumes normal playback.

36 p.33-38-4980.pmd

36 6/10/2005, 10:31 AM

Playing in a Favorite Order

You can combine your favorite titles, chapters, or tracks and play them in the order you determine. You can program up to 12 selections into the memory.

(Memory playback)

CLEAR

3

2

1

Setting titles, chapters, or tracks in a favorite order

1 Insert a disc and press MEMORY during stop.

e.g.

The following display appears.

Memory

Program

Memory

Program

To change the programmed selections

1 While the display appears on the TV screen, press

/ / / to move the highlighted bar to the item you want to change.

2 Change the selection following the instructions in step 2.

To cancel the programmed selections

1 While the display appears on the TV screen, press

/ / / to move the highlighted bar to the item you want to cancel.

2 Press CLEAR.

To resume normal playback from memory playback

Press MEMORY button.

Press / / / to move the highlighted bar to Clear

All , then press the ENTER . All the input programs will be cleared.

Press PLAY button to resume normal playback.

Normal playback will start from first location.

2 Select the items in the order you want by pressing the number buttons.

Each time you press the / / / button, the space is highlighted in turn. Highlight where you want to enter, then press the corresponding number buttons.

To select another chapter in the same title, you do not need to select the title number.

To select tracks from a VIDEO CD/audio CD in order, press the number buttons for the track.

3 Press / / / to move the highlighted bar to Play Program, then press the

ENTER.

To program during playback

If you press the MEMORY button during playback, a programming display appears.

Follow steps 2 and 3.

Notes

• Some discs may not permit memory playback operation.

• If you select repeat

36

during memory playback, the DVD video player repeats the current memory playback.

• If you press the MEMORY or RETURN button while the display appears on the TV screen, the display disappears.

• The programmed selections will be cleared when you turn off the DVD video player.

The DVD video player starts memory playback.

37 p.33-38-4980.pmd

37 6/10/2005, 10:31 AM

Advanced playback

Zooming a Picture

You can magnify areas within a picture.

ZOOM

Zooming a picture

Press ZOOM during normal, slow or still playback.

The centre part of the image will be zoomed in.

e.g.

2


Press ZOOM repeatedly until the

Off

is displayed.

Original picture is restored.

Each time you press the ZOOM button, the magnification level changes as follows:

1 2 3 Off

Press the ZOOM button to select the magnificant level.

Press the / / / buttons to view a different part of the image.

You may move the image from the centre position to UP, DOWN, LEFT and RIGHT direction.

When you reach the edge of the image, the display will not shift anymore in that direction.

Notes

• Some discs may not respond to zoom feature.

• During some scenes, the buttons may not work as described.

• Zooming does not work on subtitles or menus included on

DVD video discs.

• The magnification level varies depending on the picture size you select.

58

Off

Press the ZOOM button repeatedly until the Off is displayed.

38 p.33-38-4980.pmd

38 6/10/2005, 10:31 AM

Selecting the Picture Enhancement (E.P.M.*)

You can easily select a preferred picture enhancement.

*E.P.M.: Enhanced Picture Mode

2

E.P.M.

1

Selecting the picture enhancement

Press E.P.M.

The picture enhancement menu appears.

To exit the picture enhancement selection

Press E.P.M. again.

Note

Actual effect to picture may vary depending on the TV. Make selection according to your preference.

2 Select the picture enhancement by pressing / , then press

/

to make your selections.

Each time you press the / button, the picture enhancement changes.

p.39-47-4980.pmd

39 6/10/2005, 10:32 AM

39

Advanced playback

Selecting the Sound Enhancement (E.A.M.*)

You can easily switch a preferred audio enhancement.

*E.A.M.: Enhanced Audio Mode

E.A.M.

1

Selecting the sound enhancement

Press E.A.M.

The sound enhancement will appear:

To exit the audio enhancement selection

Leave the DVD video player unattended for about 5 seconds after having made a selection.

3D On

Press the E.A.M. button again, the sound enhancement change to OFF.

Notes

• Actual effects to sounds may vary depending on the speaker system. Make selection according to your preference.

• Actual effects to sounds may vary depending on the disc.

• When the DVD video player is connected to an amplifier equipped with Dolby Surround Pro Logic, select “3D off”.

Otherwise, Dolby Surround Pro Logic may function differently than usual.

3D*:

To obtain expansive virtual surround sound effects from two speakers.

To use this enhancement on sounds output from the ANALOG AUDIO OUT jacks, be sure to set

“Digital Output” to “PCM”.

* Effective in playback of a DVD video disc or a

VIDEO CD.

40 p.39-47-4980.pmd

40 6/10/2005, 10:32 AM

Selecting the Camera Angle

If the scene was recorded from multiple angles, you can easily change the camera angle of the scene you are watching.

ANGLE

DVD

Changing the camera angle

1 Press ANGLE while playing a scene recorded with multiple angles.

While playing a scene recorded with multiple angles, press the ANGLE button.

e.g.


Press the ANGLE repeatedly until the “ displayed.

1/3

” is

Notes:

• This function can only be used for discs on which scenes shot from multiple angles have been recorded.

• If only one angle is recorded, “

1/1

” is displayed.

Number changes to show the number of the current angle. (The maximum number of possible angles is 9)

2 Press ANGLE while the angle number is displayed on the TV screen.

Press the ANGLE button repeatedly to change the scene to the next angle in those recorded.

• About two seconds later, playback continues from the new angle you selected.

• If no button is pressed within 10 seconds, playback continues without changing the current angle.

p.39-47-4980.pmd

41 6/10/2005, 10:32 AM

41

Advanced playback

Selecting Subtitles

You can display subtitles on the TV screen and select a subtitle language from those included on the DVD video disc.

SUBTITLE

DVD

Selecting a subtitle language

1 Press SUBTITLE during playback.

The current subtitle setting is displayed.

e.g.

To turn subtitles on or off

1 Press SUBTITLE during playback.

is 2 Press SUBTITLE repeatedly until the displayed.

2 Press SUBTITLE while the subtitle setting is displayed on the TV screen

.

Each time you press the SUBTITLE button, the subtitle languages included on the DVD video disc change.

e.g.

Notes

• Some DVD video discs are set to display subtitles automatically, and you cannot turn them off even if you set the subtitle function to off.

• During some scenes, the subtitles may not appear immediately after you select your desired.

• Some DVD video discs will allow you to make subtitle selections and turn subtitles on or off only via the disc menu.

To turn off the subtitle setting display, press the SUBTITLE button repeatedly until is displayed.

Notes

• When you turn on the DVD video player or replace a disc, the player returns to the initial default setting

61

.

When you select a subtitle language which is not included on the disc, the DVD video player plays a prior language programmed on the disc.

• During some scenes, the subtitles may not appear immediately after you change the subtitle language.

42 p.39-47-4980.pmd

42 6/10/2005, 10:32 AM

Selecting a Language

You can select a preferred language and sound recording system from those included on the DVD video disc.

AUDIO

Selecting a playback audio setting

1 Press AUDIO during playback.

The current audio setting is displayed.

2 Press AUDIO while the audio setting is displayed on the TV screen.

Each time you press the AUDIO button, the audio settings included on the DVD video disc change.

e.g.

Recorded audio format number changes sequentially. (The maximum number of possible audio formats is 8)

The abbreviation of the language appears instead of the language name. Refer to the list of languages and their abbreviations.

62

To turn off the audio setting display, press the

AUDIO button.

Notes

• When you turn on the DVD video player or replace a disc, player returns to the initial default setting

61

.

If you select a sound track which is not included on the disc, the DVD video player plays a prior sound track programmed on the disc.

• Some discs allow you to change audio selections only via the disc menu. If this is the case, press the MENU button and choose the appropriate language from the selections on the disc menu.

Selecting sound channels of VIDEO CDs

Press AUDIO repeatedly during playback to hear a different audio channel (stereo, Left or Right).

Output sound conversion table

OPTICAL or COAXIAL DIGITAL AUDIO OUT jack

Digital Output 50 55

• Signals of 96kHz from the

OPTICAL or COAXIAL DIGITAL

AUDIO OUT jack are depressed to

48 kHz by down sampling process when:

– “3D On” is selected.

40

– a copyright protected disc is played.

• Quantization bit of signals of 20 bit or higher which is output from the

OPTICAL or COAXIAL DIGITAL

AUDIO OUT jack is 16 bit if they are in a copyright protected disc.

6/10/2005, 10:32 AM

43 p.39-47-4980.pmd

43

Advanced playback

On-screen Display Operation

When you turn on the on-screen display, you can view information on operational status and access features and settings.

NAVI

ENTER

On-screen display operation

Press NAVI.


See the pages in for details on the features.

e.g. When playing a DVD video disc

Title number

Chapter number

Elapsed time

1/3 1/16 00:02:30

Features

Title number (Track number)

Locate a title or track using the number buttons.

31

Chapter number

Locate a chapter using the number buttons.

31

Elapsed time of the current title or track

To enter the time to locate a desired location.

34

: To stop playback.

27

: Playback starts from the beginning of the current chapter or track.

31

: To start playback.

26

: To locate succeeding chapters or tracks.

31

: To pause playback.

27

44 p.39-47-4980.pmd

44 6/10/2005, 10:32 AM

On-screen Display Operation (Continued)

DISPLAY

On-screen display operation

Viewing the operational status

1 Press DISPLAY.


Time counter

DVD

Elapsed time / remaining time of the current title

VCD

CD

Elapsed time / remaining time of the current track

31 Title number

42 Subtitle Setting Off

Bitrate 5.888Mbps

Bit Rate

2 To turn off the display, press DISPLAY again.

Bit rate (Mbit/s)

Amount of picture, sound and subtitle data in the DVD video disc transferred per second.

The larger the value is, the more data processed, but this does not necessarily insure better picture quality.

p.39-47-4980.pmd

45

Chapter number 31

Audio Setting 43

Angle Setting 41

6/10/2005, 10:32 AM

45

Advanced playback

Playing MP3/WMA Files

You can play MP3/WMA files that have been recorded on a CD-R or CD-ROM on the DVD video player.

2

ENTER

PLAY

PAUSE/STEP

3

T

Playing MP3/WMA files

Preparations

• Make sure that a disc you want to play is compatible with this DVD video player.

47

1 Place a CD that contains MP3/WMA files on the disc tray.

2 Press OPEN/CLOSE to load the disc.

Playback starts.

Selecting a track (file) in the disc

1 Press T.

2 Enter the track number to select a track you want to play.

3 Press ENTER to begin playback of the selected track.

The current track being played is highlighted in green.

Notes

• Letters of a file/folder name overflowing the given space are not displayed.

• You can not play in Fast reverse or Fast forward during

MP3/WMA playback.

3 To stop playback, press STOP.

To pause playback

Press PAUSE/STEP during playback.

To resume normal playback, press the PLAY button.

Notes

• Some discs may not permit this operation.

• WMA tracks copy-protected cannot be played.

• The OPTICAL or COAXIAL DIGITAL AUDIO OUT jack outputs MP3/WMA sounds in the linear PCM format regardless of the current “Digital Output” selection

59 43

.

• If you stop playback by pressing the STOP button twice and then press the PLAY button, playback will start from the first track of the disc.

• The SKIP

31

and PLAY MODE

36

functions are also available.

46 p.39-47-4980.pmd

46 6/10/2005, 10:32 AM

Playable files

MP3/WMA disc compatibility with this player is limited as follows:

• Playable discs: CD-ROM, CD-R (650MB / 74 min. only)

CD-RW is not recommendable.

• Sampling Frequency:

• Bit rate:

44.1 kHz only

WMA: 48 kbps - 192 kbps (CBR*)

MP3: 32 kbps - 320 kbps (CBR*)

Mode 1, Mode 2 XA Form 1 • CD physical format:

• File system:

• File name:

ISO9660 Level 1, 2 or Joliet

A file name should be in alphabet and numerals only, and must incorporate “MP3” or

“WMA” extension.

e.g.“********.MP3”, “********.WMA”

• Total number of folders:

• Total number of files:

• WMA codec version:

Less than 256

Less than 1000

V7 or V8 (Stereo sound only)

* CBR = Constant Bit Rate

This DVD video player requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-

R containing MP3/WMA files). Because this area of technology is still evolving, Toshiba cannot guarantee that all recordable discs will produce optimal playback quality. The technical criteria set forth in this owner’s manual are meant only as a guide.

Please be advised that you must obtain permission from the applicable copyright owners to download copyrighted content, including music files, in any format, including the MP3 and WMA formats, prior to the downloading thereof. Toshiba has no right to grant and does not grant permission to download any copyrighted content.

Microsoft, Windows Media, and the Windows

Logo are either registered trademarks or trademarks of Microsoft Corporation in the

United States and/or other countries.

Note

When the WMA or MP3 file is out of the above specifications, the song may be skipped or muted with counter moving.

47 p.39-47-4980.pmd

47 6/10/2005, 10:32 AM

Advanced playback

48

Viewing JPEG Files

You can play JPEG files that have been recorded on a CD-R or

CD-ROM on the DVD video player.

You can select a preferred view: a page of 9 thumbnail images or a single image view.

Also, rotating, enlarging and shifting of each image can be possible.

TOP MENU

ENTER

PLAY

PAUSE/STEP

STOP

Viewing JPEG files

Preparations

• Prepare a disc that contains JPEG files you want to view.

50

• Make your TV shape conform to the 4:3 picture size. Only 4:3 pictures can be played regardless of the function settings via the on-screen displays of the DVD video player. If the TV is adjusted to other sizes, e.g. “WIDE,” images will appear to be horizontally expanded. For details, refer to the owner’s manual of your TV.

1 Press OPEN/CLOSE to open the disc tray, place a disc that contains JPEG files.

A view appears.

(Automatic mode) e.g.

Press OPEN/CLOSE to close the disc tray, after completion of reading, playback automatically starts. The next picture will automatically display after a few seconds.

To quit the JPEG playback, press STOP.

• Pressing the OPEN/CLOSE button to open the disc tray can also quit the playback.


Press PAUSE/STEP during playback

To resume normal playback, press

PLAY.

To change the image

To view the succeeding image, press

SKIP .

A list of folders in the disc appears.

(Selection mode) e.g.

Flower

0001

0002

0003

0004

0005

0006

0007

0008

0009

0010

Press / / / to select your desired file, and then press ENTER or PLAY button to start playback.

Press STOP to display a folder list.

Press SEARCH and enter the track number followed by ENTER button to quickly select your image.

Search

Track

To view the previous image, press SKIP

.

To magnify image

Press ZOOM repeatedly.

Each time you press the ZOOM button, the magnification level changes as follows:

1 2 3 Off

Press the / / / buttons to view a different part of the image. You may move the image from the centre position to UP, DOWN, LEFT and RIGHT direction. When you reach the edge of the image, the display will not shift anymore in that direction.

To rotate an image

Press the ANGLE repeatedly

The image rotates by clockwise 90degree.


Press the ZOOM repeatedly until the Off is displayed.

• Original picture is restored when the

Off appears.

• Depending on the file size, some files may not display the entire image.

p48-53-4980.pmd

48 6/10/2005, 10:32 AM

Viewing a thumbnail view

1 Press TOP MENU in full-screen review.

To quit the JPEG playback, press STOP.

• Pressing the OPEN/CLOSE button to open the disc tray can also quit the playback.


Press PAUSE/STEP during playback

To resume normal playback, press

PLAY.

Prev Next

To view the previous 9 images.

To view the succeeding 9 images.

Press the / / / to select an image, press PLAY to view one image in full-screen and automatically images will be displayed one by one again in a few seconds.

Turn the page if necessary

Press / / / to highlight the PREV

NEXT screen.

or

and ENTER to review other thumbnail

Notes

• Depending on the file size, some files may not display the entire image.

• If you press the TOP MENU in full-screen review, the DVD video player will display a menu of 9 thumbnail images.

49 p48-53-4980.pmd

49 6/10/2005, 10:32 AM

Advanced playback

JPEG files compatibility

Discs whose compatibility with this DVD video player has been confirmed by TOSHIBA are as follows.

Many of these discs, when loaded, will make the DVD video player enter the automatic mode to play a prescribed folder in the disc. To play other folders, display a folder list and select a folder.

CANON QuickCD

FUJICOLOR CD

Kodak Picture CD

NORITSU QSS CD

JPEG disc compatibility with this DVD video player is limited as follows:

• Playable discs: CD-ROM, CD-R (650MB / 74 min. only)

• CD physical format:


Mode 1, Mode 2 XA Form 1

• File system:

• File name:


A file name should be in alphabet and numerals only, and must incorporate “JPG” extension.

e.g.“********.JPG” (Do not name the file with “JPE” or “JPEG” extension.)


• Total number of files:

Less than 256

Less than 1000

Depending on the file size, some files may not display the entire image.

Some discs may not permit this operation. Especially, the following conditions of included files will increase the disc’s disability.

1. Pixels over 3072 x 2048 in height and/or width

2. File format except Exif

50 p48-53-4980.pmd

50 6/10/2005, 10:32 AM

Playing DivX ® MPEG-4 Files

You can play DivX ® and MPEG-4 files that have been recorded on a CD-R or CD-ROM on the DVD video player.

Playing DivX

®

MPEG-4 files

1 Press OPEN/CLOSE to open the disc tray, place a disc that contains DivX ® or

MPEG-4 files.

Press OPEN/CLOSE to close the disc tray, after completion of reading, playback of first movie automatically starts.

Press STOP to display a folder list.

A list of folders in the disc appears.

e.g.

CD-R

[Root]

5 t01_t02_kids t03_t04_kids t05_aes_encrypt u01_longflight_div t01_t02_kids u03_divx51_stret u04_divx1_smpte u05_divx1_smpte

Press / / / to select your desired file, and then press

ENTER or PLAY button to start playabck.

Notes

• It is recommended you record same kind of files in a CD-

ROM or CD-R.

• Some DivX Video-On-Demand files may require registration code of your DVD video player, you may get the code in

Rating settings

61

.

p48-53-4980.pmd

51 6/10/2005, 10:32 AM

51

Advanced playback

Playable files

DivX ® MPEG-4 disc compatibility with this player is limited as follows:

• Playable discs:

• DivX versions:

• Audio format:

• Enhance video:

• Frame rate:

• CD physical format:

• File system:

• File name:


• Total number of files”

CD-ROM, CD-R (650MB / 74 min. only)


DivX 3.11, 4.12, 5.0, 5.1

CBR MP3, VBR MP3, Mono MP3, DivX ® AC3

GMC, Qpel, Progressive B-frames

8 to 25 fps

Mode 1, Mode 2 X A Form 1


A file name should be in alphabet and numerals only, and must incorporate

“MPG” or “AVI” extension.

e.g. “ *******.MPG ”, “ *******.AVI ”

Less than 256

Less than 1000

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and used under license.

52 p48-53-4980.pmd

52 6/10/2005, 10:32 AM

Function setup

You can change the default settings to customize performance to your preference.

Customizing the Function

Settings

Table of Languages p48-53-4980.pmd

53 6/10/2005, 10:32 AM

53

Function setup

Customizing the Function Settings

You can change the default settings to customize performance to your preference.

2

RETURN

ENTER

3, 4

1, 6

Setting procedure

1 Press SETUP during stop.

The following on-screen display appears.

3 Press / to select the setting you want to change, then press ENTER.

4 Change the selection by / buttons, by referring to the corresponding pages, then press ENTER.

2 Press / to select an option for the setting you want to change, then press

ENTER.

(See the next page.)

5 Repeat steps 3 and 4 to change other settings.

To select another option, press RETURN to go back to step 2.

Language settings

Video settings

Audio settings

Rating settings

6 Press SETUP.

The on-screen display disappears.

To return to the previous display

Press RETURN.

Note

To quit the procedure, press the SETUP button to turn off the on-screen display.

54 p54-63-4980SU.pmd

54 6/10/2005, 10:32 AM

Language

Setting

OSD Menu

Subtitle

Audio

DVD Menu

DivX

Video

TV Shape

Video Output

Digital Output

Audio

Rating

Password

Rating

FL. Dimmer

Default

DivX registration

DVD

DVD

DVD

DVD

Details

To select a preferred language for on-screen display.

Page

56

To select a preferred language for subtitles.

To select a preferred language for the sound track.

56

57

To select a preferred language for disc menus.

57

To select a preferred language for your DivX video disc.

57

DVD

To select a picture size according to aspect ratio of your TV.

To select whether you send Composite or

Component signals to the connected TV.

58

58

To select an output sound format corresponding to your system connection.

59

DVD

DVD

DVD

To create a personal security code.

59

To turn the parental lock function on or off.

59

60 To adjust the DVD display and the blue DVD door brightness.

To return the initial settings such as Language,

Video, Audio and etc. to the factory default.

61

To get your DVD Video Player DivX registration code.

61 p54-63-4980SU.pmd

55 6/10/2005, 10:32 AM

55

Function setup

Customizing the Function Settings (continued)

Setting details

Language

OSD Menu

English: To view on-screen displays in english.

Français: To view on-screen displays in french.

Español: To view on-screen displays in spanish.

1) Press ENTER.

2) Press / to select the OSD Menu.

3) Press ENTER button, then the / to shift and change the Language.

4) Press ENTER.

5) Press RETURN.

Subtitle

DVD

English: To display subtitles in english.

Français: To display subtitles in french.

Español: To display subtitles in spanish.

Auto: To display subtitles in different

Off: languages other than you selected.

To disable subtitles.

1) Press ENTER.

2) Press / to select the Subtitle.


4) Press ENTER.

5) Press RETURN.

Note

Some DVD video discs may not include your preselected language. In this case, the DVD video player automatically displays disc menus consistent with the disc’s initial language setting.

Notes

• Some DVD video discs may be set to display subtitles in a different language other than you selected. A prior subtitle language may be programmed on the disc.

• Some DVD video discs allow you to change subtitle selections only via the disc menu. If this is the case, press the MENU button and choose the appropriate subtitle language from the selection on the disc menu.

56 p54-63-4980SU.pmd

56 6/10/2005, 10:32 AM

Audio

DVD

English: To play sound tracks in english.

Français: To play sound tracks in french.

Español: To play sound tracks in spanish.

1) Press ENTER.

2) Press / to select the Audio.


4) Press ENTER.

5) Press RETURN.

DivX

DVD

If your DivX files include a subtitle file, then you may select below 6 subtitles:

Western Europe

Central Europe

Slavonic Cyrillic

Greek

Turkish

Hebrew

1) Press ENTER.

2) Press / to select the DivX.

3) Press ENTER button again until your preferred subtitle is displayed.

4) Press RETURN.

Note

Some DVD video discs may not be played in a different language than you selected. A prior language may be programmed on the disc.

DVD Menu

DVD

English: To display DVD menus in english.

Français: To display DVD menus in french.

Español: To display DVD menus in spanish.

1) Press ENTER.

2) Press / to select the DVD menu.


4) Press ENTER.

5) Press RETURN.

DivX WesternEurope

Notes

• If your DivX files do not include the subtitle file, you cannot use this selection.

• Supported subtitle file formats:

.srt, .sub, .txt, .smi, .ssa, .ass, .psb.

Note

Some DVD video discs may not include your preselected language. In this case, the DVD video player automatically displays disc menus consistent with the disc’s initial language setting.

p54-63-4980SU.pmd

57 6/10/2005, 10:32 AM

57

Function setup


Setting details

Video

TV Shape

DVD

1) Press / to select the Video.

2) Press ENTER.

3) Press ENTER button, then press the / to shift and change the TV type

4) Press ENTER.

5) Press RETURN.

4:3 Pan Scan: Select when a standard 4:3 TV is connected.

Displays pictures cropped to fill your TV screen. Either or both sides of the picture are cut off.

4:3 Letter Box: Select when a standard 4:3 TV is connected.

Displays theatrical images with masking bars above and below the picture.

16:9 Wide: Select when a 16:9 TV is connected.

Notes

• The displayable picture size is preset on the DVD video disc. Therefore, the playback picture of some

DVD video discs may not conform to the picture size you select.

• When you play DVD video discs recorded in the 4:3 picture size only, the playback picture always appears in the 4:3 picture size regardless of the TV shape setting.

• If you select “16:9 Wide” and you own a 4:3 TV set, the

DVD playback picture will be horizontally distorted during playback. Images will appear to be horizontally compressed. Always be sure that your TV shape conforms to the actual TV in use.

Video Output

1) Press / to select the Video.

2) Press ENTER.

3) Press / to select the Video Output.

4) Press ENTER button, then press / to select the output mode.

5) Press ENTER.

6) Press RETURN.

Composite: Select if you connect the DVD to TV via composite video (yellow) input or

S-VIDEO input.

Component: Corresponding to your TV which has a component video inputs. Progressive mode can only be on when Component is selected.

Note

At component mode, there is no S-VIDEO output.

58 p54-63-4980SU.pmd

58 6/10/2005, 10:32 AM

Audio Rating

Digital Output

Selected the output sound format corresponding to your system connection.

1) Press / to select Audio.

2) Press ENTER.

3) Press ENTER button, then press / to shift and change the output sound format.

4) Press ENTER.

5) Press RETURN.

PCM: Select when connected to a 2 channel digital stereo amplifier.

The DVD video player outputs sounds in the

PCM 2 channel format when you play a

DVD video disc recorded on the Dolby

Digital, MPEG1 OR MPEG2 recording system.

Bitstream: Disc audio raw data will be output.

Note

When you make a connection to a TV, or Dolby Surround

Pro Logic or stereo system via the analog audio jacks, select “PCM” or “Bitstream”.

Password / Rating

DVD

DVD discs equipped with the password function are rated according to their content. The contents allowed by a parental lock level and the way a DVD disc can be controlled may vary from disc to disc.

For example, if the disc allowed, you could edit out violent scenes unsuitable for children and replace them with more suitable scenes, or you could lock out playback of the disc altogether.

• DVD video discs may or may not respond to the parental lock settings. This is not a defect in the

DVD video player. Make sure this function works with your DVD video discs.

1) Press / to select the Rating.

2) Press ENTER.

3) Press / to select Rating and then press

ENTER repeatedly to set the parental lock level.

4) Press to the Password and enter your 4digits security code, then press ENTER button.

5) Press RETURN.

Password

Rating

FL. Dimmer

Default


- - - -

8. Adult

Normal

No

Display

Password

Rating

FL. Dimmer

Default


- - - -

8. Adult

Normal

No

Display

Notes

• If you make a mistake before pressing ENTER button, press CLEAR button and enter your 4-digit security code again.

• You cannot play DVD discs rated higher than the level you selected unless you cancel the parental lock function.

(continued)

59 p54-63-4980SU.pmd

59 6/10/2005, 10:32 AM

Function setup


Setting details

(continued)

The parental lock level is equivalent to the following ratings:

Level 1: Kid Safe

Level 2: G

Level 3: PG

Level 4: PG-13

Level 5: PG-R

Level 6: R

Level 7: NC-17

Level 8: Adult

Indicates Parental lock is not active.

The Parental lock is active.

If you forget the password, you can erase your current password by pressing number button 8 on the remote four times, then press

ENTER button to confirm the setting.

PASSWORD: 8888

FL. Dimmer

DVD display can be adjusted, do the following to set to the brightness you prefer:

1) Press / to select Rating.

2) Press ENTER.

3) Press / to select FL. Dimmer.

4) Press ENTER.

5) Press / to select Dim, then press ENTER button.

Password

Rating

FL. Dimmer

Default


- - - -

8. Adult

Normal

No

Display

Normal

Dim

Off

Note

Regardless the current setting, the DVD video player will return to Normal brightness the next time when you turn it on.

60 p54-63-4980SU.pmd

60 6/10/2005, 10:32 AM

Default

If you want to return the inital language setting such as Language, Video, Audio and etc. to the factory default, do the following:


2) Press ENTER.

3) Press / to select the Default.

4) Press ENTER.

5) Press / to select Yes, then press ENTER button.


DVD

Some DivX Video-On-Demand files required registration code, please get the code of your DVD video player as follow:


2) Press ENTER.

3) Press / to select the DivX registration.

4) Press ENTER.

5) Your registration code will be shown.

6) Press RETURN.

Password

Rating

FL. Dimmer

Default


- - - -

8. Adult

Normal

No

Display

No

Yes

Note

When you reset the DVD video player to the factory default, the DVD video player will take 3-5 seconds to reset.

Note

This registration code is for DivX Video-On-Demand only, do not apply this code for other applications or websites.

p54-63-4980SU.pmd

61 6/10/2005, 10:32 AM

61

Function setup

Table of Languages

62

Abbreviation

– – –

Language

Belorussian

Bulgarian

Bihari

Bislama

Bengali, Bangla

Tibetan

Breton

Catalan

Corsican

Czech

Welsh

Danish

Bhutani

Greek

Esperanto

Estonian

Basque

Persian

Finnish

Fiji

Faroese

Frisian

Irish

Scottish Gaelic

Galician

No alternate language

Chinese

Dutch

English

French

German

Italian

Japanese

Korean

Malay

Spanish

Afar

Abkhazian

Afrikaans

Amharic

Arabic

Assamese

Aymara

Azerbaijani

Bashkir

FA

FI

FJ

FO

EL

EO

ET

EU

FY

GA

GD

GL

BE

BG

BH

BI

BN

BO

BR

CA

CO

CS

CY

DA

DZ

CHI (ZH)

DUT (NL)

ENG (EN)

FRE (FR)

GER (DE)

ITA (IT)

JPN (JA)

KOR (KO)

MAY (MS)

SPA (ES)

AA

AB

AF

AM

AR

AS

AY

AZ

BA

Table of languages and their abbreviations

Abbreviation Language

MR

MT

MY

NA

NE

NO

OC

OM

OR

PA

PL

PS

KU

KY

LA

LN

LO

LT

LV

MG

MI

MK

ML

MN

MO

IE

IK

IN

IS

IW

JI

JW

KA

KK

KL

KM

KN

KS

GN

GU

HA

HI

HR

HU

HY

IA

Kurdish

Kirghiz

Latin

Lingala

Laotian

Lithuanian

Latvian, Lettish

Malagasy

Maori

Macedonian

Malayalam

Mongolian

Moldavian

Marathi

Maltese

Burmese

Nauru

Nepali

Norwegian

Occitan

(Afan) Oromo

Oriya

Panjabi

Polish

Pashto, Pushto

Guarani

Gujarati

Hausa

Hindi

Croatian

Hungarian

Armenian

Interlingua

Interlingue

Inupiak

Indonesian

Icelandic

Hebrew

Yiddish

Javanese

Georgian

Kazakh

Greenlandic

Cambodian

Kannada

Kashmiri

Language

Sundanese

Swedish

Swahili

Tamil

Telugu

Tajik

Thai

Tigrinya

Turkmen

Tagalog

Setswana

Tongan

Turkish

Tsonga

Tatar

Twi

Ukrainian

Urdu

Uzbek

Vietnamese

Volapük

Wolof

Xhosa

Yoruba

Zulu

Portuguese

Quechua

Rhaeto-Romance

Kirundi

Rumanian

Russian

Kinyarwanda

Sanskrit

Sindhi

Sango

Serbo-Croatian

Singhalese

Slovak

Slovenian

Samoan

Shona

Somali

Albanian

Serbian

Siswati

Sesotho

Abbreviation

TS

TT

TW

UK

UR

UZ

VI

VO

WO

XH

YO

ZU

TE

TG

TH

TI

SU

SV

SW

TA

TK

TL

TN

TO

TR

SD

SG

SH

SI

SK

SL

SM

SN

SO

SQ

SR

SS

ST

PT

QU

RM

RN

RO

RU

RW

SA p54-63-4980SU.pmd

62 6/10/2005, 10:32 AM

Others

Before Calling Service Personnel

Specifications

United States Warranty p54-63-4980SU.pmd

63 6/10/2005, 10:32 AM

Others

Before Calling Service Personnel

Check the following guide for the possible cause of a problem before contacting service.

Symptoms and correction

Symptom

No power.

The DVD video player turned off by itself.

No picture or abnormal colour

(pinkish, greenish, etc.).

Cause

• The power plug is disconnected.

• The automatic power off function turned the unit off.

• The TV is not set to receive DVD signal output.

• The video cable is not connected securely.

• Mismatch setting between TV and this unit.

• Wrong connection.

• Incompatible TV system.

• The audio cable is not connected securely.

• The audio receiver or TV is turned off.

• The disc is placed upside down.

• The disc is not placed within the guide.

• The disc is dirty.

• The parental lock function is set.

Correction

• Connect the power plug securely into the wall outlet.

• Press the PLAY button.

Page

18,19,20

27

• Select the appropriate video input mode on the TV so the picture from the DVD video player appears on the TV screen.

• Connect the video cable securely into the appropriate jacks.

• Select the correct Video Output setting.

• Check the connection.

• Select the correct TV system

26

18,19,20

58

18,19,20

54,58 Scrolling, jumping or B/W picture

No sound.

The playback picture has occasional distortion.

Brightness is unstable or noises are present in the playback pictures.

The DVD video player does not start playback.

Playback does not follow the course of the disc’s program.

Buttons do not work.

The remote control does not work properly.

• The equipment connected with the audio cable is not set to receive DVD signal output.

• The setting of output sound format is incorrect.

• The disc is dirty.

• It is in fast forward or fast reverse playback.

• The effect of copy protection.

• No disc is inserted.

• An unplayable disc is inserted.

• It is in the mode of repeat playback, memory playback, etc.

• Power supply fluctuations or other abnormalities such as static electricity may interrupt correct operations.

• The remote control is not pointed at the remote sensor of the DVD video player.

• The remote control is too far from the DVD video player.

• The batteries in the remote control are exhausted.

• Select the correct input mode of the audio receiver so you can listen to the sound from the DVD video player.

• Connect the audio cable securely into the appropriate jacks.

• Turn on the equipment connected with the audio cable.

• Select the proper audio setting.

26

18-24

26

43,54,59

• Eject the disc and clean it.

• Sometimes a small amount of picture distortion may appear. This is not a malfunction.

• Connect the DVD video player directly to the

TV. Avoid connecting the DVD video player to a VCR or TV/VCR combination.

• Insert a disc.

• Insert a playable disc. (Check the disc type and color system.)

• Place the disc with the playback side down.

• Place the disc correctly inside the guide on the disc tray.

• Clean the disc.

• Cancel the parental lock function or change the parental lock level.

• These operations may prevent a proper progress of the contents.

• Press and hold the ON/STANDBY button on the front panel for more than about 3 seconds. The DVD video player turns off.

Press the button again to turn it on. If the buttons still do not work, disconnect the power plug and insert it into the wall outlet again.

• Point the remote control at the remote sensor of the DVD video player.

• Operate the remote control within about 7 m.

9

-

18

26

12

26

26

9

54,59

-

-

15

• Replace the batteries with new ones.

15

15

64 p64-68-4980SU.pmd

64 6/10/2005, 10:32 AM

DVD video player / outputs / supplied accessories

DVD Video Player

Power supply

Power consumption

Mass

External dimensions

Signal system

Laser

Frequency range

Signal-to-noise ratio

Audio dynamic range

Harmonic distortion

Wow and flutter

Operating conditions

120 V AC, 60 Hz

14 W

1.6 kg

430 x 42 x 200 mm (W/H/D)

Standard NTSC

Semiconductor laser, wavelength 650/780 nm

DVD linear sound : 48 kHz sampling 4 Hz to 22 kHz

96 kHz sampling 4 Hz to 44 kHz

More than 100 dB

More than 93 dB

Less than 0.005 %

Below measurable level (less than ±0.001 % (W.PEAK))

Temperature: 5 °C to 35 °C, Operation status: Horizontal

Outputs

Video output

S video output

Component video output

Audio output (COAXIAL DIGITAL)

Audio output (OPTICAL DIGITAL)

Audio output (ANALOG)

HDMI output

1.0 V (p-p), 75 Ω , negative sync., pin jack x 1

(Y) 1.0 V (p-p), 75 Ω , negative sync., Mini DIN 4-pin x 1

(C) 0.286 V (p-p), 75 Ω

(Y) 1.0 V (p-p), 75 Ω , negative sync., pin jack x 1

(P

B

)/(P

R

) 0.7 V (p-p), 75 Ω , pin jack x 2

0.5V (p-p), 75 Ω , pin jack x 1

Optical connector x 1

2.0 V (rms), 680 Ω , pin jacks (L, R) x 1

19 pin

Supplied Accessories

Audio/video cable .................................................. 1

Remote control (SE-R0168) .................................. 1

Batteries (AAA) ...................................................... 2

• This model complies with the above specifications.

• Designs and specifications are subject to change without notice.

• This model may not be compatible with features and/or specifications that may be added in the future.

p64-68-4980SU.pmd

65 6/10/2005, 10:32 AM

65

Others

Limited United States Warranty

Digital Audio Video (“DAV”) Product - Exchange Warranty

Toshiba America Consumer Products, L.L.C. (“TACP”) makes the following limited warranties to original consumers in the United States. THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL CONSUMER PURCHASER OR ANY

PERSON RECEIVING THIS DAV PRODUCT AS A GIFT FROM THE ORIGINAL CONSUMER PURCHASER AND TO

NO OTHER PURCHASER OR TRANSFEREE.

DAV PRODUCTS PURCHASED IN THE U.S.A. AND USED ANYWHERE OUTSIDE OF THE U.S.A., INCLUDING,

WITHOUT LIMITATION, CANADA AND MEXICO, ARE NOT COVERED BY THESE WARRANTIES.

DAV PRODUCTS PURCHASED ANYWHERE OUTSIDE OF THE U.S.A., INCLUDING, WITHOUT LIMITATION,

CANADA AND MEXICO, AND USED IN THE U.S.A., ARE NOT COVERED BY THESE WARRANTIES.

Limited Warranty

TACP warrants this DAV Product and its parts against defects in materials or workmanship for a period of ninety (90) days after the date of original retail purchase.

DURING THIS PERIOD, TACP WILL EXCHANGE A

DEFECTIVE DAV PRODUCT WITH A NEW OR

REFURBISHED DAV PRODUCT WITHOUT CHARGE

TO YOU. DURING THE PERIOD THAT COMMENCES

ON THE DATE THAT IS NINETY ONE (91) DAYS

AFTER THE DATE OF ORIGINAL RETAIL PURCHASE

AND ENDS ON THE DATE THAT IS THREE HUNDRED

SIXTY FIVE (365) DAYS AFTER THE DATE OF

ORIGINAL RETAIL PURCHASE, TACP WILL

EXCHANGE A DEFECTIVE DAV PRODUCT WITH A

NEW OR REFURBISHED DAV PRODUCT FOR A FEE.

Rental Units

The warranty for DAV Product rental units begins on the date of the first rental or thirty (30) days after the date of shipment to the rental firm, whichever comes first.

Commercial Units

DAV Products sold and used for commercial purposes have a limited warranty for all parts and labor, which warranty begins on the date of original retail purchase and ends on the date that is ninety (90) days thereafter.

Owner’s Manual and Product Registration Card

Read this owner’s manual thoroughly before operating this DAV Product.

Complete and mail the enclosed product registration card or register your DAV Product on-line at www.tacp.toshiba.com/service as soon as possible. By registering your DAV Product you will enable TACP to bring you new products specifically designed to meet your needs and help us to contact you in the unlikely event a safety notification is required under the U.S.

Consumer Product Safety Act. Failure to complete and return the product registration card does not diminish your warranty rights.

Your Responsibility

THE ABOVE WARRANTIES ARE SUBJECT TO THE

FOLLOWING CONDITIONS:

(1) You must retain your bill of sale or provide other proof of purchase.

(2) All warranty servicing of this DAV Product must be made pursuant to the TACP DAV Product Warranty

Exchange Program.

(3) The warranties from TACP are effective only if the DAV

Product is purchased and operated in the Continental

U.S.A. or Puerto Rico.

(4) Labor service charges for set installation, setup, adjustment of customer controls, and installation or repair of antenna systems are not covered by this warranty. Reception problems caused by inadequate antenna systems are your responsibility.

(5) Warranties extend only to defects in materials or workmanship as limited above, and do not extend to any DAV Product or parts that have been lost or discarded by you or to damage to the DAV Product or parts caused by fires, misuse, accident, Acts of God

(such as lightning or fluctuations in electric power), improper installation, improper maintenance, or use in violation of instructions furnished by TACP; use or malfunction through simultaneous use of this DAV

Product and connected equipment; or to units that have been modified or had the serial number removed, altered, defaced, or rendered illegible.

66 p64-68-4980SU.pmd

66 6/10/2005, 10:32 AM

How to Obtain Warranty Services

If, after following all of the operating instructions in this manual and checking the section “Troubleshooting,” you find that service is needed:

(1) For instructions on how to obtain warranty service for your DAV Product under the TACP DAV Product

Warranty Exchange Program, contact TACP’s

Consumer Solutions Center toll free at

1-800-631-3811.

(2) You must include the original bill of sale (or a copy of the original bill of sale) or other proof of purchase along with the entire DAV Product when sending the

DAV Product to the TACP Warranty Exchange Center specified by TACP’s Consumer Solutions Center. You are responsible for all inbound transportation and insurance charges for the DAV Product to the TACP

Warranty Exchange Center.

For additional information, visit TACP’s website: www.tacp.toshiba.com

ALL WARRANTIES IMPLIED BY THE LAW OF ANY

STATE OF THE U.S.A., INCLUDING THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE, ARE EXPRESSLY

LIMITED TO THE DURATION OF THE LIMITED

WARRANTIES SET FORTH ABOVE. WITH THE

EXCEPTION OF ANY WARRANTIES IMPLIED BY THE

LAW OF ANY STATE OF THE U.S.A. AS HEREBY

LIMITED, THE FOREGOING WARRANTY IS EXCLUSIVE

AND IN LIEU OF ALL OTHER WARRANTIES,

GUARANTEES, AGREEMENTS, AND SIMILAR

OBLIGATIONS OF TACP WITH RESPECT TO THE

REPAIR OR REPLACEMENT OF ANY PARTS.

IN NO EVENT SHALL TACP BE LIABLE FOR

CONSEQUENTIAL OR INCIDENTAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, LOST PROFITS,

BUSINESS INTERRUPTION, OR MODIFICATION OR

ERASURE OF RECORDED DATA CAUSED BY USE,

MISUSE OR INABILITY TO USE THIS DAV PRODUCT).

No person, agent, distributor, dealer, or company is authorized to change, modify, or extend the terms of these warranties in any manner whatsoever. The time within which an action must be commenced to enforce any obligation of TACP arising under the warranty or under any statute or law of the United States or any state thereof is hereby limited to ninety (90) days from the date you discover, or should have discovered, the defect. This limitation does not apply to implied warranties arising under state law.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL

RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS

WHICH MAY VARY FROM STATE TO STATE IN THE

U.S.A. SOME STATES OF THE U.S.A. DO NOT ALLOW

LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY

LASTS, WHEN AN ACTION MAY BE BROUGHT, OR THE

EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES, SO THE ABOVE

PROVISIONS MAY NOT APPLY TO YOU UNDER SUCH

CIRCUMSTANCES.

p64-68-4980SU.pmd

67 6/10/2005, 10:32 AM

67

p64-68-4980SU.pmd

68

Printed in China
