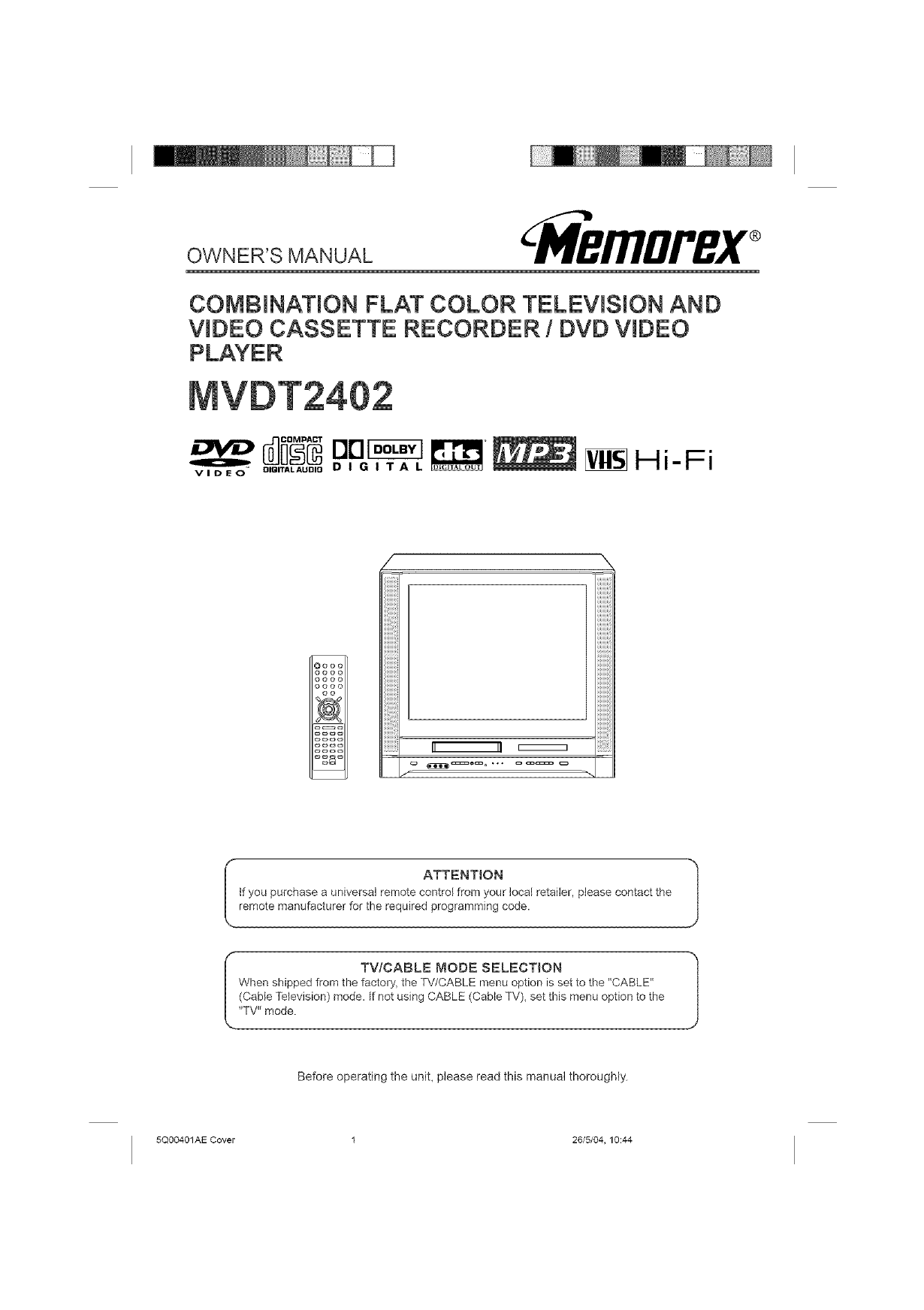

Memorex MVDT2402 TV/VCR Combination Owner's Manual

OWNER'S MANUAL

COMBiNATiON FLAT COLOR TELEViSiON AND

VIDEO CASSETTE RECORDER

/ DVD VIDEO

uor -

DIQITALAUDID D I G I T A L

Hi-Fi

Oooo oooo oooo oooo oo

II _

!i!i!i!iiiii!!ii+ii!

5Q00401AE Cover

ATTENTION tf you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the required programming code.

TV/CABLE MODEE SELECTION

When shipped from the factory, the TV/CABLE menu option is set to the "CABLE"

(Cable Television) mode. If not using CABLE (Cable TV)+set this menu option to the

"TV" mode.

Before operating the unit, please read this manual thoroughly

1 26/5/04, 10:44

CAUTION

CAUTION:

TO REDUCE THE RiSK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER

(OR BACK).

NO USER-SERVICEABLE

PARTS INSIDE.

REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL

The lightning flesh with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsuleted dangerous vokage within the product's enclosure that may be of sufficient magnitude to constitute e risk of electric shock

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance

WARNING:

NOTE:

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

Please keep atl packaging material for at least 90 days in case you need to return this product to your place of purchase or Memorex.

This equipment has been tested and found to comply with the limits for a Class B digital device_ pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses and can radiate radio frequency energy and_ if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

CAUTION:

- Reorient or relocate the receiving antenna.

- increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the partly responsible for compliance with the FCC Rules could void the user's authority to operate this equipment.

CAUTION:

THIS DiGiTAL VIDEO PLAYER EMPLOYS A LASER SYSTEM

Location

of the required Marking

The rating sheet and the safety caution are on the rear of the unit.

TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE

READ THIS OWNER'S MANUAL CAREFULLY' AND RETAIN

FOR FUTURE REFERENCE.

SHOULD THE UNIT REQUIRE

MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LO-

CATION-SEE SERVICE PROCEDURE

USE OF CONTROLS, ADJUSTMENTS OR THE PERFORM-

ANCE OF PROCEDURES OTHER THAN THOSE SPECiFiED

HEREIN MAY RESU_ IN HAZARDOUS RADIATION EXPO-

SURE

TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT

TRY TO OPEN THE ENCLOSURE VISIBLE LASER RADIA-

TION MAY BE PRESENTWHEN THE ENCLOSURE IS OPENED

DO NOT STARE INTO BEAM

CERTIFICATION: COMPLIES WITH

FDA RADIATION PERFORMANCE

STANDARDS, 21 CFR SUBCHAPTER J

5Q00401AE(02-05) 2 26/5/04.10:44

5Q00401AE(02-05)

IMPORTANT SAFEGUARDS

1. READ

iNSTRUCTIONS

All the safety and operating instructions should be read before the unit is operated.

2. RETAIN iNSTRUCTiONS

The safety and operating instructions should be retained for future reference

3. HEED WARNINGS

All warnings on the unit and in the operating instructions should be adhered to

4. FOLLOW

INSTRUCTmONS

All operating and use instructions should be followed

5, CLEANING

Unplug this unit from the wall outlet before cleaning.

Do not use liquid cleaners or aerosol cleaners.

Use a damp cloth for cleaning the exterior cabinet only

6. ATTACHMENTS

The manufacturer of this unit does not make any recommendations hazards.

7. WATER AND MOISTURE for attachments, as they may cause

Do not use this unit near water.

For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

8. ACCESSORIES

PORTABLECARTWARNING

(symbolprovidedby RETAC)

Do not place this unit on an unstable cart, stand, tripod, bracket, or table.

The unit may fall, causing serious injury, and serious damage to the unit.

8A. An appliance and cart combination should be moved with care. Quick stops, excessive force_ and uneven surfaces may cause the appliance and cart combination to overturn

9. VENTiLATiON

S3126A

,_E'-I'_,

e'5)

Slots and openings in the cabinet back or bottom are provided for ventilation_ to ensure reliable operation of the unit, and to protect it from overheating.

These openings must not be blocked or covered The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface.

This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and/or the manufacturer's

10. POWER SOURCES instructions have been adhered to.

This unit should be operated only from the type of power source indicated on the rating plate If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company For units intended to operate from battery power, or other sources, refer to the operating instructions.

11. GROUNDING OR POLARIZATION

This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other).

This plug will fit into the power outlet only one way This is a safety feature.

If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet.

Do not defeat the safety purpose of the polarized plug, if your unit is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet.

This too, is a safety feature If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet.Do

not defeat the safety purpose of the grounding-type plug

12, POWER-CORD PROTECTION

PoweFsupply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

3 26/5/04, 10:44

IMPORTANT SAFEGUARDS

13.

LIGHTNING

To protect your unit from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system This will prevent damage to the unit due to lightning and power line surges,

14.

POWER LINES

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits.

When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal.

15.

OVERLOADING

Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock

16.

OBJECT AND LIQUID ENTRY

Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could result in fire or electric shock Never spill or spray any type of liquid into the unit

17.

OUTDOOR ANTENNA GROUNDING

If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the

National Electrical Code_ ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure_ grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

18, SERVICING

Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards.

Refer all servicing to qualified service personnel

19.

DAMAGE REQUIRING SERVICE

Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions: a When the power-supply cord or plug is damaged.

b If liquid has been spilled, or objects have fallen into the unit, c. If the unit has been exposed to rain or water.

d If the unit does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to its normal operation e If the unit has been dropped or the cabinet has been damaged f. When the unit exhibits a distinct change in performance, this indicates a need for service

20.

REPLACEMENT PARTS

When replacement parts are required_ be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part,

Unauthorized substitutions may result in fire, electric shock or other hazards.

21.

SAFETY

CHECK

Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition

22.

HEAT

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat

23.

DISC TRAY

Keep your fingers well clear of the disc tray as it is closing, tt may cause serious personal injury.

24.

CONNECTING

When you connect the product to other equipment, turn off the power and unplug all of the equipment from the wail outlet Failure to do so may cause an electric shock and serious personal injury. Read the owner's manual of the other equipment carefully and follow the instructions when making any connections

5Q00401AE(02-05) 4 26/5/04.10:44

IMPORTANT SAFEGUARDS / Power

Source

25.

LASER

BEAM

Do not look into the opening of the disc tray or ventilation opening of the product to see the source of the laser beam. It may cause sight damage

2& DISC

Do not use a cracked, deformed, or repaired disc These discs are easily broken and may cause serious personal injury and product malfunction.

27.

NOTE TO CABLE TV SYSTEM iNSTALLER

This reminder is provided to call the CABLE TV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shatl be connected to the grounding system of the building, as dose to the point of cable entry as practical.

EXAMPLE OF ANTENNA GROUNDING AS PER THE

NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WiRE

ANTENNA

DISCHARGE

(NEC SECTION

UNF

810-20)

GROUNDING

(NEC SECTION

GROUND CLAMPS

CONDUCTORS

810-21 )

POWER SERVICE

ELECTRODE

GROUNDING

SYSTEM

(NEC ART 250 PART H)

NEC-NATIONAL ELECTRICAL CODE

$2898A

CONDENSATION

Moisture will form in the operating section of the unit if the unit is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly When this happens, the unit's performance will be impaired.

To prevent this, let the unit stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually.

Condensation may also form during the summer if the unit is exposed to the breeze from an air conditioner.

In such cases, change the location of the unit.

Powe

r sou roe

AC Outlet

Polarized AC Cord Plug

(One blade is wider than the other)

5Q00401AE(02-05) 5

TO USE AC POWER SOURCE

Use the AC polarized line cord provided for operation on AC. insert the AC cord plug into a standard 120V 60Hz polarized AC outlet.

NOTES:

• Never connect the AC line cord plug to other than the specified voltage (120V 60Hz).

Use the attached power cord only.

• tf the polarized AC cord does not fit into a non-polarized AC outlet, do not attempt to file or cut the blade.

It is the useCs responsibility to have an electrician replace the obsolete outlet

• tf you cause a static discharge when touching the unit and the unit fails to function, simply unplug the unit from the AC outlet and plug it back in The unit should return to normal operation.

26/5/04, 10:45

Features

Color TV with DVD/CD

PlayerfVideo Cassette

Recorder

, Color TV with DVDtCD p_ayer with Video Cassette Recorder - Unique space saving design combines a color TV a DVD/CD player end a Hi-Fi Video cassette recorder. The DVD disc has much more capacity, but is the same size as the audio CD disc

Picture quality is higher than Super VHS Audio quality is higher than audio CD The DVD PLAYER can play back audio CDs

, High Quality Picture - More than 400 fines (VCR mode: 220 lines) of Horizontal Resolution

TV Section

, On-Screen 3 Language Display o You can select one of 3 languages, English, Spanish or French for on-screen programming

, Closed Caption Decoder With Full Text Mode o Displays text captions or furl screen text on the screen for hearing impaired viewers

, Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote control adjustment of

BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS

, Programmable TV Sleep Timer - Operable from the remote control, the TV can be programmed up to 120 minutes to turn off autornaticafly

, V-Chip o The V-Chip function can read the rating of a TV program or movie content if the program is encoded with this information V-Chip wifl allow you to set a restriction ]eve].

, Surround Sound - The surround sound feature expands the audio listening field wider and deeper to create exceptional sound quality from the TV's speakers

, Stable Sound - The stable sound feature limits the highest volume level to prevent extreme changes in volume when the signal source is changed

VCR Section

, Stereo/SAP Reception - This VCR is designed to receive stereo end second audio program (SAP) broadcasts where available

,4 Video Heads o Provides optima] picture quality for special effects playback

,19pro HEAD - For superior picture quality even in SLP mode, 19micron width technology helps to avoid crossta]k and boost

SLP picture quality to near SP levels With precision technology, ghosts and color beats are virtually eliminated

, Hi-Fi Stereo Sound o With a frequency response of 20 to 20,000 Hz and a dynamic range of better than 9OdB, this VCR provides a level of excellence that rivals compact discs

, One-touch Timer Recording (OTR} - Simply by pressing the REC/OTR button, the VCR can be programmed for up to 6 hours of recording with an immediate start

DVD Section

, Compatible with a wide range of DVD audio outputs

Digital Audio Jack:

• When a component with a builtJn Dolby Digital decoder is connected, Do]by Digital sound can produce the effect of being in a movie theater or a concert hall.

• Surround standard different from Do]by Digital This format is already in use in many theaters By connecting this unit to a

DTS decoder or an At/amplifier with a bai]tdn DTS decoder, the DTS audio of DVD discs recorded in this format can be enjoyed However, audio will not be output from the analog audio output jacks

• The MPEG audio of DVD discs recorded in this format can be enjoyed

• The Linear PCM sound of a 48 kHz/16 bit through 96 kHz/24 bit exceeds audio CD sound

, Multi-Language - Since this DVD matches with 136 language-subtitles/-soundtracks, you can enjoy seMcting a favorite one

(You can not select the language that is not recorded on the disc)

, Multi-Angle o Pictures of Sports or a Live Concert are recorded with many cameras. When you play such a disc, you can change the angles during playback (If a Multi-Angle is not recorded on the disc you can not change the angle)

, Repeat Playback o You can repeat chapter, track, title sides or material between two selected points

, Memory/Random Playback - You can play back tracks, titles or chapters in programmed or random-selected sequences

, Zoom - You can zoom in on the selected subject on the screen during playback

, Video Aspect Ratio oYou can change the aspect ratio of the screen for your monitor/television on a suitable disc

, Parental Control - You can limit the playback of scenes or sounds of adult DVD discs which have e parental level rating

* This product incorporates copyright protection technology that is protected by method claims of certain US. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited

* Manufactured under license from Dolby Laboratories "Dolby" end the double-D symbol are trademarks of Dolby Laboratories

* "DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc

* Unauthorized recording of copyrighted television programs, films, video cassettes and other materials may infringe the rights of copyright owners and be contrary to copyright laws

5Q00401AE(06-11 ) 6 26/5/04.10:45

Contents i Before using your unit i

IMPORTANT SAFEGUARDS ..........................

Power source ...................................................

Features ...........................................................

Contents ...........................................................

Parts and functions ..........................................

Remote controt .................................................

Antenna connections .....................................

Cable TV connections ....................................

Connections to other equipment ....................

Setting the language ......................................

Auto ctock setting ...........................................

Manual clock setting .......................................

18 i TVoperation 1

TV operation ...................................................

Closed caption ...............................................

Memorizing channels .....................................

Setting the V-Chip ..........................................

Setting the on timer ........................................

Setting the off timer ........................................

Picture controi adjustment ..............................

Adjusting the picture preference ....................

Sound control adjustment ..............................

Setting the surround sound/

Setting the stabte sound .................................

Stereo recording and playback/

Second Audio Program (SAP) ........................

[ Tape ptaybaek operation ]

Loading and Unloading a cassette tape ......... 34

Cassette tape playback ..................................

Special playback ............................................

ZERO RETURN function/

Video index search system ............................

[Reeording ]

Recording a TV program ................................

One-touch Timer Recording (OTR) ................

Timer recording ..............................................

Disc playback operation

Disc ................................................................

Preparation/Status disptay of disc ..................

Setting setup language ..................................

Playback procedure ........................................

Special ptayback ............................................

MP3/WMA/JPEG playback .............................

Setting the JPEG interval ...............................

Setting the setect files ....................................

Zooming/Locating desired scene ...................

Repeat playback .............................................

Program playback/Random playback (CD) .... 55

Changing soundtrack language/Subtitles ....... 56

Changing angles/Title selection/DVD menu ... 57

]

I Advanced funetio----nof DVD section

Setting the aspect ratio of TV screen/

Setting on screen disptay ...............................

Dynamic Range Control .................................

Parental control setting ..................................

Changing the parental level ...........................

Temporary disabling of rating by DVD disc ..... 62

Setting menu language ..................................

Setting the subtitle language ..........................

Setting the audio soundtrack language .......... 65

oformat on ]

i

Language code list .........................................

Reception disturbances ..................................

Problems and troubleshooting .......................

Video head cleaning .......................................

Specifications .................................................

Warranty ........................................................

Duplicating a video tape .................................

5Q00401AE(06-11) 7 26/5/04, 10:45

Parts and functions

Front

Rest

Cassette Loading Slot

Power button

Disc tra,

Skip buttons

_lay button (DVD)

AUDIO IN (L/R)jacks

Rew (Rewind) button (VCF

Stop button (DVD)

Vo ume & T buttons TV

Open/Close button (DVD)

Stop/Eject button (VCF

T-Rec (Timer Recording) indicator (VCR)

Play button (VCR)

FFwd button (VCF

RedOtr indicator (VCR)

Power indicator

Rec/Otr button (VCR)

Remote sensor

Channel &/V buttons (TV)

AC power cord

VIDEO OUT jack

VIDEO IN jack

5Q00401AE(06-11 ) 8

RF IN (VHF/UHF)jack

AUDIO IN (L/R) jacks

AUDIO OUT (L/R) jacks

COAXIAL DIGITAL AUDIO OUT jack

26/5/04.10:45

5Q00401AE(06-11) 9

Remote control

POWER

TV/

VCR

DVD

CH +/-

0-9

VOL +/-

MUTE

DISPLAY/CALL

Power on/off

Press to operate TV

Press to operate VCR

Press to operate DVD

Select channel

Number buttons

Input setting

Enter a password

Adjust volume of TV

Switch off the sound

Page

10,15,16,19,45,47

19,40,45~47,53,59

20,38,40

10,19,23,38,40

49,50,53,55

24,26,60~62

19,20

Display TV/VCR or DVD operation status

16,20,25,36,37,39,41,45

Locating desired scene

Switch between present/last

Arrow buttons

Enter information in the menu channel

JUMP

QUICK VIEW

• / • / • / It"

ENTER

SETUP/TV

CANCEL

REW/SEARCH

PL/_Y

F.FWD/SEARCH

INDEX +/-

SKIP +/-

STOP

PAUSE/STILL

REC/OTR

Select option in the menu

Display menu of setup

Delete Timer program

Cancel input data in the setting mode

Rewind/Review playback

24,26,29,31,53,55,60,61

35,36,48

Playback

Fast Forward/Forward

35,36,47~50,54,55,57,62 search playback 35,36,48

TIMER REC

TV MONITOR

Set the unit to start recording at a preset time 41,42

Temporarily view a TV channel select on the

VCR wNle in the playback mode 36

SLOW

SLEEP

Slow-motion playback

Sleep timer

CLOSED CAPTION Switch between closed captioning options

AUDIO SELECT Switches sound between mono and stereo

36,48

CM SKIP

TOP MENU

ATR

SUBTITLE

ZERO RETURN

ANGLE

COUNTER RESET

Search for the INDEX mark of a tape 37

Skip chapter to forward or reverse direction 48,50

Stop 35,37~40,47,49,50

StHI picture/Recording pause on/off

Recording

36,39,43,48

38,40,43

Change sound track language of DVD

Skip the unwanted short material of a tape

Select title of a DVD disc

Digital AUTO TRACKING

Set Subtitle of a DVD disc

50,67

Stop the tape when the counter reaches 00:90:00 37

Change playback angle of a DVD disc

Reset the counter to 00:00:00

TRACKING +

ZOOM

INPUT SELECT

Select menu of a DVD disc

Manual tracking button in playback mode

Zoom (for DVD playback) 53

Switch the connected TV to external mode 14,43

Remove DVD set up mena

Sets the tape speed for recording

50,57

46,51,52,58~65

38,40,43

RETURN

SPEED

REPEAT A-B

PROGRAM

PLAY MODE

TRACKING -

EJECT

OPEN/CLOSE

Repeat playback between A and B (DVD/CD)

Confirm the timer program

28,42

Select playback mode

Manual tracking button in playback mode

54,55

Eject a cassette tape

Open or C_ose the tray

34,41

47,49,50,62

26/5/04, 10:45

Remote control

Inserting Batteries

Open the battery compartment cover in the direction of the arrow

(continued)

Install two "AAA" batteries (not supplied), paying attention to the polarity diagram in the battery compartment.

Replace the compartment cover.

Battery precautions

The precautions below should be followed when using batteries in this device:

1. Use only the size and type of batteries specified.

2 Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment.

Reversed batteries may cause damage to the device.

To avoid a potential short circuit, insert the '-" end first.

3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.

4 If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture (Follow battery manufacturer's directions)

Remote control basics

• Press POWER to turn the TV/VCR/DVD on or off.

• Select your desired operating mode (TV/VCR or DVD) using "PTNCR or BVB.

Press CH +/- to move through the channels one channel at a time.

• The Arrow buttons (A/V/_ / • ) are also used to navigate on-screen menu system

You can directly access specific channels using the number buttons.

Operation

• Aim the remote control at the remote sensor and press control buttons to operate.

Operate the remote control

within

30 ° angle on either side of the remote sensor, up to a distance of Approx 5 meters (16 fh)

...............................................................................

Approx.

5 meters (16 ft)

5Q00401AE(06-11 ) 10 26/5/04.10:45

Antenna connections

tf you are using an indoor or outdoor antenna, foHowthe instructions belowthat correspond system.

If you are using a cable TV service (CABLE), see page 12 for Cable "IV connections.

to your antenna

Combination f

75 ohm coaxial cable

VHF/UHF antenna

RF _N jack

(Single 75 ohm cabte or 300 ohm twinqead wire) connect the 75 ohm cable from the combination

VHF/UHF antenna to the RF IN jack

RF IN jack

If your combination VHF/UHF antenna has a 300 ohm twin-lead wire, the use of the 300-75 ohm matching transformer may be necessary (not supplied)

300-75 ohm matching transformer

Combination VHF/UHF antenna (Separate VHF and UHF 300 ohm twin4ead wires)

RF IN jack

(_ _,,,,,.

300-75 ohm matching transformer

Connect the UHF 300 ohm twin-lead wire to the combiner (not supplied).

Connect the VHF 300 ohm twin-lead wire to the 300-75 ohm matching transformer.

Attach thetransformer to the combiner, then attach the combiner to the RF IN jack

VHF 300 ohm

,,,#

Separate VHF/UHF antennas (75 ohm VHF came and 300 ohm UHF twinqead wires)

RF _N jack

Connect the VHF 75 ohm cable and UHF 300 ohm twin-lead wire to the combiner Attach the combiner to the RF IN jack.

UHF 300 ohm

5Q00401 AE(06-11) 11 26/5/04, 10:45

Cable TV connections

This unit has an extended tuning range and can tune most cabJe ehanneJs without using a Cable TV

Converter serambJed, box, Some cable

DescrambHng which is generally provided companies these signals by the cable offer "premium company.

pay channels" for normaO viewing requires the in which the signal is use of a descrambJer device

FOR SUBSCRIBERS TO BASIC CABLE TV SERVICE

For basic cable service not requiring a Converter/Descrambler box_ connect the 75 ohm Coaxial Cable directly to the RF IN

Jack on the back of the unit.

FOR SUBSCRIBERS TO SCRAMBLED CABLE TV SERVICE

If you subscribe to a cable TV service which requires the use of a converter/descrambler below.

Set the unit to the output channel of the converter/descrambler converteddescrambler box to select channels.

box, connect the incoming 75 ohm coaxial cable to the converter/descrambler the output jack of the converter/descrambler box. Using another box to the RF IN jack on the unit

75 ohm coaxial

Follow cable, the connections connect shown box (usually channel 3 or 4) and use the

incoming

75 ohm cable TV cable i

75 ohm cable unit to

RF IN

_' _) jack

FOR SUBSCRmBERS

SCRAMBLED PREMmUM

TO UNSCRAMBLED

CHANNELS

BAS_C CABLE TV SERVICE WroTH

If you subscribe to a cable TV service in which basic channe}s are unscrambled and premium channels require the use of a converteddescrambler box, you may wish to use a signal splitter and an AJB switch box (available from the cable company or an electronics supply store).

Follow the connections shown below With the switch in the "B" position, you can directly tune any nonscrambIed channels on your unit. With the switch in the"A" position_ tune your unit to the output of the converter/descrambler to tune scrambled channels box (usually channel 3 or4) and use the converter/descrambler box

Incoming

75 ohm cable TV cable

Splitter

Converter/ descrambler

A/B switch

75 ohm cable to unit

RF IN jack

5Q00401AE(12-17) 12 26/5/04.10:45

Connections to other equipment

The exact arrangement you use to interconnect various video and audio components to the unit is dependent on the model and features of each component.

Check the Owner's Manual )rovided with each component for the location of video and audio inputs and outputs.

Using an Audio Amplifier ', ',

Rear of TVNCR/DVD

Amplifier ,

[]

ooo O ooo

To Audio (R) Input _10_" To Audio (L) Input

AUDIO cord (not supplied)

Using an AV Amplifier w{th built-in digital surround

If you are using an Amplifier with a built-in digital surround as follows, you can enjoy the various audio systems including Dolby Digital Surround audio that sounds just like the movie

Connect an AV amplifier shown below, with built-in Dolby Digital decoder, DTS decoder, MPEO decoder or etc as

Rear of TVtVCR!DVD

--

i fftker

Subwoofer I (Right)

Front

Speaker

(Leff)_

Coaxial Digital

Audio Output ._"

Coaxial digital cable (not supplied) I

To Coaxial Digital|

Audio Input H

_Center S_ oo_o00_

AV Amplifier with built-in digital suffound I I decoder as listed above

_ Surround _

Speaker (Left) "¢i-r--J

Surround

S_qeaker

(Right)

* Manufactured

Laboratories under license from Dolby Laboratories "Dotby" and the doubte-D

* "DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc symbol are trademarks of Dolby

NOTES:

* When you make the connections above, do not set DOLBY DIGITAL to DOLBY DIGITAL, MPEG to MPEG to ON on the A\! Amplifier.

If you do, a loud noise will suddenly come out from the speakers, affecting your ears or causing the speakers to be damaged.

, Some DTS decoders which do not support DVD-DTS interface may not work property with the unit

5Q00401AE(12-17) 13 26/5/04, 10:45

Connections to other equipment (continued)

Using the audiotvideo inputs

If you connect the TV/VCR/DVD to a camcorder or Video Game, you can select different modes by pressing

iNPUT

SELECT

Press _NPUT SELECT repeatedly to select the desired mode

"LINE1", "LINE2" or TV channel will display on the screen for 4 seconds.

F _

(Back) (Front) j in the DVD mode this operate.

key will not

To connect the TVNCRIDVD to a camcorder

To playback from the camcorder, connect the camcorder to the unit as shown.

To connect the TVfVCR!DVD

The TV/VCR/DVD to a Video Game can also be used as a display device for many video games.

However, due to the wide variety of formats, they have not all been included in the suggested connection diagram You'll need to consult each component's Owner's Manual for additional information

I

Front of TVNCR/DVD

a=e v, ,o,N

t t t ToAo_io/vidooOOT _, _, A'_\*°°'°'"

(R)

(L)

AudioMdeo cord (not supplied) 1

5Q00401AE(12-17) 14 26/5/04.10:45

You can choose from three different languages (English, French and

Spanish) for the on-screen displays.

Setting the anguage

Press POWER to turn on the TV/VCR/DVD.

Press TV!VCR

to select the TV/VCR mode.

Press TV MENU Press • or • to se ect _ option

Press • or • to select"LAN-

GUAGE", then press •

Press • or • to select thedesired language: English (EN-

GMSH), Spanish (ESPANOL) or

French (FRANCAIS),

ENTER then press

Press TV t_,IENU until the MENU screen is disappears

NOTES:

* Both the TV/VCR and the DVD have their own menu option (see page 46).

* If no buttons are pressed for more than 60 seconds, the MENU screen disappears automatically.

5Q00401AE(12-17) 15 26/5/04, 10:45

Auto clock setting

The Auto Clock function will automatically set the builtoin clock

(Month, Day, Year and Time) when the TV/VCR/DVD is connected to an

Antenna or Cable system and it is turned off. As the TV/VCR/DVD searches for a receivabOe station in your area and it receives a broadcast signal for Auto Clock, the Auto

Clock

needs

several minutes to set itself.

AUTO

CLOCK

SETTING

Connect the Antenna or Cable system.

• if you use a cable box, turn it on

Plug the AC Power cord to the AC outlet.

Make sure the TV/VCR/DVD is turned off.

• If you press POWER, Auto Clock set is not effective.

Wait at least three minutes and press POWER

Press DISPLAY[CALL to check the clock on the screen

If the dock is not set, make sure you are receiving TV channels.

The Auto C}ock may not function properly if the reception condition is not good.

AUTO CLOCK ADJUSTMENT

The Auto Clock Adjustment will be performed at 12:00 PM everyday if you turn off the TV/VCR/DVD.

• If you use a cable box and you want Auto Clock adjustment to be performed, the cable box must be left on

• The Auto Clock Adjustment won't work if there is more than 5 minutes between the builtdn clock time and the actual time

TO SET AUTO

CLOCK

TO OFF

When shipped from factory "AUTO CLOCK" is set to "ON".

But if you do not want Auto Clock set (Adjustment):

Turn on the TVNCR/DVD.

Press TV MENU

3 Press • or • to select Q option.

NOTES:

* After a power failure or disconnection of the power, the timer settings will be lost. In this case, reset the present time.

* If you live in Newfoundland and the

Auto Clock does not function properly, set the AUTO CLOCK menu option to

"OFF" and set the clock manually

5Q00401AE(12-17) 16

Press • or • to select "AUTO

CLOCK".

Press • or • to select"OFF"

Press TV MENU repeatedly to return to the normal screen.

• When "AUTO CLOCK" is set to "OFF", the Auto Clock adjustment does not function.

• Set the clock manually (see page 18)

26/5/04.10:45

NOTES:

• When shipped from factory,

"DAYLIGHT SAVING TIME" is set to "AUTO"

• When you want to set the Daylight

Saving Time manually_ on the first

Sunday in April you set to "ON", and on the last Sunday in October you set to "OFF".

• When the clock is not set, Daylight

Saving Time setting is not available

• When there is no Daylight Saving

Time in your area, always select

"OFF" in step 3.

TO SET STANDARD

TIME

In the rare event that you live within broadcast range of two stations in two different recognize the wrong station for the Auto Clock set.

To correct the situation: time zones, the TV/VCR/DVD may

PressTV MENU

Press • or • to select (_ option

Press • or • to select "STANDARD TIME", then press •.

Press • or • to select your time zone, then press ENTER.

ATLANTIC

EASTERN

CENTRAL

MOUNTAIN

PACIFIC

ALASKA

HAWAII

AUTO

GMT4 hours

(GMT: Greenwich Mean Time)

GMT5 hours

GMT6 hours

GMT7 hours

GMT8 hours

GMT9 hours

GMT- 10 hours

AUTO SET

Press TV MENU repeatedly to return to the normal screen.

NOTE: To be able to select the standard time, the clock must first be set by "AUTO CLOCK" once.

DAYLIGHT SAVING TIME SETTING

You can set the Daylight Saving Time automatically or manually.

PressTV MENU

Press • or • to select (_ option.

Press • or • to select

"DAYLIGHT SAVING TIME", then press •

Press • or • to select one of the options, then press ENTER.

Press

TV MENU until the MENU screen disappears.

ON: for manual setting

(forward one hour) for manual setting OFF:

(back one hour)

AUTO: for automatic setting

(read XDS in the signal)

5Q00401AE(12-17) 17 26/5/04, 10:45

Manuat c ock setting

You must set the date and time manually for Timer Recordings, ON/

OFF Timer and Daylight Saving Time if the Auto Clock process did not set them correctly.

EXAMPLE: Setting the clock to "8:30 AM" October, 30 (SAT), 2004.

Press TV MENU.

The TV/VCR menu screen will appear f Press • or • to select the (_, option.

Press • or • to select the

"CLOCK SET" option, then press

Press • or • to set the month, then press •.

To make corrections any time during the process

Press • repeatedly until the item you want to change blinks, then press • or •

Set the day, year and time step 4, then press ENTER as in ill i_i! ¸ _!iig!iii0ilgil

:sn MO_T_ a rJi i ¸au iili!

NOTE:

After a power failure or disconnection of the power, the timer settings will be lost In this case, reset the present time.

G After setting the clook, time starts functioning automatically.

date and

5Q00401AE(18-21) 18 26/5/04.10:45

NOTES:

* If a channel with no broadcast is selected, the sound will automatically be muted

* If a station being viewed stops broadcasting, the TV will automatically shut itself off after 15 minutes.

TV operation

To turn on the TV/VCR/DVD, press POWER.

Adjust the volume level by pressing VOL + or -.

The volume levet appears

Set the TV/CABLE menu option to the appropriate position.

(See page 22.)

TV - VHF/UHF channels

CABLE- CABLE TV channels

Press the Direct Channel selection buttons to select the channel.

TV Mode Direct Channel Selection

When the TV/CABLE menu option

is in the TV position, all channels can be instantly selected by using two buttons.

(for example, to select channel 2, press "0", then "2" If you press only "2", channel selection will be delayed for a few seconds.) For channels 10 and above, press the 2 digits in order.

CABLE Mode Direct Channel Selection

When the TV/CABLE menu option is in the CABLE position, channels can be selected as follows:

TO SELECT Cable TV CHANNELS:

1-9: Press "0" twice, then 1-9 as needed. Example, to select channel 2, press "002".

10-12:

13-99:

Press "0", then the remaining 2 digits Example, to select channel 12, press "012"

Press the 2 digits in order. Example, to select channel

36, press "86"

100-125: Press the 3 digits in order. Example, to select channel

120, press "120".

NOTE FOR CHANNELS 1-12:

If only 1 or 2 buttons are pressed, the corresponding channel will be selected in 2 seconds.

VHF

2-13

UBF

14-69

CABLE

VEF

2-13

STD/HRC/IRC

14-36

(A)(W)

37-59

(AA) (WW)

60-85

(AAA) (ZZZ)

86-94

(86) (94)

95-99

(A-5) (A-1)

190-125

(100) (125)

(5A)

26/5/04, 10:45 5Q00401AE(18-21) 19

TV operation

NOTE:

To listen through the headphones, insert the headphones (not supplied) with a 1/8" mini plug into PHONES jack on the front. The sound from the

TV speaker is muted.

(continued)

CHANNEL +/=

Press and release CH + or =. The channel automatically stops at the next channel set into memory.

For proper operation, before selecting channels, they should be set into the memory See pages 22 and 23

"Memorizing channels".

CALL

Press BISPLAY/CALL to display the current informations on the screen

Press DISPLAY/CALL again to clear the call display

Channel number or VIDEO mode,

Stereo or SAP (second audio program) audio status,

Audio output status.

QUICK VIEW

This button allows you to go back to the last channel selected by pressing QUICK VIEW Press QUICK

VIEW again to return to the last channel you were watching

I¸,:

MUTE

Press MUTE to switch offthe sound.

The unit's sound will be silenced and

"MUTE" will briefly appear on the screen The sound can be switched back on by pressing this button again or one ofVOL + or -

SLEEP

To set the TV/VCR/DVD to turn off after a preset amount of time, press

SLEEP on the remote control.

The clock will count down 10 minutes for each press of SLEEP (120, 110,

.10, 0). After the sleep time is programmed, the display wilt appear briefly every ten minutes to remind you that the sleep timer is operating

To confirm the sleep timer setting, press SLEEP and the remaining time will be displayed for a few seconds To cancel the sleep timer, press SLEEP repeatedly until the display turns to 0.

i !

5Q00401AE(18-21) 20 26/5/04.10:45

Cmosed caption

WHAT iS CLOSED CAPTIONING?

This television has the capability to decode and display closed captioned television programs.

Closed captioning will display text on the screen for hearing impaired viewers or it will translate and display text in another language

Captions: This closed caption mode will display text on the screen in English or another language (depending on the setting of the closed captions CH 1/2)

Generally, closed captions in English are transmitted on captions channel 1 and closed captions in other languages are transmitted on captions channel 2

Text: The text closed caption mode will usually fill the screen with a programming schedule or other information

After selecting a closed caption mode, it will stay in effect until it is changed, even if the channel is changed.

If the captions signal is lost due to a commercial or a break in the signal, the captions will reappear when the signal is received again.

If the channels are changed, the captions will be delayed approximately 10 seconds.

The captions will appear in places on the screen where they will least interfere with the picture, usually on the bottom of the screen.

News programs will usually show three-line closed captions which scroll onto the screen.

Most other shows provide two or three lined captions placed near the character who is speaking so the viewer can follow the dialogue Words in italics or underlined describe titles, words in foreign languages or words requiring emphasis.

Words that are sung usually appear enclosed by musical notes.

For television programs broadcasting with closed captions, look in your TV guide for the closed captions symbol (CC)

TO ViEW CLOSED CAPTmONS

Press

CLOSED

CAPTION to switch between normal TV and the two closed caption modes (captions and full screen text). Closed captioning will display text on the screen for hearing impaired viewers

NOTES:

When selecting closed captions, the captioning will be delayed approximately 10 seconds

• If no caption signal is received, no captions will appear, but the television will remain in the caption mode.

Misspellings or unusual characters may occasionally appear during closed captioning.

This is normal with closed captioning, especially with live programs.

This is because during live programs, captions are also entered live. These transmissions do not allow time for editing.

When captions are being displayed, on-screen displays, such as volume and mute may not be seen or may interfere with closed captions.

Some cable systems and copy protection systems may interfere with the closed captioned signal.

If using an indoor antenna or ifTV reception is very poor, the closed caption decoder may not appear or may appear with strange characters or misspelled words tn this case, adjust the antenna for better reception or use an outdoor antenna

5Q00401AE(18-21) 21 26/5/04, 10:45

Memorizing channels

This TV/VCR/DVD is equipped with a channel memory feature which allows channels to skip up or down to the next channel set into memory, skipping over unwanted channels.

Before selecting channels, they must be programmed into the unit's memory, tn addition to normal VHF and UHF channels, this TV/VCR/DVD can receive up to 113 Cable TV channels.

To use this TV/VCR/DVD with an antenna, set the TV/CABLE menu option to the TV mode.

When shipped from the factory, this menu option is in the CABLE mode

TVICABLE SELECTION

Press TV MENU in the TV/VCR mode. The TV/VCR menu screen will appear

Press • or • to select [_ option.

Press • or • to select "TV/

CABLE"

Press • or • to select "TV" or

"CABLE"

Press TV MENU until the MENU screen disappears

CABLE CHART

The chart below is typical of many cable system channel allocations

Number on this

CO r respo_din[_

C .............

EE [_F GG JJ

..........

AAA BBB COO ODD

E6E4E

KK LL

GGG

HHtl

83 ySy4y Z85Z

113

114

115

9.82

116

117

..............

101

118

119

102

120

103

121

1#,4

III

1Bb

JJd

16 1D/

7KOK

IE8

1F9 _

21 22

MMM NNN OOO

PPP

Q_Q

104

122

123

124

107

125

108

109 110 111 112

5QOO401AE(22-25) 22 26/5/04.10:45

5Q00401AE(22-25) 23

MEMORY TUNING AUTOMATIC

Press TV/VCR.

Press TV MENU, the

TV/VCR menu screen will appear

Press _ or • to select _ option

_i; ¸

;_TQ ¸_H _4_ ¸ : _i?

Press • or • to select "AUTO CH

MEMORY"

Press •.

The TV will begin memorizing all the channels available in your area

Press TV MENU until the MENU screen disappears

TO ADD/DLCLETE CHANNELS

Press TV MENU. The TV/VCR menu screen will appear.

Press 4 or • to select _ option

_i _ _i itt!ii: :iiiii_ ¸ii ii

_DDi_ELETE I_

Press • or

• to select "ADD/

DELETE", then press •

Select the desired channel to be memorized or deleted using the number buttons (0-9), or • or •

_Dg i ; ; /i i; : _!_i

¸¸

Press _ or • to select "ADD" or

"DELETE", whichever function you want to perform

PressTV MENU until the MENU screen disappears

26/5/04, 10:45

Setting the V-Chip

An age limitation can be set to forbid children to see and bear violent scenes or pictures for

adults,

etc. The TV/VCR/DVD corresponds to "TV RATmNG" and

"MOVIE RATING", To use the

V-Chip function, a password.

you must register

TO REGISTER PASSWORD

Press TVNCR Press TV MENU, the TV/VCR menu screen will appear

/,_

Press • or • to select _ option, then press • or • to select

"PASSWORD".

Enter the password (4 digits) using the number buttons (0_9), then press ENTER

If you put in a wrong number, press CANCEL

"*" appears instead of the number.

Enter the same password again, then press ENTER.

The password is now registered and the V-Chip Set menu appears.

NOTES:

, If you forget the password, you cannot set the V-Chip.

, To avoid forgetting the password, write it down and keep it in a safe place.

5Q00401AE(22-25) 24 26/5/04.10:46

TO SET THE VoCHtP hi the V-CHIP SET menu, press

• or • to select" V-CH(P SET", then press •.

Press • or • to select "TV

RATING", then press • or • to display the desired setting.

OFF :

TWY :

TV-Y7 :

TWG :

TWPG:

TWt4 :

TWMA:

TV RATING

All children

7 years

Genera(

Parenta(

14 years

17 years

)s not set old and above aud)ence guidance old and above o(d and above

When you select TV- Y7, TV-PG, TV-14 or TV-MA, press

DmSPLAY/CALL to show the contained rating.

Press • or • to select the desired item you want.

Press • or • to se)ect the setting "ON" or "OFF"

Press • or • to select "MOVIE

RATING".

Press • or • to select desired rating, then press ENTER.

OFF : MOVE RATING is not set

G : A)l ages

PG : Parenta) guidance

PG-13 : Parenta(gu)dance

)ess than 13 years old

: Under 17 years old

Parenta) gu)dance suggested

NC-17 : 17 years old and above

X : Adult on)y

Press • or • to select

"V-CHIP".

To use the TV after V-Chip is activated,

When the program appi)ed to the ',!-Chip setting is received, enter the password, then press ENTER.

When the password is entered correctly the protect)on wii) be temporarily overridden

NOTE:

The \!-Chip function is activated only on programs and tapes that support the rating system

}Press • or • to display "ON".

Now your settings were set into the memory.

Press TV MENU unt)i the MENU screen disappears.

5Q00401AE(22-25) 25 26/5/04, 10:46

Setting the V-Chip

(continued)

TO CHANGE PASSWORD

Press TV/VCR Press TV MENU, the TV/VCR menu screen will appear

Press • or • to select _ option

5Q00401AE(26-29)

Press • or • to select the

"PASSWORD".

Enter the Password using the number buttons (0o9), then press ENTER.

If you put a wrong number, press

CANCEL.

Press • or • to select

"CHANGE PASSWORD", press •.

then

Enter the new password using the number buttons (0_9), then press ENTER.

Io_i i

Enter the same password again to confirm, then press ENTER.

Press TV MENU repeatedly to return to normal screen

26/5/04.10:46

This feature allows you to have the TV/

VCR/DVD automatically predetermined time.

turn on at a

If you program the

ON TIMER

once, the TV/VCR!DVD witl turn on on the programmed day

(daily!weeHy) same

channel.

at the same time to the

Setting the on timer

EXAMPLE: Turning on the TV to channel 12 at 7:00 AM, MON-

DAY-FRIDAY

Press TV MENU Press • or • to select Q option

Press • or • to select "ON/

OFF TIMER", then press •.

Press • or • to select "ON

TIMER", then press •.

Press • or • to set the desired hour, then press •.

Set the desired minute, channel and daily or weekly timer date as in step 4

NOTES:

• The TV/VCR/DVD will automatically turn off approximately 1 hour later after the ON TIMER turns on if no

OFF TIMER has been set. To continue watching the TV, press any button to cancel the one hour automatic shut off

• To cancel ON TIMER, follow above steps 1-5, then press • or • to select "CANCEL".

Press TV MENU repeatedly to return to the normal screen.

• After setting the ON TIMER, the arrow moves to OFF TIMER position

If you wish to set the OFF TIMER, press • then follow the steps 4-6 on page 28 "Setting the off timer"

Press • or • to select "SET", then press ENTER.

Press TV

MENU repeatedly to return to normal screen.

5Q00401AE(26-29) 27 26/5/04, 10:46

Setting the off timer

This feature

allows

you to have the

TVIVCR/DVD turn off automatically at a predetermined time, tf you program the OFF TIMER once, the

TW'VCR/DVD will automatically turn off at the same time everyday,

EXAMPLE: Turning off the TV at 11:30 PM

Press TV MENU.

Press • or • to select (_ option.

Press • or • to select "ON/

OFF TIMER", then press •

Press • or • to select "OFF

TIMER", then press •.

il _iil¸_i_i_ ¸:i ! t g ! i i is:ii i5 #5_

Press • or • to set the desired hour, then press •

NOTES:

If a station being viewed stops broadcasting, the TV will automatically shut itself off after 15 minutes

To cancer OFF TIMER, follow above steps

1-5, then press • or • to select

'CANCEL" Press TV MENU to return to the normal screen.

To confirm the ON/OFF TIMER:

Press PROGRAM twice to indicate the programs on the screen.

5Q00401AE(26-29) 28

Press • or • to set the desired minute, then press • i

N} :i:

Press • or • to select"SET", then press ENTER. Press TV

MENU repeatedly to return to the normal screen.

26/5/04.10:46

Picture control adjustment

Picture controls are factory preset but you can adjust them individually as follows:

Press TVtVCR Press TV t_,IENU, the TV/VCR menu screen wilt appear.

Press • or • to select [__ option.

Press • or • to select "PIC-

TURE", then press •.

Press • or • to select the item you want to adjust.

Press • or

• to adjust the setting

NOTES:

• The CONTRAST default setting is set to maximum at the factory.

• The On-screen display will disappear

60 econds after finishing an adjustment or by pressing TV MENU three times.

The setting can only be adjusted when they are displayed on the

TV screen

BRIGHTNESS

CONTRAST

COLOR

TINT

SHARPNESS increase brightness increase contrast brilliant color greenish color makes picture clearer decrease brightness decrease contrast pale color reddish co_or makes picture softer

After your desired setting, press TV MENU until the MENU screen disappears

CANCEL

Pressing CANCEL while making picture adjustments will return all adjustments to the factory preset levels.

5Q00401AE(26-29) 29 26/5/04, 10:46

Adjusting the picture preference

You can select four picture modes--Sports, Standard, Movie, and Memory--as following table: described in the

Press TVtVCR Press TV MENU, the TV/VCR menu screen will appear

Press • or • to select [] option

Press • or • to select

"PICTURE PREFERENCE", then press •

Press • or • to select the item you want to adjust.

Press

ENTER to adjust the setting

Mode

STANDARD

SPORTS

MOVIE

MEMORY

Picture Quality

Standard picture quality (factory-set)

Bright and dynamic picture (factory-set)

Movie-like picture setting (factory-set)

Your personal preferences (set by you: see

'Picture control adjustment" on the page 29).

After your desired setting, press TV MENU until the MENU screen disappears

5Q00401 AE(30-31 ) 30 26/5/04.10:46

Sound controls are factory preset but you can adjust them

individually

as follows:

Sound control adjustment

Press TV/VCR.

Press TV MENU, the TV/VCR menu screen will appear.

Press • or • to select _ option.

. ION_%_I

.....

Press • or • to select

"AUDIO", then press •.

Press • or • to select the item you want to adjust.

Press • or

• to adjust the setting

BASS:

Press • or • to adjust the bass sound.

TREBLE:

Press • or • to adjust the treble sound.

BALANCE:

Press • or • to obtain an equat sound level from both speakers

After your desired setting, press TV MENU until the MENU screen disappears.

CANCEL

Pressing CANCEL while making sound adiustments will return all adjustments to the factory preset levels

NOTE:

The On-screen display will disappear 60 seconds after finishing an adjustment or by pressing TV MENU three times.

The setting can only be adjusted when they are displayed on the TV screen.

5Q00401AE(30-31) 31 26/5/04, 10:46

Setting the surround sound

/ Setting

the stabJe sound

Settingthe surround sound

The surround sound feature expands the audio listeningfield wider and deeper to create exceptional sound quality from the TV's speakers,

"l Press TV MENU.

Press • or • to select _ option.

Press • or

• to select "AUDIO", then press

Press • or • to select or • to select "ON".

Press TV MENU until the MENU screen disappears,

To cancel the surround sound mode:

Follow the above step 2, then press • or • to select "OFF" position. Press TV MENU until the MENU screen disappears.

Setting the stable sound

The stable sound feature limits the highest volume level to prevent extreme changes in volume when the signal source is changed,

Press TV MENU. Press • or • to select _ option. Press • or • to select "AUDIO", then press •

Press • or • to select "STABLE

SOUND".

Then press • or • to select "ON".

Press TV MENU until the MENU screen disappears.

To cancel the stable sound mode:

Follow the above step 2, then press • or • to select "OFF" position.

Press TV MENU until the MENU screen disappears.

5Q00401AE(32-35) 32 26/5/04.10:46

Stereo recording and playback/Second

Stereo recording

and

playback

The VHS Hi-Fi audio system permits high fidelity recording of MTS STEREO TV broadcasts.

Audio Program (SAP)

When an MTS STEREO broadcast is received, the word STEREO will appearon the screen end the program can be viewed or recorded in stereo.

The Hi-Fi STEREO recording procedure is the same as for normal recordings.

NOTE:

When using a CABLE TV system, stereo TV programs may be transmitted over a mono cable channel.

In this case the word

"STEREO" will not appear and the sound will be in mono.

Output selection

When viewing an MTS STEREO TV program, or playing a prerecorded

VHS Hi-Fi STEREO video tape, press AUDIO SELECT to select how the audio will be heard through the speakers.

Normally set to the Hi-Fi

STEREO position, this button can be set to the MONO position if the stereo broadcast or videotape audio is of poor quality The "R" and "L" positions allow the audio from the Right or Left Hi-Fi channel to be heard over both TV speakers This button has no effect when viewing a MONO video tape or TV program.

Each time when you press the button, OUT-

PUT SELECTION display appears on the screen for several seconds

Refer to the chart below.

OUTPUT

SELECTION

STEREO

L ch

R ch

MONO

SOUND

SPEAKERS

HEARD ON BOTH

STEREO

LEFT CHANNELAUDIO

RIGHT

MONQ

CHANNEL AUDIO

NOTES:

* When playing back a tape that is not recorded in Hi-Fi stereo mode, the audio will automatically be monaural.

* When listening to a VHS Hi-Fi video tape or MTS broadcast through the

VHF/UHF jack (Audio/Video connected), monaural the sound cord not will be

Second Audio Program (SAP}

Your TV/VCR/DVD is fitted with a SAP broadcast system which enables you to switch to a second audio program when viewing a selected channel

This function applies only when the program is broadcast in multiqanguages through the SAP broadcast system,

Press TV MI=NU in the TV/VCR mode. Then press • or • to select _ option Press • or • to select "AUDIO", then press •

Press • or • to select "SAP".

Then press • or • to select"ON".

Then press TV MENU until the menu screen is cleared

Listening

to SAP

When the TV/VCR/DVD is turned on or a channel selection is made, make certain the letters "SAP" appear on the screen.

This means that the "Second Audio Program" broadcasting is available.

] oo

5Q00401AE(32-35) 33 26/5/04, 10:46

Loading and Unloading a cassette tape

Use only video cassette tapes marked [_.

Push the center of the tape until it is automatically inserted insert the cassette tape with its labeled side facing up and the erase prevention tab positioned at your left.

An inverted cassette tape cannot be inserted.

• Erase prevention tab

Automatic power ON

When you insert a cassette tape the TV/VCR/DVD _ower will turn ON automatically.

Automatic playback

When loading a cassette tape without an erase prevention tab, playback will start automatically

Unloading

Press EJECT on the TV/VCR/DVD mote.

or the ReRemove the cassette tape.

Automatic tape eject

This TV/VCR/DVD will automatically rewind the tape when the tape has ended And when the tape is rewinded to its beginning, the cassette tape will be ejected automatically.

To prevent accidentaB

erasure

Remove the erase prevention tab with a screwdriver.

Screwdriver

To record again

Cover the hole with a piece of adhesive tape

Tape speed and maximum recording time

%120

2 hours

6 hours

Video cassette tape

%90

1-1/2 hours

4-1/2 hours

SP (Standard Play)

_LP(Super Long Play)

%160

2-2/3 hours

8 hours

%60

1 hour

3 hours

5Q00401AE(32-35) 34 26/5/04.10:46

%30

30 minutes

!-!/2 h0urs

Cassette tape playback

Preparation:

• Press TVNCR to select the TVtVCR mode

Load a prerecorded tape

(When loading a cassette tape without the erase prevention tab_ playback will start automatically)

To start playback

Press PLAY

Playback will start.

" I_ "will appear on the screen for about 4 seconds

To stop p_ayback

Press STOP once.

The tape will stop but remain fully loaded and ready to play.

"[]" will appear on the screen for about 4 seconds

To rewind the tape or forward it rapidly

Stop the playback or recordinc with STOP

To rewind the tape:

Press REW.

To forward the tape:

Press F.FWD.

NOTES:

This TV/VCR/DVD selects the playback tape speed SP or SLP automatically.

• if you play a prerecorded tape after the DVD playback, you must set the

TV/VCR/DVD

TVNCR to TV/VCR mode using o When you select the TV/VCR mode during DVD piayback, DVD playback will change to the still mode, and after

5 minutes it will change to the stop mode automatically

To stop the tape-winding, press STOP.

To switch to playback directly (without STOP), press PLAY.

ForwardtReverse picture search mode

When the tape is being winded, you can switch to picture search mode (see next page). To do this, press R_=W or F,FWD and hold it down. The TV/VCR/DVD will resume the tape winding as soon as the button is released.

5Q00401AE(32-35) 35 26/5/04, 10:46

Special playback

Picture Search

Reverse picture search function

Press REW once or twice during the playback.

Forward picture search function

Press F.FWD

once or twice during the playback

To return to playback: Press PLAY.

SPEED SEARCH TIMES

TAPE SPEED

PICTURE SEARCH SPEED

PRESS ONCE PRESS TWICE

SP (Standard Play) 3 X

5 X

15X

Still Picture

Press PAUSEfSTILL dudng playback To resume normal playback: Press PLAY.

Slow Motion

During playback press SLOW.

To return to playback: Press PLAY or SLOW.

Slow tracking and vertical lock adjustment

If noise bars appear in the picture during slow motion, press the TRACKING + or = to reduce the noise bars

If the still picture jitters excessively, press TRACKtNG

+ or = to stabilize the still picture

Frame by Frame picture

Press PAUSE[STroLL during playback.

Press SLOW one by one: The picture advances frame by frame.

To return to playback: Press PLAY or PAUSE/STILL

Adjusting tracking condition

Automatic tracking adjustment

Whenever you insert a tape and start playback, automatic tracking starts

working

and continuously analyzes the signal to enable optimum picture quality during playback.

Manual tracking adjustment

If automatic tracking cannot eliminate noises well during playback, press TRACKING +t- to eliminate the noises.

"MANUAL TR." will appear.

Press it briefly for a fine adjustment, or press and hold for a coarse adjustment

• Press ATR to reactivate automatic tracking again.

"AUTO TRi wil} appear.

NOTES:

• The audio output is muted during SPEED SEARCH,

STILL, FRAME ADVANCE and SLOW MOTION.

• During picture search mode there will be noise bars which are caused by the system.

• The Special Playback will automatically change to playback after approx.

5 minutes to protect the video tape against excessive wear.

Repeat playback

The entire video tape will be played until its end. The tape will then automatically rewind to the beginning and the playback will be repeated.

Press TV MENU.

Press • or • to select _ option.

Press • or • to select

"AUTO REPEAT", then press • or • to select "ON" or "OFF".

If "ON" is selected, the playback will be repeated endlessly.

Press TV MENU until the menu screen is cleared.

if you press the screen

DiSPLAYICALL, "(:_D" will appear on

To start the playback_ press PLAY.

The playback will be repeated endlessly

To cancel repeat mode:

Fellow the above step 2, then press • or • to select the OFF position Press TV [vIENU to return to the TV.

To monitor a TV program

Press TV MONITOR while in the playback mode. The video tape will continue to play while the picture switches to the TV channel selected on the TV/VCR/

DVD. Press the button to return to the playback picture.

CM skip

Press CM SKIP in the PLAY mode. The TV/VCR/DVD will search forward through approximately 30 seconds of the tape (eg.

unwanted commercial time) for each press of CM SKIP (maximum six presses) and then resume normal playback

For example: 1 press: 30 second of tape

2 press: 60 second of tape

3 press: 90 second of tape

5Q00401AE(36-39) 36 26/5/04.10:47

ZERO

RETURN function

/ Video

index search system

ZERO RETURN function

This

function makes tape-rewinding stop at the counter 00:00:00 position automatically.

Preparation:

Press TV/VCR to select the TVNCR mode

Press DmSPLAYICALL

The counter display shows the tape running time during playback or recording.

Press COUNTER RESET at the desired tape position.

The counter display will be reset to the "00:00:00" position (e.g

the beginning of recording)

NOTES for Counter Display:

, If you rewind the tape beyond

"O0:0O:0O",a minus sign ("-") will be displayed in front of the time.

• When you load a tape, the counter will reset to "go:go:go".

, The counter does not function on nonrecorded (blank) sections of the tape. When you rewind, fast forward or play tapes through blank sections, the counter stops.

NOTES for Video index search system:

• When you record an INDEX mark at the very beginning of the tape, the mark may not be found.

During INDEX search_ the tape may stop and begin to play at a slightly different location.

INDEX may not function propedy with old or worn out video tapes.

INDEX marks may not be found if it is extremely close to the point where the search began.

In recording, if you stop recording temporarily_ the iNDEX mark is not recorded on the tape

Press STOP when playback or recording is finished

Press ZERO RETURN.

The tape will be rewinded or fast forwarded and automatically stop at the "go:go:g0" position of any

Video index search system

This function recording enables you made on the VCR, to locate the beginning

Recording an mNDEX MARK whenever a recording is initiated

Index Search

Press iNDEX + or - during stop or play mode.

For Succeeding programs: Press _NDEX +.

For Preceding programs: Press _NDEX -.

(Additional press increases the INDEX NO up to 9.)

When the INDEX + or = is pressed, the

TV/VCR/DVD starts searching the INDEX _ or _ is displayed

NO. selected and finds the portion, then playback starts automatically, INDEX NO. (up to 9)

To stop the Index Search, press STOP,

,, c0

5Q00401AE(36-39) 37 26/5/04, 10:47

Recording a TV program

Recording and viewing same TV program the PreparaNon:

• Press TV/VCR to select the TV/VCR mode.

Load a cassette tape with the erase prevention tab intact.

The TV/VCR/DVD on will automatically turn

Press SPEED to select the desired tape speed SP or SLP.

The tape counter and SP or SLP will appear on the screen for about 4 seconds

Set the TV/CABLE option to the appropriate position (see page 22).

NOTES:

If power is switched off during recording, the TV and the DVD sections go off and the VCR continues to record.

Press STOP to halt the recording and turn off the VCR.

The TV/VCR/DVD channel cannot be changed during recording.

• If you record the TV program after the DVD ptayback_ you must set the

TV/VCR/DVD to TVA/CR mode using TV/VC R.

5Q00401AE(36-39) 38

Press the number buttons (0-9) or CH +/= to select the channel to be recorded.

1-9

10-12

Press 0 twice and then 1-9 as required Example: To select 2, Press "002".

Press 0 first and then the remaining 2 digits in order

13-99 Press 2 ,digits in order.

100-125

Examp,o:

in order.

VHFIUHF/Cable

VHF

2-13

UHF

14-69

TV CHANNELS

Cable TV

VHF

2-13

STD/HRC/IRC

14-36 (A) (W)

37-59 (AA) (WW)

60-85 (AAA) (ZZZ)

86-94 (86) (94)

95-99 (A-5)(A-l)

100-125 (100)(125}

01 (5A)

Press R_=C;OTR.

"@" will appear on the screen for about 4 seconds and the Rec/Otr indicator will light

26/5/04.10:47

To stop recording

Press STOP to stop recording.

"[]" will appear on screen for about 4 seconds

To stop recording temporarily

Prees nuo

the recording.

"11" will appear on screen for about 4 to avoid recording I Press PAUSEtSTtLL seconds

NOTES:

• The pause function will be released after 5 minutes to prevent damage to the tape or the TV/VCR/DVD.

The TV/VCR/DVD will change to the STOP mode.

You can select a recording channel in the recording pause mode

Auto Rewind feature

This VCR will automatically rewind the tape when the tape has ended (except during OTR and TIMER REC) It will also eject the tape

To Display VCR operation Status

Press DISPLAY/CALL The clock, day of the week and more information will be indicated.

While watcMng

TVtVCR

DAY OF THE WEEK

CLOCK _IL; T_:/V4C_M CH'25 ]i CHANNEL

STEREO SAP

SECOND AUDIO_ p /

PRO RAM SA ) !!:!!

J

While operating a tape

HIoFI STEREO _ r TVJVCR

H_F,_0_'_

AUTO REPEAT |

I_ -'_'_ VC R cb _ _

_ OPERATING

OODE

TAPE IN

To cancel disappear the display: Press

REAL TIME COUNTER

DISPLAY,CALL until all indicators

5Q00401AE(36-39) 39 26/5/04, 10:47

One-touch Timer Recording (OTR)

The One-touch Timer Recording feature provides a simple and convenient

recording,

way to make a timed

Preparation:

Press TV/VCR to select the TV/VCR mode.

Example: One-touch Timer Recording for 30 minutes

Load a cassette tape with the erase prevention tab intact.

The TV/VCR/DVD on will automatically turn

Set the TV/CABLE option to the appropriate position (see page 22)

Press the number buttons (0_9) or

CH +t= to select the channel to be recorded

NOTES:

• If you wish to watch the DVD playback during the recording or the OTR_ press

DVD to change to DVD mode and perform the DVD playback.

• The channel cannot be changed during recording

Press REC/OTR.

Press the button again to stop recording after

30 minutes.

Each additional press of REC/OTR will increase recording time as shown in the chart below, up to a maximum of

6 hours. The OTR and recording time will appear on the screen for about 4 seconds

Press once twice

3 times

4 times

5frees

Recording time Press

NORMAL REC 6 times

0:30

1:00

7 times

8 times

1:30

2:00

Recording

3:00

4:00

5:00 time

9 times 6:00

10 times NORMAL REC

To cance_ OTR

Press STOP.

"[]" will appear on screen for about 4 seconds.

5Q00401AE(40-42) 40 26/5/04.10:47

Timer recording can be programmed on-screen with the remote control.

The built-in timer allows automatic unattended programs recording witMn i month.

of up to 8

Timer recording

Preparation:

Press TVN(CR to select the TV/VCR mode.

• Load a cassette tape with the erase prevention tab intact.

• Press DiSPLAY/CALL to verify that the time and date are correct (see page 39).

ExampEe: Program a timer recording for the 23rd day, channel 125

(CABLE), 7:00 - 9:30 PM on timer program number 1 (Tape speed: SLP).

Press TV MENU.

Press • or • to select _ option.

.............

Press •or

SET",

• to select "TIMER REC press

Press • or • to select one of the program line, then press ENTER

Press • or • to select the date, then press •

NOTES:

• If the T-Rec indicator blinks when the timer recording ended, the TV program has not been completely recorded because of an insufficient tape supply

Press TIMER REC to cancel the timer program or press EJECT to remove the cassette tape.

• During timer recording standby mode, the VCR operation cannot be used To use the VCR operation, press TIMER

REC to deactivate the timer After you use the VCR, press TIMER RE(:: again to put the VCR into timer recording standby mode.

• If you press TmMER RE(:: during timer recording, the recording operation will be interrupted If you press TIMER

RE(:: again within the programmed time, the recording operation will start again.

• After a power failure or disconnection of the power plug, all programmed recording settings and time display will be lost upon resumption of power.

In this case, reset the clock (see pages

16-18) and reprogram recordings.

any timer

Set the start time, end time, channel and tape speed as in step 4, then press ENTER.

NOTES:

Press • to move arrow backward for correction

• To record from external source set the channel to "LI" or "L2". "LI" or "L2" will appear next to CH 125 (or 69)

To enter other programs, repeat step

3-5

• To return to the normal screen, press TV MENU 3 times.

Press TIMER REC.

The T-Rec indicator will light and the VCR stands by for recording.

The timer recording will start at 5 seconds before the time you predetermined,

NOTES:

• if the T-Rec indicator does not light in spite of the pressing of

TIMER REC, the cassette may not have been loaded yet (see page 34).

• if the cassette is ejected in spite of the pressing of TIMER REC, the erase prevention tab of the cassette may have been removed (see page 34).

,4,t

5Q00401AE(40-42) 41 26/5/04, 10:47

Timer recording

Timer recording special case

Weekly (e,g. WKL-TUE: each Tuesday) or dally (e.g.

MON-SAT: Monday to Saturday)

Timer

recording

Follow the procedure of timer recording on the previous page At picture 4 press • repeatedly until the desired setting appears Then press ENTER.

When you press • repeatedly, the indicator at DATE will change as follows, in this case the day is Friday

The current day (Friday) ---> SUN-SAT (Sundayto Saturday)

f $

MON-SAT (Monday to Saturday)

One month Eater minus one day MON-FRI (Monday to Friday)

WKL-WED

(WeeHy Wednesday)

<-.WKL-THU (Weekly Thursday) in case Timer programs-oveHap

* Do not ovedap timer programs as portions of the conflicting programs wilt be lost The first recording time has priority over the next recording time as shown in the diagram below

(continued)

To comfirm the settings

Press PROGRAM once.

The TV screen displays the timer program list. Press PROGRAr,'I again.

The TV screen displays the ON/OFF TIMER setting.

(once) (twice)

Press PROGRAM 3 times.

The screen returns to the normal screen.

To cancel a program

Press • or • to select

"TIMER REC SET" in the [S_ option, then press I_.

Press • or • to select the unnecessary program, and press CANCEL to cancel the program.

...................

Program I

Program 2

Program 3

Recording

Control Settings

8:00 9:00 10:00 11:00

Prog. 1

Deleted Parts ,-*,_

Non Recorded PoeticalPads

Prog 2 Prog.3

NOTES:

If there are other timer record programs remaining,

TIMER REC must be pressed to reactivate the timer, otherwise the remaining timer record programs will be ignored.

• You can correct or cancel a programmed setting in program confirm mode

NOTES:

• The daily/weekly recording can be made continuously until the recording is canceled or the tape reaches the end.

• During timer recording the automatic rewinding mechanism does not function

5Q00401AE(40-42) 42 26/5/04.10:47

Duplicating a video tape

tf you connect the TV!VCR/DVD to another VCR or camcorder, tape,

Make all connections before turning on the power.

Load a blank cassette tape with the tion tab intact into the recording unit.

erase preven-

Load a previously recorded tape into the playback

VCR or CAMCORDER.

you can duplicate a previously

recorded

4 Press REC!OTR

PAUSE/STILL.

on the recording unit, then press

Press SPEED to select the desired or SLR tape speed SP

It is recommended that you set the speed to the

SP mode on the recording unit for best results.

Press the PLAY button on the playback VCR or

CAMCORDER, then press the PAUSE/STILL button

Release the recording pause and the playback still simultaneously to begin the duplbating process

Press }NPUT SELECT to select AUDIO/VIDEO input position.

"LINE 1" or "LtNE 2" wilt appear on the screen

LINE1: on the rear panel

LINE2: on the front panel

Connection

with second Video recorder

Playback VCR

Connection

with Video

camera

PlaybackCamcorder

@@@

ToWDEO <R>

T "To AUDIO (L) OUT

Recording unit L

Recording unit

ToAVjack

X

AUDIO/VIDEO

Cord (not supplied)

ToAUDIO (R) IN

5Q00401AE(43-48) 43

AUDIO/VIDEOcord (not supplied)

For duplicating a previously recorded tape from a camcorder_ follow the camcorder manufacturer's instructions.

A typical camcorder dubbing hookup is shown above.

26/5/04, 10:47

Disc

This TV/VCR/DVD applies to DVD discs from Region 1 or ALL.

The loaded Disc (DVD_ Audio-CD and MP3/WMA/JPEG-CD) will be recognized automatically

The suitable Disc-formats are: DVD, DVD-R/RW (Video Format Only), CD-R and CD-RW

Some CD-R/RW discs may be incompatible

WARNING

Do not attempt to play DVD-ROM, DVD-Audio, CDV, Video-CD or CD-G to prevent accidental erasure of prerecorded material.

These formats are not supported by this model.

DVD DISC

TITLE1

CHAPTER / CHAPTER 2 CHAPTER /

TITLE2

CHAPTER 2 CHAPTER 3

Title

When two or more movies are recorded on a disc, the disc is divided into two or more sections Each section is called a "TITLE"

Chapter

The titles can be subdivided into many sections

Each section is cafled a "CHAPTER"

Track

An Audio CD can contain several items

Each item is called a "TRACK".

RACK I TRACK 2 TRACK 4

TRACK 5

Removing Disc from Case

Be sure to hotd the edge of disc. Do not touch the surface of the disc.

Pick up the disc gently from the case

Do not scratch the disc.

Do not get dirt on the surface of the disc.

Do not stick a label or adhesive tape on the disc

Do not drop or bend the disc

Storing Disc

Store the disc in the case to avoid risk of scratches, dirt or damage.

Do not leave disc exposed to direct sunlight or in hot or humid places

Cleaning Disc

Wipe the disc with a clean, dry cloth from center to edge.

Do not wipe the disc around in a circle

Do not use liquid or aerosol cleaners

5Q00401AE(43-48) 44 26/5/04.10:47

The following setup/operation pages describe in DVD mode.

Preparation

the

/ Status display of disc

Preparation

Before DVD/CD operation, please make preparations as follows.

Insert the AC cord plug into a standard 120V 6OHz polarized

AC outlet.

If the AC cord plug is plugged in for the first time, wait for about 5 seconds before pressing POWER

NOTE: When connecting to other equipment, unplug the TV/

VCR/DVD from the AC outlet

Press POWER on the TV/VCR/DVD or on the remote control to turn on the TV/VCPJDVD.

The Power indicator will light

Every time you press POWER, the TV/DVD starts from TV mode.

• When using an amplifier, switch on the amplifier.

Press mode.

DVD to select DVD

The DVD startup screen will appear on the screen

Status display of disc

Press DISPLAY/CALL second times The status display of the disc wilt appear on the screen.

DVD

Chapter number

Title number TitEeeJapsedplayingtime

Disc operation

Audio Eanguage

Subtitle Eanguage

N:_N

NOTE:

If the TVtVCR/DVD does not operate properly: Static electricity, etc., may affect the player's operation Disconnect the

AC power cord once, then connect it again

To make status display disappear, press DISPLAYtCALL

Audio CD

Track elapsedplaying time again

T,oo tim°

• When you piay a CD disc, the status display will appear and remain on the screen

26/5/04, 10:47 5Q00401AE(43-48) 45

Setting setup manguage

You can change the default

settings

to customize performance to your preference.

Press DVD to select the

DVD mode.

"No Disc" will appear on the screen.

(if a DVD disc has already loaded, the playback will start automatically )

Press SETUP in the stop mode, The SETUP MENU of DVD will appear on the screen

Then press • to sebct

Other

Press or

ENTER to select OSD Language

Press • or

ENTER and then press • or • to select desired language

(eg. English), then press

ENTER

Press SETUP or RETURN to remove the MENU screen

if the TV/VCR/DVD does not operate properly:

Static electricity, etc.

may affect the player's operation Disconnect the AC mains lead once, then connect it again

5Q00401AE(43-48) 46 26/5/04.10:47

Pmayback procedure

Press DVD to select DVD mode Press OPEN/

CLOSE on the TV/VCR/

DVD or the remote control

The disc tray will open.

_i iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii ii

Place a disc onto the tray.

Position it with the printed label side up, align it with the guides, and place it in its proper position

NOTES:

If a non-compatible disc is Ioaded_ "Incorrect Disc '_,"Region Code Error" or "Parental Error" will appear on the TV screen according to the type of loaded disc. if these appear, check your disc again (see pages

44 and 60).

Some discs may take a minute or so to start playback

A "Prohibition" symbol _' may appear at the upper left of the screen This symbol means either the feature you tried is not availabb on the disc, or the TV/VCR/DVD can not access the feature at this time Tflis does not indicate a problem with the TV/

VCR/DVD.

When you set a single-faced disc label downwards (ie the wrong way up) and press PLAY or OPEN/CLOSE on the TV/

VCR/DVD, "Reading" will appear on the display for about 30 seconds and then "No

Disc' or "Incorrect Disc" will be displayed

Some playback operations of DVDs may be intentionally fixed by software producers. Since this TV/VCR/DVD plays DVDs according to the disc contents the software producers designed_ some playback features may not be available Also refer to the instructions supplied with the DVDs.

5Q00401AE(43-48) 47

Press OPEN/CLOS _=or

(PLAY).

The disc tray closes automatically.

On the TV-screen,

,,_

changes to "Reading" and then playback commences.

/',¸ ! 1

A menu screen will appear on the TV screen, if the disc has a menu feature.

In this case, press

A, V

'd,

• orENTER to operate a menu feature.

Press STOP to end playback.

The TV/VCR/DVD memorizes the stopped poinL depending on the disc. "lu" appears on the screen. Press PLAY to resume playback (from the scene point).

if you press STOP again or unload the disc (" []" appears on the screen.), the TV/VCR/DVD will clear the stopped point

Press OPENfCLOSE

The disc tray opens.

Remove the disc and press POWER

The disc tray closes automatically and TV/VCR/DVD turns off

26/5/04, 10:47

Special playback

There may be a slight delay between when you press function activating.

tbe button and the

WARNING:

The TV/VCR/DVD is capable of holding a still video image or on-screen display image on your television screen indefinitely.

If you leave the still video image or onscreen display image displayed on your

TVfor an extended period of time, you risk permanent damage to your television screen.

Projection screen televisions are especially susceptible to such damage.

5Q00401AE(43-48) 48

Fast Forward

P_ayback

Press SEARCH I)_ during normal playback.

Each press of the SEARCH IN_ button will increase the speed of the search _ (x 2), _ (x 4), _ (x 8), _ (x 15)

(CD: _ (x 2), I1_ (x 4), I1_ (x 8), _ (x 20))

* To resume normal playback, press PLAY.

Review Playback

Press SEARCH 4t_ during normat playback.

Each press of the SEARCH _ button will increase the speed of the search _1_ (x 2), _ (x 4), _ (x 8)_ _ (x 15)

(CD: _,_ (x 2), _ (x 4)_ _ (x 8), _ (x 20))

• To resume normal playback, press PLAY.

Still Playback

Press PAUSE/STroLL during normal playback to pause playback

iI _:i_ iiiiiiii

To resume normal playback, press PLAY.

Frame

Advance

Press PAUSE!STroLL

during still playback.

One frame is advanced each time you press PAUSEtSTILL

To resume normal playback, press PLAY

Slow-motion

Playback

Press SLOW( I _) during normal playback or still playback.

Each press of SLOW will change the speed of the slow xl/2, xl/4, xl/6, xl/7.

• To resume normal playback, press PLAY.

• To resume the still playback, press PAUSEtSTILL

Locating a chapter or track

Press SKIP(I_I)R) Forward or SKIP(14141) Reverse during playback to locate a chapter that you want to watch.

Each time you press the button, a chapter or track is skipped

26/5/04.10:47

MP3!WMAIJPEG

playback

MP3/WMA/JPEG CD information

This player can play back MP3/WMAJJPEG files recorded on e CD-R or CD-RW

MP3/WMA CD playback

Press OPENICLOSE

The disc tray will open.

Place a disc on which MP3 or WMA files have been recorded onto the tray

MP3 is an audio file format which compresses recorded music It was developed by Freunhofer

Gesellscheft in collaboration with Thomson inc. The main advantage of the MP3 format is that it means

CD-quelity music tracks can be stored on a personal computer

WMA (Windows Media Audio) is another audio file format developed by Microsoft

JPEG flies ere image files

To create these files you need e Windows-PC with

CD-ROM drive end MP3/WMA]JPEG-encoding software (not supplied)

The Apple-HFS-System cannot be played

Press OPEN/CLOSE or _ PLAY)

The disc tray closes automatically. On the TV-screen, "Reading" will appear

Reading will take as much time as the number of file

A file menu screen will appear on the TV screen

Press • / • to select folder

Playback Limitations

File names on a MP3/WMA/JPEG CD must include 4 Press A/V

.jpg,

This unit can read 200 files per disc Keep directory sizes to 200 files or less Anything over that limit will be omitted the desired file.

In case the folder includes more than 15 files, press • or

• or • / • or the number buttons (0_9) to select to display next file list.

if2 q72

This unit is able to recognize up to a maximum of 50 directories per disc

If a CD has both audio and graphic files on the same

CD, only the audio tracks wil{ play

It may take more than one minute for MP3/WMA/

JPEG files to play depending on their structure

Music recorded by "Joliet Recording Specification" can be played back.

The unit can play back baseline and progressive

JPEG files

Music files recorded by "HierarcNcai File System"

(HFS) cannot be played

Notes on _']P3!WMAtJPEG

fi[]s

To play MP3/WMA/JPEG files in the recorded order,

1 Use MP3/WMA/JPEG software that records data alphabetically or numerically

2 Name each file including a two-digit or three-digit number (eg. "01" "02" or "001" "002").

3 Refrain from creating too many subfolders

_,_

. When _* (PLAY)

Press ENTER.

The selected

Press []

0_ _lnleffal

N_ has been pressed file starts playing back

(STOP) to end playback

_B after displaying only MP3/WMAfiles are played back in order.

If the first file is a JPEG file, the first JPEG file is played back.

the file menu, or when the disc tray has been closed after pressing _'*

(PLAY) in step 2, playback begins automatically starting from the first file In this case, if the first file is an MP3/WMA file,

Limitations on disp[]y

• File names ere displayed (within 16 characters) on the screen File names longer than 16 letters ere condensed

Available letters for display are the following: capital or small letters A through Z, numbers O through 9, and _ (under score).

• Letters other than those above are replaced with a hyphen Press ENTER. The selected file starts playing back Press l (STOP) to end playback

CAUTION:

• Some MP3/WMA/JPEG flies cannot be played back depending on the recording conditions

• The CD-R/RW that has no music data or non-MP3/

WMA/JPEG files cannot be played back

• The TV/VCR/DVD records the stopped point. "[]" appears on the screen.

Press _ (PLAY) to resume playback (from the scene point).

. If you press [] (STOP) again or unload the disc, the TV/

VCR/DVD will clear the stopped point

NOTES:

During MP3iWMA/JPEG-Playback,

SEARCH, A-B Repeat functions you cannot use

. 'You can use Repeat (Track or All), Random functions and

Program playback for MP3/WMA/JPEG CD Playback (see pages 54, 55)

. In the case of a CD containing a mixture of MP3, WMA and

JPEG flies, the files are played back by selecting them from the file menu.

5Q00401AE(49-52) 49 26/5/04, 10:47

MP3/WMA/JPEG playback (continued)

JPEG CD pmayback

Press OPEN/CLOSE.

The disc tray will open

Place a disc on which JPEG files have been recorded onto the tray.

Press OPEN/CLOSE or _'-

(PLAY).

The disc tray closes automatically.

On the TV-screen,

"Reading" will appear.

Reading will take as much time as the number of file

A file menu screen will appear on the TV screen

Press _ / • to select folder.

¢@ Press A/V or _/• orthe number buttons (0-9) to select the desired file

About file menu

Operation Elapsed time press TOP MENU )

Press A/.

or _ / • to select [_

To displaya picturemenu, press [r the desired file.

• To display next list, press SKmP

Ip,t_l / 1_141

, When _ (PLAY) has been pressed after displaying the file menu_ or when the disc tray has been closed after pressing _,_ (PLAY) in step 2, playback begins automatically starting from the first file, In this case_ if the first file is a

JPEG file, the first JPEG file is played back. if the first file is an MP3/WMAfile, in order only MP3/WMA files are played back

Press ENTER

The selected picture appears on the TV screen.

{_ : Indicates MP3 file

_ : Indicates WMAfile

[] : Indicates JPEG file

NOTES:

• The picture menu is displayed when the FUJtCOLOR CD or the Kodak

Picture CD are played.

To dispiay the file menu press TOP MENU.

MP3 or WMA file on the KODAK

Picture CD is not recognized on this

TV/VCR/DVD

5Q00401AE(49-52) 50

Press l (STOP) to end playback.

The file menu appears on the TV screen.

If you want to watch another file, repeat steps 4-5.

26/5/04.10:47

Setting the JPEG

interval

Setting the JPEG Interval

You can continuously play back all JPEG files automatically

Press SETUP in the stop

Press _ / • to select

"Picture", then press • or mode.

ENTER.

Press • or • to select

"JPEG Interval".

Press ENTER or _ / • to select your desired time

Off:

Plays back one file at a time.

5 Seconds:

Displays images in the form of a slide show Every 5 seconds the image changes

10 Seconds:

Displays images in the form of a slide show Every 10 seconds the image changes

15 Seconds:

Displays images in the form of a slide show Every 15 seconds the image changes

Press SETUP or RETURN to remove the MENU screen.

5Q00401AE(49-52) 51 26/5/04, 10:47

Setting the select flies

When

playing back a CD containing a

mixture

of MP3, WMA and JPEG files,

only MP3/WMA

or JPEG files can be

displayed

on the file menu.

Press SETUP in the stop mode

Press • / _. to select "Picture", then press • or ENTER.

Press • or • to select"Select

Files"

Press ENTER or •/• lect your desired file type to se-

All:

Displays all files

Music Only:

Displays only MP3/WMA files

Pictures Only:

Displays only JPEG files.

Press SETUP or RETURN to remove the MENU screen

5Q00401AE(49-52) 52 26/5/04.10:47

NOTES:

You can select the Pause, Slow or

Search playback in the zoom mode.

Some discs may not respond to zoom feature

Zooming / Locating desired scene

Zooming

This TVNCR/DVD will allow you to zoom in on the frame image, You can then make selections by switching the position of the frame.

Press DVD to select DVD mode.

Press ZOOM during playback.

The center part of the image will be zoomed in.

Each press of ZOOM will change the ZOOM O_1

(xf.3), 0,2 (x f.5)_0,3

(x 20)

Press A/V/'_ / • to view a different part of the frame.

You may move the frame from the center position to UP,

DOWN, LEFT or RIGHT direction

Sin the zoom mode press ZOOM repeatedly to return to a

1:1 view (O,, Off)

Locating Desired Scene

Use the title, chapter

and

time recorded

on the disc

to locate the desired

point to play back.

Press JUMP during playback

Press • or • to select the "Time", "Title" or "Chapter"

Press the number buttons (0-9) to input the number

If you input a wrong number, press CANCEL.

• Refer to the package supplied with the disc to check the numbers

Press ENTER.

, Playback starts.

• When you change the title, playback starts from

Chapter 1 of the selected title.

, Some discs may not work in the above operation.

5Q00401AE(53-57) 53 26/5/04, 10:47

Repeat playback

Title, Chapter, Track P_ayback

Press PLAY MODE during playback or stop mode.

DVD

R_ea;/EntedPiayMoOff

Press • or • or ENTER once or twice to select 'Chapter" or

'Title".

In case of CD, at first press • to select "Repeat" and then press • or • or ENTER once or twice to select "Track" or "All".

}

DVD CD

PlayMode : off

Press PLAY MODE again to make the screen disappear.

Press PLAY to start Repeat playback

To resume normal playback, select Repeat Off

AoB Repeat Playback

A-B repeat

playback

allows you to repeat material between

two

selected

points.

NOTES:

* Some discs may not work with the repeat operation.

, In A-B repeat mode, subtitles near point A or B may not appear.

During the A-B Repeat Playback the

ANGLE feature will not operate.

"You may not be able to set A-B Repeat, depending on the scenes of the

DVD

5Q00401AE(53-57) 54 tomatically, then starts again.

To resume normal playback press REPEAT A-B again.

"_,,'_,,_ appears on the screen.

26/5/04.10:47

Program playback/Random playback (CD)

Program playback

You can arrange the order of tracks on the disc.

Press PLAY MODE in the stop

I

mode

I PlayMode : Off

I

}

IRep°°t : °_ I

Press • or • to select "Play I'PlayMode : Program l

ENTER to select "Program" 2_: 5'-8,.-it--.-

Mode', then press ' °r • or /R_peat4 : i Off i0 /

Example: in case you wish to program in order of 7, 3, 11:

Enter as 7 •, 3 •, 11

Repeat : Off if you input a wrong number, press CANCEL

I PlayMode : Program

3 6--:---!2---

[ _I_A'V/Enter0:9 Can_iTPay J

1

Press •/• or _ / • to select f

'Program Playback" and press t ProgramP!aYbaCk

02:3! 08:29|

ENTER.

"Program Playback" will tTm ck 7/11 1 appear on the screen. The | program you selected wit{ begin to playback in the order set

To return to normal playback, se|

[ect "P_ay Mode: Off" at step 2 k above.

)

NOTES:

• To cancel program play. setect"Clear" at step 4 and press ENTER.

• The program is cancelled when you open the disc tray or turn the power off

• Random playback can not be combined with Repeat playback.

Random playback

Press PLAY MODE during playback or stop mode.

Play Mode

Repeat

_ _-,_{E_teup!ayMtde

Off

Press • or to select

Mode"_ then press _/•

"Play or EN_

TER to select "Random".

Press PLAY.

"Random Play" will appear on the screen and Random Playback will start.

5QOO401AE(53-57) 55 26/5/04, 10:48

Changing soundtrack language

/ Subtitles

Changing soundtrack language

You can select the language when you play a multilingual disc.

Press AUDIO SELECT [

The current soundtrack language will appear

NOTES:

• If the desired language is not heard after pressing AUDIO SELECT several times, the language is not recorded on the disc.

° Changing soundtrack language is canceNed when you open the disc tray The initial default language or available language will be heard if the disc is played back again

• Changing subtitle language is cancelled when you open the disc tray or turn the power off.

• Some functions may not work on some

DVDs You may not be able to turn subtitles on or off or change subtitles.

While playing the DVD, the subtitle may change when:

- you open or close the disc tray

- you change the title.

• In some cases, the subtitle language is not changed to the selected one immediately.

5Q00401AE(53-57) 56 repeatedly until the desired

2 Press AUDIO SELECT I

The on-screen display will disappear after a few seconds.

Subtitles

Turning the Subtitles On and Off

When playing back a disc recorded can turn the subtitles on or off.

with subtitles, you

dur,ng

Changing

the subtitle language

You can select the language recorded with multi:lingual when subtitles.

playing back a diss edlyduring Di

Eng

your desired language appears.

The on-screen display will disappear after a few seconds.

26/5/04.10:48

Changing angmes / Title selection

/ DVD menu

Changing angles

When pJaying back a disc recorded with multi-angle ity, you can change the view angle.

facil-

Press ANGLE back during play-

The current angle will appear.

NOTE :

In case of JPEG-playback, the JPEG-image is rotated

90 degrees to the right.

Press ANGLE repeatedly until the desired angle is selected.

Title selection

Two or more tiEes are recorded on some discs.

Bfthe title menu is recorded on the disc, you can seJect the desired tiEe,

Press TOP _4ENU during playback.

Title menu appears on the screen.

Press A/V or • / • to select the desired title.

Press ENTER or _ (PLAY).

The playback of the selected title will start

NOTES:

• Depending on the DVD, you may not be able to change the angles even if multi-angles are recorded on the DVD.

• Depending on the DVD, you may not be able to select the title.

Depending on the DVD, a "title menu" may simply be called a "menu" or "title" in the instructions supplied with the disc.

DVD menu

Some DVDs allow you to select the disc contents using the menu,

When you play back these DVDs, you can seJect the subtitle

0anguage

and sound4rack

DVD menu.

language, etc, using the

Press MENU during playback.

The DVD menu appears on the screen.

, Press MENU again to resume playback at the scene when you pressed MENU

Press

A/V or

to select the desired item

Press ENTER.

The menu continues to another screen Repeat steps 2 and 3 to set additional items if any

5Q00401AE(53-57) 57 26/5/04, 10:48

Setting the aspect ratio of TV screen/Setting on screen display

Setting the aspect ratio of TV screen

You can select the aspect ratio of the picture=

Press • or ENTER, then press

A or • to select "Tv Screen"

Press • or ENTER.

Press • or • to select your desired screen type_ then press

ENTER.

NOTE:

If the DVD disc is not formatted in the pan

& scan style, it displays 4:3 style

You have the following screen sizes to choose from:

4:3 _ Letter box

When playing back a wide screen-DVD disc_ it displays the wide picture with black bands at the top and bottom of screen.

4:3 r-1 Pans can

It displays the wide picture on the whole screen with left and right edges automatically cut off.

Press SETUP or

RETURN to remove the Menu screen

Status on screen display

On screen display can be switched on or off when you press the DISPLAY button.

stop or

Press SETUP in the mode No Disc.

Press _ or • to select "Picture".

• or • to select "Display" press

TvScreen 4:3 I:_

I D'sp'ay _

Press or

"On" or "Off"

ENTER to select

On:

Off:

On screen displays appear when you press the buttons (factory setting).

On screen displays do not appear when you press any buttons except SETUP, SEARCH MODE, PLAY

MODE and DISPLAY.

Press SETUP or RETURN to remove the MENU screen.

5Q00401AE(58-65) 58 26/5/04.10:48

DRC (Dynamic Range

Control)

ena-

bles you to control the dynamic range so as to achieve a suitable

sound

for your equipment,

Dynamic Range Contro

Press

• or lect "DRC".

ENTER

to se-

Press I_ or ENTER, then press • or • to select

"On" or "Off"

Press SETUP or RETURN to remove the MENU screen.

NOTES:

• This function works only during playback of Dolby Digital recorded discs.

• The level of Dynamic Range Reduction may differ depending on DVD video disc

5Q00401AE(58-65) 59 26/5/04, 10:48

Parental

contro

setting

if you want to limit the types of discs that can be played, use the Parental

Control feature.

Press SETUP in the stop mode or No Disc.

Press • or • to select "Parental".

ENTER.

Then press • or

Press • or • to select "Parental", then press • or • until the level you require appears.

NOTES:

•

if each setup (P.46,51,52,58~61,

63~65) has been completed,

VCR/DVD

can

always the TVI be worked under the same

conditions

cially with DVD discs),

(espe-

Each setup will be retained in the memory when you turn the power off.

• Depending on the discs, the TV/VCR/

DVD cannot limit playback

• Some discs may not be encoded with specific rating level information though its disc jacket says "adult." For those discs, the age restriction will not work

5Q00401AE(58-65) 60

• Level Off : The parental control setting does not function.

• Level 8

• Level I

: Virtually all DVD software can be played back.

: DVD software for adults cannot be played back.

• Select from level 1 to level 8. The limitation will be more severe as the level number decreases.

Press • or • to select"Password".

Press the number buttons

Passwo

9) to input a 4.-digit password.

Pa[enta} tMs Be sure to remember number!

° If yOU Input a wrong number, press CANCEL.

I

0-9/Cancel

_AVtEnter/SetuplRetu_

Press ENTER to store the password.

NOTE: Now the rating is locked and the setting cannot be changed unless you enter the correct password

Press SETUP or RETURN to remove the MENU screen.

26/5/04.10:48

Changing the parental [eve[

Press SETUP in the stop mode or No Disc

Press • or • to select

"Parental" Then press • or

ENTER.

Press the number buttons

9) to enter the password you I have stored I Password

O-9/Cancel

4 _A'_/Enter/aetup/Return

Press ENTER

The rating is now unlocked.

NOTE:

Do not forget the password If you forget the password, contact the dealer that you purchased the unit from

Press • or • to select

"Parental", then press • or

• to change the parental level

Press • or • to select

"Password", then press the number buttons (0o9} to enter the password.

NOTE: You can change the password at this time if you want.

Press ENTER.

The parental leve} is changed and locked.

Press SETUP or RETURN to remove the MENU screen.

5Q00401AE(58-65) 61 26/5/04, 10:48

Temporary

disabling of rating levem by DVD disc

Depending on the DVD disc, the disc may try to temporarily caneeJ the rating leveJ that you have set.

tt is up to you to decide whether to cancel the rating level or not.

Load a DVD disc and press PLAY or OPEN/CLOSE (see page 47).

If the DVD disc has been designed to temporarily cancel the

Rating level, the screen which follows the "Reading" screen will change, depending on which disc is played tf you select "YES" with ENTER key, "Your disc exceeds the parental control level 12

(e.g.) screen will then appear the parental contr0! level 1.

c,ooo,p,c,o,o

If you wish to cancel the set rating level temporarily, select

"Parental Control Level" with • or V, then press ENTER.

If the

4-digits password at step 3 on page 60 has been set, the password entering screen will appear as shown in step 4 below.

Alternatively, if the password has not been set, playback will commence tf you don't know (or have forgotten) the password, select "Cancel Picture".

The setting screen will disappear remove the disc.

Press OPEN/CLOSE to

Enter the password with number buttons (0-9).

Then press ENTER.

if you interrupt the entering, press RETURN

Playback wilt commence if the entered password was correct.

NOTE:

This temporary cancellation of rating level will be kept until the disc is ejected,

When the disc is ejected, the original rating level will be set again automatically

5Q00401AE(58-65) 62 26/5/04.10:48

You can select the language of the disc menu messages of DVBs.

Setting menu anguage

Press SETUP in the stop mode.

Press • or • to select "Language",

Press

•

ENTER.

Then press • or • to select

"Menu"

Press • or ENTER.

Press • or • to select your desired language, then press

ENTER.

English, Franeais, Espanol:

The selected language will be heard or seen,

Other:

Other language can be selected (see the "Language code list" on page 66)

Press SETUP or RETURN to remove the MENU screen

5Q00401AE(58-65) 63 26/5/04, 10:48

Setting the subtitle language

The same subtitle

language

can always

be selected even if you replace the disc or turn the power off.

Press SETUP in the stop mode

Press _ or • to select "Language"

Press • or ENTER

Then press • or • to select

"Subtitle",

NOTE:

If the selected language is not recorded on the disc, the first-priority selected language is

5Q00401AE(58-65) 64

Press • orENTER

Press• or• to select your desired language, then press

ENTER

English, Francais, Espanoh

The subtitle is displayed with the selected language if it is recorded on the disc.

Other:

If you want to select another language, enter the language code

(See the Language code list on page 66)

Automatic:

• The TVfVCR/DVD will automatically select the same language in theAUDtO setting.

• When the TV/VCR/DVD selects the same language as the AU-

DiO, the subtitles will not appear during playback

• When you do not use the same language as the AUDIO, the subtitles will appear during playback.

Off:

Subtitles do not appear

Press SETUP or RETURN to remove the MENU screen

26/5/04.10:48

Setting the audio soundtrack

The same audio soundtrack language

can always be selected by your TV/

VCR/DVD even if you replacethe disc or turn the power off.

Press SETUP in the stop mode

Press _ or • to select"Language"

anguage

Press • or ENTER.

Then press • or • to select "AudW'

Press • or ENTER.

Press • or • to select your desired Audio Language, then press

ENTER

Engmish, Francais, Espanol:

The language you have selected will play if it is recorded on the disc.

Other:

If you want to select another language, enter the language code (See the Language code list on page

66).

Original:

The TV/VCR/DVD disc.

will select the first priority language of each

Press SETUP or RETURN to remove the MENU screen.

NOTE:

If the selected language is not recorded on the disc, the original language will be heard.

5Q00401AE(58-65) 65 26/5/04, 10:48

Language code list

Enter the appropriate code number for the initial settings "AUDIO", "SUBTITLE" and/or "MENU LANGUAGE"

(see page 63-65)

Language Name Code Language Name Code Language Name Code Language Name Code

Abkhazian 1112 Fiji 1620 Lingata 2224 Singhalese 2919

Afar 1111 Finnish 1619 Lithuanian 2230 Siovak 2921

Afrikaans 1116 French 1628 Macedonian 2321 Siovenian 2922

Albanian

Amharic

Arabic

Armenian

Assamese

2927

1123

1128 Georgian

1835 German

1129

Frisian

Galician

Greek

1635

1722

2111

1415

1522

Malagasy

Malay

Malayatam

Maltese

Maori

2317

2329

2322

2339

2319

Somali

Spanish

Sundanese

Swahili

Swedish

2925

1529

2931

2933

2932

Aymara

Azerbaijani

Bashkir

Basque

1135 Greenlandic

1136 Guarani

1211 Gujarati

1531 Hausa

Bengali; Bangta 1224 Hebrew

Bhutani 1436 Hindi

Bihari 1218 Hungarian

Breton

Bulgarian

Burmese

1228 icelandic

1217 indonesian

2335 tntertingua

Byetorussian

Cambodian

Catalan

Chinese

Corsican

Croatian

1215 irish

2123 italian

1311 Japanese

3618 Javanese

1325 Kannada

1828 Kashmiri

Czech

Danish

Dutch

English

Esperanto

Estonian

Faroese

1329

1411

2422

1524

Kazakh

Kirghiz

Korean

Kurdish

1525 Laothian

1530 Latin

2121

2135

2125

2131

2225

2211

1625 Latvian, Lettish 2232

2122

1724

1731

1811

1933

1819

1831

1929

1924

1911

1711

1930

2011

2033

2124

2129

Marathi

Moldavian

Mongolian

Nauru

Nepali

Norwegian

Oriya

Panjabi

Pashto, Pushto

Persian

Polish

Portuguese

Quechua

Rhaeto-Romance

Romanian

Russian

Samoan

Sanskrit

Scots Gaelic

Serbian

Serbo-Croatian

Shona

Sindhi

2328 Tagatog

2325 Tajik

2324 Tamit

2411 Tatar

2415 Tetugu

2425 Thai

2528 Tibetan

2611 Tigrinya

2629 Tonga

1611 Turkish

2622 Turkmen

2630 Twi

2731

2823

Ukrainian

Urdu

2825 Uzbek

2831 Vietnamese

2923 VolapOk

2911 Welsh

1714 Wotof

2928 Xhosa

2918 Yiddish

2924 Yoruba

2914 Zutu

3225

1335

3325

3418

2019

3525

3631

3022

3017

3011

3030

3015

3018

1225

3019

3025

3028

3021

3033

3121

3128

3136

3219

5Q00401AE(66-69) 66 26/5/04.10:48

Reception disturbances

Most types of television interference can be remedied by adjusting the height and position of the VHF!UHF

antenna.

Outdoor antennas are recommended for best results.

The most common types of television interference are shown below, if one of these symptoms

Cable TV system, the disturbance may be caused by the appear when the TV/VCR./DVD

Jocat CabJe TV company is connected broadcast.

to a

iGNiTiON

Black spots or horizontal streaks may appear, the picture may flutter or drift. Usually caused by interference from automobile ignition systems, neon lamps or AC powered tools and appliances such as drills or hair dryers

GHOSTS

Ghosts are caused by the television signal following two paths.

One is the direct path and the other is reflected by tall buildings, hills or other large objects Changing the direction or position of the antenna may improve the reception

SNOW

If the TV/VCR/DVD is located far from the TV station, in a fringe reception area where the signal is weak, small dots may appear in the picture.

If the signal is extremely weak, the installation of a larger external antenna may be necessary.

RADIO FREQUENCY INTERFERENCE (RF!)

Caused by two-way radios, this type of interference produces moving ripples or diagonal streaks in the picture Some cases may cause a loss of contrast in the picture Changing the direction and position of the antenna or installing an RFI filter may improve the picture

PICTURE SIZE VARIATION

A slight picture size variation is normal when you adjust the CONTRAST or BRIGHTNESS settings

CARE AND MAINTENANCE

To prevent fire or shock hazard, disconnect the TVNCR/DVD from the power source before cleaning.

The finish on the cabinet may be cleaned with mild soap and a soft, damp cloth and cared for as other furniture.

Use caution when cleaning or wiping the plastic parts.

5Q00401AE(66-69) 67 26/5/04, 10:48

ProbJerns and troubJeshooting

Use the following local dealer check or service list for outlet troubleshooting if problems persist.

Be sure all connections are properly made when when using you have problems with other units.

SYMPTOMS CAUSE with your TV/VCR/DVD.

POSSIBLE

SOLUTIONS

Consult your

PAGE "_

NO power

Although the power is on, the

TV/VCR/DVD does not operate

The AC power cord is not connected

Cassette or disc is not inserted

The TIMER REC buttons are depressed

Poor or no p_cture

Poor or no co,or

Picture wobbles

No CABLE reception

No reception above channel 13

Poor or no sound

TV shuts off

Closed activated caption or drifts is not

Connect the AC power cord to the AC outlet

Insert a video cassette or disc

Press the TIMER REC buttons

34, 47

TV station experiencing problems

Picture control is not adjusted

Possible local interference

Antenna (CABLE) connector is not connected or possible local interference

TV station experiencing problems

Picture control is not adjusted

Possible local interference

Antenna (CABLE) connector is not connected or possible local interference

TV station experiencing problems

Antenna (CABLE) connector is not connected or possible local interference

Cable TV channel is scrambled

CABLE connector is not connected

TV/CABLE

TV mode

Mode menu option is set to the

Cable TV service interrupted

TV/CABLE Mode menu option is not set to the appropriate mode

UHF antenna is not connected

TV station experiencing problems

Antenna (CABLE) connector is not connected or possible local interference

Possible local interference

The MUTE button is depressed

TV station stopped broadcastir_g

Bleep timer is set

TV station experiencing problems o_ program tuned is not closed captions

TV signal is weak

The CLOSED CAPTION button is not depressed

Try another channel

Check picture control adiustments

Check for source o1 reception disturbance

Check CABLE connection or VHF/UHF antenna, reposition or rotate antenna

Try another channel

Check picture control adjustments

Check for source of reception disturbance

Check CABLE connection or VHF/UHF antenna, reposition or rotate antenna

Try another channel

Check CABLE connection or VNF/UHF antenna, reposition or rotate antenna

Try another channel

Check all CABLE connections

Set the TV/CABLE Menu option to the

CABLE mode

Contact your Cable TV company

Make sure TV/CABLE the appropriate mode

Check UHF antenna menu option is in

Try another channel

Check CABLE connection or VNF/UHF antenna, reposition or rotate antenna

Check for source o1reception disturbance

Check the MUTE button has not been sressed.

Tune new channel

Set Sleep Timer to "0"

Try another channel

Check CABLE connection of VHF/UHF antenna, reposition or rotate antenna

Press the CLOSED CAPTION button to turn on the closed caption

11. 12

11, 12

TV recording does not work

Timer recording does not work

Noise bars appear on the screen.

The video cassette's erase prevention tab is broker_ off

The time is not set correctly

The recording start/end time is not set correctly

Tape is old or worn

Tracking adjustment is beyond range of automatic tracking circuit

Video heads are dirty.

Place a piece of adhesive tape over the hole

Reset the present time

Reset the start/end time

16~18

Replace the tape

Adjust tracking manually using the

TRACKING +/- buttons on the remote control

I Clean the video heads.

I 69_

5Q00401AE(66-69) 68 26/5/04.10:48

Problems and troubleshooting/Video

CAUSE

head cleaning

The playback picture has occasional distortion

The disc is dirty

It is in fast fo_vard or fast reverse playback

No disc is inserted

An unplayable disc is inserted

The TV/VCR/DVD does not start playback.

The disc is placed upside down

The disc is not placed within the guide

The disc is dirty

The parenta_ lock function is set

Playback does not follow the course of the disc's program

"'_l_" appears on the screen

It is in the mode of repeat playback, memory playback, etc

The function is prohibited with the TV/

VCR/DVD or the disc

Eject the disc and dean it

Some times a small amount of picture distortion may appear This is not a malfunction

Insert a disc

Insert a playable disc (Check the disc type and Region Number) This is a

Region 1 player

Place the dbc with the playback side down

Place the dbc correctly inside the guide on the disc tray

Clean the disc

Cancel the parental lock function or change the parental lock level

These operations may prevent proper progression of the contents

60,61

Remote control does not operate

The remote control is not aimed at the sensor

Distance is too far or too much }ight in the room

There is an obstacle in the path of the beam

The batteries are weak

The batteries are not inserted correctly

Aim the remote control at the remote sensor

Operate within 5 m or reduce the light of the room

Clear the path of the beam

Replace the batteries

Insert correctly

DEGAUSSING SYSTEM I

This television has a degaussing Circuit that will clear up color distortions o d the TV screen that are Caused by aay I

exces s magnetis m which happens to get too close to the TV: This circuit is designed to operate once when the set is first plugged in. If minor Color distortions are seen in som e locations on th e screen, please unplug the TV for approximately 15 minute s. When the TV is plugged back in, the degaussing cirfiuit will operate once to clear up any color distortions.

Repeat !tds procedu[e an}, !!m e the TV scree n is accidentally magnetized ! 0 [ when !he TV iS I moved or relocated.

Video head cleaning

Video head clogging

The video heads are the means by which the TV/VCR/DVD reads the picture from the tape during playback In the unlikely event that the heads become dirty enough to be clogged, no picture will be played back. This can easily be determined if, during playback of a known good tape, there is good sound, but no picture (picture is extremely snowy). If this is the case, have the TV/VCR/DVD checked by qualified service personnel

Good Picture Snowy Picture

NOTES: . DO NOT ATTEMPT TO CLEAN THE VIDEO HEADS OR SERVICE THE TV/VCR/DVD

ING THE REAR COVER.

BY REMOV-

. Video heads may eventually wear out and should be replaced when they fail to produce clear pictures.

• To help prevent video head clogging, use only good quality VHS tapes.

Discard worn out tapes

5Q00401AE(66-69) 69 26/5/04, 10:48

Specifications

GENERAL

Power supply:

Power consumption:

Weight:

Dimensions:

Inputs/Outputs:

Video:

Audio:

AC 120V 60Hz

Operation: 135 W

Stand by: 4 W

794 Ibs (36.0 kg)

25-13/16 inches (655 ram)

22-13/16 inches (580 mm)

18-3/4 inches (477 mm) in: 1 Vp-p/75 ohm

Out: 1 Vp-p/75 ohm in: -8 dBm/50 K ohm

Out: -8 dBm/1 K ohm

20Hz to 20,O00Hz

More than 90dB

Hi-Fi frequency response:

Hi-Fi dynamic range:

TELEVISION

Picture tube:

Tuner type:

Receiving channels:

24" (600 mm diagonal)

Quartz PLL Frequency

VHF 2-13

UHF 14-69

CABLE

Synthesized

14-36 (A)-(W)

37-59 (AA)-(WW)

60-85 (AAA)-(ZZZ)

86-94 (86)-(94)

95-99 (A-5)-(A-1)

100-125 (100)-(125)

01 (5A)

In 75 ohm coaxial VHF/UHF

1-13/16" (46 mm) x 3-7/8" (99 mm), 8 ohm x 2

1.5W

+ 1.5W

Antenna input:

Speaker:

Audio output power:

VCR section

Video head:

Audio track:

Tuner:

F.FWD/REW Time at 25C (77 F):

DVD section

Signa_ system:

Applicable disc:

Frequency response:

S/N Ratio:

Harmonic distortion:

Wow and flutter:

Output:

Pickup:

ACCESSORY:

4 Rotary Heads

Hi-Fi Sound - 2 Tracks / MONO

Sound - 1 Track

181 Channel Freq. Synthesized

VHF

UHF

2-13

14-69

CABLE 14-36 (A)-(W)

37-59 (AA)-(WW)

60-85 (AAA)-(ZZZ)

86-94 (86)-(94)

95-99 (A-5)-(A-1)

100-125 (100)-(125)

01 (5A)

Approx. 1minute and 48 seconds (with T-120 Cassette Tape)

NTSC

DVD (12cm, 8cm), CD (12cm, 8cm)

DVD: 4Hz - 22KHz/CD: 4Hz - 20KHz

90dB

0.06%

Below Measurable Level

Video : (RCA) 1 Vp-p/75 ohm

Audio : (RCA) -12 dBm/1 K ohm

Digital Audio : 0.5 Vp-p/75 ohm

CD : Wavelength: 770 - 8OOnm

Maximum output power: 07 mW

DVD : Wavelength: 645 - 660 nm

Maximum output power: 05 mW

Remote control x 1

5Q00401AE(70-BACK) 70 26/5/04.10:48

90 Day

Full

Warranty tf this product experiences any failure due to a defect in material or workmanship within 90 days from the date of purchase, return it to your nearest Sears Parts & Repair Center, and Sears will repair it free of charge.

After 90 days and until one (1) year from the date of purchase, Sears will replace defective parts free of charge.

You pay for labor.

After 90 days and until two (2) years from the date of purchase, Sears will replace the Picture

Tube if it is defective.

You pay for labor.

This warranty applies only if this (product) is used for private household purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL $0179

5Q00401AE(70-BACK) 71 26/5/04, 10:48
