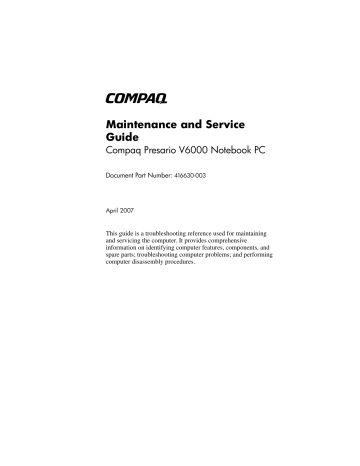

Maintenance and Service
Guide
Compaq Presario V6000 Notebook PC
Document Part Number: 416630-003
April 2007
This guide is a troubleshooting reference used for maintaining and servicing the computer. It provides comprehensive information on identifying computer features, components, and spare parts; troubleshooting computer problems; and performing computer disassembly procedures.
© Copyright 2006, 2007 Hewlett-Packard Development Company, L.P.
Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Intel, Core, and Celeron are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries and regions. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. SD Logo is a trademark of its proprietor. AMD, the AMD Arrow logo and combinations thereof are trademarks of Advanced Micro Devices, Inc.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Maintenance and Service Guide
Compaq Presario V6000 Notebook PC
Third Edition: April 2007
First Edition: August 2006
Document Part Number: 416630-003
Safety warning notice
Å WARNING: To reduce the possibility of heat-related injuries or of overheating the computer, do not place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of
Information Technology Equipment (IEC 60950).
Contents
Contents
1 Product Description
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
1.2 Resetting the Computer. . . . . . . . . . . . . . . . . . . . . . . 1–4
1.3 Power management . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
1.4 External Components . . . . . . . . . . . . . . . . . . . . . . . . 1–6
1.5 Design overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–22
2 Troubleshooting
2.1 Setup Utility in Windows XP . . . . . . . . . . . . . . . . . . 2–1
Using the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . 2–1
Setup Utility Menus . . . . . . . . . . . . . . . . . . . . . . . . . 2–5
2.2 Setup Utility in Windows Vista . . . . . . . . . . . . . . . . 2–8
Using the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . 2–8
Setup Utility Menus . . . . . . . . . . . . . . . . . . . . . . . . 2–11
2.3 Troubleshooting Flowcharts . . . . . . . . . . . . . . . . . . 2–15
Maintenance and Service Guide v
Contents
3 Illustrated Parts Catalog
3.1 Serial Number Location . . . . . . . . . . . . . . . . . . . . . . 3–1
3.2 Computer Major Components. . . . . . . . . . . . . . . . . . 3–2
3.3 Display Assembly Components . . . . . . . . . . . . . . . 3–21
3.4 Mass Storage Devices . . . . . . . . . . . . . . . . . . . . . . . 3–23
3.5 Plastics Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–25
3.6 Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–27
3.7 Sequential Part Number Listing . . . . . . . . . . . . . . . 3–30
4 Removal and Replacement Preliminaries
4.1 Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
4.2 Service Considerations . . . . . . . . . . . . . . . . . . . . . . . 4–2
Plastic Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . 4–2
4.3 Preventing Damage to Removable Drives . . . . . . . . 4–3
4.4 Preventing Electrostatic Damage . . . . . . . . . . . . . . . 4–4
4.5 Packaging and Transporting Precautions . . . . . . . . . 4–5
4.6 Workstation Precautions . . . . . . . . . . . . . . . . . . . . . . 4–6
4.7 Grounding Equipment and Methods . . . . . . . . . . . . . 4–7
Maintenance and Service Guide vi
Contents
5 Removal and Replacement Procedures
5.1 Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2
5.2 Disassembly Sequence Chart . . . . . . . . . . . . . . . . . . 5–3
5.3 Preparing the Computer For Disassembly . . . . . . . . 5–4
5.4 Hard Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6
5.5 Computer Feet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–10
5.6 Memory Module . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–11
5.7 RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–14
5.8 Mini Card Module. . . . . . . . . . . . . . . . . . . . . . . . . . 5–15
5.9 Optical Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–20
5.10 Switch Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–22
5.11 Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–25
5.12 Power Button Board . . . . . . . . . . . . . . . . . . . . . . . 5–29
5.13 Display Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 5–31
5.14 Top Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–42
5.15 Audio Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–48
5.16 Bluetooth Module . . . . . . . . . . . . . . . . . . . . . . . . . 5–50
5.17 ExpressCard Assembly . . . . . . . . . . . . . . . . . . . . . 5–52
5.18 USB/Power Connector Board . . . . . . . . . . . . . . . . 5–55
5.19 System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–57
5.20 Fan/Heat Sink Assembly. . . . . . . . . . . . . . . . . . . . 5–61
5.21 Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–64
Maintenance and Service Guide vii
Contents
6 Specifications
A Screw Listing
B Backup and Recovery in Windows XP
C Backup and Recovery in Windows Vista
D Display Component Recycling
E Connector Pin Assignments
F Power Cord Set Requirements
Index
viii Maintenance and Service Guide
1
Product Description
The Compaq Presario V6000 Notebook PC offers advanced modularity, Intel® Core™ Duo and Celeron® and AMD
Turion™ 64 Mobile Technology and Mobile AMD Sempron™ processors, and extensive multimedia support.
Compaq Presario V6000 Notebook PC
Maintenance and Service Guide 1–1
Product Description
1.1 Features
The following features vary by computer model:
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
Intel Core Duo T7200 (2.00-GHz)
Intel Core Duo T1350 (1.86-GHz)
Intel Core Duo T5600 (1.83-GHz)
Intel Core Duo T2350 (1.86-GHz)
Intel Core Duo T2250 (1.73-GHz)
Intel Core Duo T5500 (1.66-GHz)
Intel Core Duo T5200 (1.66-GHz)
Intel Core Duo T2060 (1.60-GHz)
Intel Core Duo T2050 (1.60-GHz)
Intel Celeron 440 (1.86-GHz)
Intel Celeron 430 (1.73-GHz)
Intel Celeron 420 (1.60-GHz)
AMD Turion ML-60 (2.0-GHz)
AMD Turion ML-56 (1.8-GHz)
AMD Turion ML-52 (1.6-GHz)
AMD Turion ML-50 (1.6-GHz)
Mobile AMD Sempron 3500+ (1.8-GHz)
Mobile AMD Sempron 3400+ (1.8-GHz)
Mobile AMD Sempron 3200+ (1.6-GHz)
15.4-inch WXGA (1280 × 768) TFT display with over
16.7 million colors, varying by computer model
■ 200-, 160-, 120-, 100-, 80-, 60-, and 40-GB high-capacity hard drive, varying by computer model
■ 256-MB DDR synchronous DRAM (SDRAM) at 667 MHz, expandable to 2.0 GB
■ Microsoft® Windows Vista™ Business, Windows Vista
Home Basic, and Windows® XP Professional
■ Full-size Windows keyboard with embedded numeric keypad
1–2 Maintenance and Service Guide
Product Description
■
■
■
■
■
■
■
■
■
■
■
TouchPad pointing device with on/off button and dedicated two-way scroll zone
Integrated 10/100 BASE-T Ethernet local area network
(LAN) network interface card (NIC) with RJ-45 jack
Integrated high-speed 56K modem with RJ-11 jack
Integrated wireless support for Mini Card IEEE 802.11b and
802.11b/g WLAN device
Support for ExpressCard
External 90- or 65-watt AC adapter with 3-wire power cord
6-cell or 12-cell Li-Ion battery
Stereo speakers with volume up and down buttons
Integrated microphones (select models only)
❏
❏
Support for the following optical drives:
❏ DVD±RW/R and CD-RW Double-Layer Combo Drive with LightScribe
DVD±RW/R and CD-RW Double-Layer Combo Drive
DVD/CD-RW Combo Drive
Connectors:
❏
❏
❏
❏
❏
❏
❏
❏
❏
❏
❏
❏
❏
Audio-in (microphone)
Audio-out (headphone)
Consumer infrared lens
Docking (select models only)
ExpressCard
External monitor
IEEE 1394 digital (select models only)
Memory Reader (select models only)
Power
RJ-11 (modem)
RJ-45 (network)
S-Video-out (select models only)
Universal Serial Bus (USB) v. 2.0
Maintenance and Service Guide 1–3
Product Description
1.2 Resetting the Computer
If the computer you are servicing has an unknown password, follow these steps to clear the password. These steps also clear CMOS:
1. Prepare the computer for disassembly (refer to
“Preparing the Computer For Disassembly,”
for more information).
2. Remove the real-time clock (RTC) battery (refer to
Section 5.7, “RTC Battery,” for more information).
3. Wait approximately 5 minutes.
4. Replace the RTC battery and reassemble the computer.
5. Connect AC power to the computer. Do not reinsert any batteries at this time.
6. Turn on the computer.
All passwords and all CMOS settings have been cleared.
1–4 Maintenance and Service Guide
Product Description
1.3 Power management
■
■
■
■
■
■
■
■
The computer comes with power management features that extend battery operating time and conserve power. The computer supports the following power management features:
Standby
Hibernation
Setting customization by the user
Hotkeys for setting the level of performance
Battery calibration
Lid switch standby/resume
Power button
Advanced Configuration and Power Management (ACPM) compliance
Maintenance and Service Guide 1–5
Product Description
1.4 External Components
The external components on the front of the computer are shown below and described in Table 1-1.
Front Components
Item
1
Component
Power light
2 Battery light
Table 1-1
Front Components
Function
On: The computer is on.
Blinking: The computer is in standby.
Off: The computer is off or in hibernation.
On: A battery is charging.
Blinking: A battery that is the only available power source has reached a low-battery condition. When the battery reaches a critical low-battery condition, the battery light begins blinking rapidly.
Off: If the computer is plugged into an external power source, the light is turned off when all batteries in the computer are fully charged. If the computer is not plugged into an external power source, the light stays off until the battery reaches a low-battery condition.
1–6 Maintenance and Service Guide
Product Description
4
5
6
7
8
Item
3
Front Components (Continued)
Component Function
Drive light
Table 1-1
Wireless switch
Blinks when the hard drive or optical drive is being accessed.
Turns the wireless feature on or off, but does not create a wireless connection.
✎
A wireless network must be set up to establish a wireless connection.
Wireless light
Consumer infrared lens (select models only)
Audio-in
(microphone) jack
Blue: An integrated wireless device, such as a wireless local area network (LAN) device and/or a Bluetooth® device, is turned on.
Amber: All wireless devices are turned off.
Receives a signal from the HP Remote
Control.
Audio-out
(headphone) jack
Connects an optional computer headset microphone, stereo array microphone, or monaural microphone.
Produces sound when connected to optional powered stereo speakers, headphones, ear buds, a headset, or television audio.
Maintenance and Service Guide 1–7
Product Description
The external components on the left side of the computer are shown below and described in Table 1-2.
Left-Side Components
2
3
Item
1
Component
S-Video-out jack
Table 1-2
Left-Side Components
External monitor port
Function
Connects an optional S-Video device such as a television, VCR, camcorder, overhead projector, or video capture card.
Connects an external VGA monitor or projector.
Expansion port 3 Connects the computer to an optional expansion product.
✎
The computer has only one expansion port. The term expansion port 3 describes the type of expansion port.
1–8 Maintenance and Service Guide
Product Description
7
8
5
6
Item
4
9
Table 1-2
Left-Side Components (Continued)
Component Function
RJ-45 (network) jack
RJ-11 (modem) jack
HDMI port
(select models only)
USB ports (2)
1394 port
(select models only)
Memory Reader
(select models only)
Connects a network cable.
Connects a modem cable.
Connects an optional audio or video device, such as a high definition television, set-top box, DVD player, or any compatible digital or audio device.
Connect optional USB devices.
Connects an optional IEEE 1394 or 1394a device, such as a camcorder.
Supports the following optional digital card formats: Secure Digital (SD) Memory Card,
MultiMediaCard (MMC), Secure Digital
Input/Output (SD I/O), Memory Stick (MS),
Memory Stick Pro (MSP), xD-Picture Card
(XD), xDPicture Card (XD) Type M.
Maintenance and Service Guide 1–9
Product Description
The external components on the right side of the computer are shown below and described in Table 1-3.
Right-Side Components
1–10 Maintenance and Service Guide
Product Description
4
5
2
3
Item
1
Table 1-3
Right-Side Components
Component
ExpressCard slot
Optical drive
USB port
(select models only)
Power connector
Security cable slot
Function
Supports optional ExpressCard/54 cards.
Reads an optical disc.
Connects an optional USB device.
Connects an AC adapter.
Attaches an optional security cable to the computer.
✎
The security cable is designed to act as a deterrent, but it may not prevent the computer from being mishandled or stolen.
Maintenance and Service Guide 1–11
Product Description
The computer keyboard components are shown below and described in Table 1-4.
Keyboard Components
1–12 Maintenance and Service Guide
Product Description
6
7
Item
1
2
3
4
5
8
Component
Function keys caps lock key fn key
Table 1-4
Keyboard Components
Windows logo key
Windows applications key
Arrow keys
Embedded numeric keypad keys num lock key
Function
Execute frequently used system functions when pressed in combination with the fn key.
Enables caps lock and turns on the caps lock light.
Executes frequently used system functions when pressed in combination with a function key or the esc key.
Displays the Microsoft Windows Start menu.
Displays a shortcut menu for items beneath the pointer.
Move the cursor around the screen.
Can be used like the keys on an external numeric keypad.
Enables numeric lock, turns on the embedded numeric keypad, and turns on the num lock light.
Maintenance and Service Guide 1–13
Product Description
The computer top components are shown below and described in
Table 1-5.
Top Components, Part 1
1–14 Maintenance and Service Guide
Product Description
2
3
Item
1
Table 1-5
Top Components, Part 1
Component
Internal microphones
(2, select models only)
Function
Record sound.
✎
If there is a microphone icon next to each microphone opening, your computer has internal microphones.
Power button
Speakers (2)
When the computer is
■ Off, press to turn on the computer.
■ On, press to enter hibernation.
■
In standby, briefly press to exit standby.
■ In hibernation, briefly press to exit hibernation.
If the computer has stopped responding and Microsoft® Windows® shutdown procedures cannot be used, press and hold the power button for at least 5 seconds to turn off the computer.
Produce sound.
Maintenance and Service Guide 1–15
Product Description
The computer top components are shown below and described in
Table 1-6.
Top Components, Part 2
1–16 Maintenance and Service Guide
Product Description
2
3
Item
1
Component
Media button
Table 1-6
Top Components, Part 2
Volume mute button
Volume scroll zone
Function
If QuickPlay is not installed and the computer is
■ On, opens the music program or Media menu, which allows you to select a multimedia program.
■ Off, does not function.
■ In standby, resumes from standby into
Windows.
If QuickPlay is installed and the computer is
■ On, opens the music program or Media menu, which allows you to select a multimedia program.
■ Off, opens the music program or the
Media menu, which allows you to select a multimedia program.
■ In standby, resumes from standby into
Windows.
✎
The media button does not affect the procedure for restoring from hibernation.
Mutes and restores speaker sound.
Adjusts speaker volume. Slide your finger to the left to decrease volume and to the right to increase volume. You can also tap the minus sign on the scroll zone to decrease volume, or you can tap the plus sign on the scroll zone to increase volume.
Maintenance and Service Guide 1–17
Product Description
The computer TouchPad components are shown below and described in Table 1-7.
TouchPad Components
1–18 Maintenance and Service Guide
Product Description
Item
1
2
3
4
5
6
Component
TouchPad light
TouchPad
Table 1-7
Touchpad Components
Function
Blue: TouchPad is enabled.
Amber: TouchPad is disabled.
Moves the pointer and selects or activates items on the screen.
Allows you to scroll left or right.
TouchPad horizontal scroll zone
Left and right
TouchPad buttons
TouchPad on/off button
TouchPad vertical scroll zone
Function like the left and right buttons on an external mouse.
Enables/disables the TouchPad.
Allows you to scroll up or down.
Maintenance and Service Guide 1–19
Product Description
The external components on the bottom of the computer are shown below and described in Table 1-8.
Bottom Components
Item
1
2
3 Optical drive
Table 1-8
Bottom Components
Component
Battery bay
Battery release latch
Function
Holds the battery.
Releases the battery from the battery bay.
Reads an optical disc.
1–20 Maintenance and Service Guide
Product Description
5
6
Item
4
Table 1-8
Bottom Components (Continued)
Component Function
Memory module compartment
Contains the memory module slots, the
Mini Card WLAN slot, and the
RTC battery.
Vents (5)
Hard drive bay
Enable airflow to cool internal components.
✎
The computer fan starts up automatically to cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.
Holds the hard drive.
Maintenance and Service Guide 1–21
Product Description
1.5 Design overview
This section presents a design overview of key parts and features
of the computer. Refer to Chapter 3, “Illustrated Parts Catalog,”
to identify replacement parts, and
Replacement Procedures,” for disassembly steps.
The system board provides the following device connections:
■
■
■
■
■
■
■
■
■
■
AMD Turion and Mobile AMD Sempron processors
Audio
Display
ExpressCard
Fan
Hard drive
Intel Core Duo and Celeron processors
Keyboard and TouchPad
Memory module
Mini Card module
Ä CAUTION: To properly ventilate the computer, allow at least a 7.6-cm
(3-inch) clearance on the left and right sides of the computer.
The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software. Exhaust air is displaced through the ventilation grill located on the left side of the computer.
1–22 Maintenance and Service Guide
2
Troubleshooting
Å WARNING: Only authorized technicians trained by HP should repair this equipment. All troubleshooting and repair procedures are detailed to allow only subassembly-/module-level repair. Because of the complexity of the individual boards and subassemblies, do not attempt to make repairs at the component level or modifications to any printed wiring board. Improper repairs can create a safety hazard. Any indication of component replacement or printed wiring board modification may void any warranty or exchange allowances.
2.1 Setup Utility in Windows XP
The Setup Utility is a ROM-based information and customization utility that can be used even when your Windows operating system is not working or will not load.
The utility reports information about the computer and provides settings for startup, security, and other preferences.
1. Turn on or restart the computer in Windows.
2. Before Windows opens and while the “Press <F10> to enter setup” prompt is displayed in the lower-left corner of the screen, press f10 .
Using the Setup Utility
Changing the Language of the Setup Utility
The following procedure explains how to change the language of the Setup Utility. If the computer is not in the Setup Utility, begin at step 1. If the computer is in the Setup Utility, begin at step 2.
Maintenance and Service Guide 2–1
Troubleshooting
1. To open the Setup Utility, turn on or restart the computer in
Windows, and then press f10 while the prompt, “Press <F10> to enter setup,” is displayed in the lower-left corner of the screen.
2. Use the arrow keys to select System Configuration >
Language , and then press enter .
3. Press f5 or f6 (or use the arrow keys) to select a language, and then press enter to select a language.
4. When a confirmation prompt with your preference selected is displayed, press enter to save your preference.
5. To set your preferences and exit the Setup Utility, press f10 and then follow the instructions on the screen.
Your preferences go into effect when the computer restarts in
Windows.
Navigating and Selecting in the Setup Utility
■
■
■
Because the Setup Utility is not Windows-based, it does not support the TouchPad. Navigation and selection are by keystroke.
■
■
To choose a menu or a menu item, use the arrow keys.
To choose an item in a drop-down list or to toggle a field, for example an Enable/Disable field, use either the arrow keys or f5 or f6 .
To select an item, press enter .
To close a text box or return to the menu display, press
To display additional navigation and selection information while the Setup Utility is open, press f1 .
f1 .
Displaying System Information
The following procedure explains how to display system information in the Setup Utility. If the Setup Utility is not open, begin at step 1. If the Setup Utility is open, begin at step 2.
2–2 Maintenance and Service Guide
Troubleshooting
1. To start the Setup Utility, turn on or restart the computer in
Windows, and then press f10 while the prompt, “Press <F10> to enter setup,” is displayed in the lower-left corner of the screen.
2. Access the system information by using the Main menu.
3. To close the Setup Utility without changing any settings, use the arrow keys to select Exit > Exit Discarding Changes , and then press enter . (The computer restarts in Windows.)
Restoring Default Settings in the Setup Utility
The following procedure explains how to restore the Setup Utility default settings. If the computer is not in the Setup Utility, begin at step 1. If the computer is in the Setup Utility, begin at step 2.
1. To start the Setup Utility, turn on or restart the computer in
Windows, and then press f10 while the prompt, “Press <F10> to enter setup,” is displayed in the lower-left corner of the screen.
2. Select Exit > Load Setup Defaults , and then press f10 .
3. When the Setup Confirmation is displayed, press enter to save your preferences.
4. To set your preferences and exit the Setup Utility, press f10 , and then follow the instructions on the screen.
The Setup Utility default settings are set when you exit the
Setup Utility and go into effect when the computer restarts.
✎
Your password, security, and language settings are not changed when you restore the factory default settings.
Maintenance and Service Guide 2–3
Troubleshooting
Using Advanced Setup Utility Features
This guide describes the Setup Utility features recommended for all users. For more information about the Setup Utility features recommended for advanced users only, refer to the Help and
Support Center, which is accessible only when the computer is in
Windows.
The Setup Utility features available for advanced users include a hard drive self-test, a Network Service Boot, and settings for boot order preferences.
The “<F12> to boot from LAN” message that is displayed in the lower-left corner of the screen each time the computer is started or restarted in Windows or restored from hibernation is the prompt for a Network Service Boot.
The “Press <ESC> to change boot order” message that is displayed in the lower-left corner of the screen each time the computer is started or restarted in Windows or restored from hibernation is the prompt to change the boot order.
Closing the Setup Utility
You can close the Setup Utility with or without saving changes.
■ To close the Setup Utility and save your changes from the current session, use either of the following procedures:
❏ Press f10 , and then follow the instructions on the screen.
– or –
❏ If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to select Exit > Exit Saving Changes , and then press enter .
When you use the f10 procedure, you are offered an option to return to the Setup Utility. When you use the Exit
Saving Changes procedure, the Setup Utility closes when you press enter .
2–4 Maintenance and Service Guide
Troubleshooting
■ To close the Setup Utility without saving your changes from the current session:
If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to select Exit >
Exit Discarding Changes , and then press enter .
After the Setup Utility closes, the computer restarts in Windows.
Setup Utility Menus
The menu tables in this section provide an overview of Setup
Utility options.
✎
Some of the Setup Utility menu listed in this chapter may not be supported by your computer.
Main Menu
Select
System Information
Table 2-1
Main Menu
To Do This
■
■
View and change the system time and date.
View identification information about the computer.
■ View specification information about the processor, memory size, system BIOS, and keyboard controller version (select models only).
Maintenance and Service Guide 2–5
Troubleshooting
Security Menu
Select
Administrator password
Table 2-2
Security Menu
To Do This
Enter, change, or delete an administrator password.
Enter, change, or delete a power-on password.
Power-on password
System Configuration Menu
Table 2-3
System Configuration Menu
Select
Language Support
Embedded WLAN Device
Radio
Embedded Bluetooth
Device (select models only)
Enhanced SATA support
(select models only)
To Do This
Change the Setup Utility language.
Enable/disable an embedded wireless LAN device.
Enable/disable an embedded Bluetooth device
(select models only).
Enable/disable enhanced SATA mode.
2–6 Maintenance and Service Guide
Troubleshooting
Select
Boot Options
Table 2-3
System Configuration Menu (Continued)
To Do This
Set the following boot options:
■ f10 and f12 Delay (sec.)—Set the delay for the f10 and f12 functions of the Setup Utility in intervals of 5 seconds each (0, 5, 10, 15, 20).
■
■
■ CD-ROM boot—Enable/disable boot from
CD-ROM.
Floppy boot—Enable/disable boot from Floppy.
Internal Network Adapter boot—Enable/disable boot from Internal Network Adapter.
■ Boot Order—Set the boot order for:
❐
❐
❐
❐
❐
❐
USB Floppy
ATAPI CD/DVD ROM Drive
Hard drive
USB Diskette on Key
USB Hard drive
Network adapter
Diagnostics Menu
Select
Hard Disk Self Test
Table 2-4
Diagnostics Menu
To Do This
Run a comprehensive self-test on the hard drive.
Maintenance and Service Guide 2–7
Troubleshooting
2.2 Setup Utility in Windows Vista
The Setup Utility is a ROM-based information and customization utility that can be used even when your Windows® operating system is not working or will not load.
✎
The fingerprint reader (select models only) does not work when accessing the Setup Utility.
The utility reports information about the computer and provides settings for startup, security, and other preferences.
To start the Setup Utility:
1. Turn on or restart the computer.
2. Before Windows opens and while “Press <F10> to enter setup” is displayed in the lower-left corner of the screen, press f10 .
Using the Setup Utility
Changing the Language of the Setup Utility
The following procedure explains how to change the language of the Setup Utility. If the Setup Utility is not already running, begin at step 1. If the Setup Utility is already running, begin at step 2.
1. To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <F10> to enter setup” is displayed in the lower-left corner of the screen.
2. Use the arrow keys to select System Configuration >
Language , and then press enter .
3. Press f5 or f6 (or use the arrow keys) to select a language, and then press enter to select a language.
4. When a confirmation prompt with your preference selected is displayed, press enter to save your preference.
2–8 Maintenance and Service Guide
Troubleshooting
5. To set your preferences and exit the Setup Utility, press f10 and then follow the instructions on the screen.
Your preferences go into effect when the computer restarts in
Windows.
Navigating and Selecting in the Setup Utility
■
■
■
Because the Setup Utility is not Windows-based, it does not support the TouchPad. Navigation and selection are by keystroke.
■
■
To choose a menu or a menu item, use the arrow keys.
To choose an item in a drop-down list or to toggle a field, for example an Enable/Disable field, use either the arrow keys or f5 or f6 .
To select an item, press enter .
To close a text box or return to the menu display, press
To display additional navigation and selection information while the Setup Utility is open, press f1 .
esc .
Displaying System Information
The following procedure explains how to display system information in the Setup Utility. If the Setup Utility is not open, begin at step 1. If the Setup Utility is open, begin at step 2.
1. To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <F10> to enter setup” is displayed in the lower-left corner of the screen.
2. Access the system information by using the Main menu.
3. To exit the Setup Utility without changing any settings, use the arrow keys to select Exit > Exit Discarding Changes , and then press enter . (The computer restarts in Windows.)
Maintenance and Service Guide 2–9
Troubleshooting
Restoring Default Settings in the Setup Utility
The following procedure explains how to restore the Setup Utility default settings. If the Setup Utility is not already running, begin at step 1. If the Setup Utility is already running, begin at step 2.
1. To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <F10> to enter setup” is displayed in the lower-left corner of the screen.
2. Select Exit > Load Setup Defaults , and then press enter .
3. When the Setup Confirmation is displayed, press enter to save your preferences.
4. To set your preferences and exit the Setup Utility, press f10 , and then follow the instructions on the screen.
The Setup Utility default settings are set when you exit the
Setup Utility and go into effect when the computer restarts.
✎
Your password, security, and language settings are not changed when you restore the factory default settings.
Using Advanced Setup Utility Features
This guide describes the Setup Utility features recommended for all users. For more information about the Setup Utility features recommended for advanced users only, refer to Help and Support, which is accessible only when the computer is in Windows.
The Setup Utility features available for advanced users include a hard drive self-test, a Network Service Boot, and settings for boot order preferences.
The “<F12> to boot from LAN” message that is displayed in the lower-left corner of the screen each time the computer is started or restarted in Windows is the prompt for a Network Service
Boot.
2–10 Maintenance and Service Guide
Troubleshooting
The “Press <ESC> to change boot order” message that is displayed in the lower-left corner of the screen each time the computer is started or restarted in Windows is the prompt to change the boot order.
Closing the Setup Utility
You can close the Setup Utility with or without saving changes.
■ To close the Setup Utility and save your changes from the current session, use either of the following procedures:
❏ Press f10 , and then follow the instructions on the screen.
– or –
❏ If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to select Exit > Exit Saving Changes , and then press enter .
■
When you use the f10 procedure, you are offered an option to return to the Setup Utility. When you use the Exit
Saving Changes procedure, the Setup Utility closes when you press enter .
To close the Setup Utility without saving your changes from the current session:
If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to select Exit >
Exit Discarding Changes , and then press enter .
After the Setup Utility closes, the computer restarts in Windows.
Setup Utility Menus
The menu tables in this section provide an overview of Setup
Utility options.
✎
Some of the Setup Utility menu items listed in this chapter may not be supported by your computer.
Maintenance and Service Guide 2–11
Troubleshooting
Main Menu
Select
System Information
Table 2-1
Main Menu
To Do This
■
■
View and change the system time and date.
View identification information about the computer.
■ View specification information about the processor, memory size, system BIOS, and keyboard controller version (select models only).
Security Menu
Select
Administrator password
Table 2-2
Security Menu
To Do This
Enter, change, or delete an administrator password.
Enter, change, or delete a power-on password.
Power-on password
System Configuration Menu
Table 2-3
System Configuration Menu
Select
Language Support
Enhanced SATA support
(select models only)
To Do This
Change the Setup Utility language.
Enable/disable enhanced SATA mode.
2–12 Maintenance and Service Guide
Troubleshooting
Select
Boot Options
Button Sound
(select models only)
Video memory up to
(select models only)
Table 2-3
System Configuration Menu
To Do This
Set the following boot options:
■ f10 and f12 Delay (sec.)—Set the delay for the f10 and f12 functions of the Setup Utility in intervals of 5 seconds each (0, 5, 10, 15, 20).
■
■
■ CD-ROM boot—Enable/disable boot from
CD-ROM.
Floppy boot—Enable/disable boot from Floppy.
Internal Network Adapter boot—Enable/disable boot from Internal Network Adapter.
■ Boot Order—Set the boot order for:
❐
❐
❐
❐
❐
❐
USB Floppy
ATAPI CD/DVD ROM Drive
Hard drive
USB Diskette on Key
USB Hard drive
Network adapter
Enable/disable the Quick Launch Button tapping sound.
Select the amount of video memory.
Maintenance and Service Guide 2–13
Troubleshooting
Diagnostics Menu
Select
Hard Disk Self Test
Secondary Hard Disk Self
Test (select models only)
Table 2-4
Diagnostics Menu
To Do This
Run a comprehensive self-test on the hard drive.
✎
On models with two hard drives, this menu option is called the Primary Hard Disk Self
Test.
Run a comprehensive self-test on a secondary hard drive.
2–14 Maintenance and Service Guide
2.3 Troubleshooting Flowcharts
Troubleshooting
Table 2-5
Troubleshooting Flowcharts Overview
2.7
2.8
2.9
2.10
2.11
2.12
2.13
Flowchart Description
2.1
2.2
2.3
“Flowchart 2.1—Initial Troubleshooting”
“Flowchart 2.2—No Power, Part 1”
“Flowchart 2.3—No Power, Part 2”
2.4
2.5
2.6
“Flowchart 2.4—No Power, Part 3”
“Flowchart 2.5—No Power, Part 4”
“Flowchart 2.6—No Video, Part 1”
“Flowchart 2.7—No Video, Part 2”
“Flowchart 2.8—Nonfunctioning Docking Device (if applicable)”
“Flowchart 2.9—No Operating System (OS) Loading”
“Flowchart 2.10—No OS Loading, Hard Drive, Part 1”
“Flowchart 2.11—No OS Loading, Hard Drive, Part 2”
“Flowchart 2.12—No OS Loading, Hard Drive, Part 3”
“Flowchart 2.13—No OS Loading, Diskette Drive”
Maintenance and Service Guide 2–15
Troubleshooting
Table 2-5
Troubleshooting Flowcharts Overview (Continued)
2.17
2.18
2.19
2.20
Flowchart Description
2.14
2.15
2.16
“Flowchart 2.14—No OS Loading, Optical Drive”
“Flowchart 2.15—No Audio, Part 1”
“Flowchart 2.16—No Audio, Part 2”
“Flowchart 2.17—Nonfunctioning Device”
“Flowchart 2.18—Nonfunctioning Keyboard”
“Flowchart 2.19—Nonfunctioning Pointing Device”
“Flowchart 2.20—No Network/Modem Connection”
2–16 Maintenance and Service Guide
Troubleshooting
Flowchart 2.1—Initial Troubleshooting
Begin troubleshooting.
N
Is there power?
Y
Y
Beeps,
LEDs, or error messages?
N
Is there video?
(no boot)
N
Y
N
Is the OS loading?
Y
N
Is there sound?
Y
Go to
Check
LED board, speaker connections.
N
All drives working?
Go to
Y
Keyboard/ pointing device working?
N
Go to
Y
Connecting to network or modem?
N
Go to
“Flowchart
2.15—No Audio,
Part 1.”
Y
End
Go to
Go to
or
Go to
Maintenance and Service Guide 2–17
Troubleshooting
Flowchart 2.2—No Power, Part 1
No power
(power LED is off).
Remove from docking device
(if applicable).
N
Power up on battery power?
Y
N
Power up on AC power?
Y
N
Power up in docking device?
Y
Reset
power.*
Reset
power.*
Done
1. Reseat the power cables in the docking device and at the AC outlet.
2. Ensure the AC power source is active.
3. Ensure that the power strip is working.
Y N
Done
Power up in docking device?
Y
Y
Power up on battery power?
Power up on AC power?
N
N
Go to
Go to
*NOTES
1. On select models, there is a separate reset button.
2. On select models, the computer can be reset using the standby switch and either the lid switch or the main power switch.
Go to
Docking Device (if applicable).”
2–18 Maintenance and Service Guide
Flowchart 2.3—No Power, Part 2
Continued from
Visually check for debris in battery socket and clean if necessary.
Y
Power on?
N
Y
Check battery by recharging it, moving it to another computer, or replacing it.
N
Power on?
Done
Replace power supply
(if applicable).
N
Done Power on?
Go to
Y
Done
Troubleshooting
Maintenance and Service Guide 2–19
Troubleshooting
Flowchart 2.4—No Power, Part 3
Continued from
Plug directly into AC outlet.
Y
Power LED on?
N
Reseat AC adapter in computer and at power source.
Y
Power on?
N
N
Power outlet active?
Y
Replace power cord.
Y
Power on?
N
Done
Done
Try different outlet.
Done
External
Internal or external AC adapter?
Internal
Go to
N
Y
Replace external
AC adapter.
Power on?
Done
2–20 Maintenance and Service Guide
Flowchart 2.5—No Power, Part 4
Continued from
Open computer.
N
Loose or damaged parts?
Y
Close computer and retest.
N
Power on?
Y
Done
Reseat loose components and boards and replace damaged items.
Replace the following items (if applicable). Check computer operation after each replacement:
1. Internal DC-DC converter*
2. Internal AC adapter
3. Processor board*
4. System board*
*NOTE: Replace these items as a set to prevent shorting out among components.
Troubleshooting
Maintenance and Service Guide 2–21
Troubleshooting
Flowchart 2.6—No Video, Part 1
No video.
Stand-alone or docking device?
Docking Device
Go to
Stand-alone
*NOTE: To change from internal to external display, use the hotkey combination.
Y
Internal or external display*?
External
Adjust brightness.
Internal
Adjust brightness.
A
N
Video OK?
Done
Y
Press lid switch to ensure operation.
Y
N
Y
Video OK?
Check for bent pins on cable.
Video OK?
N
Done Video OK?
Done
N
Replace the following one at a time. Test after each replacement.
1. Cable between computer and computer display (if applicable)
2. Display
3. System board
Try another display.
Internal and external video OK?
N
Replace system board.
Y
Done Done
2–22 Maintenance and Service Guide
Flowchart 2.7—No Video, Part 2
Continued from
Remove computer from docking device, if connected.
Adjust display brightness.
Check brightness of external monitor.
Y
N
Video OK?
N
Go to “A” in
N
Video OK?
Y
Check that computer is properly seated in docking device, for bent pins on cable, and for monitor connection.
Y
Video OK?
Done
Try another external monitor.
Adjust external monitor display.
Y
Internal and external video OK?
N
Go to
Docking Device (if applicable).”
Troubleshooting
Done
Done
Maintenance and Service Guide 2–23
Troubleshooting
Flowchart 2.8—Nonfunctioning Docking Device
(if applicable)
Nonfunctioning docking device.
Reseat power cord in docking device and power outlet.
Check voltage setting on docking device.
Reset monitor cable connector at docking device.
N
Docking device operating?
Y
Remove computer, replace docking device.
Done
Reinstall computer into docking device.
N
Docking device operating?
Y
Test replacement docking device with new computer.
Done
2–24 Maintenance and Service Guide
Troubleshooting
Flowchart 2.9—No Operating System (OS)
Loading
No OS loading.*
Reseat power cord in docking device and power outlet.
No OS loading from hard drive,
go to “Flowchart 2.10—No OS Loading,
No OS loading from diskette drive,
go to “Flowchart 2.13—No OS Loading,
No OS loading from optical drive, go to
“Flowchart 2.14—No OS Loading,
No OS loading from network,
go to “Flowchart 2.20—No Network/Modem
*NOTE: Before beginning troubleshooting, always check cable connections, cable ends, and drives for bent or damaged pins.
Maintenance and Service Guide 2–25
Troubleshooting
Flowchart 2.10—No OS Loading, Hard Drive,
Part 1
OS not loading from hard drive.
Nonsystem disk message?
Y
N
Reseat external hard drive.
Y
OS loading?
N
N
Boot from
CD?
Y
Y
Check the Setup utility for correct booting order.
Boot from hard drive?
N
Done
Go to
Done
N
Boot from diskette?
Y
Y
Change boot priority through the Setup Utility and reboot.
N
Boot from hard drive?
Go to
Go to
2–26 Maintenance and Service Guide
Troubleshooting
Flowchart 2.11—No OS Loading, Hard Drive,
Part 2
Continued from
N
Disc or diskette in drive?
Y
1. Replace hard drive.
2. Replace system board.
Reseat hard drive.
Hard drive accessible?
Y
Done
N
Remove disc or diskette and reboot.
Run FDISK.
Boot from hard drive?
Y
N
Y
Boot from diskette drive?
N
N
Hard drive accessible?
Y
Go to
Done
Go to
Done
Y
Y
Hard drive partitioned?
N
Hard drive formatted?
N
Create partition, and then format hard drive to bootable
C:\ prompt.
Format hard drive and bring to a bootable
C:\ prompt.
Y
Computer booted?
N
Go to
Load OS using
Operating System disc
(if applicable).
Maintenance and Service Guide 2–27
Troubleshooting
Flowchart 2.12—No OS Loading, Hard Drive,
Part 3
Y
Continued from
N
System files on hard drive?
Virus on hard drive?
Y
N
Run SCANDISK and check for bad sectors.
Clean virus.
Install OS and reboot.
OS loading from hard drive?
Y
N
Diagnostics on disc or diskette?
Y
N
Done
Replace hard drive.
N
Can bad sectors be fixed?
Replace hard drive.
Run diagnostics and follow recommendations.
Y
N
Fix bad sectors.
Boot from hard drive?
Replace hard drive.
Y
Done
2–28 Maintenance and Service Guide
Troubleshooting
Flowchart 2.13—No OS Loading, Diskette Drive
Y
OS not loading from diskette drive.
Reseat diskette drive.
OS loading?
Done
N
Nonsystem disk message?
Y
N
N
Boot from another device?
Y
Y
Diskette drive enabled in the Setup utility?
N
Is diskette drive boot order correct?
Y
N
N
Bootable diskette in drive?
Install bootable diskette and reboot computer.
Y
Go to
Check diskette for system files.
Try different diskette.
Enable drive and cold boot computer.
N
Reset the computer.
Refer to
instructions.
N
Nonsystem disk error?
Y
Replace the following components individually, retesting after each replacement:
■
■
Diskette drive
System board
Y
OS loading?
Done
Change boot priority using the Setup Utility.
Go to
Maintenance and Service Guide 2–29
Troubleshooting
Flowchart 2.14—No OS Loading, Optical Drive
Y N
No OS loading from
CD-ROM or
DVD-ROM drive.
N
Disc in drive?
Y
Bootable disc in drive?
Install bootable disc and reboot computer.
Install bootable disc.
Try another bootable disc.
N
Boots from
CD or DVD?
Y
Reseat drive.
Done
Y
Boots from
CD or DVD?
N
Y
Booting from another device?
N
Y
Booting order correct?
N
Done
Go to
Reset the computer.
Refer to
for instructions.
Go to
Correct boot order using the Setup Utility.
2–30 Maintenance and Service Guide
Troubleshooting
Flowchart 2.15—No Audio, Part 1
Y
No audio.
Turn up audio internally or externally.
Audio?
N
Done
N
Computer in docking device
(if applicable)?
Y
Go to
Undock
Y
Internal audio?
Replace the docking device.
Go to
N
Audio?
Y
N
Go to
Done
Maintenance and Service Guide 2–31
Troubleshooting
Flowchart 2.16—No Audio, Part 2
Continued from
“Flowchart
2.15—No Audio,
Part 1.”
Audio driver in OS configured?
N
Reload audio drivers.
Y
Correct drivers for application?
N
Load drivers and set configuration in OS.
Y
Connect to external speaker.
Y
Audio?
N
Replace audio board and speaker connections in computer
(if applicable).
Audio?
Y
N
Replace the following components individually, retesting after each replacement:
■
■
Internal speakers
Audio board (if applicable)
Done
2–32 Maintenance and Service Guide
Flowchart 2.17—Nonfunctioning Device
Troubleshooting
Nonfunctioning device.
Reseat device.
Clear
CMOS.
Y
Reattach device.
Close computer, plug in power, and reboot.
N
Device boots properly?
Unplug the nonfunctioning device from the computer and inspect cables and plugs for bent or broken pins or other damage.
N
Any physical device detected?
Y
Replace hard drive.
Fix or replace broken item.
Go to
Replace NIC.
If integrated NIC, replace system board.
Y
Device boots properly?
N
Done
Replace diskette drive.
Done
Maintenance and Service Guide 2–33
Troubleshooting
Flowchart 2.18—Nonfunctioning Keyboard
Keyboard not operating properly.
Connect computer to good external keyboard.
N
External device works?
Y
Y
Reseat internal keyboard connector
(if applicable).
Keyboard operating properly?
N
Replace system board.
Replace internal keyboard or cable.
Done
N
Keyboard operating properly?
Y
Replace system board.
Done
2–34 Maintenance and Service Guide
Troubleshooting
Flowchart 2.19—Nonfunctioning Pointing Device
Pointing device not operating properly.
Connect computer to good external pointing device.
N
External device works?
Y
Reseat internal pointing device connector
(if applicable).
Y
Pointing device operating properly?
N
Done
Replace system board.
Replace internal pointing device or cable.
N
Pointing device operating properly?
Y
Replace system board.
Done
Maintenance and Service Guide 2–35
Troubleshooting
Flowchart 2.20—No Network/Modem
Connection
No network or modem connection.
Y
Network or modem jack active?
N
Y
Digital line?
N
NIC/modem configured in OS?
N
Y
Disconnect all power from the computer and open.
Replace jack or have jack activated.
Connect to nondigital line.
Reload drivers and reconfigure.
N
Network or modem connection working?
Y
Reseat NIC/modem
(if applicable).
Replace
NIC/modem
(if applicable).
N
Network or modem connection working?
Y
Replace system board.
Done
Done
2–36 Maintenance and Service Guide
3
Illustrated Parts Catalog
This chapter provides an illustrated parts breakdown and a reference for spare part numbers and option part numbers.
3.1 Serial Number Location
When ordering parts or requesting information, provide the computer serial number and model number located on the bottom of the computer.
Maintenance and Service Guide 3–1
Illustrated Parts Catalog
3.2 Computer Major Components
3–2
Computer Major Components
Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Spare Parts: Computer Major Components
3
4
2
Item Description
1 Display assemblies and cables)
Spare Part
Number
(include wireless antenna transceivers
For use with full-featured computer models (includes microphones)
15.4-inch, WXGA, TFT with BrightView
15.4-inch, WXGA, TFT Antiglare
For use with defeatured computer models (does not include microphones)
432304-001
432305-001
15.4-inch, WXGA, TFT with BrightView 432302-001
15.4-inch, WXGA, TFT Antiglare 432303-001
✎
Refer to Section 3.3, “Display Assembly Components,”
for display assembly internal component spare part number information.
Switch covers (include LED board and LED board cable)
For use with full-featured computer models
For use with defeatured computer models
Power button board (includes power button board cable)
Keyboards
431425-001
431424-001
431438-001
For use with all computer models in the following countries or regions:
France
French Canada
Italy
The
Netherlands
441428-051
441428-121
441428-061
441428-331
Spain
The United
Kingdom
The United
States
441428-071
441428-031
441428-001
Maintenance and Service Guide 3–3
Illustrated Parts Catalog
3–4
Computer Major Components
Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Spare Parts: Computer Major Components (Continued)
Item Description
4 Keyboards (Continued)
Spare Part
Number
For use only with computer models using Intel processors in the following countries or regions:
Latin America
Saudi Arabia
441428-161
441428-171
Taiwan
Thailand
441428-AB1
441428-281
For use only with computer models using AMD processors in the following countries or regions:
441428-DH1 Korea 441428-AD1 Denmark,
Finland,
Norway, and
Sweden
5
6
7
For UK OTC ID only 443689-001
Top covers (include speakers, TouchPad and TouchPad cable)
For use with full-featured computer models
For use with defeatured computer models
438186-001
438187-001
Fan/heat sink assemblies (include thermal pads)
For use only with computer models using
Intel processors
For use only with computer models using
AMD processors
ExpressCard assembly
434746-001
431450-001
431440-001
Maintenance and Service Guide 3–5
Illustrated Parts Catalog
Table 3-1
Spare Parts: Computer Major Components (Continued)
Item Description
Plastics Kit
8a
8b
8c
Spare Part
Number
438469-001
Includes:
ExpressCard slot bezel
Hard drive cover (includes 2 captive screws, secured by C-clips)
Memory module compartment cover (includes 3 captive screws, secured by C-clips)
9 Processors (include thermal pad)
Intel Core Duo T7200 (2.00-GHz)
Intel Core Duo T1350 (1.86-GHz)
Intel Core Duo T5600 (1.83-GHz)
Intel Core Duo T2350 (1.60-GHz), for V6200 models
Intel Core Duo T2250 (1.73-GHz)
Intel Core Duo T5500 (1.66-GHz)
Intel Core Duo T5200 (1.66-GHz), for V6200 models
Intel Core Duo T2060 (1.60-GHz), for V6200 models
Intel Core Duo T2050 (1.60-GHz)
Intel Celeron 440 (1.86-GHz), for V6200 models
Intel Celeron 430 (1.73-GHz)
Intel Celeron 420 (1.60-GHz)
AMD Turion ML-60 (2.0-GHz)
AMD Turion ML-56 (1.8-GHz)
AMD Turion ML-52 (1.6-GHz)
AMD Turion ML-50 (1.6-GHz)
Mobile AMD Sempron 3500+ (1.8-GHz)
Mobile AMD Sempron 3400+ (1.8-GHz)
Mobile AMD Sempron 3200+ (1.6-GHz)
434730-001
430896-001
434731-001
441762-001
430897-001
436157-001
436900-001
441763-001
430898-001
441761-001
436159-001
434735-001
436257-001
431373-001
431372-001
431371-001
434414-001
431375-001
431374-001
3–6 Maintenance and Service Guide
Illustrated Parts Catalog
Computer Major Components
Maintenance and Service Guide 3–7
Illustrated Parts Catalog
Table 3-1
Spare Parts: Computer Major Components (Continued)
Item Description
10 Bluetooth module module cable)
(includes Bluetooth
11 System boards
945GM, for use only with full-featured computer models using Intel processors
940GML, for use only with defeatured computer models using Intel processors
943GM - for use only with defeatured models
945PM - for Germany only
12
13
Spare Part
Number
412766-001
434725-001
434726-001
444479-001
441677-001
431364-001 For use only with full-featured computer models using
AMD processors
For use only with defeatured computer models using
AMD processors
USB/power connector boards (include USB/power connector board cable)
For use with 90-W AC adapters
For use with 65-W AC adapters
431446-001
431445-001
Audio boards
For use with full-featured computer models
(includes infrared lens)
For use with defeatured computer models (does not include infrared lens)
431365-001
431443-001
431444-001
14 Batteries
12-cell, 8.8-Ahr
6-cell, 4.0-Ahr
432307-001
432306-001
3–8 Maintenance and Service Guide
Illustrated Parts Catalog
Computer Major Components
Maintenance and Service Guide 3–9
Illustrated Parts Catalog
Table 3-1
Spare Parts: Computer Major Components (Continued)
Item Description
15 Base enclosures (include wireless switch)
For use with full-featured computer models
For use with defeatured computer models
16 Optical drives (include bezel)
DVD±RW/R and CD-RW Double-Layer Combo
Drive with LightScribe
DVD±RW/R and CD-RW Double-Layer Combo
Drive
DVD/CD-RW Combo Drive
17
Spare Part
Number
431427-001
438316-001
431413-001
431412-001
431411-001
Hard drives (all 5400-rpm, include bracket and connector)
For use with all computer models:
200-GB (4200-rpm)
160-GB (5400-rpm)
120-GB
100-GB
80-GB
60-GB
441424-001
438485-001
431407-001
431406-001
431405-001
431404-001
434743-001 40-GB hard drive for use only with computer models using Intel processors
40-GB hard drive for use only with computer models using AMD processors
434415-001
3–10 Maintenance and Service Guide
Illustrated Parts Catalog
Computer Major Components
Maintenance and Service Guide 3–11
Illustrated Parts Catalog
Table 3-1
Spare Parts: Computer Major Components (Continued)
Spare Part
Number Item Description
18 Mini Card modules
802.11a/b/g WLAN Mini Card module for use only with computer models using Intel processors in the countries or regions listed below. These countries or regions are categorized as most of the world 1
(MOW1).
Antigua &
Barbuda
Argentina
Australia
Bahamas
Barbados
Brunei
Canada
Chile
Dominican
Republic
Guam
Guatemala
Hong Kong
Panama
India
Indonesia
Malaysia
Mexico
New Zealand
802.11a/b/g WLAN Mini Card module for use only with computer models using Intel processors in the countries or regions listed below. These countries or regions are categorized as most of the world 2
(MOW2).
Aruba
Austria
Azerbaijan
Bahrain
Belgium
Bermuda
Bulgaria
Cayman Islands
Columbia
Croatia
Cyprus
The Czech
Republic
Denmark
Egypt
El Salvador
Estonia
Finland
France
Georgia
Germany
Greece
Hungary
Iceland
Ireland
Italy
Latvia
Lebanon
The Philippines
Poland
Portugal
Romania
Russia
Serbia and
Montenegro
Singapore
Slovakia
Liechtenstein
Lithuania
Luxembourg
Malta
Monaco
407674-001
Paraguay
Saudi Arabia
Taiwan
The United
States
Vietnam
407674-002
The
Netherlands
Norway
Oman
Slovenia
South Africa
Spain
Sri Lanka
Sweden
Switzerland
Turkey
The United
Kingdom
Uzbekistan
3–12 Maintenance and Service Guide
Illustrated Parts Catalog
Computer Major Components
Maintenance and Service Guide 3–13
Illustrated Parts Catalog
Table 3-1
Spare Parts: Computer Major Components (Continued)
Spare Part
Number Item Description
18 Mini Card modules (Continued)
802.11a/b/g WLAN Mini Card module for use only with computer models using Intel processors in the countries or regions listed below. These countries or regions are categorized as the rest of the world
(ROW).
China
Ecuador
Haiti
Honduras
Pakistan
Peru
Qatar
South Korea
802.11b/g WLAN Mini Card module for use in Costa
Rica, Israel, Kuwait, Thailand, UAE, Ukraine.
802.11a/b/g WLAN Mini Card module for use only with computer models using Intel processors in Japan
407674-003
Uruguay
Venezuela
407674-004
407674-291
3–14 Maintenance and Service Guide
Illustrated Parts Catalog
Computer Major Components
Maintenance and Service Guide 3–15
Illustrated Parts Catalog
Table 3-1
Spare Parts: Computer Major Components (Continued)
Spare Part
Number Item Description
18 Mini Card modules (Continued)
802.11a/b/g WLAN Mini Card module for use only with computer models using AMD processors in the
MOW countries or regions listed below:
Antigua &
Barbuda
Argentina
Aruba
Australia
Austria
Azerbaijan
Bahamas
Bahrain
Barbados
Belgium
Bermuda
Brunei
Bulgaria
Canada
Cayman Islands
Czech Republic
Chile
Columbia
Croatia
Cyprus
Denmark
Dominican
Republic
Egypt
El Salvador
Estonia
Finland
France
Georgia
Germany
Greece
Guam
Guatemala
Hong Kong
Hungary
Iceland
India
Indonesia
Ireland
Italy
Latvia
Lebanon
Liechtenstein
Lithuania
Luxembourg
Malaysia
Malta
Mexico
Monaco
The Netherlands
New Zealand
Norway
Oman
Panama
Paraguay
The Philippines
Poland
Portugal
Romania
407160-001
Russia
Saudi Arabia
Serbia and
Montenegro
Singapore
Slovakia
Slovenia
South Africa
Spain
Sri Lanka
Sweden
Switzerland
Taiwan
Turkey
United
Kingdom
United
States
Uzbekistan
Vietnam
3–16 Maintenance and Service Guide
Illustrated Parts Catalog
Computer Major Components
Maintenance and Service Guide 3–17
Illustrated Parts Catalog
Table 3-1
Spare Parts: Computer Major Components (Continued)
Spare Part
Number Item Description
18 Mini Card modules (Continued)
802.11a/b/g WLAN Mini Card module for use only with computer models using AMD processors in the
ROW countries or regions listed below:
China
Ecuador
Haiti
Honduras
Pakistan
Peru
Qatar
South Korea
802.11b/g WLAN Mini Card module for use with all computer models in the MOW countries or regions listed below:
Antigua &
Barbuda
Argentina
Aruba
Australia
Austria
Azerbaijan
Bahamas
Bahrain
Barbados
Belgium
Bermuda
Brunei
Bulgaria
Canada
The Cayman
Islands
The Czech
Republic
Chile
Columbia
Croatia
Cyprus
Denmark
The
Dominican
Republic
Egypt
El Salvador
Estonia
Finland
France
Georgia
Germany
Greece
Guam
Guatemala
Hong Kong
Hungary
Iceland
India
Indonesia
Ireland
Italy
Latvia
Lebanon
Liechtenstein
Lithuania
Luxembourg
Malaysia
Malta
Mexico
Monaco
The Netherlands
New Zealand
Norway
Oman
Panama
Paraguay
The Philippines
Poland
Portugal
Romania
407160-002
Uruguay
Venezuela
407159-001
Russia
Saudi Arabia
Serbia and
Montenegro
Singapore
Slovakia
Slovenia
South Africa
Spain
Sri Lanka
Sweden
Switzerland
Taiwan
Turkey
The United
Kingdom
The United
States
Uzbekistan
Vietnam
3–18 Maintenance and Service Guide
Illustrated Parts Catalog
Computer Major Components
Maintenance and Service Guide 3–19
Illustrated Parts Catalog
Table 3-1
Spare Parts: Computer Major Components (Continued)
Item Description
18 Mini Card modules (Continued)
802.11b/g WLAN Mini Card module for use with all computer models in the ROW countries or regions listed below:
China
Ecuador
Haiti
Honduras
Pakistan
Peru
Qatar
South Korea
802.11b/g WLAN Mini Card module for use only with computer models using Intel processors in Japan
19
20
Spare Part
Number
407159-002
Uruguay
Venezuela
407159-291
RTC battery (includes 2-sided tape)
Memory modules , PC2-5300, 667-MHz, 1-DIMM
431436-001
For use only with computer models using Intel processors
1024-MB
512-MB
256-MB
434742-001
434741-001
434740-001
For use only with computer models using AMD processors
1024-MB
512-MB
256-MB
431403-001
431402-001
431401-001
Cable Kit (not illustrated) 434984-001
3–20 Maintenance and Service Guide
Illustrated Parts Catalog
3.3 Display Assembly Components
Display Assembly Components
Table 3-2
Display Assembly Components
Spare Part Number Information
Item Description
1 Display bezels
2
For use with full-featured computer models (includes microphone openings)
For use with defeatured computer models (does not include microphone openings)
Display inverter
Spare Part
Number
433283-001
433284-001
431391-001
Maintenance and Service Guide 3–21
Illustrated Parts Catalog
Table 3-2
Display Assembly Components
Spare Part Number Information (Continued)
Spare Part
Number
433288-001
5
6
7
Item Description
3 Display Hinge Kit display hinges)
(includes left and right
4 Display panels
15.4-inch, WXGA, SVA display panel with BrightView
15.4-inch, WXGA, SVA display panel AntiGlare
Wireless antenna transceivers and cables
Microphone
Display enclosures
For use with full-featured computer models
For use with defeatured computer models
Display Screw Kit (includes screws and rubber screw covers, not illustrated)
Display Cable Kit (not illustrated)
431386-001
431387-001
431398-001
431393-001
431390-001
432920-001
431400-001
433287-001
3–22 Maintenance and Service Guide
3.4 Mass Storage Devices
Illustrated Parts Catalog
Mass Storage Devices
Maintenance and Service Guide 3–23
Illustrated Parts Catalog
Table 3-3
Mass Storage Devices
Spare Part Number Information
Item Description
1 Hard drives
Spare Part
Number
(all 5400-rpm, include bracket and connector)
For use with all computer models
200-GB (4200-rpm)
160-GB (5400-rpm)
120-GB
100-GB
80-GB
60-GB
441424-001
438485-001
431407-001
431406-001
431405-001
431404-001
434743-001
2
40-GB hard drive for use only with computer models using Intel processors
40-GB hard drive for use only with computer models using AMD processors
Hard Drive Bracket Kit (includes hard drive bracket and screws used to secure the bracket to the hard drive)
Optical drives
434415-001
436156-001
DVD±RW/R and CD-RW Double-Layer Combo
Drive with LightScribe
DVD±RW/R and CD-RW Double-Layer Combo
Drive
DVD/CD-RW Combo Drive
USB digital drive (not illustrated)
431413-001
431412-001
431411-001
364727-001
3–24 Maintenance and Service Guide
3.5 Plastics Kit
Illustrated Parts Catalog
Plastics Kit Components
Maintenance and Service Guide 3–25
Illustrated Parts Catalog
Table 3-4
Plastics Kit
Spare Part Number Information
1
2
3
Item Description
Plastics Kit
Spare Part
Number
438669-001
Includes:
ExpressCard slot bezel
Hard drive cover (includes 2 captive screws, secured by C-clips)
Memory module compartment cover (includes 3 captive screws, secured by C-clips)
3–26 Maintenance and Service Guide
3.6 Miscellaneous
Table 3-5
Spare Parts: Miscellaneous
Illustrated Parts Catalog
Spare Part
Number Description
AC adapters
HP 90-W PFC AC Adapter
HP 90-W non-PFC AC Adapter
HP 65-W AC Adapter
Analog TV tuner
DVB-T TV tuner
Composite S-Video and audio input cable
Headset
Backpack
HP Remote Control
HP Remote Control
Remote control, ExpressCard
Remote control, ExpressCard (EMEA)
Infrared emitter
Logo Kit
RF cable
RF input adapter cable
TV tuner - ExpressCard
TV tuner remote control
USB infrared receiver
USB travel mouse
Wireless laser mouse
432309-001
432310-001
402018-001
407941-001
412175-001
407939-001
371693-001
405527-001
407313-001
435743-001
439128-001
439254-001
439129-001
431435-001
408485-001
407940-001
439130-001
408479-001
408483-001
435836-001
430958-001
Maintenance and Service Guide 3–27
Illustrated Parts Catalog
Table 3-5
Spare Parts: Miscellaneous (Continued)
Description
Antenna adapter - DVB-T
Carrying case
Spare Part
Number
412176-001
418162-001
Wired optical mouse
Power cords
436238-001
For use with all computer models in the following countries or regions::
Australia and New Zealand
Belgium, Europe, Finland, France, Germany, Greece, the Netherlands, Norway, Portugal, Spain, and Sweden
394279-011
394279-021
Canada, French Canada, Latin America, Thailand, and the United States
Denmark
394279-001
Israel
Italy
Switzerland
394279-081
394279-BB1
394279-061
394279-111
The United Kingdom and Hong Kong 394279-031
For use only with computer models using Intel processors in the following countries or regions:
Japan
The People’s Republic of China
Taiwan
For use only with computer models using AMD processors in the following countries or regions:
India
Korea
394279-291
394279-AA1
394279-AB1
394279-D61
394279-AD1
3–28 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-5
Spare Parts: Miscellaneous (Continued)
Description
Spare Part
Number
Screw Kits
(include the screws listed below; refer to Appendix A, “Screw
Listing,” for more information on screw specifications and usage)
For use only with computer models using Intel processors 434983-001
For use only with computer models using AMD processors 431433-001
■ Phillips PM3.0×3.0 screw
■ Phillips PM2.5×10.0 screw
■ Phillips PM2.5×7.0 screw
■ Phillips PM2.5×5.0 screw
■ Phillips PM2.5×4.0 screw
■ Phillips PM2.0×6.0 Screw
■ Phillips PM2.0×5.0 captive screw
■ Phillips PM2.0×4.0 screw
■
Phillips PM2.0×3.0 screw
Maintenance and Service Guide 3–29
Illustrated Parts Catalog
3.7 Sequential Part Number Listing
Spare Part
Number
364727-001
371693-001
394279-001
394279-011
394279-021
394279-031
394279-061
394279-081
394279-111
394279-291
394279-AD1
394279-AB1
394279-BB1
394279-D61
Table 3-6
Spare Parts: Sequential Part Number Listing
394279-AA1
402018-001
Description
USB digital drive
Headset
Power cord for use in Canada, French Canada, Latin America,
Thailand, and the United States
Power cord for use in Australia
Power cord for use in Belgium, Europe, Finland, France,
Germany, Greece, the Netherlands, Norway, Portugal, Spain, and Sweden
Power cord for use in the United Kingdom and Hong Kong
Power cord for use in Italy
Power cord for use in Denmark
Power cord for use in Switzerland
Power cord for use in Japan only on computer models using
Intel processors
Power cord for use in the People’s Republic of China only on computer models using Intel processors
Power cord for use in Korea
Power cord for use in Taiwan
Power cord for use in Israel
Power cord for use in India only on computer models using
AMD processors
HP 65W PFC AC Adapter
3–30 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-6
Spare Parts: Sequential Part Number Listing (Continued)
Spare Part
Number
405527-001
407159-001
407159-002
Description
Backpack
802.11b/g WLAN Mini Card module for use with all computer models in the MOW countries or regions listed below:
Antigua &
Barbuda
Argentina
Aruba
Australia
Austria
Azerbaijan
Bahamas
Bahrain
Barbados
Belgium
Bermuda
Brunei
Bulgaria
Canada
The Cayman
Islands
The Czech
Republic
Chile
Columbia
Croatia
Cyprus
Denmark
The Dominican
Republic
Egypt
El Salvador
Estonia
Finland
France
Georgia
Germany
Greece
Guam
Guatemala
Hong Kong
Hungary
Iceland
India
Indonesia
Ireland
Italy
Latvia
Lebanon
Liechtenstein
Lithuania
Luxembourg
Malaysia
Malta
Mexico
Monaco
The Netherlands
New Zealand
Norway
Oman
Panama
Paraguay
The Philippines
Poland
Portugal
Romania
802.11b/g WLAN Mini Card module for use with all computer models in the ROW countries or regions listed below:
China
Ecuador
Haiti
Honduras
Pakistan
Peru
Qatar
South Korea
Maintenance and Service Guide 3–31
Illustrated Parts Catalog
Table 3-6
Spare Parts: Sequential Part Number Listing (Continued)
Spare Part
Number
407159-291
407160-001
Description
802.11b/g WLAN Mini Card module for use only with computer models using Intel processors in Japan
802.11a/b/g WLAN Mini Card module for use only with computer models using AMD processors in the MOW countries or regions listed below:
Antigua &
Barbuda
Argentina
Aruba
Australia
Austria
Azerbaijan
Bahamas
Bahrain
Barbados
Belgium
Bermuda
Brunei
Bulgaria
Canada
The Cayman
Islands
The Czech
Republic
Chile
Columbia
Croatia
Cyprus
Denmark
The Dominican
Republic
Egypt
El Salvador
Estonia
Finland
France
Georgia
Germany
Greece
Guam
Guatemala
Hong Kong
Hungary
Iceland
India
Indonesia
Ireland
Italy
Latvia
Lebanon
Liechtenstein
Lithuania
Luxembourg
Malaysia
Malta
Mexico
Monaco
The Netherlands
New Zealand
Norway
Oman
Panama
Paraguay
The Philippines
Poland
Portugal
Romania
3–32 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-6
Spare Parts: Sequential Part Number Listing (Continued)
Spare Part
Number
407160-002
407313-001
407674-001
Description
802.11a/b/g WLAN Mini Card module for use only with computer models using AMD processors in the ROW countries or regions listed below:
China
Ecuador
Haiti
Honduras
Pakistan
Peru
Qatar
South Korea
HP Remote Control
802.11a/b/g WLAN Mini Card module for use only with computer models using Intel processors in the MOW1 countries or regions listed below:
Antigua &
Barbuda
Argentina
Australia
Bahamas
Barbados
Brunei
Canada
Chile
Dominican
Republic
Guam
Guatemala
Hong Kong
Panama
India
Indonesia
Malaysia
Mexico
New Zealand
Paraguay
Saudi Arabia
Taiwan
The United States
Vietnam
Maintenance and Service Guide 3–33
Illustrated Parts Catalog
Table 3-6
Spare Parts: Sequential Part Number Listing (Continued)
Spare Part
Number
407674-002
407674-003
Description
802.11a/b/g WLAN Mini Card module for use only with computer models using Intel processors in the MOW2 countries or regions listed below:
Aruba
Austria
Azerbaijan
Bahrain
Belgium
Bermuda
Bulgaria
Cayman Islands
Columbia
Croatia
Cyprus
The Czech
Republic
Denmark
Egypt
El Salvador
Estonia
Finland
France
Georgia
Germany
Greece
Hungary
Iceland
Ireland
Italy
Latvia
Lebanon
The Philippines
Poland
Portugal
Romania
Russia
Serbia and
Montenegro
Singapore
Slovakia
802.11a/b/g WLAN Mini Card module for use only with computer models using Intel processors in the MOW2 countries or regions listed below:
Liechtenstein
Lithuania
Luxembourg
Malta
Monaco
The Netherlands
Norway
Oman
Slovenia
South Africa
Spain
Sri Lanka
Sweden
Switzerland
Turkey
The United
Kingdom
Uzbekistan
China
Ecuador
Haiti
Honduras
Pakistan
Peru
Qatar
South Korea
3–34 Maintenance and Service Guide
Illustrated Parts Catalog
407939-001
407940-001
407941-001
408479-001
408483-001
408485-001
412175-001
412766-002
418162-001
430896-001
430897-001
430898-001
430958-001
431364-001
Table 3-6
Spare Parts: Sequential Part Number Listing (Continued)
Spare Part
Number
407674-004
407674-291
431365-001
431371-001
Description
802.11b/g WLAN Mini Card module for use in Costa Rica,
Israel, Kuwait, Thailand, UAE, Ukraine.
802.11a/b/g WLAN Mini Card module for use only with computer models using Intel processors in Japan
Composite S-Video and audio input cable
RF input adapter cable
Analog TV tuner
TV tuner remote control
USB infrared receiver
RF cable
DVB-T TV tuner
Bluetooth module (includes Bluetooth module cable)
Carrying case
Intel Core Duo T1350 (1.86-GHz) processor
Intel Core Duo T2250 (1.73-GHz) processor
Intel Core Duo T2050 (1.1.60-GHz) processor
Wireless laser mouse
System board for use only with full-featured computer models using AMD processors
System board for use only with defeatured computer models using AMD processors
AMD Turion ML-50 1.60-GHz processor (includes thermal pad)
Maintenance and Service Guide 3–35
Illustrated Parts Catalog
Table 3-6
Spare Parts: Sequential Part Number Listing (Continued)
431372-001
431373-001
431374-001
431375-001
431386-001
431387-001
431390-001
431391-001
431393-001
431398-001
431400-001
431401-001
431402-001
431403-001
431404-001
431405-001
431406-001
AMD Turion ML-52 1.60-GHz processor (includes thermal pad)
AMD Turion ML-56 1.80-GHz processor (includes thermal pad)
Mobile AMD Sempron 3200+ 1.60-GHz processor (includes thermal pad)
Mobile AMD Sempron 3400+ 1.80-GHz processor (includes thermal pad)
15.4-inch, WXGA, SVA display panel with BrightView for use only with computers using AMD processors
15.4-inch, WXGA, SVA AntiGlare display panel for use only with computers using AMD processors
Display enclosure for use with full-featured computer models
Display inverter
Microphone (includes microphone receivers and cables)
Wireless antenna transceivers and cables for use only with computers using AMD processors
Display Screw Kit (includes screws and rubber screw covers)
256-MB memory module for use only with computers using
AMD processors (PC2-5300, 667-MHz, 1-DIMM)
512-MB memory module for use only with computers using
AMD processors (PC2-5300, 667-MHz, 1-DIMM)
1024-MB memory module for use only with computers using
AMD processors (PC2-5300, 667-MHz, 1-DIMM)
60-GB hard drive (5400-rpm, includes bracket and connector)
80-GB hard drive (5400-rpm, includes bracket and connector)
100-GB hard drive (5400-rpm, includes bracket and connector)
3–36 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-6
Spare Parts: Sequential Part Number Listing (Continued)
Spare Part
Number
431407-001
431411-001
431412-001
431413-001
431424-001
431425-001
431427-001
431431-001
431433-001
431435-001
431436-001
431438-001
431440-001
431443-001
Description
120-GB hard drive (5400-rpm, includes bracket and connector)
DVD/CD-RW Combo Drive
DVD±RW/R and CD-RW Double-Layer Combo Drive
DVD±RW/R and CD-RW Double-Layer Combo Drive with
LightScribe
Switch cover for use with defeatured computer models
(includes LED board and LED board cable)
Switch cover for use with full-featured computer models
(includes LED board and LED board cable)
Base enclosure for use with full-featured computer models
(includes wireless switch)
Rubber Feet Kit (includes computer feet, not illustrated)
Screw Kit for use only with computer models using
AMD processors
Logo Kit
RTC battery (includes 2-sided tape)
Power button board (includes power button board cable)
ExpressCard assembly
Audio board for use with full-featured computer models
(includes infrared lens)
Maintenance and Service Guide 3–37
Illustrated Parts Catalog
Table 3-6
Spare Parts: Sequential Part Number Listing (Continued)
Spare Part
Number
431444-001
431445-001
431446-001
431450-001
432302-001
432303-001
432304-001
432305-001
432306-001
432307-001
432309-001
432310-001
432920-001
432922-001
Description
Audio board for use with defeatured computer models (does not include infrared lens)
USB/power connector board for use with 65W AC adapters
(includes USB/power connector board cable)
USB/power connector board for use with 90W AC adapters
(includes USB/power connector board cable)
Fan/heat sink assembly for use only with computer models using AMD processors (includes thermal pads)
15.4-inch, WXGA, TFT display assembly with BrightView for use with defeatured computer models (includes wireless antenna transceivers and cables; does not include microphones)
15.4-inch, WXGA, TFT Antiglare display assembly for use with defeatured computer models (includes wireless antenna transceivers and cables; does not include microphones)
15.4-inch, WXGA, TFT display assembly with BrightView for use with full-featured computer models (includes microphones and wireless antenna transceivers and cables)
15.4-inch, WXGA, TFT Antiglare display assembly for use with full-featured computer models (includes microphones and wireless antenna transceivers and cables)
6-cell, 4.0-Ahr battery
12-cell, 8.8-Ahr battery
HP 90W PFC AC Adapter
HP 90W non-PFC AC Adapter
Display enclosure for use with defeatured computer models
Base enclosure for use with defeatured computer models
(includes wireless switch)
3–38 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-6
Spare Parts: Sequential Part Number Listing (Continued)
Spare Part
Number
433283-001
433284-001
433287-001
433288-001
434414-001
434415-001
434725-001
434726-001
434730-001
434731-001
434735-001
434740-001
434741-001
434742-001
434743-001
434746-001
Description
Display bezel for use with full-featured computer models
(includes microphone openings)
Display bezel for use with defeatured computer models
(does not include microphone openings)
Display Cable Kit
Display Hinge Kit (includes left and right display hinges)
Mobile AMD Sempron 3500+ 1.80-GHz processor (includes thermal pad)
40-GB hard drive for use only with computer models using
AMD processors (5400-rpm, includes bracket and connector)
945GM system board for use only with full-featured computer models using Intel processors
940GML system board for use only with defeatured computer models using Intel processors
Intel Core Duo T7200 (2.0-GHz) processor
Intel Core Duo T5600 (1.8-GHz) processor
Intel Celeron 420 (1.6-GHz) processor
256-MB memory module for use only with computer models using Intel processors (PC2-5300, 667-MHz, 1-DIMM)
512-MB memory module for use only with computer models using Intel processors (PC2-5300, 667-MHz, 1-DIMM)
1024-MB memory module for use only with computer models using Intel processors (PC2-5300, 667-MHz, 1-DIMM)
40-GB hard drive for use only with computer models using
Intel processors (5400-rpm, includes bracket and connector)
Fan/heat sink assembly for use only with computer models using Intel processors (includes thermal paste)
Maintenance and Service Guide 3–39
Illustrated Parts Catalog
Table 3-6
Spare Parts: Sequential Part Number Listing (Continued)
Spare Part
Number
434983-001
434984-001
435743-001
435836-001
436156-001
436157-001
436159-001
436238-001
436257-001
436900-001
438186-001
438187-001
438316-001
438485-001
438669-001
439128-001
439129-001
439130-001
439131-001
Description
Screw Kit for use only with computer models using
Intel processors
Cable Kit
HP Remote Control Ii Plus
USB travel mouse
Hard Drive Bracket Kit
Intel Core Duo T5500 (1.66-GHz) processor
Intel Celeron 430 (1.73-GHz) processor
Wired optical mouse
AMD Turion ML-60 2.0-GHz processor (includes thermal pad)
Intel Core Duo T5200 (1.66-GHz) processor, for use with
V6200 models
Top cover for use with full-featured computer models (includes speakers, TouchPad, and TouchPad cable)
Top cover for use with defeatured computer models (includes speaker, TouchPad, and TouchPad cable)
Base enclosure for use with defeatured computer models
(includes wireless switch)
160-GB hard drive (5400-rpm, includes bracket and connector)
Plastics Kit
Remote control, ExpressCard
Infrared emitter
TV tuner
TV tuner antenna
3–40 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-6
Spare Parts: Sequential Part Number Listing (Continued)
Spare Part
Number
439254-001
441424-001
441428-001
441428-031
441428-051
441428-061
441428-071
441428-121
441428-161
441428-171
441428-281
441428-331
441428-AB1
441428-AD1
441428-DH1
441677-001
441761-001
Description
Remote control - ExpressCard (EMEA)
200-GB hard drive (4200-rpm, includes bracket & connector)
Keyboard for use in the United States
Keyboard for use in the United Kingdom
Keyboard for use in France
Keyboard for use in Italy
Keyboard for use in Spain
Keyboard for use in French Canada
Keyboard for use in Latin America only on computer models using Intel processors
Keyboard for use in Saudi Arabia only on computer models using Intel processors
Keyboard for use in Thailand only on computer models using
Intel processors
Keyboard for use in the Netherlands
Keyboard for use in Taiwan only on computer models using
Intel processors
Keyboard for use in the Korea
Keyboard for use only on computer models using
AMD processors in Denmark, Finland, Norway, and Sweden
945PM system board - EMEA (for Germany only)
Intel Celeron 440 (1.86-GHz) processor, for use with V6200 models
Maintenance and Service Guide 3–41
Illustrated Parts Catalog
Table 3-6
Spare Parts: Sequential Part Number Listing (Continued)
441762-001
441763-001
444479-001
Intel Core Duo T2350 (1.60-GHz) processor, for use with
V6200 models
Intel Core Duo T2060 (1.60-GHz) processor, for use with
V6200 models
943GM system board - for use only with defeatured models
3–42 Maintenance and Service Guide
4
Removal and Replacement
Preliminaries
This chapter provides essential information for proper and safe removal and replacement service.
4.1 Tools Required
You will need the following tools to complete the removal and replacement procedures:
■
■
■
Magnetic screwdriver
Phillips P0 and P1 screwdrivers
Flat-bladed screwdriver
Maintenance and Service Guide 4–1
Removal and Replacement Preliminaries
4.2 Service Considerations
The following sections include some of the considerations that you should keep in mind during disassembly and assembly procedures.
✎
As you remove each subassembly from the computer, place the subassembly (and all accompanying screws) away from the work area to prevent damage.
Plastic Parts
Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the plastic parts.
Apply pressure only at the points designated in the maintenance instructions.
Cables and Connectors
Ä CAUTION: When servicing the computer, ensure that cables are placed in their proper locations during the reassembly process.
Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage.
Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Ensure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.
4–2 Maintenance and Service Guide
Removal and Replacement Preliminaries
4.3 Preventing Damage to
Removable Drives
■
■
■
■
Removable drives are fragile components that must be handled with care. To prevent damage to the computer, damage to a removable drive, or loss of information, observe the following precautions:
■ Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is off or in hibernation, turn the computer on, and then shut it down through the operating system.
■
■
■
Before removing a diskette drive or optical drive, ensure that a diskette or disc is not in the drive and ensure that the optical drive tray is closed.
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid touching the connector.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
■
After removing a hard drive, CD-ROM drive, or a diskette drive, place it in a static-proof bag.
Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package, “FRAGILE: Handle With Care.”
Maintenance and Service Guide 4–3
Removal and Replacement Preliminaries
4.4 Preventing Electrostatic Damage
Many electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, the discharge contains enough power to alter device parameters or melt silicon junctions.
A sudden discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry.
Often the spark is neither felt nor heard, but damage occurs.
An electronic device exposed to electrostatic discharge might not be affected at all and can work perfectly throughout a normal cycle. Or the device might function normally for a while, then degrade in the internal layers, reducing its life expectancy.
4–4 Maintenance and Service Guide
Removal and Replacement Preliminaries
4.5 Packaging and Transporting
Precautions
Use the following grounding precautions when packaging and transporting equipment:
■
■
To avoid hand contact, transport products in static-safe containers, such as tubes, bags, or boxes.
Protect all electrostatic-sensitive parts and assemblies with conductive or approved containers or packaging.
■ Keep electrostatic-sensitive parts in their containers until the parts arrive at static-free workstations.
■
■
■
Place items on a grounded surface before removing items from their containers.
Always be properly grounded when touching a sensitive component or assembly.
Store reusable electrostatic-sensitive parts from assemblies in protective packaging or nonconductive foam.
■ Use transporters and conveyors made of antistatic belts and roller bushings. Ensure that mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.
Maintenance and Service Guide 4–5
Removal and Replacement Preliminaries
4.6 Workstation Precautions
■
■
Use the following grounding precautions at workstations:
■ Cover the workstation with approved static-shielding material
(refer to Table 4-2, “Static-Shielding Materials”
).
■ Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and equipment.
■ Use conductive field service tools, such as cutters, screwdrivers, and vacuums.
■ When using fixtures that must directly contact dissipative surfaces, only use fixtures made of static-safe materials.
■ Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and Styrofoam.
■ Handle electrostatic-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these items only at static-free workstations.
Avoid contact with pins, leads, or circuitry.
Turn off power and input signals before inserting or removing connectors or test equipment.
4–6 Maintenance and Service Guide
Removal and Replacement Preliminaries
4.7 Grounding Equipment and
Methods
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
■ When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times.
On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.
■ When standing, use foot straps and a grounded floor mat.
Foot straps (heel, toe, or boot straps) can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive strips must be worn in contact with the skin.
■
■
■
■
■
■
Other grounding equipment recommended for use in preventing electrostatic damage includes
■
■
■
■
■
Antistatic tape.
Antistatic smocks, aprons, and sleeve protectors.
Conductive bins and other assembly or soldering aids.
Nonconductive foam.
Conductive tabletop workstations with ground cords of one megohm resistance.
■ Static-dissipative tables or floor mats with hard ties to the ground.
Field service kits.
Static awareness labels.
Material-handling packages.
Nonconductive plastic bags, tubes, or boxes.
Metal tote boxes.
Electrostatic voltage levels and protective materials.
Maintenance and Service Guide 4–7
Removal and Replacement Preliminaries
Table 4-1 shows how humidity affects the electrostatic voltage levels generated by different activities.
Table 4-1
Typical Electrostatic Voltage Levels
Event
Walking across carpet
Walking across vinyl floor
Motions of bench worker
Removing DIPS from plastic tube
Removing DIPS from vinyl tray
Removing DIPS from Styrofoam
Removing bubble pack from PCB
10%
35,000 V
12,000 V
Relative Humidity
40%
15,000 V
5,000 V
55%
7,500 V
3,000 V
6,000 V
2,000 V
11,500 V
14,500 V
26,500 V
800 V
700 V
4,000 V
5,000 V
20,000 V
Packing PCBs in foam-lined box 21,000 V
✎
A product can be degraded by as little as 700 V.
11,000 V
400 V
400 V
2,000 V
3,500 V
7,000 V
5,000 V
Table 4-2 lists the shielding protection provided by antistatic bags and floor mats.
Table 4-2
Material
Antistatic plastic
Carbon-loaded plastic
Metallized laminate
Static-Shielding Materials
Use Voltage Protection Level
Bags
Floor mats
Floor mats
1,500 V
7,500 V
5,000 V
4–8 Maintenance and Service Guide
5
Removal and Replacement
Procedures
This chapter provides removal and replacement procedures.
There are as many as 84 screws, in 9 different sizes, that must be removed, replaced, or loosened when servicing the computer.
Make special note of each screw size and location during removal and replacement.
Refer to
for detailed information on screw sizes, locations, and usage.
Maintenance and Service Guide 5–1
Removal and Replacement Procedures
5.1 Serial Number
Report the computer serial number to HP when requesting information or ordering spare parts. The serial number is located on the bottom of the computer.
Serial Number Location
5–2 Maintenance and Service Guide
Removal and Replacement Procedures
5.2 Disassembly Sequence Chart
Use the chart below to determine the section number to be referenced when removing computer components.
Section
5.3
5.4
5.5
5.6
5.7
5.8
5.9
5.10
5.11
Disassembly Sequence Chart
Description
Battery
# of Screws Removed
0
2 loosened to remove the hard drive cover
6 removed to disassemble the hard drive
0
3 loosened to remove the memory module compartment cover
0
2
Ä
To prevent an unresponsive system and the display of a warning message, install only a Mini Card device authorized for use in your computer by the governmental agency that regulates wireless devices in your country or region. If you install a device and then receive a warning message, remove the device to restore computer functionality. Then contact technical support by selecting
Start > Help and Support > Contact support .
1 to remove the optical drive
2 to remove the optical drive bracket
2 to remove the switch cover
1 to remove the num lock board
3
Maintenance and Service Guide 5–3
Removal and Replacement Procedures
5.18
5.19
5.20
5.21
5.14
5.15
5.16
5.17
Section
5.12
5.13
Disassembly Sequence Chart (Continued)
Description
Display bezel
Display inverter
Display panel
Display hinges
Wireless antenna transceivers
Microphones
# of Screws Removed
2
4
22
2
1
0
4
4
8
4
2
2
2
2
4
1 loosened
5.3 Preparing the Computer For
Disassembly
Before you begin any removal or installation procedures:
1. Shut down the computer. If you are unsure whether the computer is off or in hibernation, turn the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power cord.
5–4 Maintenance and Service Guide
Removal and Replacement Procedures
Battery Spare Part Number Information
12-cell, 8.8-Ahr
6-cell, 4.0-Ahr
432307-001
432306-001
4. Remove the battery by following these steps: a. Turn the computer upside down with the front panel toward you.
b. Slide and hold the battery release latch 1 to the left.
(The front edge of the battery disengages from the computer.) c. Lift the front edge of the battery 2 and swing it back.
d. Remove the battery.
Removing the Battery
Reverse the above procedure to install the battery.
Maintenance and Service Guide 5–5
Removal and Replacement Procedures
5.4 Hard Drive
Hard Drive Spare Part Number Information
For use with all computer models
200-GB
160-GB
120-GB
100-GB
80-GB
60-GB
40-GB hard drive for use only with computer models using Intel processors
40-GB hard drive for use only with computer models using AMD processors
Hard Drive Bracket Kit (includes hard drive bracket and screws used to secure the bracket to the hard drive)
441424-001
438485-001
431407-001
431406-001
431405-001
431404-001
434743-001
434415-001
436156-001
5–6 Maintenance and Service Guide
Removal and Replacement Procedures
1. Prepare the computer for disassembly (refer to
2. Loosen the two Phillips PM2.0×5.0 screws 1 that secure the hard drive cover to the computer.
3. Lift the right side of the cover 2 and swing it to the left.
4. Remove the hard drive cover.
✎
The hard drive cover is included in the Plastics Kit, spare part number 438669-001.
Removing the Hard Drive Cover
Maintenance and Service Guide 5–7
Removal and Replacement Procedures
5. Use the mylar tab 1 to lift the hard drive 2 until it disconnects from the computer.
6. Remove the hard drive from the hard drive bay.
Removing the Hard Drive
5–8 Maintenance and Service Guide
Removal and Replacement Procedures
7. Remove the six Phillips PM3.0×3.0 screws 1 that secure the hard drive bracket to the hard drive.
8. Lift the bracket 2 straight up to remove if from the hard drive.
Removing the Hard Drive Bracket
Reverse the above procedure to install and reassemble the hard drive.
Maintenance and Service Guide 5–9
Removal and Replacement Procedures
5.5 Computer Feet
The computer feet are adhesive-backed rubber pads. The feet are included in the Rubber Feet Kit, spare part number 431431-001.
The feet attach to the base enclosure in the locations illustrated below.
Computer Feet Locations
5–10 Maintenance and Service Guide
Removal and Replacement Procedures
5.6 Memory Module
Memory Module Spare Part Number Information
For use only with computer models using Intel processors
1024-MB
512-MB
256-MB
434742-001
434741-001
434740-001
For use only with computer models using AMD processors
1024-MB
512-MB
256-MB
431403-001
431402-001
431401-001
1. Prepare the computer for disassembly (refer to
Maintenance and Service Guide 5–11
Removal and Replacement Procedures
2. Loosen the three Phillips PM2.0×5.0 screws 1 that secure the memory module compartment cover to the computer.
3. Lift the left side of the memory module compartment cover 2 , and then swing it to the right.
4. Remove the memory module compartment cover.
✎
The memory module compartment cover is included in the
Plastics Kit, spare part number 431429-001.
5–12
Removing the Memory Module Compartment Cover
Maintenance and Service Guide
Removal and Replacement Procedures
5. Spread the retaining tabs 1 on each side of the memory module socket to release the memory module. (The edge of the module opposite the socket rises away from the computer.)
6. Slide the module 2 away from the socket at an angle.
✎
Memory modules are designed with a notch 3 to prevent incorrect installation into the memory module socket.
Removing a Memory Module
Reverse the above procedure to install a memory module.
Maintenance and Service Guide 5–13
Removal and Replacement Procedures
5.7 RTC Battery
RTC Battery Spare Part Number Information
RTC battery (includes 2-sided tape) 431436-001
1. Prepare the computer for disassembly (refer to
2. Remove the memory module compartment cover
3. Disconnect the RTC battery cable 1 from the system board.
4. Remove the RTC battery 2 .
✎
The RTC battery is secured to the computer by 2-sided tape. All replacement RTC battery spare part kits include
2-sided tape.
5–14
Removing the RTC Battery
Reverse the above procedure to install the RTC battery.
Maintenance and Service Guide
Removal and Replacement Procedures
5.8 Mini Card Module
Mini Card Module Spare Part Number Information
For use only with computer models using Intel processors
802.11a/b/g WLAN Mini Card module for use only with computer models using Intel processors in the MOW1 countries or regions listed below:
Antigua &
Barbuda
Argentina
Australia
Bahamas
Barbados
Brunei
Canada
Chile
Dominican
Republic
Guam
Guatemala
Hong Kong
Panama
India
Indonesia
Malaysia
Mexico
New Zealand
802.11a/b/g WLAN Mini Card module for use only with computer models using Intel processors in the MOW2 countries or regions listed below:
Aruba
Austria
Azerbaijan
Bahrain
Belgium
Bermuda
Bulgaria
Cayman Islands
Columbia
Croatia
Cyprus
The Czech
Republic
Denmark
Egypt
El Salvador
Estonia
Finland
France
Georgia
Germany
Greece
Hungary
Iceland
Ireland
Italy
Latvia
Lebanon
The Philippines
Poland
Portugal
Romania
Russia
Serbia and
Montenegro
Singapore
Slovakia
Liechtenstein
Lithuania
Luxembourg
Malta
Monaco
407674-001
Paraguay
Saudi Arabia
Taiwan
The United States
Vietnam
407674-002
The Netherlands
Norway
Oman
Slovenia
South Africa
Spain
Sri Lanka
Sweden
Switzerland
Turkey
The United
Kingdom
Uzbekistan
Maintenance and Service Guide 5–15
Removal and Replacement Procedures
Mini Card Module Spare Part Number Information (Continued)
407674-003 802.11a/b/g WLAN Mini Card module for use only with computer models using Intel processors in the ROW countries or regions listed below:
China
Ecuador
Haiti
Honduras
Pakistan
Peru
Qatar
South Korea
802.11b/g WLAN Mini Card module for use in Costa Rica,
Israel, Kuwait, Thailand, UAE, Ukraine.
802.11a/b/g WLAN Mini Card module for use only with computer models using Intel processors in Japan
802.11a/b/g WLAN Mini Card module for use only with computer models using AMD processors in the MOW countries or regions listed below:
Antigua &
Barbuda
Argentina
Aruba
Australia
Austria
Azerbaijan
Bahamas
Bahrain
Barbados
Belgium
Bermuda
Brunei
Bulgaria
Canada
The Cayman
Islands
The Czech
Republic
Chile
Columbia
Croatia
Cyprus
Denmark
The Dominican
Republic
Egypt
El Salvador
Estonia
Finland
France
Georgia
Germany
Greece
Guam
Guatemala
Hong Kong
Hungary
Iceland
India
Indonesia
Ireland
Italy
Latvia
Lebanon
Liechtenstein
Lithuania
Luxembourg
Malaysia
Malta
Mexico
Monaco
The Netherlands
New Zealand
Norway
Oman
Panama
Paraguay
The Philippines
Poland
Portugal
Romania
Uruguay
Venezuela
407674-004
407674-291
407160-001
Russia
Saudi Arabia
Serbia and
Montenegro
Singapore
Slovakia
Slovenia
South Africa
Spain
Sri Lanka
Sweden
Switzerland
Taiwan
Turkey
The United
Kingdom
The United States
Uzbekistan
Vietnam
5–16 Maintenance and Service Guide
Removal and Replacement Procedures
Mini Card Module Spare Part Number Information (Continued)
407160-002 802.11a/b/g WLAN Mini Card module for use only with computer models using AMD processors in the ROW countries or regions listed below:
China
Ecuador
Haiti
Honduras
Pakistan
Peru
Qatar
South Korea
802.11b/g WLAN Mini Card module for use with all computer models in the MOW countries or regions listed below:
Antigua &
Barbuda
Argentina
Aruba
Australia
Austria
Azerbaijan
Bahamas
Bahrain
Barbados
Belgium
Bermuda
Brunei
Bulgaria
Canada
The Cayman
Islands
The Czech
Republic
Chile
Columbia
Croatia
Cyprus
Denmark
The Dominican
Republic
Egypt
El Salvador
Estonia
Finland
France
Georgia
Germany
Greece
Guam
Guatemala
Hong Kong
Hungary
Iceland
India
Indonesia
Ireland
Italy
Latvia
Lebanon
Liechtenstein
Lithuania
Luxembourg
Malaysia
Malta
Mexico
Monaco
The Netherlands
New Zealand
Norway
Oman
Panama
Paraguay
The Philippines
Poland
Portugal
Uruguay
Venezuela
407159-001
Romania
Russia
Saudi Arabia
Serbia and
Montenegro
Singapore
Slovakia
Slovenia
South Africa
Spain
Sri Lanka
Sweden
Switzerland
Taiwan
Turkey
The United
Kingdom
The United States
Uzbekistan
Vietnam
Maintenance and Service Guide 5–17
Removal and Replacement Procedures
Mini Card Module Spare Part Number Information (Continued)
407159-002 802.11b/g WLAN Mini Card module for use with all computer models in the ROW countries or regions listed below:
China
Ecuador
Haiti
Honduras
Pakistan
Peru
Qatar
South Korea
802.11b/g WLAN Mini Card module for use only with computer models using Intel processors in Japan
Uruguay
Venezuela
407159-291
1. Prepare the computer for disassembly (
2. Remove the memory module compartment cover
5–18 Maintenance and Service Guide
Removal and Replacement Procedures
3. Make note of which wireless antenna cable is attached to which antenna clip on the Mini Card module before disconnecting the cables. Then disconnect the cables 1 from the module.
4. Remove the two Phillips PM2.0×3.0 screws 2 that secure the
Mini Card module to the computer. (The edge of the module opposite the socket rises away from the computer).
5. Remove the module 3 by pulling it away from the socket at an angle.
✎
Mini Card WLAN modules are designed with a notch 4 to prevent incorrect installation into the Mini Card module socket.
Removing a Mini Card Module
Reverse the above procedure to install a Mini Card module.
Maintenance and Service Guide 5–19
Removal and Replacement Procedures
5.9 Optical Drive
Optical Drive Spare Part Number Information
431413-001 DVD±RW/R and CD-RW Double-Layer Combo Drive with
LightScribe
DVD±RW/R and CD-RW Double-Layer Combo Drive
DVD/CD-RW Combo Drive
431412-001
431411-001
1. Prepare the computer for disassembly (
2. Remove the Phillips PM2.5×7.0 screw 1 that secures the optical drive to the computer.
3. Insert a thin tool, such as a paper clip 2 , into the media tray release hole. (The optical drive media tray releases from the optical drive.)
4. Use the media tray frame to slide the optical drive 3 out of the computer.
5. Remove the optical drive.
5–20
Removing the Optical Drive
Maintenance and Service Guide
Removal and Replacement Procedures
6. Position the optical drive with the optical drive bracket toward you.
7. Remove the two Phillips PM2.0×3.0 screws 1 that secure the optical drive bracket to the optical drive.
8. Remove the optical drive 2 .
Removing the Optical Drive Bracket
Reverse the above procedure to reassemble and install the optical drive.
Maintenance and Service Guide 5–21
Removal and Replacement Procedures
5.10 Switch Cover
Switch Cover Spare Part Number Information
For use with full-featured computer models
For use with defeatured computer models
431424-001
431425-001
1. Prepare the computer for disassembly (
2. Close the computer.
3. Turn the computer upside down with the front panel toward you.
4. Remove the two Phillips PM2.5×10.0 screws that secure the switch cover to the computer.
5–22
Removing the Switch Cover Screws
Maintenance and Service Guide
Removal and Replacement Procedures
5. Turn the computer display-side up with the front toward you.
6. Open the computer as far as possible.
7. Lift the rear edge of the switch cover and swing it forward until it rests on the keyboard.
Releasing the Switch Cover
Maintenance and Service Guide 5–23
Removal and Replacement Procedures
8. Release the zero insertion force (ZIF) connector 1 to which the LED board cable is connected and disconnect the cable 2 from the LED board.
9. If it is necessary to replace the num lock board, disconnect the num lock board cable 3 from the LED board.
10. Remove the Phillips PM2.0×3.0 screw 4 that secures the num lock board to the switch cover and remove the num lock board 5 .
11. Remove the switch cover.
5–24
Removing the Num Lock Board
Reverse the above procedure to install the switch cover and num lock board.
Maintenance and Service Guide
Removal and Replacement Procedures
5.11 Keyboard
Keyboard Spare Part Number Information
For use with all computer models in the following countries or regions:
France
French Canada
Italy
The Netherlands
441428-051
441428-121
441428-061
441428-331
Spain
The United Kingdom
The United States
441428-071
441428-031
441428-001
For use only with computer models using Intel processors in the following countries or regions:
Latin America
Saudi Arabia
441428-161
441428-171
Taiwan
Thailand
441428-AB1
441428-281
For use only with computer models using AMD processors in the following countries or regions:
441428-DH1 Korea Denmark, Finland,
Norway, and
Sweden
For UK OTC ID only
441428-AD1
443689-001
1. Prepare the computer for disassembly (
2. Remove the switch cover (
).
Maintenance and Service Guide 5–25
Removal and Replacement Procedures
3. Remove the three Phillips PM2.5×7.0 screws that secure the keyboard to the computer.
Removing the Keyboard Screws
5–26 Maintenance and Service Guide
Removal and Replacement Procedures
4. Turn the computer display-side up with the front panel toward you.
5. Open the computer as far as possible.
6. Lift the rear edge of the keyboard 1 until it rests at an angle.
7. Slide the keyboard 2 back to disengage the tabs on the front edge of the keyboard from the top cover.
8. Swing the keyboard 3 forward until it rests on the palm rest.
Releasing the Keyboard
Maintenance and Service Guide 5–27
Removal and Replacement Procedures
9. Release the ZIF connector 1 to which the keyboard cable is connected and disconnect the keyboard cable 2 from the system board.
5–28
Disconnecting the Keyboard Cable
10. Remove the keyboard.
Reverse the above procedure to install the keyboard.
Maintenance and Service Guide
Removal and Replacement Procedures
5.12 Power Button Board
Power Button Board Spare Part Number Information
Power button board (includes power button board cable) 431438-001
1. Prepare the computer for disassembly (
2. Remove the switch cover (
).
3. Remove the keyboard ( Section 5.11
4. Remove the Phillips PM2.0×3.0 screw 1 that secures the power button board to the computer.
5. Release the power button board 2 from the computer as far as the cables will allow.
Releasing the Power Button Board
Maintenance and Service Guide 5–29
Removal and Replacement Procedures
6. Disconnect the microphone cable 1 and the speaker assembly cable 2 from the power button board.
7. Release the ZIF connector 3 to which the power button board cable is connected and disconnect the cable.
8. Remove the power button board 4 .
5–30
Removing the Power Button Board
Reverse the above procedure to install the power button board.
Maintenance and Service Guide
Removal and Replacement Procedures
5.13 Display Assembly
Display Assembly Spare Part Number Information
For use with full-featured computer models (includes microphones)
15.4-inch, WXGA, TFT with BrightView
15.4-inch, WXGA, TFT Antiglare
432304-001
432305-001
For use with defeatured computer models (does not include microphones)
15.4-inch, WXGA, TFT with BrightView
15.4-inch, WXGA, TFT Antiglare
432302-001
432303-001
1. Prepare the computer for disassembly (
2. Disconnect the Mini Card WLAN antenna cables from the
Mini Card WLAN module (
).
3. Remove the switch cover (
).
4. Remove the keyboard ( Section 5.11
Maintenance and Service Guide 5–31
Removal and Replacement Procedures
5. Disconnect the display cable 1 from the system board.
6. Disconnect the microphone cable 2 from the power button board.
7. Remove the wireless antenna cables 3 from the clips in the top cover.
Disconnecting the Display Cables
5–32 Maintenance and Service Guide
Removal and Replacement Procedures
Ä CAUTION: Support the display assembly when removing the following screws. Failure to support the display assembly can result in damage to the display assembly and other computer components.
8. Remove the four Phillips PM2.5×7.0 screws 1 that secure the display assembly to the computer.
9. Remove the display assembly 2 .
Removing the Display Assembly
Maintenance and Service Guide 5–33
Removal and Replacement Procedures
10. Remove the eight rubber screw covers from the display bezel.
✎
There are three different sizes of rubber screw covers on the display bezel:
1 Four covers on the top edge of the bezel
2 Two covers on the lower bezel corners
3 Two covers on the lower-inside edge
The display rubber screw covers are included in the Display
Screw Kit, spare part number 431400-001.
5–34
Removing the Display Bezel Screw Covers
Maintenance and Service Guide
Removal and Replacement Procedures
11. Remove the eight Phillips PM2.5×7.0 screws that secure the display bezel to the display assembly.
Removing the Display Bezel Screws
Maintenance and Service Guide 5–35
Removal and Replacement Procedures
Display Assembly Subcomponents
Spare Part Number Information
Display bezels
For use with full-featured computer models (includes microphone openings)
For use with defeatured computer models
433283-001
433284-001
12. Flex the inside edges of the left and right sides 1 and the top and bottom sides 2 of the display bezel until the bezel disengages from the display enclosure.
13. Remove the display bezel 3 .
5–36
Removing the Display Bezel
Maintenance and Service Guide
Removal and Replacement Procedures
Display inverter
Display Assembly Subcomponents
Spare Part Number Information
431391-001
14. Remove the inverter 1 from the display enclosure.
15. Disconnect the display cable 2 and the backlight cable 3 from the display inverter.
Removing the Display Inverter
Maintenance and Service Guide 5–37
Removal and Replacement Procedures
Display Assembly Subcomponents
Spare Part Number Information
Display panels
15.4-inch, WXGA, SVA display panel with BrightView
15.4-inch, WXGA, SVA display panel AntiGlare
431386-001
431387-001
16. Remove the four Phillips PM2.5×5.0 screws 1 that secure the display panel to the display enclosure.
17. Remove the display panel 2 .
5–38
Removing the Display Panel
Maintenance and Service Guide
Removal and Replacement Procedures
Display Hinge Kit
Display Assembly Subcomponents
Spare Part Number Information
433288-001
18. Remove the two Phillips PM2.0×3.0 screws 1 that secure each hinge to the display enclosure.
19. Remove the display hinges 2 .
Removing the Display Hinges
Maintenance and Service Guide 5–39
Removal and Replacement Procedures
Display Assembly Subcomponents
Spare Part Number Information
Wireless antenna transceivers and cables 431398-001
20. If it is necessary to replace the wireless transceivers and cables, remove the Phillips PM2.0×4.0 screw 1 that secures each transceiver to the display enclosure.
21. Remove the wireless antenna cables from the clips 2 built into the display enclosure.
22. Detach the wireless antenna transceivers 3 from the display enclosure.
23. Remove the wireless antenna cables 4 .
5–40
Removing the Wireless Antenna Transceivers and Cables
Maintenance and Service Guide
Removal and Replacement Procedures
Display Assembly Subcomponents
Spare Part Number Information
Microphone Kit (includes microphone receivers and cables) 431393-001
24. If it is necessary to replace the microphones and cables, release the retention tabs 1 built into the display enclosure that secure the microphones and cables to the display enclosure.
25. Remove the microphones 2 from the clips in the display enclosure.
26. Remove the microphone cables 3 from the display enclosure.
Removing the Microphones
Reverse the above procedure to reassemble and install the display assembly
Maintenance and Service Guide 5–41
Removal and Replacement Procedures
5.14 Top Cover
Top Cover Spare Part Number Information
Top covers (include speakers, TouchPad, and TouchPad cable)
For use with full-featured computer models
For use with defeatured computer models
438186-001
431419-001
1. Prepare the computer for disassembly (
remove the following components:
❏
❏
❏
❏
❏
❏
Memory module compartment cover (
Keyboard (
Display assembly (
)
)
5–42 Maintenance and Service Guide
Removal and Replacement Procedures
2. Turn the computer upside down with the front toward you.
3. Remove the nine Phillips PM2.5×7.0 screws that secure the top cover to the computer.
Removing the Top Cover Screws, Part 1
Maintenance and Service Guide 5–43
Removal and Replacement Procedures
4. Remove the three Phillips PM2.5×4.0 screws 1 and the six Phillips PM2.5×5.0 screws 2 that secure the top cover to the computer.
Removing the Top Cover Screws, Part 2
5–44 Maintenance and Service Guide
Removal and Replacement Procedures
5. Turn the computer right-side up with the front toward you.
6. Release and disconnect the following ZIF cables from the system board:
1 Power button board cable
2 LED board cable
3 TouchPad cable
Disconnecting the Top Cover Cables
Maintenance and Service Guide 5–45
Removal and Replacement Procedures
7. Remove the two Phillips PM2.0×6.0 screws 1 and the two Phillips PM2.5×5.0 screws 2 that secure the top cover to the computer.
Removing the Top Cover Screws, Part 3
5–46 Maintenance and Service Guide
Removal and Replacement Procedures
8. Lift the front edge of the top cover 1 until it disengages from the computer.
9. Remove the top cover 2 .
Removing the Top Cover
Reverse the above procedure to install the top cover.
Maintenance and Service Guide 5–47
Removal and Replacement Procedures
5.15 Audio Board
Audio Board Spare Part Number Information
431443-001 For use with full-featured computer models (includes infrared lens)
For use with defeatured computer models (does not include infrared lens)
431444-001
1. Prepare the computer for disassembly (
remove the following components:
❏
❏
❏
❏
❏
❏
❏
Memory module compartment cover (
Keyboard (
Display assembly (
Top cover (
)
)
)
5–48 Maintenance and Service Guide
Removal and Replacement Procedures
2. Remove the two Phillips PM2.5×5.0 screws 1 that secure the audio board to the computer.
3. Slide the audio board 2 back to disengage the audio connectors from the base enclosure.
4. Remove the audio board 3 .
5. Disconnect the audio board cable 4 from the audio board.
Removing the Audio Board
Reverse the above procedure to install the audio board.
Maintenance and Service Guide 5–49
Removal and Replacement Procedures
5.16 Bluetooth Module
Bluetooth Module Spare Part Number Information
Bluetooth module (includes Bluetooth module cable) 412766-002
1. Prepare the computer for disassembly (
remove the following components:
❏
❏
❏
❏
❏
❏
❏
Memory module compartment cover (
Keyboard (
Display assembly (
Top cover (
)
)
)
5–50 Maintenance and Service Guide
Removal and Replacement Procedures
2. Disconnect the Bluetooth module cable 1 from the system board.
3. Remove the two Phillips PM2.0×3.0 screws 2 that secure the
Bluetooth module to the system board.
4. Remove the Bluetooth module 3 .
Removing the Bluetooth Module
Reverse the above procedure to install the Bluetooth module.
Maintenance and Service Guide 5–51
Removal and Replacement Procedures
5.17 ExpressCard Assembly
ExpressCard Assembly Spare Part Number Information
ExpressCard assembly 431440-001
1. Prepare the computer for disassembly (
remove the following components:
❏
❏
❏
❏
❏
❏
❏
Memory module compartment cover (
Keyboard (
Display assembly (
Top cover (
)
)
)
5–52 Maintenance and Service Guide
Removal and Replacement Procedures
2. Push in on the ExpressCard bezel 1 to release the bezel from the ExpressCard slot.
3. Remove the ExpressCard bezel 2 from the ExpressCard slot.
✎
The ExpressCard bezel is included in the Plastics Kit, spare part number 438669-001.
Removing the ExpressCard Slot Bezel
Maintenance and Service Guide 5–53
Removal and Replacement Procedures
4. Remove the four Phillips PM2.5×4.0 screws 1 that secure the
ExpressCard assembly to the system board.
5. Slide the ExpressCard assembly 2 to the right to disconnect it from the system board.
6. Remove the ExpressCard assembly 3 .
5–54
Removing the ExpressCard Assembly
Reverse the above procedure to install the ExpressCard assembly.
Maintenance and Service Guide
Removal and Replacement Procedures
5.18 USB/Power Connector Board
USB/Power Connector Board Spare Part Number Information
USB/power connector boards (include USB/power connector board cable)
For use with 90-W AC adapters
For use with 65-W AC adapters
431446-001
431445-001
1. Prepare the computer for disassembly (
remove the following components:
❏
❏
❏
❏
❏
❏
❏
Memory module compartment cover (
Keyboard (
Display assembly (
Top cover (
)
)
)
Maintenance and Service Guide 5–55
Removal and Replacement Procedures
2. Remove the two Phillips PM2.5×5.0 screws 1 that secure the
USB/power connector board to the computer.
3. Release the USB/power connector board 2 as far as the
USB/power connector board cable will allow.
4. Disconnect the USB board cable 3 and the power connector board cable 4 from the USB/power connector board.
5–56
Removing the USB/Power Connector Board
5. Remove the USB/power connector board.
Reverse the above procedure to install the USB/power connector board.
Maintenance and Service Guide
Removal and Replacement Procedures
5.19 System Board
System Board Spare Part Number Information
945GM - For use only with full-featured computer models using
Intel processors
940GML - For use only with defeatured computer models using
Intel processors
943GM - For use only with defeatured computer models
945PM - EMEA (Germany) only
434725-001
434726-001
444479-001
441677-001
For use only with full-featured computer models using
AMD processors
For use only with defeatured computer models using
AMD processors
431364-001
431365-001
✎
When replacing the system board, ensure that the following components are removed from the defective system board and installed on the replacement system board:
■
■
■
■
■
■
■
)
RTC battery (
Mini Card module ( Section 5.8
Bluetooth module ( Section 5.16
ExpressCard assembly ( Section 5.17
Fan/heat sink assembly ( Section 5.20
Processor (
)
1. Prepare the computer for disassembly (
remove the following components:
❏
❏
❏
❏
❏
❏
Keyboard (
Top cover (
)
Display assembly (
)
)
Maintenance and Service Guide 5–57
Removal and Replacement Procedures
❏
❏
Audio board (
)
USB/power connector board ( Section 5.18
2. Remove the USB/power connector board cable 1 from the clips in the base enclosure.
3. Remove the two Phillips PM2.5×4.0 screws 2 that secure the system board to the base enclosure.
Removing the System Board Screws
5–58 Maintenance and Service Guide
Removal and Replacement Procedures
4. Use the optical drive connector 1 to lift the right side of the system board 2 until it rests at an angle.
5. Slide the system board 3 to the right until the connectors on the left side of the system board disengage from the base enclosure.
6. Remove the system board.
Removing the System Board
Maintenance and Service Guide 5–59
Removal and Replacement Procedures
7. If it is necessary to replace the USB/power connector board cable or the audio board cable, turn the system board upside down with the front toward you.
8. Disconnect the USB/power connector board cable 1 and the audio board cable 2 from the system board.
5–60
Removing the System Board Cables
Reverse the above procedure to install the system board,
USB/power connector board cable, and audio board cable.
Maintenance and Service Guide
Removal and Replacement Procedures
5.20 Fan/Heat Sink Assembly
Fan/Heat Sink Assembly Spare Part Number Information
431450-001 Fan/heat sink assembly for use only with computer models using AMD processors
Fan/heat sink assembly for use only with computer models using Intel processors
434746-001
✎
When replacing the fan/heat sink assembly, be sure the power button board is removed from the defective fan/heat sink assembly and installed on the replacement fan/heat sink
assembly. Refer to Section 5.12, “Power Button Board,”
for power button board removal information.
1. Prepare the computer for disassembly (
remove the following components:
❏
❏
❏
❏
❏
❏
❏
❏
Memory module compartment cover (
Keyboard (
)
Display assembly (
Top cover (
)
)
2. Turn the system board upside down with the expansion port 3 and external monitor port toward you.
Maintenance and Service Guide 5–61
Removal and Replacement Procedures
3. Disconnect the fan cable 1 from the system board.
4. Remove the four Phillips PM2.5×5.0 screws 2 that secure the fan/heat sink assembly to the system board.
5. Remove the fan/heat sink assembly 3 .
Removing the Fan/Heat Sink Assembly
5–62 Maintenance and Service Guide
Removal and Replacement Procedures
✎
The thermal pads and thermal paste should be thoroughly cleaned from the surfaces of the fan/heat sink assembly 1 , 2 , and 3 , the system board components 4 and 6 , and the processor 5 each time the fan/heat sink assembly is removed.
Thermal pads and thermal paste should be installed on all surfaces before the fan/heat sink assembly is reinstalled.
Thermal pads and thermal paste are included with all fan/heat sink assembly, system board, and processor spare part kits.
Thermal Pad and Thermal Paste Locations
Reverse the above procedure to install the fan/heat sink assembly.
Maintenance and Service Guide 5–63
Removal and Replacement Procedures
5.21 Processor
Processor Spare Part Number Information
Intel Core Duo T7200 (2.00-GHz)
Intel Core Duo T1350 (1.86-GHz)
Intel Core Duo T5600 (1.83-GHz)
Intel Core Duo T2350 (1.60-GHz), for use with V6200 models
Intel Core Duo T2250 (1.73-GHz)
Intel Core Duo T5500 (1.66-GHz)
Intel Core Duo T5200 (1.66-GHz), for use with V6200 models
Intel Core Duo T2060 (1.60-GHz), for use with V6200 models
Intel Core Duo T2050 (1.60-GHz)
Intel Celeron 440 (1.86-GHz), for use with V6200 models
Intel Celeron 430 (1.73-GHz)
Intel Celeron 420 (1.60-GHz)
AMD Turion ML-60 (2.0-GHz)
AMD Turion ML-56 (1.8-GHz)
AMD Turion ML-52 (1.6-GHz)
AMD Turion ML-50 (1.6-GHz)
Mobile AMD Sempron 3500+ (1.8-GHz)
Mobile AMD Sempron 3400+ (1.8-GHz)
Mobile AMD Sempron 3200+ (1.6-GHz)
434730-001
430896-001
434731-001
441762-001
430897-001
436157-001
436900-001
441763-001
430898-001
441761-001
436159-001
434735-001
436257-001
431373-001
431372-001
431371-001
434414-001
431375-001
431374-001
5–64 Maintenance and Service Guide
Removal and Replacement Procedures
1. Prepare the computer for disassembly (
remove the following components:
❏
❏
❏
❏
❏
❏
❏
❏
❏
Keyboard (
Top cover (
Display assembly (
Memory module compartment cover (
)
Fan/heat sink assembly (
)
)
)
Maintenance and Service Guide 5–65
Removal and Replacement Procedures
2. Turn the processor locking screw 1 one-half turn counterclockwise until you hear a click.
3. Lift the processor 2 straight up and remove it.
✎
The gold triangle 3 on the processor should be aligned with the triangle icon 4 embossed on the processor socket when you install the processor.
5–66
Removing the Processor
Reverse the above procedure to install the processor.
Maintenance and Service Guide
6
Specifications
This chapter provides physical and performance specifications.
Table 6-1
Computer
Dimensions
Length
Width
Height (varies front to rear)
Weight (varies by configuration)
Stand-alone power requirements
35.7 cm
25.7 cm
4.1 cm
2.7 kg
14.05 in
10.12 in
1.57 in
5.8 lb
Operating voltage
Operating current
Temperature
Operating
Nonoperating
18.5 V dc —19.0 V dc
3.5 A or 4.74 A
Operating*
Nonoperating
Relative humidity (noncondensing)
5°C to 35°C
-20°C to 60°C
41°F to 95°F
-4°F to 140°F
10% to 90%
5% to 95%, 38.7°C (101.6°F) maximum wet bulb temperature
Maximum altitude (unpressurized)
Operating (14.7 to 10.1 psia)
Nonoperating (14.7 to 4.4 psia)
-15 m to 3,048 m
-15 m to 12,192 m
-50 ft to 10,000 ft
-50 ft to 40,000 ft
Maintenance and Service Guide 6–1
Specifications
Table 6-1
Computer (Continued)
Shock
Operating
Nonoperating
Random Vibration
125 g, 2 ms, half-sine
200 g, 2 ms, half-sine
Operating
Nonoperating
0.75 g zero-to-peak, 10 Hz to 500 Hz,
0.25 oct/min sweep rate
1.50 g zero-to-peak, 10 Hz to 500 Hz,
0.5 oct/min sweep rate
*Applicable product safety standards specify thermal limits for plastic surfaces.
The computer operates well within this range of temperatures.
6–2 Maintenance and Service Guide
Specifications
Table 6-2
15.4-inch, WXGA, SVA Display
Dimensions
Height
Width
Diagonal
Number of colors
Contrast ratio
Brightness
Pixel resolution
Pitch
Format
Configuration
Backlight
Character display
Total power consumption
Viewing angle
20.7 cm
33.1 cm
39.1 cm
Up to 16.8 million
200:1
160 nits typical
8.15 in
13.03 in
15.39 in
0.259 × 0.259 mm
1280 × 800
RGB vertical stripe
Edge lit
80 × 25
4 W
+/-65° horizontal, +/-50° vertical typical
Maintenance and Service Guide 6–3
Specifications
Table 6-3
Hard Drives
200-GB* 160-GB*
Dimensions
Height
Width
Weight
Interface type
Transfer rate
Synchronous (maximum)
Security
Seek times (typical read, including setting)
Single track
Average
Maximum
Logical blocks
†
Disk rotational speed
9.5 mm
70 mm
99 g
ATA-7
150 MB/sec
ATA security
2 ms
12ms
22 ms
390,721,968
4200 rpm
9.5 mm
70 mm
102 g
ATA-7
150 MB/sec
ATA security
2 ms
12 ms
21 ms
312,581,808
5400 rpm
Operating temperature 0°C to 60°C
(32°F to 140°F)
5°C to 60°C
(41°F to 140°F)
✎
Certain restrictions and exclusions apply. For details, consult technical support by selecting Start > Help and Support > Contact support .
*1 GB = 1 billion bytes when referring to hard drive storage capacity. Accessible capacity is less. Actual drive specifications may differ slightly.
6–4 Maintenance and Service Guide
Specifications
Table 6-3
Hard Drives (Continued)
120-GB* 100-GB*
Dimensions
Height
Width
Weight
Interface type
Transfer rate
Synchronous (maximum)
Security
Seek times (typical read, including setting)
Single track
Average
Maximum
Logical blocks
†
9.5 mm
70 mm
102 g
ATA-5
100 MB/sec
ATA security
3 ms
13 ms
24 ms
234,433,260
9.5 mm
70 mm
102 g
ATA-5
100 MB/sec
ATA security
3 ms
13 ms
24 ms
195,364,233
Disk rotational speed 5400 rpm
Operating temperature 5°C to 55°C (41°F to 131°F)
✎
Certain restrictions and exclusions apply. For details, consult technical support by selecting Start > Help and Support > Contact support .
*1 GB = 1 billion bytes when referring to hard drive storage capacity. Accessible capacity is less. Actual drive specifications may differ slightly.
Maintenance and Service Guide 6–5
Specifications
Table 6-3
Hard Drives (Continued)
80-GB*
Dimensions
Height
Width
Weight
Interface type
9.5 mm
70 mm
99 g
ATA-5
Transfer rate
Synchronous
(maximum)
Security
100 MB/sec
ATA security
Seek times (typical read, including setting)
Single track
Average
Maximum
Logical blocks
†
3 ms
13 ms
24 ms
156,301,488
60-GB*
9.5 mm
70 mm
99 g
ATA-5
100 MB/sec
ATA security
3 ms
13 ms
24 ms
117,210,240
40-GB*
9.5 mm
70 mm
99 g
ATA-5
100 MB/sec
ATA security
3 ms
13 ms
24 ms
78,140,160
Disk rotational speed 5400 rpm
Operating temperature 5°C to 55°C (41°F to 131°F)
✎
Certain restrictions and exclusions apply. For details, consult technical support by selecting Start > Help and Support > Contact support .
*1 GB = 1 billion bytes when referring to hard drive storage capacity. Accessible capacity is less. Actual drive specifications may differ slightly.
6–6 Maintenance and Service Guide
Specifications
Dimensions
Height
Width
Depth
Weight
Energy
Voltage
Amp-hour capacity
Watt-hour capacity
Temperature
Operating
Nonoperating
Table 6-4
Primary 6-cell, Li-Ion Battery
2.00 cm
9.40 cm
13.40 cm
0.34 kg
11.1 V
4.4 Ah
48 Wh
5°C to 45°C
0°C to 60°C
0.79 in
3.70 in
5.28 in
0.75 lb
41°F to 113°F
32°F to 140°F
Maintenance and Service Guide 6–7
Specifications
Applicable disc
Center hole diameter
Disc diameter
Standard disc
Mini disc
Table 6-5
DVD/CD-RW Combo Drive
Read:
DVD-R, DVD-RW,
DVD-ROM (DVD-5,
DVD-9, DVD-10,
DVD-18),
CD-ROM (Mode 1 and 2)
CD Digital Audio
CD-XA ready (Mode 2,
Form 1 and 2)
CD-I ready (Mode 2,
Form 1 and 2)
CD-R, CD-RW
Photo CD (single and multisession)
CD-Bridge
1.5 cm (0.59 in)
Write:
CD-R and CD-RW
12 cm (4.72 in)
8 cm (3.15 in)
6–8 Maintenance and Service Guide
Specifications
Table 6-5
DVD/CD-RW Combo Drive (Continued)
Disc thickness
Track pitch
Access time
Random
Full stroke
Audio output level
Cache buffer
Data transfer rate
CD-R (24X)
CD-RW (10X)
CD-ROM (24X)
DVD (8X)
Multiword DMA mode 2
Startup time
Stop time
1.2 mm (0.047 in)
0.74 µm
CD media
< 110 ms
< 210 ms
Line-out, 0.7 V rms
2 MB
DVD media
< 130 ms
< 225 ms
3600 KB/s (150 KB/s at 1X CD rate)
1500 KB/s (150 KB/s at 1X CD rate)
3600 KB/s (150 KB/s at 1X CD rate)
10,800 KB/s (1352 KB/s at 1X DVD rate)
16.6 MB/s
< 15 seconds
< 6 seconds
Maintenance and Service Guide 6–9
Specifications
Applicable disc
Table 6-6
DVD±RW/R and
CD-RW Double-Layer Combo Drive
Read:
DVD-R, DVD-RW,
DVD-ROM (DVD-5,
DVD-9, DVD-10,
DVD-18),
CD-ROM (Mode 1 and 2)
CD Digital Audio
CD-XA ready (Mode 2,
Form 1 and 2)
CD-I ready (Mode 2,
Form 1 and 2)
CD-R, CD-RW
Photo CD (single and multisession)
CD-Bridge
Write:
CD-R and CD-RW
DVD-R and DVD-RW
1.5 cm (0.59 in) Center hole diameter
Disc diameter
Standard disc
Mini disc
12 cm (4.72 in)
8 cm (3.15 in)
6–10 Maintenance and Service Guide
Specifications
Table 6-6
DVD±RW/R and
CD-RW Double-Layer Combo Drive (Continued)
Disc thickness
Track pitch
Access time
Random
Full stroke
Audio output level
Cache buffer
Data transfer rate
CD-R (16X)
CD-RW (8X)
CD-ROM (24X)
DVD (8X)
DVD-R (4X)
DVD-RW (2X)
Multiword DMA mode 2
Startup time
Stop time
1.2 mm (0.047 in)
0.74 µm
CD media
< 175 ms
< 285 ms
Audio-out, 0.7 Vrms
2 MB
DVD media
< 230 ms
< 335 ms
2,400 KB/s (150 KB/s at 1X CD rate)
1,200 KB/s (150 KB/s at 1X CD rate)
3,600 KB/s (150 KB/s at 1X CD rate)
10,800 KB/s (1,352 KB/s at 1X DVD rate)
5,400 KB/s (1,352 KB/s at 1X DVD rate)
2,700 KB/s (1,352 KB/s at 1X DVD rate)
16.6 MB/s
< 15 seconds
< 6 seconds
Maintenance and Service Guide 6–11
Specifications
Hardware DMA
DMA0
DMA1
DMA2
DMA3
DMA4
DMA5
DMA6
DMA7
Table 6-7
System DMA
System Function
Not applicable
Not applicable
Not applicable
Not applicable
Direct memory access controller
Available for ExpressCard
Not assigned
Not assigned
6–12 Maintenance and Service Guide
Specifications
Table 6-8
System Interrupts
Hardware IRQ
IRQ0
IRQ1
IRQ2
IRQ3
IRQ4
IRQ5*
IRQ6
IRQ7*
IRQ8
IRQ9*
IRQ10*
System Function
System timer
Quick Launch buttons
Cascaded
USB2 Enhanced Host Controller—24CD
COM1
Conexant AC—Link Audio
SMBus Controller—24C3
Data Fax Modem with SmartCP
Diskette drive
Parallel port
System CMOS/real-time clock
Microsoft ACPI-compliant system
USB UHCI controller—24C2
GM/GME Graphic Controller
Realtek RTL8139 Family PCI fast Ethernet Controller
IRQ11 USB EHCI controller—24CD
USB UHCI controller—24C4
USB UHCI controller—24C7
Pro/Wireless 2200BG
TI OHCI 1394 host controller
TI PCI1410 CardBus controller
*Default configuration
✎
ExpressCard may assert IRQ3, IRQ4, IRQ5, IRQ7, or IRQ20.
Maintenance and Service Guide 6–13
Specifications
Table 6-8
System Interrupts (Continued)
IRQ17
IRQ19
IRQ19
IRQ19
IRQ20
IRQ20
Hardware IRQ
IRQ12
IRQ13
IRQ14
IRQ15
IRQ17
IRQ17
IRQ21
IRQ21
IRQ21
IRQ22
System Function
Synaptics PS/2 port pointing device
Numeric data processor
Primary IDE channel
Secondary IDE channel
Conexant AC -Link Audio
Soft V90 Data Fax Modem with SmartCP
ATi Mobility Radeon Xpress 200 Series
Standard Enhanced PCI to USB Host Controller
Standard OpenHCD USB Host Controller
Standard OpenHCD USB Host Controller
TI 6411 PCIxx21/x515 Cardbus Controller
TI OHCI Compliant IEEE 1394 Host Controller
TI Integrated PCIxx21 FlashMedia Controller
Broadcom 802.11b/g WLAN
Microsoft ACPI-compliant system
Realtek RTL8100CL Family PCI fast Ethernet
Controller
IRQ23 SDA Standard Compliant SD Host Controller
*Default configuration
✎
ExpressCard may assert IRQ3, IRQ4, IRQ5, IRQ7, or IRQ20.
6–14 Maintenance and Service Guide
Specifications
I/O Address (hex)
0x00000000-0x00000CF7
0x00000000-0x00000CF7
0x00000020-0x00000021
0x0000002E-0x0000002F
0x00000040-0x00000043
0x00000060-0x00000060
0x00000061-0x00000061
0x00000062-0x00000062
0x00000064-0x00000064
0x00000066-0x00000066
0x00000070-0x00000071
0x00000072-0x00000073
0x00000080-0x0000008F
0x00000092-0x00000092
0x000000A0-0x000000A1
0x000000B0-0x000000B1
0x000000C0-0x000000DF
0x000000F0-0x000000FE
0x00000170-0x00000177
Table 6-9
System I/O Addresses
System Function (shipping configuration)
PCI bus
Direct memory access controller
Programmable interrupt controller
System board resources
System timer
Quick Launch Buttons
System speaker
Microsoft ACPI-Compliant Embedded
Controller
Quick Launch Buttons
Microsoft ACPI-Compliant Embedded
Controller
System CMOS/real time clock
System board resources
Direct memory access controller
System board resources
Programmable interrupt controller
System board resources
Direct memory access controller
Numeric data processor
Secondary IDE Channel
Maintenance and Service Guide 6–15
Specifications
Table 6-9
System I/O Addresses (Continued)
I/O Address (hex)
0x000001F0-0x000001F7
0x00000220-0x0000022F
0x00000274-0x00000277
0x00000279-0x00000279
0x00000280-0x00000293
0x00000376-0x00000376
0x000003B0-0x000003BB
0x000003B0-0x000003BB
0x000003C0-0x000003DF
0x000003C0-0x000003DF
0x000003F6-0x000003F6
0x0000040B-0x0000040B
0x000004D0-0x000004D1
0x000004D6-0x000004D6
0x00000530-0x00000537
0x00000870-0x0000087F
0x00000A79-0x00000A79
0x00000C00-0x00000C01
0x00000C14-0x00000C14
0x00000C50-0x00000C52
0x00000C6C-0x00000C6C
System Function (shipping configuration)
Primary IDE Channel
System board resources
ISAPNP Read Data Port
ISAPNP Read Data Port
System board resources
Secondary IDE Channel
PCI standard PCI-to-PCI bridge
ATI MOBILITY RADEON Xpress 200 Series
PCI standard PCI-to-PCI bridge
ATI MOBILITY RADEON Xpress 200 Series
Primary IDE Channel
System board resources
System board resources
System board resources
System board resources
System board resources
ISAPNP Read Data Port
System board resources
System board resources
System board resources
System board resources
6–16 Maintenance and Service Guide
Specifications
Table 6-9
System I/O Addresses (Continued)
I/O Address (hex)
0x00000C6F-0x00000C6F
0x00000CD4-0x00000CD5
0x00000CD6-0x00000CD7
0x00000CD8-0x00000CDF
0x00000D00-0x0000FFFF
0x00000F40-0x00000F47
0x00001080-0x00001080
0x00008000-0x0000805F
0x00008100-0x000081FF
0x00008400-0x0000840F
0x00008410-0x0000841F
0x00009000-0x00009FFF
0x00009000-0x00009FFF
0x0000A000-0x0000A0FF
0x0000F000-0x0000FFFF
0x0000FD00-0x0000FDFF
0x0000FE00-0x0000FEFF
System Function (shipping configuration)
System board resources
System board resources
System board resources
System board resources
PCI bus
System board resources
System board resources
System board resources
System board resources
ATI SMBus
Standard Dual Channel PCI IDE Controller
PCI standard PCI-to-PCI bridge
ATI MOBILITY RADEON Xpress 200 Series
Realtek RTL8139/810x Family Fast Ethernet
NIC
PCI standard PCI-to-PCI bridge
Texas Instruments PCIxx21/x515 Cardbus
Controller
Texas Instruments PCIxx21/x515 Cardbus
Controller
Maintenance and Service Guide 6–17
Specifications
Memory Map Address (hex)
0xD4100000-0xD41FFFFF
0xD4100000-0xD41FFFFF
0xD8000000-0xDBFFFFFF
0xD8000000-0xDBFFFFFF
0xFAC00000-0xFEBFFFFF
0xF6C00000-0xFABFFFFF
0xD4000000-0xD4000FFF
0xD4001000-0xD4001FFF
0xD4002000-0xD4002FFF
0xD4003000-0xD40033FF
0xFFF80000-0xFFFFFFFF
0xE0000000-0xE03FFFFF
0xE0000000-0xE03FFFFF
0x0000-0x0FFF
0xD4208000-0xD42087FF
0xD4200000-0xD4203FFF
0xD4204000-0xD4205FFF
0xFFEFF000-0xFFEFFFFF
Table 6-10
System Memory Map
0xFFEFE000-0xFFEFEFFF
System Function (shipping configuration)
PCI standard PCI-to-PCI bridge
ATI MOBILITY RADEON Xpress 200 Series
PCI standard PCI-to-PCI bridge
ATI MOBILITY RADEON Xpress 200 Series
PCI standard PCI-to-PCI bridge
PCI standard PCI-to-PCI bridge
Standard OpenHCD USB Host Controller
Standard OpenHCD USB Host Controller
Standard Enhanced PCI to USB Host
Controller
ATI SMBus
System board
System board
System board resources
System board
Texas Instruments OHCI Compliant IEEE
1394 Host Controller
Texas Instruments OHCI Compliant IEEE
1394 Host Controller
Broadcom 802.11b/g WLAN
Texas Instruments PCIxx21/x515 Cardbus
Controller
Texas Instruments PCIxx21/x515 Cardbus
Controller
6–18 Maintenance and Service Guide
Specifications
Table 6-10
System Memory Map (Continued)
Memory Map Address (hex)
0xF2C00000-0xF6BFFFFF
0xD4206000-0xD4207FFF
0xD4209000-0xD42090FF
0xD4208C00-0xD4208CFF
0xD4208800-0xD42088FF
0xD4209400-0xD42094FF
0xD4003400-0xD40034FF
0xD4003800-0xD40038FF
0xFEC00000-0xFEC00FFF
0xFEE00000-0xFEE00FFF
0xA0000-0xBFFFF
0xA0000-0xBFFFF
0xA0000-0xBFFFF
0xD6000-0xD7FFF
0xDC000-0xDDFFF
0xDD000-0xDDFFF
0xE0000-0xFFFFF
0x40000000-0xFFFFFFFF
System Function (shipping configuration)
Texas Instruments PCIxx21/x515 Cardbus
Controller
Texas Instruments PCIxx21 Integrated
FlashMedia Controller
SDA Standard Compliant SD Host Controller
SDA Standard Compliant SD Host Controller
SDA Standard Compliant SD Host Controller
Realtek RTL8139/810x Family Fast
Ethernet NIC
Conexant AC-Link Audio
SoftV90 Data Fax Modem with SmartCP
System board resources
System board resources
PCI bus
PCI standard PCI-to-PCI bridge
ATI MOBILITY RADEON Xpress 200 Series
PCI bus
PCI bus
Texas Instruments PCIxx21/x515 Cardbus
Controller
System board
PCI bus
Maintenance and Service Guide 6–19
A
Screw Listing
This appendix provides specification and reference information for the screws used in the computer.
The four Phillips PM3.0×3.0 screws (Table A-1) used to secure the hard drive bracket to the hard drive.
The remainder of the screws listed in this appendix are available in the Screw Kits, spare part numbers 434983-001 (for use with computers using Intel processors) and the Display Screw Kit, spare part number 431400-001.
Maintenance and Service Guide A–1
Screw Listing
Table A-1
Phillips PM3.0×3.0 Screw mm
Color
Silver
Qty.
6
Length
3.0 mm
Thread
3.0 mm
Head
Width
5.0 mm
Where used:
6 screws that secure the hard drive bracket to the hard drive (documented in
A–2
Phillips PM3.0×3.0 Screw Locations
Maintenance and Service Guide
Screw Listing
Table A-2
Phillips PM2.0×5.0 Captive Screw mm
Color
Black
Qty.
Length
5 5.0 mm
Thread
2.0 mm
Head
Width
5.0 mm
Where used:
1 Two screws that secure the hard drive cover to the computer (screws are
captured on the cover by C-clips; documented in Section 5.4
2
Three screws that secure the memory module compartment cover to the computer (screws are captured on the cover by C-clips; documented in
)
Phillips PM2.0×5.0 Captive Screw Locations
Maintenance and Service Guide A–3
Screw Listing
Table A-3
Phillips PM2.0×3.0 Screw mm
Color
Silver
Qty.
12
Length
3.0 mm
Thread
2.0 mm
Head
Width
4.0 mm
Where used:
2 screws that secure the Mini Card module to the computer (documented in
)
A–4
Phillips PM2.0×3.0 Screw Locations
Maintenance and Service Guide
Screw Listing
Table A-3
Phillips PM2.0×3.0 Screw (Continued) mm
Color
Silver
Qty.
12
Length
3.0 mm
Thread
2.0 mm
Head
Width
4.0 mm
Where used:
2 screws that secure the optical drive bracket to the optical drive (documented in
)
Phillips PM2.0×3.0 Screw Locations
Maintenance and Service Guide A–5
Screw Listing
Table A-3
Phillips PM2.0×3.0 Screw (Continued) mm
Color
Silver
Qty.
12
Length
3.0 mm
Thread
2.0 mm
Head
Width
4.0 mm
Where used:
One screw that secures the num lock board to the switch cover (documented in
A–6
Phillips PM2.0×3.0 Screw Location
Maintenance and Service Guide
Screw Listing
Table A-3
Phillips PM2.0×3.0 Screw (Continued) mm
Color
Silver
Qty.
12
Length
3.0 mm
Thread
2.0 mm
Head
Width
4.0 mm
Where used:
One screw that secures the power button board to the computer (documented in
Phillips PM2.0×3.0 Screw Location
Maintenance and Service Guide A–7
Screw Listing
Table A-3
Phillips PM2.0×3.0 Screw (Continued) mm
Color
Silver
Qty.
12
Length
3.0 mm
Thread
2.0 mm
Head
Width
4.0 mm
Where used:
4 screws that secure the display hinges to the display panel (documented in
Phillips PM2.0×3.0 Screw Location
A–8 Maintenance and Service Guide
Screw Listing
Table A-3
Phillips PM2.0×3.0 Screw (Continued) mm
Color
Silver
Qty.
12
Length
3.0 mm
Thread
2.0 mm
Head
Width
4.0 mm
Where used:
2 screws that secure the Bluetooth module to the system board (documented in
Phillips PM2.0×3.0 Screw Locations
Maintenance and Service Guide A–9
Screw Listing
Table A-4
Phillips PM2.5×7.0 Screw mm
Color
Black
Qty.
Length
25 7.0 mm
Thread
2.5 mm
Head
Width
5.0 mm
Where used:
1 One screw that secures the optical drive to the computer (documented in
)
2
Three screws that secure the keyboard to the computer (documented in
A–10
Phillips PM2.5×7.0 Screw Locations
Maintenance and Service Guide
Screw Listing
Table A-4
Phillips PM2.5×7.0 Screw (Continued) mm
Color
Black
Qty.
25
Length
7.0 mm
Thread
2.5 mm
Head
Width
5.0 mm
Where used:
4 screws that secure the display assembly to the computer (documented in
Phillips PM2.5×7.0 Screw Locations
Maintenance and Service Guide A–11
Screw Listing
Table A-4
Phillips PM2.5×7.0 Screw (Continued) mm
Color
Black
Qty.
25
Length
7.0 mm
Thread
2.5 mm
Head
Width
5.0 mm
Where used:
8 screws that secure the display bezel to the display assembly (documented in
A–12
Phillips PM2.5×7.0 Screw Locations
Maintenance and Service Guide
Screw Listing
Table A-4
Phillips PM2.5×7.0 Screw (Continued) mm
Color
Black
Qty.
25
Length
7.0 mm
Thread
2.5 mm
Where used:
9 screws that secure the top cover to the computer (documented in
Head
Width
5.0 mm
Phillips PM2.5×7.0 Screw Locations
Maintenance and Service Guide A–13
Screw Listing
Table A-5
Phillips PM2.5×10.0 Screw mm
Color
Black
Qty.
2
Length
10.0 mm
Thread
2.5 mm
Where used:
2 screws that secure the switch cover to the computer (documented in
Head
Width
5.0 mm
A–14
Phillips PM2.5×10.0 Screw Locations
Maintenance and Service Guide
Screw Listing
Table A-6
Phillips PM2.5×5.0 Screw mm
Color
Silver
Qty.
20
Length
5.0 mm
Thread
2.5 mm
Head
Width
5.0 mm
Where used:
4 screws that secure the display panel to the display enclosure (documented in
Phillips PM2.5×5.0 Screw Locations
Maintenance and Service Guide A–15
Screw Listing
Table A-6
Phillips PM2.5×5.0 Screw (Continued) mm
Color
Silver
Qty.
20
Length
5.0 mm
Thread
2.5 mm
Where used:
6 screws that secure the top cover to the base enclosure (documented in
Head
Width
5.0 mm
A–16
Phillips PM2.5×5.0 Screw Locations
Maintenance and Service Guide
Screw Listing
Table A-6
Phillips PM2.5×5.0 Screw (Continued) mm
Color
Silver
Qty.
20
Length
5.0 mm
Thread
2.5 mm
Where used:
2 screws that secure the top cover to the base enclosure (documented in
Head
Width
5.0 mm
Phillips PM2.5×5.0 Screw Locations
Maintenance and Service Guide A–17
Screw Listing
Table A-6
Phillips PM2.5×5.0 Screw (Continued) mm
Color
Silver
Qty.
Length
20 5.0 mm
Thread
2.5 mm
Head
Width
5.0 mm
Where used:
1 Two screws that secure the audio board to the base enclosure (documented
)
2
Two screws that secure the USB/power connector board to the base enclosure (documented in
A–18
Phillips PM2.5×5.0 Screw Locations
Maintenance and Service Guide
Screw Listing
Table A-6
Phillips PM2.5×5.0 Screw (Continued) mm
Color
Silver
Qty.
20
Length
5.0 mm
Thread
2.5 mm
Where used:
4 screws that secure the fan/heat sink assembly to the system board
(documented in
Head
Width
5.0 mm
Phillips PM2.5×5.0 Screw Locations
Maintenance and Service Guide A–19
Screw Listing
Table A-7
Phillips PM2.0×4.0 Screw mm
Color
Silver
Qty.
2
Length
4.0 mm
Thread
2.0 mm
Head
Width
5.0 mm
Where used:
2 screws that secure the wireless antenna transceivers to the display enclosure
(documented in
A–20
Phillips PM2.0×4.0 Screw Locations
Maintenance and Service Guide
Screw Listing
Table A-8
Phillips PM2.5×4.0 Screw mm
Color
Silver
Qty.
9
Length
4.0 mm
Thread
2.5 mm
Head
Width
5.0 mm
Where used:
3 screws that secure the top cover to the base enclosure (documented in
Phillips PM2.5×4.0 Screw Locations
Maintenance and Service Guide A–21
Screw Listing
Table A-8
Phillips PM2.5×4.0 Screw (Continued) mm
Color
Silver
Qty.
Length
9 4.0 mm
Thread
2.5 mm
Head
Width
5.0 mm
Where used:
1 4 screws that secure the ExpressCard assembly to the system board
(documented in
2
2 screws that secure the system board to the computer (documented in
A–22
Phillips PM2.5×4.0 Screw Locations
Maintenance and Service Guide
Screw Listing
Table A-9
Phillips PM2.0×6.0 Screw mm
Color
Black
Qty.
2
Length
6.0 mm
Thread
2.0 mm
Head
Width
5.0 mm
Where used:
2 screws that secure the top cover to the base enclosure (documented in
Phillips PM2.0×6.0 Screw Locations
Maintenance and Service Guide A–23
B
Backup and Recovery in
Windows XP
Recovering System Information
Tools provided by the operating system and PC Recovery software are designed to help you with the following tasks for safeguarding your information and restoring it in case of a system failure:
■ Backing up your information regularly to protect your important system files.
■ Making a set of recovery discs (PC Recovery software feature). Recovery discs are used to start up (boot) your computer and restore the operating system and software programs to factory settings in case of system failure or instability.
■ Creating system restore points (operating system feature).
System restore points allow you to reverse undesirable changes to your computer by restoring the computer to an earlier state.
■ Recovering a program or driver (PC Recovery software feature). This feature helps you reinstall a program or driver without performing a full system recovery.
■ Performing a full system recovery (PC Recovery software feature). With PC Recovery, you can recover your full factory image if you experience system failure or instability.
PC Recovery works from a dedicated recovery partition on the hard drive or from recovery discs you create.
Maintenance and Service Guide B–1
Backup and Recovery in Windows XP
Backing Up Your Information
When to Back Up
■ On a regularly scheduled basis
✎
Set reminders to back up your information periodically.
■ Before the computer is repaired or restored
■ Before you add or modify hardware or software
■
■
Backup Suggestions
■ Create system restore points using Windows XP Professional
System Restore feature.
■ Store personal files in the My Documents folder and back up these folders periodically.
Back up templates stored in their associated programs.
Save customized settings in a window, toolbar, or menu bar by taking a screen shot of your settings.
The screen shot can be a time saver if you have to reset your preferences.
To copy the screen and paste it into a Word document: a. Display the screen.
b. Copy the screen:
To copy only the active window, press alt+fn+prt sc .
To copy the entire screen, press fn+prt sc .
c. To paste the copied images into a document, open Word, and then select Edit > Paste .
B–2 Maintenance and Service Guide
Backup and Recovery in Windows XP
Using System Restore Points
When you back up your system, you are creating a system restore point. A system restore point allows you to save and name a snapshot of your hard drive at a specific point in time. You can then recover back to that point if you want to reverse subsequent changes made to your system.
✎
Recovering to an earlier restore point does not affect data files saved or e-mails created since the last restore point.
You also can create additional restore points to provide increased protection for your system files and settings.
When to Create Restore Points
■
■
Before you add or extensively modify software or hardware.
Periodically, whenever the system is performing optimally.
✎
If you revert to a restore point and then change your mind, you can reverse the restoration.
Creating a System Restore Point
1. Select Start > Help and Support > System Restore .
The System Restore window opens.
2. Click Create a restore point , and then click Next .
3. Follow the on-screen instructions.
Maintenance and Service Guide B–3
Backup and Recovery in Windows XP
Restoring to a Previous Date and Time
To revert to a restore point (created at a previous date and time), when the computer was functioning optimally:
1. Select Start > Help and Support > S ystem Restore .
The System Restore window opens.
2. Click Restore my computer to an earlier time , and then click Next .
3. Follow the on-screen instructions.
Creating Recovery Discs
PC Recovery Disc Creator creates a set of recovery CDs or DVDs for the computer. Use recovery discs to restore the operating system and software programs to factory settings, in case of system failure or instability.
✎
Handle these discs carefully and keep them in a safe place. The software allows the creation of only one set of recovery discs.
Note the following guidelines before creating recovery discs:
■ You will need high quality CD-R, DVD-R, or DVD+R media
(purchased separately).
✎
DVD±RW/R and double-layer DVD±RW are not compatible with the PC Recovery Disc Creator software.
■
■
The computer must be connected to AC power during this process.
Only one set of recovery discs can be created per computer.
B–4 Maintenance and Service Guide
Backup and Recovery in Windows XP
■ Number each disc before inserting it into the computer optical drive.
■ If necessary, you can exit the program before you have finished creating the recovery discs. The next time you open
PC Recovery Disc Creator, you will be prompted to continue the disc creation process.
To create a set of recovery discs:
1. Select Start > All Programs > System Recovery >
PC Recovery Disc Creator .
The PC Recovery Disc Creator tool opens.
2. Click Next .
✎
If you are operating the computer on battery power, you will be prompted to connect to AC power before you can go to the next step.
3. Select the type of disc you want to use and click Next .
✎
The software examines the image and displays the number of blank discs needed to create your recovery discs.
4. Insert the first disc and follow the on-screen instructions to complete the creation of the recovery discs.
Maintenance and Service Guide B–5
Backup and Recovery in Windows XP
Reinstalling Software Programs and Drivers
If a program or driver preinstalled at the factory is accidentally erased or is damaged, the Application and Driver Recovery tool allows you to reinstall it.
✎
Software not provided with this computer must be reinstalled from the disc provided by the manufacturer or downloaded from the manufacturer's Web site.
✎
Before reinstalling the program, be sure it is fully uninstalled.
The Application and Driver Recovery tool replaces corrupted system files and reinstalls deleted system files within the program.
■ In most cases, if the program you are reinstalling is still on your computer, the reinstallation process does not affect your personal settings.
■ In all cases, if a program has been deleted from your computer, the reinstallation process reinstalls the program or utility to the factory image but cannot restore your personal settings.
Reinstalling Preinstalled Programs and
Drivers
1. Remove the program or driver:
✎
In some cases, drivers are not listed in the Add or Remove
Programs list. If the driver is not listed, it does not need to be removed.
a. Select Start > Control Panel > Add or
Remove Programs .
b. Click the program or driver you want to remove, and then click Change/Remove .
B–6 Maintenance and Service Guide
Backup and Recovery in Windows XP
2. Select Start > All Programs > System Recovery >
Application and Driver Recovery .
The Application and Driver Recovery tool opens.
3. Select Application Installation or Driver Installation , and then click Next .
4. Follow the on-screen instructions to complete the program or driver recovery.
5. Restart the computer if prompted.
Reinstalling Programs from Discs
1. Insert the disc into the optical drive.
2. When the installation wizard opens, follow the installation instructions on the screen.
3. Restart the computer if prompted.
Performing a Recovery
PC Recovery software allows you to repair or restore the system if you experience system failure or instability. PC Recovery works from recovery discs that you create or from a dedicated recovery partition on the hard drive.
✎
Microsoft Windows XP has its own built-in repair features, such as System Restore and driver roll-back capabilities. If you have not already tried these features, try them before using
PC Recovery.
✎
PC Recovery only recovers software that was preinstalled at the factory. Software not provided with this computer must be reinstalled from the disc provided by the manufacturer or downloaded from the manufacturer's Web site.
Maintenance and Service Guide B–7
Backup and Recovery in Windows XP
Recovering from the Recovery Discs
To restore the system from the recovery discs:
1. Back up all personal files.
2. Insert the first recovery disc into the optical drive and restart the computer.
3. Follow the on-screen instructions.
Recovering from the Partition on the
Hard Drive
You can perform a recovery from the partition on the hard drive from either the Start button or f11 .
To restore the system from the partition:
1. Access the PC Recovery tool:
❏ To access PC Recovery from the Start button, select
Start > All Programs > System Recovery >
PC Recovery .
❏ To access PC Recovery from press f11 while the “Press <F11> for recovery” message is displayed on the screen.
f11 , restart the computer and
The PC Recovery tool opens.
2. Select PC Recovery and click Next .
The computer restarts and the PC Recovery tool opens.
3. Click OK .
4. Follow the on-screen instructions to complete the system recovery.
B–8 Maintenance and Service Guide
Backup and Recovery in Windows XP
If you want to perform a destructive recovery:
✎
A destructive recovery formats the hard drive and restores the computer to its factory state. Select this option only as a last resort.
a. Click Advanced Options on the System Recovery screen.
b. Select Destructive Recovery and follow the on-screen instructions.
Deleting the Recovery Partition on the
Hard Drive
The PC Recovery Advanced Options menu provides the option of deleting the recovery partition, which will increase space on the hard drive. Delete the recovery partition only if you have already created recovery discs.
Ä CAUTION: After you create the recovery discs, you can increase space on the hard drive by deleting the recovery partition. However, doing this is not recommended. If you delete this partition, you will lose any information that is on the partition, including the PC Recovery software. Thereafter, you must use the recovery discs to access PC
Recovery software.
To delete the recovery partition:
1. If you have not already created recovery discs, create them now.
2. Select Start > All Programs > System Recovery >
PC Recovery .
The PC Recovery tool opens.
3. Select PC Recovery and click Next .
The computer restarts and the PC Recovery tools opens.
Maintenance and Service Guide B–9
Backup and Recovery in Windows XP
4. Click OK .
5. At the System Recovery screen, click Advanced Options .
6. Select Delete Recovery Partition (not recommended) and follow the on-screen instructions.
Updating Reinstalled Software
After you perform a system recovery, connect to the Internet to update all reinstalled software.
To access update links for the operating system and other software provided on your computer:
» Select Start > Help and Support .
To update optional software, follow the instructions provided by the software manufacturer. Some programs include an update feature you can access from a Help button or menu within the program.
B–10 Maintenance and Service Guide
C
Backup and Recovery in
Windows Vista
Recovering System Information
Tools provided by the operating system and Recovery Manager software are designed to help you with the following tasks for safeguarding your information and restoring it in case of a system failure:
■ Back up your information regularly to protect your important system files.
■ Make a set of recovery discs (Recovery Manager software feature). Recovery discs are used to start up (boot) your computer and restore the operating system and software programs to factory settings in case of system failure or instability.
■ Create system restore points (operating system feature).
System restore points allow you to reverse undesirable changes to your computer by restoring the computer to an earlier state.
■ Recover a program or driver (Recovery Manager software feature). This feature helps you reinstall a program or driver without performing a full system recovery.
■ Perform a full system recovery (Recovery Manager software feature). With Recovery Manager, you can recover your full factory image if you experience system failure or instability.
Recovery Manager works from a dedicated recovery partition on the hard drive or from recovery discs you create.
Maintenance and Service Guide C–1
Backup and Recovery in Windows Vista
Backing up Your Information
When to Back Up
■ On a regularly scheduled basis.
✎
Set reminders to back up your information periodically.
■ Before the computer is repaired or restored.
■ Before you add or modify hardware or software.
■
■
Backup Suggestions
■ Create system restore points using the Windows System
Restore feature.
■ Store personal files in the Documents folder and back up these folders periodically.
Back up templates stored in their associated programs.
Save customized settings in a window, toolbar, or menu bar by taking a screen shot of your settings.
The screen shot can be a time saver if you have to reset your preferences.
To copy the screen and paste it into a word-processing document: a. Display the screen.
b. Copy the screen:
To copy only the active window, press alt+fn+prt sc .
To copy the entire screen, press fn+prt sc .
c. Open a word-processing document, and then select Edit >
Paste .
C–2 Maintenance and Service Guide
Backup and Recovery in Windows Vista
Using System Restore Points
When you back up your system, you are creating a system restore point. A system restore point allows you to save and name a snapshot of your hard drive at a specific point in time. You can then recover back to that point if you want to reverse subsequent changes made to your system.
✎
Recovering to an earlier restore point does not affect data files saved or e-mails created since the last restore point.
You also can create additional restore points to provide increased protection for your system files and settings.
When to Create Restore Points
■
■
Before you add or extensively modify software or hardware.
Periodically, whenever the system is performing optimally.
✎
If you revert to a restore point and then change your mind, you can reverse the restoration.
Creating a System Restore Point
1. Select Start > Control Panel > System and Maintenance >
System .
2. In the left pane, click System protection .
3. Click the System Protection tab.
4. Under Automatic restore points, select the disk for which you want to create a restore point.
5. Click Create .
The System Protection window opens.
6. Follow the on-screen instructions.
Maintenance and Service Guide C–3
Backup and Recovery in Windows Vista
Restoring to a Previous Date and Time
To revert to a restore point (created at a previous date and time), when the computer was functioning optimally, follow these steps:
1. Select Start > Control Panel > System and Maintenance >
System .
2. In the left pane, click System protection .
3. Click the System Protection tab.
4. Click the System Restore button, and then click Next .
The System Restore window opens.
5. Follow the on-screen instructions.
Creating Recovery Discs
Recovery Manager creates a set of recovery CDs or DVDs for the computer. Use recovery discs to restore the operating system and software programs to factory settings, in case of system failure or instability.
✎
Handle these discs carefully and keep them in a safe place. The software allows the creation of only one set of recovery discs.
Note the following guidelines before creating recovery discs:
■ You will need high quality CD-R, DVD-R, or DVD+R discs
(purchased separately).
✎
Formatted DVD±RW discs and DVD±RW double-layer discs are not compatible with the Recovery Manager software.
■
■
■
The computer must be connected to AC power during this process.
Only one set of recovery discs can be created per computer.
Number each disc before inserting it into the computer optical drive.
C–4 Maintenance and Service Guide
Backup and Recovery in Windows Vista
■ If necessary, you can exit the program before you have finished creating the recovery discs. The next time you open
Recovery Manager, you will be prompted to continue the disc creation process.
To create a set of recovery discs:
1. Select Start > All Programs > Recovery Manager >
Recovery Manager .
Recovery Manager opens.
2. Click Advanced Options .
✎
If you are operating the computer on battery power, you will be prompted to connect to AC power before you can go to the next step.
3. Click Recovery disc creation , and then click Next .
4. Follow the on-screen instructions.
Reinstalling Software Programs and Drivers
If a program or driver preinstalled at the factory is accidentally erased or is damaged, Recovery Manager allows you to reinstall it.
✎
Software not provided with this computer must be reinstalled from the disc provided by the manufacturer or downloaded from the manufacturer's Web site.
✎
Before reinstalling the program, be sure it is fully uninstalled.
Recovery Manager replaces corrupted system files and reinstalls deleted system files within the program.
■ In most cases, if the program you are reinstalling is still on your computer, the reinstallation process does not affect your personal settings.
Maintenance and Service Guide C–5
Backup and Recovery in Windows Vista
■ In all cases, if a program has been deleted from your computer, the reinstallation process reinstalls the program or utility to the factory image but cannot restore your personal settings.
Reinstalling Preinstalled Programs and
Drivers
1. Remove the program or driver:
✎
In some cases, drivers are not listed in the Programs and
Features list. If the driver is not listed, it does not need to be removed.
a. Select Start > Control Panel > Programs > Uninstall a program .
b. Right-click the program or driver you want to remove, and then click Uninstall .
2. Reinstall the program or driver: a. Select Start > All Programs > Recovery Manager >
Recovery Manager .
Recovery Manager opens.
b. Click Advanced Options .
c. Click either Software program re-installation or
Hardware driver re-installation , and then click Next .
d. Follow the on-screen instructions.
e. Restart the computer if prompted.
Reinstalling Programs from Discs
1. Insert the disc into the optical drive.
2. When the installation wizard opens, follow the installation instructions on the screen.
3. Restart the computer if prompted.
C–6 Maintenance and Service Guide
Backup and Recovery in Windows Vista
Performing a Recovery
Recovery Manager software allows you to repair or restore the system if you experience system failure or instability. Recovery
Manager works from recovery discs that you create or from a dedicated recovery partition on the hard drive.
✎
Windows has its own built-in repair features, such as System
Restore and driver rollback capabilities. If you have not already tried these features, try them before using Recovery Manager.
✎
Recovery Manager only recovers software that was preinstalled at the factory. Software not provided with this computer must be reinstalled from the disc provided by the manufacturer or downloaded from the manufacturer's Web site.
Recovering from the Recovery Discs
To restore the system from the recovery discs:
1. Back up all personal files.
2. Insert the first recovery disc into the optical drive and restart the computer.
3. Follow the on-screen instructions.
Recovering from the Partition on the Hard
Drive
You can perform a recovery from the partition on the hard drive from either the Start button or f11 .
To restore the system from the partition, follow these steps:
1. Access Recovery Manager in either of the following ways:
❏ Select Start > All Programs > Recovery Manager >
Recovery Manager .
Maintenance and Service Guide C–7
Backup and Recovery in Windows Vista
❏ Restart the computer and press f11 while the “Press <F11> for recovery” message is displayed on the screen. Then select Recovery Manager .
Recovery Manager opens.
2. Click Advanced Options .
3. Click System recovery , and then click Next .
4. Follow the on-screen instructions.
Deleting the Recovery Partition on the Hard
Drive
The Recovery Manager Advanced Options menu provides the option of deleting the recovery partition, which will increase space on the hard drive. Delete the recovery partition only if you have already created recovery discs.
Ä CAUTION: After you create the recovery discs, you can increase space on the hard drive by deleting the recovery partition. However, doing this is not recommended. If you delete this partition, you will lose any information that is on the partition, including Recovery Manager software. Thereafter, you must use the recovery discs to access Recovery
Manager software.
To delete the recovery partition:
1. If you have not already created recovery discs, create them now.
2. Select Start > All Programs > Recovery Manager >
Recovery Manager .
Recovery Manager opens.
3. Click Advanced Options .
4. Click Remove recovery partition , and then click Next .
5. Follow the on-screen instructions.
C–8 Maintenance and Service Guide
Backup and Recovery in Windows Vista
Updating Reinstalled Software
After you perform a system recovery, connect to the Internet to update all reinstalled software.
To access update links for the operating system and other software provided on your computer:
» Select Start > Help and Support .
To update optional software, follow the instructions provided by the software manufacturer. Some programs include an update feature you can access from a Help button or menu within the program.
Maintenance and Service Guide C–9
D
Display Component Recycling
Å WARNING: The backlight contains mercury. Caution should be exercised when removing and handling the backlight to avoid damaging this component and causing exposure to the mercury.
Ä CAUTION: The procedures in this appendix can result in damage to display components. The only components intended for recycling purposes are the liquid crystal display (LCD) panel and the backlight.
Careful handling should be exercised when removing these components.
✎
Materials Disposal
This HP product contains mercury in the display assembly backlight and may require special handling at end-of-life.
Disposal of mercury may be regulated because of environmental considerations. For disposal or recycling information, contact your local authorities or visit the Electronic Industries Alliance
(EIA) at http://www.eiae.org
.
Maintenance and Service Guide D–1
Display Component Recycling
This appendix provides disassembly instructions for the display assembly. The display assembly must be disassembled to gain access to the backlight 1 and the LCD panel 2 .
D–2
✎
Disassembly procedures differ from one display assembly to another. The procedures provided in this appendix are general disassembly instructions. Specific details, such as screw sizes, quantities, and locations, and component shapes and sizes, can vary from one computer model to another.
Refer to
Section 5.13, “Display Assembly,”
for display assembly disassembly steps.
Maintenance and Service Guide
Display Component Recycling
Perform the following steps to disassemble the display assembly:
1. Remove all screw covers 1 and screws 2 that secure the display bezel to the display assembly.
Removing the Display Bezel Screw Covers and Screws
Maintenance and Service Guide D–3
Display Component Recycling
2. Lift up and out on the left and right inside edges 1 and the top and bottom inside edges 2 of the display bezel until the bezel disengages from the display assembly.
3. Remove the display bezel 3 .
Removing the Display Bezel
D–4 Maintenance and Service Guide
Display Component Recycling
4. Disconnect all LCD panel cables 1 from the display inverter board and remove the inverter board 2 .
Removing the Display Inverter Board
Maintenance and Service Guide D–5
Display Component Recycling
5. Remove all screws 1 that secure the LCD panel to the display enclosure.
6. Remove the LCD panel 2 from the display enclosure.
Removing the LCD Panel
D–6 Maintenance and Service Guide
Display Component Recycling
7. Turn the LCD panel upside down.
8. Remove all screws that secure the LCD panel frame to the
LCD panel.
Removing the LCD Panel Frame Screws
Maintenance and Service Guide D–7
Display Component Recycling
9. Use a sharp-edged tool to cut the tape 1 that secures the side of the LCD panel to the LCD panel frame.
10. Remove the LCD panel frame 2 from the display panel.
Removing the LCD Panel Frame
D–8 Maintenance and Service Guide
Display Component Recycling
11. Remove the screws 1 that secure the backlight cover to the
LCD panel.
12. Lift the top edge of the backlight cover 2 and swing it forward.
13. Remove the backlight cover.
Removing the Backlight Cover
Maintenance and Service Guide D–9
Display Component Recycling
14. Turn the LCD panel right-side up.
15. Remove the backlight cables 1 from the clip 2 in the
LCD panel.
Releasing the Backlight Cables
D–10 Maintenance and Service Guide
Display Component Recycling
16. Turn the LCD panel upside down.
17. Remove the backlight frame from the LCD panel.
Removing the Backlight Frame
Maintenance and Service Guide D–11
Display Component Recycling
Å WARNING: The backlight contains mercury. Caution should be exercised when removing and handling the backlight to avoid damaging this component and causing exposure to the mercury.
18. Slide the backlight out of the backlight frame.
Removing the Backlight
D–12 Maintenance and Service Guide
Display Component Recycling
19. Disconnect the display cable 1 from the LCD panel.
20. Remove the screws 2 that secure the LCD panel to the LCD rear panel.
21. Release the LCD panel 3 from the LCD rear panel.
22. Release the tape 4 that secures the LCD panel to the LCD rear panel.
Releasing the LCD Panel
Maintenance and Service Guide D–13
Display Component Recycling
23. Remove the LCD panel.
Removing the LCD Panel
24. Recycle the backlight and LCD panel.
D–14 Maintenance and Service Guide
E
Connector Pin Assignments
Table D-1
Universal Serial Bus
Pin
1
2
Signal
+5 VDC
Data –
Pin
3
4
Signal
Data +
Ground
Maintenance and Service Guide E–1
Connector Pin Assignments
Table D-2
RJ-45 (Network)
3
4
Pin
1
2
Signal
Transmit +
Transmit –
Receive +
Unused
7
8
Pin
5
6
Signal
Unused
Receive –
Unused
Unused
E–2 Maintenance and Service Guide
Table D-3
S-Video-Out
Connector Pin Assignments
Pin
1
2
3
4
Signal
TV-Ground
TV-CVBS
TV-Ground
TV-Ground
Pin
5
6
7
Signal
TV-CD
TV-Ground
TV-YD
Maintenance and Service Guide E–3
Connector Pin Assignments
Table D-4
External Monitor
5
6
7
3
4
8
Pin
1
2
Signal
Red analog
Green analog
Blue analog
Not connected
Ground
Ground analog
Ground analog
Ground analog
11
12
13
14
15
Pin
9
10
Signal
+5 VDC
Ground
Monitor detect
DDC 2B data
Horizontal sync
Vertical sync
DDC 2B clock
E–4 Maintenance and Service Guide
Table D-5
RJ-11 (Modem)
Connector Pin Assignments
2
3
Pin
1
Signal
Unused
Tip
Ring
5
6
Pin
4
Signal
Unused
Unused
Unused
Maintenance and Service Guide E–5
Connector Pin Assignments
Table D-6
Audio-In (Microphone)
Pin
1
2
Signal
Audio signal in
Audio signal in
Pin
3
Signal
Ground
Table D-7
Audio-Out (Headphone)
Pin
1
2
Signal
Audio out, left channel
Audio out, right channel
Pin
3
Signal
Ground
E–6 Maintenance and Service Guide
F
Power Cord Set Requirements
3-Conductor Power Cord Set
The wide range input feature of the computer permits it to operate from any line voltage from 100 to 120 or 220 to 240 volts AC.
The power cord set included with the computer meets the requirements for use in the country or region where the equipment is purchased.
Power cord sets for use in other countries and regions must meet the requirements of the country or region where the computer is used.
Maintenance and Service Guide F–1
Power Cord Set Requirements
General Requirements
The requirements listed below are applicable to all countries and regions.
■ The length of the power cord set must be at least 1.5 m
(5.0 ft) and a maximum of 2.0 m (6.5 ft).
■ All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the country or region where the power cord set will be used.
■ The power cord sets must have a minimum current capacity of 10 amps and a nominal voltage rating of 125 or 250 V AC, as required by each country or region’s power system.
■ The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320 Standard Sheet C13 connector for mating with the appliance inlet on the back of the computer.
F–2 Maintenance and Service Guide
Power Cord Set Requirements
Country/Region-Specific Requirements
3-Conductor Power Cord Set Requirements
Country/Region
Australia
Austria
Belgium
Canada
Denmark
Finland
France
Germany
Accredited Agency
EANSW
OVE
CEBC
CSA
DEMKO
FIMKO
UTE
VDE
1
1
1
2
1
1
Applicable Note Number
1
1
Italy IMQ 1
Japan METI 3
✎
NOTES:
1. The flexible cord must be <HAR> Type HO5VV-F, 3-conductor, 1.0 mm² conductor size. Power cord set fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.
2. The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG,
3-conductor. The wall plug must be a two-pole grounding type with a
NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.
3. The appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the Japanese Dentori Law. The flexible cord must be Type VCT or VCTF, 3-conductor, 1.00 mm² conductor size. The wall plug must be a two-pole grounding type with a Japanese
Industrial Standard C8303 (7 A, 125 V) configuration.
Maintenance and Service Guide F–3
Power Cord Set Requirements
3-Conductor Power Cord Set Requirements (Continued)
Country/Region
Korea
The Netherlands
Norway
People’s Republic of China
Sweden
Switzerland
Accredited Agency ek keMa
NEMKO ccc
1
5
Applicable Note Number
4
1
SEMKO
SEV
1
1
Taiwan
United Kingdom bsmi
BSI
4
1
United States UL 2
✎
NOTES:
1. The flexible cord must be <HAR> Type HO5VV-F, 3-conductor, 1.0 mm² conductor size. Power cord set fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.
2. The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG,
3-conductor. The wall plug must be a two-pole grounding type with a
NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.
3. The appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the Japanese Dentori Law. The flexible cord must be Type VCT or VCTF, 3-conductor, 1.00 mm² conductor size. The wall plug must be a two-pole grounding type with a Japanese
Industrial Standard C8303 (7 A, 125 V) configuration.
4. The flexible cord must be Type RVV, 3-conductor, 0.75 mm² conductor size.
Power cord set fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.
5. The flexible cord must be Type VCTF, 3-conductor, 0.75 mm² conductor size. Power cord set fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.
F–4 Maintenance and Service Guide
Index
Index
1394 port
A
AC adapter, spare part numbers
,
analog TV tuner, spare part number
Antenna Adapter - DVB-T, spare part numbers
arrow keys
audio board removal
spare part numbers
,
audio board cable, removal
audio troubleshooting
audio-in (microphone) jack location
pin assignments
audio-out (headphone) jack location
pin assignments
B
backpack, spare part number
Backup and Recovery
Windows Vista
Windows XP
backup suggestions
base enclosure, spare part numbers
,
battery removal
spare part numbers
specifications
battery bay
battery light
battery release latch
Bluetooth module removal
spare part number
,
bottom components
C
Cable Kit, spare part number
cables, service considerations
caps lock key
carrying case, spare part number
CMOS clearing
components bottom
front
keyboard
left-side
rear
Maintenance and Service Guide Index–1
Index right-side
top
composite S-Video and audio input cable, spare part number
computer feet, locations
Computer Setup
Advanced Menu
File Menu
Security Menu
Tools Menu
computer specifications
connector pin assignments external monitor
headphone
microphone
monitor
RJ-11 (modem)
RJ-45 (network)
S-Video-out
Universal Serial Bus (USB)
connectors, service considerations
consumer infrared lens
creating recovery discs
Windows Vista
Windows XP
system restore point
Windows Vista
Windows XP
D
deleting recovery partition
Windows Vista
Windows XP
design overview
disassembly sequence chart
diskette drive, OS loading problems
display assembly removal
spare part numbers
specifications
display bezel removal
spare part numbers
Display Cable Kit, spare part number
display enclosure, spare part numbers
display hinge removal
spare part number
Display Hinge Kit, spare part number
display panel removal
spare part numbers
Display Screw Kit, spare part number
docking device, troubleshooting
Maintenance and Service Guide Index–2
Index drive light
drives, preventing damage
DVB-T TV Tuner, spare part numbers
DVBTV tuner, spare part number
DVD/CD-RW Combo Drive
OS loading problems
precautions
removal
spare part number
,
specifications
DVD±RW/R and CD-RW
Combo Drive
OS loading problems
precautions
removal
spare part numbers
,
specifications
E
electrostatic discharge
,
expansion port 3
ExpressCard assembly removal
spare part number
ExpressCard slot
ExpressCard slot bezel illustrated
removal
external monitor port location
pin assignments
F
fan/heat sink assembly removal
spare part numbers
features
feet, locations
flowcharts, troubleshooting no audio
no network/modem connection
no OS loading
no OS loading from diskette drive
no OS loading from hard drive
no OS loading from optical drive
no power
no video
nonfunctioning device
nonfunctioning docking device
nonfunctioning keyboard
nonfunctioning pointing device
fn key
front components
function keys
G
grounding equipment and methods
Maintenance and Service Guide Index–3
Index
H
hard drive
OS loading problems
precautions
removal
spare part numbers
,
,
specifications
hard drive bay
Hard Drive Bracket Kit, spare part number
hard drive bracket, removal
hard drive cover illustrated
removal
HDMI port
headphone jack location
pin assignments
headset, spare part number
hinge removal
spare part number
,
I
I/O address specifications
infrared receiver spare part numbers
infrared receiver, spare part numbers
interrupt specifications
inverter removal
spare part number
K
keyboard removal
spare part numbers
troubleshooting
keyboard components
keypad keys
L
left-side components
Logo Kit, spare part number
M
mass storage devices, spare part numbers
media button
memory module removal
spare part numbers
memory module compartment
memory module compartment cover illustrated
removal
Memory Reader
microphone location
removal
spare part number
Maintenance and Service Guide Index–4
Index microphone jack location
pin assignments
Mini Card module removal
spare part numbers
,
,
,
modem jack location
pin assignments
modem, troubleshooting
monitor port location
pin assignments
mouse, spare part number
N
network jack location
pin assignments
network, troubleshooting
nonfunctioning device, troubleshooting
num lock board, removal
num lock key
O
optical drive location
OS loading problems
precautions
removal
spare part numbers
,
specifications
optical drive bracket, removal
P
packing precautions
password clearing
performing a recovery
Windows Vista
Windows XP
plastic parts
Plastics Kit contents
spare part number
,
pointing device, troubleshooting
power button
power button board removal
spare part number
,
power connector
power cord set requirements
spare part numbers
power light
power management features
power, troubleshooting
processor removal
spare part numbers
Maintenance and Service Guide Index–5
Index
R
rear components
recovering from partition on hard drive
Windows Vista
Windows XP
recovering from the recovery discs
Windows Vista
Windows XP
remote control spare part numbers
,
remote control, spare part numbers
,
removal preliminaries
procedures
replacement preliminaries
procedures
RF cable, spare part number
RF input adapter cable, spare part number
right-side components
RJ-11 (modem) jack location
pin assignments
RJ-45 (network) jack location
pin assignments
RTC battery removal
spare part number
,
Rubber Feet Kit, spare part number
S
Screw Kit, spare part numbers
screw listing
security cable slot
serial number
service considerations
Setup Utility
speakers
specifications battery
computer
display
DVD/CD-RW Combo
Drive
DVD±RW/R and CD-RW
Combo Drive
hard drive
I/O addresses
interrupts
optical drive
system DMA
static shielding materials
S-Video-out jack location
pin assignments
switch cover removal
spare part numbers
system board removal
Maintenance and Service Guide Index–6
Index spare part numbers
,
,
system DMA
T
tools required
top components
,
top cover removal
spare part numbers
,
TouchPad
TouchPad buttons
TouchPad horizontal scroll zone
TouchPad light
TouchPad on/off button
TouchPad vertical scroll zone
transporting precautions
troubleshooting audio
docking device
flowcharts
keyboard
modem
network
nonfunctioning device
OS loading
overview
pointing device
power
video
TV tuner spare part numbers
TV tuner antenna spare part numbers
TV tuner remote control, spare part number
TV tuner, spare part numbers
U
Universal Serial Bus (USB) port location
pin assignments
unknown password
USB digital drive, spare part number
USB infrared receiver, spare part number
USB/power connector board removal
spare part numbers
USB/power connector board cable, removal
using system restore points
V
vents
video troubleshooting
volume mute button
volume scroll zone
W
Windows applications key
Windows logo key
Maintenance and Service Guide Index–7
wireless antenna removal
spare part number
,
wireless laser mouse, spare part numbers
wireless light
wireless switch
workstation precautions
Index
Maintenance and Service Guide Index–8
Index
Maintenance and Service Guide Index–9
Index
Maintenance and Service Guide Index–10
Index
Maintenance and Service Guide Index–11
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 117 5.1 Serial Number
- 118 5.2 Disassembly Sequence Chart
- 119 5.3 Preparing the Computer For Disassembly
- 121 5.4 Hard Drive
- 125 5.5 Computer Feet
- 126 5.6 Memory Module
- 129 5.7 RTC Battery
- 130 5.8 Mini Card Module
- 135 5.9 Optical Drive
- 137 5.10 Switch Cover
- 140 5.11 Keyboard
- 144 5.12 Power Button Board
- 146 5.13 Display Assembly
- 157 5.14 Top Cover
- 163 5.15 Audio Board
- 165 5.16 Bluetooth Module
- 167 5.17 ExpressCard Assembly
- 170 5.18 USB/Power Connector Board
- 172 5.19 System Board
- 176 5.20 Fan/Heat Sink Assembly
- 179 5.21 Processor
