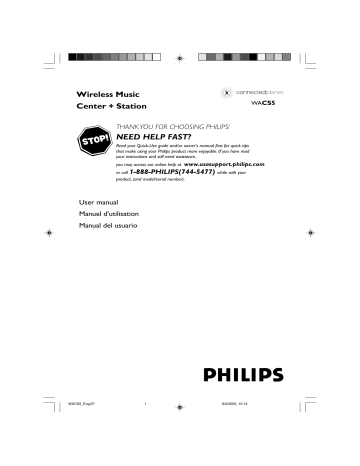

Philips Consumer Lifestyle BOU-WAS5B WirelessMusic Station User Manual

Wireless Music

Center + Station

WA CS5

THANK YOU FOR CHOOSING PHILIPS!

NEED HELP FAST?

Read your Quick-Use guide and/or owner's manual first for quick tips that make using your Philips product more enjoyable. If you have read your instructions and still need assistance, you may access our online help at

www.usasupport.philips.com

or call

1-888-PHILIPS(744-5477) while with your product, (and model/serial number).

User manual

Manuel d'utilisation

Manual del usuario

WACS5_Eng/37 1 8/3/2005, 15:12

2

WACS5_Eng/37 2 8/3/2005, 15:12

1 2 3 4 5

STOP•MENU

# @ !

0 9 8 7 6

WACS5_Eng/37 3 8/3/2005, 15:12

1

2

3

4

5

6

4

WACS5_Eng/37 4 8/3/2005, 15:12

Visit our World Wide Web Site at http://www.usasupport.philips.com

Congratulations on your purchase, and welcome to the “family!”

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products available today. We’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry. What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

Most importantly, you can count on our uncompromising commitment to your total satisfaction.

All of this is our way of saying welcome - and thanks for investing in a PHILIPS product.

P.S. To get the most from your PHILIPS purchase, be sure to complete and return your Product Registration

Card at once.

WACS5_Eng/37 5 8/3/2005, 15:12

IMPORTANT SAFETY INSTRUCTIONS

Clean only with a piece of dry cloth.

materials

6

WACS5_Eng/37 6

Class II equipment symbol

This symbol indicates that the unit has a double insulation system

8/3/2005, 15:12

The set complies with the FCC-Rules,

Part 15 and with RSS-210 of Industry

Canada.

Operation is subject

to the following two conditions:

1. this device may not cause harmful

interference, and

2. this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

Philips

WACS5

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the

equipment and the receiver.

– Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced radio/

TV technician for help.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

WACS5_Eng/37 7 8/3/2005, 15:12

LGPL Library written offer

This product contains Linux 2.4.27-vrsl, that is made available under the GNU LGPL license version 2.1

(hereafter called "the Library").

Philips Electronics Hong Kong Ltd. hereby offers to deliver or make available, upon request, for a charge no more than the cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code of the Library on a medium customarily used for software interchange.

Please contact:

Mr. Bin Li

BLC Audio PDCC Development

5/F., Philips Electronics Building

5 Science Park East Avenue

Hong Kong Science Park

Shatin Hong Kong

This offer is valid for a period of three years after the date of purchase of this product.

GPL Package written offer

This product contains Linux 2.4.27-vrsl, that is made available under the GNU GPL license version 2

(hereafter called "the Program").

Philips Electronics Hong Kong Ltd. hereby offers to deliver or make available, upon request, for a charge no more than the cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code of the Program on a medium customarily used for software interchange.

Please contact:

Mr. Bin Li

BLC Audio PDCC Development

5/F., Philips Electronics Building

5 Science Park East Avenue

Hong Kong Science Park

Shatin Hong Kong

This offer is valid for a period of three years after the date of purchase of this product.

8

WACS5_Eng/37 8 8/3/2005, 15:12

Index

English ------------------------------------------------ 8

Français -------------------------------------------- xx

Español --------------------------------------------- xx

Canada

English: (Canadian ICES-003)

This digital apparatus does not exceed the Class

B limits for radio noise emissions from digital apparatus as set out in the Radio Interference

Regulations of the Canadian Department of

Communications.

Français: (La norme NMB-003 du Canada)

Cet appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le Règlement sur le Brouillage

Radioélectrique édicté par le Ministère des

Communications du Canada.

WACS5_Eng/37 9 8/3/2005, 15:12

9

Contents

General Information

About WACS5 ................................................... 11

Supplied accessories .......................................... 11

Philips on-line support ...................................... 12

Environmental information .............................. 13

Maintenance ........................................................ 13

Safety information .............................................. 13

Controls

Controls on the Center ................................... 14

Controls on the Station .................................... 15

Center’s 2-way remote control ................ 16-17

Station’s remote control ............................. 17-18

Installation

Placing Center and Station ............................... 20

Inserting stand into Station

Setting up Wi-Fi connection between Center and Station ..................... 20-21

Rear connections ......................................... 21-22

Connecting to an additional appliance with powerful speakers

Connecting to your PC

Connecting an additional appliance

Using AC power ................................................. 23

Preparation

Using the remote control ................................ 24

Putting batteries in place

Using Center’s remote control

Using the navigation controls .......................... 24

Basic Functions

Switching to standby/on and selecting functions .............................................. 25

Switch to Eco power/ on .................................. 25

Auto-standby ....................................................... 25

Adjusting the brightness of blue indicator ... 25

Display adjustment ............................................. 26

Selecting languages ............................................. 26

HD

Playing Harddisk(HD) ........................................ 27

Selecting and searching ............................... 27-28

Selecting a different album or track

Finding a passage within a track during playback

Selecting tracks of a particular artist

Selecting tracks of a particular genre

Different play modes: REPEAT, SHUFFLE ...... 28

Creating Playlist: custom collection of your favorite music ...................................................... 29

Deleting a playlist, album or track .................. 29

Building music library on Center .............. 30-31

Ripping CDs

Importing from PC

Recording from Radio or External source

Display track information ................................. 32

Moving between Center and Station ....... 32-33

MUSIC FOLLOWS ME

MUSIC BROADCAST

Station mangagement ........................................ 34

Adding a station

Deleting a station

Viewing station status

Information about your WACS5 ..................... 34

Firmware ........................................................ 34-35

Upgrading firmware

Restoring previous firmware

Re-establishing Wi-Fi connection

CD (on center only)

Discs for playback .............................................. 36

Playing discs ................................................... 36-37

Selecting and searching ..................................... 37

Selecting a different album/track

Finding a passage within a track during playback

Different play modes: REPEAT, SHUFFLE ...... 38

Display track information ................................. 38

AUX/UPnP/SLEEP

AUX (Listening to an external source, on

Center only) ........................................................ 39

UPnP (on Station only) ............................... 39-40

SLEEP .................................................................... 40

Reset

Reset ..................................................................... 41

Specifications

........................................... 42

Troubleshooting

.............................. 43-44

WACS5_Eng/37 10 8/3/2005, 15:12


About

WA

CS5

WA

CS5

are excellent addition to your home audio system.

WA

CS5

comprise a WA

C5

Center and a

WA

S5

Station. Up to 5 Stations (WA

S

5 or

WA

S

700) can be connected to a WA

C5

Center.

On WA

C5

’s 80GB* hard disk, you can centrally store up to 1,500 audio CDs. All the stored music can be wirelessly streamed, via Wi-Fi**, from Center to connected Stations.

With this compact wireless music system, you can fully utilize the sophisticated sound input and speakers in your existing HiFi audio system.

WA

C5

provides multiple choices of sound output to maintain high quality sound.

No need to be bound to your CD player or PC etc., or be troubled by the wiring. You can easily listen to your favourite music around your home.

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

CAUTION

Changes or modifications not expressly approved by Philips could void FCC authorization to operate this equipment.

* Available storage capacity is based on 4 minutes per song, 10 songs per CD on average, 128 kbps MP3 encoding and given the fact that operational software is part of the product's memory.

Actual free space is X GB or less, due to the buffer partition for MP3 compression, firmware, music CD database and demo tracks stored.

** Wi-Fi, or IEEE802.11 b/g, is the international leading industry standard for wireless broadband networking. It transfers digital data with wider range and bandwidth.

Supplied accessories

– Center’s remote control and

4 x AAA batteries

– Station’s remote control with

1 x CR2025 battery

– Station’s stand

– DC 9V adaptor

– 2 x Audio cables (for Center and Station)

– 1 x Ethernet cable

– PC installer CD

WACS5_Eng/37 11 8/3/2005, 15:12


Philips on-line support

Philips products have been designed and manufactured to the highest quality standards. If your Philips Connected Planet product is not working correctly, we recommend you check your User Manual to verify that your product is properly connected and configured.

The web site for Connected Planet suppor t: www.philips.com/support offers you all information you need to optimally enjoy your product, and about new additions to this exciting range, to make your home entertainment experience even more enjoyable.

Please visit: www.philips.com/support and enter your product name

( WA

CS5

) to view:

●

FAQ (Frequently Asked Questions)

●

Latest user manuals and PC software manuals

●

Firmware upgrade files for WA

CS5

●

Latest PC software downloads

●

Interactive troubleshooting

Since it is possible for you to upgrade your product, we recommend that you register your product on www.philips.com/register so we can inform you as soon as new free upgrades become available.

Enjoy your WA

CS5

!

The model number is on the rear of the set.

WACS5_Eng/37 12 8/3/2005, 15:12


Environmental information

All unnecessary packaging has been omitted.

We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Cleaning Discs

●

When a disc becomes dirty, clean it with a cleaning cloth.

Wipe the disc from the center out.

●

Do not use solvents such as benzene, thinner, commercially available cleaners, or antistatic spray intended for analog records.

Disposal of your old product

Maintenance

Cleaning the Set

●

Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European

Directive 2002/96/EC

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Safety information

●

Place the set on a flat, hard and stable surface.

● Do not expose the system, batteries or discs to excessive moisture, rain, sand or heat sources caused by heating equipment or direct sunlight.

●

Place the sets in a location with adequate ventilation to prevent internal heat build-up in your system. Allow at least 10 cm (4 inches) clearance from the rear and the top of the unit and 5 cm (2 inches) from each side.

●

The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers table-cloths, curtains, etc.

●

The apparatus shall not be exposed to dripping or splashing.

●

No objects filled with liquids, such as vases, shall be placed on the apparatus.

●

No naked flame sources, such as lighted candles, should be placed on the apparatus.

●

The mechanical parts of the set contain selflubricating bearings and must not be oiled or lubricated.

WACS5_Eng/37 13 8/3/2005, 15:12

Controls

(illustrations on page 3)

Controls on the Center (Top and front panels)

1 STANDBY-ON/ ECO POWER

– press briefly to switch Center on or to standby mode;

– press and hold to switch Center to

Eco Power mode or on

– Green indicator: flashes during CD ripping /

MP3 conversion

2

Display

– shows status of Center

3 RECORD

– CD/AUX: starts the recording to hard disk

4

1 / 2 / 3 / 4

– navigation controls (left, right, up, down) to scroll through the option list

1

– HD/CD: returns to previous option lists

3 / 4

– HD/CD: skips/searches tracks/passage backward/forward (in playback screen); fast scrolls the option list

2 / OK

– confirms selection

OK

– HD/CD: starts or pauses playback

– CD: selects or deselects tracks to be recorded on hard disk

5 STOP • MENU

– stops playback or recording;

– enters or exits setup menu

6

MUSIC FOLLOWS ME

– HD: moves music playback between Center and

Station

7 IR

– sensor for the infrared remote control

Helpful hints: Always point the remote control towards this sensor.

8 MUSIC BROADCAST

– HD: broadcast music from Center to Station

9

EJECT

– ejects a disc from the slot loader

0 CD slot loader

!

Blue indicator

– lights up when the set is working or ready for working

@ SOURCE

– selects sound source HD , CD or AUX

– In standby mode: switches Center on and selects sound source HD , CD or AUX

#

Wi-Fi antenna

WACS5_Eng/37 14 8/3/2005, 15:12

Controls on the Station ( front panel)

1 Wi-Fi antenna

2

Display

– shows status of Station

3

Blue indicator

– lights up when the set is working or ready for working

4 STANDBY-ON/ ECO POWER

– press briefly to switch Center on or to standby mode ;

– press and hold to switch Center to

Eco Power mode or on

5 MUSIC FOLLOWS ME


Station or between Station and Station

6

IR

– sensor for the infrared remote control

Helpful hints: Always point the remote control towards this sensor.

Controls

(illustrations on page 4)

WACS5_Eng/37 15 8/3/2005, 15:12

Center’s 2-way remote control

¡

^

%

$

)

(

5

*

&

SAME ARTIST

1

2

3

4

IMPORTANT!

This remote control can be also used for some other Philips’ wireless music systems

(e.g. WAC700, WAS700), which provide features different from WAC5/WAS5. So, some of the functional keys are exclusively used for those systems.

5

6

7

8

9

0

!

@

#

Controls

1 y

– press briefly to switch the set to standby mode

– press and hold to switch the set to Eco Power mode or on

2

Synchro display

– synchronous display of the set’s status

3

Source buttons

CD/MP3-CD

– selects CD source

– In standby mode: switches the set on and selects

CD source.

HARDDISK

– selects HD source

– In standby mode: switches the set on and selects

HD source

TUNER/AUX

– selects the audio input from an additional connected appliance

– In standby mode: switches the set on and selects the audio input from an additional connected appliance

4

1

/

2

/

3

/

4


1


3

/

4

– HD/CD: skips/searches tracks/passage backward/ forward (in playback screen); fast scrolls the option list

2 / OK


5 4

/

¢

– HD/CD: skips/searches tracks/passage backward/forward (in playback screen)

6 ÉÅ

– HD/CD: starts or pauses playback

7 SHUFFLE

– selects random playback

8 REPEAT

– selects continuous playback

9 MARK/UNMARK

– CD: selects or deselects tracks to be recorded on hard disk

WACS5_Eng/37 16 8/3/2005, 15:12

Controls

0 SAME GENRE

– HD: plays all the tracks of current Genre

! SAME ARTIST

– HD: plays all the tracks of current Artist

@ MUSIC FOLLOWS ME



# MUSIC BROADCAST

– HD: broadcasts music from Center to Station

$

REC

– CD/AUX: starts the recording to hard disk

% DIM

– changes the brightness of display illumination

^

SLEEP

– ajusts/displays/switches off sleep timer

& Ç

– stops playback or recording

* VIEW

– toggles playback screen and previous option list

( MENU


)

3 / 4 SCROLL

– scroll the display screen upward or downward

¡ REFRESH

– sychronize remote control’s display with the set’s display

Station’s remote control

$

#

@

!

0

9

8

Same Artist Same Genre

Smart EQ

1

2

3

4

5

6

7

1 y

– press briefly to switch the set to standby mode

– press and hold to switch the set to Eco Power mode or on

2

2

– HD/CD: starts playback

Å

– HD/CD: pauses playback

3 Ç

– stops playback or recording

4

3 / 4 Scroll

– scroll the display screen upward or downward

5

View

– toggles playback display and previous option list

6 Repeat

– selects continuous playback

Shuffle

– selects random playback

7 Sleep

– ajusts/displays/switches off sleep timer

WACS5_Eng/37 17 8/3/2005, 15:12

8 Music Follows Me



9 Same Artist

– HD: plays all the tracks of current Artist

Same Genre

– HD: plays all the tracks of current Genre

0 Dim

– changes the brightness of display illumination

! Menu


@

1 / 2 / 3 / 4


1


3

/

4

– HD/CD: skips/searches tracks/passage backward/forward (in playback screen); fast scrolls the option list

2 / OK


# à / á

– HD/CD: searches track passage backward/ forward (in playback screen)

$

O , P

– HD/CD: skips tracks backward/forward (in playback screen)

Controls

WACS5_Eng/37 18 8/3/2005, 15:12

Installation

OPTICAL OUT

DIGITAL OUT

Center

AC power cord

LINE OUT

DC

WACS5_Eng/37 19

Station

8/3/2005, 15:12

Placing Center and Station

Mounting stand onto Station

WA S5 Station is equipped with a stand. Once inserted, the stand is undetachable.

1

Align the supplied stand to the jack at Station’s bottom

2

Insert the stand into the jack firmly

Installation

Setting up Wi-Fi connection between Center and Station

Wi-Fi connection starts automatically when you power up WAC5 Center and WAS5

Station

1

The first time you set up Wi-Fi connection, place Center and Station side by side on a flat and firm surface

2

First, connect the Center to power supply, and then, connect the Station to power supply

Center/Station:

➜

The screen lights up. Auto installation/ connection star ts.

➜

You will enter HD (Harddisk) mode when the installation/connection is finished.

IMPORTANT!

Take the following steps to optimize the

Wi-Fi connection between Center and

Station.

– Keep your Center and Station away from the source of interference

(microwave ovens, DECT phones, bluetooth devices, cordless phones, other Wi-Fi products, etc.)

– Avoid placing your Center or Station close to the plasma TV. It may result in improper display on your Center’s 2-way remote control.

– Keep Stations adequately apart or in different angles (e.g. in different rooms blocked by one wall). Within a distance and angle (e.g. in the same room), your

Center’s remote control is powerful enough to simultaneously operate several Stations, which may also result in improper display on the 2-way remote control.

3

Relocate Center and Station as desired: plug and stream

●

Simply unplug your Center or Station and power them up in other rooms.

➜

You will be able to move the harddisk music between Center and Station.

Helpful hints:

– Make sure you have powered up Center before powering up Station.

IMPORTANT!

– Turn the Wi-Fi antenna for best reception.

– Avoid thick walls. Your Center and Station should never be blocked by 2 or more walls.

– Avoid placing the sets close to large metal objects.

– Adjust the location of your Center and Station according to the reception status of Wi-Fi signals.

– indicates maximum reception

– indicates minmum reception

– WACS5 do not support range expander devices

WACS5_Eng/37 20 8/3/2005, 15:12

If there is interference from neighborhood,

such as the pause during playback, the sets’ slow response to your operation

– Use the WEP* key when connecting your Center and Station to an existing wireless PC network. See the manual Connect to your PC .

– Change the operating channel of your Center and Station when connecting them to an existing wireless PC network. To learn about how to change channels, see the manual Connect to your PC .

– If possible, change the operating channels of the other Wi-Fi devices at your home.

– Turn the above devices in different directions to minimize interference.

LINE OUT:

On Center:

1

Insert the red plug of the red/white audio cables

(supplied) to the red socket LINE OUT R and the white plug to the white socket LINE OUT

L .

2

Connect the other end of the audio cables to the AUX IN (or AUDIO IN )terminals of the additional appliance, red plug to the red socket

AUX IN R and white plug to the white socket

AUX IN L .

OPTICAL OUT

DIGITAL OUT

* stands for W ired E quivalent P rivacy. It is a security protocol for wireless local area network

Rear connections

Warning:

Never make or change connections with the mains supply switched on.

A Connecting to an additional appliance with powerful speakers

IMPORTANT!

WA

CS5

need to work with both external amplifier and external speakers.

With this compact wireless music system, you can fully utilize the sophisticated sound input and speakers in your existing HiFi audio system.

Using audio cables, connect one (one set) of

WA

CS

5’s sound output terminals: LINE OUT,

DIGITAL OUT or OPTICAL OUT to the corresponding input terminals in the connected device. For better sound output, use DIGITAL

OUT or OPTICAL OUT if it is available on the connected device.


– DIGITAL OUT and OPTICAL OUT are available on WA C5 only.

On Station:

3

Insert the one-plug end of the audio cable

(supplied) to LINE OUT .

4

Connect the two-plug end of the audio cables to the AUX IN (or AUDIO IN ) terminals of the additional appliance, red plug to the to the red socket AUX IN R and white plug to the white socket AUX IN L .

LINE OUT

DC

WACS5_Eng/37 21 8/3/2005, 15:12

Installation

DIGITAL OUT:

1

Insert the plug of digital audio cables (not supplied) to the DIGITAL OUT socket

2

Connect the other end of the audio cables to the

DIGITAL IN terminal of the additional appliance.

OPTICAL OUT

DIGITAL OUT

C Connecting an additional appliance

It is possible to use an additional appliance, e.g.

TV, VCR, Laser Disc player, DVD player or CD recorder, with the WA

C5

Center .

1

Insert the red plug of the red/white audio cables

(not supplied) to the red socket AUX IN R and the white plug to the white socket AUX IN L .

2

Connect the other end of the audio cables to the AUDIO OUT terminals of the additional appliance.

OPTICAL OUT

DIGITAL OUT

Center

Center

OPTICAL OUT:

1

Insert the plug of optical audio cables (not supplied) to the OPTICAL OUT socket

2

Connect the other end of the audio cables to the OPTICAL IN terminal of the additional appliance.

OPTICAL OUT

DIGITAL OUT

Center

B Connecting to your PC

● Connect the supplied Ethernet cable to

Center’s ETHERNET and your computer’s

Ethernet port. For details, see the manual

Connect to your PC .

OPTICAL OUT

DIGITAL OUT

Center


– If the connected device has only a single audio out terminal, connect it to the AUX IN left terminal.

Alternatively, you can use a “single to double” cinch cable, but the output sound still remain mono.

– Always refer to the owner’s manual of other equipment for complete connection.

Using AC power

1

Make sure all the connections have been made before switching on the power supply.

2

Connect the AC power cord to the wall socket.

This switches on the power supply.

When Center or Station is switched to standby, it is still consuming some power. To disconnect the system from the power supply completely, remove the power plug from the wall socket.

The type plate is located on the rear of the set.

WACS5_Eng/37 22 8/3/2005, 15:12

Preparation

Using the remote control

WA CS5 are equipped with two remote controls, one for Center and the other for

Station. By using either of the remote controls, you can operate both Center and Station.

IMPORTANT!

– Always point the remote control directly towards IR area on the Center or Station you wish to operate.

– Some functional keys on Center’s remote control are exclusively used for Center (for example, CD/MP3-CD, MARK/UNMARK,

MUSIC BROADCAST etc.)

Putting batteries in place

Center’s remote control:

1

Open the battery compartment .

3

2

3

Put back the compartment door.

Station’s remote control:

●

Remove the protective plastic tab

before using the Station’s remote

control.

To replace the batteries

1

Press and hold

1 as indicated.

2

Simultaneously, pull the battery tray at 4 .

3

Remove the old battery and put a new CR2025 battery in place.

4

Put back the battery tray.

1

2

Insert 4 batteries type R03 or AAA into the remote control with the correct polarity as indicated by the " + " and " " symbols inside the battery compartment.

1

2

LIT

HIUM

CR 20

25

3

CAUTION!

– Remove batteries if they are exhausted or will not be used for a long time.

– Do not use old and new or different types of batteries in combination.

– Batteries contain chemical substances, so they should be disposed of properly.

WACS5_Eng/37 23 8/3/2005, 15:12

Using Center’s remote control

Battery usage: As a remote control with synchronous display, Center’s remote control consumes more power than normal remote controls. When its batteries are low or empty, the icon appears on the remote control’s display.

Replace the batteries with new alkaline batteries.

By default, Center’s remote control works with

Center only. To operate Station using

Center’s remote control,

1

Press and hold REFRESH until the selection screen appears on the display of Center’s remote control.

Preparation

Using the display on the Center’s remote control

You can synchronize the status of your Center or

Station onto the display of Center’s 2-way remote control. With the synchronized display, your operation of remote control becomes quicker and easier.

Note:

– Avoid placing your Center or Station close to the plasma TV. It may resuit in improper display on your Center’s remote control. Always keep WA CS5 far enough from the plasma TV or turn off your plasma TV.

– If you switch on your Center or Station using the

STANDBY-ON/ ECO POWER button on the set, press REFRESH on Center’s remote control to synchronize the remote control’s display.

– The display supports 6 European languages:

English, French, Spanish, Dutch, Italian and German

2

Press the navigation controls

to select Station

3 or 4 and 2

On Center’s remote control:

➜

Display shows current status of Station

after Station is connected

➜

You can use Center’s remote control to operate Station now


– To operate Center using the remote control again, repeat the above steps 1-2 to select Center.

– Center’s remote control will return to its default setting (works with Center only) when you insert new batteries into it.

Using the navigation controls

When selecting options on the set’s screen, you often need to use the navigation controls 1 / 2

/ 3 / 4 .

1

Press

3

/

4

to highlight an option.

2

Enter its submenu by pressing 2 .

3

Press

1 to return to the previous option list screen.

4

Press OK or 2 to confirm

WACS5_Eng/37 24 8/3/2005, 15:12

Basic functions

Switching to standby/on and selecting functions

1

When the set is on, press STANDBY-ON /

ECO POWER to switch it to standby (or y on the remote control)

➜

Display shows GoodBye . Then,

Center:

➜

The screen dims out. Display shows

Station Status screen and the number of stations found.

Station:

➜

The PHILIPS screen dims out.

2

To switch on, press STANDBY-ON / ECO

POWER on the set

➜ The set switches to the last source selected.

●

You can also switch on Center by pressing the source button on Center’s remote control

(e.g. HARDDISK , CD/MP3-CD , AUX ).

3

To select Center’s function, press SOURCE once or more on the set (or HARDDISK , CD/

MP3-CD , AUX on Center’s remote control)

Switching to Eco power/ on

In the power-saving Eco power mode, the set’s display and Wi-Fi connection are turned off. The

Center’s harddisk also stops working. When you switch Center to Eco power, it is impossible to move music between Center and Station or import music from PC to Center.

1

When the set is on, press and hold STANDBY-

ON / ECO POWER to switch it to Eco power (or y on the remote control).

➜ The display is switched off.

➜

The blue indicator is off.

2

To switch on, press and hold STANDBY-ON /

ECO POWER (or y on the remote control) or press and hold SOURCE on the set

➜

The set switches to the last source selected.


– In the standby/Eco power mode, the settings of networking, sound, display, language and CD recording will be retained in the set’s memory.


– CD/MP3-CD and AUX source is only available on Center.

Auto-standby

●

When the set has reached the end of playback/ recording and remains in the stop position for more than 5 minutes, the set will switch to standby automatically to save power.

Adjusting the brightness of blue indicator

The blue indicator lights up when the set is working or ready for working.

● On the remote control, press and hold DIM to turn the brightness up or down.

SAME ARTIST

WACS5_Eng/37 25 8/3/2005, 15:12

Display adjustment

You can adjust the display’s backlight and contrast settings

1

On the remote control, press MENU to enter the MENU screen (or on Center, press and hold STOP • MENU )

2

Use the navigation controls 3 or 4 and 2

to select Settings

3

Press

3 or

4 and

2 to select Display

4

Press 1 / 2 / 3 / 4 to select your options:

Basic functions

Selecting languages

1


2


to select Settings

3


to select Language

4

Press 3 or 4 and 2 to select:

English, French, Spanish, Dutch, Italian

and German

Backlight:

Press 3 or 4 and 2 to select on or off ;

●

You can also turn the backlight on or off by pressing DIM on the remote control

SAME ARTIST

Contrast :

Press 3 / 4 to reduce or enlarge the contrast

WACS5_Eng/37 26 8/3/2005, 15:12

HD

Playing Harddisk (HD)

On WAC5 Center is located a 80GB hard disk, where music is centrally stored.

Via Wi-Fi, all the stored music can be streamed and played on Station.

1

Check the Center or Station is switched on or to standby

For Station : also check the Center is switched on or to standby

➜

The blue indicator lights up

(See Basic functions, Switching to standby/on and selecting functions,

Switching to Eco power/ on )

2

On Center: Press SOURCE once or more to select HD (on Center’s remote control, press

HARDDISK )

➜

Display shows HD and the categories of your music library: Playlists , Artists , Albums ,

Genres , All tracks , Raw tracks

➜

Demo tracks are stored in Playlists

Playlists( ): custom collection of your favorite tracks sorted by the playlists’ name in alphanumeric order

Artists ( ): collection of albums sorted by the artists’ name in alphanumeric order

Albums ( ): albums sorted by the albums’ name in alphanumeric order

Genres ( ): artists’ album collection sorted by music style

All tracks ( ): tracks sor ted by the tracks’ name in alphanumeric order

Raw tracks ( ): tracks to be compressed

(MP3 conversion)

3

Press the navigation controls 3 or 4 and 2 to select your option

4

Press 2 (or OK ) to start playback, if necessary.

●

Press OK on a highlighted artist, genre or album to start playback from the beginning of the item

(or ÉÅ on Center’s remote control; the Play key É on Station’s remote control).

➜

The playback screen shows: on the top : your HD option (e.g. Playlist, Artist) in the middle : current track name, elapsed playing time and some track information at the bottom: equalizer setting and, if DBB is activated, DBB setting.

5

To pause playback, press OK (or ÉÅ on

Center’s remote control; Å on the Station’s remote control). To resume playback, press the button again.

6

To stop playback, press STOP Ç .

Selecting and searching

Selecting a different album or track

1

If necessary, repeatedly press 1 to enter previous option lists

2

Repeatedly press the navigation controls 3 or

4 and 2 to select the desired album or track.

3

Press VIEW to return to the playback screen, if necessary.

WACS5_Eng/37 27 8/3/2005, 15:12

HD

To select a different track in current album during playback

●

In the playback screen, briefly and repeatedly press the navigation controls 3 or 4 to select previous or next tracks (or

4 or

¢

on

Center’s remote control; O , P on Station’s remote control)

Selecting tracks of a particular artist

●

During playback, press SAME ARTIST

➜

Playback of current artist’s tracks continues after current track.

Selecting tracks of a particular genre

●

During playback, press SAME GENRE

➜

Playback of current genre’s tracks continues after current track.

Using the fast skip 3 or 4

Use this function to find an option (e.g. an album or a track) in a long option list.

●

Press and hold the navigation controls

3 or

4 in the long option list.

➜

You will skip the options faster and faster

➜ At the high speed skip, the initial letter of current options appears for easy identification

Different play modes: REPEAT,

SHUFFLE

– plays the current track continuously

– repeats all the tracks (under current artist, genre or album )

– repeats all the tracks (under current artist, genre or album) in random order

– tracks (under current artist, genre or album) are played in random order

1

During playback, press once or more REPEAT or/ and SHUFFLE to select play modes.

2

To return to normal playback, press REPEAT or

SHUFFLE repeatedly until the various modes are no longer displayed.

Finding a passage within a track

during playback

1

In the playback screen, press and hold the navigation controls

3 or

4

(or 4 or ¢ on Center’s remote control; à / á on

Station’s remote control)

➜ The HD plays at a high speed.

2

When you recognize the passage you want, release 3 or 4 (or

4 or

¢

on Center’s remote control; à / á on Station’s remote control)

➜

Normal playback resumes.

WACS5_Eng/37 28 8/3/2005, 15:12

HD

Creating Playlist: custom collection of your favorite music

On Center’s hard disk., you can create up to 99 playlists consisting of your favorite tracks in the desired sequence.


– You can also create your playlists on your computer via Philips Digital Media Manager

(DMM). For details, see DMM’s help file. Refer to the manual Connect to your PC to learn how to install DMM software.

1

Use the navigation controls

1

/

2

/

3

/

4 to highlight the desired track/album (see Selecting and searching )

2

Press MENU to enter the MENU screen

3

Use the navigation controls 3 or 4 and 2 to select Create Playlist

Deleting a playlist, album or track

1

Use the navigation controls 3 or 4 and 2 to enter a category (Playlist, Artists, Albums, Genres,

All tracks, Raw tracks

●

If necessary, press 3 or 4 and 2 once or more to enter the album/track list

2

Press

3 or

4

to highlight a selected playlist, album or track

3

To select Delete Playlist, Delete Album or

Delete Track a. Press MENU to enter the MENU screen b. In the MENU screen, use the navigation controls 3 or 4 and 2 to select.

4

Press

3 or

4 and

2

to select Yes

➜

A new playlist is created. Display shows:

Playlist created. To add tracks, select

“ Add to Playlist”.

4

To select Add to Playlist, a. Press MENU to enter the MENU screen

b. In the MENU screen, use the navigation controls 3 or 4 and 2 to select

➜ A list of playlists appears

5

Use the navigation controls 3 or 4 and 2 to select the desired playlist

➜

Display shows: Track(s) added to playlist

6

Repeat steps 1, 4 , 5 to select and store all desired tracks in this way.

WACS5_Eng/37 29 8/3/2005, 15:12

Building music library on Center

By ripping CDs , Importing from PC and

Recording from external source you can build your music library on Center’s hard disk.

IMPORTANT!

– Recording is permissible if copyright or other rights of third parties are not infringed upon.

– For CDs encoded with copyright protection technologies by some record companies, recording is restricted.

Ripping CDs

With WAC5 Center, you can rip audio CD tracks from your pre-recorded CDs and store them as MP3 files in the Center’s hard disk.

The Gracenote ® music recognition service enables your set to look up from its built-in database the CD track information (including album, artist, genre, track information). It allows the ripped CD tracks to be properly categorized

(for example, under Artists, Albums, Genres or All tracks) and also merged with the existing tracks in the harddisk. To update your

Gracenote ® music recognition service database, see the manual Connect to your PC

Music recognition technology and related data are provided by Gracenote ® . Gracenote is the industry standard in music recognition technology and related content delivery. For more information, visit www.

gracenote.com.

CD and music-related data from Gracenote, Inc., copyright C 2000-2005 Gracenote. Gracenote CDDB ®

Client Software, copyright 2000-2005 Gracenote. This product and service may practice one or more of the following U.S. Patents: #5,987,525; #6,061,680;

#6,154,773, #6,161,132, #6,230,192, #6,230,207,

#6,240,459, #6,330,593, and other patents issued or pending. Services supplied and/or device manufactured under license for following Open Globe, Inc. United

States Patent 6,304,523.

Gracenote and CDDB are registered trademarks of

Gracenote. The Gracenote logo and logotype, and the

“Powered by Gracenote” logo are trademarks of

Gracenote.

HD

1

Insert a CD into Center’s CD loader, with the printed side facing up r i n t e d

S i d e

CD

(RW)

➜

Display shows: Reading CD .

➜

List of tracks appears

● MP3/WMA: To enter the track list, press

2

on a highlighted file folder

2

In the screen of track list, press RECORD

➜

List of track checkboxes appears

3

Press OK to select or deselect the tracks to be recorded (or MARK•UNMARK on the remote control)

●

To select/deselect all tracks, press and hold OK

MARK• UNMARK on the remote control)

4

To select Rec speed (1x, 4x) and Rec quality ,

a. Press MENU .

b. Use the navigation controls 3 or 4 and 2 to

enter Settings menu c. In Settings menu, use the navigation

controls 3 or 4 and 2 to select.

5

To star t recording, press RECORD

➜

Display shows CD-Rec and the album

name of the track being recorded.

(a default album name, e.g. Album_001, is assigned if the CD track information cannot be found in Center’s built-in Gracenote ® music recognition service database)

➜

Center will return to HD mode when ripping is finished

WACS5_Eng/37 30 8/3/2005, 15:12

HD

6

7

To rip another CD, repeat the

To stop recording, press step 1

STOP/ Ç

above

(Up to 8 CDs can be ripped consecutively)

To rip an audio CD track during playback

1

Use the navigation controls 3 or 4 and 2 to select a track.

2

Press RECORD .

➜ You will record and play the selected track.

from the beginning.

3

CD-Rec appears. Display shows the album name of the track being recorded.

To find your ripped tracks

After MP3 conversion is completed (the

ACTIVE indicator is off), you can find and playback the ripped tracks in Albums .

1

Select HD source

2

In Albums, use the navigation controls 3 or 4 and 2 to enter the album of recorded tracks.

– Only the completely ripped track can be found on Center’s harddisk.

– You will find the ripped CD tracks under

Raw tracks if they are to be compressed (MP3 conversion).

Importing from PC

The supplied PC Installer CD contains Digital

Media Manager (DMM) software. It will help you organize the music files on your PC and import them to WAC700 Center. For details, see DMM’s help file. Refer to the manual

Connect to your PC to learn how to install

DMM software.


– To switch off the sound output temporarily,

press MUTE.

Important!

– During the CD ripping/ MP3 conversion, the

ACTIVE indicator lights up green.

– While the ACTIVE indicator lights up green,

do not switch Center to ECO POWER (power-

saving mode) or remove its power plug.

STANDBY-ON

Recording from external source

A maximum of 3-hour recording can be made from the radio or external source.

1

In Radio mode, tune to the desired radio station (See Tuner, Tuning to radio stations ) or In AUX mode, start playback from the external source (see AUX )

2

Press RECORD .

➜

Recording starts

3

To stop recording, press STOP/ Ç .

➜

The recording is saved as a file under RADIO or AUX in Albums . A file name is given, e.g.

Radio_xx, or Aux_xx (where xx denotes a number)

To find your recording

1

Select HD source

2

In Albums, use the navigation controls 3 or 4 and 2 to enter AUX

WACS5_Eng/37 31 8/3/2005, 15:12

Display track information

1

During playback, press VIEW once or more to enter the playback screen

➜ The display shows:

on the top : HD in the middle : current track name, elapsed playing time and some track information at the bottom: equalizer setting and, if DBB is

activated, DBB setting.

2

Press 2

➜

The display shows track information (e.g.

track name, file type, file size, bit rate of mp3/ wma files)

3

Press VIEW once or more to return to the playback screen.

HD

Moving in your WiFi network of

Center and Stations

Up to 5 Stations can be to connected to

WA

C5

Center. Via Wi-Fi, music can move between

Center and Stations. Even in different places of your house, you and your family will enjoy and share music with ease.

MUSIC FOLLOWS ME

As you move around at home, let music move around you, between Center and Station or between Station and Station .

On the first unit (Center or Station), where music will leave:

1

During HD playback, select the album or playlist you wish to play on the second unit (see

Selecting and searching, Selecting a different album or track )

2

Press MUSIC FOLLOWS ME to activate

➜ The icon appears. Playback continues

●

To star t playback from the beginning on the second unit, first press ÉÅ on the Center’s remote control (or Å on the Station’s remote control, and then, press MUSIC FOLLOWS

ME

3

To deactivate MUSIC FOLLOWS ME , press

MUSIC FOLLOWS ME again or other functional keys (e.g. SLEEP , RDS/NEWS or 1 / 2 / 3 / 4 )

●

MUSIC FOLLOWS ME will be automatically deactivated if you do not activate MUSIC

FOLLOWS ME on the second unit within 5 minute

On the second unit (Center or Station), where music will continue

4

Check you have selected HD, CD or AUX source on the second unit or have switched the unit to standby mode (see Basic functions,

Switch on/to standby and selecting functions )

●

Check the blue indicator lights up

WACS5_Eng/37 32 8/3/2005, 15:12

HD

5

Press MUSIC FOLLOWS ME within 5 minutes after MUSIC FOLLOWS ME is activated on the first unit

➜

Selected music stops on the first unit and continues on the second unit. The icon disappears.

➜

Selected play modes (e.g. , )are retained on the second unit (see Different play modes: REPEAT, SHUFFLE )

6

To stop MUSIC FOLLOWS ME , press

STOP/ Ç on the second unit.

SMART EQ

SAME ARTIST

MUSIC BROADCAST

MUSIC BROADCAST allows you to broadcast music from Center to Station(s) .

On Station(s)

1

Check you have switched the Station(s) on or to standby mode (see Basic functions, Switch on/to standby and selecting functions)

2

Check the blue indicator lights up

On Center

3

During HD playback, select the album or playlist you wish to broadcast to Station(s)

4

Press MUSIC BROADCAST to activate

➜

The icon appears on Center and

Station(s). 5-second countdown starts.


After MUSIC FOLLOWS ME is activated on the second unit, on the first unit:

– make sure the first unit is switched on or to standby mode

– you can select other tracks or source for playback

➜

On Center and Station(s) : Selected music plays simultaneously several seconds after the 5-second countdown.

5

For a station to exit MUSIC BROADCAST , press STOP/ Ç on the Station

●

To broadcast music to the station again, you have to stop MUSIC BROADCAST on Center and then, activate MUSIC BROADCAST again on Center.

6

To stop MUSIC BROADCAST , press STOP/

Ç on the Center.

Helpful hints: MUSIC BROADCAST will also stop when:

– you switched Center to Standby or Eco power;

– the selected album or playlist has reached

the end.

WACS5_Eng/37 33 8/3/2005, 15:12

HD

Station management

Adding a station

You can add a station to an existing Wi-Fi network of Center and Station. Up to 5 stations can be connected to a WAC Center.

1

Switch on WAC5 Center and select HD source

2

To select Add New Station on Center a. Press MENU (on Center, press and hold

STOP ) b. Use the navigation controls

3 or

4 and

2

to

enter Station Mgnt menu c. In Station Mgnt menu, use the

navigation controls 3 or 4 and 2 to select

➜ You will enter the Installation Mode .

Searching for the new station starts.

➜

Playback stops on the previously associated

Station if you are playing the HD source

3

Connect the new station to power supply

➜

On the Center ‘s display shows the number of stations found

4

Press STOP/ Ç on the Center when all the stations are found

Viewing station status

1


2

To select Station Status on Center a. Press MENU .



navigation controls

3 or

4 and

2

to select

➜

On the Center ‘s display shows the list of stations connected or ever connected

3

Press 2 to view the connection information

Information about your WACS5

1

Switch on WAC5 Center (or WAS5 Station) and select HD source.

2

To select Information on Center or Station a. Press MENU .


enter Information menu

➜

The display shows: the name of Center or

Station, firmware version and free harddisk space

(for Center only)


– To change your setting of Wi-Fi connection, see the manual Connect to your PC .

Deleting a station

1


2

To select Delete Station on Center a. Press MENU .


enter Station Mgnt menu c. In Station Mgnt menu, use the navigation controls 3 or 4 and 2 to select

➜

On the Center ‘s display shows the list of connected stations

3

Press 3 or 4 and 2 to select the station you wish to delete

4

Press

3 or

4 and

2 to select Yes

Firmware

Upgrading firmware

The supplied PC Installer CD contains Digital

Media Manager (DMM) software. It will help you get the upgrades for WAC5 Center. For details, see DMM’s help file. Refer to the manual

Connect to your PC to learn how to install

DMM software.

Restoring previous firmware

After the Center’s firmware is upgraded, you can restore it to its previous version as desired.

1

In Center’s HD mode, press MENU .

2

Use the navigation controls 3 or 4 and 2 to enter Restore firmware menu.

3

Press

3 or

4 and

2

to select No or Yes .

WACS5_Eng/37 34 8/3/2005, 15:12

Re-establishing Wi-Fi connection

After upgrading or restoring the Center’s firmware, you need to re-establish the Wi-Fi connection between Center and Stations.

On the WAS5 Stations,

●

Enter Installation Mode by:

a. Remove the Station’s power plug and then,

connect it to the power supply again.

➜

“ Connecting to Center ” appears b. Press MENU or STOP to enter the

selection screen of Installation Mode and

Select Server

c. Use the navigation controls 3 or 4 and 2 to

select Installation Mode

On Center,

●

Select HD mode and then, enter Installation

Mode by: a. Press MENU .



navigation controls 3 or 4 and 2 to select

Add New Station

➜

Searching for Stations starts.

On Center,

●

Press STOP Ç to exit Installation

Mode when Center has found all the stations.

HD

WACS5_Eng/37 35 8/3/2005, 15:12

CD

Discs for playback

With this system, you can play

– all pre-recorded audio CDs (CDDA)

– all finalized audio CD-Rs and CD-RWs

(12cm CD and 8cm 185 or 200 MB CD)

– MP3WMA-CDs (CD-Rs/CD-RWs with MP3/

WMA files)

IMPORTANT!

– Make sure that the file names of MP3 files end with .mp3.

– For DRM protected WMA files, use

Windows Media Player 10 (or later) for

CD burning/conversion. Visit www.

microsoft.com for details about Windows

Media Player and WM DRM (Windows

Media Digital Rights Management).

IMPORTANT!

– This system is designed for regular discs. Therefore, do not use any accessories such as disc stabilizer rings or disc treatment sheets, etc.

Playing discs

1

Check the Center is switched on or to standby

(See Basic functions, Switching on/to standby and selecting functions,


2

Insert a CD/CD-R(W) into Center’s CD slot load, with the printed side facing up.

●

Make sure you have removed other disc from the loader.

About MP3/ WMA

The music compression technology MP3

(MPEG1 Audio Layer 3) and WMA (Windows

Media Audio) significantly reduces the digital data of an audio CD while maintaining CD quality sound.

Windows Media Audio® is a registered trademark of Microsoft Corporation.

CD

(RW) i n t e d

S i d e

Supported formats:

– Disc format ISO9660, Joliet, UDF (created on

Adaptec Direct CD v5.0 and Nero Burning

ROM UDF v5.5) and multi-session CDs

– MP3 bit rate (data rate): 32-320 Kbps and variable bit rate.

– 12-cm 650Mb and 700Mb CD-R/ CD-RWs

– Directory nesting up to a maximum of 8 levels

– WMA v7 or earlier (max. 192Kbps cbr)

The system will not play or support the following:

• Empty albums: an empty album is an album that does not contain MP3/WMA files, and will not be shown in the display.

• Non-supported file formats are skipped. This means that e.g.: Word documents .doc or MP3 files with extension .dlf are ignored and will not be played.

• DRM protected WMA files

• WMA files in Lossless or VBR format

➜

Reading CD is displayed as the player scans the contents of a disc.

➜ Audio CD: the list of tracks appears (track information appears if it is available after the lookup of Gracenote Music Recognition Service database)

➜

MP3/WMA: the list of albums appears


– “ Others ” is shown as an album, if you have not organized your MP3/WMA files into any albums on your disc.

– “ CDDA ” is an album for audio CD tracks if the disc contains both CD Audio tracks and MP3/WMA files.

– “ All tracks ” is shown as an album for MP3/

WMA CD

WACS5_Eng/37 36 8/3/2005, 15:12

CD

3

Press once or more the navigation controls 3 or 4 and 2 to select a track

4

Press 2 (or OK ) to start playback, if necessary.

●

MP3/WMA: Press OK on a highlighted album to start playback of the album (or ÉÅ on

Center’s remote control; the Play key É on


●

MP3/WMA: Press OK on the highlighted album All tracks to start playback of all the tracks on the disc (or ÉÅ on Center’s remote control; the Play key É on Station’s remote control)

5

To pause playback, press OK.

(or ÉÅ on

Center’s remote control; Å on the Station’s remote control). To resume playback, press the button again.

6

To stop playback, press STOP Ç .

7

To remove the disc, press EJECT on Center

Selecting and searching

Selecting a different album/track

1

If necessary, repeatedly press 1 to enter previous option lists

2

Repeatedly press the navigation controls 3 or

4 and 2 to select the desired album or track.

3

Press VIEW to return to the playback screen, if necessary.

Using the fast skip 3 or 4

Use this function to find an option (e.g. an album or a track) in a long option list.

●

Press and hold the navigation controls

3 or

4 in the long option list.

➜

You will skip the options faster and faster

➜

At the high speed skip, the initial letter of current options appears for easy identification.

Finding a passage within a track during playback

1

In the playback screen, press and hold the navigation controls

3 or

4

(or 4 or ¢ on Center’s remote control; à / á on


➜ The CD plays at a high speed.

2

When you recognize the passage you want, release

4 or

¢

(or à / á on Station’s remote control)

➜

Normal playback resumes.

To select a different track (in current album) during playback

●

In the playback screen, briefly and repeatedly press the navigation controls 3 or 4 to select previous or next tracks (or

4 or

¢

on

Center’s remote control;

O

,

P

on Station’s remote control)

WACS5_Eng/37 37 8/3/2005, 15:12

CD

Different play modes: REPEAT,

SHUFFLE

– plays the current track continuously

– repeats all the tracks (under current album )

– repeats all the tracks (under current

album) in random order

– tracks (under current album) are played

in random order

1

During playback, press once or more REPEAT or/ and SHUFFLE to select play modes.

2

To return to normal playback, press REPEAT or

SHUFFLE repeatedly until the various modes are no longer displayed.

Display track information

1

During playback, press VIEW once or more to enter the playback screen

➜

The display shows:

on the top : CD in the middle : current track name, elapsed playing time and some track information at the bottom: equalizer setting and, if DBB is

activated, DBB setting.

2

Press 2

➜

The display shows track information (e.g.

track name, file type, file size, bit rate of mp3/ wma files)

3

Press VIEW once or more to return to the playback screen.

SAME ARTIST

WACS5_Eng/37 38 8/3/2005, 15:13

AUX/ UPnP/SLEEP

AUX (Listening to an external source, on Center only)

You can listen to the sound of the connected external device through your WAC5 Center.

1

Check the external device has been properly connected (See Installation, Connecting an additional appliance )

2

Check the WAC5 Center has been properly connected to an additional appliance with powerful speakers (See Installation,

Connecting an additional appliance )

3

Check the WAC5 Center is switched on or to standby (See Basic functions, Switching on/ to standby and selecting functions,


4

Press SOURCE once or more to select AUX

(on the remote control, press TUNER/AUX

once or more)

5

Press the PLAY key on the connected device to start playback.

6

To adjust the sound and volume, use the sound controls on your external device.

UPnP (on Station only)

After connecting your WAS5 to an existing network, you can set up a UPnP* server in the network. Play from your WAS5 stations the music collection either on the Center or on the

UPnP server.

* Univeral Plug and Play (UPnPTM) builds on standard networking technologies and provides standardized protocols for a wide variety of home and small business devices. It allows easy interoperability of all the devices supporting the the networking technologies.

Requirements for the UPnP server:

●

The UPnP device has been connected to the same network as WAS5.

●

UPnP server software is installed (e.g. P hilips

M edia M anager, Musicmatch® ) and the UPnP server function is enabled.

To connect a UPnP server

If the WAS5 Station is now connected to

Center,

1

Check the Center is switched on or to standby mode

2

Check your UPnP-enabled PC is switched on

3

Switch on the Station

4

To select Select Server on Station a. On the remote control, press MENU .

b. Use the navigation controls

3 or

4 and

2

to

select

➜ On the Station ‘s display shows the list of servers connected

➜

Server not found appears if there is no

UPnP ser ver in the network

5

Use the navigation controls 3 or 4 and 2 to

select your desired server

➜

On the Station ‘s display shows PC’s music as

it does on PC

If the WAS5 Station has ever been connected to Center, but is now disconnected from Center

1

Connect WAS5 to the power supply

➜ Display shows: “ Connecting to Center...

”

2

To connect to a UPnP server, press MENU or

STOP on the remote control

➜ Display shows the selection screen of

Installation Mode or Select Server

WACS5_Eng/37 39 8/3/2005, 15:13

AUX/ UPnP/SLEEP

3


3 or

4 and

2

to select Select Server

➜

On the Station ‘s display shows the list of servers connected

➜

Server not found appears if there is no

UPnP server in the network

If the WAS5 Station has never connected to

Center or server,

1

Check your UPnP-enabled PC is switched on

2

Connect WAS5 to the power supply

➜

On the Station ‘s display shows music stored

on PC

SLEEP

You can set a certain period of time after which the Center or Station will switch to standby.

To play music on a UPnP server

1

Check the WAS5 Station is switched on or standby mode

2

Check the WAS5 Station is connected to a

UPnP server

➜ On the Station ‘s display shows PC’s music as

it does on PC


– On WAS5’s UPnP mode, MUSIC FOLLOWS

ME and MUSIC BROADCAST are disabled.

1

On the remote control, press SLEEP repeatedly to select the desired time period options (in minutes):

➜

Display shows in sequence: Sleep 15, 30,

45, 60, 90, 120, Off

➜ Display shows the selected option briefly and returns to its previous status. The icon Z

Z appears.

2

To view the time countdown to the standby mode, press SLEEP again.

To deactivate the sleep timer , press

SLEEP until Sleep Off is displayed.

or

Press STANDBY-ON / ECO POWER to switch the set to standby (or y on the remote control)

SMART EQ

SAME ARTIST

WACS5_Eng/37 40 8/3/2005, 15:13

Reset

Reset

If desired, you can restore your Center or Station to their default setting (including the network setting).

1

Check the set is switched on (See Basic functions, Switching on/to standby and selecting functions, Switching to Eco power/ on )

2


3


3 or

4 and

2 to enter Settings

4


3 or

4 and

2 to enter Restore settings

5

Press 3 or 4 and 2 to select Yes

➜

The set is rebooted. Language selection screen appears.

6

Select your desired language: English, French,

Spanish, Dutch, Italian and German

➜

The set enters Installation Mode.

➜ The search for Center or Stations starts. The

Wi-Fi connection is being re-established.

If both Center and Stations are reset:

●

Do as you did in the first-time Wi-Fi connection

(see Installation, Set up Wi-Fi connection between Center and Station )

7

On Center, press STOP Ç to exit Installation

Mode when all the Stations are found


– To change your network settings, you need to reset your WA C5 Center (see Connect your PC,

Custom Installation ).

If the Center is reset and Stations are not reset:

●

On the Stations, enter Installation Mode by:

a. Remove the Station’s power plug and then,

connect it to the power supply again.

➜

“ Connecting to Center ” appears b. Press MENU or STOP to enter the selection

screen of Installation Mode and Select

Server

c. Use the navigation controls 3 or 4 and 2 to

select Installation Mode

If a Station is reset and the Center is not:

● On the Center, select HD mode and then, enter

Installation Mode by: a. Press MENU .

b. Use the navigation controls

3 or

4 and

2

to


navigation controls

3 or

4 and

2

to select

Add New Station

➜ Searching for Stations starts.

WACS5_Eng/37 41 8/3/2005, 15:13

Specifications

WACS5_Eng/37 42 8/3/2005, 15:13

Troubleshooting

WARNING

Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.

If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or

Philips for help.

Problem

Wi-Fi connection:

Solution

During the first-time setup, Station’s display shows “Searching for Center”.

✔

✔

✔

Check you have placed the Center and Station side by side on a flat and firm surface

Check you have connected the Center to power supply

When adding a new station, check your center is in Installation mode (See HD , Station management )

I get interference on my wireless (WiFi) link between center and station.

The WA CS 5 operate in the 2.4GHz radio frequency spectrum. Many other household/IT devices also operate in the frequency spectrum, for example: microwave ovens, Dect phones, bluetooth devices like bluetooth headphones, computer mouse, wireless routers, cordless phones, WiFi compatible printers, PDAs.

These devices can interfere with the WiFi link between Center and Station, resulting in such interference as the pause during playback , the set’s slow response to your operation. The severity of interference varies depending on the extent of radiation from the device and the strength of Wi-Fi signals in the position.

✔

✔

✔

✔

✔

If you are playing the set, stop playback and take the appropriate measures as follows:

Keep the Center or Station at least 3 meters away from such devices.

Use the WEP key when connecting your

Center and Station to an existing wireless PC network. See the manual Connect to your PC.

Change the operating channel of your Center and Station when connecting them to an existing wireless PC network. To learn about how to change channels, see the manual Connect to your PC.

If possible, change the operating channels of the other Wi-Fi devices at your home.

Turn the devices in different directions to

minimize interference.

Remote control:

When I am using the Center’s 2-way remote control, it starts to show

"connecting ....connecting" on the display endlessly.

When you read this message on the 2-way remote control, there could be the following interference on your remote control:

1) interference signals from the Plasma TV screen

(if this device is turned on);

2) conflicting IR signals from a nearby WAS5

Station

✔

✔

Check your plasma TV is turned off

Check you have placed two IR operated devices

( Station) in separate rooms wherever possible.

WACS5_Eng/37 43 8/3/2005, 15:13

Troubleshooting

Stations react when you operate

Center’s remote control

✔

✔

Center’s remote control is powerful enough to operate several Stations within certain distance or angle. Check you have placed the Stations in different rooms or place Stations in different angles

Use Station’s remote control or the controls on the set.

x flashes on the sychro display of Center’s remote control

✔ Signal error. Check you have pointed the remote control toward the IR area of the set you wish to operate

After the set is switched on, nothing appears on the sychro display of Center’s remote control

✔ You switched on the set by using the control on the set instead of center’s remote control.

Press REFRESH on center’s remote control to synchronize its display.

The remote control does not function properly.

✔

✔

✔

✔

✔

Remove the protective plastic tab before using the Station’s remote control.

Reduce the distance between the remote control and the set.

Insert the batteries with their polarities

(+/– signs) aligned as indicated.

Replace the batteries.

Point the remote control directly towards the IR sensor.

CD

“No Disc”/ “Cannot read CD” is displayed

Sound cannot be heard or is of poor quality.

✔

✔

✔

✔

✔

Insert a suitable disc.

Check if the disc is inserted with graphics facing front

Wait until the moisture condensation at the lens has cleared.

Replace or clean the disc, see “Maintenance”.

Use a finalized CD-RW or CD-R.

✔

✔

✔

Adjust the volume.

Disconnect the headphones.

Switch off MUTE.

The disc skips tracks

Sound skips during MP3/WMA playback

✔

✔

Replace or clean disc

Switch off SHUFFLE

✔

✔

MP3 file made at compression level exceeding

320kbps. Use a lower compression level to rip audio CD tracks.

Replace or clean disc.

WACS5_Eng/37 44 8/3/2005, 15:13

PHILIPS LIMITED WARRANTY

One (1) Year Labor and Parts Repair (Facility)

PHILIPS CONSUMER ELECTRONICS warrants this product against defect in material or workmanship, subject to any conditions set forth as follows:

PROOF OF PURCHASE:

You must have proof of the date of purchase to receive warranted repair on the product. A sales receipt or other document showing the product and the date that you purchased the product as well as the authorized retailer included, is considered such proof.

SHIP-IN WARRANTY

For Ship-In warranty repair, ship the product to a Philips authorized service facility for repair in its original carton and packing material. If you do not have the original carton or packing material, have your product professionally packed for shipping. Ship product via a traceable carrier.When it is necessary for you to ship the product to Philips for repair, you will pay the shipping cost for shipment to Philips. Philips will pay the shipping costs when returning the product to you.

COVERAGE:

(If this product is determined to be defective)

TO OBTAIN WARRANTY SERVICE IN THE U.S.A.,

PUERTO RICO, OR U.S.VIRGIN ISLANDS…

Contact Philips Customer Care Center at:

1-888-PHILIPS (1-888-744-5477)

LABOR: For a period of one (1) year from the date of purchase,

Philips will repair or replace the product, at its option, at no charge, or pay the labor charges to the Philips authorized repair facility (see warranty service phone numbers in next column).

After the period of one (1) year, Philips will no longer be responsible for charges incurred.

TO OBTAIN WARRANTY SERVICE IN CANADA…

1-800-661-6162 (French Speaking)

1-888-PHILIPS (1-888-744-5477) (English or Spanish

Speaking)

PARTS: For a period of one (1) year from the date of purchase,

Philips will supply, at no charge, new or rebuilt replacement parts in exchange for defective parts. Philips authorized repair facility will provide removal and installation of the part under the specified labor warranty.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS

WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CON-

SUMER. PHILIPS SHALL NOT BE LIABLE FOR ANY INCIDEN-

TAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF

ANY EXPRESS OR IMPLIED WARRANTY ON THIS PROD-

UCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE

LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT

IS LIMITED IN DURATION TO THE DURATION OF THIS

WARRANTY.

EXCLUDED FROM WARRANTY COVERAGE

Your warranty does not cover:

• Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• Product repair and/or part replacement because of improper installation, connections to improper voltage supply, abuse, neglect, misuse, accident, unauthorized repair or other cause not within the control of Philips.

• A product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• Damage occurring to product during shipping when improperly packaged or cost associated with packaging.

• Product lost in shipment and no signature verification of receipt can be provided.

• A product used for commercial or institutional purposes

(including but not limited to rental purposes).

• Products sold AS IS or RENEWED.

Some states do not allow the exclusions or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. In addition, if you enter into a service contract agreement with the PHILIPS partnership within ninety (90) days of the date of sale, the limitation on how long an implied warranty lasts does not apply.

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

Philips, P.O. Box 671539, Marietta, GA. 30006-0026

(Warranty: 4835 710 27100)

WACS5_Eng/37 45 8/3/2005, 15:13

End-User License Agreement USE OF THIS PRODUCT IMPLIES ACCEPTANCE OF

THE TERMS BELOW.

This product contains technology and data from Gracenote of Emeryville, California (“Gracenote”). The technology from Gracenote (the “Gracenote Embedded Software”) enables this product to do disc identification and obtain music-related information, including name, artist, track, and title information

(“Gracenote Data”), which is included on the Gracenote Database (the “Gracenote Database”).

You agree that you will use Gracenote Data, the Gracenote Database, and Embedded Software for your own personal non-commercial use only. You agree that you will access Gracenote Data only by means of the standard end user functions and features of this product. You agree not to assign, copy, transfer or transmit the Embedded Software or any Gracenote Data to any third party. YOU AGREE NOT TO USE

OR EXPLOIT GRACENOTE DATA, THE GRACENOTE DATABASE, OR GRACENOTE COMPONENT,

EXCEPT AS EXPRESSLY PERMITTED HEREIN.

You agree that your non-exclusive license to use the Gracenote Data, the Gracenote Database, and

Embedded Software will terminate if you violate these restrictions. If your license terminates, you agree to cease any and all use of the Gracenote Data, the Gracenote Database, and Gracenote Embedded

Software. Gracenote reserves all rights in the Gracenote Data, Gracenote Database, and Gracenote

Embedded Software, including all ownership rights. You agree that Gracenote may enforce its rights under this Agreement against you directly in its own name.

The Embedded Software and each item of Gracenote Data are licensed to you “AS IS.” Gracenote makes no representations or warranties, express or implied, regarding the accuracy of any Gracenote Data.

Gracenote reserves the right to delete data or to change data categories in any Data updates and for any cause that Gracenote deems sufficient. No warranty is made that the Embedded Software is error-free or that functioning of the Embedded Software will be uninterrupted. Gracenote is not obligated to provide you with any new enhanced or additional data types or categories that Gracenote may choose to provide in the future.

GRACENOTE DISCLAIMS ALL WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT

LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE, TITLE, AND NON-INFRINGEMENT. GRACENOTE DOES NOT WARRANT THE RESULTS

THAT WILL BE OBTAINED BY YOUR USE OF THE GRACENOTE COMPONENT OR ANY

GRACENOTE SERVER. IN NO CASE WILL GRACENOTE BE LIABLE FOR ANY CONSEQUENTIAL

OR INCIDENTAL DAMAGES OR FOR ANY LOST PROFITS OR LOST REVENUES.

Rev 2.1

WACS5_Eng/37 46 8/3/2005, 15:13

No results
