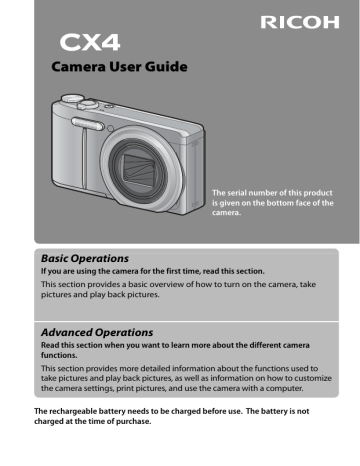

Ricoh CX4 Camera User Guide

Camera User Guide

The serial number of this product is given on the bottom face of the camera.

Basic Operations

If you are using the camera for the first time, read this section.

This section provides a basic overview of how to turn on the camera, take pictures and play back pictures.

Advanced Operations

Read this section when you want to learn more about the different camera functions.

This section provides more detailed information about the functions used to take pictures and play back pictures, as well as information on how to customize the camera settings, print pictures, and use the camera with a computer.

The rechargeable battery needs to be charged before use. The battery is not charged at the time of purchase.

Preface

This manual provides information on how to use the shooting and playback functions of this product, as well as warnings on its use.

To make the best use of this product’s functions, read this manual thoroughly before use. Please keep this manual handy for ease of reference.

Safety Precautions

Test Shooting

Copyright

Exemption from Liability

Ricoh Co., Ltd.

Read all safety precautions thoroughly to ensure safe use.

Please be sure to do some test shooting to make sure it is recording properly before normal use.

Reproduction or alteration of copyrighted documents, magazines, music and other materials, other than for personal, home or similarly limited purposes, without the consent of the copyright holder is prohibited.

Ricoh Co., Ltd. assumes no liability for failure to record or play back images caused by malfunction of this product.

Warranty This product is manufactured to local specifications and the warranty is valid within the country of purchase. Should the product fail or malfunction while you are abroad, the manufacturer assumes no responsibility for servicing the product locally or bearing the expenditure incurred thereof.

Radio Interference Operating this product in the vicinity of other electronic equipment may adversely affect the performance of both devices. In particular, operating the camera close to a radio or television may lead to interference. If interference occurs, follow the procedures below.

• Move the camera as far away as possible from the TV, radio or other device.

• Reorient the TV or radio antenna.

• Plug the devices into separate electrical outlets.

© 2010 RICOH CO., LTD. All rights reserved. This publication may not be reproduced in whole or in part without Ricoh’s express written permission. Ricoh reserves the right to change the contents of this document at any time without prior notice.

Every effort has been made to ensure the accuracy of the information in this document. Should you nevertheless notice any errors or omissions, we would be grateful if you would notify us at the address listed on the back cover of this booklet.

Microsoft, Windows, Windows Vista, Windows 7™, and Internet Explorer are registered trademarks of

Microsoft Corporation in the United States of America and other countries. Macintosh and Mac OS are registered trademarks of Apple Inc. in the United States of America and other countries. Adobe, the Adobe logo, and Adobe Reader are trademarks of Adobe Systems Incorporated in the United States and other countries. MediaBrowser is a trademark of Pixela Corporation. All other trade names mentioned in this document are the property of their respective owners.

1

2

Safety Precautions

Warning Symbols

Various symbols are used throughout this instruction manual and on the product to prevent physical harm to you or other people and damage to property. The symbols and their meanings are explained below.

Danger

Warning

Caution

This symbol indicates matters that may lead to imminent risk of death or serious injury if ignored or incorrectly handled.

This symbol indicates matters that may lead to death or serious injury if ignored or incorrectly handled.

This symbol indicates matters that may lead to injury or physical damage if ignored or incorrectly handled.

Sample Warnings

The symbol alerts you to actions that must be performed.

The symbol alerts you to prohibited actions.

The symbol may be combined with other symbols to indicate that a specific action is prohibited.

● Examples

Do not touch Do not disassemble

Observe the following precautions to ensure safe use of this equipment.

Danger

● Do not attempt to disassemble, repair or alter the equipment yourself. The highvoltage circuitry in the equipment poses significant electrical hazard.

● Do not attempt to disassemble, alter or directly solder the battery.

● Do not put the battery in a fire, attempt to heat it, use it in a high temperature environment such as next to a fire or inside a car, or abandon it. Do not put it into water or the sea or allow it to get wet.

● Do not attempt to pierce, hit, compress, drop, or subject the battery to any other severe impact or force.

● Do not use a battery that is significantly damaged or deformed.

Warning

● Turn off the power immediately in the event of abnormalities such as smoke or unusual odors being emitted. Remove the battery as soon as possible, being careful to avoid electric shocks or burns. If you are drawing power from a household electrical outlet, be sure to unplug the power cord from the outlet to avoid fire or electrical hazards. Discontinue use of the equipment immediately if it is malfunctioning. Contact the nearest service center at your earliest convenience.

● Turn off the power immediately if any metallic object, water, liquid or other foreign object gets into the camera. Remove the battery and memory card as soon as possible, being careful to avoid electric shocks or burns. If you are drawing power from a household electrical outlet, be sure to unplug the power cord from the outlet to avoid fire or electrical hazards. Discontinue use of the equipment immediately if it is malfunctioning. Contact the nearest service center at your earliest convenience.

● Avoid any contact with the liquid crystal inside the picture display, should the monitor be damaged. Follow the appropriate emergency measures below.

• SKIN: If any of the liquid crystal gets on your skin, wipe it off and rinse the affected area thoroughly with water, then wash well with soap.

• EYES: If it gets in your eyes, wash your eyes with clean water for at least 15 minutes and seek medical advice immediately.

• INGESTION: If any of the liquid crystal is ingested, rinse the mouth out thoroughly with water. Have the person drink a large amount of water and induce vomiting.

Seek medical assistance immediately.

● Follow these precautions to prevent the battery from leaking, overheating, igniting or exploding.

• Do not use a battery other than those specifically recommended for the equipment.

• Do not carry or store together with metal objects such as ballpoint pens, necklaces, coins, hairpins, etc.

• Do not put the battery into a microwave or high pressure container.

• If leakage of battery fluid or a strange odor, color change, etc. is noticed during use or during charging, remove the battery from the camera or battery charger immediately and keep it away from fire.

● Please observe the following in order to prevent fire, electrical shock or cracking of the battery while charging.

• Use only the indicated power supply voltage. Also avoid the use of multi-socket adapters and extension cords.

• Do not damage, bundle or alter power cords. Also, do not place heavy objects on, stretch or bend power cords.

• Do not connect or disconnect the power plug with wet hands. Always grip the plug section when disconnecting a power cord.

• Do not cover equipment while charging.

● Keep the battery and SD memory card used in this equipment out of the reach of children to prevent accidental ingestion. Consumption is harmful to human beings. If swallowed, seek medical assistance immediately.

3

4

● Keep the equipment out of the reach of children.

● Do not touch the internal components of the equipment if they become exposed as a result of being dropped or damaged. The high-voltage circuitry in the equipment could lead to an electric shock. Remove the battery as soon as possible, being careful to avoid electric shocks or burns. Take the equipment to your nearest dealer or service center if it is damaged.

● Do not use the equipment in wet areas as this could result in fire or electric shock.

● Do not use the equipment near flammable gases, gasoline, benzene, thinner or similar substances to avoid the risk of explosion, fire or burns.

● Do not use the equipment in locations where usage is restricted or prohibited as this may lead to disasters or accidents.

● Wipe off any dust that accumulates on the electrical plug as this may lead to fire.

● Use only the specified AC adapter in household electrical outlets. Other adapters pose the risk of fire, electric shock or injury.

● To avoid the risk of fire, electric shock or injury, do not use the battery charger or

AC adapter with commercially available electronic transformers when traveling abroad.

Observe the following precautions to ensure safe use of this unit.

Caution

● Contact with fluid leaking from a battery can lead to burns. If part of your body comes in contact with a damaged battery, rinse the area with water immediately.

(Do not use soap.)

If a battery starts to leak, remove it immediately from the equipment and wipe the battery chamber thoroughly before replacing it with a new battery.

● Plug the power cords securely into the electrical outlets. Loose cords pose a fire hazard.

● Do not allow the camera to get wet. In addition, do not operate it with wet hands. Both pose the risk of electric shock.

● Do not fire the flash at drivers of vehicles, as this may cause the driver to lose control and result in a traffic accident.

Safety Precautions for Accessories

When using optional products, carefully read the instructions provided with the product before using that product.

Using the Manuals

The following two manuals are included with your CX4.

“Camera User Guide” (This booklet)

This guide explains the usage and functions of the camera.

It also explains how to install the provided software on your computer.

“Software User Guide” (PDF file)

The “Software User Guide” is available in the following folders on the provided CD-ROM.

This guide explains how to download images from the camera to your computer.

Each language has its own

“Software User Guide” in the respective folder.

To copy the User Guide onto your hard disk, copy the PDF file from the respective folder directly to your hard disk.

“MediaBrowser” image viewing and editing software (for Windows only) is also included with the camera. For how to use MediaBrowser, see the displayed “Help”.

For more information on MediaBrowser, contact the Customer Support

Center below.

North America (U.S.) TEL: (Toll Free) +1-800-458-4029

Europe

UK, Germany, France and Spain: TEL: (Toll Free) +800-1532-4865

Other Countries: TEL: +44-1489-564-764

Business hours: 9:00 AM to 5:00 PM

5

Quick Q & A Index

5

: See these pages for information on camera settings

: See these pages for explanations of camera features

First Steps

How do I set the clock?

Setting the clock 5 P.26, 98; P.102

How do I charge the battery?

Charging the battery 5 P.23

How do I format internal memory or a memory card?

Formatting

5

P.22, 98; P.99

6

5

Taking Photographs

“Point-and-Shoot” Photography

Can the camera choose settings automatically?

Auto shooting mode

5

P.27

Can the camera match settings to the scene?

Scene mode

5

P.54; P.52

Preventing Blur

Can focus track moving subjects?

Subject tracking AF 5 P.71; P.73, 78

Can focus respond to subject movement?

Pre-AF 5 P.71; P.73

Creative Photography

How do I shoot close-ups?

Macro mode

5

P.30

How do I shoot high-contrast scenes?

Dynamic range double shot

5 P.62; P.61, 63

How do I create a soft focus effect?

Soft focus 5 P.62; P.61

Can I take shots that look like photos taken with a toy camera?

Toy camera 5 P.62; P.61

Can the camera automatically identify the scene?

Scene auto mode

5

P.33

How do I prevent blur caused by camera shake?

Camera Shake Correction

5

P.71; P.76

How do I prevent blur at slow shutter speeds?

ISO setting 5 P.71; P.77, 84

Can I take shots that look like pictures of miniatures?

Miniaturize 5 P.62; P.61, 64

Can I take high-contrast photos in black and white?

High contrast B&W 5 P.62; P.61

How do I make creative use of color?

Cross process 5 P.62; P.61

Advanced Settings

How do I take photos at different sizes?

Picture quality/size

5

P.71; P.72

How do I take monochrome photos?

Image settings

5

P.71; P.74

How do I reduce image noise?

Noise reduction 5 P.71; P.74

How do I stamp the date on photos?

Date imprint 5 P.71; P.77

3

Movies

How do I shoot movies?

Movie mode 5 P.66

6

Playback

Can I create resized copies of photos?

Resize 5 P.85; P.86

How do I delete unwanted photos?

Deleting files 5 P.37

How do I view slide shows?

Slide shows

5

P.85; P.87

How do I adjust exposure?

Exposure compensation

5

P.71; P.77, 82

How do I compensate for colored light sources?

White balance 5 P.71; P.77, 83

Can I take several photos in one burst?

Continuous mode 5 P.58; P.57

How do I view movies?

Viewing movies 5 P.67

Can I protect images from accidental deletion?

Protect 5 P.85, 95; P.86

Can I view my pictures on a TV?

Viewing pictures on TV P.97

Miscellaneous

How do I keep the flash from firing?

Using the flash 5 P.31

How do I keep the beep from sounding?

Volume settings

5

P.98; P.100

Can I copy my pictures to a computer?

Downloading images P.109

Can I print images without a computer?

Direct printing P.105

7

8

Contents

Safety Precautions ................................................................................................ 2

Using the Manuals ................................................................................................ 5

Quick Q & A Index .................................................................................................. 6

Contents ................................................................................................................... 8

Basic Operations 13

Packing List ...........................................................................................................14

Optional Accessories ................................................................................................................. 14

How to Use the Mode Dial ...............................................................................15

Names of Parts .....................................................................................................16

Picture Display .....................................................................................................18

Getting Ready ......................................................................................................21

About the Battery ........................................................................................................................ 21

About the SD Memory Card (available in stores) .................................................... 22

Charging the Rechargeable Battery................................................................................. 23

Loading the Rechargeable Battery and SD Memory Card ................................. 24

Turning the Power On/Off ..................................................................................................... 25

Setting the Language, Date and Time ........................................................................... 25

Basic Shooting .....................................................................................................27

Shooting in Auto Shooting Mode (Focus and Shoot) .......................................... 27

Using the Zoom Function ...................................................................................................... 29

Shooting Close-Ups (Macro Shooting) .......................................................................... 30

Using the Flash .............................................................................................................................. 31

Using the Self-timer ................................................................................................................... 32

Shooting in Scene Auto Mode ............................................................................................ 33

Playing Back Images ..........................................................................................34

Viewing Your Images ................................................................................................................. 34

Thumbnail View ............................................................................................................................ 34

Enlarging Images ......................................................................................................................... 36

Deleting Files ........................................................................................................37

Deleting a File or All Files ........................................................................................................ 37

Deleting Multiple Files.............................................................................................................. 38

Changing the Display with the DISP. Button .............................................40

About the Electronic Level .................................................................................................... 42

About the Histogram Display .............................................................................................. 44

Advanced Operations 45

1

ADJ. Button Functions 46

Selecting Shooting Menu Options Assigned to the ADJ./OK Button ......... 46

Shifting the AE and AF Targets ............................................................................................ 47

2

Using the Fn (Function) Button 48

Assigning a Role to the Fn Button .................................................................................... 49

Shifting the AF Target for Macro Shooting .................................................................. 49

Locking the Exposure ............................................................................................................... 50

Choosing a Focus Setting ...................................................................................................... 51

3

Shooting Mode Types 52

Scene Mode ( W ) ..........................................................................................52

Selecting a Scene Mode ......................................................................................................... 54

Using Skew Correction Mode .............................................................................................. 55

Continuous Mode (

R

) .....................................................................................57

Taking Pictures in Continuous Mode .............................................................................. 58

M-Cont Plus (10M) ...................................................................................................................... 59

M-Cont Plus (2M) ......................................................................................................................... 60

Speed Cont (Low)/Speed Cont (High) ........................................................................... 60

Creative Shooting Mode ( X ) .........................................................................61

Taking Pictures in Creative Shooting Mode ................................................................ 62

Dynamic Range Double Shot .............................................................................................. 63

Shooting in Miniaturization Mode ................................................................................... 64

Plus Normal Shooting ............................................................................................................... 65

Movie Mode (

3

) ................................................................................................66

Shooting Movies .......................................................................................................................... 66

4

Playback Functions 67

Playing Back Movies ...........................................................................................67

Playing Back MP Files .........................................................................................67

Exporting MP Files ...................................................................................................................... 69

5

Shooting Menu 71

Using the Menu ...................................................................................................71

Shooting Menu Options ...................................................................................72

Dynamic Range Expansion: Dynamic Range Expansion Effects ..................................... 72

Soft Focus Options: Adjusting Softening ............................................................................. 72

Hue: Adjusting the Hue of Cross-Processed Images ....................................................................... 72

Vignetting: Adjusting Vignetting ................................................................................................ 72

Toy Color: Adjusting Color Saturation ......................................................................................... 72

Plus Normal Shooting: Recording Un-enhanced Copies of Enhanced Photographs .......... 72

9

10

Picture Quality/Size: Choosing Size and Compression Options for Photographs ................. 72

Movie Size: Choosing a Frame Size for Movies ........................................................................... 72

Density: Adjusting Contrast in Text Mode .................................................................................... 72

Size: Choosing the Size of Photographs Taken in Text Mode ........................................................... 72

Focus: Choosing How the Camera Focuses ................................................................................... 73

Pre-AF: Improving Shutter Response ............................................................................................ 73

Exposure Metering: Choosing How the Camera Sets Exposure ............................................ 74

Image Settings: Adjusting Contrast, Sharpness, Color, and Vividness ..................................... 74

Noise Reduction: Controlling Image “Noise” .......................................................................... 74

Flash Exposure Compensation: Adjusting Flash Level .................................................. 75

Auto Bracket: Varying Settings over a Series of Photographs ................................................... 75

Time Exposure: Creating Light Trails ........................................................................................ 75

Custom Self-Timer: Taking a Series of Pictures with the Self-Timer ..................................... 75

Interval Shooting: Interval Timer Photography ..................................................................... 76

Camera Shake Correction: Reducing Blur Caused by Camera Shake ............................... 76

Slow Shutter Limit: Choosing the Slowest Available Shutter Speed ..................................... 77

Date Imprint: Imprinting the Time and Date of Recording on Photographs ................................ 77

Exposure Compensation: Adjusting Exposure .................................................................. 77

White Balance: Adjusting Colors According to the Light Source .............................................. 77

ISO Setting: Controlling the Camera’s Sensitivity to Light .......................................................... 77

Maximum ISO for ISO Auto: Choosing an Upper Limit for Auto ISO Sensitivity .............. 77

Restore Defaults: Restoring Default Shooting Menu Settings ................................................ 77

Focus ................................................................................................................................................... 78

Subject Tracking AF: Tracking a Selected Subject ................................................................ 78

Multi-Target AF: Varying the Focus Position over a Series of Photographs ............................. 78

Manual Focus (MF): Focusing Manually ............................................................................... 79

Auto Bracketing ............................................................................................................................ 80

Auto Bracket: Varying Exposure over a Series of Photographs ................................................. 80

White Balance Bracketing (WB-BKT): Creating Photographs with Varying White

Balance ........................................................................................................................................ 80

Color Bracketing (CL-BKT): Creating Photographs with Varying Color Settings ............... 81

Focus Bracketing (FOCUS-BKT): Varying Focus Distance over a Series of Photographs .....81

Exposure Compensation ........................................................................................................ 82

White Balance ................................................................................................................................ 83

Manual: Measuring White Balance .............................................................................................. 84

ISO Setting: ISO Sensitivity .............................................................................................................. 84

6

Playback Menu 85

Using the Menu ...................................................................................................85

Playback Menu Options ....................................................................................86

Flag Function Setting: Flagging Images ............................................................................. 86

Flag Function Display: Viewing Flagged Images ................................................................ 86

Export Still Images: Exporting Selected Images from an MP File ......................................... 86

Resize: Creating Small Copies of Images ....................................................................................... 86

Trim: Creating Cropped Copies ....................................................................................................... 86

Level Compensation: Creating Copies with Modified Brightness and Contrast .................. 86

White Balance Compensation: Creating Copies with Modified White Balance ............. 86

Skew Correction: Reducing the Effects of Perspective ........................................................... 86

Protect: Protecting Images from Accidental Deletion ............................................................. 86

Slide Show: Automatic Playback ............................................................................................... 87

Copy to Card from Internal Memory: Copying Pictures from Internal Memory to a

Memory Card ............................................................................................................................... 87

DPOF: Selecting Pictures for Printing .............................................................................. 87

Recover File: Restoring Deleted Files .............................................................................. 87

Flag Function Setting ................................................................................................................ 88

Setting/Canceling One File at a Time ........................................................................ 88

Setting/Canceling Multiple Files at One Time ..................................................... 88

Trim ...................................................................................................................................................... 89

Level Compensation.................................................................................................................. 91

Correcting Images Automatically ................................................................................ 92

Correcting Images Manually........................................................................................... 92

White Balance Compensation ............................................................................................. 93

Skew Correction ........................................................................................................................... 94

Protect ................................................................................................................................................ 95

DPOF ................................................................................................................................................... 96

Viewing Pictures on TV .....................................................................................97

7

Setup Menu 98

Using the Menu ...................................................................................................98

Setup Menu Options..........................................................................................99

Format [Card]: Formatting Memory Cards ............................................................................... 99

Format [Internal Memory]: Formatting Internal Memory ................................................ 99

LCD Brightness: Adjusting the Picture Display Brightness ...................................................... 99

Reg. My Settings: Saving Camera Settings ............................................................................. 99

Step Zoom: Adjusting Zoom in Discrete Steps .......................................................................... 99

Set Fn Button: Choosing a Role for the Fn Button .................................................................... 99

ADJ Button Setting 1–4: Choosing Roles for the ADJ. Button ........................................... 99

AF Auxiliary Light: Assisting Autofocus ................................................................................. 99

Operation Sounds: Choosing the Sounds Made by the Camera ........................................ 100

Volume Settings: Controlling Volume .................................................................................. 100

LCD Confirmation Time: Displaying Photos After Shooting ........................................... 100

Auto Power Off: Camera Power Saving ............................................................................... 100

LCD Auto Dim: Picture Display Power Saving ....................................................................... 100

Digital Zoom Image: Recording Photos Taken with Digital Zoom at Actual Size .............. 100

Level Setting: Adjusting Tilt Indicator Settings ...................................................................... 101

Grid Guide Display Options: Choosing a Framing Guide ............................................. 101 11

12

Function Guide: Viewing Help ............................................................................................. 101

Shooting Info. Display Frame: Viewing Settings at a Glance ...................................... 101

Minimum Distance: Displaying the Minimum Focus Distance ......................................... 101

Auto Rotate: Rotating Pictures for Playback ........................................................................... 101

White Saturation Display: Viewing Image Highlights ................................................... 101

Card Sequence No.: File Numbering Options .................................................................... 102

USB Connection Type: Choosing a USB Connection Type ................................................ 102

Date Settings: Setting the Camera Clock ............................................................................... 102

Language/

N

: Choosing a Language .............................................................................. 102

Video Out Mode: Choosing a Video Format ........................................................................ 102

Reg. My Settings ........................................................................................................................ 103

Digital Zoom Image ................................................................................................................ 104

8

Direct Printing 105

About the Direct Print Function ................................................................. 105

Connecting the Camera to a Printer ......................................................... 105

Printing Still Images ........................................................................................ 106

Printing One or All Still Images ........................................................................................ 106

Printing Several Still Images ............................................................................................... 108

9

Downloading Images to Your Computer 109

For Windows ...................................................................................................... 109

System Requirements for Using the Supplied CD-ROM .................................. 109

CD-ROM Setup ........................................................................................................................... 110

Copying Pictures to Your Computer ............................................................................. 113

For Macintosh .................................................................................................... 115

Copying Pictures to Your Computer ............................................................................. 115

Using the MP File Viewer ..................................................................................................... 116

10

Appendices 118

Troubleshooting ............................................................................................... 118

Error Messages ........................................................................................................................... 118

Camera Troubleshooting ..................................................................................................... 119

Available Settings ............................................................................................ 124

Specifications .................................................................................................... 128

Number of Images That Can Be Stored .................................................... 131

Defaults Settings/Functions Whose Defaults Are Restored

When the Camera Is Turned Off ............................................................. 133

Using Your Camera Abroad .......................................................................... 135

Cautions on Use ................................................................................................ 136

Care and Storage .............................................................................................. 137

Warranty and Servicing ................................................................................. 138

Index .................................................................................................................... 140

Basic

Operations

If you are using the camera for the first time, read this section.

Packing List ..........................................14

How to Use the Mode Dial ...................15

Names of Parts .....................................16

Picture Display .....................................18

Getting Ready ......................................21

Basic Shooting .....................................27

Playing Back Images ............................34

Deleting Files .......................................37

Changing the Display with the DISP.

Button ............................................40

Packing List

Open the package and make sure all the items are included.

* The actual appearance of items included may differ.

• Rechargeable Battery • CX4

The serial number of the camera is provided on the bottom face of the camera.

• Battery Charger

14

• USB Cable (Mini B cable)

• AV Cable

• Handstrap

Optional Accessories

• Soft Case (SC-90)

Used to store your camera.

• Rechargeable Battery

(DB-100)

• Battery Charger (BJ-10)

• Warranty

• Camera User Guide

• CD-ROM (

G

P.109)

• Cable Switch (CA-1)

A switch that connects to the camera’s USB terminal to operate the shutter.

• Neck Strap (ST-2)

A double-loop neck strap with embroidered RICOH logo.

Attaching the Handstrap/Neck Strap to the Camera

Thread the small end of the strap through the strap eyelet on the camera and loop the ends. Remove the end of the neck strap from the buckle and attach it as shown in the illustration.

• For the latest information on optional accessories, see the Ricoh website ( http://www.ricohpmmc.com/ ).

How to Use the Mode Dial

Set the mode dial to the desired mode before shooting still images or movies.

Mode Dial Symbols and Descriptions

Symbol

5

T , U

3

Function Description

Auto Shooting Mode Automatically sets the optimal aperture value and shutter speed depending on the subject.

My Settings Mode

Movie Mode

You can shoot using the settings registered in [Reg. My Settings].

Allows you to shoot movies.

Scene Auto Mode

S

W

R

X

Scene Mode

Continuous Mode

Creative Shooting

Mode

The camera automatically selects the optimal scene mode for simple point-and-shoot photography.

Allows you to shoot with settings optimized for the shooting scene.

You can shoot with various continuous shooting functions.

Shoot with a variety of effects.

Refer to

P.27

P.103

P.66

P.33

P.52

P.57

P.61

15

16

7

8

Camera

Front View

1

6

Names of Parts

5

Item Name

1 Mode Dial

2 Shutter Release Button

3 Microphone

4 POWER Button

5 Lens Cover

6 Zoom Lever z

(Telephoto)/

Z

(Wide-angle)

8

(Enlarged View)/

9

(Thumbnail View)

7 Flash

8 AF Auxiliary Light/ Self-Timer Lamp

9 Lens

9

Refer to

P.15, 27, 33, 54, 58, 61,

62, 66

P.27

P.66

P.25

—

P.29, 34, 36

P.31

P.32, 99

—

Rear View

7 8

1

3 4 5

6

2

2

9

10

11

12

13

14

15

16 17

Item Name

1 Picture Display

2 Strap Eyelet

3 Terminal Cover

4 Speaker

5 USB Terminal

6 AV Output Terminal

7

N

( Macro)

8 ADJ./OK Button

9

F

( Flash)

(

*

)

10

6

( Playback) Button

11 MENU Button

12 Fn (Function) Button

13 t

( Self-timer)/

D

( Delete) Button

14 DISP. Button

15 Power (DC input) Cable Cover

16 Battery/Card Cover

17 Tripod Screw Hole

P.18

P.14

P.97, 105, 113, 115

P.67

P.105, 113, 115

P.97

P.30

P.46

P.31

P.34

P.54, 58, 62, 71, 85, 98

P.48

P.32, 37

P.36, 40, 42

—

P.135

P.130

Refer to

(

*

)

Instructions in this manual to “Press the ADJ./OK button

!"NF

” indicate that you should press the ADJ./OK button in the up, down, left or right direction. Instructions to “Press the ADJ./OK button” indicate that you should press directly down on the button.

17

Picture Display

Example of Picture Display when Shooting Pictures

Still Image Mode

11 22

+ + 0.3

22

23

24

33 44 55

F3.5

1/1000 EV

+

0.7

66 77 88 99 10

444

16

17

18

19

20

11

12

13

14

15

18

Item Name

1 Flash Mode

Refer to

P.31

Item Name

18 Date Imprint

Refer to

P.77

2 Flash Exposure Compensation P.75

3 Plus Normal Shooting/

19 Camera Shake Correction

P.65, 78 20 Battery Symbol

P.76

P.20

Multi-Target AF Focus Mark 21 Time Exposure P.75

4 Scene Mode/Continuous

Mode/Creative Shooting Mode

P.52,

57, 61

22 Self-timer

23 Macro Shooting

P.32

P.30

5 Shooting Mode Types P.101

6 Remaining Number of Still

Images

7 Recording Destination

8 AE Lock

9 Image Size

10 Picture Quality

11 Focus Mode

12 White Balance

P.15

24 Minimum Shooting

Distance

P.131

25 Digital Zoom Magnification/

Auto Resize Zoom

P.22

P.50

P.72

P.72

P.73

P.83

26 Zoom Bar

27 Interval Shooting

28 Aperture

29 Shutter Speed

30 Exposure Compensation

P.30,

104

P.29

P.76

P.128

P.77

P.82

13 Exposure Metering

14 Image Settings

15 Bracket Shooting

16 Histogram

17 Noise Reduction

P.74

P.74

P.80

P.44

P.74

31 ISO Setting

32 Level Indicator

P.84

P.43

33 AF Frame P.27

34 Exposure Warning Indicator P.82

35 Camera Shake Warning Symbol P.29, 76

Movie Mode

Item Name

36 Recording Time

Refer to Item Name Refer to

P.131

38 Movie Recording Indicator P.66

37 Remaining Recording Time P.131

When the number of remaining shots is 10,000 or more, “9999” is displayed.

Example of Picture Display During Playback

Still Image Mode

11 22 33 44 55 66 77 88 99 10

Movie Mode

15

16

Item Name Refer to

1 File Number —

2 Number of Playback Files —

3 Total Number of Files

4 Mode Types

—

—

5 Flag Function Setting

6 Protect

7 DPOF

P.88

P.95

P.96

8 Playback Data Source P.22

Item Name

9 Image Size

10 Picture Quality

11 Date at Shooting

12 Aperture

13 Shutter Speed

14 Battery Symbol

15 Recording Time or Lapsed

Time

16 Indicator

Refer to

P.72

P.72

P.26

P.128

P.77

P.20

—

—

19

20

• The picture display may display messages to inform you of operational instructions or the camera’s status while in use.

• Additional information can be viewed by pressing the DISP. button. (

G

P.40)

11 22 33 55 66

44

77

99

F3.5

1/60

+

0.7

28 mm

88

F3.5

1/60

+

0.7

28 mm

+ 0, S: + 0, D: + 0

+ 0, S: + 0, D: + 0

Item Name

1 Shooting Mode

2 Plus Normal Shooting

3 Dynamic Range Expansion/

Soft Focus Options/Hue/

Vignetting/Toy Color

4 Aperture

5 Shutter Speed

6 ISO Setting

7 Exposure Compensation

8 Exposure Metering

Refer to

—

Item Name

9 White Balance

Refer to

P.83

P.65

10 Flash Mode P.31

P.63, 72 11 Focal Length of the Zoom P.29

P.128

12 Macro Shooting

P.77

13 Focus Mode

P.84

P.82

P.74

14 Auto Bracket

15 Image Settings

16 Noise Reduction

P.30

P.73

P.80

P.74

P.74

Battery Level Indication

A battery symbol appears at the lower right of the picture display to indicate the battery level. Recharge the battery before it is depleted.

Battery Symbol

Green

Description

Battery is sufficiently charged.

Battery partially discharged. Recharging is recommended.

Battery level is low. Recharge the battery.

Getting Ready

Turn the power on and get ready to shoot.

• Be sure the camera is off before removing the battery.

• For information on how to turn the camera off, see P.25.

About the Battery

This camera uses the rechargeable battery DB-100, a dedicated lithium-ion battery supplied with the camera. The rechargeable battery needs to be charged before use. The battery is not charged at the time of purchase.

Number of shots you can take ----------------------------------------------------

Approximate number of shots you can take on a single charge: Approx. 330

* When [LCD Auto Dim] (

G

P.100) is set to [On].

• Based on CIPA standard. (Temperature: 23 degrees Celsius, picture display on,

30 seconds between shots, changing the zoom setting from telephoto to wideangle or wide-angle to telephoto for each shot, 50% flash usage, turning the power off after each 10 shots)

• You can take approximately 310 shots when [LCD Auto Dim] is set to [Off ].

• Set the camera to synchro-monitor mode to increase the number of shots you can take (

G

P.40).

• The number of shots is for reference only. If the camera is used for long periods of time for setting and playback, the shooting time (the number of shots) will decrease. If you intend to use the camera for a long period of time, we recommend carrying a spare battery.

Caution ---------------------------------------------------------------------------------

• The battery may become very hot immediately after operation. Turn the camera off and leave it to cool down sufficiently before removing the battery.

• Please remove the battery if you are not going to use the camera for a long period of time.

• When using a lithium-ion battery, use only the specified rechargeable lithiumion battery (DB-100). Do not use any other battery.

21

22

About the SD Memory Card (available in stores)

Pictures can be stored in the camera’s 86 MB internal memory or on

SD or SDHC memory cards (hereafter referred to as “memory cards”) available separately from third-party suppliers.

About Formatting -------------------------------------------------------------------

Before using a memory card for the first time or after using a memory card in other devices, be sure to format it with this camera. Memory cards can be formatted using the [Format [Card]] item (

G

P.99) in the setup menu (

G

P.98).

Where images are recorded -------------------------------------------------------

When no SD memory card is loaded, the camera records images to the internal memory ( t ); when an SD memory card is loaded, it records images to the SD memory card ( u ).

Where images are played back from --------------------------------------------

When no SD memory card is loaded, the camera plays back from the internal memory ( t ). When an SD memory card is loaded, it plays back from the SD memory card ( u ).

SDXC Memory Cards-----------------------------------------------------------------

SDXC memory cards can not be used.

Caution ---------------------------------------------------------------------------------

• If an SD memory card is loaded, the camera does not record to the internal memory, even if the card is full.

• Take care not to get the contacts of the card dirty.

Write-protecting your images ----------------------------------------------------

Move the write-protection switch on the SD memory card to LOCK to prevent your still images from being accidentally erased or the card from being formatted.

Note that you cannot shoot images on a locked card because no data can be recorded to the card. Unlock the card before shooting.

• The [Copy to Card from Internal Memory] item (

G

P.87) in the playback menu

(

G

P.85) can be used to copy the pictures in internal memory to a memory card.

• A Speed Class 6 memory card is recommended when recording movies with

[ x 1280] selected for [Movie Size].

Charging the Rechargeable Battery

The rechargeable battery needs to be charged before use.

1

Insert the battery into the battery charger, making sure that the r and s markings on the battery match those on the battery charger.

• The battery label should face up.

Caution ---------------------------------------------------------------------------------

Be careful not to reverse the r and s sides.

2

Plug the battery charger into an outlet.

• Use the battery charger (BJ-10) to recharge the battery.

• Charging starts. Charging status is indicated by the charger lamp as shown in the table below. Once charging has finished, unplug the battery charger from the power outlet.

Charger Lamp

Lit

Off

Flashing

Description

Charging

Charging complete

The battery charger terminal may be soiled or the battery charger/battery may be faulty. Unplug the battery charger from the power outlet, and remove the battery.

• The estimated battery charging time is shown below. Depending on the battery level, the charging time differs.

Rechargeable Battery Charging Time

DB-100 Approx. 180 min. (25 °C)

23

Loading the Rechargeable Battery and SD Memory Card

After recharging the rechargeable battery, load the battery and the SD memory card. Be sure the camera is off before removing the battery or the SD memory card.

1

Open the battery/card cover.

2

Insert the rechargeable battery and SD memory card.

• Make sure the SD memory card is facing the right way and then push the card all the way in until it clicks.

• When the rechargeable battery is loaded in place, it is locked with the hook shown in the figure.

Logo side

• If the battery is not inserted in the correct orientation, the camera will not turn on. Reinsert the battery in the correct orientation.

3

Close the battery/card cover and slide it back into place.

24

Removing the Rechargeable Battery

Open the battery/card cover. Release the hook that locks the rechargeable battery. The battery is ejected. Pull the battery out of the camera. Be careful not to drop the battery when removing it from the camera.

Removing the SD Memory Card

Open the battery/card cover. Push in the SD memory card and gently release to eject it. Pull the card out of the camera.

Turning the Power On/Off

Press the POWER button to turn the camera on or off.

When the camera is turned on, a start-up sound plays and the picture display turns on.

If the POWER button is pressed when the camera is on, the number of files recorded on that day is displayed, and then the camera turns off.

• If you adjust the clock before turning the camera off, the camera will display the number of shots taken since the clock was set.

• A zero is displayed if the clock is not set.

Using the Camera in Playback Mode

Pressing and holding the

6

(Playback) button turns on the camera in playback mode, allowing you to start playback at once.

When the camera has been turned on with the

6

button, pressing the

6

button again switches playback mode to shooting mode.

About Auto Power Off --------------------------------------------------------------

• If the camera goes unused for a set period of time, it automatically turns itself off to save power (Auto Power Off ).

• The auto power off setting can be changed (

G

P.100).

Setting the Language, Date and Time

When the power is turned on for the first time, the language setting screen appears (for the picture display language). After setting the language, go on to the date/time setting (for printing the date and time on your photos).

25

Setting the Language

1

Press the ADJ./OK button

!"NF to select a language.

• When the DISP. button is pressed, the language setting is canceled and the date/time setting screen appears.

2

Press the ADJ./OK button.

• The display language is set, and the date/time setting screen appears.

Setting the Date and Time

1


!"NF

to set the year, month, date, time and format.

• Change the setting with

!"

and move the item with

NF

.

• You can cancel the setting by pressing the DISP. button.

26

2

Check the information on the screen and then press the

ADJ./OK button.

• The confirmation screen appears.

3


• The date and time are set.

• The language, date, and time can be changed at any time using the [Language/

N

] and [Date Settings] items (

G


G

P.98).

• The [Date Imprint] item (

G

P.77) in the shooting menu (

G

P.71) can be used to stamp photographs with the date and time of recording.

• If the battery is removed for more than one week, the date and time settings will be lost. These settings must be made again.

• To retain the date and time settings, load a battery with adequate remaining power for more than two hours.

Basic Shooting

Now you are ready.

Shooting in Auto Shooting Mode (Focus and Shoot)

Turn the mode dial to

5

to shoot with auto shooting mode.

The shutter release button works in two steps.

When you press the shutter release button halfway

(Half-press), the auto-focus function is triggered to determine the focal distance. Next, press it all the way down (Fullpress) to shoot.

When your subject is not in the center of your composition, compose your photo after focusing (Focus Lock).

1

Hold the camera with both hands and lightly press both elbows against your body.

2

Put your finger on the shutter release button.

3

Frame the picture with your subject in the AF frame in the center of the screen and press the shutter release button halfway.

• The camera focuses on the subject and the exposure and white balance are fixed.

• The focal distance is measured at a maximum of nine points. Green frames appear to indicate the positions that are in focus.

27

4

To take a picture with the subject in the foreground in focus against a background, half-press the shutter release button to focus on the subject, and then compose your shot.

Subject to be focused

28

Shooting range

5

Gently press the shutter release button all the way.

• The still image you have taken appears momentarily on the picture display and is recorded to the internal memory or the SD memory card.

Caution ---------------------------------------------------------------------------------

• When you are shooting, be careful not to obstruct the lens or flash with your fingers, hair, or the strap.

• Do not hold the lens unit. Zoom and focusing will not be performed properly.

About Focusing -----------------------------------------------------------------------

The color of the frame in the center of the picture display indicates whether the subject is in or out of focus.

Focus Status

Before focusing

Subject in focus

Subject not in focus

Frame Color

White

Green

Red (Flashing)

It may be impossible to bring the following subjects into focus, or they may not be in focus even when the frame color is green.

• Objects that lack contrast, such as the sky, a wall that is only one color, or the hood of a car.

• Flat two-dimensional objects with only horizontal lines and no significant protrusions.

• Quickly moving objects.

• Things in poorly lit places.

• Areas with strong backlighting, or reflections.

• Things that flicker, such as fluorescent lights.

• Point light sources, such as light bulbs, spotlights, or LEDs.

When you want to shoot subjects like this, first focus on an object the same distance as your subject and then shoot.

Preventing Camera Shake ---------------------------------------------------------

• Press the shutter release button gently to prevent camera shake.

• If you move the camera when pressing the shutter release button, the still image might not come out clearly due to camera shake.

Camera shake tends to occur in the following cases:

- When shooting in a dark place without using the flash

- When using the zoom function

- When [Time Exposure] (

G

P.75) is selected in the shooting menu (

G

P.71)

• When the

J

symbol appears on the picture display, this indicates that camera shake may occur. To prevent camera shake, try any of the following.

- Selecting [On] for [Camera Shake Correction] (

G

P.76) in the shooting menu

(

G

P.71)

- Setting the flash to [Auto] or [Flash On] (

G

P.31)

- Raising the ISO setting (

G

P.84)

- Using the self-timer (

G

P.32)

Using the Zoom Function

Turning the zoom lever toward z

(Telephoto) allows you to take a close-up picture of the subject. Turning the zoom lever toward

Z

(Wide-angle) allows you to take a wide-angle picture. The amount of zoom is shown by the zoom bar in the picture display.

Wide-angle Telephoto

Zoom bar

The [Step Zoom] option (

G


G

P.98) allows optical zoom to be adjusted in eight discrete steps.

29

Using the Digital Zoom -------------------------------------------------------------

While you can use the normal zoom to enlarge the subject up to 10.7 ×, digital zooming allows you to enlarge the subject still further (up to another 4.8 × for still images, 2.8 × for movies with a frame size of 1280, or 4.0 × for movies with a frame size of 640 or 320).

To use digital zooming, turn and hold the zoom lever toward z

until the maximum magnification is reached on the zoom bar, then momentarily release the zoom lever, and then turn the zoom lever again toward z

.

If [Picture Quality/Size] is set to j 4 : 3 F or j 4 : 3 N, you can also set [ Digital

Zoom Image] to [Auto Resize] (

G

P.104).

Depending on the shooting mode or the settings in the shooting menu, the digital zoom cannot be used (

G

P.124).

Shooting Close-Ups ( Macro Shooting)

The macro shooting function lets you take shots of subjects that are very close to the camera. To shoot close-ups, press the ADJ./

OK button toward

N

(Macro). Pressing the

ADJ./OK button toward

N

(Macro) again cancels macro mode.

30

• During macro shooting, the minimum shooting distance changes depending on the zoom position. To display the minimum shooting distance on the screen, set [Minimum Distance] to [Show] (

G

P.101).

• [Focus] (

G

P.73) is set to [Spot AF].

• Macro mode is not available in some shooting modes (

G

P.124).

• To take a further close-up picture during macro shooting, use [Zoom Macro]

(

G

P.53) in scene mode.

• The minimum shooting distance and shooting range when using the zoom are shown below.

Zoom position

Focal

Length

(

*

)

Minimum Shooting

Distance (from the front of the lens)

Wide-angle 31 mm Approx. 1 cm

300 mm Approx. 28 cm

Telephoto

1440 mm Approx. 28 cm

Shooting Range

Approx. 28 mm × 21 mm


(when digital zoom is not used)

Approx. 9.4 mm × 7.0 mm

(when 4.8 × digital zoom is used)

(

*

)

Equivalent to that on a 35 mm camera

Using the Flash

You can select the flash mode that best suits your shot. At the time of purchase, the camera is set to [Auto].

1

Press the ADJ./OK button toward

F

(flash).

• The list of the flash modes symbol is displayed on the picture display.

Flash Off The flash will not fire.

Auto

Anti Red-eye

The flash fires automatically when the subject is poorly lit or backlit.

Reduces the red-eye phenomenon, in which people’s eyes appear red in pictures.

Flash On The flash fires regardless of the lighting conditions.

Flash Synchro.

The flash fires with the shutter speed slowed.

This is useful when taking portrait pictures in a nightscape. Camera shake may occur, so the use of a tripod is recommended.

2


!"

to select the flash mode.

• The flash mode symbol is displayed at the upper left of the picture display.

• The flash mode symbol blinks at the upper left of the picture display when the flash is charging. Once the flash is charged, the symbol stops blinking and lights steadily and the camera is ready to shoot.

Caution ---------------------------------------------------------------------------------

• You cannot shoot when the flash is charging (approx. 5 seconds).

• After the camera is turned on, it may take longer for the camera to become ready for shooting when using the flash.

31

• The flash mode setting is retained until you press the ADJ./OK button toward

F

(Flash) again.

• The flash does not fire when shooting movies, in continuous mode, in multitarget AF, in dynamic range double-shot, and in bracket shooting.

• Flash level can be adjusted using the [Flash Exposure Compensation] item

(

G


G

P.71).

• The auxiliary flash fires to increase the AE accuracy.

• The flash can not be used in some shooting modes or with some shooting menu options (

G

P.124).

Using the Self-timer

You can set the self-timer to shoot after either two or ten seconds, or you can select [Custom Self-Timer] (

G

P.75) to customize the selftimer setting.

1

With the camera ready to shoot, press the t

(Self-timer) button.

• A list of self-timer mode settings appears on the picture display.

2


!"

to select the mode.

• The self-timer symbol and the number of seconds are displayed at the upper left of the picture display.

32

3

Press the shutter release button.

• When set to [10], the self-timer lamp lights for 8 seconds when the self-timer starts and then blinks for the final 2 seconds before the picture is taken.

• When set to [Custom Self-Timer], the self-timer lamp blinks for 2 seconds before each picture is taken, and pictures are taken at the set shooting interval. The focus position is set for the first shot.

• When set to [Custom Self-Timer], press the MENU button to cancel the self-timer during shooting.

• The camera remains in self-timer mode even after the image is shot. To cancel the self-timer, press the t

button and change the self-timer setting to [Self-Timer Off ].

• When the self-timer is set to 2 seconds, the self-timer lamp does not light or blink.

• When the self-timer is set, the [Interval Shooting] setting is disabled.

Shooting in Scene Auto Mode

In scene auto mode, the camera selects the optimal scene mode (

G

P.52) automatically.

The following scene modes can be selected.

Scene Mode

Portrait

Night. Port.

Sports

Refer to

P.52

P.52

P.53

Scene Mode

Landscape

Nightscape

N Macro Mode

The icon of the selected scene mode is shown in the display. If macro mode is selected, an icon will be displayed at upper left in the picture display.

Refer to

P.53

—

P.30

Nightscape Mode --------------------------------------------------------------------

This scene is available only in scene auto mode. The flash will fire only if all the following conditions are met:

• The flash is set to [Auto].

• The flash is determined to be necessary because it is dark.

• There is a figure or another object nearby.

• For information on the options available in the shooting menu when scene auto mode is selected, see P.124.

• If the camera is unable to select a scene, focus, exposure, and white balance will respectively be set to multi AF, multi AE, and multi-pattern auto.

33

Playing Back Images

Viewing Your Images

To select playback mode, press the

6

( Playback) button. When the camera is off, pressing and holding the

6

(Playback) button longer than 1 second turns the camera on in playback mode.

Press the ADJ./OK button

NF

to display the previous file or the next file. Press the button

!"

to display the file 10 frames forward or backward.

To switch the camera from playback mode to shooting mode, press the

6

button again.

The images played back in playback mode ------------------------------------

For information on how to play back files with

S

symbol, see P.67.

Thumbnail View

20 Frames

If the zoom lever is turned toward

9

(Thumbnail View), the screen is divided into 20 frames and thumbnails are displayed.

34

Press the DISP. button to change between the thumbnail list and page list. In the page list, press the ADJ./OK button

!"NF

to select the page.

To view an image full frame, select it in the thumbnail list and press the

ADJ./OK button or turn the zoom lever once toward

8

(Enlarged View).

81 Frames


9 when 20 frames are displayed, the screen is divided into 81 frames and thumbnails are displayed.

Press the DISP. button to change between the thumbnail list and page list. In the page list, press the ADJ./OK button

!"NF

to select the page.

Thumbnail list

To switch to Single-Picture Display, select the file in the thumbnail list and press the

ADJ./OK button or turn the zoom lever twice toward

8

(Enlarged View).

Page list

Date of Recording


9 again when 81 frames are displayed, the thumbnails are listed by date of recording.

Press the DISP. button to change between the thumbnail list and date list. In the date list, press the ADJ./OK button

NF to select the date, or press the ADJ./OK button

!"

to select the page.

Thumbnail list

To switch to Single-Picture Display, select the file in the thumbnail list and press the

ADJ./OK button or turn the zoom lever 3 times toward

8

(Enlarged View).

Date list

35

Enlarging Images

Turn the zoom lever toward

8

(Enlarged View) to zoom in on the selected still image. The magnification varies depending on the image size.

Image Size Enlarged View

(maximum magnification) z 4 : 3 F a 4 : 3 F

3.4 ×

6.7 ×

Image sizes other than those above 16 ×

Pressing the DISP. button at this point changes the display as follows.

DISP. button

Pressing the ADJ./OK button

!"NF

at this point moves the area displayed.


!"NF

at this point moves the area displayed.

36


DISP. Button


NF

at this point displays the previous or next image enlarged.

When an MP file or a movie is displayed, the display returns to the normal size.


DISP. Button


9

(Thumbnail View) to return to the original size.

• Movies cannot be enlarged.

• For information on how to enlarge MP files, see P.67–68.

• Cropped copies (

G

P.89) can not be zoomed in to the magnifications stated above.

Deleting Files

You can delete files from the SD memory card or internal memory.

The [Recover File] item (

G

P.87) in the playback menu (

G

P.85) can be used to recover files that have been deleted accidentally. Note, however, that files cannot be recovered if, for example, the camera has been turned off or shooting mode has been selected since the files were deleted.

1

Press the

6

(Playback) button.

• The last file recorded is displayed.

2


!"NF

to display the file you want to delete.

• To delete multiple files, you can also turn the zoom lever toward

9

(Thumbnail View) to display thumbnail view, and then go to Step 3.

3

Press the

D

(Delete) button.

Deleting a File or All Files

4


!"

to select [Delete One] or [Delete All].

• You can change the image for deletion with the ADJ./OK button

NF

.

5


• If [Delete All] is selected, press the ADJ./OK button

NF

to select [Yes] and then press the ADJ./OK button.

37

38

Deleting Multiple Files

You can select multiple files for simultaneous deletion either individually or by selecting one or more ranges consisting of two images and all photographs between them. To delete multiple files, press the

D

(Delete) button in playback mode and follow the steps below (to exit at any time without deleting images, press DISP.).

Specifying Multiple Files Separately

1


!"

to select [Delete Multi] and then press the ADJ./OK button.

• Omit this step if the camera is already in multi-frame view.

2


!"

to select [Sel. Indiv.] and then press the ADJ./OK button.

3


!"NF to select the file you want to delete and press the ADJ./OK button.

• The trash symbol is displayed in the upper left corner of the file.

• Press the MENU button to switch to the display for specifying a range of files. See Step 3 and beyond on

P.39.

• Press DISP. to cancel and return to Step 2.

4

Repeat Step 3 to select all the files you want to delete.

• If you selected a file by mistake, you can deselect it by selecting the file and pressing the ADJ./OK button.

5

Press the

D


6


NF

to select [Yes] and then press the ADJ./OK button.

Specifying a Range of Multiple Files

1


!"

to select [Delete Multi] and then press the ADJ./OK button.

• Omit this step if the camera is already in multi-frame view.

2


!"

to select [Sel. Range] and then press the ADJ./OK button.

3


!"NF to select the starting point of the range of files you want to delete and press the ADJ./OK button.

• If you make a mistake when selecting the starting point for the range of files, press the DISP. button to return to the screen for selecting the starting point.

• Press the MENU button to switch to the display for specifying files separately. See Step 3 and beyond on P.38.

4


!"NF to select the ending point of the range of files you want to delete and press the ADJ./OK button.

• The trash symbol is displayed in the upper left corner of the specified files.

• Press DISP. to cancel and return to

Step 2.

5

Repeat Steps 3 and 4 to specify all the ranges of files you want to delete.

6

Press the

D


7


NF

to select [Yes] and then press the ADJ./OK button.

39

Changing the Display with the DISP. Button

Pressing the DISP. button allows you to change the screen display mode and toggle the information displayed on the picture display.

During Shooting Mode

Normal Symbol Display Histogram Display Grid Guide Display

40

Picture Display Off

(Synchro-Monitor Mode)

No Display

Grid Guide Display -------------------------------------------------------------------

• This displays auxiliary lines on the picture display to help you compose your picture. These lines are not recorded with images.

• Use [Grid Guide Display Options] on the setup menu to select the grid.

(

G

P.101)

Synchro-Monitor Mode -------------------------------------------------------------

This turns the picture display off except when the camera is operated. This is effective for saving power consumption. In this mode, pressing the shutter release button halfway turns the picture display on. Subsequently, pressing the shutter release button fully displays the shot image on the picture display and then turns the picture display off. (This setting is different from [LCD Auto Dim] in the setup menu.)

• When [Shooting Info. Display Frame] is set to [On] in the setup menu, the shooting information display frame can be displayed for normal symbol display and histogram display (

G

P.101).

• Histograms are not displayed in movie mode. A blinking [ O ] icon, the recording time, and the time available are displayed during recording even when indicators are hidden or the grid guide is displayed.

• When [Level Setting] is set to [Display] or [Display+Sound] (

G

P.42), the level indicator is displayed during normal symbol display and histogram display

(

G

P.43).

• If any of the following operations is performed, the picture display turns on even when it is turned off.

- When the ADJ./OK button, MENU button, DISP. button, or

6

(Playback) button is pressed.

- When the zoom lever is turned.

- When the ADJ./OK button is pressed

!"

during manual focus (

G

P.79).

During Playback Mode

Normal

Symbol

Display

Histogram and Detailed

Information Display

No

Display

White Saturation

Highlights Display

(only if [ White

Saturation Display] is set to [On])

White Saturation Highlights Display --------------------------------------------

• If [White Saturation Display] is set to [On] in the setup menu (

G

P.101), pressing the DISP. button while the histogram and detailed information are displayed switches to the highlight display.

• The white saturation areas of the image flash in black. White saturation is the loss of tone that indicates the color shading in an image in which very bright areas of the subject are rendered in white. An image with a loss of image tone cannot be edited later. It is recommended that you shoot another image by changing the composition or by setting the exposure level lower (–) (

G

P.82).

• The white saturation highlights display is for reference only.

41

42

About the Electronic Level

When [ Level Setting] is turned on in the setup menu or by pressing and holding the DISP. button, the camera uses a level indicator and level sound to let you know whether the image is level during shooting. The level indicator is displayed during normal symbol display and histogram display.

This is useful for keeping the image level when taking pictures of scenery or buildings. This is also very useful for taking pictures with the horizon visible.

Available Settings

Off

Description

The level indicator will not display. The level sound will not emit.

Display

Sound

The level indicator will display. The level sound will not emit.

Display + Sound The level indicator appears on the screen and a level sound is emitted when the image is level.

The level indicator will not display. A level sound is emitted when the image is level.

1

Select [Level Setting] in the setup menu (

G

P.98) and press the

ADJ./OK button

F

.

• You can also press and hold the DISP. button in shooting mode to display the setting menu.

2


!"

to select the setting and then press the ADJ./OK button.

Level indicator display

When level:

The level indicator becomes green, indicating that the scale is in the middle.

Green

When tilted to the right or left:

The mark on the level indicator becomes orange, indicating the opposite side of the direction in which the camera is tilted.

When the camera is tilted too far to the right or left:

Half of the level indicator on the opposite side of the direction in which the camera is tilted becomes red. The mark on the level indicator is not displayed.

Red

Orange

When the camera is tilted too far forward or backward, or it cannot be determined whether the camera is level:

The top and bottom of the level indicator become red. The mark on the level indicator is not displayed.

Red

When the camera is held vertically:

When shooting with the camera positioned vertically, the level function can be used to determine whether the image is vertically level (the level indicator appears in a different place).

Caution ---------------------------------------------------------------------------------

• During grid guide display, no display, or when the picture display is turned off

(

G

P.40), the level sound is emitted, but the level indicator is not displayed.

When [Level Setting] is set to [Display+Sound], only the level sound is emitted.

• The level function is not available if the camera is held upside down, when recording movies, and during interval shooting.

• The level function becomes less accurate when the camera is moving or when shooting in an environment subject to moving, such as on a amusement ride.

• No level sound is emitted when [Level Setting] is set to [Display+Sound] or

[Sound] and [Volume Settings] is set to [ ] (Mute) (

G

P.100).

• Use this function as a reference to see if images are level when shooting images. The accuracy of the level when using the camera as a level cannot be guaranteed.

43

About the Histogram Display

When Histogram is on, a histogram appears in the lower right corner on the picture display. A histogram is a graph indicating the number of pixels on the vertical axis and the brightness on the horizontal axis (from left to right, shadows

(dark areas), midtones, and highlights

(bright areas)).

By using the histogram, you can determine the brightness of an image without being affected by the brightness around the picture display.

This also helps you correct for areas that are overly bright or dark.

If the histogram has only peaks on the right side, this picture is overexposed with too many pixels only for highlight sections.

If the histogram has only peaks on the left side without anything else, this picture is underexposed with too many pixels only for shadow sections. Refer to this histogram when correcting the exposure.

44

• The histogram displayed on the picture display is for reference only.

• After taking a picture, you can correct its brightness and contrast by making adjustments to the histogram (

G

P.92).

• Depending on the shooting conditions (use of the flash, dark surrounding light, etc.), the exposure level indicated in the histogram may not correspond to the brightness of the shot image.

• Exposure compensation has its limitation. It does not necessarily achieve the best possible result.

• A histogram with peaks in the center may not necessarily provide the best result to suit your particular requirements. For example, an adjustment is required if you want to underexpose or overexpose the image.

• For information on how to correct the exposure compensation, see P.82.

Advanced

Operations

Read this section when you want to learn more about the different camera functions.

1 ADJ. Button Functions ...................46

2 Using the Fn (Function) Button

........................................................48

9 Downloading Images to Your

Computer .....................................109

10 Appendices ...................................118

8

9

Instructions in this manual to “Press the ADJ./OK button

!"NF

” indicate that you should press the ADJ./OK button in the up, down, left or right direction. Instructions to “Press the ADJ./OK button” indicate that you should press directly down on the button.

10

6

7

4

5

1

2

3

1 ADJ. Button Functions

The ADJ./OK button has the following functions. For the operating procedure of each function, see the corresponding reference page.

1 Assigning four functions from the shooting menu

2 Shifting the AE and AF targets

1

Selecting Shooting Menu Options Assigned to the ADJ./OK Button

You can assign four functions from the shooting menu to the ADJ./OK button. The fifth function is fixed to AE/AF target shift (

G

P.47) and cannot be changed.

By using the ADJ./OK button, you can make settings with fewer button operations and without displaying the shooting menu. This is convenient for frequently used functions.

1

Set the functions you want to assign to the ADJ./OK button with [ ADJ Button Setting 1/2/3/4] on the setup menu.

• At the time of purchase, four of the functions are assigned. You can change the assigned functions.

2

Press the ADJ./OK button in shooting mode.

• The ADJ. mode screen appears.

46

3


NF

to select the desired item.

4


!"

to select the setting and then press the ADJ./OK button to confirm the setting.

• For functions that can be assigned to the ADJ./OK button, see P.124.

• Press the MENU button in the ADJ. mode to display the shooting menu.

Shifting the AE and AF Targets

You can shift the target for automatic exposure (AE) and/or auto focus

(AF).

Available Setting Description

AE/AF AE and AF are set to Spot AE and Spot AF respectively and the target can be moved for both simultaneously. (The targets for

Spot AE and Spot AF occupy the same position.)

AF

AE

The AF is set to Spot AF and the target can be moved. The exposure metering is set to the mode selected in [Exposure

Metering] in the shooting menu (

G

P.74).

The AE is set to Spot AE and the target can be moved. The focus

( is set to the mode selected in [Focus] in the shooting menu

G

P.73).

1

Turn the mode dial to

5

/ X /

R

and then press the ADJ./OK button.

2

Press the ADJ./OK button select

P

.

NF

to

3


!"

to select the setting and then press the ADJ./OK button.

• The target shift screen appears.

4


!"NF to position the target over the subject that will be used to set focus or exposure.

• Pressing the DISP. button returns the display to the screen in Step 2.

5


6

Press the shutter release button halfway and then gently press it the rest of the way down.

1

• In movie mode and in all scene modes except [Discreet Mode], the target icon

(

P

) changes to

U

.

• If the macro target shift function is activated using the Fn button (

G

P.48) and not canceled, P will not be displayed.

• This function is available when [Focus] (

G

P.73) is set to [Multi AF] or [Spot AF].

47

2 Using the Fn (Function) Button

2

Simply press the Fn button to quickly access the function assigned to it using the [ Set Fn Button] option in the setup menu (

G

P.49).

The function assigned to the Fn button can be selected from the options below.


Macro Target Moves the AF target without moving the camera to shoot close-ups.

AE Lock

AF/Face Pr.

AF/Subj.Trckng

AF/Multi Trgt

AF/MF

AF/Snap

Step Zoom, AT-BKT,

WB-BKT, CL-BKT,

FOCUS-BKT

Refer to

P.49

Locks the exposure.

Switches between autofocus

(

*

1)

and face-priority multi AF.

P.50

P.51

Switch between autofocus

(

*

2)

and subject tracking AF. P.51

Switches between auto focus

(

*

3)

and multi-target AF.

P.51


(

*

3)

and manual focus.

P.51


(

*

3)

and snap mode.

P.51

Switches between on and off for each function.

—

( * 1) [Multi AF], [Spot AF] or [Subj. Tracking]

(

*

2) [Multi AF], [Spot AF] or [Face Pr. Multi]

( * 3) [Multi AF], [Spot AF], [Face Pr. Multi] or [Subj. Tracking]

• For information on the items that can be assigned in each shooting mode, see

P.124.

• The Fn button can not be used to access the listed function when [Miniaturize]

(

G

P.64) is selected in creative shooting mode.

• Pressing the Fn button in playback mode displays the image assigned with

[Flag Function Setting]. For the operating procedure, see P.88.

• Selecting [Trim], [Level Compensation] (when [Manual] is selected), or [White

Balance Compensation] on the playback menu, and pressing the Fn button displays the screen that describes the operating procedure (

G

P.89, 92, 93).

48

Assigning a Role to the Fn Button

To assign functions to the Fn button, follow the steps below.

1

Select [Set Fn Button] in the setup menu (

G

P.98) and press the

ADJ./OK button

F

.

2

Select the setting and then press the ADJ./OK button.

Shifting the AF Target for Macro Shooting

You can select the focus target for close-ups.

1

Set [Set Fn Button] to [Macro Target] on the setup menu.

2

With the camera ready to shoot, press the Fn button.

• The macro target shift screen appears.

2

3


!"NF

to move the cross-mark to the desired target position.

4


• Pressing the DISP. button cancels the macro target shift function.

5

Press the shutter release button halfway and then gently press it the rest of the way down.

• The camera focuses on the area at the position of the cross-mark.

• Pressing the ADJ./OK button toward

N

(Macro) cancels the macro target shift function.

-------------------------------------------------------------------------------------

If the AE/AF target shift function is activated using the ADJ./OK button (

G

P.47) and not canceled, the macro target shift function cannot be used by pressing the

Fn button.

49

2

Locking the Exposure

Assigning [ AE Lock] to the Fn button (

G

P.49) and then pressing the

Fn button during shooting allows you to lock or cancel the exposure.

1

Set [Set Fn Button] to [AE Lock] on the setup menu.

• For the operating procedure, see P.49.

2

With the camera ready to shoot, position subject in the center of the picture display and press the Fn button.

• The exposure is locked and the AEL mark, aperture value, and shutter speed appear on the screen.

• Pressing the Fn button again cancels the AE lock.

• The AE lock function cannot be used in movie mode.

• The AE lock function can only be used when [Time Exposure] is set to [Off ].

50

Choosing a Focus Setting

If any of the following functions is assigned to the Fn button (

G

P.49), you can change the focus setting during shooting by pressing the Fn button.


AF/Face Pr.

Switch between multi, spot, or subject tracking AF and facepriority multi AF (

G

P.73).

AF/Subj.Trckng

AF/Multi Trgt

Switch between multi, spot, or face-priority multi AF and subject tracking AF.

Switch between multi, spot, face-priority multi, or subject tracking AF and multi-target AF.

AF/MF

AF/Snap

Switch between multi, spot, face-priority multi, or subject tracking AF and manual focus.

Switch between multi, spot, face-priority multi, or subject tracking AF and snap AF.

Caution ---------------------------------------------------------------------------------

The Fn button only be used to switch between the listed modes. If another focus mode is selected, pressing the Fn button has no effect.

2

51

3

Scene Mode (

W

)

In scene mode, you can choose from one of the following 11 subject types. Camera settings are automatically optimized for the selected subject type.

Scene Modes

Portrait

Discreet Mode

Night. Port.

Night

Landscape

Multi-shot

Use for portraits. The camera automatically detects up to eight faces, and adjusts focus, exposure, and white balance. The faces detected by the camera are shown by square borders.

The camera may not be able to recognize faces in the following cases:

• When the face is side-view, tilted, or moving

• When the camera is tilted or upside down (the shutter release button is facing down)

• When the face is partially hidden or at the edge of the frame

• When the face is not clearly visible because of dark surroundings

• When the subject is too far away (Make sure that the face appearing in the picture display is vertically longer than one block marked by the grid guide.

G

P.40).

Use where lights and sounds emitted by the camera may be unwelcome. The flash (

G

P.31), AF auxiliary light (

G

P.99), and speaker (

G

P.100) turn off and flash, AF auxiliary light, and sound settings can not be adjusted.

Use when taking portrait pictures against a nightscape. The flash fires automatically. The shutter speed slows down, so be careful of camera shake.

Use for night scenes. Blur caused by camera shake is reduced even in handheld shots. Four shots are taken in succession and combined to create a single image, increasing the time needed to record photographs in comparison to other modes. The

J

icon is always displayed when the shutter-release button is pressed halfway.

52

Use when taking pictures of moving objects.

Sports

Use when taking scenery pictures with abundant greenery or blue sky.

Landscape

Zoom Macro

Pets

Skew Correct

Mode

The camera automatically zooms to the optimal zoom position to shoot at a higher magnification than in normal macro shooting. Optical zoom can not be used. Macro mode is selected automatically.

Use to photograph cats and other pets. The flash (

G

P.31), AF auxiliary light (

G

P.99), and speaker (

G

P.100) turn off and flash, AF auxiliary light, and sound settings can not be adjusted.

Reduce the effects of perspective when photographing rectangular objects, such as message boards or business cards. For detailed operations, see P.55.

3

High Sens

Text Mode

Image size can be set to [ a 4 : 3 F] or [ z 4 : 3 F] using the

[Picture Quality/Size] option (

G

P.72) in the shooting menu

(

G

P.71).

Use when taking pictures in dimly lit places. The picture display also becomes brighter.

Use when capturing text images, for example notes written on a whiteboard at a meeting. Images are captured in black and white.

Image size can be set to [ j 4 : 3] or [ c 4 : 3] using the [Size] option (

G


G

P.71).

53

3

Caution ---------------------------------------------------------------------------------

• In [Discreet Mode] or [Pets]:

- The beep does not sound.

- Pressing the ADJ./OK button to

F

(flash) does not change the flash mode

(

G

P.31).

- The self-timer lamp will not blink and a beep will not sound in self-timer mode (

G

P.32).

• When using [Zoom Macro], you can shoot close-ups within the following distances:

Focal

Length

(

*

)

Minimum Shooting

Distance (from the front of the lens)

Shooting Range

70 mm

335 mm

Approx. 1 cm

Approx. 1 cm


(when digital zoom is not used)

Approx. 4.0 mm × 3.0 mm

(when 4.8 × digital zoom is used)

(

*

)


Selecting a Scene Mode

1

Turn the mode dial to W .

• The camera is ready to shoot and the selected scene mode is displayed at the top of the picture display.

54

2

Press the MENU button to change the scene mode.

• The scene mode selection screen appears.

3

Select a scene mode.

4

Press the ADJ./OK or Fn button.

• Pressing ADJ./OK button returns the camera to shooting mode with the selected option shown at the top of the picture display. Pressing

Fn button selects the highlighted option and displays the shooting menu (

G

P.71).

5

Press the shutter release button to shoot the picture.

Changing the shooting menu or setup menu setting in scene mode ----

After pressing the MENU button in shooting mode to display the menus, press the ADJ./OK button

N

to select the [MODE] tab. You can then press

"

once to display the shooting menu or twice to display the setup menu.

Using Skew Correction Mode

1

Select [Skew Correct Mode] in the scene mode menu and press the ADJ./OK button.

2


• The display indicates that the image is being processed, and then the area recognized as the correction range is displayed with an orange frame. Up to five areas can be recognized.

• If the target area cannot be detected, an error message appears. The original image remains unchanged.

• To select another correction area, move the orange frame to the target area by pressing the ADJ./OK button

F

.

• To cancel skew correction, press the ADJ./OK button

!

. Even if you cancel skew correction, the original image remains unchanged.

3


• The display indicates that the image is being corrected, and then the corrected image is recorded. The original image remains unchanged.

3

You can also correct the skew of a previously shot still image (

G

P.94).

55

3

Caution ---------------------------------------------------------------------------------

When [Skew Correct Mode] is selected, note the following:

• To shoot the subject as large as possible, position it so that the entire portion of the subject is visible on the picture display.

• The camera may fail to recognize the subject in the following cases:

- When the image is out of focus

- When four edges of the subject are not clearly visible

- When it is hard to distinguish between the subject and background

- When the background is complicated

• Two images, one before correction and the other after correction, are recorded. If the number of remaining shots is less than two, you cannot shoot the subject.

• The correction area may not be detected properly if the [Date Imprint] function is activated.

56

Continuous Mode (

R

)

Turn the mode dial to

R

to use the various continuous shooting functions. Continuous mode can be selected from the continuous mode selection dialog displayed when the MENU button is pressed.

Continuous Modes

Continuous

Mode

M-Cont Plus

(10M)

This is the normal continuous mode. Pictures continue to be taken for as long as you hold down the shutter release button. Images are recorded one at a time, just as in normal shooting. The number of images that can be shot in continuous mode depends on the image size setting (

G

P.72).

The camera shoots while the shutter-release button is pressed, but only the last 15 frames (about the last three seconds of shooting) are recorded to create a single multi-picture (MP) file (

G

P.59).

M-Cont Plus

(2M)

The camera shoots while the shutter-release button is pressed, but only the last 26 frames (about the last 0.9 seconds of shooting) are recorded to create a single multi-picture (MP) file (

G

P.60).

Speed Cont

(Low)

Speed Cont

(High)

While the shutter-release button is pressed, the camera shoots up to

120 frames at about 60 frames per second and groups them together in a single MP file. About 2 s are required to shoot the entire sequence

(

G

P.60).

While the shutter-release button is pressed, the camera shoots up to 120 frames at about 120 frames per second and groups them together in a single MP file. About 1 s is required to shoot the entire sequence (

G

P.60).

Caution ---------------------------------------------------------------------------------

Recording times may increase when internal memory is used.

3

57

Taking Pictures in Continuous Mode

1

Turn the mode dial to

R

.

• The camera enters shooting mode with the current continuous mode shown at the top of the picture display.

3

2

Press the MENU button.

• To choose a different continuous mode, press the MENU button to display continuous mode options.

3

Select the desired option.

58

4




G

P.71).

5


Accessing the Shooting and Setup Menus --------------------------------------


N

to select the [MODE] tab. You can then press the

" button once to display the shooting menu or twice to display the setup menu.

• Focus, exposure value, and white balance are locked.

• ISO sensitivity is raised.

• Flickering may be recorded as horizontal bands when pictures are taken under fluorescent lights.

• When [Card Sequence No.] is set to [On] (

G

P.102) and the last four digits of the file number exceed “9999” during continuous shooting, a separate folder is created in the SD memory card and successive pictures taken in continuous mode are stored in this folder.

MP file ----------------------------------------------------------------------------------

MP is a file format for recording a set of still images.

M-Cont Plus (10M)

The camera shoots while the shutter release button is pressed all the way down, but only the last 15 frames (about the last three seconds of shooting) are recorded, creating a single multi-picture (MP) file.

3

When you remove your finger from the shutter release button...

…the camera records the 15 frames taken in the last 3 s of shooting.

Caution ---------------------------------------------------------------------------------

The time needed to record 15 frames may increase if lighting is poor.

• The image size is fixed at j 4 : 3 N.

• The time for each shot in the sequence is recorded separately.

59

M-Cont Plus (2M)

The camera shoots while the shutter release button is pressed all the way down, but only the last 26 frames (about the last 0.9 seconds of shooting) are recorded, creating a single multi-picture (MP) file.

3

When you remove your finger from the shutter release button...

…the camera records the 26 frames taken in the last 0.9 seconds of shooting.

Caution ---------------------------------------------------------------------------------

When shooting a fast-moving subject, the subject may be distorted in the recorded image.

• The image size is fixed at b 4 : 3 N.

• The time at which you remove your finger from the shutter release button is recorded as the time of shooting for all photographs in the sequence.

Speed Cont (Low)/ Speed Cont (High)

120 consecutive images are recorded in one second (Speed Cont

(High)) or two seconds (Speed Cont (Low)).

Caution ---------------------------------------------------------------------------------

When shooting a fast-moving subject, the subject may be distorted in the recorded image.

• The image size is fixed at z 4 : 3 N.

• The time at which you remove your finger from the shutter release button is recorded as the time of shooting for all photographs in the sequence.

60

Creative Shooting Mode (

X

)

Choose from six creative photographic effects.

Creative Shooting Mode Options

Create images with natural contrast, reducing loss of detail in shadows and highlights. For detailed operations, see P.63.

Dynamic

Range

Use to create pictures that appear to be photos of dioramas. For detailed operations, see P.64.

Miniaturize

High Contrast

B&W

Soft Focus

Cross Process

Toy Camera

Use to create black-and-white images with higher contrast than those normally produced using black and white (

G

P.74).

Produces grainy images similar to those taken with highly sensitive film or high gain film processing.

Choose for soft focus effects similar to those created by soft focus lenses. The amount of softening can be selected using the [Soft

Focus Options] item in the shooting menu (

G

P.72).

Take photographs with colors that differ markedly from those of the actual subject. The colors can be selected using the [Hue] option in the shooting menu (

G

P.72).

Take photographs with the sharp contrast, saturated colors, distortion, and vignetting associated with toy cameras. Use the

[Vignetting] option in the shooting menu (

G

P.72) to choose the amount of vignetting, the [Toy Color] option (

G

P.72) to choose the amount of saturation.

3

61

Taking Pictures in Creative Shooting Mode

1

Turn the mode dial to X .

• The camera enters shooting mode with the current creative shooting mode option shown at the top of the picture display.

3

2


• To choose a different creative shooting mode, press the MENU button to display creative shooting mode options.

3

Select the desired mode.

62

4




G

P.71).

5


Accessing the Shooting and Setup Menus --------------------------------------


N

to select the [MODE] tab. You can then press the

" button once to display the shooting menu or twice to display the setup menu.

Dynamic Range Double Shot

“Dynamic range” refers to the range of brightnesses (tone levels) that can be expressed by the camera. Dynamic range double shot creates a smooth transition from highlights to shadows for natural contrast.

With dynamic range double shot, two consecutive pictures are taken with different exposures and then the areas with the appropriate exposure are combined together. This mode uses a longer shooting time than other modes, so be careful of camera shake when taking pictures. The

J

symbol is always displayed.

3

Two consecutive shots Combined and saved

Caution ---------------------------------------------------------------------------------

• Dynamic range double shot may not be effective if the shooting location is overly bright or dark.

• We recommend that you select [Multi] for [Exposure Metering] (

G


G

P.71) when using dynamic range double shot.

• When shooting a fast-moving subject, the subject may be distorted in the recorded image.

• Flicker from fluorescent lights may appear as horizontal bands. Fluorescent lighting may also affect colors and brightness.

Dynamic Range Expansion Effect

The [Dynamic Range Expansion] option in the shooting menu offers five levels of dynamic range expansion: [AUTO],

[Very Weak], [Weak], [Medium], and

[Strong]. The stronger the expansion effect, the wider the range of brightnesses processed by the camera.

63

The effect can be chosen using the [Dynamic Range Expansion] option when [Dynamic Range] is selected in creative shooting mode.

If an option other than [AUTO] is highlighted when you press the ADJ./OK button

F

, the menu shown at right will be displayed. Choose the tone range given priority for expanded dynamic range from

[Highlights], [Shadows], and [Off ].

3

Shooting in Miniaturization Mode

This mode creates pictures that appear to be photos of dioramas. It is most effective when pictures are taken from a high vantage point.

1

Select [Miniaturize] in the creative shooting mode menu and press the ADJ./OK button.

2

Press the Fn button.

• The miniaturization setting screen appears.

• The areas that will not be in focus in the final photograph are shown in gray.

• Press the DISP. button to exit without taking a picture.

When taking pictures in tall orientation, press the

D

button to re-orient the area that will be in focus.

64

3


!"

to reposition the area that will be in focus.

• For help, press the Fn button. Press the Fn button again to clear help from the display.

4


NF

to choose the width of the area that will be in focus.

5


6

Frame a picture and press the shutter release button halfway to focus, then press the shutter release button the rest of the way down to take the picture.

Caution ---------------------------------------------------------------------------------

The focus of the final image differs slightly from that in the image displayed immediately after shooting.

3

Plus Normal Shooting

When [On] is selected for [Plus Normal Shooting] in the shooting menu, the camera will record two copies of each photo taken in creative shooting mode: one processed according to options selected for creative shooting mode and a second, unprocessed copy. The two copies are shown in the picture display after shooting, with the unprocessed image on the right and the modified copy on the left.

To turn this option on or off, turn the mode dial to X and then select an option for [Plus Normal Shooting] in the shooting menu.

In the case of photographs taken with dynamic range double shot, histograms are included for both images when the pictures are displayed after shooting.

When [LCD Confirmation Time] is set to [Hold] (

G

P.100), the confirmation screen remains displayed so you can confirm the histograms and easily compare the images.

65

Movie Mode (

3

)

3

Shooting Movies

Rotate the mode dial to

3

to record movies with sound. Frame size can be selected using the [Movie

Size] item (

G

P.72) in the shooting menu. Each movie you shoot is recorded as an AVI file.

Press the shutter release button halfway to focus and the rest of the way down to start recording. The [ O ] icon blinks while recording is in progress and the recording time and time available are shown in the picture display. Press the shutter release button halfway or all the way down to end recording.

Caution ---------------------------------------------------------------------------------

• While shooting movies, operation sounds may be recorded.

• Movies may be up to 4 GB in size. The maximum length is 12 minutes for movies recorded at a [Movie Size] of [ x 1280] and 29 minutes for movies recorded at [ z 640] or [ y 320]. Depending on the type of memory card used, shooting may end before this length is reached. The maximum total length of

( all movie files that can be stored depends on the capacity of the memory card

G

P.131).

• When shooting a fast-moving subject, the subject may be distorted in the recorded image.

• Flickering may be recorded as a horizontal band when shooting under fluorescent lights.

• During recording, the zoom lever can be used for digital zoom.

• Subject tracking AF can not be used.

• The camera shoots movies at 30 frames per second.

• The remaining recording time may not change uniformly because it is recalculated from the remaining memory capacity during movie recording.

• Depending on the remaining battery level, the battery may become depleted during movie shooting. Use of a battery with adequate remaining power is recommended.



66

Playing Back Movies

To play back movies, follow the steps below.

1

Select the movie you want to play back in playback mode.

* * *

2


• Playback begins. The elapsed playback indicator or the elapsed time is displayed on the screen.

Fast Forward

Rewind

Turn the zoom lever toward z

during playback.


Z

during playback.

Pause/Playback

Slow Playback

Slow Rewind

Press the ADJ./OK button.

Turn and hold the zoom lever toward z

during pause.

Turn and hold the zoom lever toward

Z

during pause.

Next Frame

Previous Frame


during pause.


Z

during pause.

Volume Adjustment Press the ADJ./OK button

!"

during playback.

Playing Back MP Files

When you shoot one still image with M-Cont Plus, Speed Cont, or

Multi-trgt AF, the image is recorded as one MP file. Use the following method to play back MP files.

4

• Images shot in normal continuous mode can be played back in the same way as normal still images.

• The focus position is displayed for multi-target AF shooting.

1

Display the MP file you want to play back in playback mode.

• The MP file is displayed with the

S symbol.

67

4

2

The display changes as follows.

Display for Step 1

8

ADJ./OK

9

• Press the DISP. button to change between “Normal” and

“No Display”.

• The images cannot be enlarged even if the zoom lever is turned toward

8

(Enlarged View). The images are displayed in thumbnail view.

• The other operations are the same as those for normal still images.

Thumbnail view

• The MP file images are displayed in thumbnail view.

• Press the ADJ./OK button

!"NF

to select a frame.

• The DISP. button is disabled.

8

ADJ./OK

9

Single frame view

• This displays the frame selected on the thumbnail view.

• Turn the zoom lever toward

8

(Enlarged View) to display enlarged view.

ADJ./OK

68

Displaying Slide Shows

• Images are displayed automatically in the order they were consecutively shot, starting with the displayed frame.

• The operations during slide show are shown below.

Pause/Playback Press the ADJ./OK button.

Fast Forward Turn and hold the zoom lever toward z

during playback.

Rewind Turn and hold the zoom lever toward

Z

during playback.

Slow Playback Turn and hold the zoom lever toward z

during pause.

Slow Rewind

Next Frame

Turn and hold the zoom lever toward

Z

during pause.


during pause.

Previous Frame Turn the zoom lever toward

Z

during pause.

First Frame

Last Frame


N

.


F

.

3

To play back files other than MP files, return to Step 1 and press the ADJ./OK button

!"NF

.

Caution ---------------------------------------------------------------------------------

• The [DPOF], [Trim], [Resize], [Skew Correction] (playback mode), [Level Compensation], and [White Balance Compensation] functions are not available for MP files.

• [Flag Function Setting] and [Protect] cannot be set for individual frames in an MP file. If

[Flag Function Setting] or [Protect] is set when the thumbnail view or single image view is displayed, the setting will be applied to the MP file instead of an individual frame.

• The individual images in a MP file can not be deleted separately.

MP file ----------------------------------------------------------------------------------


Exporting MP Files

You can extract selected frames from an MP file and save each frame as an individual still image.

• The MP file is displayed with the

S

symbol.

• The images are saved in the same sizes used for shooting.

• The original files will be retained after extraction.

• The focus positions for images shot using multi-target AF will not be displayed on extracted images.

To export MP files, display the MP file which you want to export in playback mode, and then press the MENU button to display the playback menu and select [ Export Still Images].

If [1 Frame] is selected, you can select a frame for export by pressing the ADJ./OK button

NF

.

Select [All Frames] to export all frames in the selected MP file.

4

Selecting Multiple Frames

If [Sel. Multiple] is selected, select multiple individual frames or a range of frames.

69

4

To select multiple individual frames:

1

Select [Sel. Indiv.] and press the ADJ./OK button.

2

Select a frame and press the ADJ./OK button.

• Press the MENU button to switch to the display for specifying a range of frames.

• If you selected a frame by mistake, you can deselect it by selecting the frame and pressing the ADJ./OK button.

• Select all the frames which you want to export.

3

Press the Fn button, select [Yes] and press the ADJ./OK button.

To select two frames and all frames between them:

1

Select [Sel. Range] and press the ADJ./OK button.

2

Select the first frame and press the ADJ./OK button.

• Press the MENU button to switch to the display for specifying frames separately.

• If you make a mistake when selecting the starting point for the range of frames, press the ADJ./OK button to return to the screen for selecting the starting point.

3

Select the last frame and press the ADJ./OK button.

• Repeat Steps 2 and 3 to select multiple ranges.

4

Press the Fn button, select [Yes] and press the ADJ./OK button.

[Sel. Indiv.] and [Sel. Range] can be selected directly if [Export Still Images] is chosen in thumbnail view.

70

The shooting menu is used to adjust camera settings when taking pictures. To display the shooting menu, press the MENU button when the camera is in shooting mode.

Using the Menu

1

Press the MENU button in shooting mode.

• The shooting menu is displayed.

• To display the shooting menu in scene, continuous, or creative shooting mode, press the ADJ./OK button

N

to select the [MODE] tab and then press the button

" once.

2


!"

to select the desired menu item.

Indicates the range of displayed screens.

• If the DISP. button is pressed at this point, the cursor moves to the shooting menu tab.


"

at the bottom item to display the next screen.

3


F

.

• The menu item settings are displayed.

4


!"

to select the setting.

5


• The setting is confirmed, the shooting menu disappears and the camera is ready to shoot.

• To select the highlighted option and return to the menu shown in

Step 2, press the ADJ./OK button

N

.

5

71

5

Shooting Menu Options

Dynamic Range Expansion

G

P.63

Select the dynamic range expansion effects.

Soft Focus Options

G

P.61

Choose the amount of softening produced by the [Soft Focus] option in creative shooting mode. Select from [Weak] and [Strong].

Hue

G

P.61

Choose the hue of photographs created using the [Cross Process] option in creative shooting mode. Select from [Basic], [Magenta], or [Yellow].

Caution ------------------------------------------------------------------------------

Depending on exposure and the option selected for white balance, [Magenta] and [Yellow] may not produce the desired results.

Vignetting

G

P.61

Choose the amount of vignetting produced by the [Toy Camera] option in creative shooting mode. Select from [Weak], [Strong], and [Off ].

Toy Color

G

P.61

Select [On] to increase saturation in photographs taken using the [Toy Camera] option in creative shooting mode.

Plus Normal Shooting

G

P.65

Record unprocessed copies of photographs taken in creative shooting mode.

Picture Quality/Size

G

P.131

Adjust picture quality and size when taking pictures.

Movie Size

Choose the movie frame size.

Density

G

P.131

Adjust contrast when using the [Text Mode] option in scene mode.

Size

G

P.131

Choose the size of pictures taken using the [Text Mode] option in scene mode.

72

Shooting menu options ------------------------------------------------------------

The options in the shooting menu vary with the selected shooting mode. In scene and creative shooting modes, the options available vary with the scene or creative shooting mode option selected. See P.124 for more information.

Focus

Choose a focusing mode.

G

P.78

— Multi AF

Measures the distances from nine AF areas and focuses to the nearest AF area. Choose to prevent out-of-focus photos.

Face Pr. Multi

The camera automatically detects and focuses on faces. If no faces are detected, the camera focuses using multi AF.

Subj. Tracking

The camera focuses when the shutter release button is pressed halfway and tracks the selected subject until a picture is taken or you remove your finger from the shutter release button (

G

P.78).

— Spot AF

Selects one AF area at the center of the picture display to allow the camera to focus on this area automatically.

Multi-trgt AF

(

Takes five consecutive pictures while shifting the focus to multiple positions.

G

P.78)

MF

Enables you to adjust the focus manually (

G

P.79).

Snap

Fixes the shooting distance to a short distance (approx. 2.5 m (8.2 ft.)).

∞ (Infinity)

Fixes the shooting distance to infinity. It is useful for shooting distant scenes.

Pre-AF

If [On] is selected when [Multi AF], [Face Pr. Multi], [Subj. Tracking], [Spot AF], or

[Multi-trgt AF] is selected for [Focus], the camera will continue to focus even when the shutter-release button is not pressed halfway. This may decrease the time needed to focus when a picture is taken, potentially improving shutter response.

5

73

5

Exposure Metering

You can change the metering method (the range to use for metering) used to determine the exposure value.

— Multi

The entire shooting range is divided into 256 partitions, and each is metered to determine the overall exposure value.

Center

The entire image is metered, with emphasis on the center, to determine the exposure value. Use this when the brightness of the center and surroundings are different.

Spot

Only the center of the image is metered to determine the exposure value.

Use this setting when you want to use the brightness at the center. This is useful if there is a marked difference in contrast or backlighting.

Image Settings

You can change the picture quality of an image, including the contrast, sharpness, color and vividness.

Vivid

Take strong, vivid photos with higher contrast and sharpness and maximum vividness.

— Standard

Creates an image with normal picture quality.

Cust. Settings

You can select from five [Contrast],

[Sharpness], and [Vividness] levels.

74

Black & White

Creates a black and white picture.

Sepia

Creates a sepia-toned picture.

Noise Reduction

Perform noise reduction when taking photographs. Choose from [Off ], [Auto],

[Weak], [Strong], or [MAX]. The time required to record images varies with the option selected.

Flash Exposure Compensation

You can adjust the light intensity of the flash. You can set the light intensity from

–2.0 EV to +2.0 EV in increments of 1/3 EV.

Caution ------------------------------------------------------------------------------

Flash exposure compensation may not work outside the flash range (

G

P.128).

Auto Bracket

G

P.80

Vary exposure, white balance, color, or focus over a series of pictures.

Time Exposure

Use time exposures to capture fireworks as they rise into the air and explode, to create trails of light behind cars and other moving objects, or to shoot night scenery. Choose the exposure time from [Off ], [1 second], [2 seconds], [4 seconds], and [8 seconds].

• The shutter speed may slow down and images may be blurred. Hold the camera steady by using a tripod when shooting.

• The picture display turns off while shooting.

• Long time-exposures are processed to reduce noise. The time required for processing is roughly equivalent to the exposure time.

• ISO sensitivity is restricted to values between ISO 100 and ISO 400. If the value currently selected by the user is between ISO 800 and ISO 3200, the camera will automatically set ISO sensitivity to ISO 400 (

G

P.84).

Custom Self-Timer

Set the shooting interval and the number of pictures when you want to shoot several pictures with the self-timer (

G

P.32).

Available Settings Description

Pictures Set this between one and ten pictures. The default setting is

[2 Pics].

Interval Set this between five and ten seconds. The default setting is

[5 Sec.].

5

• The camera takes pictures at the specified interval; the self-timer lamp blinks for two seconds before each shot. Focus is locked at the setting for the first shot in the sequence.

• Press the MENU button to cancel self-timer shooting.

75

Interval Shooting

You can set the camera to automatically take pictures at fixed intervals. You can set the shooting interval from five seconds to one hour in increments of five seconds.

5

Hours Minutes Seconds

Caution ------------------------------------------------------------------------------

• The interval shooting setting is cleared when the camera is turned off.

• The time until the next picture can be taken according to the shooting menu setting may be longer than the time set for interval shooting. If this is the case, the shooting interval becomes longer than the set time.

• Depending on the remaining battery level, the battery may become depleted during interval shooting. Use of a battery with adequate remaining power is recommended.

• If you press the shutter release button during interval shooting, the camera shoots as usual.

• A high speed memory card or a SD memory card with sufficient memory is recommended.


Select [On] to reduce the effects of camera shake.

Caution ------------------------------------------------------------------------------

• The camera shake correction function cannot prevent movement of the shooting subject (caused by wind, etc.).

• Results vary with shooting conditions.

----------------------------------------------------------------------------------

The

J

symbol appears when camera shake is likely to occur (

G

P.18).

76

Slow Shutter Limit

The maximum shutter speed can be limited to the following: 1/8 second,

1/4 second, and 1/2 second. When this function is set to [Off ], the maximum shutter speed varies depending on the ISO setting.

• When time exposure is set, priority is given to time exposure.

• When scene mode is set to [Night. Port.] or [Night Landscape Multi-shot], the maximum shutter speed for [Night. Port.] or [Night Landscape Multi-shot] is given priority.

• When the flash is set to [Flash Synchro.], the longest shutter speed is one second.

• When using the slow shutter limit, the light quantity may be insufficient depending on the brightness of the subject, resulting in a dark image. In this case, try the following:

- Selecting a greater slow shutter limit.

- Raising the ISO setting (

G

P.84).

- Using the flash (

G

P.31).

Date Imprint

You can insert the date (YY/MM/DD) or the date and time (YY/MM/DD hh:mm) at the lower right of a still image. Select [Off ] to turn date imprint off.

----------------------------------------------------------------------------------

• Make the date and time settings in advance (

G

P.26).

• [Date Imprint] cannot be used with movies.

• The date imprinted in an image cannot be deleted.

Exposure Compensation

Choose exposure compensation.

G

P.82

White Balance

Adjust the white balance.

ISO Setting

Adjust ISO sensitivity.

G

G

P.83

P.84

Maximum ISO for ISO Auto

Select the maximum value chosen by the camera when [Auto] is selected for [ISO

Setting]. Use to prevent ISO sensitivity from being raised too high.

Restore Defaults

Select [Yes] and press the ADJ./OK button to restore shooting menu settings to their default values.

5

77

Focus

Subject Tracking AF

When you press the shutter-release button halfway, the camera will focus on the subject in the focus frame at the center of the monitor and a green target icon will be displayed (the target icon will be displayed in red if the camera is unable to locate a subject to track). The camera will track the subject while the shutter-release button is pressed halfway (if the subject leaves the frame, the target icon will blink red and tracking will end). Tracking ends automatically when you remove your finger from the shutter-release button or a picture is taken.

5

Caution ---------------------------------------------------------------------------------

The camera may be unable to track subjects that are fast moving or poorly lit.

Multi-Target AF

When you half-press the shutter release button, the camera automatically determines multiple focus positions. When you then press the shutter release button all the way down, the camera shifts among the different focus positions, taking five consecutive pictures.

The five still images are grouped together as a set and are recorded as an MP file. This function is especially useful for telephoto shooting and shooting with macro mode.

78

A

V

icon will be displayed if the camera is able to focus. If the camera is unable to focus, the

V

icon will blink. The focus positions selected by the camera are only displayed during playback (

G

P.67).

MP file ----------------------------------------------------------------------------------


Caution ---------------------------------------------------------------------------------

• The flash cannot be used.

• The [Time Exposure] setting is disabled (

G

P.75).

• The camera shake correction function cannot be used. If [Multi-trgt AF] is set while the camera shake correction function is turned on,

E

changes to

F

.

• If this function is turned on when using the digital zoom, the digital zoom is disabled and shooting is performed at the maximum magnification for the optical zoom (10.7 ×).

• [White Balance] functions according to the [Auto] setting even if it is set to

[Multi-P AUTO].

Manual Focus (MF)

Manual focus (MF) can be used to focus at a selected distance when the camera is unable to focus using autofocus. A focus bar is displayed in the picture display.

5

1

Press and hold the ADJ./OK button as required.

• Pressing and holding the ADJ./OK button increases the magnification only at the center of the screen.

• Pressing and holding the ADJ./OK button again returns from enlarged view to normal view.

2

Adjust the zoom position with the zoom lever as required.

3


!"

to adjust the focus.

• Pressing the ADJ./OK button

!

adjusts the focus to farther objects and pressing the ADJ./OK button

"

adjusts the focus to closer objects.

4


You can also use manual focus to focus on objects within the macro shooting range.

79

Auto Bracketing

Choose the type of bracketing performed.

Assigning [AT-BKT], [WB-BKT], [CL-BKT], or [FOCUS-BKT] to the Fn (Function) button with [Set Fn Button] allows you to switch between on and off by pressing the Fn button (

G

P.48).

Auto Bracket

If [On] is selected, the camera will take three photos each time the shutter-release button is pressed: one underexposed by 0.5 EV, a second at current exposure settings, and a third overexposed by 0.5 EV.

An icon is displayed when [On] is selected.

5 • The exposure compensation can be changed using the shooting menu

(

G

P.82).


[Multi-P AUTO].

White Balance Bracketing (WB-BKT)

The white balance bracket function automatically records three images—a reddish image, a bluish image, and an image of the current white balance.

An icon is displayed when [WB-BKT] is selected.

• The white balance can be changed using the shooting menu (

G

P.83).

• If [Image Settings] is set to [Black & White] or [Sepia], the white balance bracket function can be set but it does not operate.

80

Color Bracketing (CL-BKT)

With color bracketing, three images, a black-and-white, a color, and a sepia image, are recorded.

An icon is displayed when [CL-BKT] is selected.

Contrast, Sharpness and Vividness During Color Bracket Shooting -----

During color bracket shooting, the contrast, sharpness, and vividness values set in [Image Settings] are applied. However, the values for [Standard] in [Image

Settings] are applied when [Image Settings] is set to [Black & White] or [Sepia].

Focus Bracketing (FOCUS-BKT)

Choose this option to automatically vary focus by a selected amount over a series of five photographs.

1

Select [FOCUS-BKT] and press the ADJ./OK button

F

.

2


NF

to choose the focus interval and then press the ADJ./OK button twice.

• The symbol appears on the screen.

3

Half-press the shutter release button.

• The camera focuses according to the [Focus] setting.

4

Press the shutter release button all the way down.

• The camera takes five consecutive pictures based on the focus position in Step 3.

5

81

• When [Focus] is set to [MF], the first picture is taken at the set focus position without being measured.


[Multi-P AUTO].

Focus position

Shooting order

Recording order

Fore

5

5

4

4

Center

(

1

3

*

) ➝

3

2

(

*

) Focus set using the option currently selected for [Focus] (

G

P.73).

Back

2

1

5

Exposure Compensation

Use exposure compensation to vary exposure from the value selected by the camera. Choose from values between –2 and +2; negative values produce darker pictures, positive values brighter pictures.

Exposure compensation may be required in the following situations:

For backlighting

When the background is particularly bright, the subject will appear dark (underexposed). In this case, set the exposure level higher (+).

When your subject is whitish

The entire picture will turn out dark (underexposed). Set the exposure level higher (+).

When your subject is darkish

The entire picture will turn out bright (overexposed). Set the exposure level lower (–). The same happens when you take a photo of a subject in a spotlight.


!"

to choose a exposure value and press the ADJ./OK button. The selected value is displayed in the picture display.

–

0.3

82

[ Q ] is displayed if the subject is too bright or too dark for exposure compensation.

White Balance

Adjust the white balance so that a white subject will appear white. At purchase, the white balance mode is set to [Multi-P AUTO]. Change the setting in situations where the white balance is difficult to adjust effectively, such as when shooting an object of a single color or when shooting under multiple light sources.

AUTO Auto

Adjusts the white balance automatically.

Multi-P AUTO

The camera automatically selects the optimal white balance according to the conditions of sun and shade or the flash illumination range.

Outdoors

Select this when shooting outdoors (sunny) and white balance fails to adjust properly.

Cloudy

Select this when shooting in cloudy weather or shade and the white balance fails to adjust properly.

Incandescent 1

Select this when shooting under incandescent light and white balance fails to adjust properly.

Incandescent 2

Select this when shooting under incandescent light (more reddish, compared with [Incandescent 1]).

Fluorescent

Select this when shooting under fluorescent light and white balance fails to adjust properly.

Manual

Adjust the white balance manually.

5

• The white balance may not be adjusted correctly for a subject that is mostly dark. In this case, add something white to the subject.

• When shooting with the flash, the white balance may not be adjusted correctly if [Auto] is not selected. In this case, switch to [Auto] to shoot with the flash.

83

Manual

1

Select [Manual] and press the ADJ./OK button.

2

Frame a piece of paper or other white object under the lighting that will be used in the final photograph and press DISP.

• The white balance is set.

3


• The symbol appears on the screen.

• The effect of the selected white balance setting can be previewed in the picture display. Repeat the above steps until the desired effect is achieved.

To cancel [Manual], select a setting other than [Manual].

5

ISO Setting

ISO sensitivity indicates how sensitive film is to light. A greater value means higher sensitivity. High sensitivity is suitable for shooting an object in a dark place or a fast-moving object while minimizing blurring. When ISO setting is set to [Auto], the camera automatically changes the sensitivity according to the distance, brightness, zoom, macro settings, and picture quality/size. Choose settings other than

[Auto] to fix ISO sensitivity at the selected value.

The upper limit for auto ISO sensitivity can be selected using the [Maximum ISO for

ISO Auto] in the shooting menu (

G

P.77).

If ISO sensitivity is assigned to the ADJ./OK button (

G

P.46), the upper limit for auto

ISO sensitivity can be chosen by pressing the DISP. Button when [Auto] is selected.

• When [Auto] is selected for ISO sensitivity, the camera will select an ISO sensitivity between 100 and the value selected for [Maximum ISO for ISO Auto].

• If the flash is set to [Auto], the flash will fire if optimal exposure can not be achieved at the sensitivity selected for [Maximum ISO for ISO Auto].

• Images shot with a higher sensitivity may appear grainy.

• When [Auto] is selected for ISO sensitivity, the ISO value displayed when the shutter release button is pressed halfway may in some instances (for example, when the flash is used) differ from the value selected when the shutter is released.

84

The options in the playback menu can be used to perform a variety of operations on existing pictures. To display the playback menu, select playback mode and press the MENU button.

Using the Menu

1

Press the

6

(Playback) button to select the playback mode.

2


!"NF

to display the desired file.

• For [Flag Function Display] (

G

P.86), [Slide Show] (

G to Card from Internal Memory] (

P.87), [Copy

G

P.87), or [Recover File] (

G

P.87), skip this step.

3


• The playback menu appears.


4


!"


• If the DISP. button is pressed at this point, the cursor moves to the playback menu tab.


"


5


F

.

• The screen for the selected menu item appears.

6

85

6

Playback Menu Options

Flag Function Setting

G

P.88

Flag up to 20 files for quick access.

Flag Function Display

Displays images flagged with [Flag Function Setting]. Fn button can be used for the same purpose.

The file set to [Flag Function Setting] with the smallest file number is displayed.

Export Still Images

G

P.69

Export selected images from a MP file.

Resize

Create resized copies of photos or other still images produced with the camera.

Original j 4 : 3 F/ j 4 : 3 N/ i 3 : 2 F/ g 1 : 1 F/ g 16 : 9 F/ e 4 : 3 F/ c 4 : 3 F/ b 4 : 3 F/ b 4 : 3 N a 4 : 3 F

Resized a 4 : 3 F/ z 4 : 3 F z 4 : 3 F

Caution ------------------------------------------------------------------------------

Movies or MP files cannot be resized.

Trim

G

P.89

This function allows you to trim a still image you have shot and then save it as a separate file.

Level Compensation

G

P.91

Create copies of photographs with modified brightness and contrast.

White Balance Compensation

G

P.93

Create copies of photographs with modified white balance.

Skew Correction

Create copies that have been processed to reduce the effects of perspective on rectangular objects.

Protect

G

P.95

Protect images from accidental deletion.

G

P.94

86

Slide Show

You can display the recorded still images and movie files sequentially on the screen.

• Each still image is displayed for three seconds.

• For movies and MP files, all the images you shot are played back.

Copy to Card from Internal Memory

Copy all data from internal memory to a memory card in a single operation.

• If there is not enough space available on the destination memory card, a warning will be displayed. Select [Yes] to copy only those files for which there is sufficient space.

• It is not possible to copy the contents of an SD memory card to the internal memory.

• When the contents of the internal memory are copied to an SD memory card,

DPOF the files saved to [Flag Function Setting] in the internal memory are canceled.

G

P.96

Select pictures for printing.

Recover File

Restore deleted files.

Caution ------------------------------------------------------------------------------

Deleted files cannot be restored after performing any of the following operations.

• Turning the camera off

• Switching from playback mode to shooting mode

• Using DPOF, Resize, Copy to Card from Internal Memory, Skew Correction,

Level Compensation, White Balance Compensation or Trim

• Files with DPOF settings are deleted

• Internal memory or SD memory card is initialized

• Setting or canceling files for [Flag Function Setting]

• Changing the magnification ratio or magnified area of files for [Flag Function

Setting]

• Exporting MP files using [Export Still Images]

6

87

Flag Function Setting

Flag images for quick access during playback. Flagged images can be displayed by pressing the Fn button.

Setting/Canceling One File at a Time

To flag or remove flag marking from the current image, select [Flag

Function Setting] in single-image playback. Flagged files are indicated by an icon.

6

If an enlarged still image is set, the magnification ratio and magnified area are saved and the enlarged image can be displayed as is.

Setting/Canceling Multiple Files at One Time

To flag or remove flag marking from multiple selected images, select [Flag

Function Setting] in thumbnail view, highlight images, and press the ADJ./OK button to add or remove flag marking.

Press DISP. when the operation is complete.

Caution ---------------------------------------------------------------------------------

• If the name of the file set to [Flag Function Setting] is changed using a computer, the file is canceled from [Flag Function Setting].

• Copying images from internal memory to a memory card removes flag marking from the images in internal memory.

• When a file in an SD memory card is set to [Flag Function Setting], [CLIPINFO] folder and CLIP.CLI file are created on the SD memory card. If these are deleted, the corresponding file is canceled from [Flag Function Setting].

• If the name of an image file is changed using a computer, the file may not be able to be set to [Flag Function Setting].

• Only images taken using this camera can be set to [Flag Function Setting].

88

Trim

Create a cropped copy of the current photograph.


8

or

9

to adjust the crop size and press the ADJ./OK button

!"NF

to position the crop.

Press the ADJ./OK button to save the cropped image to a separate file.

Caution ---------------------------------------------------------------------------------

• You can only trim still images shot using this camera.

• You cannot trim movies or MP files.

• While you can trim an image repeatedly, the image is recompressed each time and there will be some decline in image quality.

• To cancel, press the DISP. button.

• To view help, press the Fn button while the crop display is shown in the picture display. Press the Fn button again to exit help.

• To choose the aspect ratio, press the

D

button in the crop display. Choose from aspect ratios of 4 : 3 and 1 : 1. Aspect ratios of 3 : 2 and 16 : 9 are not supported.

• If an image is trimmed, the compression ratio changes to Fine.

• The available settings for the trimming frame size differ depending on the original image size.

6

89

6

• The size of the image after cropping depends on the size of the original and the size of the crop (the first crop shown in the trimming display is the second largest crop; to display the largest crop, select

9

with the zoom lever).

Aspect ratio 4 : 3

Original image size j b

4 : 3 F/

(3648 × 2736) i

(3648 × 2432) g

(2736 × 2736) g

(3648 × 2048) e

(2592 × 1944) c

(2048 × 1536)

(1728 × 1296) a j 4 : 3 N

3 : 2 F

1 : 1 F

16 : 9 F

4 : 3 F

4 : 3 F

4 : 3 F/ b 4 : 3 N

4 : 3 F

(1280 × 960) z 4 : 3 F/ z 4 : 3 N

(640 × 480)

9 to 12

1

2, 3

4 to 7

8 to 12

1, 2

3 to 6

7 to 10

1

1, 2

3 to 5

6 to 8

9 to 12

1, 2

3 to 5

6 to 8

2 to 5

6 to 9

1 to 3

4 to 8

Trimming level

1

2, 3

4 to 6

7 to 9

10 to 13

1

2, 3

4 to 6

7 to 9

10 to 13

1 to 4

Trimmed image size

3072 × 2304

2592 × 1944

2048 × 1536

1280 × 960

640 × 480

3072 × 2304

2592 × 1944

2048 × 1536

1280 × 960

640 × 480

2592 × 1944

2048 × 1536

1280 × 960

640 × 480

2592 × 1944

2048 × 1536

1280 × 960

640 × 480

2592 × 1944

2048 × 1536

1280 × 960

640 × 480

2048 × 1536

1280 × 960

640 × 480

1728 × 1296

1280 × 960

640 × 480

1280 × 960

640 × 480

640 × 480

90

Aspect ratio 1 : 1

Original image size j 4 : 3 F/ j 4 : 3 N

(3648 × 2736) i 3 : 2 F

(3648 × 2432) g 1 : 1 F

(2736 × 2736) g 16 : 9 F

(3648 × 2048) e 4 : 3 F

(2592 × 1944) c 4 : 3 F

(2048 × 1536) b 4 : 3 F/ b 4 : 3 N

(1728 × 1296) a 4 : 3 F

(1280 × 960) z 4 : 3 F/ z 4 : 3 N

(640 × 480)

Trimming level

1 to 3

4 to 6

7 to 9

10 to 13

1, 2

3 to 5

6 to 9

10 to 13

1 to 3

4 to 6

7 to 9

10 to 13

1 to 3

4 to 7

8 to 11

1 to 3

4 to 7

8 to 11

1, 2

3 to 6

7 to 10

1 to 4

5 to 8

1 to 3

4 to 8

1 to 4

Trimmed image size

2304 × 2304

1536 × 1536

960 × 960

480 × 480

2304 × 2304

1536 × 1536

960 × 960

480 × 480

2304 × 2304

1536 × 1536

960 × 960

480 × 480

1536 × 1536

960 × 960

480 × 480

1536 × 1536

960 × 960

480 × 480

1536 × 1536

960 × 960

480 × 480

960 × 960

480 × 480

960 × 960

480 × 480

480 × 480

Level Compensation

Create copies that have been processed to adjust brightness and contrast.

6

91

6

92

Correcting Images Automatically

Select [Auto] and press the ADJ./OK button

F

. A preview will be displayed with the original image at upper left and the corrected copy on the right.

Press the ADJ./OK button to copy the image.

Correcting Images Manually

Select [Manual] and press the ADJ./OK button

F

. A preview will be displayed with the original image at upper left, a histogram and black-, mid-, and whitepoint controls at lower left, and the corrected copy on the right.

MENU :

Chng. Points

Control points

Press MENU to cycle through the control points and press the ADJ./OK button

NF

to position the selected point for enhanced brightness and contrast as described below.

Point

Black point

Midpoint

White point

Effect

If the image is overexposed, move the black point to the right until it lines up with the darkest pixel in the histogram.

To make the image brighter, move the midpoint to the right. Moving the mid-point to the left makes the image darker.

If the image is underexposed, move the white point to the left until it lines up with the brightest pixel.

Black point

Mid-point

White point

• To increase contrast, align the black point and white point with the darkest and brightest pixels.

• For help, press the Fn button; press the button again to return to the preview display.

Press the ADJ./OK button to create the corrected copy.

Caution ---------------------------------------------------------------------------------

• If the camera can not create a corrected copy, an error message will be displayed and the camera will exit to the playback menu.

• To cancel level compensation, press the DISP. button.

• You can only use level compensation for still images shot using this camera.

• You cannot use level compensation for movies or MP files.

• This function may not have any effect for images shot using [Text Mode] in scene mode, or images shot when [Image Settings] is set to [Black & White] or [Sepia].

• While you can use level compensation repeatedly, the image is recompressed each time and there will be some decline in image quality.

White Balance Compensation

Create copies with modified white balance.

A preview will be displayed with the original image at upper left, white balance controls at lower left, and the corrected copy on the right. Press the

ADJ./OK button

!"NF

to adjust white balance on the G reenM agenta and B lue-

A mber axes.

Press the ADJ./OK button in to record the modified copy.

Blue

Green

Amber

Magenta

Caution ---------------------------------------------------------------------------------

• You can only use white balance compensation for still images shot using this camera.

• You cannot correct the white balance for movies or MP files.

• This function may not have any effect for images shot using [Text Mode] in scene mode, or images shot when [Image Settings] is set to [Black & White] or [Sepia].

• While you can use white balance compensation repeatedly, the image is recompressed each time and there will be some decline in image quality.

6

93

6

• To cancel, press the DISP. button.

• Press the

D

button to reset white balance.

• For help, press the Fn button; press the button again to return to the preview display.

Skew Correction

Create copies that have been processed to reduce the effects of perspective on rectangular objects, such as message boards or business cards.

Caution ---------------------------------------------------------------------------------

• You can only use skew correction for still images shot with this camera.

• You cannot use skew correction for movies or MP files.

• If the camera is able to detect an object that can be used to correct perspective, a message will be displayed with the object shown by an orange frame. The camera can detect up to five objects.

• If the target area cannot be detected, an error message appears. The original image remains unchanged.

• To select another correction area, move the orange frame to the target area by pressing the ADJ./OK button

F

.

• To cancel skew correction, press the ADJ./OK button

!

. Even if you cancel skew correction, the original image remains unchanged.

• The image size does not change for skew corrected images.

• The time for skew correction increases with image size. To reduce the time required, perform skew correction on small copies created with the [Resize] option (

G

P.86).

• The following table shows the approximate time required for skew correction.

Image Size Correction time j 4 : 3 F Approx. 23 seconds

Image Size e 4 : 3 F

Correction time

Approx. 12 seconds j 4 : 3 N i 3 : 2 F

Approx. 22 seconds

Approx. 17 seconds c a

4 : 3 F

4 : 3 F

Approx. 8 seconds

Approx. 3 seconds g 1 : 1 F g 16 : 9 F

Approx. 13 seconds z 4 : 3 F

Approx. 13 seconds

Approx. 1 seconds

• When scene mode is set to [Skew Correct Mode], you can shoot an image and then immediately correct any skew in the image (

G

P.55).

94

Protect

[Protect] allows you to protect files from being accidentally deleted.

If [1 File] is selected, you can protect or unprotect the file selected by pressing the

ADJ./OK button

NF

.

If [Select All] or [Cancel All] is selected, you can protect or unprotect all files.

Selecting Multiple Files

Select [Sel. Multiple] to change the protect status of multiple individual files or of all files in a selected range.

To select multiple individual frames:

1

Select [Sel. Indiv.] and press the ADJ./OK button.

2

Select a frame and press the ADJ./OK button.

• Press the MENU button to switch to the display for specifying a range of files.

• If you selected a file by mistake, you can deselect it by selecting the file and pressing the ADJ./OK button.

• Select all files you want to protect.

3


To select two frames and all frames between them:

1

Select [Sel. Range] and press the ADJ./OK button.

2

Select the first frame and press the ADJ./OK button.

• Press the MENU button to switch to the display for specifying files separately.

• If you make a mistake when selecting the starting point for the range of files, press the DISP. button to return to the screen for selecting the starting point.

6

95

3

Select the last frame and press the ADJ./OK button.

• Repeat Steps 2 and 3 to select multiple ranges.

4


[Sel. Indiv.] and [Sel. Range] can be selected directly if [Protect] is chosen in thumbnail view.

Caution ---------------------------------------------------------------------------------

Note that formatting deletes all files, including protected files.

6

DPOF

To request professional prints of the photographs on a memory card, first use this option to create a digital “print order” listing the photos you wish to print and the number of prints, and then take the memory card to a digital print service center that supports the DPOF standard.

To add a photo to or remove it from the print order, select [1 File] and press the ADJ./OK button

NF

to display the desired file.

Select [Select All] to add all photos to the print order, or [Cancel All] to remove all files from the print order.

Selecting Multiple Files

To change the print status of multiple individual files, select [DPOF] in thumbnail view.

Select photos and press the ADJ./OK button

!"

to choose the number of prints; press the ADJ./OK button

!

to increase the number of copies, or press the ADJ./OK button

"

to decrease the number of copies.

Press the ADJ./OK button to exit when settings are complete.

96

To remove the DPOF settings for multiple still images, follow the same steps described above to set the number of copies to print to [0] for each image, and then press the ADJ./OK button.

Viewing Pictures on TV

To view pictures on a TV, connect the camera using the supplied AV cable.

1

Securely connect the AV cable to the

Video In terminal on the television.

• Connect the white plug of the AV cable to the audio input terminal (white) of the

TV unit and the yellow plug to the video input terminal (yellow).

2

Turn the camera off and securely connect the cable to the camera AV output terminal.

3

Set the television to Video mode (Set the input to Video).

• For details, see the documentation that came with the television.

4

Press the POWER button, or press and hold the

6

(Playback) button to turn the camera on.

Caution ---------------------------------------------------------------------------------

• When the AV cable is connected to the camera, the picture display and the speaker output turn off.

• Do not force the AV cable into the terminal.

• Do not apply excessive force with the AV cable connected.

• When using the AV cable, do not move the camera with the AV cable.

6

• You can connect the AV cable to the Video In terminal on your video recorder and record what you have shot to a video recorder.

• The camera supports the following video standards: NTSC and PAL. Where possible, the camera is set to the standard used in your country or region before shipment; before connecting the camera to a device that uses a different video standard, choose the appropriate video mode (

G

P.102).

97

7

You can change the camera settings by displaying the setup menu from the shooting menu (

G

P.71) or playback menu (

G

P.85).

Using the Menu

1


• The shooting menu (or the playback menu) appears.

2


N

.

3


"

.

• The setup menu appears.

• In scene, continuous, or creative shooting mode, press the button

"

twice.

4


F

.


5


!"


• If the DISP. button is pressed at this point, the display returns to the screen shown in Step 3.


"


6


F

.

• The menu item settings are displayed.

7


!"

to select the setting.

98

8


• The setup menu disappears and the camera is ready for shooting or playback.

• The setup menu may appear depending on the setting. In this case, press the MENU button or the ADJ./OK button to return to the shooting or playback screen.

• Pressing the ADJ./OK button

N

in Step 8 confirms the setting and the display returns to the screen shown in Step 5.

For some functions, the setting selection method may differ from what is explained here. For detailed operation, see the explanation of each function.

Setup Menu Options

Format [Card]

Select [Yes] and press the Fn button to format the memory card.

Format [Internal Memory]

Select [Yes] and press the Fn button to format internal memory. If you have images in the internal memory that you do not want to delete, copy the images to the SD memory card before formatting the internal memory (

G

P.87).

LCD Brightness


!"

to adjust the brightness of the picture display.

Reg. My Settings

G

P.103

Save current camera settings.

Step Zoom

Select [On] to allow zoom to be adjusted in discrete steps that on a 35-mm camera would be equivalent to focal lengths of 28 mm, 35 mm, 50 mm, 85 mm, 105 mm,

135 mm, 200 mm, and 300 mm. In macro mode, the step zoom focal lengths are roughly equivalent to 31, 35, 50, 85, 105, 135, 200 and 300 mm on a 35-mm camera.

Set Fn Button

G

P.49

Choose the role performed by the Fn button.

ADJ Button Setting 1–4

G

P.46

Choose the role performed by the ADJ./OK button.

AF Auxiliary Light

If [On] is selected, the AF auxiliary light will light to assist autofocus.

7

99

Operation Sounds

Choose the sounds made by the camera.


All All sounds on.

Level Sound

Shutter Sounds

Only the level sound is emitted.

Only the shutter sound and level sound are emitted.

7

• If you try to perform an operation that cannot be performed, the beep sound is emitted regardless of the [Operation Sounds] setting.

• Regardless of the option selected, no sound is emitted when [Discreet Mode] or [Pets] is selected in scene mode.

Volume Settings

The operation sound volume can be changed.

• When [Volume Settings] is set to [ ] (Mute), the level sound is not emitted even when [Level Setting] is set to [Display+Sound] or [Sound].

• Regardless of the option selected, no sound is emitted when [Discreet Mode] or [Pets] is selected in scene mode.

LCD Confirmation Time

Choose how long photos are displayed after shooting. Choose [Hold] to display photos until the shutter release button is pressed halfway. Photos displayed after shooting can be viewed using zoom (

G

P.36) or deleted (

G

P.37). Depending on the option selected for [Noise Reduction] (

G

P.74), photos may be displayed longer than the time selected.

Auto Power Off

Choose how long the camera remains on when no operations are performed.

The camera will not turn off automatically if [Off ] is selected, during interval timer photography (

G

P.76), or when the camera is connected to a computer or printer.

LCD Auto Dim

If [On] is selected, the picture display will automatically dim to save power if no operations are performed for about five seconds. This feature is not available in synchro-monitor mode (

G

P.40).

Digital Zoom Image

G

P.104

Choose [Auto Resize] to record pictures taken with digital zoom at actual size,

[Normal] to enlarge image data from the center of the frame.

100

Level Setting

Adjust level indicator and level sound settings.

Grid Guide Display Options

Choose the type of framing grid available in shooting mode.


A three-by-three grid for “rule of thirds” composition.

G

P.42

G

P.40

A four-by-four grid with diagonal lines running from corner to corner makes it easy to find the center of the subject. Use for architectural photography or photographing products for display.

A two-by-two grid with the center of the frame left clear to make it easier to view the subject. Use if your subject is in motion.

Function Guide

If [On] is selected, help will be displayed when you turn the mode dial or use controls such as the

F

(flash),

N

(macro), and t

(self-timer) buttons.

Shooting Info. Display Frame

Select [On] to display shooting icons in a frame surrounding the view through the lens (

G

P.40).

Shooting information display frame cannot be used in movie mode.

444

+ 0.7

ISO 100

Minimum Distance

Select [Show] to display the minimum focus distance for the current zoom position.

The minimum focus distance is not displayed in scene auto mode.

Auto Rotate

Select [On] to automatically display pictures in the correct orientation during playback.

White Saturation Display

G

P.41

If [On] is selected, highlights can be viewed in playback mode by pressing the DISP. button.

7

101

Card Sequence No.

When you switch SD memory cards, you can set your camera to continue consecutive numbering from the previously loaded card.


On (Continue numbering)

Off (Do not continue numbering)

Files names consist of “R” followed by a seven-digit number (e.g.,

“R0010001.jpg”), assigned in ascending order from 0010001 to

9999999. When a new memory card is inserted, file numbering continues from the last number used.

File numbering is assigned, from RIMG0001.jpg to RIMG9999.

jpg, for each SD memory card. When the file name reaches

RIMG9999, no more data can be recorded to that card.

• This option applies only to memory cards. The names of photos in internal memory consist of “RIMG” and a four-digit number.

• When images are transferred to a computer using DL-10 (

G

P.113), the file being transferred is renamed and saved.

Caution ------------------------------------------------------------------------------

When the file name reaches RIMG9999 or R9999999, no more files can be saved.

In this case, move image data from the SD memory card to the memory of the computer or a storage medium, and then format the SD memory card.

USB Connection Type

Choose a connection type ([Mass Storage] or [PTP]) before connecting the camera to other devices via USB.

Date Settings

G

P.26

Set the camera clock.

7

102

• If the battery is removed for more than one week, the date and time settings will be lost. These settings must be made again.

• To retain the date and time settings, load a battery with adequate remaining power for more than two hours.

Language/

N (

*

) G

P.26

You can change the language displayed on the screen.

Video Out Mode ( * )

You can view your still images and movies on a television screen by connecting your camera to a television with the AV cable that came with your camera. Select from NTSC (used in North America, the Caribbean, parts of Latin America, and some

East Asian countries) and PAL (used in the United Kingdom and much of Europe,

Australia, New Zealand, and parts of Asia and Africa). SECAM is not supported.

(

*

) The default setting varies depending on where you purchased the camera.

Reg. My Settings

Save current camera settings in [MY1] or [MY2]. Settings saved in [MY1] are recalled when the mode dial is rotated to T , those saved in

[MY2] when the mode dial is rotated to U .

1

Set the camera to the desired settings.

2

Select [Reg. My Settings] in the setup menu ( press the ADJ./OK button

F

.

G

P.98) and

• A confirmation message appears.

3

Select [MY1] or [MY2] and press the ADJ./OK button.

• The current camera settings are registered and the display returns to the setup menu.

• If you do not want to register them, press the DISP. button.

Settings Saved in [Reg. My Settings]

Shooting mode (scene auto mode excluded) Custom Self-Timer

Focus position for manual focus Camera Shake Correction


Soft Focus Options

Slow Shutter Limit

Date Imprint

Hue

Vignetting

Toy Color



Density


White Balance

ISO Setting

Step Zoom

Digital Zoom Image

Set Fn Button

Pre-AF

Focus

Exposure Metering

Image Settings

Noise Reduction


Auto Bracket

WB-BKT

CL-BKT

FOCUS-BKT

Time Exposure

Level Setting


Function Guide


Minimum Distance

USB Connection Type

Zoom position

Macro

Flash Mode

Self-Timer

DISP. mode

7

103

7

Digital Zoom Image

If [Normal] (the default option) is selected for [Digital Zoom Image] , digital zoom will enlarge image data from the center of the frame to create a picture at the current image size, creating a slightly grainy image. To record pictures taken with digital zoom at actual size, select

[Auto Resize]. The size at which the image will be recorded varies with the zoom ratio.

To use auto resize zoom, hold the zoom lever at z

(Telephoto) until the camera is zoomed all the way in, then briefly release the zoom lever and turn it to z

again.

Image size changes each time the zoom lever is turned to z

. The current size is displayed above the zoom bar.

The auto resize zoom is enabled when j 4 : 3 F or j 4 : 3 N is selected for [Picture Quality/Size] (

G

P.72), and the digital zoom is enabled in other cases.

Zoom Magnification and Recorded Image Size

Picture Quality/Size j 4 : 3 F/ j 4 : 3 N e 4 : 3 F c 4 : 3 F a 4 : 3 F z 4 : 3 F

Zoom Magnification

1.0 ×

1.4 ×

1.8 ×

2.9 ×

5.7 ×

(

*

)


Focal Length

300 mm

420 mm

530 mm

850 mm

1710 mm

( * )

Caution ---------------------------------------------------------------------------------

• [Auto Resize] has no effect when [Skew Correct Mode] is selected in scene mode or [Toy Camera] is selected in creative shooting mode.

• Fine picture quality is used for all photographs recorded using [Auto Resize], regardless of the option currently selected for [Picture Quality/Size].

104

About the Direct Print Function

The Direct Print standard enables direct printing from a camera to a printer by connecting them via a USB cable. Photos can be printed quickly and easily from your digital camera without using a computer.

Caution ---------------------------------------------------------------------------------

You cannot print AVI files (movies) or MP files with this function.

• This camera uses PictBridge, an industry standard for Direct Printing.

• Your printer must be compatible with PictBridge to use the Direct Print function. For support information, see the documentation that came with the printer.

Connecting the Camera to a Printer

Connect your camera to a printer using the USB cable provided.

1

Make sure that the camera power is off.

2

Connect your camera to a printer using the USB cable provided.

• Turn on the printer if it is not already on.

• Your camera turns on automatically.

To disconnect the camera from the printer, check that the camera is turned off after printing is finished, and disconnect the USB cable.

Caution ---------------------------------------------------------------------------------

• Do not force the USB cable into the terminal.

• Do not apply excessive force with the USB cable connected.

• When using the USB cable, do not move the camera with the USB cable.

8

105

Printing Still Images

You can print still images from the camera with a PictBridgecompatible printer. If a memory card is inserted, the pictures will be printed from the memory card; otherwise pictures will be printed from internal memory.

Caution ---------------------------------------------------------------------------------

Do not disconnect the USB cable during printing.

• If a [Printer error.] message appears during image transfer, check the printer status and take the appropriate action.

• If a computer connection message appears even though the camera is connected to the printer, reconnect the camera and press the ADJ./OK button within two seconds.

• Before connecting to some printers, you may need to select [PTP] for [USB

Connection Type] (

G


G

P.98).

Before printing, connect the camera to the printer. The message [Connecting...] shown at right will be displayed if the printer is ready; press ADJ./OK to view the

Direct Print playback display.

8

Printing One or All Still Images

1

Select an image for printing and press the ADJ./OK button.

2

Select [1 File] or [All Files] and press the ADJ./OK button.

• The Direct Print menu appears.

3

Select an item and press the ADJ./OK button

F

to view the options available.

• When [Connecting…] is displayed, the connection to the printer is not yet established. When a connection is established,

[Connecting…] disappears and [Direct Print] appears. Proceed with this step after the connection is established.

106

• The following items can be selected. Each item is available only when supported by the printer connected to the camera.

Item Name

Paper Size

Paper Type

Layout

Description

Sets the paper size.

Sets the paper type.

Sets the number of images printed on a sheet of paper.

The number of images that can be laid out on a sheet of paper varies depending on the connected printer.

Date Print Selects whether to print the date (shooting date). The date format can be set using the date/time option in the

( setup menu. If the picture was taken using [Date Imprint]

G

P.77), only the imprinted date will be printed.

File Name Print Selects whether to print the file name.

Optimize Image Selects whether to optimize the image data (still image) prior to printing on the printer.

Print Size Sets the print image size.

Print Quality

Report Print

(

*

)

Sets the print quality.

Prints on forms.

Printing Quantity Sets the print quantity.

Toner Saving ( * ) Selects whether to conserve toner by using less ink during printing.

1-Side/2-Sides

(

*

)

Selects whether to print on both sides of the paper.

During duplex printing, one copy is printed for each still image. Only one copy is printed even if you selected more than one copy to print in Step 3 on P.108.

(

*

) Each item is available only when supported by the Ricoh printer connected to the camera.

• To specify the settings as the default settings next time the camera is connected to the printer, press the MENU button when the screen in Step 3 is displayed. Select [Yes] in the display at right and press the ADJ./OK button.

• To use the settings last set the next time the camera is connected to the printer, select [No].

4

Select an option and press the ADJ./OK button.

• The display returns to the Direct Print menu.

• Repeat Steps 3 and 4 to change other settings as required.

8

107

8

5


• The selected still images are sent to the printer and the [Sending…] screen appears.

• Pressing the DISP. button cancels the operation.

• When the images have been sent to the printer, the display returns to the Direct Print playback mode screen and printing starts.

Printing Several Still Images

1

Turn the zoom lever toward

9

(Thumbnail View) to display the thumbnail view.

2

Select an image and press the ADJ./OK button.

3


!"

to set the number of copies to print.


!

to increase the number of copies, or press the ADJ./OK button

"

to decrease the number of copies.

• Repeat Steps 2 and 3 to select additional images.

4


• The Direct Print menu appears.

5

Select an item and press the ADJ./OK button

F

to view the options available.

• See Steps 3 and following on P.106.

• Only images with a printer symbol ( p ) are printed. If you cancel printing and then try to print again, make sure that the printer symbol is on the images you want to print.

• The same still image can also be printed several times on a single sheet.

• The available items vary depending on the functions of the printer.

• To print images using the printer’s default settings, select [Printer Select] on the detailed options screen.

108

9 Downloading Images to Your Computer

The screen images shown here may differ from the images displayed on your computer depending on your computer OS.

For Windows

You can copy pictures to your computer with or without DL-10 software, which can be installed from the supplied CD.

System Requirements for Using the Supplied CD-ROM

The following environments are necessary for using the supplied CD-

ROM. Please check your computer, or the computer's user manual.

Operating Systems

Supported

CPU

Memory

Windows XP Home Edition Service Pack 3/Professional Service Pack 3

Windows Vista Service Pack 2

Windows 7 (32- and 64-bit)

Pentium® IV: 1.6 GHz or faster

Pentium® M: 1.4 GHz or faster

Core™ 2 Duo: 1.5 GHz or faster

Windows XP: 512 MB or more

Windows Vista/Windows 7: 1 GB or more

300 MB or more Hard drive space required for installation

Display Resolution

Display Colors

CD-ROM Drive

USB Port

1024 × 768 pixels or greater

65,000 colors or greater

A CD-ROM drive compatible with the above-mentioned computer

A USB port compatible with the above-mentioned computer

9

109

Caution ---------------------------------------------------------------------------------

• The CD-ROM supports the following languages. Operations are not guaranteed on operating systems with languages other than those listed below.

Japanese, English, French, German, Spanish, Italian, Chinese (Traditional, Simplified), Korean

• 64-bit Windows Vista is not supported.

• If your computer has an upgraded OS, the USB function may not work normally, so it cannot be supported.

• The provided software may not operate properly if changes are made to the operating system, such as with patches and service package releases.

• The camera does not support connection to a USB port added by using an extension function (PCI bus or other).

• If used in conjunction with a hub or other USB devices, the software may not work properly.

• When dealing with movies and other large files, a larger memory environment is recommended.

9

CD-ROM Setup

Once you insert the supplied CD-ROM in the CD-ROM drive, the installer screen appears automatically.

Windows XP

• The installer screen appears automatically.

Windows Vista/Windows 7

• If an Autorun dialog is displayed, select [Run Autorun.exe]. The installer will start automatically.

Use this button to install software required for batch downloading and editing of images.

Click this to display the

“Software User Guide” (PDF).

Click this to display the list of files contained on the CD-ROM.

110

Installing Software

Click [Installing the software] to install the following software.

Software

DL-10

MediaBrowser

USB Driver

WIA Driver

Description

Downloads images collectively to your computer.

Display, manage, and edit existing images.

Used to connect an earlier model Ricoh camera to a computer running Windows 98/Windows 98 SE/

Windows Me/Windows 2000. Not used with this camera.

Used to connect an earlier model Ricoh camera to a computer running Windows XP/Windows Vista/

Windows 7. Not used with this camera.

Caution ---------------------------------------------------------------------------------

• Do not install the software when the camera is connected to your computer with a USB cable.

• The names for DC Software items differ from the names for Caplio Software items provided with previous models as shown below.

Caplio Software

RICOH Gate La

Caplio Viewer

Caplio Server

Caplio Setting

DC Software

DL-10

DU-10 (not used with this camera)

SR-10 (not used with this camera)

ST-10 (not used with this camera)

If Caplio Software from a CD-ROM supplied with a previous model is already installed on your computer, a message asking you to uninstall the Caplio

Software before installing DC Software will appear when you try to install the new software.

• Administrator privileges are required for installation.

• DL-10 is not network-compatible. Use as a stand-alone application.

1

Click [Installing the software].

Windows XP

• After a while, the [Choose Setup Language] screen appears.

Windows Vista/Windows 7

• If a [User Account Control] dialog is displayed, select [Yes]

(Windows 7) or [Allow] (Windows Vista). After a short pause, the

[Choose Setup Language] dialog will be displayed.

9

111

9

112

2

Select a language and follow the on-screen instructions to complete installation.

• The MediaBrowser installer will start. To install MediaBrowser, accept the license agreement and follow the on-screen instructions.

3

When a message appears asking you to restart your computer, select [Yes, I want to restart my computer now.] and then click [Finish].

• Your computer will restart automatically.

• After your computer restarts, a Windows security warning message appears.

4

Click [Unblock] for DL-10.

Uninstalling the Software ---------------------------------------------------------

• DC Software and MediaBrowser can be uninstalled from [Control Panel] >

[Programs and Features] (Windows 7 and Windows Vista; in category or home view, select [Control Panel] > [Programs] > [Uninstall a program]), or [Add or

Remove Programs] (Windows XP).

• Administrator privileges are required.

• Quit any other programs that may be running before uninstalling the software.

Adobe Reader

Adobe Reader is required to display the operation manual (PDF file).

Acrobat Reader or Adobe Reader need not be installed if already installed on your computer.

• For details about Adobe Reader, see Help for Adobe Reader.

• To install MediaBrowser alone, double-click “setup.exe” in the MediaBrowser folder.

• Installation of Adobe Reader 9.3 requires either Microsoft Internet Explorer

6.0 or later or Firefox 2.0 or later. Microsoft Internet Explorer is available via

Microsoft Update.

• Installation of Adobe Reader 9.3 requires MSI (Microsoft Windows Installer) version 3.1 or later. Microsoft Windows Installer is available via Microsoft Update.

Caution ---------------------------------------------------------------------------------

• Do not install the software when the camera is connected to your computer with a USB cable.

• Administrator privileges are required for installation.

1

Click [Browse CD-ROM Content].

• The files on the CD-ROM are listed.

2

Open the folder for your language in the [Adobe Reader] folder and double-click the Adobe Reader installer.

• A screen appears to confirm user account management for

Windows 7 and Windows Vista. Select [Continue].

3

Install Adobe Reader by following the messages displayed.

Copying Pictures to Your Computer

Follow the steps below to copy pictures to your computer.

Caution ---------------------------------------------------------------------------------

Before proceeding, confirm that [Mass Storage] is selected for [USB Connection

Type] (

G


G

P.98).

1

Connect the camera to the computer using the supplied USB cable.

• Turn the camera off before connecting the USB cable.

• The camera turns on automatically when a connection is established.

2

Copy photos to the computer.

If DL-10 is installed:

• DL-10 starts and image transfer begins automatically.

• Pictures are copied to the [Digital Camera] folder in [My Documents], where they are sorted into separate folders by date of recording. See the “Software User Guide” on the supplied CD for more information.

9

113

If DL-10 is not installed:

• Copy files from the camera to the desired location.

• When an SD memory card is loaded, its files are displayed.

Otherwise, files in the internal memory are displayed.

9

Example of the display in Windows XP

3

Disconnect the USB cable when transfer is complete.

• Click the [Safely Remove Hardware] or

[Unplug or Eject Hardware] icon in the taskbar (the illustration above shows the icon for Windows XP) and select [Safely Remove USB Mass Storage Device] or [Stop USB Mass

Storage Device] from the menu that appears. You can then disconnect the USB cable.

• If the remove hardware icon is not displayed in Windows 7, click the button in the taskbar.

Caution ---------------------------------------------------------------------------------

• Do not turn off the camera or disconnect the USB cable during image transfer.

• Do not use force when connecting the cable or when handling the camera with the cable connected. Do not attempt to transport the camera while the USB cable is connected.

The camera is provided with MediaBrowser software that allows you to display and edit images from your computer. For how to use MediaBrowser, see the displayed “Help”.

For the latest information about MediaBrowser, access the Web page of Pixela Co.,

Ltd. ( http://www.pixela.co.jp/oem/mediabrowser/e/ ).

114

For Macintosh

This camera supports the following Macintosh operating systems.

• Mac OS X 10.1.2 to 10.6.3

Caution ---------------------------------------------------------------------------------

VM-1 software can be installed on Macintosh computers as described on P.117.

More information is available in the “Software User Guide”.

Copying Pictures to Your Computer

Follow the steps below to copy pictures to your computer.

1

Connect the camera to the computer using the supplied USB cable.

• Turn the camera off before connecting the USB cable.

• The camera turns on automatically when a connection is established.

2

Copy photos to the computer.

• Copy files from the camera to the desired location.

• When an SD memory card is loaded, its files are displayed.

Otherwise, files in the internal memory are displayed.

3

Disconnect the USB cable when transfer is complete.

• Drag the camera volume into the Trash and then disconnect the USB cable.

9

115

9

Caution ---------------------------------------------------------------------------------

• Do not turn off the camera or disconnect the USB cable during image transfer.

• Do not use force when connecting the cable or when handling the camera with the cable connected. Do not attempt to transport the camera while the USB cable is connected.

• You can also click [Eject] on the [File] menu to cancel the connection.

• If the USB cable is disconnected without disabling the connection, the Unsafe

Removal of Device screen may be displayed. Be sure to stop the connection before removing the USB cable.

• When you connect your camera to a Macintosh computer, a file called “FINDER.

DAT” or “.DS_Store” may be created in your SD memory card, which will appear as [Unmatched File] on your camera. You can delete this file from the SD memory card if you wish.

Using the MP File Viewer

When you shoot one still image with M-Cont Plus, Speed Cont, or

Multi-trgt AF, the image is recorded as one MP file.

By using the VM-1 MP file viewer, you can play back MP files on your

Macintosh computer and export still images.

This section explains how to install and uninstall the VM-1 software included on the supplied CD-ROM. For details on how to play back

MP files on your computer or export still images from MP files using the MP file viewer, see the “Software User Guide” available from the supplied CD-ROM.

116

System Requirements for Using the Supplied CD-ROM

The following environments are necessary for using the supplied CD-

ROM. Please check your computer, or the computer’s user manual.

Operating Systems Supported Mac OS X 10.4 to 10.6.3

Macintosh computer Apple Inc. Macintosh Series

Internal Memory Mac OS X 10.4 256 MB or more

Mac OS X 10.5 512 MB or more

Mac OS X 10.6 1GB or more

Hard Disk Available Memory 5 MB or more

CD-ROM Drive A CD-ROM drive compatible with the above-mentioned

Macintosh computer

VM-1 supports Japanese, English, French and Chinese (Simplified).

Installing VM-1

1

Start your Macintosh computer and insert the supplied CD-

ROM in the CD-ROM drive.

2

Double-click the [RICOH] icon, the [VM-1] folder, and the

[VM-1 Installer.pkg] icon.

• The [Install VM-1] window is displayed.

3

Follow the on-screen instructions to complete installation.

Deleting (Uninstalling) VM-1 -----------------------------------------------------

• Double-click [Applications], [Utilities], [VM-1 Utility], and [VM-1 Uninstaller] and follow the on-screen instructions.

• If you have any other software applications running or data that has not been saved, quit the other software applications and save the data before uninstalling the software.

• If an error occurs during the uninstallation process, update your Mac OS to the latest version.

9

117

10 Appendices

Troubleshooting

10

Error Messages

If an error message is displayed on the screen, check the information on the reference page and take the corresponding action.

Error Message

Insert card.

Set date.

The file number limit has been exceeded.

Unmatched File

Cause and Solution

No card is loaded. Insert a card.

The date is not set. Set the date.

P.102

The file number limit has been exceeded. Use another card. P.102

Insufficient memory. Continue?

Protected

Card Is Write-Protected.

Print settings cannot be applied to this file.

Insufficient Memory

Format internal memory.

Format card.

Card Error

Writing Data

No File

Out of memory. cannot record.

No files to restore.

Can not —. *

This file cannot be displayed on the camera. Check the file contents on your computer, and then delete the file.

All the files cannot be copied because there is insufficient memory on the card. Use another card.

The file selected for deletion is protected.

The card is locked (write-protected). Unlock the card.

This file (movie or other file) cannot be selected for printing.

Files cannot be stored. Make sure there is sufficient memory or delete unwanted files.

The image print number limit has been exceeded. Select an image and set the number to 0.

The internal memory requires formatting.

The card is not formatted. Format the card with this camera.

SDXC cards can not be used. If the card is not an SDXC card, format the card; if the message persists, the card may be faulty and should not be used.

Writing file to memory. Wait until writing finishes.

There are no files that can be played back.

The number of remaining shots is 0. Switch to another card or the internal memory.

There are no files to restore.

Selected option can not be applied to image more than once, or image was created with different make of camera.

If image was created with different make of camera, process image using original make of camera.

* “—“ indicates the name of the process that can not be applied.

Refer to

P.24

—

P.22

P.95

P.22

—

P.37,

P.99

P.108

P.99

P.99

P.99

—

—

P.22

P.87

—

118

Camera Troubleshooting

Power Supply

Problem

The camera does not turn on.

The camera turns off during use.

The camera does not turn off.

The battery has been fully charged, but:

• The battery symbol is displayed, indicating a low battery level.

• The camera turns off.

Cannot charge the battery.

Battery runs out quickly.

Cause

The battery is exhausted or not inserted.

Solution

Load the rechargeable battery correctly, or charge the battery.

An unacceptable battery is used.

Use the dedicated rechargeable battery. Never use any other battery.

Turn the camera back on.

The camera is automatically turned off by auto power off.

The battery is loaded in wrong direction.

Load correctly.

P.25

P.24

Because the camera overheated, the power was automatically turned off.

A (manganese dry cell or other) unacceptable battery is used.

Wait until the temperature of the camera returns to normal. Do not attempt to cool the camera suddenly.


Remove the battery and load it again.


—

The camera was left unattended and unused, so auto power off turned it off.

P.25

Battery is exhausted.

An unacceptable battery is used.

Charge the rechargeable battery. P.23


P.21

Camera malfunction P.24

P.21

Refer to

P.24,

P.23

P.21

Battery has reached the end of its useful life.

It is being used at extreme high or low temperatures.

Many shots are being taken in dark places or other location requiring extensive use of flash.

Replace with a new rechargeable battery.

—

—

P.24

—

—

10

119

10

120

Shooting

Problem

The camera does not shoot even if you press the shutter release button.

Unable to view the shot image.

Images do not appear on the picture display.

Although the camera is set to auto focus, it is unable to focus.

Although the camera is not in focus, the green frame appears in the center of the picture display.

The picture is blurred.

(The

J

symbol appears.)

Cause


Solution Refer to


P.25

The camera is not on.

Press the POWER button to turn the camera on.

The camera is in playback mode.

Press the

6

(Playback) button to select the shooting mode.

The shutter release button is not pressed all the way.

Press the shutter release button all the way.

P.25

P.27

The SD memory card is not formatted. Format the card.

The SD memory card is full.

The SD memory card has reached the end of its useful life.

The flash is charging.

Load a new card, or delete unwanted files.

Load a new SD memory card.

Wait until the flash mode symbol stops blinking.

P.99

P.24,

P.37

P.24

P.31

The SD memory card is locked.

The contact surface of the SD memory card is dirty.

The image confirmation time is too short.

The camera is not on, or the picture display is dark.

Unlock the card.

Wipe with a soft, dry cloth.

Lengthen the image confirmation time.

Turn the camera on, or adjust the brightness of the picture display.

P.22

—

P.100

P.25,

P.99

The VIDEO/AV cable is connected.

Disconnect the VIDEO/AV cable.

—

The screen display is in synchromonitor mode.

Press the DISP. button to change the display.

P.40

The lens is dirty.

The subject is not in the center of the shooting range.

It is a hard-to-focus subject.

Wipe clean with a soft, dry cloth. —

Shoot with focus lock.

P.27

The camera incorrectly focused because the distance to the subject is too close.

Shoot with focus lock or manual focus.

Shoot with macro mode, or move away from the subject.

P.27,

P.79

P.30

You moved the camera when pressing the shutter release button.

P.27

When shooting in a dark place

(such as indoors), the shutter speed slows down and pictures become easily blurred.

Hold camera in both hands with your elbows pressed lightly against your torso.

Use a tripod.

Use the camera shake correction function.

Use the flash.

Raise the ISO setting.

Use the camera shake correction function.

P.76

P.31

P.84

P.76

Problem

The flash does not fire.

Or, the flash cannot charge.

Cause

The flash cannot be used in the following cases:

• In bracket shooting

• In continuous mode

• In movie mode

• In discreet mode

• In pets mode

In some scene modes, the flash is disabled by default.

The flash is set to flash off.


The distance to the subject exceeds the flash range.

Solution

To shoot with the flash, change the settings or mode.

Refer to

P.52,

P.128

Even though the flash fired, the picture is dark.

The subject is dark.

The light intensity of the flash is not appropriate.

The image is too bright. The light intensity of the flash is not appropriate.

Subject is overexposed. (The [!AE] symbol appears.)

The brightness of the picture display is not appropriate.

The image is too dark.

The shot was taken in a dark place while set to flash off.

The subject is underexposed. (The

[!AE] symbol appears.)

The image lacks natural color.

The date or recording information does not appear on the screen.

The brightness of the picture display changes during AF.

The brightness of the picture display is not appropriate.

The picture was shot in conditions that made it difficult for auto white balance to adjust the white balance.

The screen display function is set to no display.

Ambient lighting is poor or differs from that used for autofocus..

Cancel Flash Off.

P.31


Get closer to your subject and shoot. Change the flash mode or the ISO setting.

Correct the exposure. (Exposure compensation also changes the light intensity of the flash.)

Adjust the light intensity of the flash.

P.84,

P.128

P.82

P.75

P.31,

P.75

Adjust the light intensity of the flash. Alternatively, move a little away from the subject or illuminate the subject with another light source instead of using the flash.

Correct the exposure.

Cancel exposure time.

Adjust the brightness of the picture display.

Cancel Flash Off.

P.82

P.75

P.99

P.31

Correct the exposure.

Set the long exposure time.

Adjust the brightness of the picture display.

Add a white object to the composition, or use a white balance setting other than auto.

Press the DISP. button to change the display.

This is normal.

P.82

P.75

P.99

P.83

P.40

—

10

121

10

122

Problem

The level indicator is not displayed.

The image is tilted even though it was shot with the level indicator in the middle or while the level sound was sounding.

Self timer lamp does not light.

Cause

[Level Setting] is set to [Off] or

[Sound].

The display is set to a setting other than normal symbol display or histogram.

The camera is upside down (The shutter release button is on the bottom).

You shot the image while moving, such as on a amusement ride.

The subject is not level.

[Discreet Mode] or [Pets] is selected in scene mode.

Solution

Set [Level Setting] to [Display] or

[Display+Sound].

Press the DISP. button to change the display to normal symbol display or histogram.

Hold the camera correctly.

Shoot in an environment that is not moving.

Check the subject.

Choose another mode.

Refer to

P.42

P.40

—

—

—

P.52,

P.53

Playback/Deleting

Problem

Cannot play back, or the playback screen does not appear.

The contents of the SD memory card cannot be played back, or the playback screen does not appear.

Cause

The camera is not in playback mode.

The VIDEO/AV cable is not connected properly.

The [Video Out Mode] setting is incorrect.

No SD memory card is loaded, or an SD memory card with no stored images is loaded.

You played back an SD memory card that was not formatted with this device.

You played back an SD memory card that was not recorded normally.

The contact surface of the SD memory card is dirty.

There is something wrong with the SD memory card.

The picture display turned off.


The camera was left unattended and unused, so auto power off turned it off.

Solution Refer to

Press the

6

(Playback) button.

P.25

Connect properly.

Set it to the correct format.

Load a card with stored images.

—

Load a card that was formatted and recorded with this device.

Wipe with a soft, dry cloth.

P.97

P.102

P.24,

P.99

Load a normally recorded card.

—

—

Play back images from another card and if there is nothing wrong with the card, the camera is okay. There may be something wrong with the card, so do not use it.

—



P.25

Problem

Part of the screen flashes in black.

A file cannot be deleted.

Cannot format the SD memory card.

Cause

The screen is highlighted due to an overly bright area.

The file is protected.



Solution

It is recommended that you shoot another image while avoiding direct sunlight and setting the exposure level lower (–).

Unprotect the file.

Unlock the card.

Unlock the card.

Refer to

P.41,

P.82

P.95

P.22

P.22

Other Problems

Problem

Cannot load the SD memory card.

The camera does not operate even when the buttons are pressed.

The date is incorrect.

The set date disappeared.

Cause Solution

The card is facing the wrong way.

Load correctly.


Camera malfunction

Refer to

P.24


Press the POWER button to turn the camera off, and then press the POWER button to turn the camera on again.

P.25

Remove the battery and load it again.

P.24

The correct date/time are not set.

Set the correct date/time.

The battery was removed.

If the battery is removed for more than one week, the date setting will be lost. Make the settings again.

Auto power off is set to [Off].

P.102

P.102

Set the time for auto power off.

P.100

Auto power off does not work.

The operation sound cannot be heard.

Images do not appear on the TV.

[Discreet Mode] or [Pets] is selected in scene mode.

The operation sound volume is turned off.

The [Video Out Mode] setting is incorrect.

The AV cable is not connected.

The TV is not correctly set to

VIDEO IN.

Choose another mode.

Use [Volume Settings] to set the volume to a setting other than mute.

Set it to the correct format.

Connect the AV cable properly.

Check that the TV is correctly set to VIDEO IN.

P.52,

P.53

P.100

P.102

P.97

—

10

123

10

Available Settings

The following table lists the settings available in each shooting mode.

N

(Macro) *

1

F

(Flash) t

(Self-timer) *

4

Digital Zoom


Soft Focus Options

Vignetting

Toy Color

Hue



Movie Size

Density

Size

Focus Multi AF * 7

Face Pr. Multi *

9

Subj. Tracking

Pre-AF * 11

Exposure Metering

Image Settings

Noise Reduction


Auto Bracket * 13

Time Exposure *

14

Spot AF

Multi-trgt AF *

10

AF

MF

Snap

∞

5 3

S-

AUTO

4

✓ ✓

— —

✓

— — — —

✓

—

✓

* 2 ✓

—

✓

* 3 —

✓

—

✓ — ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓

*

6 ✓ ✓ ✓ ✓ ✓ ✓ ✓

— — — — — — — — —

— — — — — — — — —

— — — — — — — — —

— — — — — — — — —

— — — — — — — — —

— — — — — — — — —

✓

—

✓ ✓ ✓ ✓ ✓ ✓ ✓

—

✓

— — — — — — —

— — — — — — — — —

— — — — — — — — —

✓ ✓ ✓

*

8

—

✓ ✓ ✓ ✓

—

✓ ✓

— —

✓ ✓

—

✓

—

✓

— — —

✓

— — — —

✓ ✓

— —

✓ ✓ ✓ ✓

—

✓

— — —

✓

— — — —

— — — — — — — — —

✓ — — — ✓ — — — —

✓

— — —

✓ ✓ ✓ ✓

—

✓ ✓

— —

✓ ✓ ✓ ✓

—

✓ ✓

— —

✓ ✓ ✓ ✓

—

✓

— — —

✓

— — — —

✓

— — —

✓

— — — —

✓

— — —

✓ ✓ ✓

*

8

—

✓

✓

— —

✓ ✓

— —

✓

—

✓

— — —

✓

— — — —

✓

— — —

✓

— — — —

*1 [Focus] is set to [Spot AF]. Disabled when [MF] is selected for [Focus].

*2 Only [Flash Off ] or [Auto] can be selected.

*3 Only [Anti Red-eye] or [Flash Synchro.] can be selected.

*4 Self-timer disabled when [Interval Shooting] is in effect. [Custom Self-Timer] is not available when [Focus] is set to [Multi-trgt AF] or [Subj. Tracking].

*5 Only digital zoom (1280: up to 2.8 ×; 640 or 320: up to 4.0 ×) can be used.

*6 Only a 4 : 3 F] or [ z 4 : 3 F] is available.

*7 [Spot AF] used when digital zoom is in effect.

*8 Available, but menu is not displayed and setting can not be changed.

124

4 R

X

✓

—

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓

—

✓ ✓ ✓

— — — — — —

✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ — — — — — ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

—

✓ ✓ ✓ ✓ ✓

— — — — — — — — — —

✓

— — — — —

— — — — — — — — — — — — —

✓

— —

— — — — — — — — — — — — — — —

✓

— — — — — — — — — — — — — — — ✓

— — — — — — — — — — — — — —

✓

—

— — — — — — — — — —

✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓

*

7 ✓

—

✓

— — — —

✓ ✓ ✓ ✓ ✓ ✓

— — — — — — — — — — — — — — — —

— — — —

✓

— — — — — — — — — — —

— — — —

✓

— — — — — — — — — — —

— —

✓ ✓

—

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

— — —

✓

—

✓ ✓ ✓ ✓ ✓

— — —

✓

— —

— — — — — — — — — — — — — — — —

— — ✓ ✓ — ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

— — — — — — — — — — — — — — — —

✓

— — — — — — — — — — — — — — —

✓

— — — —

✓ ✓ ✓ ✓ ✓ ✓

— — — — —

— — — ✓ — ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

— — —

✓

—

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓

—

✓ ✓

—

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓

—

✓

— —

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓

—

✓

— —

✓ ✓ ✓ ✓ ✓ ✓

* 12 ✓

* 12 —

✓

* 12 —

✓

* 12

✓ — — ✓ — — — — — — ✓ — — — — —

✓

—

✓ ✓

— — — — — — —

✓ ✓ ✓ ✓ ✓

✓

— — — — — — — — — — — — — — —

✓

— — — — — — — — — — — — — — —

*9 Camera selects optimal white balance; no icon is displayed. Equivalent to multi-pattern auto if no face is detected.

*10 The flash cannot be used. The custom self-timer is not available. Digital zoom, [Time Exposure],

[Custom Self-Timer], [Interval Shooting], and [Camera Shake Correction] are disabled. [Auto] is used for [White Balance].

*11 Not available when [MF], [Snap],or [∞] is selected for [Focus].

*12 Only [Color], [Black & White] or [Sepia] can be selected.

*13 The flash turns off automatically and [Time Exposure] and [Subj. Tracking] are disabled. Not available when [Focus] is set to [Multi-trgt AF].

*14 [Camera Shake Correction] is disabled.

10

125

10

126

5 3

S-

AUTO

4

Custom Self-Timer

Interval Shooting *

White Balance * 17

15

Camera Shake Correction *

Slow Shutter Limit

Date Imprint


16

Multi-P AUTO

✓

— —

✓ ✓ ✓ ✓ ✓ ✓

✓ — — — ✓ — — — —

✓

—

✓

✓ — ✓

*

✓

— —

✓ ✓ ✓

—

✓ ✓

✓

—

✓ ✓ ✓ ✓ ✓ ✓ ✓

✓

— —

✓ ✓ ✓ ✓ ✓ ✓

*

8

8

✓ ✓ ✓ ✓

*

8 ✓ ✓

— ✓ ✓ ✓ ✓ ✓

Other than those above

✓ ✓

— —

✓ ✓ ✓ ✓ ✓

ISO Setting


Restore Defaults

Step Zoom

Set Fn Button *

1–4

18

ADJ Button Setting

Macro Target *

Step Zoom

AE Lock

AF/Face Pr.

AF/Subj.Trckng

AF/Multi Trgt

AF/MF

AF/Snap

AT-BKT

WB-BKT

CL-BKT

FOCUS-BKT

Off

19

Exposure Comp.

White Balance

ISO

Quality

Focus


Expo. Metering

Auto Bracket

Flash Comp.

✓

— —

✓ ✓

— — — —

✓

— —

✓ ✓

— — — —

✓

— — —

✓

— — — —

✓ ✓

—

✓ ✓ ✓ ✓ ✓ ✓

✓ ✓

✓

—

✓

—

✓ —

✓

—

*

20

*

20

* 20

—

—

—

—

—

—

*

*

*

20

20

20

✓

✓

— *

—

—

✓ ✓ ✓ ✓ —

✓

—

—

*

*

*

20

20

20

—

—

—

—

*

*

*

*

20

20

20

20

—

✓ ✓

—

✓ ✓ ✓ ✓ ✓ ✓

✓

— *

20

— —

—

✓ ✓ ✓ ✓ ✓ ✓

✓ ✓

— —

*

*

20

20

— *

20

—

✓ ✓

*

20

— *

20

—

—

*

*

*

20

20

20

20

—

✓

—

*

*

*

*

20

20

✓

— * 20 — — * 20 ✓

— * 20 — * 20 — * 20 — * 20

20

20

* 20

*

20

— — *

20

— *

20

— *

20

— *

20

✓

— * 20 — — * 20 ✓

— * 20 — * 20 — * 20 — * 20

— —

20

—

20 ✓

— *

20

✓

— *

20

✓ — * 20

✓

— *

20

✓

— *

20

—

—

—

*

*

20

✓

✓ ✓

—

✓

—

—

*

*

*

20

20

20

— *

20

—

—

—

*

*

*

20

20

—

—

—

— ✓ ✓ ✓ ✓ ✓ ✓

—

✓ ✓ ✓ ✓ ✓ ✓

✓ ✓

— — * 20 ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

*

20

*

20

*

20

✓ ✓

— — * 20 ✓ ✓ ✓ ✓

— * 20

✓

—

20

*

20

— *

20

— *

20

—

✓

— * 20 — — * 20 ✓

— * 20 — * 20 — * 20 — * 20

✓

—

*

*

20

✓

— *

20

— —

—

—

— *

20

✓

✓ ✓

—

✓

—

—

*

*

20

*

20

20

—

—

*

*

20

20

—

*

*

✓

20

20

—

—

*

20

*

20

Digital Zoom Image

Density


Minimum Distance


Other than those above

— — — — — — — — —

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓

—

✓ ✓ ✓ ✓ ✓ ✓

✓ ✓

—

✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ — ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

*15 When the self-timer is set, [Interval Shooting] and [Subj. Tracking] are disabled. Not available when [Focus] is set to [Multi-trgt AF].

*16 Not available if [Focus] is set to [Multi-trgt AF] or when using [Time Exposure].

*17 Not available when [Image Settings] is set to [Black & White] or [Sepia].

4 R

X

✓ ✓

—

✓ ✓

— — — — —

✓ ✓ ✓ ✓ ✓ ✓

— — — — — — — — — —

✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓

— — — — —

✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓

— — — — —

✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓

—

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓

— — — — — —

✓ ✓

—

✓ ✓ ✓

✓ ✓ ✓ ✓

—

✓ ✓ ✓ ✓ ✓ ✓ ✓

—

✓ ✓ ✓

✓ ✓ ✓ — — ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓

— —

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

— — — — — — — — — — — — — — — —

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓

— *

20 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

—

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

—

*

20

20

20

* 20

—

—

—

—

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ —

*

*

*

*

20

20

20

20

—

—

—

✓

—

—

✓

—

*

*

*

*

20

20

20

20

* 20

—

—

—

—

—

*

*

*

*

20

20

20

20

* 20

—

—

—

✓

—

*

*

*

20

20

20

20

—

—

—

✓ —

—

*

20

*

20

*

20

*

20

*

*

20

20

✓

— *

20

— *

20

✓

—

—

*

20

*

20

✓

— *

20

— *

20

✓

— *

20

— *

20

✓

— *

20

— *

20

— *

20

— *

20

— *

20

*

— *

20

— *

20

— *

20

✓ ✓ ✓ ✓ ✓ ✓

— *

20

✓ ✓ ✓ ✓ ✓ ✓ — * 20

— *

20

— *

20

— *

20

— *

20

— *

20

— *

20

—

—

✓ ✓ ✓

— *

✓ ✓ ✓ ✓

✓ ✓ ✓ ✓

—

—

*

20

*

20

*

20

✓

— *

20

— *

20

— *

20

— *

20

—

—

—

*

*

*

20

20

20

—

—

—

*

*

20

20

— *

20

— *

20

—

—

✓ ✓ ✓ ✓

*

20

*

*

*

*

20

20

20

20

*

20

20

— *

20

— *

— *

20

— *

20

—

—

*

*

20

20

—

—

*

*

20

20

— *

20

—

—

*

*

20

20

—

—

*

*

20

20

—

✓

— * 20 — * 20 — * 20 — * 20 — * 20 — * 20 — * 20 — * 20 — * 20 — * 20 — * 20 — * 20 — * 20 — * 20 — * 20

—

20 20

—

20 ✓

—

✓

—

*

*

20

—

*

*

20

—

—

*

*

20

—

—

*

*

20

20

—

—

*

*

20

20

—

—

*

*

20

20

—

—

*

*

20

20

—

—

*

*

20

20

—

—

*

*

20

20

—

✓ ✓ ✓ ✓

— * 20 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

*

*

20

✓ ✓ ✓ ✓

— *

20 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓

— * 20 ✓ ✓ ✓ ✓ ✓ ✓ ✓

— * 20 ✓ ✓ ✓

✓ ✓ ✓

— *

20

—

✓ ✓ ✓ ✓

—

*

20

*

20

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓

— *

20

— *

20

— *

20

— *

20 ✓ ✓ ✓ ✓ ✓ ✓

✓

— * 20 ✓ ✓

— * 20 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓

—

✓

—

✓ —

✓

—

*

*

20

20

*

*

20

20

✓

— *

20

— — — —

✓

— — — — — — — — — — —

✓

*

20

✓

* 20 —

✓

—

✓

—

✓ ✓

—

✓

* 20 —

✓

* 20

—

—

—

*

20

✓

*

*

20

20

* 20

✓

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

—

✓

* 20

— *

20

✓

—

✓

* 20

— *

20

✓

—

— *

20

✓

* 20

✓

—

✓

* 20

— *

20

✓

—

— *

20

✓

* 20

✓

—

✓

* 20

— *

20

✓

—

✓

* 20

—

—

*

*

✓

20

20 — *

✓

20 — * 20 —

✓ ✓

✓

*

*

✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

20

21

*18 The Fn button can not be used to perform the selected function when [Miniaturize] is selected in creative shooting mode.

*19 Not available when [Subj. Tracking] or [Face Pr. Multi] is selected for [Focus].

*20 Can be assigned but can not be used.

*21 [Auto Resize] has no effect.

10

127

10

Specifications

No. of effective pixels (camera) Approx. 10.00 million effective pixels

Image Sensor 1/2.3˝ CMOS (Approx. 10.60 total million pixels)

Lens Focal Length

F-aperture

4.9 mm to 52.5 mm (equivalent to 28 mm to 300 mm on a 35-mm camera)

F3.5 to F5.6

Shooting Distance Normal shooting: Approx. 30 cm to ∞ (Wide-angle) or 1.5 m to ∞

(Telephoto) (from the front of the lens)

Macro shooting: Approx. 1 cm to ∞ (Wide-angle), 28 cm to ∞ (Telephoto) or 1 cm to ∞ (Zoom macro mode) (from the front of the lens)

Lens Construction 10 elements in 7 groups (4 aspherical lens elements with 5 surfaces)

Zoom Magnification Optical zoom at 10.7 ×, Digital zoom at 4.8 ×, Auto resize zoom at approx.

5.7 × (VGA image)

Focus Modes Multi AF (Contrast AF method)/Spot AF (Contrast AF method)/Face-Priority

Multi AF/Subject tracking AF/Multi-target AF/MF/Snap/ ∞ (with AF Auxiliary

Light)

Blur Reduction

Shutter

Speed

Still Image

Exposure

Control

Image Sensor Shift Image Stabilizer

8, 4, 2, 1 to 1/2000 seconds (The upper and lower limits differ for each shooting mode and flash mode.)

Movie

Exposure

Metering Mode

1/30 to 1/2000 seconds

Multi Light Metering (256 segments)/Center-weighted Light Metering/

Spot Metering

Exposure Mode Program AE

Exposure

Compensation

Exposure Range

(auto mode, center-weighted metering)

Manual exposure compensation (+2.0 to –2.0 EV in 1/3 EV Steps), Auto bracket function (–0.5 EV, ±0, +0.5 EV)

Wide angle: 3.2 – 16.2 EV

Telephoto: 4.6 – 18.4 EV

(Exposure range for auto ISO calculated using values for ISO 100.)

Note: At 6.0 EV or lower, each drop of 1.0 EV is associated with a 0.5 EV drop in brightness. Brightness drops by no more than –1.0 EV.

Auto/ISO 100/ISO 200/ISO 400/ISO 800/ISO 1600/ISO 3200 ISO Sensitivity (Standard

Output Sensitivity)

White Balance Mode

Flash Flash Mode

Built-in flash

Range

Flash

Compensation

Auto/Multi-pattern Auto/Outdoors/Cloudy/Incandescent 1/Incandescent 2/

Fluorescent/Manual, White balance bracket function

Auto flash (fires automatically in low-light conditions and when the subject is backlit)/Anti Red-eye/Flash On/Flash Synchro./Flash Off

Approx. 20 cm – 4.0 m (Wide-angle) or 28 cm – 3.0 m (Telephoto) (auto ISO with a maximum of ISO 1600, measured from the front of the lens)

±2.0 EV (1/3 EV Steps)

Charging Time Approx. 5 seconds

Picture Display 3.0˝ Transmissive LCD, approx. 920,000 dots

128

Shooting Mode

Picture Quality Mode * 1

Number of

Recorded

Pixels

Recording

Data

Capacity

Still Image

Multi-Picture

Movie

Text

Recording Media

3648 × 2736

3648 × 2432

2736 × 2736

3648 × 2048

Auto shooting mode/Movie mode/Scene auto mode/Scene mode

(Portrait/Discreet Mode/Night. Port./Night Landscape Multi-shot/Sports/

Landscape/Zoom Macro/Pets/Skew Correct Mode/High Sens/Text Mode)/My settings mode/Continuous mode/Creative Shooting Mode (Dynamic Range/

Miniaturize/High Contrast B&W/Soft Focus/Cross Process/Toy Camera)

F (Fine), N (Normal)

3648 × 2736, 3648 × 2432, 2736 × 2736, 3648 × 2048, 2592 × 1944,

2048 × 1536, 1728 × 1296 (Multi-Picture only), 1280 × 960, 640 × 480

1280 × 720, 640 × 480, 320 × 240

3648 × 2736, 2048 × 1536

SD memory card, SDHC memory card (up to 32 GB), Internal Memory

(approx. 86 MB)

N: approx. 2173 KB/Screen, F: approx. 3708 KB/Screen

F: approx. 3298 KB/Screen



2592 × 1944

2048 × 1536

1728 × 1296

1280 × 960

640 × 480

Still Image

Multi-Picture

Movie



N: approx. 607 KB/Screen



JPEG (Exif Ver. 2.21)* 2 Recording

File Format Compliant with CIPA DC-007-2009 Multi Picture Format

AVI (Open DML Motion JPEG Format Compliant)

Compression

Format

JPEG Baseline Format Compliant (Still image, movie)

Other Major Shooting Functions Continuous mode, Self-timer (operation time: approx. 10 seconds, approx.

2 seconds, Custom), Interval shooting (shooting interval: 5 seconds to 1 hour, in increments of 5 seconds)*

3

, Color bracket, Focus bracket, AE/AF target shift, Histogram display, Grid guide display, Electronic level

Other Major Playback Functions Thumbnail view, Enlarged view (maximum ×16), Resize, Level

Compensation, White Balance Compensation, Skew Correction, Trim, Flag

Interface

Function, Slide show, DPOF

USB2.0 (High-Speed USB) Mini-B, Mass storage-compatible *

1.0 Vp-p (75 Ω)

4

, AV output

Video Signal Format

Power Supply

Battery Consumption *

5

NTSC, PAL

Rechargeable Battery (DB-100): 3.7 V

Dimensions (W × H × D)

Usage time of DB-100: approx. 330 pictures (When [LCD Auto Dim] is set to [On] *

6

)

101.5 mm × 58.6 mm × 29.4 mm (excluding projections; measured according to CIPA guidelines)

Weight Approx. 205 g (including memory card and supplied battery)

Approx. 184 g (camera only)

10

129

10

130

Tripod Hole Shape

Date Maintain Time

Operating Temperature

Operating Humidity

Storage Temperature

1/4-20UNC

Approx. 1 week

0 °C to 40 °C

90% or less

–20 °C to 60 °C

*1 The picture quality mode that can be set varies depending on the image size.

*2 Compatible with DCF and DPOF. DCF is the abbreviation for “Design rule for Camera File system,” a JEITA standard. (Full compatibility with other devices is not guaranteed.)

*3 When the flash is set to [Flash Off ].

*4 Mass storage mode is supported by Windows XP, Windows Vista, Windows 7 and Mac OS X

10.1.2–10.6.3.

*5 The number of remaining shots is based on the CIPA standard and may vary depending on usage conditions. This is for reference only.

*6 You can take approximately 310 shots when [LCD Auto Dim] is set to [Off ].

Number of Images That Can Be Stored

The following table shows the approximate number of images that can be recorded in the internal memory and onto an SD memory card at various image size and picture quality settings.

Mode Image Size

5

W (other than Text Mode)

S

R

(Continuous

Mode)

X

5

(When

[Focus] is set to

[Multi-trgt AF])

W

Mode)

3

(Text j 4 : 3 F j 4 : 3 N i 3 : 2 F g 1 : 1 F g 16 : 9 F e 4 : 3 F c 4 : 3 F a 4 : 3 F z 4 : 3 F j 4 : 3 F j 4 : 3 N i 3 : 2 F g 1 : 1 F g 16 : 9 F e 4 : 3 F c 4 : 3 F a 4 : 3 F z 4 : 3 F j 4 : 3 c 4 : 3 x 1280

R

(M-Cont

Plus (10M))

R

(M-Cont

Plus (2M))

R

(Speed

Cont) z 640 y 320 j 4 : 3 N b 4 : 3 N z 4 : 3 N

2GB

830

548

647

647

749

1159

2047

7681

842

2194

6 min.

14 s

18 min.

8 s

44 min.

2 s

842

491

842

553

653

653

758

1182

2118

8778

487

Internal

Memory

1GB

22 242

37 414

24 272

29 321

29 323

34 373

53 581

96 1059

394 4316

22 240

33

52

92

345

37

24

29

29

37 414

97 1078

16 s

49 s

1 min.

59 s

37

3 min.

3 s

8 min.

55 s

21 min.

39 s

414

408

269

318

319

368

570

1023

3776

4GB 8GB 16GB 32GB

965

1653

1973

3379

3953

6769

7930

13579

1087

1284

1284

1490

2222

2624

2624

3045

4452

5257

5257

6101

8930

10546

10546

12238

2321

4160

4744

8505

9503 19063

17039 34181

17237 35231 70579 141581

957 1957 3922 7867

1653

4309

12 min.

14 s

35 min.

38 s

86 min.

28 s

1653

1631

1077

1270

1270

3333

2202

2596

2596

6678

4412

5202

5202

13396

8851

10435

10435

1471

2277

3008

4654

6026

9324

12089

18704

4022 8221 16471 33042

15082 30828 61759 123888

3379

8809

25 min.

1 s

72 min.

50 s

176 min.

44 s

3379

6769

50 min.

7 s

145 min.

54 s

354 min.

3 s

6769

13579

17647 35402

100 min.

33 s

292 min.

41 s

710 min.

13 s

13579

127

691

1404

7553

2792 5484 11211 22460 45056

15359 30159 61643 123489 247716

10

131

10

• The maximum recording time is the estimated total recording time. Movies may be up to 4 GB in size. The maximum length is 12 minutes for movies recorded at a [Movie Size] of [ x 1280] and 29 minutes for movies recorded at [ z 640] or

[ y 320].



• The maximum number of consecutive shots that can be taken using continuous mode is 999. When the number of remaining shots is 1000 or more, “999” is displayed on the picture display.

• The maximum numbers of shots for M-Cont Plus (2M)/M-Cont Plus (10M) and

Speed Cont are the estimated total numbers of shots that can be recorded. The maximum number of shots that can be taken consecutively at one time is 26 for

M-Cont Plus (2M) and 15 for M-Cont Plus (10M) and 120 for Speed Cont.

• The maximum number of shots for Multi-trgt AF is the estimated total number of shots that can be recorded. The number of shots that can be recorded at one time is five. When the number of remaining shots is 9999 or more, “9999” is displayed on the picture display.

• The number of remaining shots displayed on the picture display may differ from the actual number of shots, depending on the subject.

• Movie recording time and the maximum number of still pictures may vary depending on the capacity of the recording destination (internal memory or SD memory card), shooting conditions, and the type and manufacturer of the SD memory card.

• Choose image size according to how the picture will be used:

Image Size j 4 : 3 F/ j 4 : 3 N/ i 3 : 2 F/ g 1 : 1 F/ g 16 : 9 F e 4 : 3 F/ c 4 : 3 F a 4 : 3 F z 4 : 3 F

Description

• For creating large prints.

• For downloading to a computer for trimming and other processes.

• For creating prints.

• For shooting a large number of pictures.

• For shooting a large number of pictures.

• For attaching to e-mail.

• For posting on a website.

132

Defaults Settings/Functions Whose

Defaults Are Restored When the Camera Is

Turned Off

Turning the camera off may reset some function settings to their defaults. The table below indicates whether or not the function is reset to its default when the camera is turned off.

Shooting

Function


Soft Focus Options

Vignetting

Toy Color

Hue



Density

Size (Text Mode)

Movie Size

Focus

Pre-AF

Exposure Metering

Image Settings

Noise Reduction

Auto Bracket

Time Exposure

Custom Self-Timer

{ : setting is saved ×: setting is reset

Default Settings

{ AUTO

{ Strong

{ Weak

{ On

{ Basic

{ Off

{ j 4 : 3 N

{ Normal

{ j 4 : 3

{ x 1280

{ Multi AF

{ Off

{ Multi

{ Standard


{ Auto

{ 0.0

{ Off

{ Off

{ Pictures: 2 Pics,

Interval: 5 Sec.

Interval Shooting


Slow Shutter Limit

Date Imprint


White Balance

ISO Setting


Macro

Flash

Self-Timer

× 0 Sec.

{ On

{ Off

{ Off

{ 0.0

{ Multi-P AUTO

{ Auto

{ AUTO 1600

{ Macro Off

{ Auto

× Self-Timer Off

10

133

10

134

Playback

Setup

Function

Volume Adjustment

LCD Brightness

Reg. My Settings

Step Zoom

Set Fn Button

ADJ Button Setting 1




AF Auxiliary Light

Operation Sounds

Volume Settings

LCD Confirmation Time

Auto Power Off

LCD Auto Dim

Digital Zoom Image

Level Setting


Function Guide


Minimum Distance

Auto Rotate


Card Sequence No.

USB Connection Type

Date Settings

Language/

N

Video Out Mode

{ : setting is saved ×: setting is reset

Default Settings

{ —

{ —

{ —

{ Off

{ AF/Subj.Trckng

{ Exposure Comp.

{ White Balance

{ ISO

{ Quality

{ On

{ All

{ (Medium)

{ 0.5 seconds

{ 5 minutes

{ On

{ Normal

{ Display

{

{ On

{ Off

{ Show

{ On

{ Off

{ Off

{ Mass Storage

{ —

{ (

*

1)

{ ( * 1)

(

*

1) The default setting varies depending on where you purchased the camera.

Using Your Camera Abroad

Battery Charger (Model BJ-10)

The battery charger can be used in regions with a current of 100-240 V, 50 Hz/60 Hz.

If you are going to travel to a country that uses a different shaped wall outlet/plug, please consult your travel agent on a plug adapter suitable for wall outlets in your country of destination.

Do not use electrical transformers. It may damage the camera.

Warranty

This product was manufactured for use in the country in which it was purchased.

The warranty is only valid in the country in which the camera was purchased.

Should the product fail or malfunction while you are abroad, the manufacturer assumes no responsibility for servicing the product locally or bearing the expenditure incurred therefore.

Playback on Television in Other Regions

Playback is possible on televisions (or monitors) equipped with a video input terminal. Please use the AV cable provided.

This camera is compatible with both NTSC and PAL television formats. Set the video format on the camera to match that of the television you are using.

When you go abroad, set your camera to the local video format.

10

135

10

Cautions on Use

Cautions on Use

• This product was manufactured for use in the country in which it was purchased. The warranty is only valid in the country in which the camera was purchased.

• Should the product fail or malfunction while you are abroad, the manufacturer assumes no responsibility for servicing the product locally or bearing the expenditure incurred therefore.

• Be sure not to drop or apply any sudden force to the camera.

• While you are carrying the camera, be careful not to hit it against other objects. Take special care to not hit the lens and picture display.

• Firing the flash consecutively may heat the firing unit. Do not fire it consecutively more than necessary.

• Do not touch the flash and keep foreign objects away from the firing unit.

Doing so can cause burns and fires.

• Do not fire the flash near eyes. It could cause visual impairment (particularly for infants).

• Do not fire the flash near the driver of a vehicle to avoid causing accidents.

• The battery may become hot after extended use. Touching the battery immediately after use could result in burns to your fingers.

• If the picture display or panel is exposed to sunlight, they may become washed out and images may become hard to view.

• The picture display and panel may contain some pixels that do not remain lit up continually in part or at all. Also, the brightness may become uneven because of the characteristics of LCDs. These are not failures.

• Do not forcefully press the surface of the picture display.

• In an environment where the temperature changes suddenly, condensation may occur in the camera, resulting in troubles such as fogging of the glass surface or malfunctions of the camera. If this occurs, place the camera in a bag to slow the temperature change as much as possible. Take it out of the bag after the temperature difference from the atmosphere has decreased to a fairly small amount. If condensation occurs, remove the battery and memory card, and wait until the moisture has dried before using the camera.

• To avoid damaging the connectors, do not put any objects into the camera’s microphone or speaker holes.

• Do not get the camera wet. Do not operate the camera with wet hands. This can result in malfunction or an electrical shock.

• Before taking any important pictures (such as at weddings, on trips abroad, etc.), test the camera to check operation and ensure proper functioning. We recommend that you keep this manual and spare battery on hand.

136

Conditions in which condensation may easily occur: -----------------------

• When the camera is moved to an environment where the temperature differs greatly.

• In humid places.

• In a room immediately after being heated, or when the camera is exposed directly to cooled air from an air-conditioner or another similar appliance.

Care and Storage

Care

• Please note that if fingerprints, dirt, etc. get onto the lens, picture quality will suffer.

• When dust or dirt does get on the lens, do not touch it directly with your fingers, and either use a blower (available in stores) to blow it off, or a soft cloth to gently dust it off.

• After use at the beach or around chemicals, wipe it off particularly carefully.

• In the unlikely event that your camera fails to work properly, please consult your Ricoh Repair Center.

• There are high voltage circuits in this camera. As this is dangerous, do not dismantle this camera under any circumstances.

• Do not get volatile substances, such as thinner, benzene, or pesticides on your camera. This may cause a change in quality, paint to peel, etc.

• As the surface of the picture display is easily scratched, do not rub hard objects against it.

• Clean the surface of the picture display by wiping gently with a soft cloth containing a small amount of display cleaner (that does not contain organic solvents) sold in stores.

Use and Storage

• Please avoid using or storing your camera in the following kinds of places, as this may damage the camera.

- In high heat and humidity, or where there is severe change in temperature or humidity.

- Places with a lot of dust, dirt or sand.

- Places with severe vibration.

- Places where it is in direct contact with vinyl or rubber products or chemicals, including mothballs or other insect repellent, for long periods of time.

- Places with strong magnetic fields (near a monitor, transformer, magnet, etc.).

• Remove the battery if you are not going to use the camera for a long period of time.

Precautions regarding care of your camera

1. Be sure to turn the power off.

2. Remove the batteries before caring for your camera.

10

137

10

138

Warranty and Servicing

1. This product is backed by a limited warranty. During the warranty period mentioned in the Warranty supplied with your camera, any defective parts will be repaired free of charge. In the event of a camera malfunction, contact the dealer from which you purchased the camera or your nearest Ricoh Repair Center. Please note that you will be not be reimbursed for the cost of bringing the camera to the Ricoh Repair Center.

2. This warranty does not cover any damage resulting from:

1 failure to follow the instructions in the instruction manual;

2 repair, modification or overhaul not conducted by an authorized service center listed in the instruction manual;

3 fire, natural disaster, act of God, lightning, abnormal voltage, etc.;

4 improper storage (noted in the “Camera User Guide”), leaking of battery and other fluids, mold, or otherwise insufficient care of the camera.

5 submergence in water (flooding), exposure to alcohol or other beverages, infiltration of sand or mud, physical shock, dropping of the camera, or pressure on the camera, and other unnatural causes.

3. After the warranty period has passed, you will be liable for all repair fees, including those incurred at an authorized service center.

4. You will be liable for all repair fees, even within the warranty period, if the warranty card is not attached or if the distributor's name or the purchase date have been changed or are not indicated on the card.

5. Expenses for overhaul and thorough inspection by special request of the customer will be charged to the customer, whether or not they are incurred during the warranty period.

6. This warranty only applies to the camera and not to the accessories, such as the case and strap, nor does it apply to the battery and other consumables provided.

7. Any consequential damages arising from failure of the camera, such as expenses incurred in taking pictures or loss of expected profit, will not be reimbursed whether they occur during the warranty period or not.

8. The warranty is only valid in the country in which the camera was purchased.

* The above provisions refer to repairs offered free of charge, and do not limit your legal rights.

* The intention of the above provisions is also described in the warranty card provided with this camera.

9. Parts essential to the servicing of the camera (that is, components required to maintain the functions and quality of the camera) will be available for a period of five years after the camera is discontinued.

10. Please note that if the camera is seriously damaged by flooding, submergence, infiltration of sand or mud, violent shocks or dropping, it may not be repairable, and restoration to its original condition may be impossible.

• Before sending the camera in for repair, check the battery and read the instruction manual again to ensure proper operation.

• Some repairs require a significant amount of time to be completed.

• When sending the camera to a service center, please include a note which describes the defective part and the problem as precisely as possible.

• Remove all accessories not related to the problem before sending the camera to the service center.

• This warranty does not apply to data stored on an SD memory card or in internal memory.

INFORMATION TO THE USER

USA FCC Part 15 Class B

The equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, then user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. (FCC 15.105B)

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. (FCC 15.21)

Properly shielded and grounded cables and connectors must be used for connection to a host computer in order to comply with FCC emission limits. (FCC 15.27)

An AC adapter with a ferrite core must be used for RF interference suppression.

COMPLIANCE INFORMATION STATEMENT

Product Name: DIGITAL CAMERA

Model Number: CX4

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

RICOH AMERICAS CORPORATION

5 Dedrick Place, West Caldwell NJ, 07006 Tel.: 1-800-225-1899

Note to Users in Canada

Note: This Class B digital apparatus complies with Canadian ICES-003

Remarque Concernant les Utilisateurs au Canada

Avertissement : Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada

IMPORTANT SAFETY INSTRUCTIONS-SAVE THESE INSTRUCTIONS

DANGER-TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE

INSTRUCTIONS.

10

139

140

Index

A

ADJ./OK Button ..........................................17, 46

ADJ Button Setting ..................................46, 99

Adobe Reader ..................................................112

AE/AF Target Shift .............................................47

AE Lock ....................................................................50

AF Auxiliary Light ......................................16, 99

Auto Bracket ................................................75, 80

Auto Power Off........................................ 25, 100

Auto Rotate .......................................................101

Auto Shooting Mode .............................15, 27

AV Cable .........................................................14, 97

AV Output Terminal .................................17, 97

B

Battery .............................................................23, 24

Battery/Card Cover ..................................17, 24

Battery Charger ..........................................14, 23

C

Camera Shake .....................................................29

Camera Shake Correction............................76

Card Sequence No. .......................................102

CD-ROM....................................................... 14, 109

Color Bracket (CL-BKT) ...................................81

Continuous Mode ....................................15, 57

Copy to Card from Internal Memory ....87

Creative Shooting Mode ......................15, 61

Cross Process .......................................................61

Custom Self-Timer ............................................75

D

Date Imprint ........................................................77

Date Settings ............................................ 25, 102

Delete.......................................................................37

Delete Button ..............................................17, 37

Density ....................................................................72

Digital Zoom ............................................. 30, 104

Digital Zoom Image ...................30, 100, 104

Direct Print .........................................................105

Discreet Mode ....................................................52

DISP. Button ..................................................17, 40

DL-10 .......................................................... 109, 111

DPOF ................................................................87, 96

Dynamic Range Double Shot ...........61, 63

Dynamic Range Expansion ................63, 72

E

Enlarged View .....................................................36

Error Messages ................................................118

Export Still Images ...................................69, 86

Exposure Compensation .....................77, 82

Exposure Metering ..........................................74

F

Flag Function Display .....................................86

Flag Function Setting .............................86, 88

Flash .......................................................... 16, 17, 31

Flash Exposure Compensation.................75

Fn (Function) Button...............................17, 48

Focus ................................................................73, 78

Focus Bracket (FOCUS-BKT) .......................81

Format [Card] ......................................................99

Format [Internal Memory] ...........................99

Function Guide ...............................................101

G

Grid Guide Display ...........................................40

Grid Guide Display Options.....................101

H

Handstrap ..............................................................14

High Contrast B&W ..........................................61

High Sens...............................................................53

Histogram Display ............................................44

Hue ............................................................................72

I

Image Settings ...................................................74

Internal Memory ............................................131

Interval Shooting ..............................................76

ISO Setting ....................................................77, 84

L

Landscape .............................................................53

Language/

N

.............................................102

LCD Auto Dim ..................................................100

LCD Brightness ...................................................99

LCD Confirmation Time .............................100

Lens ...........................................................................16

Lens Cover.............................................................16

Level Compensation...............................86, 91

Level Indicator ....................................................42

Level Setting ............................................. 42, 101

M

M-Cont Plus (10M) ...................................57, 59

M-Cont Plus (2M) ......................................57, 60

Macro ...............................................................17, 30

Macro Target ........................................................49

Manual Focus (MF)...........................................79

Maximum ISO for ISO Auto ........................77

MediaBrowser ..................................................111

MENU Button .............................. 17, 71, 85, 98

Microphone .........................................................16

Miniaturize ....................................................61, 64

Minimum Distance .......................................101

Mode Dial ..............................................................16

Movie Mode .................................................15, 66

Movie Size .............................................................72

MP File .....................................................................67

Multi-Target AF ...................................................78

My Settings Mode (MY) ..................... 15, 103

N

Night. Port. ............................................................52

Night Landscape Multi-shot ......................52

Nightscape ...........................................................33

Noise Reduction ................................................74

O

Operation Sounds .........................................100

P

Pets ............................................................................53

PictBridge ...........................................................105

Picture Display ............................................17, 18

Picture Quality/Size .........................................72

Playback Button ......................... 17, 25, 34, 85

Playback Menu ...................................................85

Playback Mode ...........................................25, 34

Plus Normal Shooting ............................65, 72

Portrait .....................................................................52

POWER Button ....................................................16

Pre-AF.......................................................................73

Protect .............................................................86, 95

R

Rechargeable Battery .............................23, 24

Recover File ..........................................................87

Reg. My Settings ..................................... 99, 103

Resize .......................................................................86

Restore Defaults ................................................77

S

Scene Auto Mode (S-AUTO) ...............15, 33

Scene Mode (SCENE) ..............................15, 52

SD Memory Card ............................ 22, 24, 131

Self-timer .......................................................17, 32

Self-Timer Lamp.................................................16

Set Fn Button ...............................................48, 99

Setup Menu .........................................................98

Shooting Info. Display Frame .................101

Shooting Menu ..................................................71

Shutter Release Button .........................16, 27

Size .............................................................................72

Skew Correction ........................................86, 94

Skew Correct Mode .................................53, 55

Slide Show ............................................................87

Slow Shutter Limit ............................................77

Soft Focus ..............................................................61

Soft Focus Options ..........................................72

Speaker ...................................................................17

Speed Cont (High) ...................................57, 60

Speed Cont (Low) .....................................57, 60

Sports .......................................................................53

Step Zoom ............................................................99

Subject Tracking AF .........................................78

Synchro-Monitor Mode ................................40

T

Text Mode .............................................................53

Thumbnail View .................................................34

Time Exposure ....................................................75

Toy Camera ...........................................................61

Toy Color ................................................................72

Trim ...................................................................86, 89

Tripod Screw Hole ............................................17

U

USB Cable ......................................105, 113, 115

USB Connection Type .................................102

USB Terminal ........................................................17

V

Video Out Mode .............................................102

Vignetting ..............................................................72

VM-1 .......................................................................116

Volume Settings .............................................100

W

White Balance .............................................77, 83

White Balance Bracket (WB-BKT) ............80

White Balance Compensation ..........86, 93

White Saturation Display .................. 41, 101

White Saturation Highlights Display.....41

Z

Zoom ........................................................................29

Zoom Lever ..................................................16, 29

Zoom Macro ........................................................53

141

Telephone Support Numbers in Europe

UK

Deutschland

France

(from within the UK)

(from outside the UK)

(innerhalb Deutschlands)

(außerhalb Deutschlands)

(à partir de la France)

(en dehors de la France)

Italia (dall'Italia)

(dall'estero)

España (desde

(desde fuera de España) http://www.service.ricohpmmc.com/

0203 239 6327

+44 203 239 6327

06331 268 438

+49 6331 268 438

0800 88 18 70

+33 1 60 60 19 94

02 4004 7319

+39 02 4004 7319

900984912

+49 6331 268 440

From environmental friendliness to environmental conservation and to environmental management

Ricoh is aggressively promoting environmentfriendly activities and also environment conservation activities to solve the great subject of management as one of the citizens on our precious earth.

To reduce the environmental loads of digital cameras, Ricoh is also trying to solve the great subjects of “Saving energy by reducing power consumption” and “Reducing environment-affecting chemical substances contained in products”.

If a problem arises

First of all, see “Troubleshooting” (

G

P.118) in this manual. If the issues still persist, please contact a

Ricoh office.

Ricoh Offices

RICOH COMPANY, LTD.

RICOH AMERICAS

CORPORATION

3-2-3, Shin-Yokohama Kouhoku-ku, Yokohama City, Kanagawa 222-8530, JAPAN http://www.ricoh.com/r_dc/

5 Dedrick Place, West Caldwell, New Jersey 07006, U.S.A.

1-800-22RICOH http://www.ricoh-usa.com/

RICOH INTERNATIONAL B.V.

(EPMMC)

Oberrather Straße 6, D-40472 Düsseldorf, GERMANY

(innerhalb Deutschlands) 06331 268 438

(außerhalb Deutschlands) +49 6331 268 438 http://www.ricoh.com/r_dc/

21/F, One Kowloon, 1 Wang Yuen Street, Kowloon Bay, Hong Kong RICOH ASIA PACIFIC

OPERATIONS LIMITED

About MediaBrowser

North America (U.S.)

Europe

(Toll Free) +1-800-458-4029

UK, Germany, France and Spain: (Toll Free) +800-1532-4865

Other Countries: +44-1489-564-764

+63-2-438-0090 Asia

China +86-21-5385-3786

Business hours: 9:00 AM to 5:00 PM

Ricoh Company, Ltd.

Ricoh Building, 8-13-1, Ginza, Chuo-ku, Tokyo

104-8222, Japan

2010 September

EN USA GB GB AE AE

Printed in China

*L759 2971B*

No results
