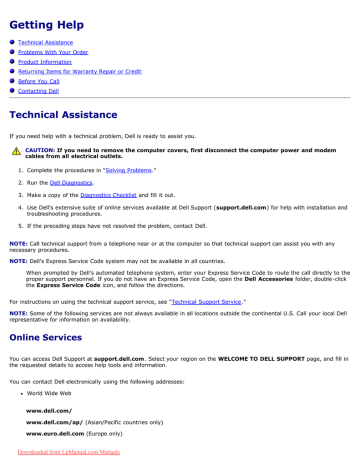

Getting Help

Technical Assistance

Problems With Your Order

Product Information

Returning Items for Warranty Repair or Credit

Before You Call

Contacting Dell

Technical Assistance

If you need help with a technical problem, Dell is ready to assist you.

CAUTION: If you need to remove the computer covers, first disconnect the computer power and modem cables from all electrical outlets.

1. Complete the procedures in "

Solving Problems ."

2. Run the

Dell Diagnostics .

3. Make a copy of the

Diagnostics Checklist and fill it out.

4. Use Dell's extensive suite of online services available at Dell Support (support.dell.com) for help with installation and troubleshooting procedures.

5. If the preceding steps have not resolved the problem, contact Dell.

NOTE:

Call technical support from a telephone near or at the computer so that technical support can assist you with any necessary procedures.

NOTE:

Dell's Express Service Code system may not be available in all countries.

When prompted by Dell's automated telephone system, enter your Express Service Code to route the call directly to the proper support personnel. If you do not have an Express Service Code, open the Dell Accessories folder, double-click the Express Service Code icon, and follow the directions.

For instructions on using the technical support service, see "

Technical Support Service ."

NOTE:

Some of the following services are not always available in all locations outside the continental U.S. Call your local Dell representative for information on availability.

Online Services

You can access Dell Support at support.dell.com. Select your region on the WELCOME TO DELL SUPPORT page, and fill in the requested details to access help tools and information.

You can contact Dell electronically using the following addresses:

World Wide Web

www.dell.com/

www.dell.com/ap/ (Asian/Pacific countries only)

www.euro.dell.com (Europe only)

Downloaded from LpManual.com Manuals

www.dell.com/la/ (Latin American countries)

www.dell.ca (Canada only)

Anonymous file transfer protocol (FTP)

ftp.dell.com/

Log in as user: anonymous, and use your e-mail address as your password.

Electronic Support Service [email protected]

[email protected]

[email protected] (Asian/Pacific countries only)

support.euro.dell.com (Europe only)

Electronic Quote Service [email protected]

[email protected] (Asian/Pacific countries only) [email protected] (Canada only)

Electronic Information Service [email protected]

AutoTech Service

Dell's automated technical support service—AutoTech—provides recorded answers to the questions most frequently asked by

Dell customers about their portable and desktop computers.

When you call AutoTech, use your touch-tone telephone to select the subjects that correspond to your questions.

The AutoTech service is available 24 hours a day, 7 days a week. You can also access this service through the technical support service. For the telephone number to call, see the

contact numbers for your region.

Automated Order-Status Service

To check on the status of any Dell™ products that you have ordered, you can go to support.dell.com, or you can call the automated order-status service. A recording prompts you for the information needed to locate and report on your order. For the telephone number to call, see the

contact numbers for your region.

Technical Support Service

Dell's technical support service is available 24 hours a day, 7 days a week, to answer your questions about Dell hardware.

Our technical support staff uses computer-based diagnostics to provide fast, accurate answers.

To contact Dell's technical support service, see "

Technical Assistance " and then call the number for your country as listed in

"

Contacting Dell ."

Downloaded from LpManual.com Manuals

Problems With Your Order

If you have a problem with your order, such as missing parts, wrong parts, or incorrect billing, contact Dell for customer assistance. Have your invoice or packing slip handy when you call. For the telephone number to call, see the

contact numbers

for your region.

Product Information

If you need information about additional products available from Dell, or if you would like to place an order, visit the Dell

website at www.dell.com. For the telephone number to call to speak to a sales specialist, see the contact numbers for your

region.

Returning Items for Warranty Repair or Credit

Prepare all items being returned, whether for repair or credit, as follows:

1. Call Dell to obtain a Return Material Authorization Number, and write it clearly and prominently on the outside of the box.

For the telephone number to call, see the

contact numbers for your region.

2. Include a copy of the invoice and a letter describing the reason for the return.

3. Include a copy of the

Diagnostics Checklist indicating the tests you have run and any error messages reported by the

Dell Diagnostics.

4. Include any accessories that belong with the item(s) being returned (power cables, software floppy disks, guides, and so on) if the return is for credit.

5. Pack the equipment to be returned in the original (or equivalent) packing materials.

You are responsible for paying shipping expenses. You are also responsible for insuring any product returned, and you assume the risk of loss during shipment to Dell. Collect On Delivery (C.O.D.) packages are not accepted.

Returns that are missing any of the preceding requirements will be refused at Dell's receiving dock and returned to you.

Before You Call

NOTE:

Have your Express Service Code ready when you call. The code helps Dell's automated-support telephone system direct your call more efficiently.

Remember to fill out the

Diagnostics Checklist . If possible, turn on your computer before you call Dell for technical assistance

and call from a telephone at or near the computer. You may be asked to type some commands at the keyboard, relay detailed information during operations, or try other troubleshooting steps possible only at the computer itself. Ensure that the computer documentation is available.

CAUTION: Before working inside your computer, read the safety instructions in your System Information

Guide.

Diagnostics Checklist

Name:

Downloaded from LpManual.com Manuals

Date:

Address:

Phone number:

Service Tag (bar code on the back of the computer):

Express Service Code:

Return Material Authorization Number (if provided by Dell support technician):

Operating system and version:

Devices:

Expansion cards:

Are you connected to a network? Yes No

Network, version, and network adapter:

Programs and versions:

See your operating system documentation to determine the contents of the system's start-up files. If the computer is connected to a printer, print each file. Otherwise, record the contents of each file before calling Dell.

Error message, beep code, or diagnostic code:

Description of problem and troubleshooting procedures you performed:

Contacting Dell

To contact Dell electronically, you can access the following websites:

www.dell.com

support.dell.com (technical support)

premiersupport.dell.com (technical support for educational, government, healthcare, and medium/large business customers, including Premier, Platinum, and Gold customers)

For specific web addresses for your country, find the appropriate country section in the table below.

NOTE:

Toll-free numbers are for use within the country for which they are listed.

When you need to contact Dell, use the electronic addresses, telephone numbers, and codes provided in the following table. If you need assistance in determining which codes to use, contact a local or an international operator.

Country (City)

International Access

Code Country Code

City Code

Anguilla

Antigua and Barbuda

Argentina (Buenos

Aires)

International Access

Code: 00

Country Code: 54

City Code: 11

Department Name or Service Area,

Website and E-Mail Address

General Support

General Support

Website: www.dell.com.ar

Tech Support and Customer Care

Sales

Tech Support Fax

Customer Care Fax

Downloaded from LpManual.com Manuals

Area Codes,

Local Numbers, and

Toll-Free Numbers

toll-free: 800-335-0031

1-800-805-5924 toll-free: 0-800-444-0733

0-810-444-3355

11 4515 7139

11 4515 7138

Aruba

Australia (Sydney)

International Access

Code: 0011

Country Code: 61

City Code: 2

Austria (Vienna)

International Access

Code: 900

Country Code: 43

City Code: 1

General Support

E-mail (Australia): [email protected]

E-mail (New Zealand): [email protected]

Home and Small Business

Government and Business

Preferred Accounts Division (PAD)

Customer Care

Corporate Sales

Transaction Sales

Fax

Website: support.euro.dell.com

E-mail: [email protected]

Home/Small Business Sales

Home/Small Business Fax

Home/Small Business Customer Care

Preferred Accounts/Corporate Customer Care

Bahamas

Barbados

Belgium (Brussels)

International Access

Code: 00

Home/Small Business Technical Support

Preferred Accounts/Corporate Technical Support

Switchboard

General Support

General Support

Website: support.euro.dell.com

E-mail: [email protected]

E-mail for French Speaking Customers:

support.euro.dell.com/be/fr/emaildell/

Country Code: 32

City Code: 2

Bermuda

Bolivia

Brazil

Technical Support

Customer Care

Corporate Sales

Fax

Switchboard

General Support

General Support

Website: www.dell.com/br

International Access

Code: 00

Country Code: 55

City Code: 51

Customer Support, Technical Support

Tech Support Fax

Customer Care Fax

Sales

British Virgin Islands

General Support

Brunei

Customer Technical Support (Penang, Malaysia)

Country Code: 673

Customer Service (Penang, Malaysia)

Transaction Sales (Penang, Malaysia)

Downloaded from LpManual.com Manuals toll-free: 800-1578

1-300-65-55-33 toll-free: 1-800-633-559 toll-free: 1-800-060-889 toll-free: 1-800-819-339 toll-free: 1-800-808-385 toll-free: 1-800-808-312 toll-free: 1-800-818-341

0820 240 530 00

0820 240 530 49

0820 240 530 14

0820 240 530 16

0820 240 530 14

0660 8779

0820 240 530 00 toll-free: 1-866-278-6818

1-800-534-3066

02 481 92 88

02 481 91 19

02 481 91 00

02 481 92 99

02 481 91 00

1-800-342-0671 toll-free: 800-10-0238

0800 90 3355

51 481 5470

51 481 5480

0800 90 3390 toll-free: 1-866-278-6820

604 633 4966

604 633 4949

604 633 4955

Canada (North York,

Ontario)

International Access

Code: 011

Online Order Status: www.dell.ca/ostatus

AutoTech (automated technical support)

TechFax

Customer Care (Home Sales/Small Business)

Customer Care (med./large business, government)

Technical Support (Home Sales/Small Business)

Technical Support (med./large bus., government)

Sales (Home Sales/Small Business)

Sales (med./large bus., government)

Spare Parts Sales & Extended Service Sales

General Support

Sales, Customer Support, and Technical Support

Cayman Islands

Chile (Santiago)

Country Code: 56

City Code: 2

China (Xiamen)

Country Code: 86

City Code: 592

Colombia

Costa Rica

Czech Republic

(Prague)

International Access

Code: 00

Country Code: 420

City Code: 2

Tech Support website: support.ap.dell.com/china

Tech Support E-mail: [email protected]

Tech Support Fax

Home and Small Business Technical Support

Corporate Accounts Technical Support

Customer Experience

Home and Small Business

Preferred Accounts Division

Large Corporate Accounts GCP

Large Corporate Accounts Key Accounts

Large Corporate Accounts North

Large Corporate Accounts North Government and Education

Large Corporate Accounts East

Large Corporate Accounts East Government and Education

Large Corporate Accounts Queue Team

Large Corporate Accounts South

Large Corporate Accounts West

Large Corporate Accounts Spare Parts

General Support

General Support

Website: support.euro.dell.com

E-mail: [email protected]

Technical Support

Customer Care

Fax

TechFax

Downloaded from LpManual.com Manuals toll-free: 1-800-247-9362 toll-free: 1-800-950-1329 toll-free: 1-800-847-4096 toll-free: 1-800-326-9463 toll-free: 1-800-847-4096 toll-free: 1-800-387-5757 toll-free: 1-800-387-5752 toll-free: 1-800-387-5755

1 866 440 3355

1-800-805-7541 toll-free: 1230-020-4823

818 1350 toll-free: 800 858 2437 toll-free: 800 858 2333 toll-free: 800 858 2060 toll-free: 800 858 2222 toll-free: 800 858 2062 toll-free: 800 858 2055 toll-free: 800 858 2628 toll-free: 800 858 2999 toll-free: 800 858 2955 toll-free: 800 858 2020 toll-free: 800 858 2669 toll-free: 800 858 2572 toll-free: 800 858 2355 toll-free: 800 858 2811 toll-free: 800 858 2621

980-9-15-3978

0800-012-0435

02 2186 27 27

02 2186 27 11

02 2186 27 14

02 2186 27 28

Denmark

(Copenhagen)

International Access

Code: 00

Country Code: 45

Dominica

Dominican Republic

Ecuador

El Salvador

Finland (Helsinki)

International Access

Code: 990

Country Code: 358

City Code: 9

France (Paris)

(Montpellier)

International Access

Code: 00

Country Code: 33

City Codes: (1) (4)

Switchboard

Website: support.euro.dell.com

E-mail Support (portable computers): [email protected]

E-mail Support (desktop computers): [email protected]

E-mail Support (servers): [email protected]

Technical Support

Customer Care (Relational)

Home/Small Business Customer Care

Switchboard (Relational)

Fax Switchboard (Relational)

Switchboard (Home/Small Business)

Fax Switchboard (Home/Small Business)

General Support

General Support

General Support

General Support

Website: support.euro.dell.com

E-mail: [email protected]

E-mail Support (servers): [email protected]

Technical Support

Technical Support Fax

Relational Customer Care

Home/Small Business Customer Care

Fax

Switchboard

Website: support.euro.dell.com

E-mail: support.euro.dell.com/fr/fr/emaildell/

Home and Small Business

Technical Support

Customer Care

Switchboard

Switchboard (calls from outside of France)

Sales

Fax

Fax (calls from outside of France)

Corporate

Technical Support

Customer Care

Switchboard

Downloaded from LpManual.com Manuals

02 2186 27 11

7023 0182

7023 0184

3287 5505

3287 1200

3287 1201

3287 5000

3287 5001 toll-free: 1-866-278-6821

1-800-148-0530 toll-free: 999-119

01-899-753-0777

09 253 313 60

09 253 313 81

09 253 313 38

09 693 791 94

09 253 313 99

09 253 313 00

0825 387 270

0825 823 833

0825 004 700

04 99 75 40 00

0825 004 700

0825 004 701

04 99 75 40 01

0825 004 719

0825 338 339

01 55 94 71 00

Germany (Langen)

International Access

Code: 00

Country Code: 49

City Code: 6103

Greece

International Access

Code: 00

Country Code: 30

Grenada

Guatemala

Guyana

Hong Kong

International Access

Code: 001

Country Code: 852

India

Ireland (Cherrywood)

International Access

Code: 16

Country Code: 353

City Code: 1

Sales

Fax

Website: support.euro.dell.com

E-mail: [email protected]

Technical Support

Home/Small Business Customer Care

Global Segment Customer Care

Preferred Accounts Customer Care

Large Accounts Customer Care

Public Accounts Customer Care

Switchboard

Website: support.euro.dell.com

E-mail: support.euro.dell.com/gr/en/emaildell/

Technical Support

Gold Technical Support

Switchboard

Sales

Fax

General Support

General Support

General Support

Website: support.ap.dell.com

E-mail: [email protected]

Technical Support (Dimension™ and Inspiron™)

Technical Support (OptiPlex™, Latitude™, and Dell

Precision™)

Customer Service (non-technical, post-sales issues)

Transaction Sales

Large Corporate Accounts HK

Large Corporate Accounts GCP HK

Technical Support

Sales

Website: support.euro.dell.com

E-mail: [email protected]

Ireland Technical Support

U.K. Technical Support (dial within U.K. only)

Home User Customer Care

Small Business Customer Care

U.K. Customer Care (dial within U.K. only)

Corporate Customer Care

Corporate Customer Care (dial within U.K. only)

Downloaded from LpManual.com Manuals

01 55 94 71 00

01 55 94 71 01

06103 766-7200

0180-5-224400

06103 766-9570

06103 766-9420

06103 766-9560

06103 766-9555

06103 766-7000

080044149518

08844140083

2108129800

2108129800

2108129812 toll-free: 1-866-540-3355

1-800-999-0136 toll-free: 1-877-270-4609

296 93188

296 93191

800 93 8291 toll-free: 800 96 4109 toll-free: 800 96 4108 toll-free: 800 90 3708

1600 33 8045

1600 33 8044

1850 543 543

0870 908 0800

01 204 4014

01 204 4014

0870 906 0010

1850 200 982

0870 907 4499

Italy (Milan)

International Access

Code: 00

Country Code: 39

City Code: 02

Jamaica

Japan (Kawasaki)

International Access

Code: 001

Country Code: 81

City Code: 44

Korea (Seoul)

International Access

Code: 001

Country Code: 82

Ireland Sales

U.K. Sales (dial within U.K. only)

Fax/SalesFax

Switchboard

Website: support.euro.dell.com

E-mail: support.euro.dell.com/it/it/emaildell/

Home and Small Business

Technical Support

Customer Care

Fax

Switchboard

Corporate

Technical Support

Customer Care

Fax

Switchboard

General Support (dial from within Jamaica only)

Website: support.jp.dell.com

Technical Support (servers)

Technical Support outside of Japan (servers)

Technical Support (Dimension™ and Inspiron™)

Technical Support outside of Japan (Dimension and

Inspiron)

Technical Support (Dell Precision™, OptiPlex™, and

Latitude™)

Technical Support outside of Japan (Dell Precision,

OptiPlex, and Latitude)

Faxbox Service

24-Hour Automated Order Service

Customer Care

Business Sales Division (up to 400 employees)

Preferred Accounts Division Sales (over 400 employees)

Large Corporate Accounts Sales (over 3500 employees)

Public Sales (government agencies, educational institutions, and medical institutions)

Global Segment Japan

Individual User

Switchboard

Technical Support

Sales

Customer Service (Seoul, Korea)

Customer Service (Penang, Malaysia)

Downloaded from LpManual.com Manuals

01 204 4444

0870 907 4000

01 204 0103

01 204 4444

02 577 826 90

02 696 821 14

02 696 821 13

02 696 821 12

02 577 826 90

02 577 825 55

02 575 035 30

02 577 821

1-800-682-3639 toll-free: 0120-198-498

81-44-556-4162 toll-free: 0120-198-226

81-44-520-1435 toll-free:0120-198-433

81-44-556-3894

044-556-3490

044-556-3801

044-556-4240

044-556-1465

044-556-3433

044-556-3430

044-556-1469

044-556-3469

044-556-1760

044-556-4300 toll-free: 080-200-3800 toll-free: 080-200-3600 toll-free: 080-200-3800

604 633 4949

City Code: 2

Latin America

Luxembourg

International Access

Code: 00

Country Code: 352

Macao

Country Code: 853

Malaysia (Penang)

International Access

Code: 00

Country Code: 60

City Code: 4

Mexico

International Access

Code: 00

Country Code: 52

Fax

Switchboard

Customer Technical Support (Austin, Texas, U.S.A.)

Customer Service (Austin, Texas, U.S.A.)

Fax (Technical Support and Customer Service) (Austin,

Texas, U.S.A.)

Sales (Austin, Texas, U.S.A.)

SalesFax (Austin, Texas, U.S.A.)

Website: support.euro.dell.com

E-mail: [email protected]

Technical Support (Brussels, Belgium)

Home/Small Business Sales (Brussels, Belgium)

Corporate Sales (Brussels, Belgium)

Customer Care (Brussels, Belgium)

Fax (Brussels, Belgium)

Switchboard (Brussels, Belgium)

Technical Support

Customer Service (Penang, Malaysia)

Transaction Sales

Technical Support

Customer Service

Transaction Sales

Corporate Sales

Customer Technical Support

Sales

Customer Service

Main

Montserrat

Netherlands Antilles

Netherlands

(Amsterdam)

International Access

Code: 00

Country Code: 31

City Code: 20

General Support

General Support

Website: support.euro.dell.com

E-mail (Technical Support):

(Enterprise): [email protected]

(Latitude): [email protected]

(Inspiron): [email protected]

Downloaded from LpManual.com Manuals

2194-6202

2194-6000

512 728-4093

512 728-3619

512 728-3883

512 728-4397

512 728-4600 or 512 728-3772

3420808075 toll-free: 080016884

02 481 91 00

02 481 91 19

02 481 92 99

02 481 91 00 toll-free: 0800 582

604 633 4949 toll-free: 0800 581 toll-free: 1 800 888 298

04 633 4949 toll-free: 1 800 888 202 toll-free: 1 800 888 213

001-877-384-8979 or 001-877-269-3383

50-81-8800 or 01-800-888-3355

001-877-384-8979 or 001-877-269-3383

50-81-8800 or 01-800-888-3355 toll-free: 1-866-278-6822

001-800-882-1519

New Zealand

International Access

Code: 00

Country Code: 64

Nicaragua

Norway (Lysaker)

International Access

Code: 00

Country Code: 47

Panama

Peru

Poland (Warsaw)

International Access

Code: 011

Country Code: 48

City Code: 22

(Dimension): [email protected]

(OptiPlex): [email protected]

(Dell Precision): [email protected]

Technical Support

Technical Support Fax

Home/Small Business Customer Care

Relational Customer Care

Home/Small Business Sales

Relational Sales

Home/Small Business Sales Fax

Relational Sales Fax

Switchboard

Switchboard Fax

E-mail (New Zealand): [email protected]

E-mail (Australia): [email protected]

Home and Small Business

Government and Business

Sales

Fax

General Support

Website: support.euro.dell.com

E-mail Support (portable computers): [email protected]

E-mail Support (desktop computers): [email protected]

E-mail Support (servers): [email protected]

Technical Support

Relational Customer Care

Home/Small Business Customer Care

Switchboard

Fax Switchboard

General Support

General Support

Website: support.euro.dell.com

E-mail: [email protected]

Customer Service Phone

Customer Care

Sales

Customer Service Fax

Downloaded from LpManual.com Manuals

020 674 45 00

020 674 47 66

020 674 42 00

020 674 4325

020 674 55 00

020 674 50 00

020 674 47 75

020 674 47 50

020 674 50 00

020 674 47 50

0800 446 255

0800 444 617

0800 441 567

0800 441 566

001-800-220-1006

671 16882

671 17514

23162298

671 16800

671 16865

001-800-507-0962

0800-50-669

57 95 700

57 95 999

57 95 999

57 95 806

Portugal

International Access

Code: 00

Country Code: 351

Reception Desk Fax

Switchboard

Website: support.euro.dell.com

E-mail: support.euro.dell.com/pt/en/emaildell/

Technical Support

Customer Care

Sales

Puerto Rico

St. Kitts and Nevis

St. Lucia

St. Vincent and the

Grenadines

Singapore (Singapore)

International Access

Code: 005

Country Code: 65

South Africa

(Johannesburg)

International Access

Code:

09/091

Country Code: 27

City Code: 11

Southeast Asian and

Pacific Countries

Spain (Madrid)

International Access

Code: 00

Country Code: 34

City Code: 91

Sweden (Upplands

Vasby)

Fax

General Support

General Support

General Support

General Support

Technical Support

Customer Service (Penang, Malaysia)

Transaction Sales

Corporate Sales

Website: support.euro.dell.com

E-mail: [email protected]

Technical Support

Customer Care

Sales

Fax

Switchboard

Customer Technical Support, Customer Service, and Sales

(Penang, Malaysia)

Website: support.euro.dell.com

E-mail: support.euro.dell.com/es/es/emaildell/

Home and Small Business

Technical Support

Customer Care

Sales

Switchboard

Fax

Corporate

Technical Support

Customer Care

Switchboard

Fax

Website: support.euro.dell.com

E-mail: [email protected]

Downloaded from LpManual.com Manuals

57 95 998

57 95 999

707200149

800 300 413

800 300 410 or 800 300 411 or

800 300 412 or 21 422 07 10

21 424 01 12

1-800-805-7545 toll-free: 1-877-441-4731

1-800-882-1521 toll-free: 1-877-270-4609 toll-free: 800 6011 051

604 633 4949 toll-free: 800 6011 054 toll-free: 800 6011 053

011 709 7710

011 709 7707

011 709 7700

011 706 0495

011 709 7700

604 633 4810

902 100 130

902 118 540

902 118 541

902 118 541

902 118 539

902 100 130

902 118 546

91 722 92 00

91 722 95 83

International Access

Code: 00

Country Code: 46

City Code: 8

Switzerland (Geneva)

International Access

Code: 00

Country Code: 41

City Code: 22

Taiwan

International Access

Code: 002

Country Code: 886

Thailand

International Access

Code: 001

Country Code: 66

Trinidad/Tobago

Turks and Caicos

Islands

U.K. (Bracknell)

International Access

Code: 00

Country Code: 44

City Code: 1344

E-mail Support for Latitude and Inspiron:

[email protected]

E-mail Support for OptiPlex: [email protected]

E-mail Support for Servers:

[email protected]

Technical Support

Relational Customer Care

Home/Small Business Customer Care

Employee Purchase Program (EPP) Support

Fax Technical Support

Sales

Website: support.euro.dell.com

E-mail: [email protected]

E-mail for French-speaking HSB and Corporate Customers:

support.euro.dell.com/ch/fr/emaildell/

Technical Support (Home and Small Business)

Technical Support (Corporate)

Customer Care (Home and Small Business)

Customer Care (Corporate)

Fax

Switchboard

Technical Support (portable and desktop computers)

Technical Support (servers)

Transaction Sales

Corporate Sales

08 590 05 199

08 590 05 642

08 587 70 527

20 140 14 44

08 590 05 594

08 590 05 185

0844 811 411

0844 822 844

0848 802 202

0848 821 721

022 799 01 90

022 799 01 01 toll-free: 00801 86 1011 toll-free: 0080 60 1256 toll-free: 0080 651 228 or 0800 33 556 toll-free: 0080 651 227 or 0800 33 555 toll-free: 0880 060 07

604 633 4949 toll-free: 0880 060 09

Technical Support

Customer Service (Penang, Malaysia)

Sales

General Support

General Support

1-800-805-8035 toll-free: 1-866-540-3355

Website: support.euro.dell.com

Customer Care website: support.euro.dell.com/uk/en/ECare/Form/Home.asp

E-mail: [email protected]

Technical Support (Corporate/Preferred Accounts/PAD

[1000+ employees])

Technical Support (direct/PAD and general)

Global Accounts Customer Care

0870 908 0500

0870 908 0800

01344 373 186

Downloaded from LpManual.com Manuals

Uruguay

U.S.A. (Austin, Texas)

International Access

Code: 011

Country Code: 1

Home and Small Business Customer Care

Corporate Customer Care

Preferred Accounts (500–5000 employees) Customer Care

Central Government Customer Care

Local Government & Education Customer Care

Health Customer Care

Home and Small Business Sales

Corporate/Public Sector Sales

General Support

Automated Order-Status Service

AutoTech (portable and desktop computers)

Consumer (Home and Home Office)

Technical Support

Customer Service

DellNet™ Service and Support

Employee Purchase Program (EPP) Customers

Financial Services website: www.dellfinancialservices.com

Financial Services (lease/loans)

Financial Services (Dell Preferred Accounts [DPA])

Business

Customer Service and Technical Support

Employee Purchase Program (EPP) Customers

Projectors Technical Support

Public (government, education, and healthcare)

Customer Service and Technical Support

Employee Purchase Program (EPP) Customers

Dell Sales

U.S. Virgin Islands

Venezuela

Dell Outlet Store (Dell refurbished computers)

Software and Peripherals Sales

Spare Parts Sales

Extended Service and Warranty Sales

Fax

Dell Services for the Deaf, Hard-of-Hearing, or Speech-

Impaired

General Support

General Support

0870 906 0010

01344 373 185

0870 906 0010

01344 373 193

01344 373 199

01344 373 194

0870 907 4000

01344 860 456 toll-free: 000-413-598-2521 toll-free: 1-800-433-9014 toll-free: 1-800-247-9362 toll-free: 1-800-624-9896 toll-free: 1-800-624-9897 toll-free: 1-877-Dellnet

(1-877-335-5638) toll-free: 1-800-695-8133 toll-free: 1-877-577-3355 toll-free: 1-800-283-2210 toll-free: 1-800-822-8965 toll-free: 1-800-695-8133 toll-free: 1-877-459-7298 toll-free: 1-800-456-3355 toll-free: 1-800-234-1490 toll-free: 1-800-289-3355 or toll-free: 1-800-879-3355 toll-free: 1-888-798-7561 toll-free: 1-800-671-3355 toll-free: 1-800-357-3355 toll-free: 1-800-247-4618 toll-free: 1-800-727-8320 toll-free: 1-877-DELLTTY

(1-877-335-5889)

1-877-673-3355

8001-3605

Downloaded from LpManual.com Manuals

Solving Problems

Power Problems

Error Messages

Video and Display Problems

Sound and Speaker Problems

Printer Problems

Modem and Internet Connection Problems

Touch Pad or Mouse Problems

External Keyboard Problems

Unexpected Characters

Drive Problems

PC Card Problems

Smart Card Problems

Network Problems

General Program Problems

If Your Dell™ Computer Gets Wet

If You Drop or Damage Your Computer

Resolving Other Technical Problems

Power Problems

Fill out the

Diagnostics Checklist as you complete these checks.

Check the power light —

When the power light is lit or blinking, the computer has power. If the power light is blinking, the computer is in standby mode—press the power button to exit

standby mode . If the light is off,

press the power button to turn on the computer or to exit

hibernate mode .

Charge the battery —

The battery charge may be depleted.

1. Reinstall the battery.

2. Use the AC adapter to connect the computer to an electrical outlet.

3. Turn on the computer.

Check the battery status light —

If the battery status light flashes orange or is a steady orange the battery charge is low or depleted. Connect the computer to an electrical outlet.

If the battery status light flashes green and orange, the battery is too warm to charge. Shut down the computer, disconnect the computer from the electrical outlet, and then let the battery and computer cool to room temperature.

If the battery status light rapidly flashes orange, the battery may be defective. Contact Dell.

Test the electrical outlet —

Ensure that the electrical outlet is working by testing it with another device, such as a lamp.

Check the AC adapter —

Check the AC adapter cable connections. If the AC adapter has a light, ensure that the light is on.

Connect the computer directly to an electrical outlet —

Bypass power protection devices, power strips, and the extension cable to verify that the computer turns on.

Eliminate possible interference —

Turn off nearby fans, fluorescent lights, halogen lamps, or other appliances.

Adjust the power properties —

See "

Power Management ."

Reseat the memory modules —

If the computer power light turns on but the display remains blank,

reseat the memory modules .

Downloaded from LpManual.com Manuals

Error Messages

If the message is not listed, see the documentation for the operating system or the program that was running at the time the message appeared.

Auxiliary device failure —

The touch pad, track stick, or external mouse may be faulty. For an external mouse, check the cable connection. Enable the Pointing Device option in the system setup program. If the

problem persists, contact Dell

.

Bad command or file name —

Ensure that you have spelled the command correctly, put spaces in the proper place, and used the correct pathname.

Cache disabled due to failure —

The primary cache internal to the microprocessor has failed. Contact Dell .

CD drive controller failure —

The CD drive does not respond to commands from the computer. See "

Drive

Problems ."

Data error —

The floppy or hard drive cannot read the data. See "

Drive Problems ."

Decreasing available memory —

One or more memory modules may be faulty or improperly seated.

Reseat the memory modules and, if necessary, replace them.

Disk C: failed initialization —

The hard drive failed initialization. Run the Hard-Disk Drive tests as described in "

Using the Dell Diagnostics ."

Floppy drive 0 seek failure —

The system configuration information may not match the hardware configuration. Run the Diskette tests as described in "

Using the Dell Diagnostics ."

Diskette read failure —

The floppy disk may be defective. If the drive access light turns on, try a different disk. See "

Drive Problems ."

Diskette subsystem reset failed —

The floppy drive controller may be faulty. Run the Diskette tests as described in "

Using the Dell Diagnostics ."

Diskette write-protected —

Because the floppy disk is write-protected, the operation cannot be completed.

Slide the write-protect notch.

Drive not ready —

The operation requires a floppy disk in the drive or a hard drive in the bay before it can continue. Insert a floppy disk, or push the floppy disk all the way into the drive until the eject button pops out.

Or,

install a hard drive

in the hard drive bay.

Error reading PCMCIA card —

The computer cannot identify the PC Card.

Reinsert the card or try another PC

Card.

Extended memory size has changed —

The amount of memory recorded in NVRAM does not match the memory installed in the computer. Restart the computer. If the error appears again,

contact Dell .

Gate A20 failure —

A memory module may be loose.

Reinstall the memory modules and, if necessary, replace

them.

General failure —

The operating system is unable to carry out the command. The message is usually followed by specific information—for example, Printer out of paper. Take the appropriate action.

Hard-disk drive configuration error —

The computer cannot identify the drive type. Turn off the computer,

Downloaded from LpManual.com Manuals

remove the hard drive , and boot the computer from a bootable floppy disk or CD. Then turn off the computer,

reinstall the hard drive, and restart the computer. Run the Hard-Disk Drive tests as described in "

Using the Dell

Diagnostics ."

Hard-disk drive controller failure 0 —

The hard drive does not respond to commands from the computer.

Turn off the computer,

remove the hard drive , and boot the computer from a bootable floppy disk or CD. Then

turn off the computer, reinstall the hard drive, and restart the computer. If the problem persists, try another drive. Run the Hard-Disk Drive tests as described in "

Using the Dell Diagnostics ."

Hard-disk drive failure —

The hard drive does not respond to commands from the computer. Turn off the

computer, remove the hard drive , and boot the computer from a bootable floppy disk or CD. Then turn off the

computer, reinstall the hard drive, and restart the computer. If the problem persists, try another drive. Run the

Hard-Disk Drive tests as described in "

Using the Dell Diagnostics ."

Hard-disk drive read failure —

The hard drive may be defective. Turn off the computer, remove the hard drive , and boot the computer from a bootable floppy disk or CD. Then turn off the computer, reinstall the hard

drive, and restart the computer. If the problem persists, try another drive. Run the Hard-Disk Drive tests as described in "

Using the Dell Diagnostics ."

Insert bootable media —

The operating system is trying to boot to a nonbootable floppy disk or CD. Insert a bootable floppy disk or CD.

Invalid configuration information-please run System Setup Program —

The system configuration information does not match the hardware configuration. The message is most likely to occur after a memory module is installed. Correct the appropriate options in the system setup program. See "

Using the System Setup

Program ."

Keyboard clock line failure —

For external keyboards, check the cable connection. Run the Keyboard

Controller test as described in "

Using the Dell Diagnostics ."

Keyboard controller failure —

For external keyboards, check the cable connection. Restart the computer, and avoid touching the keyboard or the mouse during the boot routine. Run the Keyboard Controller test as described in "

Using the Dell Diagnostics ."

Keyboard data line failure —

For external keyboards, check the cable connection. Run the Keyboard

Controller test as described in "

Using the Dell Diagnostics ."

Keyboard stuck key failure —

For external keyboards or keypads, check the cable connection. Restart the computer, and avoid touching the keyboard or keys during the boot routine. Run the Stuck Key test as described in "

Using the Dell Diagnostics ."

Memory address line failure at address, read value expecting value —

A memory module may be faulty or improperly seated.

Reinstall the memory modules and, if necessary, replace them.

Memory allocation error —

The software you are attempting to run is conflicting with the operating system, another program, or a utility. Turn off the computer, wait 30 seconds, and then restart it. Try to run the program again. If the error message still appears, see the software documentation.

Memory data line failure at address, read value expecting value —

A memory module may be faulty or improperly seated.

Reinstall the memory modules and, if necessary, replace them.

Memory double word logic failure at address, read value expecting value —

A memory module may be faulty or improperly seated.

Reinstall the memory modules and, if necessary, replace them.

Memory odd/even logic failure at address, read value expecting value —

A memory module may be faulty or improperly seated.

Reinstall the memory modules and, if necessary, replace them.

Memory write/read failure at address, read value expecting value —

A memory module may be faulty or improperly seated.

Reinstall the memory modules and, if necessary, replace them.

Downloaded from LpManual.com Manuals

No boot device available —

The computer cannot find the floppy disk or hard drive. If the floppy drive is your boot device, ensure that a bootable floppy disk is in the drive. If the hard drive is your boot device, ensure that the drive is installed, properly seated, and partitioned as a boot device.

No boot sector on hard drive —

The operating system may be corrupted.

Contact Dell .

No timer tick interrupt —

A chip on the system board may be malfunctioning. Run the System Set tests as described in "

Using the Dell Diagnostics ."

Non-system disk or disk error —

A floppy disk is in the floppy drive. Remove the floppy disk and restart the computer.

Not a boot diskette —

The operating system is trying to boot to a nonbootable floppy disk. Insert a bootable floppy disk.

Operating system not found —

Contact Dell .

Optional ROM bad checksum —

The optional ROM apparently failed. Contact Dell .

A required .DLL file was not found —

The program that you are trying to open is missing an essential file.

Remove and then reinstall the program.

Microsoft® Windows® XP

1. Click the Start button and click Control Panel.

2. Click Add or Remove Programs.

3. Select the program you want to remove.

4. Click Remove or Change/Remove and follow the prompts on the screen.

5. See the program documentation for installation instructions.

Windows 2000

1. Click the Start button, point to Settings, and then click Control Panel.

2. Double-click the Add/Remove Programs icon.

3. Select the program that you want to remove.

4. Click Change or Remove Programs.

5. See the program documentation for installation instructions.

Sector not found —

The operating system cannot locate a sector on the floppy or hard drive. You may have a defective sector or corrupted FAT on the floppy disk or hard drive. Run the Windows error-checking utility to check the file structure on the floppy disk or hard drive. See the

Windows Help and Support Center (Help in

Windows 2000) for instructions. If a large number of sectors are defective, back up the data (if possible), and then reformat the floppy disk or hard drive.

Seek error —

The operating system cannot find a specific track on the floppy disk or hard drive. If the error is on the floppy disk, try another floppy disk.

Shutdown failure —

A chip on the system board may be malfunctioning. Run the System Set tests as described in "

Using the Dell Diagnostics ."

Time-of-day clock lost power —

System configuration settings are corrupted. Connect your computer to an electrical outlet to charge the battery. If the problem persists, try to restore the data by entering the system setup program. Then immediately exit the program. See "

Using the System Setup Program ." If the message

reappears, contact Dell

.

Time-of-day clock stopped —

The reserve battery that supports the system configuration settings may require recharging. Connect your computer to an electrical outlet to charge the battery. If the problem persists,

contact Dell .

Time-of-day not set-please run the System Setup program —

The time or date stored in the system setup program does not match the system clock. Correct the settings for the Date and Time options. See

Downloaded from LpManual.com Manuals

"

Using the System Setup Program

."

Timer chip counter 2 failed —

A chip on the system board may be malfunctioning. Run the System Set tests as described in "

Using the Dell Diagnostics ."

Unexpected interrupt in protected mode —

The keyboard controller may be malfunctioning, or a memory module may be loose. Run the System Memory tests and the Keyboard Controller test as described in "

Using the Dell Diagnostics ."

x:\ is not accessible. The device is not ready —

Insert a disk into the drive and try again.

Warning: Battery is critically low —

The

battery is running out of charge . Replace the battery, or connect

the computer to an electrical outlet. Otherwise, activate

hibernate mode or turn off the computer.

Video and Display Problems

Fill out the

Diagnostics Checklist as you complete these checks.

If the display is blank

NOTE:

If you are using a program that requires a higher resolution than your computer supports, it is recommended that you attach an external monitor to your computer.

Check the battery —

If you are using a battery to power your computer, the battery charge may be depleted.

Connect the computer to an electrical outlet using the AC adapter, and turn on the computer.

Test the electrical outlet —

Ensure that the electrical outlet is working by testing it with another device, such as a lamp.

Check the AC adapter —

Check the AC adapter cable connections. If the AC adapter has a light, ensure that the light is on.

Connect the computer directly to an electrical outlet —

Bypass power protection devices, power strips, and the extension cable to verify that the computer turns on.

Adjust the power properties —

Search for the keyword standby in Windows Help or the

Windows Help and

Support Center .

Switch the video image —

If your computer is attached to an external monitor, press the video image to the display.

If the display is difficult to read

to switch

Adjust the brightness —

See "

Adjusting Brightness " for instructions on adjusting the brightness.

Move the subwoofer away from the computer or monitor —

If your external speaker system includes a subwoofer, ensure that the subwoofer is at least 60 cm (2 ft) away from the computer or external monitor.

Eliminate possible interference —

Turn off nearby fans, fluorescent lights, halogen lamps, or other appliances.

Downloaded from LpManual.com Manuals

Rotate the computer to face a different direction —

Eliminate sunlight glare, which can cause poor picture quality.

Adjust the Windows display settings —

Windows XP

1. Click the Start button and then click Control Panel.

2. Click Appearance and Themes.

3. Click the area you want to change or click the Display icon.

4. Try different settings for Color quality and Screen resolution.

Windows 2000

1. Click the Start button, point to Settings, and then click Control Panel.

2. Double-click the Display icon and click the Settings tab.

3. Try different settings for Colors, Screen area, and Advanced Settings.

Run the Video diagnostics tests —

If no error message appears and you still have a display problem, but the display is not completely blank, run the Video device group in the

Dell Diagnostics . Then

contact Dell .

See "Error Messages" —

If an error message appears, see "

Error Messages

."

If only part of the display is readable

Connect an external monitor —

1. Shut down your computer and connect an external monitor to the computer.

2. Turn on the computer and the monitor and adjust the monitor brightness and contrast controls.

If the external monitor works, the computer display or video controller may be defective.

Contact Dell .

Sound and Speaker Problems

Fill out the

Diagnostics Checklist as you complete these checks.

If you have a problem with the integrated speaker

Adjust the Windows volume control —

Double-click the speaker icon in the lower-right corner of your screen. Ensure that the volume is turned up and that the sound is not muted. Adjust the volume, bass, or treble controls to eliminate distortion.

Adjust the volume using keyboard shortcuts —

See "

Using the Keyboard and Touch Pad ." Press

to disable (mute) or reenable the integrated speaker.

Reinstall the sound (audio) driver —

See "

Reinstalling Drivers and Utilities ."

For Windows 2000 only, ensure that digital audio for the CD drive is enabled —

1. Click the Start button, point to Settings, and then click Control Panel.

Downloaded from LpManual.com Manuals

2. Double-click the System icon.

3. Click the Hardware tab.

4. Click Device Manager.

5. Double-click DVD/CD-ROM drives.

6. Double-click the name of the drive.

7. On the drive Properties screen, click the Properties tab.

8. Click the box near the bottom of the screen to enable digital audio for your CD or DVD drive.

If you have a problem with external speakers

NOTE:

The volume control in some MP3 players overrides the Windows volume setting. If you have been listening to

MP3 songs, make sure that you did not turn the player volume down or off.

Check the speaker cable connections —

See the setup diagram supplied with the speakers.

Test the electrical outlet —

Ensure that the electrical outlet is working by testing it with another device, such as a lamp.

Ensure that the speakers are turned on —

See the setup diagram supplied with the speakers.

Adjust the Windows volume control —

Double-click the speaker icon in the lower-right corner of your screen. Ensure that the volume is turned up and that the sound is not muted. Adjust the volume, bass, or treble controls to eliminate distortion.

Test the speakers —

Plug the speaker audio cable into the headphone volume control is turned up. Play a music CD.

connector on the computer. Ensure that the

Run the speaker self-test —

Some speaker systems have a self-test button on the subwoofer. See the speaker documentation for self-test instructions.

Eliminate possible interference —

Turn off nearby fans, fluorescent lights, or halogen lamps to check for interference.

Reinstall the sound (audio) driver —

See "

Reinstalling Drivers and Utilities ."

Run the Misc. PCI Devices diagnostic test —

See "

Using the Dell Diagnostics ." If the tests complete

successfully, the controller is functioning properly.

If the problem persists, or if the tests do not complete successfully,

contact Dell .

For Windows 2000 only, ensure that digital audio for the CD drive is enabled —

1. Click the Start button, point to Settings, and then click Control Panel.

2. Double-click the System icon.

3. Click the Hardware tab.

4. Click Device Manager.

5. Double-click DVD/CD-ROM drives.

6. Double-click the name of the drive.

7. On the drive Properties screen, click the Properties tab.

8. Click the box near the bottom of the screen to enable digital audio for your CD or DVD drive.

Printer Problems

Fill out the

Diagnostics Checklist as you perform the various checks.

Downloaded from LpManual.com Manuals

Check the printer cable connections —

Ensure that the printer cable is properly connected to the computer.

Check the printer cable —

1. Shut down the computer and turn off the printer.

2. Swap the printer cable with a cable that you know is working.

3. Turn on the printer and computer, and try again to print.

4. If you print successfully,

contact Dell for assistance in obtaining a new printer cable.

Test the electrical outlet —

Ensure that the electrical outlet is working by testing it with another device, such as a lamp.

Ensure that the printer is turned on —

See the documentation supplied with the printer.

Verify that Windows recognizes the printer —

Windows XP

1. Click the Start button and click Control Panel.

2. Click Printers and Other Hardware.

3. Click View installed printers or fax printers. If the printer model is listed, right-click the printer icon.

4. Click Properties and click the Ports tab. Ensure that the Print to the following port(s): setting is

LPT1 (Printer Port).

Windows 2000

1. Click the Start button, point to Settings, and then click Printers.

If the printer model is listed, right-click the printer icon.

2. Click Properties and click the Ports tab.

3. Ensure that the Print to the following port: option is set to USB.

Reinstall the printer driver —

See "

Reinstalling Drivers and Utilities ."

Check the printer —

Run the printer self-test. If the test does not complete successfully, the printer is probably defective. Contact the printer manufacturer.

Modem and Internet Connection Problems

NOTICE:

Connect the modem to an analog telephone wall jack only. Connecting the modem to a digital telephone network may damage the modem.

NOTICE:

Modem and network connectors look similar. Do not plug a telephone line into the network connector.

Fill out the

Diagnostics Checklist as you complete these checks.

NOTE:

If you can connect to your Internet service provider (ISP), your modem is functioning properly. If you are sure that your modem is working properly and you still experience problems, contact your ISP.

Check the telephone wall jack —

Disconnect the telephone line from the modem and connect it to a telephone. Listen for a dial tone. Ensure that you have touchtone telephone service. Try connecting the modem to a different telephone wall jack.

Slow connection speeds can be caused by telephone noise as well as by telephone line or network conditions.

Contact your telephone company or network administrator for more information.

Downloaded from LpManual.com Manuals

Connect the modem directly to the telephone wall jack —

If you have other telephone devices sharing the line, such as an answering machine, fax machine, surge protector, or line splitter, then bypass them and use the telephone line to connect the modem directly to the telephone wall jack.

Check the connection —

Verify that the telephone line is connected to the modem.

Check the telephone line —

Try using a different telephone line. If you are using a line that is 3 m (10 ft) or more in length, try a shorter one.

Irregular dial tone —

If you have voice mail service, you might hear an irregular dial tone when you have messages. Contact your telephone company for instructions on restoring a dial tone.

Turn off call waiting (catch-phone) —

See your telephone directory for instructions on deactivating this feature. Then adjust the dial-up networking connection properties.

Windows XP

1. Click the Start button and click Control Panel.

2. Click Printers and Other Hardware, click Phone and Modem Options, click the Dialing Rules tab, and then click Edit....

3. In the Edit Location window, ensure that To disable call waiting, dial: is checked, and then select the proper code as listed in your telephone directory.

4. Click Apply and click OK.

5. Close the Phone and Modems Options window.

6. Close the Control Panel window.

Windows 2000

1. Click the Start button, point to Settings, and then click Control Panel.

2. Click Phone and Modem Options.

3. Click the Dialing Rules tab and click Edit.

4. Ensure that To disable call waiting, dial: is checked, and then select the proper code as listed in your telephone directory.

5. Click Apply and click OK.

6. Close the Phone and Modem Options window.

Verify that the modem is communicating with Windows —

Windows XP

1. Click the Start button and click Control Panel.

2. Click Printers and Other Hardware and click Phone and Modem Options.

3. Click the Modems tab.

4. Click the COM port for your modem.

5. Click Properties, click the Diagnostics tab, and then click Query Modem to verify that the modem is communicating with Windows.

If all commands receive responses, the modem is operating properly.

Windows 2000

1. Click the Start button, point to Settings, and then click Control Panel.

2. Double-click Phone and Modem Options.

If multiple entries for the same modem or modems are listed but not installed, delete the entries, restart the computer, and repeat steps 1 and 2.

3. Click the Modems tab.

4. Click the COM port for your modem.

5. Click Properties, click the Diagnostics tab, and then click Query Modem to verify that the modem is communicating with Windows.

If all commands receive responses, the modem is operating properly.

Downloaded from LpManual.com Manuals

Touch Pad or Mouse Problems

Fill out the

Diagnostics Checklist as you perform the various checks.

Check the touch pad settings —

Windows XP

1. Click the Start button, click Control Panel, and then click Printers and Other Hardware.

2. Click Mouse.

3. Try adjusting the settings.

Windows 2000

1. Click the Start button, point to Settings, and then click Control Panel.

2. Double-click the Mouse icon.

3. Try adjusting the settings.

Check the mouse cable —

Shut down the computer. Disconnect the mouse cable, check it for damage, and firmly reconnect the cable.

If you are using a mouse extension cable, disconnect it and connect the mouse directly to the computer.

To verify that the problem is with the mouse, check the touch pad —

1. Shut down the computer.

2. Disconnect the mouse.

3. Turn on the computer.

4. At the Windows desktop, use the touch pad to move the cursor around, select an icon, and open it.

If the touch pad operates correctly, the mouse may be defective.

Check the system setup program settings —

Verify that the system setup program lists the correct device for the pointing device option. (The computer automatically recognizes a USB mouse without making any setting adjustments.)

Test the mouse controller —

To test the mouse controller (which affects pointer movement) and the operation of the touch pad or mouse buttons, run the Mouse test in the Pointing Devices test group in the

Dell Diagnostics .

Reinstall the touch pad driver —

See "

Reinstalling Drivers and Utilities ."

External Keyboard Problems

Fill out the

Diagnostics Checklist as you perform the various checks.

NOTE:

Use the integrated keyboard when working in MS-DOS

®

mode or when running the

Dell Diagnostics or the

system setup program. When you attach an external keyboard, the integrated keyboard remains fully functional.

Check the keyboard cable —

Shut down the computer. Disconnect the keyboard cable and check it for damage, and firmly reconnect the cable.

If you are using a keyboard extension cable, disconnect it and connect the keyboard directly to the computer.

Check the external keyboard —

Downloaded from LpManual.com Manuals

1. Shut down the computer, wait 1 minute, and turn it on again.

2. Verify that the numbers, capitals, and scroll lock lights on the keyboard blink during the boot routine.

3. From the Windows desktop, click the Start button, point to Programs, point to Accessories, and click

Notepad.

4. Type some characters on the external keyboard and verify that they appear on the display.

If you cannot verify these steps, you may have a defective external keyboard.

To verify that the problem is with the external keyboard, check the integrated keyboard —

1. Shut down the computer.

2. Disconnect the external keyboard.

3. Turn on the computer.

4. From the Windows desktop, click the Start button, point to Programs, point to Accessories, and click

Notepad.

5. Type some characters on the external keyboard and verify that they appear on the display.

If the characters appear now but did not with the external keyboard, you may have a defective external keyboard.

Run the keyboard diagnostics tests —

Run the PC-AT Compatible Keyboards tests in the

Dell Diagnostics . If

the tests indicate a defective external keyboard,

contact Dell .

Unexpected Characters

Disable the numeric keypad —

Press to disable the numeric keypad if numbers are displayed instead of letters. Verify that the numbers lock light is not lit.

Drive Problems

Fill out the

Diagnostics Checklist as you complete these checks.

If you cannot save a file to a floppy drive

Ensure that an external floppy drive is connected to the computer —

Install the floppy drive in the Dell

D/Bay or use the optional USB cable to connect the floppy drive to the computer.

Ensure that Windows recognizes the drive —

In Windows XP, click the Start button and click My

Computer. In other operating systems, double-click My Computer. If the drive is not listed, perform a full scan with your antivirus software to check for and remove viruses. Viruses can sometimes prevent Windows from recognizing the drive. Insert a bootable disk and restart the computer.

Ensure that the disk is not write-protected —

You cannot save data to a write-protected disk.

Try another floppy disk —

Insert another disk to eliminate the possibility that the original disk is defective.

Reinstall the drive —

1. Save and close any open files, exit any open programs, and shut down the computer.

2. Remove the drive from the

Dell D/Bay

.

3. Reinstall the drive.

4. Turn on the computer.

Downloaded from LpManual.com Manuals

Check the D/Bay cable —

Shut down the computer. Disconnect the D/Bay cable from the computer, and firmly reconnect the cable.

Clean the drive —

See "

Cleaning Your Computer " for instructions.

Check the drive for errors —

If a drive error message appears, see "

Error Messages " for an explanation.

Run the Diskette tests as described in "

Using the Dell Diagnostics ."

If you cannot play a CD, CD-RW, DVD, or DVD+RW

NOTE:

Because of different worldwide file types, not all DVD titles work in all DVD drives.

High-speed CD drive vibration is normal and may cause noise. The noise does not indicate a defect with the drive or the CD.

Ensure that Windows recognizes the drive —

In Windows XP, click the Start button and click My

Computer. In other operating systems, double-click My Computer. If the drive is not listed, perform a full scan with your antivirus software to check for and remove viruses. Viruses can sometimes prevent Windows from recognizing the drive. Insert a bootable disk and restart the computer.

Try another disc —

Insert another disc to eliminate the possibility that the original disc is defective.

Adjust the Windows volume control —

Double-click the speaker icon in the lower-right corner of your screen. Ensure that the volume is turned up and that the sound is not muted.

Reinstall the drive

1. Save and close any open files, exit any open programs, and shut down the computer.

2. Remove the drive. See "

Using the Dell™ D/Bay

" for instructions.

3. Reinstall the drive.

4. Turn on the computer.

Clean the drive or disc —

See "

Cleaning Your Computer

" for instructions.

Check the drive for errors

If a drive error message appears, see "

Error Messages " for an explanation.

Run the IDE Drives tests as described in the

Dell Diagnostics

.

If you cannot eject the CD, CD-RW, DVD, or DVD+RW drive tray

1. Ensure that the computer is shut down.

2. Straighten a paper clip and insert one end into the eject hole at the front of the drive; push firmly until the tray is partially ejected.

3. Gently pull out the tray until it stops.

If you hear an unfamiliar scraping or grinding sound

Downloaded from LpManual.com Manuals

Ensure that the sound is not caused by the program that is running.

Ensure that the disk or disc is inserted properly.

If the CD-RW or DVD+RW drive stops writing

Disable standby or hibernate mode in Windows before writing to a CD-RW —

Search for the keyword

standby or hibernate in Windows Help or the

Windows Help and Support Center .

Change the write speed to a slower rate —

See the help files for your CD or DVD creation software.

Exit all other open programs —

Exiting all other open programs before writing to the CD-RW or DVD+RW may alleviate the problem.

If you have problems with a hard drive

Allow the computer to cool before turning it on —

A warm hard drive may prevent the operating system from starting. Try allowing the computer to return to room temperature before turning it on.

Check the drive for errors —

Run the Windows error-checking tool:

1. In Windows XP, click the Start button and click My Computer. In Windows 2000, double-click My

Computer.

2. Right-click the drive letter (local disk) that you want to scan for errors, and then click Properties.

3. Click the Tools tab.

4. Under Error-checking, click Check Now.

5. Click Start.

Run the IDE Drives tests as described in the

Dell Diagnostics

.

PC Card Problems

Check the PC Card —

Ensure that the PC Card is properly inserted into the connector.

Ensure that the card is recognized by Windows —

Double-click the Safely Remove Hardware (Unplug

or Eject Hardware in Windows 2000) icon in the Windows taskbar. Ensure that the card is listed.

Run the PC Card diagnostics test —

See the documentation that came with the PC Card for instructions if a diagnostics test was provided with the card.

If you have problems with a Dell-provided PC Card —

Contact Dell .

If you have problems with a PC Card not provided by Dell —

Contact the PC Card manufacturer.

Smart Card Problems

Downloaded from LpManual.com Manuals

Check the smart card —

Ensure that the smart card is properly inserted into the smart card slot.

Ensure that the smart card is recognized by Windows —

Double-click the Unplug or Eject Hardware icon in the Windows taskbar. Ensure that the smart card is listed.

If you have problems with a Dell-provided smart card —

Contact Dell .

If you have problems with a smart card not provided by Dell —

Contact the smart card manufacturer.

Network Problems

Fill out the

Diagnostics Checklist as you complete these checks.

Check the network cable connector —

Ensure that the network cable connector is firmly connected to the connector on the computer and the network wall jack.

Check the network lights on the network connector —

Green indicates that the network connection is active. If the status light is not green, try replacing the network cable. Amber indicates that the network adapter driver is loaded and the adapter is detecting activity.

Restart the computer —

Try to log on to the network again.

Contact your network administrator —

Verify that your network settings are correct and that the network is functioning.

General Program Problems

Fill out the

Diagnostics Checklist as you complete these checks.

A program crashes

NOTE:

Software usually includes installation instructions in its documentation or on a floppy disk or CD.

See the software documentation —

Many software manufacturers maintain websites with information that may help you solve the problem. Ensure that you properly installed and configured the program. Reinstall the program if necessary.

A program stops responding

End the program

1. Simultaneously press .

2. Click the Applications tab, and then select the program that is no longer responding.

3. Click End Task.

Downloaded from LpManual.com Manuals

A solid blue screen appears

Turn the computer off —

If the computer does not respond to a keystroke or a proper shutdown, press the power button until the computer turns off. Press the power button again to restart the computer.

Windows XP

The computer restarts.

Windows 2000

The solid blue screen appears because you were not able to perform a proper Windows shutdown. ScanDisk automatically runs during the start-up process. Follow the instructions on the screen.

Error messages appear

Review "

Error Messages " —

Look up the message and take the appropriate action. See the software documentation.

Confirm that the problem is software-related —

Run the System Board Devices tests in the

Dell

Diagnostics . If all tests in the device group run successfully, the problem may be software-related. See the

software documentation.

If Your Dell™ Computer Gets Wet

CAUTION: Perform this procedure only after you are certain that it is safe to do so. If the computer is connected to an electrical outlet, Dell recommends that you turn off AC power at the circuit breaker before attempting to remove the power cables from the electrical outlet. Use the utmost caution when removing wet cables from a live power source.

1. Shut down the computer, disconnect the AC adapter from the computer, and then disconnect the AC adapter from the electrical outlet.

2. Turn off any attached external devices, and disconnect them from their power sources and then from the computer.

3. Ground yourself by touching one of the metal connectors on the back of the computer.

4. Remove any installed PC Cards and put them in a safe place to dry.

5. Remove the battery.

6. Wipe off the battery and put it in a safe place to dry.

7. Remove the hard drive.

8.

Remove the memory modules .

9. Open the display and place the computer right-side up across two books or similar props to let air circulate all around it. Let the computer dry for at least 24 hours in a dry area at room temperature.

NOTICE:

Do not use artificial means, such as a hair dryer or a fan, to speed the drying process.

CAUTION: To help prevent electrical shock, verify that the computer is thoroughly dry before continuing with the rest of this procedure.

Downloaded from LpManual.com Manuals

10. Ground yourself by touching one of the metal connectors on the back of the computer.

11. Replace the memory modules, the memory module cover, and the screws.

12. Replace the hard drive.

13. Connect the external module bay, and replace any PC Cards you removed.

14. Replace the battery.

15. Turn on the computer and verify that it is working properly.

NOTE:

See your System Information Guide for information on your warranty coverage.

If the computer does not start, or if you cannot identify the damaged components,

contact Dell .

If You Drop or Damage Your Computer

1. Save and close any open files, exit any open programs, and shut down the computer.

2. Disconnect the AC adapter from the computer and from the electrical outlet.

3. Turn off any attached external devices, and disconnect them from their power sources and then from the computer.

4. Remove and reinstall the battery.

5. Turn on the computer.

NOTE:

See your System Information Guide for information on your warranty coverage.

If the computer does not start, or if you cannot identify the damaged components,

contact Dell .

Resolving Other Technical Problems

Go to the Dell Support website —

Go to support.dell.com for help with general usage, installation, and troubleshooting questions. See "

Getting Help

" for a description of the hardware and software support provided by Dell.

E-mail Dell —

Go to support.dell.com and then click E-Mail Dell in the Communicate list. Send an e-mail message to Dell about your problem; you can expect to receive an e-mail message from Dell within hours. See

"

Getting Help

" for a description of the hardware and software support provided by Dell.

Contact Dell —

If you cannot solve your problem using the Dell Support website (support.dell.com) or email service, call Dell for technical assistance. See "

Getting Help " for a description of the hardware and

software support provided by Dell.

Downloaded from LpManual.com Manuals

Using the Dell Diagnostics

When to Use the Dell Diagnostics

Features of the Dell Diagnostics

Starting the Dell Diagnostics

When to Use the Dell Diagnostics

Whenever a major component or device in your computer does not function properly, you may have a component failure. If you are experiencing a problem with your Dell™ computer, perform the checks in "

Solving Problems " and run the Dell

Diagnostics before you call Dell for technical assistance. Running the Dell Diagnostics may help you to resolve the problem yourself quickly without having to contact Dell for assistance.

If you are experienced with computers and know what component(s) you need to test, select the appropriate diagnostic test group(s) or subtest(s). If you are unsure about how to begin diagnosing a problem, see "

Starting the Dell Diagnostics ."

Features of the Dell Diagnostics

The Dell Diagnostics helps you to check your computer hardware without any additional equipment and without destroying any data. By using the diagnostics, you can have confidence in the operation of your computer. If you find a problem that you cannot solve by yourself, the diagnostic tests can provide you with important information you need when talking to Dell's service and support personnel.

NOTICE:

Use the Dell Diagnostics to test only your Dell computer. Using this program with other computers may cause incorrect computer responses or result in error messages.

The diagnostic test groups or subtests also have the following features:

Options that let you perform express, extended, or custom tests on one or all devices

An option that allows you to select tests based on a symptom of the problem you are having

An option that allows you to choose the number of times a test group or subtest is repeated

The ability to display test results

Options to temporarily suspend testing if an error is detected, or to terminate testing

Extensive online Help that describes the tests and devices

Status messages that inform you whether test groups or subtests were completed successfully

Error messages that appear if any problems are detected

Starting the Dell Diagnostics

The Dell Diagnostics is located on a hidden Diagnostic utility partition on your hard drive.

NOTE:

If your computer cannot display a screen image,

contact Dell .

1. Shut down the computer.

2. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your

Downloaded from LpManual.com Manuals

docking device for instructions.

3. Connect the computer to an electrical outlet.

NOTE:

If you do not see anything on your display, hold down the mute button and press the power button (instead of

) to begin the Dell Diagnostics. You do not need to highlight Diagnostics and press automatically runs the Pre-boot System Assessment.

. The computer

4. Turn on the computer. When the DELL™ logo appears, press immediately. If you wait too long and the

Microsoft® Windows® logo appears, continue to wait until you see the Windows desktop. Then shut down your computer and try again.

5. When the boot device list appears, highlight Diagnostics and press .

The computer begins to run the Pre-boot System Assessment, a series of embedded diagnostics that perform initial testing on your system board, keyboard, hard drive, and display.

During the assessment, answer any questions that appear.

If a component failure is detected, the computer stops and beeps. To stop the assessment and reboot to the operating system, press ; to continue to the next test, press ; to retest the component that failed, press .

If failures are detected during the Pre-boot System Assessment, write down the error code(s) and

contact Dell

before continuing on to the Dell Diagnostics.

If you receive a message stating that no Diagnostics utility partition has been found, follow the instructions on the screen to run the Dell Diagnostics from your Drivers and Utilities CD.

If the Pre-boot System Assessment completes successfully, you receive the message Booting Dell Diagnostic

Utility Partition. Press any key to continue

.

6. Press any key to start the Dell Diagnostics from the Diagnostics utility partition on your hard drive.

7. After the Dell Diagnostics loads and the Main Menu screen appears, click the button for the option you want.

NOTE:

The Service Tag for your computer is located in the title bar of each screen.

Option

Express

Test

Extended

Test

Custom

Test

Symptom

Tree

Function

Performs a quick test of devices. The test typically takes 10 to 20 minutes and requires no interaction on your part. Run Express Test first to increase the possibility of tracing the problem quickly.

Performs a thorough check of devices. The test typically takes 1 hour or more and requires you to answer questions periodically.

Tests a specific device. You can customize the tests to be run.

Allows you to select tests based on a symptom of the problem you are experiencing. The option lists the most common symptoms.

8. If a problem is encountered during a test, a message appears, displaying the error code and a description of the problem. Write down the error code and problem description and follow the instructions on the screen. If you cannot resolve the error condition,

contact Dell .

9. If you run a test from the Custom Test or Symptom Tree option, click the applicable tab described in the following table for more information.

Downloaded from LpManual.com Manuals

Tab

Results

Errors

Help

Function

Displays the results of the test and any error conditions encountered.

Displays error conditions encountered, error codes, and problem description.

Describes the test and may indicate requirements for running the test.

Configuration Displays your hardware configuration for the selected device.

Parameters

The Dell Diagnostics obtains your configuration information for all devices from the

system setup program ,

memory, and various internal tests and displays the information in the device list in the left pane of the screen. The device list may not display the names of all the components installed on your computer or all devices attached to your computer.

Allows you to customize the test by changing the test settings.

10. When you have finished running a test, close the screen to return to the Main Menu screen. To exit the Dell

Diagnostics and reboot the computer, close the Main Menu screen.

Downloaded from LpManual.com Manuals

Power Management

Power Management Tips

Power Management Wizard

Power Management Modes

Power Options Properties

Power Management Tips

NOTE:

See "

Using a Battery " for more information on conserving battery power.

Connect the computer to an electrical outlet when possible because battery life is largely determined by the number of times the battery is charged.

Place the computer in

standby mode or hibernate mode when you leave the computer unattended for long periods of

time.

To exit a power management mode, press the power button.

NOTE:

The power management options described in this section are for Microsoft® Windows® operating systems.

Power management options may vary, depending on which operating system is installed.

Power Management Wizard

NOTE:

The Power Management Wizard is not available if you have restricted access rights.

If Dell™ QuickSet is installed, click or double-click the icon to open the Power Management Wizard.

The first two screens of the wizard—Welcome and What is Power Management?—describe and define various power management options.

NOTE:

On the What is Power Management? screen, you can select Do not show this page again. When you select this option, the Welcome screen also does not appear again.

Use the following screens of the Power Management Wizard to set various power management options, including sleep modes, power schemes, and low battery-charge alarms.

Setting Sleep Modes

The screen defines standby and hibernate modes. From the screen you can:

Set standby-mode password options.

Enable or disable hibernate mode.

Select how the computer will respond when you close the display:

Choose no action.

Enter standby mode.

Enter hibernate mode.

Downloaded from LpManual.com Manuals

Select how the computer will respond when you press the power button:

Choose no action.

Enter standby mode.

Enter hibernate mode.

Shut down the operating system and turn off the computer.

Prompt a user for an action (Ask me what to do).

Select how the computer will respond when you press

Choose no action.

Enter standby mode.

Enter hibernate mode.

:

Shut down the operating system and turn off the computer.

Prompt a user for an action (Ask me what to do).

Selecting a Power Scheme

NOTE:

When your computer is running on battery power, the Network Disabled power scheme disables your internal network and wireless activity. When your computer is connected to an electrical outlet or docking device, the Network

Disabled power scheme disables only your wireless activity. You must set the power scheme through QuickSet (not

Microsoft® Windows®) for Network Disabled to work.

The screen allows you to select, create, and edit power scheme settings. In addition, you can delete power schemes that you create, but you cannot delete Dell™ QuickSet predefined power schemes (Maximum Battery, Maximum Performance,

Presentation, and Network Disabled).

NOTE:

QuickSet automatically adds the word (QuickSet) after the names of power schemes created using QuickSet.

All QuickSet power schemes are displayed in a drop-down menu near the center of the screen. The power settings for each scheme in the menu are listed below the menu. The power settings are listed separately for when the computer is running on battery or connected to an electrical outlet.

The Power Management Wizard also allows you to associate the display brightness level with a power scheme. You must enable brightness-level power schemes through QuickSet in order to set the brightness level.

The display brightness, internal network-card activity, and wireless activity features are not available through the Microsoft®

Windows® Control Panel power schemes. In order to make use of these value-added features, you must set them through

QuickSet power schemes.

NOTE:

Brightness shortcut keys only affect the display on your portable computer, not monitors that you attach to your portable computer or docking device. If your computer is connected to an external monitor and you try to change the brightness level, the Brightness Meter appears, but the brightness level on the monitor does not change.

Setting Battery Alarms and Actions

The screen allows you to enable the low-battery and critical-battery alarms and to change settings for the alarms. For example, you can set the low-battery alarm to 20% to remind you to save work and switch to AC power, and you can set the critical-battery alarm to 10% to enter hibernate mode. From the screen, you can:

Select whether the alarm will notify you by sound or text.

Downloaded from LpManual.com Manuals

Adjust the power level at which you want the alarm to notify you.

Select how the computer will respond when the alarm notifies you:

Choose no action.

Enter standby mode.

Enter hibernate mode.

Shut down Windows and turn off the computer.

Completing the Power Management Wizard

The screen summarizes the QuickSet power scheme, sleep mode, and battery alarm settings for your computer. Review the settings you have selected and click Finish.

For more information about QuickSet, right-click the icon in the taskbar and click Help.

Power Management Modes

Standby Mode

Standby mode conserves power by turning off the display and the hard drive after a predetermined period of inactivity (a time-out). When the computer exits standby mode, it returns to the same operating state it was in before entering standby mode.

NOTICE:

If your computer loses AC and battery power while in standby mode, it may lose data.

To enter standby mode:

In the Microsoft Windows XP operating system, click the Start button, click Turn off computer, and then click Stand

by.

In Windows 2000, click the Start button, click Shutdown, click Standby, and then click OK.

or

Depending on how you set the power management options on the

Advanced tab

in the Power Options Properties window, use one of the following methods:

Press the power button.

Close the display.

Press .

To exit standby mode, press the power button or open the display depending on how you set the options on the

Advanced

tab . You cannot make the computer exit standby mode by pressing a key or touching the touch pad or track stick.

Hibernate Mode

Downloaded from LpManual.com Manuals

Hibernate mode conserves power by copying system data to a reserved area on the hard drive and then completely turning off the computer. When the computer exits hibernate mode, it returns to the same operating state it was in before entering hibernate mode.

NOTICE:

You cannot remove devices or undock your computer while your computer is in hibernate mode.

Your computer enters hibernate mode if the battery charge level becomes critically low.

To manually enter hibernate mode:

In Windows XP, click the Start button, click Turn off computer, press and hold

Hibernate.

, and then click

In Windows 2000, if

hibernate support is enabled , click the Start button, click Shutdown, click Hibernate, and then

click OK.

or

Depending on how you set the power management options on the

Advanced tab

in the Power Options Properties window, use one of the following methods to enter hibernate mode:

Press the power button.

Close the display.

Press .

NOTE:

Some PC Cards may not operate correctly after the computer exits hibernate mode. Remove and reinsert the card , or simply restart (reboot) your computer.

To exit hibernate mode, press the power button. The computer may take a short time to exit hibernate mode. You cannot make the computer exit hibernate mode by pressing a key or touching the touch pad or track stick. For more information on hibernate mode, see the documentation that came with your operating system.

Power Options Properties

The Power Options Properties window helps you to manage power consumption and monitor battery charge status. To access the Microsoft® Windows® Power Options Properties window:

In Windows XP, click the Start button® Control Panel® Performance and Maintenance® Power Options.

In Windows 2000, open the Control Panel, and then double-click the Power Options icon.

Power Schemes Tab

The Power schemes drop-down menu displays the selected preset power scheme. Keep the default Portable/Laptop power scheme to maximize battery power.

Windows XP controls the performance level of the processor depending on the power scheme you select. You do not need to make any further adjustments to set the performance level. For information on setting processor performance for other operating systems, see "

Intel SpeedStep® Technology Tab ."

Each preset power scheme has different time-out settings for entering standby mode, turning off the display, and turning off

the hard drive. For more information on power management options, see the Help and Support Center

(Windows Help in

Downloaded from LpManual.com Manuals

Windows 2000).

Alarms Tab

NOTE:

To enable audible alarms, click each Alarm Action button and select Sound alarm.

The Low battery alarm and Critical battery alarm settings alert you with a message when the battery charge falls below a certain percentage. When you receive your computer, the Low battery alarm and Critical battery alarm check boxes are selected. It is recommended that you continue to use these settings. See "

Using a Battery

" for more information on lowbattery warnings.

Power Meter Tab

The Power Meter tab displays the current power source and amount of battery charge remaining.

Advanced Tab

The Advanced tab allows you to:

Set power icon and standby mode password options.

Program the following functions (depending on your operating system):

Prompt a user for an action (Ask me what to do).

Enter standby mode.

Enter hibernate mode.

Shut down Windows and turn off the computer.

Choose no action (None or Do nothing).

To program these functions, click an option from the corresponding drop-down menu and then click OK.

Hibernate Tab

The Hibernate tab lets you enable hibernate mode by clicking the Enable hibernate support check box.

Intel SpeedStep® Technology Tab

NOTE:

Windows XP controls the performance level of the processor depending on the power scheme that you select.

See "

Power Schemes Tab ."

NOTE:

To use Intel SpeedStep technology, a Windows operating system must be running.

Depending on your operating system and microprocessor, the Power Options Properties window includes the Intel

SpeedStep® technology tab. The Intel SpeedStep technology allows you to set the performance level of the processor according to whether the computer is running on battery or AC power. Depending on your operating system, typical options are:

Automatic — The processor runs at its highest possible speed (Maximum Performance mode) when the computer is running on AC power. When the computer is running on battery power, the processor runs in Battery Optimized mode.

Maximum Performance — The processor is capable of running at its highest possible speed even if the computer is running on battery power.

Downloaded from LpManual.com Manuals

Battery Optimized Performance — Processor speed is optimized for battery power even if the computer is connected to an electrical outlet.

To change additional Intel SpeedStep options:

1. Click Advanced and then click one of the following options:

Disable Intel SpeedStep technology control

Remove flag icon (from the notification area)

Disable audio notification when performance changes

2. Click OK to accept any changes, and then click OK to close the Intel SpeedStep® technology window.

You can also change the Intel SpeedStep settings by right-clicking the flag icon in the notification area.

Downloaded from LpManual.com Manuals

Adding and Replacing Parts

Adding Memory

Adding a Modem

Replacing the Keyboard

Adding a Mini PCI Card

Replacing the Hard Drive

Replacing a Bluetooth™ Module

Adding Memory

You can increase your computer memory by installing memory modules on the system board. See "

Specifications " for

information on the memory supported by your computer. Install only memory modules that are intended for your computer.

NOTE:

Memory modules purchased from Dell are covered under your computer warranty.

CAUTION: Before working inside your computer, read the safety instructions in your System Information

Guide.

1. Ensure that the work surface is flat and clean to prevent scratching the computer cover.

2. Save and close any open files, exit any open programs, and then shut down the computer.

3. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.

4. Disconnect the computer from the electrical outlet.

5. Wait 10 to 20 seconds, and then disconnect any attached devices.

6. Remove any installed PC Cards and the battery.

NOTICE:

Handle components and cards by their edges, and avoid touching pins and contacts. Ground yourself by touching a metal connector on the back of the computer. Continue to ground yourself periodically during this procedure.

7. Continue to the appropriate section:

"

Installing a Memory Module Under the Memory Module/Modem Cover "

"

Installing a Memory Module Under the Keyboard "

Installing a Memory Module Under the Memory Module/Modem Cover

1. Turn the computer over, loosen the captive screws on the memory module/modem cover, and then remove the cover.

Downloaded from LpManual.com Manuals

NOTICE:

To prevent damage to the memory module connector, do not use tools to spread the memory-module securing clips.

2. If you are replacing a memory module, remove the existing module: a. Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the module pops up. b. Remove the module from the connector.

1 memory module

2 securing clips (2)

3. Ground yourself and install the new memory module: a. Align the notch in the module edge connector with the tab in the connector slot. b. Slide the module firmly into the slot at a 45-degree angle, and rotate the module down until it clicks into place.

If you do not feel the click, remove the module and reinstall it.

Downloaded from LpManual.com Manuals

NOTE:

If the memory module is not installed properly, the computer may not boot properly. No error message indicates this failure.

4. Replace the cover.

NOTICE:

If the cover is difficult to close, remove the module and reinstall it. Forcing the cover to close may damage your computer.

5. Insert the battery into the battery bay, or connect the AC adapter to your computer and an electrical outlet.

6. Turn on the computer.

As the computer boots, it detects the additional memory and automatically updates the system configuration information.

To confirm the amount of memory installed in the computer:

In the Microsoft® Windows® XP operating system, click the Start button, click Help and Support, and then click

Computer Information.

In Windows 2000, right-click the My Computer icon on your desktop, and then click the General tab.

Installing a Memory Module Under the Keyboard

1.

Remove the keyboard .

2. Loosen the two captive screws in the cover labeled "DIMM1."

Downloaded from LpManual.com Manuals

1 captive screws (2)

2 DIMM1 cover

3 memory module

4 securing clips (2)

5 securing tabs (3)

NOTICE:

To prevent damage to the memory module connector, do not use tools to spread the memory-module securing clips.

3. If you are replacing a memory module, remove the existing module: a. Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the module pops up. b. Remove the module from the connector.

4. Ground yourself and install the new memory module: a. Align the notch in the module edge connector with the tab in the connector slot. b. Slide the module firmly into the slot at a 45-degree angle, and rotate the module down until it clicks into place.

If you do not feel the click, remove the module and reinstall it.

NOTE:

If the memory module is not installed properly, the computer may not boot properly. No error message indicates this failure.

5. Insert the 3 securing tabs on the DIMM1 cover into the notches above the memory module connector and tighten the captive screws.

NOTICE:

If the DIMM1 cover is difficult to replace, remove the module and reinstall it. Forcing the cover to close may damage your computer.

Downloaded from LpManual.com Manuals

6.

Replace the keyboard

.

7. Insert the battery into the battery bay, or connect the AC adapter to your computer and an electrical outlet.

8. Turn on the computer.

As the computer boots, it detects the additional memory and automatically updates the system configuration information.

To confirm the amount of memory installed in the computer:

In Windows XP, click the Start button, click Help and Support, and then click Computer Information.

In Windows 2000, right-click the My Computer icon on your desktop, and then click the General tab.

Adding a Modem

If you ordered the optional modem at the same time that you ordered your computer, Dell installed the modem for you.

CAUTION: Before working inside your computer, read the safety information in your System Information

Guide.

NOTICE:

Handle components and cards by their edges, and avoid touching pins and contacts.

1. Ensure that the work surface is flat and clean to prevent scratching the computer cover.

2. Save and close any open files, exit any open programs, and then shut down the computer.

3. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.

4. Disconnect the computer from the electrical outlet.

5. Wait 10 to 20 seconds, and then disconnect any attached devices.

6. Remove any installed PC Cards and the battery.

NOTICE:

Handle components and cards by their edges, and avoid touching pins and contacts. Ground yourself by touching a metal connector on the back of the computer. Continue to ground yourself periodically during this procedure.

7. Turn the computer over, loosen the captive screws on the memory module/modem cover, and then remove the cover.

Downloaded from LpManual.com Manuals

8. If a modem is not already installed, go to

step 9 . If you are replacing a modem, remove the existing modem:

a. Remove the screw securing the modem to the system board, and set it aside. b. Pull straight up on the attached pull-tab to lift the modem out of its connector on the system board, and disconnect the modem cable.

9. Connect the modem cable to the modem.

NOTICE:

The cable connectors are keyed for correct insertion; do not force the connections.

10. Align the modem with the screw hole, and press the modem into the connector on the system board.

11. Install the screw to secure the modem to the system board.

12. Replace the modem cover.

Replacing the Keyboard

CAUTION: Before working inside your computer, read the safety instructions in your System Information

Guide.

1. Ensure that the work surface is flat and clean to prevent scratching the computer cover.

2. Save and close any open files, exit any open programs, and then shut down the computer.

3. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.

4. Disconnect the computer from the electrical outlet.

5. Wait 10 to 20 seconds, and then disconnect any attached devices.

6. Remove any installed PC Cards and the battery.

NOTICE:

Handle components and cards by their edges, and avoid touching pins and contacts. Ground yourself by touching a metal connector on the back of the computer. Continue to ground yourself periodically during this procedure.

Downloaded from LpManual.com Manuals

7. Open the display approximately 180 degrees.

8. Use a small flat-blade screwdriver or plastic scribe to lift the notched right edge of the center control cover, and pry the cover loose from the bottom case.

9. Remove the two screws from the top of the keyboard.

10. Use the pull-tab to pull the keyboard up and out (toward the display) of the bottom case.

1 keyboard

2 keyboard pull-tab

3 screws (2)

4 securing tabs (5)

5 keyboard connector pulltab

6 interface connector (system board)

11. Rest the keyboard face down on the palm rest.

12. Pull straight up on the pull-tab that is attached to the keyboard connector to disconnect the connector from the interface connector on the system board.

To replace the keyboard:

1. Connect the keyboard connector to the interface connector on the system board.

2. Insert the five securing tabs on the keyboard into their respective slots in the palm rest.

3. Replace the two screws at the top of the keyboard.

4. Replace the center control cover and snap it down so that it is flush with the palm rest.

Downloaded from LpManual.com Manuals

Adding a Mini PCI Card

If you ordered a Mini PCI card with your computer, the card is already installed.

CAUTION: FCC rules strictly prohibit users from installing 5 GHz (802.11a, 802.11a/b, 802.11a/b/g)

Wireless LAN Mini PCI cards. Under no circumstances should the user install such a device. Only trained

Dell service personnel are authorized to install a 5 GHz Wireless LAN Mini PCI card.

If you are removing and/or installing a 2.4 GHz (802.11b, 802.11b/g) Mini PCI Card, please follow the instructions noted below. Only products approved for use in your portable computer may be installed.

Approved Mini PCI Cards may be purchased only from Dell.

NOTE:

2.4 GHz Wireless LAN PC Cards may be removed and installed by the user.

CAUTION: Before working inside your computer, read the safety instructions in your System Information

Guide.

1. Ensure that the work surface is flat and clean to prevent scratching the computer cover.

2. Save and close any open files, exit any open programs, and then shut down the computer.

3. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.

4. Disconnect the computer from the electrical outlet.

5. Wait 10 to 20 seconds, and then disconnect any attached devices.

6. Remove any installed PC Cards and the battery.

NOTICE:

Handle components and cards by their edges, and avoid touching pins and contacts. Ground yourself by touching a metal connector on the back of the computer. Continue to ground yourself periodically during this procedure.

7.

Remove the keyboard .

8. If a Mini PCI card is not already installed, go to

step 9 . If you are replacing a Mini PCI card, remove the existing card:

a. Disconnect the Mini PCI card from the attached cables.

Downloaded from LpManual.com Manuals

1 antenna cables (2)

2 Mini PCI card b. Release the Mini PCI card by spreading the metal securing tabs until the card pops up slightly.

c. Lift the Mini PCI card out of its connector.

1 securing tabs(2)

Downloaded from LpManual.com Manuals

2 Mini PCI card connector

NOTICE:

To avoid damaging the Mini PCI card, never place cables on top of or under the card.

NOTICE:

The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors and realign the card.

NOTE:

If a Mini PCI card was not already installed, remove the foam that secures the antenna cables before you install the card.

9. Align the Mini PCI card with the connector at a 45-degree angle, and press the Mini PCI card into the connector until you feel a click.

10. Connect the antenna cables to the Mini PCI card.

11.

Replace the keyboard

.

Replacing the Hard Drive

CAUTION:

If you remove the hard drive from the computer when the drive is warm, do not touch the metal

housing of the hard drive.

CAUTION: Before working inside your computer, read the safety instructions in your System Information

Guide.

NOTICE:

To prevent data loss, turn off your computer before removing the hard drive. Do not remove the hard drive while the computer is on, in standby mode, or in hibernate mode.

NOTICE:

Hard drives are extremely fragile; even a slight bump can damage the drive.

NOTE:

Dell does not guarantee compatibility or provide support for hard drives from sources other than Dell.

To replace the hard drive in the hard drive bay:

1. Ensure that the work surface is flat and clean to prevent scratching the computer cover.

2. Save and close any open files, exit any open programs, and then shut down the computer.

3. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.

4. Disconnect the computer from the electrical outlet.

5. Wait 10 to 20 seconds, and then disconnect any attached devices.

6. Remove any installed PC Cards and the battery.

NOTICE:

Handle components and cards by their edges, and avoid touching pins and contacts. Ground yourself by touching a metal connector on the back of the computer. Continue to ground yourself periodically during this procedure.

7. Turn the computer over, and remove the hard drive screws.

NOTICE:

When the hard drive is not in the computer, store it in protective antistatic packaging. See "Protecting

Against Electrostatic Discharge" in your System Information Guide.

Downloaded from LpManual.com Manuals

8. Slide the hard drive out of the computer.

9. Remove the new drive from its packaging.

Save the original packaging for storing or shipping the hard drive.

NOTICE:

Use firm and even pressure to slide the drive into place. If you use excessive force, you may damage the connector.

10. Slide the hard drive into the bay until it is fully seated.

11. Replace and tighten the screws.

12. Use the Operating System CD to install the operating system for your computer.

13. Use the Drivers and Utilities CD to install the drivers and utilities for your computer.

Replacing a Bluetooth™ Module

CAUTION: Before working inside your computer, read the safety instructions in your System Information

Guide.

1. Ensure that the work surface is flat and clean to prevent scratching the computer cover.

2. Save and close any open files, exit any open programs, and then shut down the computer.

3. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.

4. Disconnect the computer from the electrical outlet.

5. Wait 10 to 20 seconds, and then disconnect any attached devices.

6. Remove any installed PC Cards and the battery.

NOTICE:

Handle components and cards by their edges, and avoid touching pins and contacts. Ground yourself by touching a metal connector on the back of the computer. Continue to ground yourself periodically during this procedure.

7. Turn the computer over, loosen the captive screw in the Bluetooth module cover, and remove the cover.

Downloaded from LpManual.com Manuals

1 Bluetooth module cover

2 captive screw

3 battery bay

8. Remove the existing module: a. Pull the Bluetooth module out of the slot. b. Disconnect the cable from the module.

1 Bluetooth cable

Downloaded from LpManual.com Manuals

2 Bluetooth module (front)

9. Ensure that the front of the Bluetooth module (silver) is facing outward, and connect the cable to the module.

10. Insert the module into the slot.

11. Replace the cover and tighten the captive screw.

Downloaded from LpManual.com Manuals

Using PC Cards

PC Card Types

PC Card Blanks

Extended PC Cards

Installing a PC Card

Removing a PC Card or Blank

PC Card Types

See "

Specifications " for information on supported PC Cards.

NOTE:

A PC Card is not a bootable device.

The PC Card slot has one connector that supports a single Type I or Type II card. The PC Card slot supports CardBus technology and extended PC Cards. "Type" of card refers to its thickness, not its functionality.

PC Card Blanks

Your computer shipped with a plastic blank installed in the PC Card slot. Blanks protect unused slots from dust and other particles. Save the blank for use when no PC Card is installed in the slot; blanks from other computers may not fit your computer.

To remove the blank, see "

Removing a PC Card or Blank ."

Extended PC Cards

An extended PC Card (for example, a wireless network adapter) is longer than a standard PC Card and extends outside the computer. Follow these precautions when using extended PC Cards:

Protect the exposed end of an installed card. Striking the end of the card can damage the system board.

Always remove an extended PC Card before you pack the computer in its carrying case.

Installing a PC Card

CAUTION: Before working inside your computer, read the safety information in your System Information

Guide.

You can install a PC Card in the computer while the computer is running. The computer automatically detects the card.

PC Cards are generally marked with a symbol (such as a triangle or an arrow) to indicate which end to insert into the slot.

The cards are keyed to prevent incorrect insertion. If card orientation is not clear, see the documentation that came with the card.

To install a PC Card:

Downloaded from LpManual.com Manuals

1. Hold the card with its orientation symbol pointing into the slot and the top side of the card facing up. The latch may need to be in the "in" position before you insert the card.

2. Slide the card into the slot until the card is completely seated in its connector.

If you encounter too much resistance, do not force the card. Check the card orientation and try again.

The computer recognizes most PC Cards and automatically loads the appropriate device driver. If the configuration program tells you to load the manufacturer's drivers, use the floppy disk or CD that came with the PC Card.

Removing a PC Card or Blank

CAUTION: Before working inside your computer, read the safety information in your System Information

Guide.

NOTICE:

Use the PC Card configuration utility on the taskbar to select a card and stop it from functioning before you remove it from the computer. If you do not stop the card in the configuration utility, you could lose data. Do not attempt to eject a card by pulling its cable, if one is attached.

1. Press the eject button.

2. Press the eject button a second time.

3. Gently remove the card.

Downloaded from LpManual.com Manuals

Save a blank to use when no PC Card is installed in a slot. Blanks protect unused slots from dust and other particles.

Downloaded from LpManual.com Manuals

Using the System Setup Program

Overview

Viewing the System Setup Screens

System Setup Screens

Commonly Used Options

Overview

NOTE:

Your operating system may automatically configure most of the options available in the system setup program, thus overriding options that you set through the system setup program. (An exception is the External Hot Key option, which you can disable or enable only through the system setup program.) For more information on configuring features for your operating system, see your Microsoft® Windows® Help (Windows 2000) or the

Windows Help and Support

Center (Windows XP).

You can use the system setup program as follows:

To set or change user-selectable features—for example, your computer password

To verify information about the computer's current configuration, such as the amount of system memory

After you set up the computer, run the system setup program to familiarize yourself with your system configuration information and optional settings. You may want to write down the information for future reference.

The system setup screens display the current setup information and settings for your computer, such as:

System configuration

Boot order

Boot (start-up) configuration and docking-device configuration settings

Basic device configuration settings

System security and hard-drive password settings

NOTICE:

Unless you are an expert computer user or are directed to do so by Dell technical support, do not change the settings for the system setup program. Certain changes might make your computer work incorrectly.

Viewing the System Setup Screens

1. Turn on (or restart) your computer.

2. When the DELL™ logo appears, press immediately. If you wait too long and the Windows logo appears, continue to wait until you see the Windows desktop. Then shut down your computer and try again.

System Setup Screens

On each screen, the system setup options are listed at the left. To the right of each option is the setting or value for that option. You can change settings that appear as white type on the screen. Options or values that you cannot change (because

Downloaded from LpManual.com Manuals

they are determined by the computer) appear as blue text.

The upper-right corner of the screen displays help information for the currently highlighted option; the lower-right corner displays information about the computer. System setup key functions are listed across the bottom of the screen.

Commonly Used Options

Certain options require that you reboot the computer for new settings to take effect.

Changing the Boot Sequence

The boot sequence, or boot order, tells the computer where to look to find the software needed to start the operating system.

You can control the boot sequence and enable/disable devices using the Boot Order page of the system setup program.

NOTE:

To change the boot sequence on a one-time-only basis, see "

Performing a One-Time Boot ."

The Boot Order page displays a general list of the bootable devices that may be installed in your computer, including but not limited to the following:

Diskette Drive

Internal HDD

CD/DVD/CD-RW drive

During the boot routine, the computer starts at the top of the list and scans each enabled device for the operating system start-up files. When the computer finds the files, it stops searching and starts the operating system.

To control the boot devices, select (highlight) a device by pressing the device or change its order in the list.

or key, and then enable or disable the

To enable or disable a device, highlight the item and press . Enabled items appear as white and display a small triangle to the left; disabled items appear blue or dimmed without a triangle.

To reorder a device in the list, highlight the device and then press highlighted device up or down.

or (not case-sensitive) to move the

Boot sequence changes take effect as soon as you save the changes and exit the system setup program.

Performing a One-Time Boot

You can set a one-time-only boot sequence without entering the system setup program. (You can also use this procedure to boot the Dell Diagnostics on the diagnostics utility partition on your hard drive.)

1. Turn off the computer.

2. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.

3. Connect the computer to an electrical outlet.

Downloaded from LpManual.com Manuals

4. Turn on the computer. When the DELL logo appears, press immediately. If you wait too long and the Windows logo appears, continue to wait until you see the Windows desktop. Then shut down your computer and try again.

5. When the boot device list appears, highlight the device from which you want to boot and press

The computer boots to the selected device.

The next time you reboot the computer, the previous boot order is restored.

Changing COM Ports

.

Serial Port allows you to map the serial port COM address or disable the serial port and its address, freeing computer resources for another device to use.

Enabling the Infrared Sensor

1. Enter the system setup program: a. Turn on your computer. b. Press

2. Press

when the DELL™ logo appears.

until you locate Infrared Data Port under Basic Device Configuration.

NOTE:

Ensure that the COM port that you select is different from the COM port assigned to the serial connector.

3. Press the down-arrow key to select the Infrared Data Port setting, and press the right-arrow key to change the setting to a COM port.

4. Press , select Save changes and reboot, and press program. If you are prompted to restart your computer, click Yes.

to save the changes and exit the system setup

5. Follow the instructions on the screen.

6. After the infrared sensor has been enabled, click Yes to restart the computer.

After you enable the infrared sensor, you can use it to establish a link to an infrared device. To set up and use an infrared device, see the infrared device documentation and the

Windows Help and Support Center (Windows Help in Windows 2000).

Downloaded from LpManual.com Manuals

Using Microsoft® Windows® XP

Help and Support Center

Switching to Classic View

Desktop Cleanup Wizard

Transferring Information to a New Computer

User Accounts and Fast User Switching

Setting Up a Home and Office Network

Internet Connection Firewall

NOTE:

Windows XP Home Edition and Windows XP Professional offer different features and appearances. Also, options available in Windows XP Professional vary depending on whether your computer is connected to a domain.

Help and Support Center

The Help and Support Center provides help with the Microsoft® Windows® XP operating system and also offers other support and educational tools. To access the Help and Support Center, click the Start button and click Help and Support.

Switching to Classic View

You can change the appearance of the Control Panel, the Start menu, and the Microsoft® Windows® desktop to the classic

view of previous Windows operating systems.

Control Panel

The Control Panel presents information as task-oriented categories. If you are accustomed to performing a particular task with the icon-oriented classic Control Panel, you can switch to the classic icon view.

1. Click the Start button and click Control Panel.

2. Click Switch to Classic View or Switch to Category View in the upper-left area of the Control Panel window.

Start Menu

1. Right-click the empty area on the taskbar.

2. Click Properties and click the Start Menu tab.

3. Click Classic Start Menu and click OK.

Window and Button Appearance

1. Right-click anywhere on the main desktop screen and click Properties.

2. Click the Appearance tab.

3. From the Windows and buttons drop-down menu, click Windows Classic style.

4. To customize color, font, and other classic desktop options, click Advanced.

Downloaded from LpManual.com Manuals

5. When you have completed your appearance selections, click OK.

Desktop Cleanup Wizard

By default, the Desktop Cleanup Wizard moves desktop icons that are not frequently used from your desktop to a designated folder 7 days after you first start your computer and every 60 days after that. The appearance of the Start menu changes as desktop icons are moved.

To turn off the Desktop Cleanup Wizard:

1. Right-click an empty spot on the desktop and click Properties.

2. Click the Desktop tab and click Customize Desktop.

3. Click Run Desktop Cleanup Wizard every 60 days to remove the check mark.

4. Click OK.

To run the Desktop Cleanup Wizard at any time:

1. Right-click an empty spot on the desktop and click Properties.

2. Click the Desktop tab and click Customize Desktop.

3. Click Clean Desktop Now.

4. When the Desktop Cleanup Wizard screen appears, click Next.

5. To leave an icon on the desktop, click the icon name to remove the check mark, and then click Next.

6. Click Finish to remove the shortcuts and close the wizard.

Transferring Information to a New Computer

The Microsoft

®

Windows

®

XP operating system provides a Files and Settings Transfer wizard to move data from the source computer to the new computer. You can move data such as:

E-mails

Toolbar settings

Window sizes

Internet bookmarks

You can transfer the data to the new computer over a network or serial connection, or you can store it on a removable medium, such as a writable CD or floppy disk.

To prepare the new computer for the file transfer:

1. Click the Start button, point to All Programs® Accessories® System Tools, and then click Files and Settings

Transfer Wizard.

2. When the Files and Settings Transfer Wizard welcome screen appears, click Next.

Downloaded from LpManual.com Manuals

3. On the Which computer is this? screen, click New Computer and click Next.

4. On the Do you have a Windows XP CD? screen, click I will use the wizard from the Windows XP CD and click

Next.

5. When the Now go to your old computer screen appears, go to your old or source computer. Do not click Next at this time.

To copy data from the old computer:

1. On the old computer, insert the Windows XP Operating System CD.

2. On the Welcome to Microsoft Windows XP screen, click Perform additional tasks.

3. Under What do you want to do?, click Transfer files and settings.

4. On the Files and Settings Transfer Wizard welcome screen, click Next.

5. On the Which computer is this? screen, click Old Computer and click Next.

6. On the Select a transfer method screen, click the transfer method you prefer.

7. On the What do you want to transfer? screen, select the items you want to transfer and click Next.

After the information has been copied, the Completing the Collection Phase screen appears.

8. Click Finish.

To transfer data to the new computer:

1. On the Now go to your old computer screen on the new computer, click Next.

2. On the Where are the files and settings? screen, select the method you chose for transferring your settings and files and click Next.

The wizard reads the collected files and settings and applies them to your new computer.

When all of the settings and files have been applied, the Finished screen appears.

3. Click Finished and restart the new computer.

User Accounts and Fast User Switching

Adding User Accounts

After the Microsoft® Windows® XP operating system is installed, the administrator or a user with administrator rights can create additional user accounts.

1. Click the Start button and click Control Panel.

2. In the Control Panel window, click User Accounts.

3. Under Pick a task, click Create a new account.

4. Under Name the new account, type the name of the new user and click Next.

5. Under Pick an account type, click one of the following options:

Downloaded from LpManual.com Manuals

Computer administrator — You can change all computer settings.

Limited — You can change only your own personal settings, such as your password. You cannot install programs or use the Internet.

6. Click Create Account.

Fast User Switching

NOTE:

Fast User Switching is unavailable if your computer is running Windows XP Professional and is a member of a computer domain, or if your computer has less than 128 MB of memory.

Fast User Switching allows multiple users to access one computer without requiring the previous user to log off.

1. Click the Start button and click Log Off.

2. In the Log Off Windows window, click Switch User.

When you use Fast User Switching, programs that previous users were using remain running in the background, so your computer might run slower. Also, multimedia programs, such as games and DVD software, might not work with Fast User

Switching. For more information, see the

Windows Help and Support Center .

Setting Up a Home and Office Network

Connecting to a Network Adapter

Before you connect your computer to a network, the computer must have a network adapter installed and a functional network cable connected to it.

To connect a network cable:

NOTE:

Insert the cable until it clicks into place, and then gently pull it to ensure that it is secure.

1. Connect the network cable to the network adapter connector on the back of your computer.

NOTE:

Do not use a network cable with a telephone wall jack.

2. Connect the other end of the functional network cable to a network connection device, such as a network wall jack.

Network Setup Wizard

The Microsoft

®

Windows

®

XP operating system provides a Network Setup Wizard to guide you through the process of sharing files, printers, or an Internet connection between computers in a home or small office.

1. Click the Start button, point to All Programs® Accessories® Communications, and then click Network Setup

Wizard.

2. On the welcome screen, click Next.

3. Click Checklist for creating a network.

Downloaded from LpManual.com Manuals

NOTE:

Selecting the connection method This computer connects directly to the Internet enables the integrated firewall provided with Windows XP.

4. Complete the checklist and required preparations.

5. Return to the Network Setup Wizard and follow the instructions on the screen.

Internet Connection Firewall

The Internet Connection Firewall provides basic protection from unauthorized access to the computer while the computer is connected to the Internet. The firewall is automatically enabled when you run the Network Setup Wizard. When the firewall is enabled for a network connection, the firewall icon appears with a red background in the Network Connections portion of the Control Panel.

Note that enabling the Internet Connection Firewall does not reduce the need for virus-checking software.

For more information, see the Help and Support Center

.

Downloaded from LpManual.com Manuals

Using a Battery

Battery Performance

Checking the Battery Charge

Charging the Battery

Removing a Battery

Installing a Battery

Storing a Battery

Battery Performance

NOTE:

Batteries for portable computers are covered only during the initial one-year period of the limited warranty for your computer. For more information about the Dell warranty for your computer, see the System Information Guide or other documents that came with your computer.

For optimal computer performance and to help preserve BIOS settings, operate your Dell™ portable computer with the main battery installed at all times. Use the battery to run the computer when it is not connected to an electrical outlet. One battery is supplied as standard equipment in the battery bay.

Battery operating time varies depending on operating conditions. Operating time is significantly reduced when you perform operations including, but not limited to, the following:

NOTE:

It is recommended that you connect your computer to an electrical outlet when writing to a CD.

Using optical drives, especially DVD and CD-RW drives

Using wireless communications devices, PC Cards, or USB devices

Using high-brightness display settings, 3D screen savers, or other power-intensive programs such as 3D games

Running the computer in maximum performance mode

You can

check the battery charge before you

insert the battery into the computer. You can also set power management

options to alert you when the

battery charge is low

.

CAUTION: Using an incompatible battery may increase the risk of fire or explosion. Replace the battery only with a compatible battery purchased from Dell. The lithium-ion battery is designed to work with your

Dell™ computer. Do not use batteries from other computers with your computer.

CAUTION: Do not dispose of batteries with household waste. When your battery no longer holds a charge, call your local waste disposal or environmental agency for advice on disposing of a lithium-ion battery.

See the battery disposal instructions in your System Information Guide.

CAUTION: Misuse of the battery may increase the risk of fire or chemical burn. Do not puncture, incinerate, disassemble, or expose the battery to temperatures above 65°C (149°F). Keep the battery away from children. Handle damaged or leaking batteries with extreme care. Damaged batteries may leak and cause personal injury or equipment damage.

Checking the Battery Charge

The Microsoft® Windows® power meter window and icon, the battery charge gauge and health gauge, and the lowbattery warning provide information on the battery charge.

Downloaded from LpManual.com Manuals

Dell QuickSet Battery Meter

If

Dell QuickSet is installed, press

to display the QuickSet Battery Meter.

The Battery Meter screen displays status, charge level, and charge completion time for the battery in your computer.

NOTE:

You can use your docking device to charge a computer battery. However, a battery in a docking device does not power the docking device or computer.

In addition, when your computer is connected to a docking device (docked), the Battery Meter screen includes a Dock

Battery tab, which displays the charge level and current status of the docking device battery.

The following icons appear in the Battery Meter screen:

The computer or docking device is running on battery power.

The battery is discharging or idle.

The computer or docking device is connected to an electrical outlet and running on AC power.

The battery is charging.

The computer or docking device is connected to an electrical outlet and running on AC power.

The battery is discharging, idle, or charging.

For more information about QuickSet, right-click the icon in the taskbar, and click Help.

Microsoft Windows Power Meter

The Windows power meter indicates the remaining battery charge. To check the power meter, double-click the the taskbar. For more information on the Power Meter tab, see "

Power Management

."

icon on

If the computer is connected to an electrical outlet, a

Charge Gauge

icon appears.

Press the status button on the battery charge gauge to illuminate the charge-level lights. Each light represents approximately

20 percent of the total battery charge. For example, if the battery has 80 percent of its charge remaining, four of the lights are on. If no lights appear, the battery has no charge.

Downloaded from LpManual.com Manuals

Health Gauge

The battery operating time is largely determined by the number of times it is charged. After hundreds of charge and discharge cycles, batteries lose some charge capacity, or battery health. To check the battery health, press and hold the status button on the battery charge gauge for at least 3 seconds. If no lights appear, the battery is in good condition, and more than 80 percent of its original charge capacity remains. Each light represents incremental degradation. If five lights appear, less than

60 percent of the charge capacity remains, and you should consider replacing the battery. See "

Specifications " for more

information about the battery operating time.

Low-Battery Warning

NOTICE:

To avoid losing or corrupting data, save your work immediately after a low-battery warning. Then connect the computer to an electrical outlet, or install a second battery in the module bay. If the battery runs completely out of power, standby mode begins automatically.

A pop-up window warns you when the battery charge is approximately 90 percent depleted. For more information on lowbattery alarms, see "

Power Management

."

Charging the Battery

NOTE:

Charge time is longer with the computer turned on. You can leave the battery in the computer as long as you like. The battery internal circuitry prevents the battery from overcharging.

When you connect the computer to an electrical outlet or install a battery while the computer is connected to an electrical outlet, the computer checks the battery charge and temperature. If necessary, the AC adapter then charges the battery and maintains the battery charge.

If the battery is warm from being used in your computer or being in a warm environment, the battery may not charge when you connect the computer to an electrical outlet.

The battery is too warm to start charging if the light flashes alternately green and orange. Disconnect the computer from the electrical outlet and allow the computer and the battery to cool to room temperature. Then connect the computer to an electrical outlet to continue charging the battery.

For more information on resolving problems with a battery, see "

Power Problems ."

Downloaded from LpManual.com Manuals

Removing a Battery

CAUTION: Before working inside your computer, read the safety information in your System Information

Guide.

CAUTION: Before performing these procedures, disconnect the modem from the telephone wall jack.

NOTICE:

If you choose to replace the battery with the computer in standby mode, you have up to 90 seconds to complete the battery replacement before the computer shuts down and loses any unsaved data.

1. Ensure that the computer is turned off, suspended in a power management mode, or connected to an electrical outlet.

2. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.

3. Slide and hold the battery-bay latch release on the bottom of the computer, and then remove the battery from the bay.

Installing a Battery

CAUTION: Before working inside your computer, read the safety information in your System Information

Guide.

Slide the battery into the bay until the latch release clicks.

Storing a Battery

Remove the battery when you store your computer for an extended period of time. A battery discharges during prolonged

storage. After a long storage period, recharge the battery fully before you use it.

Downloaded from LpManual.com Manuals

Using the Display

Adjusting Brightness

Switching the Video Image

Setting Display Resolution

Adjusting Brightness

When the Dell™ computer is running on battery power, you can conserve power by setting the brightness to the lowest comfortable setting using the appropriate

keyboard shortcuts for the display.

If

Dell QuickSet is installed, the QuickSet Brightness Meter shows the current brightness setting for the display. Right-click the

icon in the taskbar to enable or disable the Brightness Meter on the screen.

1 Brightness Meter

NOTE:

By default, the Brightness Meter appears in the lower-right corner of the display. You can click and drag the meter to a new location, and the meter subsequently always appears at the new location.

NOTE:

Brightness keyboard shortcuts only affect the display on your portable computer, not monitors that you attach to your portable computer or docking device. If your computer is connected to an external monitor and you try to change the brightness level, the Brightness Meter appears, but the brightness level on the monitor does not change.

You can enable or disable the Brightness Meter from the QuickSet taskbar menu. When the meter is enabled, press the following keys to adjust brightness:

Press to increase brightness on the integrated display only (not on an external monitor).

Press to decrease brightness on the integrated display only (not on an external monitor).

For more information about QuickSet, right-click the icon in the taskbar and click Help.

Switching the Video Image

When you start the computer with an external device (such as an external monitor or projector) attached and turned on, the image may appear on either the display or the external device.

Press to switch the video image to the display only, the external device only, or the display and the external device simultaneously.

Downloaded from LpManual.com Manuals

Setting Display Resolution

To display a program at a specific resolution, both the video controller and the display must support the program, and the necessary

video drivers must be installed .

Before you change any of the default display settings, make a note of the default settings for future reference.

NOTE:

Use only the Dell-installed video drivers, which are designed to offer the best performance with your Dellinstalled operating system.

If you choose a resolution or color palette that is higher than the display supports, the settings adjust automatically to the closest possible setting.

Microsoft® Windows® XP

1. Click the Start button and click Control Panel.

2. Under Pick a category, click Appearance and Themes.

3. Under Pick a task..., click the area you want to change, or under or pick a Control Panel icon, click Display.

4. Try different settings for Color quality and Screen resolution.

Windows 2000

1. Click the Start button, point to Settings, and then click Control Panel.

2. Double-click the Display icon and click the Settings tab.

3. Try different settings for Colors and Screen area.

NOTE:

As the resolution increases, icons and text appear smaller on the screen.

If the video resolution setting is higher than that supported by the display, the computer enters pan mode. In pan mode, the screen cannot be completely displayed. For example, the taskbar that usually appears at the bottom of the desktop may no longer be visible. To view the rest of the screen, use the touch pad or track stick to pan up, down, left, and right.

NOTICE:

You can damage an external monitor by using an unsupported refresh rate. Before adjusting the refresh rate on an external monitor, see the monitor user's guide.

Downloaded from LpManual.com Manuals

Using the Keyboard and Touch Pad

Numeric Keypad

Keyboard Shortcuts

Touch Pad

Changing the Track Stick Cap

Numeric Keypad

The numeric keypad functions like the numeric keypad on an external keyboard. Each key on the keypad has multiple functions. The keypad numbers and symbols are marked in blue on the right of the keypad keys. To type a number or symbol, hold down and press the desired key.

To enable the keypad, press . The light indicates that the keypad is active.

To disable the keypad, press again.

Keyboard Shortcuts

System Functions

Opens the Task Manager window

Enables and disables the numeric keypad

Downloaded from LpManual.com Manuals

Enables and disables the scroll lock

Battery

Displays the

Dell™ QuickSet Battery Meter (if QuickSet is installed)

CD or DVD Tray

Ejects the tray out of the drive (if

Dell QuickSet is installed)

Display Functions

Switches the video image to the next display option. The options include the integrated display, an external monitor, and both displays simultaneously.

Increases brightness on the integrated display only (not on an external monitor).

Decreases brightness on the integrated display only (not on an external monitor).

Radios (Including Wireless Networking and Bluetooth™)

Enables and disables radios, including wireless networking and Bluetooth (both optional)

Power Management

Activates a power management mode. You can reprogram this keyboard shortcut to activate a different power management mode using the

Advanced tab in the Power Options Properties window.

Speaker Functions

Increases the volume of the integrated speaker and external speakers, if attached

Decreases the volume of the integrated speaker and external speakers, if attached

Enables and disables the integrated speaker and external speakers, if attached

Downloaded from LpManual.com Manuals

Microsoft® Windows® Logo Key Functions

Minimizes all open windows

Maximizes all windows

Runs Windows Explorer

Opens the Run dialog box

Opens the Search Results dialog box

Opens the Search Results-Computer dialog box (if the computer is connected to a network)

Opens the System Properties dialog box

To adjust keyboard operation, such as the character repeat rate:

In Windows XP, open the Control Panel, click Printers and Other Hardware, and click Keyboard.

In Windows 2000, open the Control Panel and double-click the Keyboard icon.

Touch Pad

The touch pad detects the pressure and movement of your finger to allow you to move the cursor on the display. Use the touch pad and touch pad buttons as you would use a mouse.

Downloaded from LpManual.com Manuals

1 track stick

2 track stick buttons

3 touch pad

4 touch pad buttons

To move the cursor, lightly slide your finger over the touch pad.

To select an object, lightly tap once on the surface of the touch pad or use your thumb to press the left touch-pad button.

To select and move (or drag) an object, position the cursor on the object and tap down-up-down on the touch pad. On the second down motion, leave your finger on the touch pad and move the selected object by sliding your finger over the surface.

To double-click an object, position the cursor on the object and tap twice on the touch pad or use your thumb to press the left touch-pad button twice.

You can also use the track stick to move the cursor. Press the track stick left, right, up, or down to change the direction of the cursor on the display. Use the track stick and track stick buttons as you would use a mouse.

Customizing the Touch Pad and Track Stick

You can use the Mouse Properties window to disable the touch pad and track stick or adjust their settings.

1. In Windows XP, open the Control Panel, click Printers and Other Hardware, and click Mouse.

In Windows 2000, open the Control Panel and double-click the Mouse icon.

2. In the Mouse Properties window:

Click the Device Select tab to disable the touch pad and track stick.

Downloaded from LpManual.com Manuals

Click the Pointer tab to adjust touch pad and track stick settings.

3. Click OK to save the settings and close the window.

Changing the Track Stick Cap

You can replace your track stick cap if it wears down from prolonged use or if you prefer a different color. You can purchase additional caps by visiting the Dell website at www.dell.com.

1. Pull the cap off the track stick.

2. Align the new cap over the square track-stick post and gently press the cap down onto the post.

NOTICE:

The track stick can damage the display if it is not properly seated on the post.

3. Test the track stick to ensure that the cap is seated properly.

Downloaded from LpManual.com Manuals

Reinstalling Software

Reinstalling Drivers and Utilities

Resolving Software and Hardware Incompatibilities

Using Microsoft® Windows® System Restore

Reinstalling Microsoft® Windows® XP

Reinstalling Windows 2000

Reinstalling Drivers and Utilities

Dell ships your computer to you with required drivers and utilities already installed—no further installation or configuration is needed.

NOTICE:

The Drivers and Utilities CD may contain drivers for operating systems that are not on your computer. Ensure that you are installing software appropriate for your operating system.

To reinstall drivers for optional devices such as wireless communications and DVD drives, you may need the CD and documentation that came with those devices.

NOTICE:

The Dell Support website, support.dell.com, and the Drivers and Utilities CD provide approved drivers for

Dell™ computers. If you install drivers from other sources, your computer might not work correctly.

To reinstall a driver or utility from your Drivers and Utilities CD:

1. Save and close any open files, and exit any open programs.

2. Insert the Drivers and Utilities CD.

In most cases, the CD starts running automatically. If it does not, start Microsoft® Windows® Explorer, click your CD drive directory to display the CD contents, and then double-click the autorcd.exe file. The first time that you run the

CD, it might prompt you to install setup files. Click OK, and follow the instructions on the screen to continue.

3. From the Language drop-down menu in the toolbar, select your preferred language for the driver or utility (if available).

A welcome screen appears.

4. Click Next. The CD automatically scans your hardware to detect drivers and utilities used by your computer.

After the CD completes the hardware scan, you can also detect other drivers and utilities. Under Search Criteria, select the appropriate categories from the System Model, Operating System, and Topic drop-down menus.

A link or links appear(s) for the specific drivers and utilities used by your computer.

5. Click the link of a specific driver or utility to display information about the driver or utility that you want to install.

6. Click the Install button (if present) to begin installing the driver or utility. At the welcome screen, follow the screen prompts to complete the installation.

If no Install button is present, automatic installation is not an option. For installation instructions, either see the appropriate instructions in the following subsections, or click Extract, follow the extracting instructions, and read the readme file.

If instructed to navigate to the driver files, click the CD directory on the driver information window to display the files associated with that driver.

Manually Reinstalling Drivers for Windows XP

Downloaded from LpManual.com Manuals

NOTE:

If you are reinstalling an infrared-sensor driver, you must first enable the infrared sensor in the system setup program before continuing with the driver installation.

1. After extracting the driver files to your hard drive as described previously, click the Start button, point to Settings, and then click Control Panel.

2. Click the Start button and right-click My Computer.

3. Click Properties.

4. Click the Hardware tab and click Device Manager.

5. Double-click the type of device for which you are installing the driver (for example, Modems or Infrared devices).

6. Double-click the name of the device for which you are installing the driver.

7. Click the Driver tab and click Update Driver.

8. Select Install from a list or specific location (Advanced) and click Next.

9. Click Browse, and browse to the location to which you previously extracted the driver files.

10. When the name of the appropriate driver appears, click Next.

11. Click Finish and restart your computer.

Using the Windows XP Device Driver Rollback

If you install a new device driver that causes system instability, you can use the Windows XP Device Driver Rollback to replace the new device driver with the previously installed version of the device driver. If you cannot reinstall your previous driver by using the Device Driver Rollback process, then use

System Restore to return your operating system to its previous

operating state before you installed the new device driver. To use Device Driver Rollback:

1. Click the Start button and right-click My Computer.

2. Click Properties.

3. Click the Hardware tab and click Device Manager.

4. In the Device Manager window, right-click the device for which the new driver was installed and then click

Properties.

5. Click the Drivers tab.

6. Click Roll Back Driver.

Manually Reinstalling Drivers for Windows 2000

NOTE:

If you are reinstalling an infrared driver, you must first enable the infrared sensor in the system setup program before continuing with the driver installation.

1. After extracting the driver files to your hard drive as described previously, click the Start button, point to Settings, and then click Control Panel.

2. Double-click the System icon.

3. Click the Hardware tab.

4. Click Device Manager.

5. Double-click the type of device for which you are installing the driver (for example, Modems or Infrared devices).

Downloaded from LpManual.com Manuals

6. Double-click the name of the device.

7. Click the Driver tab and click Update Driver.

8. Click Next.

9. Ensure that Search for a suitable driver for my device (recommended) is selected, and then click Next.

10. Ensure that the Specify a location check box is checked and that all other check boxes are unchecked, and click

Next.

11. Click Browse to browse to the location to which you previously extracted the driver files.

12. When the name of the appropriate driver appears, click Next.

13. Click Finish and restart your computer.

Resolving Software and Hardware Incompatibilities

In the Microsoft® Windows® XP and Windows 2000 operating systems, IRQ conflicts occur if a device either is not detected during the operating system setup or is detected but incorrectly configured. See the following subsection that corresponds to your operating system to check for IRQ conflicts on your computer.

Windows XP

1. Click the Start button and click Control Panel.

2. Click Performance and Maintenance and click System.

3. Click the Hardware tab and click Device Manager.

4. In the Device Manager list, check for conflicts with the other devices.

Conflicts are indicated by a yellow exclamation point (!) beside the conflicting device or a red X if the device has been disabled.

5. Double-click any conflicting device listed to bring up the Properties window so that you can determine what needs to be reconfigured or removed from the Device Manager.

6. Resolve these conflicts before checking specific devices.

7. Double-click the malfunctioning device type in the Device Manager list.

8. Double-click the icon for the specific device in the expanded list.

The Properties window appears.

If an IRQ conflict exists, the Device status area in the Properties window reports what other devices are sharing the device's IRQ.

9. Resolve any IRQ conflicts.

You can also use the Windows XP Hardware Troubleshooter. To use the troubleshooter, click the Start button and click Help

and Support. Type hardware troubleshooter in the Search field, and then click the arrow to start the search. Click

Hardware Troubleshooter in the Search Results list. In the Hardware Troubleshooter list, click I need to resolve a

hardware conflict on my computer and click Next.

Windows 2000

Downloaded from LpManual.com Manuals

1. Click the Start button, point to Settings, and then click Control Panel.

2. Double-click the System icon.

3. Click the Hardware tab.

4. Click Device Manager.

5. Click View and click Resources by connection.

6. Double-click Interrupt request (IRQ) to view the IRQ assignments.

Conflicts are indicated by a yellow exclamation point (!) beside the conflicting device or a red X if the device has been disabled.

7. Double-click any conflicting device listed to bring up the Properties window so that you can determine what needs to be reconfigured or removed from the Device Manager. Resolve these conflicts before checking specific devices.

8. Double-click the malfunctioning device type in the Device Manager list.

9. Double-click the icon for the specific device in the expanded list.

The Properties window appears.

If an IRQ conflict exists, the Device status area in the Properties window reports what other devices are sharing the device's IRQ.

10. Resolve any IRQ conflicts.

You can also use the Windows 2000 Hardware Troubleshooter. To use the troubleshooter, click the Start button and click

Help. Click Troubleshooting and Maintenance on the Contents tab, click Windows 2000 troubleshooters, and then click Hardware. In the Hardware Troubleshooter list, click I need to resolve a hardware conflict on my computer, and then click Next.

Using Microsoft® Windows® System Restore

The Microsoft Windows XP operating system provides a System Restore feature that allows you to return your computer to an earlier operating state if changes to the computer's hardware, software (including new hardware or program installations), or system settings have left the computer in an undesirable operating state. You can also undo the last system restore.

System Restore automatically creates system checkpoints. You can also manually create your own checkpoints by creating

restore points. To limit the amount of hard disk space used, older restore points will be automatically purged.

To resolve an operating system problem, you can use System Restore from Safe Mode or Normal Mode to return your computer to an earlier operating state.

System Restore does not cause you to lose personal files stored in the My Documents folder, data files, or e-mail messages after restoring the computer to an earlier time. If you restore the computer to an operating state that existed before you installed a program, the program's data files are not lost, but you must reinstall the actual program again.

NOTICE:

It is important to make regular backups of your data files. System Restore does not monitor changes to or recover your data files. If the original data on the hard disk is accidentally erased or overwritten, or if it becomes inaccessible because of a hard disk malfunction, use your backup files to recover the lost or damaged data.

System Restore is enabled on your new computer. However, if you reinstall Windows XP with less than 200 MB of free harddisk space available, System Restore is automatically disabled. Before you use System Restore, confirm that it is enabled:

1. Click the Start button and click Control Panel.

Downloaded from LpManual.com Manuals

2. Click the Performance and Maintenance.

3. Click System.

4. Click the System Restore tab.

5. Ensure that Turn off System Restore is not checked.

Creating a Restore Point

You can either use the System Restore Wizard or manually create a restore point.

Using the System Restore Wizard

To use the System Restore Wizard, click the Start button, click Help and Support, click System Restore, and then follow the instructions in the System Restore Wizard window. You can also create and name a restore point if you are logged on as the computer administrator or a user with administrator rights.

Manually Creating a Restore Point

1. Click the Start button, point to All Programs® Accessories® System Tools, and then click System Restore.

2. Click Create a restore point.

3. Click Next.

4. Type a name for the new restore point in the Restore point description field.

The present date and time are automatically added to the description of the new restore point.

5. Click Create.

6. Click OK.

Restoring the Computer to an Earlier Operating State

If problems occur after installing a device driver, first try using

Device Driver Rollback . If Device Driver Rollback does not

resolve the problem, then use System Restore.

NOTICE:

Before restoring the computer to an earlier operating state, save and close all open files and exit all open programs. Do not alter, open, or delete any files or programs until the system restoration is complete.

1. Click the Start button, point to All Programs®

Accessories® System Tools, and then click System Restore.

2. Ensure that Restore my computer to an earlier time is selected and click Next.

3. Click a calendar date to which you want to restore your computer.

The Select a Restore Point screen provides a calendar that allows you to see and select restore points. All calendar dates with available restore points appear in bold.

4. Select a restore point and click Next.

If a calendar date has only one restore point, then that restore point is automatically selected. If two or more restore

Downloaded from LpManual.com Manuals

points are available, click the restore point that you want to use.

NOTICE:

Save and close all open files and exit all open programs. Do not alter, open, or delete any files or programs until the system restoration is complete.

5. Click Next.

The Restoration Complete screen appears after System Restore finishes collecting data, and then the computer automatically restarts.

6. After the computer restarts, click OK.

To change the restore point, you can either repeat the steps using a different restore point, or you can undo the restoration.

Undoing the Last System Restore

NOTICE:

Save and close all open files and exit all open programs. Do not alter, open, or delete any files or programs until the system restoration is complete.

1. Click the Start button, point to All Programs®

Accessories® System Tools, and then click System Restore.

2. Select Undo my last restoration and click Next.

NOTICE:

Save and close all open files and exit all open programs. Do not alter, open, or delete any files or programs until the system restoration is complete.

3. Click Next.

The System Restore screen appears, and then the computer automatically restarts.

4. After the computer restarts, click OK.

Reinstalling Microsoft

®

Windows

®

XP

Before You Reinstall

If you are considering reinstalling the Windows XP operating system to correct a problem with a newly installed driver, first try using Windows XP

Device Driver Rollback

. If Device Driver Rollback does not resolve the problem, then use System

Restore to return your operating system to the operating state it was in before you installed the new device driver.

Reinstalling Windows XP

To reinstall Windows XP, perform all the steps in the following sections in the order in which they are listed.

The reinstallation process can take 1 to 2 hours to complete. After you reinstall the operating system, you must also reinstall the device drivers, virus protection program, and other software.

NOTICE:

The Operating System CD provides options for reinstalling Windows XP. The options can overwrite files and possibly affect programs installed on your hard drive. Therefore, do not reinstall Windows XP unless instructed to do so by a Dell technical support representative.

Downloaded from LpManual.com Manuals

NOTICE:

To prevent conflicts with Windows XP, disable any virus protection software installed on your computer before you reinstall Windows XP. See the documentation that came with the software for instructions.

Booting From the Operating System CD

1. Save and close any open files and exit any open programs.

2. Insert the Operating System CD. If any program starts automatically, exit the program before proceeding.

3. Shut down the computer through the Start menu and restart the computer.

4. Press immediately after the DELL™ logo appears.

If the operating system logo appears, wait until you see the Windows desktop, and then shut down the computer and try again.

5. Press the arrow keys to select CD-ROM, and then press .

6. When the Press any key to boot from CD message appears, press any key.

Windows XP Setup

1. When the Windows XP Setup screen appears, press to select To set up Windows now.

2. Read the information on the Microsoft Windows Licensing Agreement screen, and press agreement.

to accept the license

3. If your computer already has Windows XP installed and you want to recover your current Windows XP data, type r to select the repair option, and then remove the CD from the drive.

4. If you want to install a new copy of Windows XP, press to select that option.

5. Press to select the highlighted partition

(recommended), and then follow the instructions on the screen.

The Windows XP Setup screen appears, and the operating system begins to copy files and install the devices. The computer automatically restarts multiple times.

NOTE:

The time required to complete the setup depends on the size of the hard drive and the speed of your computer.

NOTICE:

Do not press any key when the following message appears: Press any key to boot from the CD.

6. When the Regional and Language Options screen appears, select the settings for your location, and then click

Next.

7. Enter your name and organization (optional) in the Personalize Your Software screen and click Next.

8. If you are reinstalling Windows XP Home Edition, at the What's your computer's name window, enter a name for your computer (or accept the name provided) and click Next.

If you are reinstalling Windows XP Professional, at the Computer Name and Administrator Password window, enter a name for your computer (or accept the one provided) and a password, and then click Next.

9. If the Modem Dialing Information screen appears, enter the requested information and click Next.

Downloaded from LpManual.com Manuals

10. Enter the date, time, and time zone in the Date and Time Settings window and click Next.

11. If the Networking Settings screen appears, click Typical and click Next.

12. If you are reinstalling Windows XP Professional and you are prompted to provide further information regarding your network configuration, enter your selections. If you are unsure of your settings, accept the default selections.

Windows XP installs the operating system components and configures the computer. The computer automatically restarts.

NOTICE:

Do not press any key when the following message appears: Press any key to boot from the CD.

13. When the Welcome to Microsoft screen appears, click Next.

14. When the How will this computer connect to the Internet? message appears, click Skip.

15. When the Ready to register with Microsoft? screen appears, select No, not at this time and click Next.

16. When the Who will use this computer? screen appears, you can enter up to five users. Click Next.

17. Click Finish to complete the setup, and remove the CD from the drive.

Reinstalling Drivers and Software

1.

Reinstall the appropriate drivers .

2. Reinstall your virus protection software. See the documentation that came with the software for instructions.

3. Reinstall your other software programs. See the documentation that came with the software for instructions.

Reinstalling Windows 2000

NOTICE:

The Operating System CD provides options for reinstalling the Windows 2000 operating system. The options can potentially overwrite files installed by Dell and possibly affect programs installed on your hard drive. Therefore, do not reinstall your operating system unless instructed to do so by a Dell technical support representative.

Booting From the Operating System CD

1. Save and close any open files and exit any open programs.

2. Insert the Operating System CD. If any program starts automatically, exit the program before proceeding.

3. Shut down the computer through the Start menu and restart the computer.

4. Press immediately after the DELL™ logo appears.

If the operating system logo appears, wait until you see the Windows desktop, and then shut down the computer and try again.

5. Press the arrow keys to select CD-ROM, and then press .

6. When the Press any key to boot from CD message appears, press any key.

Downloaded from LpManual.com Manuals

Windows 2000 Setup

1. When the Windows 2000 Setup window appears, ensure that To setup Win2000 now, press ENTER is highlighted.

Then press .

2. Read the information in the License Agreement window and press to continue.

3. When the Windows 2000 Professional Setup window appears, press the arrow keys to select the Windows 2000 partition option that you want. Then press the key for the partition option you chose.

4. When the Windows 2000 Professional Setup window reappears, press the arrow keys to select the type of file system that you want Windows 2000 to use, and then press .

5. Press again to restart your computer.

6. Click Next when the Welcome to the Windows 2000 Setup Wizard window appears.

7. When the Regional Settings window appears, select your region, and then click Next.

8. Enter your name and organization in the Personalize Your Software window and click Next.

9. Enter the Windows product key, which is printed on the Microsoft label on your computer. Then click Next.

10. When the Computer Name and Administrator Password window appears, enter a name for your computer and a password, if desired. Then click Next.

11. Enter the date and time in the Date and Time Settings window and click Next.

Windows 2000 installs components and configures the computer.

12. When the Completing the Windows 2000 Setup Wizard window appears, remove the CD from the drive and click

Finish.

The computer automatically restarts.

Enabling Hibernate Mode

1. Click the Start button, point to Settings and click Control Panel.

2. Double-click the Power Management icon.

3. Click the Hibernate tab.

4. Ensure that Enable hibernate support is selected and click Apply.

5. Click OK to close the Control Panel.

Downloaded from LpManual.com Manuals

Using the Dell™ D/Bay

About the Dell D/Bay

Removing and Installing Devices When the Computer is Turned Off

Removing and Installing Devices While the Computer Is Running

Using the CD or DVD Tray

About the Dell D/Bay

You can install Dell Latitude™ D-Family devices such as a floppy drive or an optical drive.

Removing and Installing Devices When the Computer is Turned

Off

CAUTION: Before working inside your computer, read the safety information in your System Information

Guide.

NOTICE:

To prevent damage to devices, place them in a safe, dry place when they are not installed in the computer.

Avoid pressing down on them or placing heavy objects on top of them.

1. Press the device latch release so that the latch release pops out.

2. Pull the device by the latch release to remove the device from the D/Bay.

Downloaded from LpManual.com Manuals

3. Insert the new device into the bay, push the device until you feel a click, and push the device latch release in so that it is flush with the computer.

4. Connect the D/Bay cable to the Dell D/Bay connector on the computer.

Removing and Installing Devices While the Computer Is Running

CAUTION: Before working inside your computer, read the safety information in your System Information

Guide.

Microsoft

®

Windows

®

XP

1. Double-click the Safely Remove Hardware icon on the taskbar.

2. Click the device you want to eject.

NOTICE:

To prevent damage to devices, place them in a safe, dry place when they are not installed in the computer.

Avoid pressing down on them or placing heavy objects on top of them.

Downloaded from LpManual.com Manuals

3. Press the device latch release so that the latch release pops out.

4. Pull the device by the latch release to remove the device from the D/Bay.

5. Insert the new device into the bay, push the device until you feel a click, and push the device latch release in so that it is flush with the computer.

Windows XP automatically recognizes the new device.

6. If necessary, enter your password to unlock your drive.

Windows 2000

1. Click the Unplug or Eject Hardware icon on the taskbar.

2. Click the device you want to eject and click Stop.

3. Press the device latch release so that the latch release pops out.

Downloaded from LpManual.com Manuals

4. Pull the device by the latch release to remove the device from the D/Bay.

5. Insert the new device into the bay, push the device until you feel a click, and push the device latch release in so that it is flush with the computer.

6. When the operating system recognizes the new device, click Close.

Using the CD or DVD Tray

NOTICE:

Do not press down on the drive tray when opening or closing it. Keep the tray closed when you are not using the drive.

NOTICE:

Do not move the computer while playing CDs or DVDs.

1. Press the eject button on the front of the drive.

2. Pull the tray out.

3. Place the disc, label side up, in the center of the tray.

4. Snap the disc onto the spindle.

Downloaded from LpManual.com Manuals

1 eject button

5. Push the tray back into the drive.

NOTE:

If you use a module bay that shipped with another Latitude D-Family computer, you need to install the drivers and software necessary to play DVDs or write data. For more information, see the Drivers and Utilities CD.

You can play a DVD on your computer if the computer shipped with a DVD drive or a CD-RW/DVD combo drive. You can write data to a blank CD on your computer if the computer shipped with a CD-RW or CD-RW/DVD combo drive.

For more information on playing CDs or watching movies, click Help on the CD player or DVD player (if available).

Adjusting the Volume

NOTE:

If the speaker is muted, you do not hear the CD or DVD playing.

1. Click the Start button, point to All Programs® Accessories® Entertainment (or Multimedia), and then click

Volume Control.

2. In the Volume Control window, click and drag the bar in the Volume Control column and slide the bar up or down to increase or decrease the volume.

For more information on volume control options, click Help in the Volume Control window.

The Volume Meter displays the current volume level, including mute, on your computer. Either right-click the icon in the taskbar or press the volume control buttons to enable or disable the Volume Meter on the screen (if

Dell QuickSet

is installed).

Downloaded from LpManual.com Manuals

1

2

3 volume icon

Volume Meter mute icon

NOTE:

By default, the Volume Meter appears in the lower-right corner of the display. You can click and drag the meter to a new location, and the meter subsequently always appears at the new location.

When the meter is enabled, adjust the volume using the volume control buttons or by pressing the following keys:

Press to increase volume.

Press

Press

to decrease volume.

to mute volume.

For more information about QuickSet, right-click the icon in the taskbar and click Help.

Adjusting the Picture

If an error message notifies you that the current resolution and color depth are using too much memory and preventing DVD playback, adjust the display properties.

Windows XP

1. Click the Start button and click Control Panel.

2. Under Pick a category, click Appearance and Themes.

3. Under Pick a task..., click Change the screen resolution.

4. In the Display Properties window, click and drag the bar in Screen resolution to change the setting to 1024 by

768 pixels.

5. Under Color quality, click the drop-down menu and click Medium (16 bit).

6. Click OK.

Windows 2000

1. Click the Start button, point to Settings, and then click Control Panel.

Downloaded from LpManual.com Manuals

2. Double-click the Display icon and click the Settings tab.

3. Click and drag the bar in Screen area to change the setting to 1024 by 768 pixels.

4. Under Color quality, click the drop-down menu and click High Color (16 bit).

5. Click Apply.

6. Click OK to save the settings and close the window.

Downloaded from LpManual.com Manuals

Cleaning Your Computer

Computer, Keyboard, and Display

Touch Pad

Floppy Drive

Optical Media

CAUTION: Before you begin any of the procedures in this section, read the safety instructions in the

System Information Guide.

Computer, Keyboard, and Display

CAUTION: Before you clean your computer, disconnect the computer from the electrical outlet and remove any installed batteries. Clean your computer with a soft cloth dampened with water. Do not use liquid or aerosol cleaners, which may contain flammable substances.

Gently use a vacuum cleaner with a brush attachment to remove dust from the slots and holes on your computer and between the keys on the keyboard.

NOTICE:

To avoid damaging the computer or display, do not spray cleaning solution directly onto the display. Only use products specifically designed for cleaning LCDs, and follow the instructions that are included with the product.

Moisten a soft, lint-free cloth with water or an LCD cleaner, and wipe the display until it is clean.

Moisten a soft, lint-free cloth with water or an LCD cleaner, and wipe the computer and keyboard. Do not allow water from the cloth to seep between the touch pad and the surrounding palm rest.

Touch Pad

1. Shut down and turn off your computer, disconnect any attached devices, and disconnect them from their electrical outlets.

2.

Remove the battery .

3. Moisten a soft, lint-free cloth with water, and stroke it gently across the surface of the touch pad. Do not allow water from the cloth to seep between the touch pad and the surrounding palm rest.

Floppy Drive

NOTICE:

Do not attempt to clean drive heads with a swab. You might accidentally misalign the heads, which prevents the drive from operating.

Clean your floppy drive using a commercially available cleaning kit. These kits contain pretreated floppy disks to remove contaminants that accumulate during normal operation.

Optical Media

NOTICE:

Always use compressed air to clean the lens in the drive, and follow the instructions that are included with the compressed air. Never touch the lens in the drive.

Downloaded from LpManual.com Manuals

If you notice problems, such as skipping, with the playback quality of your CDs or DVDs, try cleaning the discs.

1. Hold the disc by its outer edge. You can also touch the inside edge of the center hole.

NOTICE:

To prevent damaging the surface, do not wipe in a circular motion around the disc.

2. With a soft, lint-free cloth, gently wipe the bottom of the disc (the unlabeled side) in a straight line from the center to the outer edge of the disc.

You can also purchase commercial products that clean discs and provide some protection from dust, fingerprints, and scratches. Cleaning products for CDs are safe to use on DVDs.

3. Connect your computer and devices to electrical outlets, and turn them on.

Downloaded from LpManual.com Manuals

Specifications

Microprocessor

System Information

PC Card

Smart Card

Memory

Ports and Connectors

Communications

Video

Audio

Microprocessor

Microprocessor type

L1 cache

L2 cache

External bus frequency

Display

Keyboard

Touch Pad

Track Stick

Battery

AC Adapter

Physical

Environmental

Intel® Centrino™ Mobile Technology or

Intel Pentium® M

32-KB instruction and 32-KB write-back data cache

1 MB

400 MHz, source synchronous processor system bus

System Information

System chip set

Flash EPROM

Data bus width

Microprocessor address bus width

PCI bus

PC Card

CardBus controller

PC Card connector

Cards supported

PC Card connector size

Data width (maximum)

Intel 855GM

1 MB

64 bits

32 bits

32 bits

TI PCI7510 Cardbus controller supports one Type I or Type II card

3.3 V and 5 V

68 pins

PCMCIA 16 bits

CardBus 32 bits

Smart Card

Read/write capabilities

Cards supported

Program technology supported

Interface speed

EMV level

Downloaded from LpManual.com Manuals reads and writes to all ISO 7816 1/2/3/4 microprocessor cards (T=0, T=1)

3V and 5V

Java cards

9600–115,200 BPS level 1 certified

WHQL certification

Compatibility

Insert/eject cycles

Memory

Memory module connector

Memory module capacities

Memory type

Standard memory

Maximum memory

Ports and Connectors

Serial

Video

Audio

USB

Dell™ D/Bay connector

Infrared

Mini PCI

Modem

Network adapter

IEEE 1394

Communications

Modem:

Type

Controller

Interface

Network adapter

Wireless

PC/SC compatible within a PKI environment certified for up to 100,000 cycles two user-accessible DDR SDRAM sockets

128, 256, 512, and 1024 MB

2.5 V 266 MHz DDR SDRAM

128 MB

2048 MB

9-pin connector; 16550C-compatible,

16-byte buffer connector

15-hole connector microphone connector, stereo headphone/speakers connector two 4-pin USB 2.0-compliant connectors

(including the Dell™ D/Bay connector)

4-pin power supply and 4-pin USB 2.0compliant connector sensor compatible with IrDA Standard 1.1

(Fast IR) and IrDA Standard 1.0 (Slow IR)

Type IIIA Mini PCI card slot

RJ-11 port

RJ-45 port

4-pin serial connector v.92 56K MDC softmodem internal AC'97 bus

10/100/1000 Ethernet LAN on system board

Internal Mini PCI Wi-Fi and Bluetooth™ wireless support (optional)

Video

Video type

Video controller

Video memory

Downloaded from LpManual.com Manuals

Intel UMA integrated

855GM chip set

1 MB with Intel DVMT up to 32 MB (with

128 MB of system memory) or 64 MB

(with 256 MB or more of system memory)

LCD interface

Audio

Audio controller

Stereo conversion

Interfaces:

Internal

External

Speaker

Internal speaker amplifier

Volume controls

Display

Type (active-matrix TFT)

Dimensions:

Height

Width

Diagonal

Maximum resolutions

Response time (typical)

Refresh rate

Operating angle

Viewing angles:

Horizontal

Vertical

Pixel pitch

Power Consumption:

Panel with backlight (typical)

Controls

LVDS

AC'97 (Soft Audio)

18-bit (analog-to-digital and digital-toanalog)

AC'97 microphone-in connector, stereo headphones/speakers connector one 8-ohm speaker

1.2-W channel into 8 ohms keyboard shortcuts, program menus

XGA

184.3 mm (7.3 inches)

245.8 mm (9.7 inches)

307.2 mm (12.1 inches)

1024 x 768 at 256 K (or 262,144) colors

20-ms rise (maximum),

30-ms fall (maximum)

60 Hz

0° (closed) to 180°

±40°

+10°/–30°

0.28 x 0.28 mm

6.5 W brightness can be controlled through keyboard shortcuts

Keyboard

Number of keys

Layout

84 (U.S. and Canada); 85 (Europe); 86

(Brazil); 88 (Japan)

QWERTY/AZERTY/Kanji

Touch Pad

X/Y position resolution (graphics table mode)

Size:

Downloaded from LpManual.com Manuals

240 cpi

Width

Height

Track Stick

X/Y position resolution (graphics table mode)

Size

64.88 mm (2.55-inch) sensor-active area

48.88-mm (1.92-inch) rectangle

250 count/sec @ 100 gf protrudes higher than surrounding keycaps

Battery

Type

Dimensions:

Depth

Weight

Height

Width

Voltage

Charge time (approximate):

Computer on

Computer off

Operating time

Life span (approximate)

Temperature range:

Operating

Storage

AC Adapter

Input voltage

Input current (maximum)

Input frequency

Output current

Output power

Rated output voltage

Dimensions:

Height

Downloaded from LpManual.com Manuals

6-cell "smart" lithium ion (42 WHr)

4-cell "smart" lithium ion (28 WHr)

88.5 mm (3.48 inches)

21.5 mm (0.83 inch)

139.0 mm (5.47 inches)

0.32 kg (0.7 lb) (6 cell)

0.26 kg (0.57 lb) (4 cell)

11.1 VDC (6 cell)

14.8 VDC (4 cell)

2.5 hours

1 hour varies depending on operating conditions; can be significantly reduced under certain

power-intensive conditions

See "

Using a Battery " for more

information on battery life.

300 full discharge/charge cycles

0° to 35°C (32° to 95°F)

–40° to 65°C (–40° to 149°F)

90–264 VAC

1.7 A

47–63 Hz

5.5 A (maximum at 4-second pulse);

4.5 A (continuous)

90 W or 65 W

19.5 VDC

26.6–31.9 mm (1.05–1.26 inches)

Width

Depth

Weight (with cables)

Temperature range:

Operating

Storage

Physical

Height

Width

Depth

Weight:

Computer with 4-cell battery

Dell D/Bay (alone)

CD drive (alone)

58.42 mm (2.3 inches)

133.85 mm (5.25 inches)

0.4 kg (0.9 lb)

0° to 35°C (32° to 95°F)

–40° to 65°C (–40° to 149°F)

25.4 mm (1 inch)

294 mm (11.57 inches)

245 mm (9.65 inches)

1.7 kg (3.7 lb)

256 g (0.56 lb)

215 g (0.47 lb)

Environmental

Temperature range:

Operating

Storage

Relative humidity (maximum):

Operating

Storage

Maximum vibration (using a randomvibration spectrum that simulates user environment):

Operating

Storage

Maximum shock (measured with hard drive in head-parked position and a 2-ms half-sine pulse):

Operating

Storage

Altitude (maximum):

Operating

Storage

0° to 35°C (32° to 95°F)

–40° to 65°C (–40° to 149°F)

10% to 90% (noncondensing)

5% to 95% (noncondensing)

0.9 GRMS

1.3 GRMS

122 G

163 G

–15.2 to 3048 m (–50 to 10,000 ft)

–15.2 to 10,668 m (–50 to 35,000 ft)

Downloaded from LpManual.com Manuals

Dell™ QuickSet Features

Clicking the QuickSet Icon

Double-Clicking the QuickSet Icon

Right-Clicking the QuickSet Icon

Dell QuickSet provides you with easy access to configuration settings for power management schemes, battery resources, icon and font size, display brightness, volume, and network activity. If QuickSet is installed on your computer, it runs from the icon located in the taskbar. If QuickSet is not installed, you can download the program from support.dell.com. QuickSet functions differently when you click, double-click, or right-click the icon.

Clicking the QuickSet Icon

Click the icon to perform the following tasks:

Adjust power management settings using the

Power Management Wizard .

Adjust the size of icons and toolbars.

Select a power scheme that you set in the

Power Management Wizard .

Turn presentation mode on or off.

Double-Clicking the QuickSet Icon

Double-click the icon to adjust power management settings using the

Power Management Wizard .

Right-Clicking the QuickSet Icon

Right-click the icon to perform the following tasks:

Enable or disable the

Brightness Meter on the screen.

Enable or disable the

Volume Meter on the screen.

Turn wireless activity on or off.

View Dell QuickSet Help.

View the version and copyright date of the QuickSet program installed on your computer.

For more information about QuickSet, right-click the icon in the taskbar and click Help.
