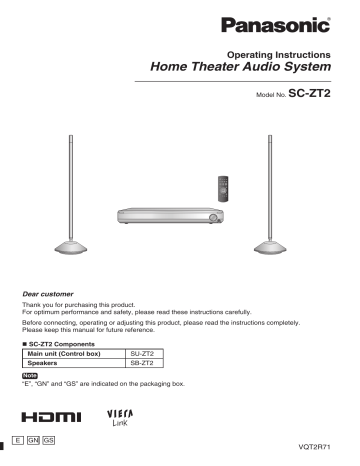

Operating Instructions
Home Theater Audio System
Model No.
SC-ZT2
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read the instructions completely.
Please keep this manual for future reference.
„ SC-ZT2 Components
Main unit (Control box)
SU-ZT2
Speakers
SB-ZT2
Note
“E”, “GN” and “GS” are indicated on the packaging box.
E
GN GS
VQT2R71
Caution for AC Mains Lead Safety precautions
Caution for AC Mains Lead/Safety precautions Before use
(For the United Kingdom, Republic of Ireland, Saudi Arabia, Kuwait,
Malaysia and Hong Kong)
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains plug for
your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 5-ampere and that it is approved by
ASTA or BSI to BS1362.
or the BSI mark on the body of the
Check for the ASTA mark
fuse.
If the plug contains a removable fuse cover you must ensure that it is
refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE
SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD
BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF
SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE
CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring code as stated
below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance with the
following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Black or Blue.
The wire which is coloured Brown must be connected to the terminal
which is marked with the letter L or coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH
TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE
EARTH SYMBOL
OR COLOURED GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF–KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC mains plug
(figures A and B). Confirm the AC mains plug fitted and follow the
instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A
Figure B
Fuse cover
2. Replace the fuse and close or attach the fuse cover.
Figure A
2
VQT2R71
Fuse
(5 ampere)
Figure B
Fuse
(5 ampere)
Placement
Set the system up on an even surface away from direct sunlight, high
temperatures, high humidity, and excessive vibration. These conditions
can damage the system and other components, thereby shortening
the system’s service life.
Do not hang from or climb on the system. This may result in serious
injury.
Do not use this device in hospitals and other places where electric
medical devices are installed.
Do not use this device near automatic doors, fire alarms and other
automatically controlled apparatuses.
Do not hold the speaker with one hand.
Before attaching the leg cushion on the base parts to prevent tilt or
rattle on the floor, make sure there are no people in the surrounding
area.
Do not insert your hand or foot into the opening of side surface of base
part.
Do not turn on the speakers with foot or vacuum cleaner carelessly.
Do not use this device as a plaything.
Voltage
Do not use high voltage power sources. This can overload the system
and cause a fire.
Do not use a DC power source. Check the source carefully when
setting the system up on a ship or other place where DC is used.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not damaged.
Poor connection and lead damage can cause fire or electric shock. Do
not pull, bend, or place the system on the lead.
Grasp the plug firmly when unplugging the lead. Do not move the
system if AC mains lead is still connected to socket outlet. Pulling the
AC mains lead can cause electric shock.
Do not handle the plug with wet hands. This can cause electric shock.
Remove AC mains plug from socket outlet when not using for a long
period.
Foreign matter
Do not let metal objects fall inside the system. This can cause electric
shock or malfunction.
Do not let liquids get into the system. This can cause electric shock or
malfunction. If this occurs, immediately disconnect the system from the
AC mains lead and contact your dealer.
Do not spray insecticides onto or into the system. They contain
flammable gases which can ignite if sprayed into the system.
Service
Do not attempt to repair this unit by yourself. If sound is interrupted,
indicators fail to light, smoke appears, or any other problem that is
not covered in these instructions occurs, disconnect the AC mains
lead and contact your dealer or an authorized service centre. Electric
shock or damage to the system can occur if the system is repaired,
disassembled or reconstructed by unqualified persons.
Extend operating life by disconnecting the system from the AC mains if
it is not to be used for a long time.
Supplied accessories .................... 5
Control guide ................................. 6
Remote control preparation ......... 8
Installation....................... 9
Speaker setting ............. 15
Wireless functions ...........................................9
Home Theater connections ... 10
Basic connections ........................ 10
Connection
Connecting equipment with HDMI terminal
(TV, DVD recorder, etc.) ....................................10
Connecting STB etc. .....................................11
Setting for automatically switching the input source to STB .....11
Connecting cables to audio terminals (DVD player, etc.) ....11
Setting the speakers ..................... 15
Checking the speaker setting ...... 16
Installing surround speakers ....... 16
Setting surround speakers .......... 17
Connection
Before use
Caution for AC Mains Lead ........... 2
Safety precautions ........................ 2
Setting up your Home
Theater system .............................. 4
Before use
Table of contents
Changing the number of speakers to 4 .........17
Connecting equipment without HDMI
terminal (DVD player, VCR, etc.) ........ 12
Other connections ........................ 13
To connect a second set of equipment that supports HDMI .....13
To connect audio equipment (CD player, etc.) .....13
To connect a subwoofer (not supplied) .........13
AC mains lead connection ............... 14
Enjoying sound field effects ............ 19
Play
Dolby Virtual Speaker ...................................19
SFC (Sound Field Control)............................19
Cancelling sound field effects .......................19
When connecting the surround speakers .....19
Surround playback ........................................19
SFC (Sound Field Control)............................19
Dolby Pro Logic ..........................................19
Using the VIERA Link
“HDAVI Control™” ....................... 20
What you can do with VIERA Link
“HDAVI Control”.............................................20
Functions and settings ............... 22
Setup menu items .........................................23
Adjusting sound quality .................................23
Adjusting the volume balance of front speakers ... 23
Setting distances...........................................24
Setting 7.1-channel virtual surround .............24
Reducing standby power consumption
(In standby condition (HDMI off mode)) ........24
VIERA Link “HDAVI Control” setting ..............25
Adjusting the time lag between audio and
video by delaying audio output......................25
Switching between dual sounds ....................25
Clear audio at low volume .............................25
Switching the attenuator ...............................25
Switching the input signal detection setting......26
Reset (factory settings) .................................26
When other equipment (mini component system,
AV amp, etc.) manufactured by Panasonic operates
with the remote control operations of this system.....26
Play
Enjoying movies and
music ............................. 18
Troubleshooting
and other
information
Error messages ........................... 27
Using with headphones .............. 27
Specifications .............................. 27
Troubleshooting guide ................ 28
Digital audio signals supported
by this system.............................. 29
Maintenance ................................. 29
Glossary ....................................... 30
Troubleshooting and
other information
Using “WHISPER-MODE SURROUND” .......22
Using “GAME” ...............................................22
Muting ...........................................................22
Adjusting the bass (woofer part) output ........22
Adjusting the surround speaker output .........22
Adjusting the surround speaker output
using the test signal ......................................23
3
VQT2R71
Setting up your Home Theater system
Step
Setting up your Home Theater system Before use
1
Installing the speakers (➜ page 9)
You can make your preferred setting because speaker
cords are not required.
• Make sure to place the speakers on a flat, stable surface so there is no
danger of them falling over.
• AC mains lead (supplied) is necessary for each speaker.
Step
2
Connecting the television and DVD recorder (➜ page 10)
(Peripheral equipment and cables are not supplied unless otherwise mentioned.)
Install and connect the main unit and other equipment.
„ Connecting TV
Necessary cable:
(For images and audio) HDMI
cable: 1 (not supplied)
„ Connecting recorder
Necessary cable:
(For images and audio) HDMI
cable: 1 (not supplied)
I need 2 HDMI
cables for
connections.
• Connect with an HDMI cable for high-quality audio and video.
• This connection requires HDMI terminals on both the television and the DVD recorder.
Step
3
Setting the speakers (➜ page 15)
Use the remote control for speaker setting.
• Make sure to set the speakers when using for the first time after purchase.
Step
4
Enjoying movies and music (➜ page 18)
Enjoy surround sound with DVDs, TV, and other
sources.
• Audio is transmitted wirelessly.
„ You can enjoy more dynamic surround playback with this
system by installing Panasonic surround speakers
SB-ZT2. (➜ page 16)
„ This system supports 3D images.
4
VQT2R71
By connecting with 3D compatible television or recorder etc., you can
enjoy dynamic visions of commercially available 3D image software or
3D broadcasting programs with the effect of sense of being in the actual
scene.
㨪ۭ
Supplied accessories
Supplied accessories Before use
Please check and identify the supplied accessories.
Use numbers indicated in parentheses when asking for replacement parts.
(Product numbers correct as of February 2010. These may be subject to change.)
Supplied accessories differ depending on the symbols (E, GN, GS) indicated on the packaging box.
Use correct accessories according to the region for use.
3 AC mains leads
For E
For GN
(For the United Kingdom and
Republic of Ireland)
(K2CZ3YY00005)
(For continental Europe)
(K2CQ2CA00007)
(For Australia and New Zealand)
(K2CJ2DA00010)
For GS
(For Saudi Arabia, Kuwait,
Malaysia and Hong Kong)
(K2CZ3YY00005)
(220 to 240 V)
(For Saudi Arabia)
(K2CA2CA00031)
(110 to 127 V)
(For Thailand)
(K2CP2CA00001)
(For others)
(K2CQ2CA00007)
2 Batteries
(R6, AA)
1 Remote control
(N2QAYB000417)
Leg cushion (1 sheet: 8 pieces)
(RFA3045-2)
Keep the leg cushion out of reach
of children to prevent swallowing.
Packing plan
Speakers
Remote control
Batteries
• When taking out speakers, hold the pole and base parts
(➜ page 7).
AC mains
leads
Main unit
„ Sales and Support Information
(For the United Kingdom and Republic of Ireland customers)
Customer Care Centre
• For customers within the UK: 0844 844 3852
• For customers within the Republic of Ireland: 01 289 8333
• Visit our website for product information www.panasonic.co.uk
• E-mail: [email protected]
Direct Sales at Panasonic UK
• For customers: 0844 844 3856
• Order accessory and consumable items for your product with ease
and confidence by phoning our Customer Care Centre
Monday-Thursday 9:00am-5:30pm,
Friday 9:30am-5:30pm (Excluding public holidays).
• Or go on line through our Internet Accessory ordering
application at www.pas-europe.com.
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are
provided directly by Panasonic UK Ltd.
• It couldn’t be simpler!
• Also available through our Internet is direct shopping for a
wide range of finished products, take a browse on our website
for further details.
5
VQT2R71
Control guide
Main unit (Control box)
Control guide Before use
Front view
For adjusting volume
(➜ page 18)
[INPUT SELECTOR]
switch (➜ page 18)
For connecting
headphones (➜ page 27)
Standby/on switch (8) (➜ pages 15, 18)
Press to switch the unit from on to standby mode
or vice versa. In standby mode, the unit is still
consuming a small amount of power.
Display
When PCM signal is being input
or the input signal setting is fixed
to PCM (➜ page 26)
Wireless Link display
(Displayed when wireless speakers are properly operating.)
(➜ page 16)
When input signal is digital
When the input signal setting is fixed to DTS
(➜ page 26)
When the sound field effect is off by
Digital surround signal/Sound field
pressing [–SETUP, OFF] (➜ page 19) or
(➜ below, page 19)
when using headphones (➜ page 27)
PCM
W
DIGITAL INPUT
DIGITAL DTS
VS
SFC
MIX
PL
General display
DIGITAL
DTS
VS
SFC
:
:
:
:
PL
Dolby Digital sources
DTS sources
When Dolby Virtual Speaker is working
When SFC mode is being used
: When Dolby Pro Logic decoder is being
used (When using Dolby Virtual Speaker
for 2-channel stereo source)
Rear view
AC input terminal
(➜ page 14)
Subwoofer output
terminal (➜ page 13)
Audio output terminal
(➜ below)
Digital audio input terminal (➜ pages 10 to 12, 21)
Audio input terminal
(➜ pages 10 to 13)
HDMI terminal (➜ pages 10, 11, 13, 21)
• The audio output terminals can be used when you do not use the wireless function and play back on other speakers via an
external amplifier. Use commercially available monaural audio cables (monaural mini plug/pin plug) to connect to audio input
terminals of an external amplifier channel by channel.
6
VQT2R71
Speaker (with built-in amplifier)
Side view
Control guide Before use
Front view
Pole
(mid-high part)
TEST
terminal
AC input terminal
(➜ page 14)
TEST
ID
AC IN 㨪
Base
(woofer part)
ID switch
[WIRELESS LINK] indicator
(➜ page 15)
When the unit is connected to the
AC mains supply, this indicator
lights red in standby mode and
lights green when the unit is turned
on.
Unit on/off button (k I l ^) (➜ page 15)
Use this button to turn the unit on and off.
l (off): The unit is in standby mode.
k (on): The unit is on.
The unit is still using a small amount of
power in the standby. Standby uses less
power.
Note
TEST terminal: This is used to check the product operation status. Only used in factory. Do not insert a foreign object.
ID switch: This is used to check the product operation status and not used regularly.
Remote control
Standby/on button (➜ page 18)
Test signal output (➜ pages 16, 23)
For using “WHISPER-MODE SURROUND”
(➜ page 22)
For using “GAME” (➜ page 22)
Input selector (➜ pages 18, 26)
For adjusting speaker output
(➜ pages 22, 23)
For adjusting the volume (➜ page 18)
Muting (➜ page 22)
For adjusting/activating settings
(➜ pages 11, 17, 22 to 26)
For entering setup mode
(➜ pages 11, 17, 22 to 26)
For selecting or cancelling
Dolby Virtual Speaker,
Dolby Pro Logic and SFC mode
(➜ page 19)
For returning to the previous menu
(➜ pages 11, 17, 22 to 26)
Note
For remote control buttons used for speaker
setting, see pages 15 to 17.
7
VQT2R71
Remote control preparation
Inserting the batteries
Remote control preparation Before use
Press on the tab to open.
(R6/LR6, AA)
Insert so the poles (( and )) match those in the
remote control.
Use manganese batteries or alkaline batteries.
•
•
•
•
•
•
•
Do not mix old and new batteries.
Do not use different types of batteries at the same time.
Do not take apart or short circuit.
Do not attempt to recharge alkaline or manganese batteries.
Do not use batteries if the covering has been peeled off.
Do not heat or expose to flame.
Do not leave the batteries in an automobile exposed to direct
sunlight for a long period of time with doors and windows
closed.
Mishandling of batteries can cause electrolyte leakage which
can severely damage the remote control.
Remove the batteries if the remote control is not going to be
used for a long period of time. Store them in a cool, dark place.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by
the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.
Using the remote control
Main unit
Remote control signal sensor
Approx. Approx.
30º
30º
8
VQT2R71
Within approx. 7 meters
at the front (The
remote controlling
range varies according
to the angles.)
Transmission
window
Note
• Do not place an object between the signal sensor and
the remote control.
• Do not expose the signal sensor to the direct sunlight or
the strong light of a fluorescent lamp.
• Keep the transmission window and the system’s sensor
free from dust.
Installation
• Aim the front face (with Panasonic logo) of each
speaker at the listening-viewing position for setting.
Front speaker
(left)
Connected equipment
Main unit
Front speaker
(right)
„ There is no positional distinction for each speaker
before setting.
„ Make sure to place the speakers on a flat, stable
surface so there is no danger of them falling over.
„ When carrying speakers, hold the pole and base
parts (➜ page 7).
„ The speakers of this system are not magnetically
shielded.
Do not install this system near a CRT-based
television.
•
•
•
•
•
Note
Make sure the base parts are not covered by cloth such as a
curtain.
Before attaching the leg cushion (supplied) on the base parts
to prevent tilt or rattle on the floor, make sure there are no
people in the surrounding area.
If the main unit is placed at the height of 50 cm or below from
the floor, the radio waves reach smaller range.
Do not install other equipment directly on or under the main
unit.
“Installing surround speakers” (➜ page 16).
Connection
Setup example
Wireless functions
Installation
As this system uses a frequency band of 2.4 GHz, the radio waves may be interrupted by an obstacle. Depending on the surrounding
environment (i.e. radio wave interruption from outside, etc.) or the building structure where this system is used (i.e. wall that easily
reflects radio waves, etc.), sounds may be cut or noise may occur.
Install this system properly paying attention to the following descriptions.
„ Equipment certification
As this system received Technical Conditions compliance certification based on the Radio Law, the wireless station license is not
required. However, if you do the following actions to this system, you may be punished by law.
• Disassemble or refurbish
„ Restrictions for use
• Domestic use only.
• Use this system in the same room.
„ Do not place an obstacle between the main unit and speakers. Do not put things on the main unit.
Radio waves from this system reach maximum range of 15 m in the same room. If there is an obstacle between the main unit and
speakers or the main unit is placed at the height of 50 cm or below from the floor, the radio waves reach smaller range.
„ Keep this system away from equipment that generates radio wave interference.
If the following equipment is located near the system, install this system away from such equipment.
• Bluetooth, OA devices, telephone, etc.: approx. 3 m or more
• Microwave oven, wireless LAN compatible devices: approx. 3 m or more
This system is designed to automatically avoid radio wave interference with such household equipment. If radio wave interference
occurs, the Wireless Link display (➜ page 16) may blink, the sounds from speakers may be interrupted or noise may occur.
These phenomena occur when this system selects a proper frequency. These are not malfunctions.
„ Keep this system away from metal objects that tend to reflect radio waves.
If there are metal objects or furniture in the room where this system is installed, radio waves tend to be reflected. Depending on the
listening-viewing position, sounds may be interrupted or noise may occur. These symptoms may be remedied by slightly moving this
system’s position.
Note that radio waves tend to be reflected also when this system is installed in rooms with a lot of activity.
9
VQT2R71
Home Theater connections
Basic connections
Connection cable
HDMI cable (not supplied)
Stereo phono cable (not supplied)
Optical fibre cable (not supplied)
Connecting equipment with HDMI terminal (TV, DVD recorder, etc.)
Connection
Easy connection using ARC (Audio Return Channel) (➜ below): The conventional setting has required 2 cables
to connect this system and a TV: HDMI cable and optical fibre or stereo phono cable. Now, with the ARC
technology, all you need is 1 HDMI cable to connect to an ARC compatible TV.
The recommended HDMI cable is ARC compatible.
This connection is
necessary to connect
with TV incompatible
with ARC.
In order to enjoy TV
sounds.
TV
Audio out
R L
Digital audio
out (optical)
HDMI
input
Make sure to connect to
TO TV (ARC) .
Home Theater connections
Connecting the optical
fibre cable
Insert the cable
so its shape fits
correctly into Do not bend!
the terminal.
If connection A
is not possible,
make connection
B. When both are
already connected,
connection A
takes priority over
connection B.
When connecting with the ARC
compatible TV, connect the
[TO TV (ARC)] terminal of this
system and the HDMI input
terminal (ARC compatible) of TV.
(If the TV has ARC compatible
and incompatible terminals,
connect to the ARC compatible
HDMI input terminal.)
Main unit
„ ARC (Audio Return Channel)
This function was added to HDMI
Ver.1.4.
This sends digital audio signals
from the HDMI input terminal of
the TV, etc. to the HDMI output
terminal of this system.
• For ARC compatibility of the
connected TV, see operating
instructions of the TV.
Blu-ray Disc player/
DVD recorder, STB, etc.
HDMI
Video/Audio
out
„ HDMI cable notes
• It is recommended that you use Panasonic’s HDMI cables.
• Please use High Speed HDMI Cables that have the HDMI logo (as shown on the cover).
• Using the High Speed HDMI cable is recommended for viewing HD picture (1080p).
„ Enjoying only with TV speaker
• When image equipment such as TV and Blu-ray Disc player/DVD recorder, etc. is connected to HDMI terminal (➜ above, page 13)
of this system, images/audio signals from the Blu-ray Disc player/DVD recorder, etc. go through this system and are transmitted to
TV even if this system is turned off using the standby/on button of this system. (Standby through function) This is convenient to
enjoy only with TV speaker.
Note
10
VQT2R71
When you turn this system off using the standby/on button of this system, the audio/video signals from equipment connected to
HDMI input are output through the television, even if you have set input on this system to anything other than HDMI input (“BD/DVD ”
or “AUX 1 ”) before turning off this system. (The selector returns to the previous setting when you turn this system on again.)
When equipment is connected to both BD/DVD IN terminal and AUX1 IN terminal, images/audio signals of equipment whose input is
lastly selected are output.
• Turn off all equipment before making any connections.
• To connect equipment, refer to the appropriate operating
instructions.
Connecting STB etc.
Connect STB, etc. to the HDMI input terminal on this system. (➜ pages 10, 13)
If all HDMI input terminals on this system are being used, make this connection.
Digital
audio out
(optical)
HDMI IN
TV
HDMI
input
Make sure to connect
to TO TV (ARC) .
HDMI cable
HDMI OUT
STB etc.
HDMI Video/
Audio out
Digital audio
out (optical)
Blu-ray Disc player/
DVD recorder, etc.
Connection
Main unit
Setting for automatically switching the input source to STB
1. Switch the input source of TV (VIERA) with the above connection
and show STB pictures.
2. Press and hold [–SETUP, OFF] for about 2 seconds.
The setting items are displayed. (➜ page 23)
3. Press [w][q] to select “STB AUDIO ” and press [OK].
4. Press [e][r] to select “SET ” and press [OK].
SET : The setting is automatically switched to “AUX2 / STB ”.
OFF : The setting is not automatically switched to “AUX2 / STB ”. (factory setting)
5. Press [ RETURN] several times to select “EXIT ” and press [OK]
to finish the setting.
To return to the previous display/To cancel during setting operation in steps 2 to 5:
Press [ RETURN].
Note
Home Theater connections
When you make the above connection and you use Panasonic TV (VIERA), you can automatically switch this system’s input by
switching the input source of TV (VIERA) to STB in the following procedure.
Preparation: Make sure that this system has been turned on. (➜ page 18)
• “STB AUDIO ” in step 3 is displayed only when the unit is connected to the Panasonic TV (VIERA).
Also, this is not displayed when the step 1 operation is not performed.
• If you change the connection after setting, select “OFF ” once and “SET ” again.
• When you select “EXIT ” and press [OK] in step 3, the setting mode finishes.
Connecting cables to audio terminals (DVD player, etc.)
• Refer to the operating instructions for the equipment you are connecting for the correct type of video cable.
TV
Main unit
Audio out
DVD player
etc.
L
R
Digital audio
out (optical)
AV IN
21-pin scart cable
(not supplied)
AV
If the optical digital output terminal is available, use connection A.
If the optical digital output terminal is not available, use connection B.
To listen to the sound through this system after making all the connections select the input mode to “TV ” and reduce the volume on the television to minimum.
11
VQT2R71
Home Theater connections
Connecting equipment without HDMI terminal (DVD player, VCR, etc.)
Connection cable
Optical fibre cable (not supplied)
Stereo phono cable (not supplied)
• For the correct type of video cable, refer to the operating instructions for the equipment you are connecting.
Audio out Digital audio
out (optical)
R L
AV IN
Connection
TV
Home Theater connections
Connecting the optical fibre cable
Insert the cable so
its shape fits correctly
into the terminal.
Do not bend!
Main unit
21-pin scart cable
(not supplied)
DVD player,
VCR, etc.
R L
Digital audio
Audio out out (optical)
AV
If the optical digital output terminal is available, use connection A.
If the optical digital output terminal is not available, use connection B.
To connect a DVD recorder with built-in VCR
(When the DVD recorder has DVD output terminal and DVD/VHS output terminal, make the following connections.)
Make the above connection A for DVD output terminal.
Make the above connection B for DVD/VHS output terminal.
12
VQT2R71
• Turn off all equipment before making any connections.
• To connect equipment, refer to the appropriate operating
instructions.
Other connections
Connection cable
HDMI cable (not supplied)
Stereo phono cable (not supplied)
To connect a second set of equipment that supports HDMI
Main unit
HDMI
Video/Audio
out
Blu-ray Disc player/
DVD recorder, STB, etc.
Connection
✽ See page 10 for connecting this system to TV.
To connect audio equipment (CD player, etc.)
Main unit
L
CD player etc.
R
To connect a subwoofer (not supplied)
You can connect a commercially available active subwoofer (with built-in amplifier) (not supplied) to the subwoofer output
terminal (➜ page 6) if you want to enjoy deeper bass sounds.
Connection cable
Monaural connection cable (not supplied)
Home Theater connections
Audio out
13
VQT2R71
AC mains lead connection
FOR THE UNITED KINGDOM, REPUBLIC OF IRELAND, SAUDI ARABIA, KUWAIT, MALAYSIA AND
HONG KONG ONLY
READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 2 BEFORE CONNECTION.
To save power when the system is not to be used for a long time, unplug it from the household mains socket.
Make sure to turn this system off before unplugging the AC mains lead.
If you unplug the AC mains lead without turning this system off, some of the settings may not be saved.
Power supply differ depending on the symbols (E, GN, GS) indicated on the packaging box.
Main unit
Connect AC mains lead after all other cables are connected.
Connection
This system consumes approx. 0.5 W when AC mains lead is connected to the household mains socket (approx.
0.2 W in standby condition (HDMI off mode) (➜ page 24)).
AC mains lead (supplied)
Household mains socket
For E, GN
(AC 220 to 240 V, 50 Hz)
For GS
(AC 110 to 240 V, 50/60 Hz)
Speakers
For power consumption of speaker in standby, see page 16.
AC mains lead connection
Household mains socket
For E, GN
(AC 220 to 240 V, 50 Hz)
For GS
(AC 110 to 240 V, 50/60 Hz)
Side view
AC mains lead
(supplied)
AC IN 㨪
Note
The supplied AC mains leads are for use with this system only. Do not use them with other equipment. Also, do not use AC mains
lead for other equipment with this system.
14
VQT2R71
Speaker setting
Setting the speakers
Make sure to make this setting when using for the first time after purchase.
Preparations
„ Make sure that all equipment has been turned off.
(When the VIERA Link “HDAVI Control” compatible Panasonic TV (VIERA) and Blu-ray Disc player/DVD recorder (DIGA) are
connected, do not turn on TV (VIERA) and Blu-ray Disc player/DVD recorder (DIGA) until the setting is complete.)
„ Connect AC mains leads of main unit and 2 speakers to household mains sockets.
(➜ page 14)
„ Make sure that the main unit and speakers have been turned off.
„ Prepare the remote control. (➜ page 8)
1. Turn the main unit on.
Press
• The colour of [WIRELESS LINK] indicator changes from red to
green.
• When the [WIRELESS LINK] indicator of each speaker lights
green, “2CH SEARCH ” display disappears.
When installing surround speakers
See “Installing surround speakers” (➜ page 16) and “Setting
surround speakers” (➜ page 17).
[WIRELESS LINK]
indicator WIRELESS LINK
Press
3. Press and hold [CH] on the remote control about 3 seconds until “2 SPKR SET ” is
displayed on the main unit’s display.
“2 SPKR SET ”
Always aim the
remote control at
the main unit for
operation.
Speaker setting
2. Turn 2 speakers on.
Connection
• “2CH SEARCH ” appears on the display.
(This is displayed only at the first-time setting.)
Press and hold
(about 3 seconds)
4. Press the remote control button corresponding to the speaker outputting the confirmation
sound.
Front speaker
(left)
Front speaker
(right)
When the sound is
output from the front
speaker (left),
press [GAME].
GAME
MUTE
When the sound is output
from the front speaker
(right), press [MUTE].
• Sound is output from either of the speakers.
• When you press the button corresponding to the confirmation sound of speaker, another speaker outputs confirmation sound.
Press the corresponding button in the same way and complete settings for all 2 speakers.
• When “COMPLETE ” disappears on the main unit’s display, the speaker setting is complete.
Note
• Check if the speakers are properly set after setting the speakers. (➜ page 16)
• If the speakers are set incorrectly in step 4, turn the main unit off then on again and perform steps 3 and 4.
• If [WIRELESS LINK] indicator does not change from red to green, see page 29 of “Troubleshooting guide”.
15
VQT2R71
Speaker setting
When the speakers are detected, the Wireless Link display lights up on the main unit’s
display.
(Blinks during detecting operation.)
Display
W
While the wireless speakers operate normally, the Wireless Link display lights, but when radio
waves are interrupted (when speakers are in standby condition, etc.), it blinks.
Wireless Link
display
• When you turn the main unit off with the speakers on, the speakers automatically enter standby (Wireless link standby). The
colour of [WIRELESS LINK] indicator turns to red.
• To reduce more of the power consumption of speakers in standby, turn the speakers off. The speakers enter standby (In standby
condition).
<Power consumption of speakers in standby>
Wireless link standby: approx. 0.8 W (per 1 speaker)
In standby condition: approx. 0.15 W (per 1 speaker)
Connection
Checking the speaker setting
1. Turn the main unit on.
2. Press [TEST] on the remote
control to output the test signal.
Press
• To adjust the speaker volume, press [VOL
+, –].
3. Make sure that the display of main unit matches speaker locations.
The test signal is output from one speaker at a time for about 2 seconds in the order shown below.
“TEST L ” → “TEST R ” → “TEST RS ” ✽ → “TEST LS ” ✽
Speaker setting
„ Confirm the correct setting locations in the following chart.
Display
TEST L
TEST R
TEST RS
Speaker outputting the test signal
Front left
Front right
✽
TEST LS ✽
Surround right (right back)
Surround left (left back)
✽ Displayed only when using
the surround speakers.
Note
If the speakers are not properly set, do either of the following.
• Move the speakers according to the unit’s display.
• Perform steps 3 and 4 of “Setting the speakers” (➜ page 15). When using the surround speakers, perform steps 7 and 8 of
“Setting surround speakers” (➜ page 17).
4. Press [TEST] on the remote control to stop the test signal.
If the speaker is repaired or replaced
Perform the above “Checking the speaker setting” to confirm that the speaker properly operates.
Do the following operations if the sound is not produced normally.
1. Press and hold [INPUT SELECTOR] on the main unit approx. 3 seconds until “2CH SEARCH ” is displayed.
2. Perform steps 2 to 4 of “Setting the speakers” (➜ page 15).
Installing surround speakers
The surround speakers are not supplied.
You can enjoy more dynamic surround playback with this system by installing Panasonic surround speakers SB-ZT2.
• Place them slightly at the back right and left of the listening-viewing
Setup example
position.
• There is no positional distinction for each speaker before setting.
• Aim the front face (with Panasonic logo) of each speaker at the listeningviewing position for setting.
Surround
speaker
(left)
16
VQT2R71
Note
Approx. 120°
Surround
speaker (right)
Set the distance from each speaker to the listening-viewing
position. (➜ page 24)
Setting surround speakers
Link the front speakers wirelessly first and then make the settings for the surround speakers.
Preparations
„
• Make sure that all equipment has been turned off.
(When the VIERA Link “HDAVI Control” compatible Panasonic TV (VIERA) and Blu-ray Disc player/DVD recorder (DIGA) are
connected, do not turn on TV (VIERA) and Blu-ray Disc player/DVD recorder (DIGA) until the setting is complete.)
• Connect AC mains leads of main unit and 4 speakers to household mains sockets. (➜ page 14)
• Make sure that the main unit and speakers have been turned off.
• Prepare the remote control. (➜ page 8)
1. Turn the main unit on.
2. Turn on the front speakers.
3. Set “4CH ” at the setting operation of “Changing the number of speakers to 4” below.
4. Turn the main unit off once.
5. Turn the main unit on again.
• “4CH SEARCH ” appears on the display. (This is displayed only at the first-time setting.)
6. Turn on the surround speakers.
• The colour of [WIRELESS LINK] indicator of surround speaker changes from red to green.
• When the [WIRELESS LINK] indicator of each speaker lights green, “4CH SEARCH ” display disappears.
Connection
• The colour of [WIRELESS LINK] indicator of front speaker changes from red to green.
• Do not turn on the surround speakers yet at this point. The colour of [WIRELESS LINK] indicator does not change from red to
green even if the power is turned on.
7. Press and hold [CH] on the remote control about 3 seconds until “4 SPKR SET ” is
displayed on the main unit’s display.
• Always aim the remote control at the main unit for operation.
Front speaker
(left)
Surround
speaker (left)
Front speaker
(right)
Surround
speaker (right)
When the sound is
output from the front
speaker (left),
press [GAME].
When the sound is
output from the surround
speaker (left), press
[–SETUP, OFF].
GAME
–SETUP,
OFF
MUTE
RETURN
When the sound is output
from the front speaker
(right), press [MUTE].
When the sound is output
from the surround speaker
(right), press [ RETURN].
Speaker setting
8. Press the remote control button corresponding to the speaker outputting the confirmation
sound.
• Sound is output from either of the speakers.
• When you press the button corresponding to the confirmation sound of speaker, another speaker outputs confirmation sound.
Press the corresponding button in the same way and complete settings for all 4 speakers.
• When “COMPLETE ” disappears on the main unit’s display, the speaker setting is complete.
Note
• Check if the speakers are properly set after setting the speakers. (➜ page 16)
• If the speakers are set incorrectly in step 8, turn the main unit off then on again and perform steps 7 and 8.
• If [WIRELESS LINK] indicator does not change from red to green, see page 29 of “Troubleshooting guide”.
Changing the number of speakers to 4
1. Press and hold [–SETUP, OFF] for about 2 seconds.
The setting items are displayed. (➜ page 23)
2. Press [w][q] to select “SPEAKERS ” and press [OK].
3. Press [e][r] to select “4CH ” and press [OK].
2CH : When only front speakers are installed (factory setting)
4CH : When surround speakers are additionally installed
• When changing the number of speakers to 2, select “2CH ” and press [OK].
4. Press [e][r] to select “YES ” and press [OK].
• To cancel, select “NO ”.
5. Press [ RETURN] several times to select “EXIT ” and press [OK]
to finish the setting.
„ To return to the previous display/
To cancel during setting operation:
Note
Press [ RETURN].
When you select “EXIT ” and press [OK] in step 2, the setting mode finishes.
17
VQT2R71
Enjoying movies and music
Preparations • Turn on the TV and switch its input to match the connection (HDMI, for example) using the TV’s remote control.
• Make sure that the speakers are on. (The following are operations when the unit on/off
button is on in Wireless link standby.)
Point the remote control at the
signal sensor (➜ page 8) on the
main unit of this system.
1
2
Press this button to turn on the
system.
To select the source press one of these
buttons.
or
Enjoying movies and music
or
TV
BD/DVD
AUX 1
AUX 2
AUX 3
: TV (optical, analogue)
: Blu-ray Disc player/DVD recorder (HDMI)
: AUX1 IN terminal (HDMI)
: AUX2 IN terminal (optical)
: AUX3 IN terminal (analogue)
„ “AUX 1”, “AUX 2”, and “AUX 3” switch every time you
press [AUX].
3
4
Start play on the connected equipment.
„ You can enjoy a variety of surround effects. (➜ page 19)
To adjust the volume press these
buttons.
Adjustment range: 0 (Min) to 50 (Max)
„ After playback, reduce the volume level and turn off.
Operation on the main unit
1
2
Turn on the system.
Press
Select the source.
Press INPUT SELECTOR
Play
(The input source switches each time you
press the button.)
TV
BD/DVD
AUX 1
AUX 2
AUX 3
3
4
: TV (optical, analogue)
: Blu-ray Disc player/DVD recorder (HDMI)
: AUX1 IN terminal (HDMI)
: AUX2 IN terminal (optical)
: AUX3 IN terminal (analogue)
Start play on the connected
equipment.
To adjust the volume.
Turn
18
VQT2R71
Note
• See page 29 for digital signals that can be played on this system.
• Depending on the playback signal, you may feel the volume of the bass or surround speakers (not supplied) is not balanced
with the volume of the front speakers. In this case, you can adjust the speaker volume during playback. (➜ page 22)
• Even if you switch input to “TV ”, images (or audio) of the equipment connected to BD/DVD IN terminal or AUX1 IN
terminal are output from TO TV (ARC) terminal. When the equipment is connected to both BD/DVD IN terminal and
AUX1 IN terminal, signals of equipment whose input is lastly selected are output.
• When using a DVD recorder with built-in VCR (with the DVD output terminal and DVD/VHS output terminal
mounted), select the input as follows in step 2 above.
To enjoy DVD (when connected to AUX2 IN): select “AUX 2 ”.
To enjoy video (when connected to AUX3 IN): select “AUX 3 ”.
Enjoying sound field effects
Dolby Virtual Speaker
You can enjoy surround effects as if you were listening to
5.1-channel sources. (Dolby Pro Logic also works for
stereo signals of video, CD, etc.)
„ Using Dolby Virtual Speaker
• The mode switches each time you
press the button. (➜ below)
Press
REFERENCE
(Standard mode)
Standard sound effect.
WIDE (Wide mode)
Broadens the effect to the left and
right.
SFC (Sound Field Control)
You can enjoy more dynamic and broader surround
effects when using SFC with Dolby Digital, DTS and
stereo signals (video, CD, etc.).
„ Using SFC (Sound Field Control)
You can enjoy by adding your favourite surround effect to the
Dolby Virtual Speaker (➜ above) effect.
VIRTUAL SPEAKER] (➜ abobe)
MUSIC
LIVE
Sound reflection and spread as if
you were in a large concert hall.
POP/ROCK
Best suited for pop and rock music.
VOCAL
Vocal effect offering a sense of
actually being there and listening.
JAZZ
Sound reflections as if you were in a
small Jazz club.
DANCE
• The surround effects disappear for 2-channel sources such as
CD and TV.
• When the input signals are multi-channel LPCM or surround
digital signals such as Dolby Digital or DTS, those signals are
converged and are output from left and right front speakers.
When you use surround speakers, the surround playback
(➜ below) is achieved.
• The condition before the sound field effect is cancelled is
restored when you turn the unit off/on, switch input sources or
plug/unplug the headphones.
When connecting the surround speakers
Surround playback
Multi-channel signals are distributed to left and right
front speakers, and left and right surround speakers to
output.
SFC (Sound Field Control) (➜ left)
„ Using SFC (Sound Field Control)
Press
• The mode switches each time you
press the button. (➜ left)
To cancel SFC mode
To cancel SFC mode
Press [
Press
Sound spread echoing in a large
space such as a dance hall.
MOVIE
NEWS
Best suited for dialogues in news
and drama movies.
ACTION
Best suited for action movies with
impact.
STADIUM
Enjoy the feeling of being at a live
sporting event.
MUSICAL
Enjoy the feeling of being at a live
musical performance.
GAME
Enjoy games with greater audio
impact.
MONO
Enjoy older monaural audio movies.
Press [–SETUP, OFF] (➜ above)
Dolby Pro Logic
You can enjoy 2-channel sources such as CD with the
surround effect.
„ Using Dolby Pro Logic
Press
To cancel Dolby Pro Logic
Play
Press
• The mode switches each time you
press the button. (➜ below)
Cancelling sound field effects
Enjoying movies and music
Sound field effects differ depending on input sources.
Select the mode you prefer after listening to the actual
sound.
Press [–SETUP, OFF] (➜ above)
Note
• See page 6 about how to display the surround digital signal/
sound field.
• If the input signal is 2-channel, Dolby Virtual Speaker also
works in conjunction by pressing [
PL ]. (Only when not
connecting the surround speakers)
• You cannot use Dolby Virtual Speaker, Dolby Pro Logic and
SFC when the source contains PCM signals with sampling
frequencies of over 48 kHz. They are automatically cancelled
if those signals are input. To use the effect when playing back
other sources, press [
VIRTUAL SPEAKER], [
PL ]
or [SFC MUSIC, MOVIE] again to select.
• You can also press [GAME] on the remote control to select
“GAME ” mode (➜ left) of SFC. (➜ page 22)
• When using the surround speakers, Dolby Pro Logic cannot
be used for surround signals such as Dolby Digital and DTS,
and multi-channel LPCM signals.
• When playing back 7.1-channel LPCM signals, you can enjoy
wider sound field effects as if another speaker is added.
You can make the setting without using this effect. (➜ page
24)
19
VQT2R71
Using the VIERA Link “HDAVI Control™”
What is VIERA Link “HDAVI Control” ?
VIERA Link “HDAVI Control” is a convenient function that offers linked operations of this system,
and a Panasonic TV (VIERA) or Blu-ray Disc player/DVD recorder (DIGA) under “HDAVI Control”.
You can use this function by connecting the equipment with the HDMI cable. See the operating
instructions for connected equipment for operational details.
Using the VIERA Link “HDAVI Control™”
• VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI
CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other
manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
• This system supports “HDAVI Control 4” function.
“HDAVI Control 4” is the newest standard (current as of February, 2010) for Panasonic’s HDAVI Control compatible equipment.
This standard is compatible with Panasonic’s conventional HDAVI equipment.
• Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.
What you can do with VIERA Link “HDAVI Control”
Use the remote control of TV (VIERA) for operation. Operations differ depending on the
type of TV.
• The following illustrations and displays are examples, which may differ from the actual product.
• When you do operations other than the following, use this system’s remote control.
• See operating instructions of TV (VIERA) as well.
1. You can select “Speaker Selection” (“Home Cinema” or “TV”).
TV (VIERA)
Speaker
Home Cinema
When audio is input, the main unit will be automatically
turned on if it is in standby✽ mode and the sound is
output from this system’s speaker. You can also adjust
the volume level by using the volume control buttons.
✽ “Standby” condition means the condition that the
main unit is off.
Speaker
Main unit
Remote control of TV (VIERA)
Play
TV
TV (VIERA) speakers become active.
When using with the Panasonic TV (VIERA) supporting
HDAVI Control 4 or later version, the main unit is
automatically turned off. (Intelligent Auto Standby)
See operating instructions for TV (VIERA) as well.
2. When you switch off the TV (VIERA), the main unit automatically turns off.
off
off
When the VIERA Link “HDAVI Control” compatible
Blu-ray Disc player/DVD recorder (DIGA) is connected
with HDMI cable, the Blu-ray Disc player/DVD recorder
(DIGA) also turns off.
Note
• When using with Panasonic TV (VIERA) supporting HDAVI Control 4 or later version, when the main unit is turned on, TV (VIERA)
is set to “Home Cinema”.
When using with Panasonic TV (VIERA) supporting HDAVI Control 3 and older version, when the main unit is turned on, “TV
SPEAKER ” is displayed and audio is output from TV (VIERA).
• When using with Panasonic TV (VIERA) supporting HDAVI Control when the main unit is turned off, TV (VIERA) is set to “TV”.
• If you perform operations such as selecting a channel on the remote control of TV (VIERA), this system’s input is switched to “TV ”.
• When you play back the Blu-ray Disc player/DVD recorder (DIGA) etc. connected to BD/DVD IN terminal or AUX1 IN terminal, this
system’s input is automatically switched to “BD/DVD ” or “AUX 1 ”.
20
VQT2R71
For correct use of VIERA Link “HDAVI Control”
Use TV (VIERA)’s remote control to select “Home Cinema” without turning
on the main unit with this system’s standby/on button (including the remote
control). (The main unit is automatically turned on.)
• See operating instructions of TV (VIERA) as well.
Connect this system with VIERA Link “HDAVI Control” compatible TV (VIERA) and Blu-ray
Disc player/DVD recorder (DIGA) with an HDMI cable.
Digital audio
out (optical)
This connection is necessary to
connect with TV incompatible
with ARC.
In order to enjoy TV sounds.
Main unit
HDMI input
TV (VIERA)
Make sure to connect
to TO TV (ARC) .
HDMI
Video/Audio
OUT
HDMI
Video/Audio
OUT
VIERA Link
“HDAVI
Control”
compatible
equipment
Blu-ray Disc
player/DVD
recorder (DIGA)
HDMI cable notes
• Please use High Speed HDMI Cables that have the HDMI logo (as shown on the cover).
• Using the High Speed HDMI cable is recommended for viewing HD picture (1080p).
• It is recommended that you use Panasonic’s HDMI cables. (Non-HDMI-compliant cables cannot be utilised.)
Recommended part number: RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m), RP-CDHS50 (5.0 m), etc.
Note
See the operating instructions for the TV (VIERA) for VIERA Link “HDAVI Control” operation of connected equipment.
Using the VIERA Link “HDAVI Control™”
Connection
Setup
Preparations: Check “VIERA Link “HDAVI Control” setting” (➜ page 25) of this system is “ON ”. Make the
setting to activate VIERA Link “HDAVI Control” function in the menu operation of TV (VIERA).
1. Turn on all equipment other than the TV (VIERA).
2. Turn on the TV (VIERA).
3. Switch TV (VIERA) input to the HDMI terminal that this system is connected to.
4. Ensure that pictures from the Blu-ray Disc player/DVD recorder (DIGA), etc. are shown correctly after
this system’s input is switched to “BD/DVD ” or “AUX 1 ”.
Play
Note
Make this setting in the following cases.
• When this system is connected for the first time after purchase
• When adding or reconnecting equipment
• When changing the settings for “Reducing standby power consumption (In standby condition (HDMI off mode))” (➜ page 24)
and “VIERA Link “HDAVI Control” setting” (➜ page 25)
When not using this function
Set “VIERA Link “HDAVI Control” setting” to “OFF ”. (➜ page 25)
21
VQT2R71
Functions and settings
Using “WHISPER-MODE SURROUND”
This function is effective during surround playback only. You can enjoy the dynamic effect
even if the sound volume level is low during surround playback.
Press [WHISPER-MODE SURROUND] to select “W.S. ON ”.
• The current setting is displayed first.
Each time you press, the setting switches between “W.S. OFF ” and “W.S. ON ”.
„ To cancel
Press [WHISPER-MODE SURROUND] to select “W.S. OFF ”.
Note
• WHISPER-MODE SURROUND is not effective in the following cases.
When not using the surround speakers:
When Dolby Virtual Speaker is off.
When using the surround speakers:
When Dolby Pro Logic and SFC are off with 2-channel signal input.
• If the above setting is made when this function is on, this function temporarily becomes off.
Using “GAME”
Functions and settings
Enjoy gaming with more dynamic sound.
Press [GAME].
• “GAME ” mode (➜ page 19) in SFC is selected.
„ To cancel
Press again.
If cancelled, SFC’s effect itself is cancelled.
Muting
“MUTE ” blinks on the display while the volume is muted.
Press [MUTE].
„ To cancel
Press again.
Note
To return to the previous
display/To cancel during setting
operation (➜ page 23): Press
[ RETURN].
• Muting is cancelled when you switch the system to standby.
• Muting is also cancelled when you adjust the volume.
Adjusting the bass (woofer part) output
When you feel the bass volume is not balanced with the volume of the front speakers, you
can adjust the bass during playback.
1. Press [CH] to select “WFR ”.
Play
(The speaker is switched each time you press the button.)
WFR (woofer) → RS (surround right) (when used) → LS (surround left) (when used)
2. Press [SPEAKER LEVEL +, –] to adjust the bass volume.
Adjustment range: MIN, 1 to 15, MAX
Adjusting the surround speaker output
When using the surround speakers, you can adjust them, too.
1. Press [CH] to select “RS ” or “LS ”.
(The speaker is switched each time you press the button.)
WFR (woofer) → RS (surround right) → LS (surround left)
2. Press [SPEAKER LEVEL +, –] to adjust the volume of each
speaker.
Adjustment range: –10 to +10
„ Repeat steps 1 and 2 to adjust the level of each speaker.
Note
22
VQT2R71
• You cannot adjust the front speakers with this operation. To adjust the volume balance
of left and right front speakers, see “Adjusting the volume balance of front speakers”.
(➜ page 23)
• If the sound is distorted, lower the level.
• You cannot adjust the output level of speakers if the sound field effect is off and the
speakers’ audio output is set to off. (➜ page 19)
• You can adjust the speaker’s output level in SFC’s each mode respectively. (➜ page 19)
• When a commercially available active subwoofer is connected to the subwoofer output
terminal on this unit’s rear panel, the subwoofer is synchronized with the unit and the
sound volume is adjusted.
1. Press [TEST] to output the test signal.
Speaker display
L : Front left, R : Front right,
RS : Surround right, LS : Surround left
• The test signal is output from one speaker at a time for two
seconds in the following order.
TEST L → TEST R → TEST RS → TEST LS
2. Press [VOL
+, –] to adjust the volumes
of front speakers to the normal listening
level.
Adjustment range: 0 (Min) to 50 (Max)
3. Press [CH] to select surround speakers
for adjustment.
4. Press [SPEAKER LEVEL +, –] to adjust
each speaker’s output level.
Adjustment range: RS, LS : –10 to +10
• The test signal comes from the speaker being
adjusted.
• The test signal is output again in above the order 2
seconds after adjustment.
„ Repeat steps 3 and 4 to adjust the level of each speaker.
5. Press [TEST] to stop the test signal.
Note
• You can check the audio output of the front speakers.
(➜ page 16) (When the surround speakers are not used, only
“TEST L ” and “TEST R ” are displayed and the test signal is
output alternately.)
• To adjust the volume balance of left and right front speakers,
see “Adjusting the volume balance of front speakers”
(➜ right).
• Even if you adjust each channel level in this adjustment, each
channel level setting in each SFC mode (➜ page 19) does
not change.
• When you make this adjustment, Dolby Virtual Speaker
functions. When playing 2-channel sources, Dolby Pro Logic
also works in conjunction. (➜ page 19)
• To adjust the bass volume, do not output the test signal for
adjustment. (➜ page 22)
✽
“BASS”
“TREBLE”
✽
“DISTANCE”
“7.1CH VS”
“STB AUDIO”
✽
“BALANCE”
“SPEAKERS”
✽
“HDMI”
✽
“SOUND DLY”
“DUAL PRG”
“DRCOMP”
“ATTENUATOR”
“REMOTE”
“INPUT MODE”
“RESET”
“EXIT”
• ✽ appears only when audio adjustment can be made.
• Select “EXIT ” and press [OK] to finish the setup mode.
Adjusting sound quality
You can adjust the level of bass and treble.
This setting is effective only when you perform stereo playback
of 2-channel analogue and PCM signals (during Dolby Virtual
Speaker and Dolby Pro Logic are off).
This setting is not displayed in other conditions. Be sure to make
the setting in the above condition.
1. Press and hold [–SETUP, OFF] for about
2 seconds.
The setting items are displayed. (➜ above)
2. Press [w][q] to select “BASS ” or
“TREBLE ” and press [OK].
3. Press [e][r] for adjustment, and press
[OK].
Functions and settings
You can make this setting when using the surround speakers.
You can adjust the surround speaker volume by outputting the
test signal.
„ Setup menu items
Adjustment range: –6 to +6
Factory setting: 0
4. Press [ RETURN] several times to select
“EXIT ” and press [OK] to finish the
setting.
Adjusting the volume balance of
front speakers
You can adjust the balance of the front speakers.
Play
Adjusting the surround speaker
output using the test signal
1. Press and hold [–SETUP, OFF] for about
2 seconds.
The setting items are displayed. (➜ above)
2. Press [w][q] to select “BALANCE ” and
press [OK].
3. Press [w][q] for adjustment, and press
[OK].
L : Front left
R : Front right
Move the bar to left and right on the display to adjust.
• As the bar gets closer to “L ”, the sound moves to left
front.
• As the bar gets closer to “R ”, the sound moves to
right front.
4. Press [ RETURN] several times to select
“EXIT ” and press [OK] to finish the
setting.
Note
• The bar indication is approximate.
• When using headphones, you cannot adjust the volume
balance.
23
VQT2R71
Functions and settings
Setting distances
You can make this setting when using the surround speakers.
This setting is not displayed under different conditions.
By setting the distance from front/surround speakers to the listening-viewing position, the
sound delay time is automatically calculated and adjusted so that sound reaches the listener
at the same time.
1. Press and hold [–SETUP, OFF] for about 2 seconds.
The setting items are displayed. (➜ page 23)
2. Press [w][q] to select “DISTANCE ” and press [OK].
3. Press [w][q] to select a speaker to set and press [OK].
FRONT : Front speakers
SURR : Surround speakers
4. Press [e][r] to select the distance and press [OK].
Functions and settings
Adjustment range: 1.0 to 10.0 m
Factory setting : Front
3.0 m
Surround 1.5 m
5. Press [ RETURN] several times to select “EXIT ” and press
[OK] to finish the setting.
Note
Radio waves from this system reach maximum range of 15 m within the same room.
Setting 7.1-channel virtual surround
When playing back 7.1-channel LPCM signals, you can enjoy wider sound field effects as if
another speaker is added. Factory setting is “AUTO ”.
When you do not want to use 7.1-channel virtual surround effect, select “OFF ” in this setting.
1. Press and hold [–SETUP, OFF] for about 2 seconds.
The setting items are displayed. (➜ page 23)
Play
To return to the previous
display/To cancel during setting
operation: Press [ RETURN].
2. Press [w][q] to select “7.1CH VS ” and press [OK].
3. Press [e][r] to select “OFF ” and press [OK].
AUTO : The setting is switched between ON and OFF depending on the input
signals.
Only when 7.1-channel LPCM signals are input, 7.1-channel virtual surround
is ON (When other signals are input, this setting is OFF.).
OFF : 7.1-channel virtual surround is always OFF.
Factory setting : AUTO
4. Press [ RETURN] several times to select “EXIT ” and press
[OK] to finish the setting.
Reducing standby power consumption
(In standby condition (HDMI off mode))
Standby through function (➜ pages 10 and 30) does not work in this mode if you have
connected through the HDMI terminal.
VIERA Link “HDAVI Control” (➜ page 20) will not function when this system is off.
1. Press and hold [–SETUP, OFF] for about 2 seconds.
The setting items are displayed. (➜ page 23)
2. Press [w][q] to select “HDMI ” and press [OK].
3. Press [w][q] to select “STNBY ” and press [OK].
4. Press [e][r] to select “OFF ” and press [OK].
OFF : Standby power consumption reduced
(approx. 0.2 W)
ON : “Standby through” is activated when this system is turned off. (Normal power
consumption)
Factory setting: ON
5. Press [ RETURN] several times to select “EXIT ” and press
[OK] to finish the setting.
24
VQT2R71
1. Press and hold [–SETUP, OFF] for about
2 seconds.
The setting items are displayed. (➜ page 23)
2. Press [w][q] to select “HDMI ” and press
[OK].
3. Press [w][q] to select “CTRL ” and press
[OK].
4. Press [e][r] to select “ON ” or “OFF ”
and press [OK].
ON : When the operation is linked
OFF : When the operation is not linked
Factory setting: ON
5. Press [ RETURN] several times to select
“EXIT ” and press [OK] to finish the
setting.
Note
When “CTRL OFF ” is set, the ARC function will be disabled.
Be sure to make the optical digital connection or analogue
connection. (➜ page 10)
Adjusting the time lag between
audio and video by delaying
audio output
You can reduce audio and video time lag by adjusting sound
delay.
1. Press and hold [–SETUP, OFF] for about
2 seconds.
The setting items are displayed. (➜ page 23)
2. Press [w][q] to select “SOUND DLY ” and
press [OK].
3. Press [e][r] to select the setting and
press [OK].
AUTO, OFF, 10, 20, 30, 40, 60, 80, 100, 120, 140, 160,
180, 200
Factory setting: AUTO
4. Press [ RETURN] several times to select
“EXIT ” and press [OK] to finish the
setting.
Note
• If delaying audio output is not necessary, select “OFF ”.
• “AUTO ” is effective only when connecting the Panasonic TV
(VIERA) supporting HDAVI Control 3 and later versions. (Auto
Lip Synchronization Function)
• When you connect the Panasonic TV incompatible with
HDAVI Control 3 and later versions or non-Panasonic TV, if
“AUTO ” is set, “40 ” (msec) is set.
You can switch between dual sounds of Dolby Digital signals.
1. Press and hold [–SETUP, OFF] for about
2 seconds.
The setting items are displayed. (➜ page 23)
2. Press [w][q] to select “DUAL PRG ” and
press [OK].
3. Press [e][r] to select the audio and press
[OK].
M1 : Main audio M2 : Sub channel audio output
M1+M2 : Main + Sub channel audio output
Factory setting : M1
4. Press [ RETURN] several times to select
“EXIT ” and press [OK] to finish the
setting.
Clear audio at low volume
Dynamic range compression function for Dolby Digital.
It compresses the dynamic range so that you can still hear
dialogue and leave the sound field unaffected.
Use this function when you have to turn the volume down, such
as late at night.
1. Press and hold [–SETUP,OFF] for about
2 seconds.
The setting items are displayed. (➜ page 23)
2. Press [w][q] to select “DRCOMP ” and
press [OK].
3. Press [e][r] to select the setting and
press [OK].
Functions and settings
When you do not wish to use VIERA Link “HDAVI Control”
(➜ page 20), you can set the unlinked operation by selecting
“OFF ”.
The normal setting is “ON ” (Linked operation).
Switching between dual sounds
OFF : Normal playback
STANDARD : The best suited playback for each audio
source
MAX : Always compressed at the maximum level
Factory setting : OFF
4. Press [ RETURN] several times to select
“EXIT ” and press [OK] to finish the
setting.
Play
VIERA Link “HDAVI Control”
setting
Switching the attenuator
Switch the attenuator “ON ” when big sounds become distorted
while playing an analogue input source.
1. Press and hold [–SETUP, OFF] for about
2 seconds.
The setting items are displayed. (➜ page 23)
2. Press [w][q] to select “ATTENUATOR ”
and press [OK].
3. Press [e][r] to select “ON ” and press
[OK].
ON, OFF
Factory setting : OFF
4. Press [ RETURN] several times to select
“EXIT ” and press [OK] to finish the
setting.
25
VQT2R71
Functions and settings
Switching the input signal detection setting
Most sources can be played with “AUTO ” (factory setting).
However, in the following cases, change the input signal detection setting.
• When the beginning of the song is cut during playback of CD, set to “PCM ” (PCM FIX).
• When the signal is not detected during playback of DTS sources, set to “DTS ” (DTS FIX).
• When noise occurs, return the setting to “AUTO ”.
1. Press and hold [–SETUP, OFF] for about 2 seconds.
The setting items are displayed. (➜ page 23)
2. Press [w][q] to select “INPUT MODE ” and press [OK].
3. Press [w][q] to select the input and press [OK].
Input: TV, DVD, AUX1, AUX2
4. Press [e][r] to select the detection method of input signal
and press [OK].
Functions and settings
AUTO : Automatic detection
PCM : PCM (from CDs) digital input fixed
DTS : DTS digital input fixed
Factory setting: AUTO
„ Repeat steps 3 and 4 to change setting.
5. Press [
RETURN] several times to select “EXIT ” and press [OK] to finish the setting.
Reset (factory settings)
The operation settings for the system will be initialised to the settings made at the time of shipment.
1. Press and hold [–SETUP, OFF] for about 2 seconds.
The setting items are displayed. (➜ page 23)
2. Press [w][q] to select “RESET ” and press [OK].
3. Press [e][r] to select “YES ” and press [OK].
YES : Choice for resetting
• To cancel, select “NO ”.
NO : Choice against resetting
Note
To return to the previous
display/To cancel during setting
operation: Press [ RETURN].
• All the settings are reset when you select “YES ” and the input selector automatically
switches to “BD/DVD ”.
• If you select “NO ”, you will return to step 2. To exit setup mode, press [ RETURN] a few
times to display “EXIT ”, and then press [OK].
• The contents of speaker setting are not reset. However, the contents set at “Changing the
number of speakers to 4” (➜ page 17) are reset.
Play
When other equipment (mini component system, AV amp, etc.) manufactured
by Panasonic operates with the remote control operations of this system
When using this system’s remote control, other equipment may operate. In this case, switch
this system’s remote control code to “REMOTE 1 ”. Do the following to set the same code
number for this main unit and remote control.
Setting the main unit
1. Press and hold [–SETUP, OFF] for about 2 seconds.
The setting items are displayed. (➜ page 23)
2. Press [w][q] to select “REMOTE ” and press [OK].
3. Press [e][r] to select “1 ” and press [OK].
Factory setting : 2
• You cannot finish the setting mode until the setting on the remote control is
changed. Go to step 4.
• To set the remote control code to 2, select “2 ” in step 3 and press [OK].
Setting the remote control
4. Press and hold [OK], and then press [TV] (more than 2 seconds).
TV: Remote control code 1
BD/DVD: Remote control code 2 (factory setting)
• Select the same number as the code number you have selected in step 3.
• To set the remote control code to 2, press and hold [OK] in step 4, and then press
[BD/DVD] more than 2 seconds.
5. Press [
RETURN] several times to select “EXIT ” and press [OK] to finish the setting.
Note
26
VQT2R71
If different codes are set between the main unit and remote control, the error message
“REMOTE 2 ” or “REMOTE 1 ” is displayed.
Error messages
Check point/Cause/Countermeasure
Pages
CANCEL MUTE FUNCTION
(Scrolling)
• The test signal is not output while muting is on.
Cancel muting for operation.
22
MUTE (Blinking)
• This is always displayed while muting is on.
22
NOT POSSIBLE FOR
THIS INPUT SOURCE (Scrolling)
• You cannot use Dolby Virtual Speaker, SFC and Dolby Pro Logic
sounds.
for dual
—
NOT POSSIBLE FOR
THIS PCM SOURCE (Scrolling)
• You cannot use Dolby Virtual Speaker, SFC and Dolby Pro Logic
PCM signals with sampling frequency of over 48 kHz.
effect with
19
NOT POSSIBLE WHEN USING
HEADPHONES (Scrolling)
• You cannot use the sound field effects when using headphones.
26
REMOTE 2
REMOTE 1
• Set the same remote control code for this main unit and remote control. When “REMOTE 2 ”
is displayed, set the code to “2 ” on the remote control in step 4 of procedure “When other
equipment (mini component system, AV amp, etc.) manufactured by Panasonic operates
with the remote control operations of this system”. When “REMOTE 1 ” is displayed, set the
code to “1 ” on the remote control in step 4 in the same way.
SWITCH OFF POWER
(Scrolling)
• While “F70 …………” is displayed, all operations but turning ON/OFF operation are not
available. Turn off the system, unplug the AC mains lead, and consult your dealer.
—
TURN OFF DTS FIX MODE
(Scrolling)
• When each input is fixed to DTS (DTS FIX), the sound field effects cannot be
cancelled even if you press [–SETUP, OFF]. Cancel DTS FIX.
26
U701
• The equipment connected by the HDMI cable is not compatible with this
system’s copyright protection technology.
—
—
U703
• A problem has occurred with the HDMI connection. Try the following to correct
the problem. Consult your dealer if the error code remains on the display.
– Turn the connected equipment off and on again.
– Disconnect the HDMI cable then reconnect it.
– Do not connect more than 2 sets of equipment to this system’s output.
U704
• The system received incompatible video signals through HDMI connection.
Check the settings of the connected equipment.
—
below
Using with headphones
Turn down the volume as closest as to the minimum value.
• Plug type: ø 3.5 mm stereo mini plug
W (Headphone) jack
Headphones
(not supplied)
Specifications
Note
• Avoid listening for prolonged periods of time to prevent hearing
damage.
• Multi-channel signals are forcibly converged to 2-channel and
output. (2CH MIX)
However, for DVD audio, the front left and right signals are output.
• Excessive sound pressure from earphones and headphones can
cause hearing loss.
Power supply differ depending on the symbols (E, GN, GS) indicated on the packaging box.
MAIN UNIT
g PRE AMPLIFIER SECTION
Input sensitivity / Input impedance
TV, AUX3
600 mV / 47 kΩ
S/N ratio (IHF A)
BD/DVD, TV, AUX1,
AUX2 (Digital Input)
80 dB (IHF ’66)
Tone controls
BASS
50 Hz, + 6 to – 6 dB
TREBLE
20 kHz, + 6 to – 6 dB
Input/Output terminal
AUDIO IN
( TV, AUX3 )
DIGITAL AUDIO IN
OPTICAL 1, 2 ( TV, AUX2 )
AUDIO OUT
( FRONT L/R, SURROUND L/R )
SUBWOOFER OUT
HEADPHONE OUT
( 16 to 64 Ω )
AV
HDMI IN ( BD/DVD, AUX1 )
HDMI OUT ( TO TV (ARC))
This system supports “HDAVI Control 4” function.
2
2
4
1
1
2
1
g MAIN UNIT GENERAL
Power supply
For E, GN AC 220 to 240 V, 50 Hz
For GS AC 110 to 240 V, 50/60 Hz
Power consumption
16 W
In standby condition
In standby condition ( HDMI off mode )
0.5 W
0.2 W
Dimensions ( W x H x D )
430 mm x 59 mm x 262 mm
Mass
Approx. 2 kg
Operating temperature range
0 °C to 40 °C
Operating humidity range
20 % to 80 % RH (no condensation)
g WIRELESS SECTION
Frequency of the using band
2.4000 GHz to 2.4835 GHz
Number of using channels
3
The reaching distance
15 m∗1
∗1 It is under the condition as follows.
At same room indoor, there is not an obstacle
between the main unit and the speaker.
And installing a main unit in the position with
equal to or more than 50 cm height.
SPEAKER
g POWER AMPLIFIER SECTION∗2
RMS output power (at AC 220 to 240 V)
10 % total harmonic distortion
Woofer Speaker ch
60 W (100 Hz, 3 Ω)
Mid High Speaker ch
20 W (1 kHz, 8 Ω)
∗3
160 W (80 W + 80 W)
System Total Power
DIN output power (at AC 220 to 240 V)
1.0 % total harmonic distortion
100 Hz Woofer Speaker ch
40 W (3 Ω)
1 kHz Mid High Speaker ch
15 W (8 Ω)
∗3
110 W (55 W + 55 W)
System Total Power
∗2
g SPEAKER SECTION
2 way 5 speakers system (Bass reflex type)
Woofer part
12 cm cone type × 1
Mid High part
2.4 × 10 cm flat type × 4
∗2
g SPEAKER GENERAL
Power supply
For E, GN AC 220 to 240 V, 50 Hz
For GS AC 110 to 240 V, 50/60 Hz
Power consumption
20 W
Wireless link standby
In standby condition
0.8 W
0.15 W
Dimensions ( W x H x D ) 290 mm × 1231 mm × 290 mm
Mass
Approx. 3.9 kg
Operating temperature range
0 °C to 40 °C
Operating humidity range
20 % to 80 % RH (no condensation)
∗2 : per 1 speaker
∗3 : use 2 speakers
Note: 1. Specifications are subject to change
without notice.
2. Total harmonic distortion is measured by
the digital spectrum analyser.
3. Total harmonic distortion is measured by
using AES17 filter.
Troubleshooting and
Error messages/Using with headphones/Specifications
other information
Display
27
VQT2R71
Troubleshooting guide
Before requesting service, make the following checks.
If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, consult your
dealer for instructions.
28
VQT2R71
Sound field
HDMI
Troubleshooting and Troubleshooting guide
other information
Common problems
Problem
Possible solution
No power.
• Ensure the AC mains lead connected.
“2CH SEARCH ” or “4CH
SEARCH ” does not go off
on the display while setting
the speakers.
• Make sure that the speakers are on.
If the display does not go off even when the speakers are on, consult your
dealer.
No sound or image after
playback starts.
• Select the correct source.
• Turn the muting off.
• Check that the digital signals can be decoded by this system.
With the optical fibre connection, cannot playback PCM signal with sampling
frequency of over 96 kHz.
• Check connections to other equipment.
• (When the audio is not heard from TV) The optical fibre cable or stereo phono
cable is necessary to connect with a TV incompatible with ARC. For details,
refer to the operating instructions for the connected TV.
• Set “AUTO ” in “Switching the input signal detection setting”.
• Turn this system off then on again.
• Make sure that the speakers are on.
• Make sure that the speakers have been properly set.
• Adjust the speakers.
• If the connections are normal, this may be a cable-related problem. Use other
cables and make connections again.
Pages
14
15, 17
18
22
29
10 to 13
10
26
—
15, 17
16
22, 23
—
The remote control does
not work.
• Replace the batteries if they are worn.
• Make sure the remote control code has been properly set.
No sound from microphone
connected to DVD player (karaoke).
• No sound is output from microphone if this system is digitally connected with DVD player.
Change to analogue connection and input. Make analogue connection to AUX3 IN.
There is no DTS audio output.
There is audio output, but the
DTS decoder indicator is not lit.
• Set the DTS Digital Audio Output setting on the DVD player, Blu-ray Disc
player or DVD recorder to Bitstream.
• Set “DTS ” in “Switching the input signal detection setting”.
Sound is not heard when
playing DVD audio.
• This may occur due to digital copyright protection of the disc if using optical
digital connection. This system may not be able to play sources with sampling
frequency of over 48 kHz.
—
“F70 ††††” appears on
the display.
(“DSP ” or “HDMI ” is
displayed in †.)
• Turn off the system, unplug the AC mains lead, and consult your dealer.
—
“F76 ” appears on the display.
(After displayed, the system
turns off.)
• Unplug the AC mains lead, and consult your dealer.
—
No sound in surround
mode.
• Set to Dolby Virtual Speaker, Dolby Pro Logic or SFC.
• (When the audio is not heard from TV) Check if this system is connected to TV
with the optical fibre cable or the stereo phono cable properly.
Cannot use Dolby Virtual
Speaker, Dolby Pro Logic
or SFC.
• You cannot use these features with PCM signals with sampling frequency of
over 48 kHz. Make analogue connection to AUX3 IN.
• You cannot use for Dolby Digital dual sounds.
When using an HDMI
connection, the first few
seconds of sound is cut off.
• This may occur if you start play from a chapter on a DVD. The following will
correct the problem.
1 Change the audio output setting on the Blu-ray Disc player, DVD recorder or
DVD player from Bitstream to PCM .
2 Change input signal setting to “PCM ” in “Switching the input signal detection setting”.
8
26
12, 13
—
26
19
10 to 12
12, 13
—
—
26
The system does not work
properly.
• The system does not work properly if you have connected the HDMI input and output terminals
incorrectly. Turn the system off, unplug the AC mains lead, and make the connection again.
10
Could watch TV (VIERA)
when installed, but now
cannot watch TV.
• When using this system in combination with TV (VIERA) only, check if HDMI
cable is not connected to “BD/DVD IN” or “AUX1 IN” of this system. If it is
connected to “BD/DVD IN” or “AUX1 IN”, connect to “TO TV (ARC)”.
—
The sounds of the first few
seconds are cut off when
playing back 7.1-channel
LPCM signals.
• This may occur when playing back 7.1-channel LPCM signals of a Blu-ray
disc. Press [u SKIP] on the remote control of recorder or player to play back
again from the beginning.
—
Possible solution
Pages
25
VIERA Link
“HDAVI Control” does
not function properly.
• Confirm “VIERA Link “HDAVI Control” setting” is set to “ON ” (when the
operation is linked).
When it is “OFF ”, change to “ON ”.
• VIERA Link “HDAVI Control” does not function in standby condition (HDMI off mode)
when this system is turned off. See “Reducing standby power consumption (In standby
condition (HDMI off mode))” and set to “ON ” (normal power consumption).
• Check VIERA Link “HDAVI Control” settings of the connected equipment.
• VIERA Link “HDAVI Control” may not function when you change the
connections for HDMI equipment, insert and remove the outlet, or during
blackout. Do the following operations in this case.
– Turn on the TV (VIERA) again while all the equipment connected with HDMI
cables is on.
– Set “VIERA Link “HDAVI Control” (HDMI equipment control)” of TV (VIERA)
to “OFF” and then set to “ON” again. (For details, refer to the operating
instructions for TV (VIERA).)
– Connect this system to TV (VIERA) using the HDMI cable, switch the TV (VIERA) on,
unplug this system’s AC mains lead, and insert it into a household mains socket.
Even if multi-channel audio
sources, such as DVD, Bluray disc, are played back,
“
DIGITAL” or “DTS” is not
displayed.
• When using VIERA Link “HDAVI Control” and the speaker is set to “TV”, press
VIERA Link button on the remote control of TV (VIERA) and set the speaker to
“Home Cinema”.
20
This system’s input automatically
switches to “AUX2 / STB ”, but
sound is not heard.
Or unexpected sound from other
equipment is heard.
• After “Setting for automatically switching the input source to STB”, the
connection might have been changed. Select “OFF ” once and “SET ” again.
11
[WIRELESS LINK]
indicator on the speakers
does not light green.
Sounds are interrupted.
• When [WIRELESS LINK] indicator is off, check the connection of AC mains
lead of speaker and check the speaker is “ON”.
• If [WIRELESS LINK] indicator does not change from red to green, the main unit and speaker are
not linked. Make sure that the main unit is “ON”. Or make the speaker setting again.
• You may be using wireless headphones or the wireless LAN may be operating near this
system. These symptoms may be remedied by slightly moving this system’s position.
14,15,17
Sound stops.
(The indicator blinks red
and green alternately.)
The protection circuit is activated
when some abnormality is
detected, and turns off the
system automatically.
• Amplifier output is abnormal.
• Straining of the speakers through excessive volume or power.
• This may occur if you use the system in an extremely hot environment.
Determine and correct the cause, then turn the system on.
(The protection circuit is reset.)
(Consult your dealer if the problem persists.)
24
—
—
15,17
—
—
—
—
Digital audio signals supported by this system
„ Dolby Digital
Blu-ray disc, DVD etc.
„ DTS
Blu-ray disc, DVD etc.
„ PCM (2-channel)
CD, DVD audio etc.
„ Multi-channel LPCM (Linear PCM)
Blu-ray disc, DVD audio etc.
„ This system supports 3D, x.v.Colour or
Deep Colour.
Note
• With HDMI connection, this system can play back multi-channel LPCM signals
with sampling frequencies of over 48 kHz and PCM signals of over 96 kHz in
addition to multi-channel LPCM of up to 48 kHz and PCM of up to 96 kHz. (If
frequency exceeds these figures, playback equipment performs down-sampling
and plays back as 48 kHz signals. However, playback may be impossible
depending on the discs. See operating instructions of playback equipment for
more information.)
• With the optical fibre connection, this system can play multi-channel LPCM
signals with sampling frequencies of up to 48 kHz and PCM signals of up to
96 kHz.
• See “Glossary” (➜ page 30) for more detailed information on each signal.
Maintenance
Unplug the AC mains lead from the household mains socket and wipe the system using a soft and dry cloth.
• When the system is very dirty, wring the cloth soaked in water thoroughly, wipe the dirt and wipe moisture off with a dry cloth.
• Do not use solvents such as benzine, thinner, alcohol, etc. because they may cause casing to deform and coating to come off.
• Before using chemically treated cloth, read the instructions that come with the cloth carefully.
Troubleshooting and
Troubleshooting guide/Digital audio signals supported by this system/Maintenance
other information
Speakers
HDMI
Problem
29
VQT2R71
Glossary
ARC (Audio Return Channel)
This function was added to HDMI Ver.1.4.
This sends digital audio signals from the HDMI input terminal of
the TV, etc. to the HDMI output terminal of this system.
CPPM (Content Protection for Prerecorded Media)
This is the copyright protection technology which prevents file
copy of DVD audio.
Decoder, Decode
Decoder is the device to enable us to hear audio data that is
encoded on DVD, etc., as a normal audio signal. This process
is called Decode.
Deep Colour
This system can reproduce greater colour gradation (4096
steps) when connected to compatible TV and recorder etc.
You can enjoy exceptionally rich, natural-looking colours, with
smooth, detailed gradation and minimal colour banding.
Dolby Digital
Digital sound compression technology developed by Dolby
Laboratories.
Compatible with surround sound as well as 2-channel stereo
sound. With this technology, you can keep massive amount of
audio data in a disc efficiently.
Dolby Pro Logic
This system can process not only Dolby Surround, but also
other 2-channel sources to produce a 5.1-channel sound for
a more realistic sound field. It is also possible to enhance old
movies recorded in stereo with this dynamic 5.1-channel sound.
This system uses Dolby Pro Logic to add surround effects to
stereo sources such as video cassettes and CDs.
Dolby Virtual Speaker
This system allows you to enjoy a surround effect with two
front speakers. This is not merely a “virtual surround” effect, but
rather uses the optimal speaker arrangements and listening
positions for 5.1-channel sound.
Down-sampling
This is the process of resampling by reducing the sampling rate
of a signal that was sampled at a certain rate.
DTS (Digital Theater Systems)
Surround system used in most movie theatres. Separation
works well between channels, resulting in realistic surround
effects.
Troubleshooting and Glossary
other information
Dynamic range
Dynamic range is the difference between the lowest level of
sound that can be heard above the noise of the equipment and
the highest level of sound before distortion occurs.
30
VQT2R71
HDMI (High Definition Multimedia Interface)
HDMI enables you to transmit digital audio and video signals
using a single cable.
You can also transmit control signals using HDMI connections.
Multi-channel LPCM (Linear PCM)
This is the uncompressed audio signal encoded digitally. Multichannel LPCM signals used for Blu-ray Disc, DVD audio, etc.
offer playback with higher-sound quality.
Up to 7.1-channel LPCM signals can be input to this system.
Optical
Using optical fibre cable for digital signal input/output from DVD,
CD, etc., provides better sound quality for playback or recording
compared to analogue. Only possible with equipment that has
an optical terminal.
PCM (Pulse Code Modulation)
This is one of the methods that enable analogue sounds to be
converted to digital sounds without compression.
This method is used for music CD, etc.
Sampling frequency
Sampling is the process of converting the heights of sound wave
(analogue signal) samples taken at set periods into digits (digital
encoding). Sampling frequency is the number of samples taken
per second, so larger numbers mean faithful reproduction of the
original sound.
Standby through function
When this system and TV and Blu-ray Disc player/DVD recorder
etc. are connected with HDMI cables, image/audio from
Blu-ray Disc player/DVD recorder etc. can still be transmitted to
TV through this system even though the system is turned off.
This is useful when you want to enjoy late night viewing only
with the television’s speakers.
Images recorded with x.v.Colour, Deep Colour or 3D are also
supported.
Surround signal
Audio signal made up with front speakers, center speaker
and surround speakers. For this system, surround signal is
automatically played by Dolby Virtual Speaker.
WHISPER-MODE SURROUND
Even when the sound volume level is low, you can enjoy
dynamic surround playback similarly as during normal playback.
This is convenient when listening at night.
x.v.Colour
This is a name of products compliant with ISO Standard for
wider colour space: “xvYCC”. This system supports x.v.Colour.
1080p
This is one of the digital hi-vision images.
1080 is the number of effective scanning lines that constitute
the actual screen. This enables every detail to be beautifully
expressed. Images are less flickered with progressive method
that scans in order from the top. This system supports 1080p.
5.1-channel surround
Monaural and stereo use one channel and two channels
respectively to reproduce sound, but 5.1-channel surround
uses 5 speakers and 1 subwoofer. The 5 channels are: 1 center
speaker, 2 front speakers, and 2 surround speakers at the
side of or to the rear of the sitting position. Sound output of the
subwoofer is much narrower than the other speakers, and so
is considered as 0.1. This is called 5.1-channel surround when
played through all 5.1 channels, and with this system you can
achieve a similar effect with Dolby Virtual Speaker.
7.1-channel virtual surround
When playing back 7.1-channel LPCM signals with this function,
you can enjoy wider sound field effects as if another speaker is
added.
Information for Users on Collection and Disposal of Old
Equipment and used Batteries
These symbols on the products, packaging, and/or
accompanying documents mean that used electrical
and electronic products and batteries should not be
mixed with general household waste.
For proper treatment, recovery and recycling of old
products and used batteries, please take them to
applicable collection points, in accordance with your
national legislation and the Directives 2002/96/EC and
2006/66/EC.
By disposing of these products and batteries correctly,
you will help to save valuable resources and prevent
any potential negative effects on human health and
the environment which could otherwise arise from
inappropriate waste handling.
For more information about collection and recycling of
old products and batteries, please contact your local
municipality, your waste disposal service or the point
of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of
this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic
equipment, please contact your dealer or supplier for
further information.
[Information on Disposal in other Countries
outside the European Union]
These symbols are only valid in the European Union.
If you wish to discard these items, please contact
your local authorities or dealer and ask for the correct
method of disposal.
Cd
Note for the battery symbol (bottom two symbol
examples):
This symbol might be used in combination with a
chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical
involved.
Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks of
Dolby Laboratories.
Manufactured under license under U.S. Patent #’s: 5,451,942;
5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and
worldwide patents issued & pending. DTS and the Symbol
are registered trademarks & DTS Digital Surround and the
DTS logos are trademarks of DTS, Inc. Product includes
software. © DTS, Inc. All Rights Reserved.
Caution
• Use the speakers only with the recommended system. Failure
to do so can damage the amplifier and speakers, and can cause
fire. Consult a qualified service person if damage occurs or if a
sudden change in performance is apparent.
• Do not attach these speakers to walls or ceilings.
ENGLISH
Declaration of Conformity (DoC)
Hereby, “Panasonic Corporation”, declares that this product is in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Customers can download a copy of the original DoC to our R&TTE
products from our DoC server:
http://www.doc.panasonic.de
Contact to Authorised Representative: Panasonic Marketing Europe
GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,
Germany
This product is intended to be used in the following countries.
AT, BE, BG, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IS, IE, IT, LV, LI, LT,
LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH, GB
This product is intended for general consumer. (Category 3)
NORSK
Samsvarserklæring
“Panasonic Corporation” erklærer herved at dette produktet samsvarer
med de vesentlige krav og andre relevante bestemmelser i direktiv
1999/5/EF.
Kundene kan laste ned en kopi av den originale samsvarserklæringen
til vårt radio- og teleterminalutstyr (R&TTE) fra serveren (DoCserveren)
vår:
http://www.doc.panasonic.de
Kontakt vår autoriserte representant: Panasonic Marketing Europe
GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg,
Tyskland
Dette produktet er beregnet på bruk i følgende land:
AT, BE, BG, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IS, IE, IT, LV, LI, LT,
LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH, GB
Dette produktet er tiltenkt vanlige forbrukere.
(Kategori 3)
SUOMI
Vaatimustenmukaisuusvakuutus
“Panasonic Corporation” ilmoittaa, että tämä tuote täyttää direktiivin
1999/5/EY olennaiset vaatimukset ja muut asiaankuuluvat ehdot.
Asiakkaat voivat ladata kopion R&TTE-tuotteiden alkuperäisestä
vaatimustenmukaisuusvakuutukse sta DoC-palvelimeltamme:
http://www.doc.panasonic.de
Valtuutetun edustajan yhteystiedot: Panasonic Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Saksa
Tämä tuote on tarkoitettu käytettäväksi seuraavissa maissa.
AT, BE, BG, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IS, IE, IT, LV, LI, LT,
LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH, GB
Tämä tuote on tarkoitettu kuluttajakäyttöön. (Luokka 3)
CAUTION!
Do not place anything on top of this unit or block the heat radiation
vents in any way. In particular, do not place DVD recorder or CD/
DVD players on this unit as heat radiated from it can damage your
software.
HDMI, the HDMI Logo, and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
HDAVI Control™ is a trademark of Panasonic Corporation.
31
VQT2R71
CAUTION!
• DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
• DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS
WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND
SIMILAR ITEMS.
• DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS
LIGHTED CANDLES, ON THE UNIT.
• DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
This product may receive radio interference caused by mobile
telephones during use. If such interference is apparent, please
increase separation between the product and the mobile telephone.
NORSK
ADVARSEL:
FOR Å REDUSERE FAREN FOR BRANN, ELEKTRISK STØT
ELLER SKADE PÅ PRODUKTET,
* MÅ DU IKKE UTSETTE DETTE APPARATET FOR
REGN, FUKTIGHET, DRYPP ELLER SPRUT, OG INGEN
GJENSTANDER SOM ER FYLT MED VÆSKE, SOM F.EKS.
VASER, MÅ PLASSERES PÅ APPARATET,
* MÅ DU KUN BRUKE ANBEFALT TILBEHØR,
* MÅ DU IKKE FJERNE DEKSELET (ELLER BAKSIDEN);
INNEHOLDER INGEN DELER SOM BRUKEREN KAN
REPARERE. OVERLAT REPARASJONER TIL KVALIFISERTE
REPARATØRER.
ADVARSEL!
• APPARATET MÅ IKKE PLASSERES I EN BOKHYLLE, ET
INNEBYGGET KABINETT ELLER ET ANNET LUKKET STED
HVOR VENTILASJONSFORHOLDENE ER
UTILSTREKKELIGE. SØRG FOR AT GARDINER ELLER
LIGNENDE IKKE FORVERRER
VENTILASJONSFORHOLDENE, SÅ RISIKO FOR
ELEKTRISK SJOKK ELLER BRANN FORÅRSAKET AV
OVERHETING UNNGÅS.
• APPARATETS VENTILASJONSÅPNINGER MÅ IKKE DEKKES
TIL MED AVISER, BORDDUKER, GARDINER OG LIGNENDE.
• PLASSER IKKE ÅPEN ILD, SLIK SOM LEVENDE LYS,
OPPÅ APPARATET.
• BRUKTE BATTERIER MÅ KASSERES UTEN FARE FOR
MILJØET.
Strømuttaket må befinne seg i nærheten av utstyret og være lett tilgjengelig.
Støpslet på strømkabelen må være klart til bruk.
Når dette apparatet skal kobles helt fra strømnettet (AC), må støpslet
på strømkabelen trekkes ut av stikkontakten.
For E, GN
THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.
NORSK
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE,
* DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE,
DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED
WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE
APPARATUS.
* USE ONLY THE RECOMMENDED ACCESSORIES.
* DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO
USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The socket outlet shall be installed near the equipment and easily
accessible.
The mains plug of the power supply cord shall remain readily
operable.
To completely disconnect this apparatus from the AC Mains,
disconnect the power supply cord plug from AC receptacle.
SUOMI
VAROITUS:
TULIPALON, SÄHKÖISKUN TAI TUOTTEEN VAURIOITUMISEN
RISKIN PIENENTÄMISEKSI:
* ÄLÄ ALTISTA TÄTÄ LAITETTA SATEELLE, KOSTEUDELLE,
TIPPUVALLE NESTEELLE TAI ROISKEILLE. LAITTEEN
PÄÄLLE EI MYÖSKÄÄN SAA LAITTAA NESTEELLÄ
TÄYTETTYJÄ ESINEITÄ KUTEN MALJAKOITA.
* KÄYTÄ VAIN SUOSITELTUJA LISÄVARUSTEITA.
* ÄLÄ IRROTA KANTTA (TAI TAKAKANTTA). SISÄLLÄ EI OLE
KÄYTTÄJÄN KORJATTAVISSA OLEVIA OSIA. JÄTÄ HUOLTO
PÄTEVIEN HUOLTOHENKILÖIDEN TEHTÄVÄKSI.
VAROITUS!
• ÄLÄ ASENNA TAI LAITA TÄTÄ LAITETTA
KABINETTITYYPPISEEN KIRJAKAAPPIIN TAI MUUHUN
SULJETTUUN TILAAN, JOTTA TUULETUS ONNISTUISI.
VARMISTA, ETTÄ VERHO TAI MIKÄÄN MUU MATERIAALI
EI HUONONNA TUULETUSTA, JOTTA VÄLTETTÄISIIN
YLIKUUMENEMISESTA JOHTUVA SÄHKÖISKU- TAI
TULIPALOVAARA.
• ÄLÄ PEITÄ LAITTEEN TUULETUSAUKKOJA
SANOMALEHDELLÄ, PÖYTÄLIINALLA, VERHOLLA TAI
MUULLA VASTAAVALLA ESINEELLÄ.
• ÄLÄ ASETA PALAVAA KYNTTILÄÄ TAI MUUTA
AVOTULEN LÄHDETTÄ LAITTEEN PÄÄLLE.
• HÄVITÄ PARISTOT LUONTOA
VAHINGOITTAMATTOMALLA TAVALLA.
Pistorasia tulee asentaa laitteen lähelle helppopääsyiseen paikkaan.
Verkkojohdon pistokkeen on oltava aina helposti käytettävissä.
Tämä laite voidaan kytkeä kokonaan irti verkkovirrasta irrottamalla
verkkojohdon pistoke pistorasiasta.
For Singapore
Complies with
IDA Standards
DB01017
DETTE APPARATET ER BEREGNET TIL BRUK UNDER
MODERATE KLIMAFORHOLD.
SUOMI
TÄMÄ LAITE ON TARKOITETTU KÄYTETTÄVÄKSI LEUDOSSA
ILMASTOSSA.
EU
For GS
THIS UNIT IS INTENDED FOR USE IN TROPICAL CLIMATES.
En
Web Site: http://panasonic.net
EU
Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
© Panasonic Corporation 2010
VQT2R71
H0210RT0

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals

advertisement
