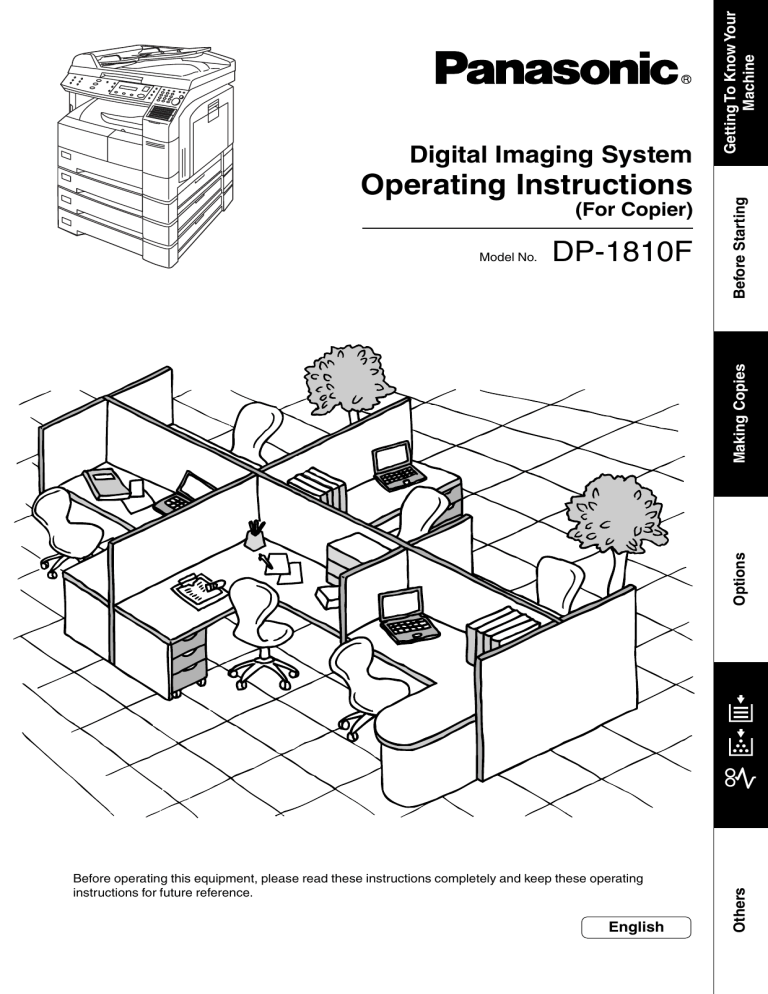

Operating Instructions
(For Copier)
DP-1810F
Getting To Know Your
Machine
Options
Making Copies
Model No.
Before Starting
Digital Imaging System
Before operating this equipment, please read these instructions completely and keep these operating
instructions for future reference.
English
Others
J
?
I
IMPORTANT INFORMATION
When requesting information, supplies or service always refer to the model and serial number of your
machine. The model and serial number plate (Main Name Plate) is located on the rear side of machine.
For your convenience, space is provided below to record information you may need in the future.
Model No.
Serial No.
Date of Purchase
Dealer
Address
Telephone Number
(
)
Supplies Telephone Number
(
)
Service Telephone Number
(
)
Model and Serial Number
Copyright  2002 by Matsushita Graphic Communication Systems, Inc.
All rights reserved. Unauthorized copying and distribution is a violation of law. Printed in Japan.
The contents of these Operating Instructions are subject to change without notice.
2
Getting To Know Your
Machine
Operation Chart
Common Features and Usage
■ Basic Operation
Original
Load Paper
Turn the Power
Switch On
1
2
Place the
Original(s)
(ADF: Up to 50)
Original Size
(Reduction/
Enlargement
Only)
3 4 5
Copy Size
Number
(Reduction/ of Copies
Enlargement
Only)
Press
START
■ Position of the Original
From ADF
From Platen
Original Guide
INV
INV
Original Guides
Adjust to the original’s width
INV
LTR
LGL
LTR
LDR
LETTER
ADF Tray
LEGAL
LGL
LDR
LEDGER
LTR
LETTER R
INVOICE R
INVOICE
INV
C Place originals face down on the
platen or face up on the ADF.
C If the original is not positioned
properly, a portion of the original
may not be copied.
C For originals smaller than invoice
size, position the original within the
area of INVOICE and select invoice.
■ Commonly Used Functions and Operating Procedures
Full Size
Makes a copy that is the same
size as the original
Reduction or Enlargement
Copies the original at a fixed
reduction or enlargement ratio
1 4 5
1 2 3 4 5
(See page 12)
(See page 13)
■ Memory Capacity
When the memory becomes full during original scanning, the message “OUT OF MEMORY”
“CONTINUE ? 1: YES 2: NO” will be displayed in the message display. If this occurs, follow the
instructions on the LCD.
When additional memory is required, consult with an authorized servicing dealer.
3
Energy Star
As an ENERGY STAR® Partner, Panasonic has determined that this product meets the
ENERGY STAR® guidelines for energy efficiency.
This voluntary program specifies certain energy consumption and usage standards. This
product will automatically “power down” after a specified period of non-use. The use of this
ENERGY STAR® compliant product will reduce energy consumption and ultimately benefit the
environment.
The default functions can be adjusted depending on your office requirements.
Please ask your authorized Panasonic dealer for more details.
4
Table of Contents
Table of Contents
Getting To Know Your Machine
Operation Chart .............................................................................................................................. 3
■ Common Features and Usage .............................................................. 3
Energy Star ..................................................................................................................................... 4
Before Starting
Precautions ..................................................................................................................................... 7
■ For Your Safety ..................................................................................... 7
■ Handling ............................................................................................... 8
■ Toner and Paper ................................................................................... 8
■ Ventilation ............................................................................................. 8
■ Installation ............................................................................................ 9
Control Panel ................................................................................................................................ 10
Making Copies
Basic Copy .................................................................................................................................... 12
■ Full Size Copying ................................................................................ 12
■ Reduction or Enlargement Copying .................................................... 13
■ Automatic Document Feeder .............................................................. 14
■ Zoom Copying .................................................................................... 16
■ Using the Sheet Bypass ..................................................................... 17
Creative Features ......................................................................................................................... 18
■ 2 in 1 Copy ......................................................................................... 18
■ 2 Page Copy ....................................................................................... 19
■ Book/Edge/Margin .............................................................................. 20
■ Job Memory ....................................................................................... 21
■ Sort Copy ........................................................................................... 22
Other Features .............................................................................................................................. 23
■ Energy Saver/Interrupt Mode .............................................................. 23
■ Skyshot Mode ..................................................................................... 24
Combined Function Table ............................................................................................................ 26
Function ........................................................................................................................................ 27
■ Checking the Copier’s Total Counter ................................................... 27
■ General Functions .............................................................................. 28
■ Copier Settings ................................................................................... 29
■ General Functions for Key Operator ................................................... 30
■ Copier Settings for Key Operator ........................................................ 31
■ Function Setting .................................................................................. 32
■ Function Setting for Key Operator ....................................................... 33
5
Table of Contents
Options
Accessories .................................................................................................................................. 37
■ Components ....................................................................................... 37
Problem Solving
Problem Solving ........................................................................................................................... 38
■ Adding Paper (J) ............................................................................... 38
■ Adding the Toner and Replacing Toner Waste Container (?) .............. 39
■ Removing a Misfed Paper ................................................................... 41
Troubleshooting ............................................................................................................................ 46
■ Before Calling Service ........................................................................ 46
■ User Error Codes (U Code) ................................................................ 48
■ Replacing the Battery ......................................................................... 49
Others
Specifications ............................................................................................................................... 50
Options and Supplies ................................................................................................................... 52
6
Precautions
For Your Safety
■ Laser Safety
LASER SAFETY
Before Starting
This unit employs a laser. Only qualified service personnel should
attempt to service this device due to possible eye injury.
CAUTION:
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
■ Caution Labels
Manufacturer’s name and address
Factory ID
7
Precautions
Handling
■ Do not look directly at the exposure lamp when
copying.
■ Do not turn the power switch Off or open the front
panel during copying.
C Do not drop paper clips or other metal objects into
the copier.
Toner and Paper
■ Store toner, drum and paper in cool areas with low
humidity.
C Use high quality 16 - 24 lb (60 – 90 g/m2) [Sheet
Bypass: 15 – 34 lb (56 – 128 g/m2)] paper.
C For optimum performance, it is recommended that
only Panasonic Brand supplies are used in the
copier.
Ventilation
■ The copier should be installed in a well-ventilated
area to minimize the ozone density in the air.
8
Precautions
Installation
■ The copier should not be installed in areas with the
following conditions:
Before sStarting
C Extremely high or low temperature and humidity.
Ambient conditions
Temperature:
50 – 86°F (10° – 30°C)
Relative humidity: 30 – 80%
C Where temperature and humidity can change
rapidly, causing condensation.
C Direct exposure to sunlight.
C Directly in the air conditioning flow.
C In areas of high dust concentration.
C In areas of poor ventilation.
C In areas with chemical fume concentration.
C In areas with extreme vibration.
C With unstable or uneven conditions (floors, etc.).
■ The maximum power consumption is 1.2 kW.
A properly wired (grounded), dedicated, 15A, 120V AC outlet is required.
Do not use an extension cord.
The power cord on this equipment must be used to disconnect the main power.
Please ensure that the socket outlet is installed near the equipment and is easily accessible.
FCC WARNING For U.S.A.
FCC WARNING:
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his/her own expense.
The user could lose the authority to operate this equipment if any unauthorized changes or
modifications are made to this equipment.
CAUTION
CTHIS PRODUCT CONTAINS A LITHIUM BATTERY. DANGER OF EXPLOSION IF
BATTERY IS INCORRECTLY REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS OF YOUR
LOCAL SOLID WASTE OFFICIALS.
9
Control Panel
#1 $ % & ( )
* +
:
9
8
S Keys are used only for FAX/EMAIL functions, refer to Operating Instructions (For Facsimile/Internet Fax)
No
&
2 in 1 Key
C From two 1-Sided originals, side by side, to 1-Sided copies.
2 PAGE COPY Key
C Copying two facing pages or a Ledger size original on two separate
Letter size sheets.
SORT Key
C When using Electric Sorting Mode. Optional memory is required.
MARGIN Key C Shifts the image to the right or left.
(
EDGE Key
)
BOOK Key
C Eliminates dark inner binding shadows.
Photo; Text/Photo; Text Keys
C Select the type of original(s) for image density adjustment.
: Originals are mainly composed of photo.
TEXT/PHOTO: Combined originals with text and photo
TEXT
: Originals are mainly composed of text.
Exposure Keys (DARKER, LIGHTER)
#
$
%
*
+
.
/
C Creates a blank edge.
SET Key
C Set the present selection.
FUNCTION Key
C Use when changing the paper size, initial values for functions (default
values) and key operator settings.
CLEAR Key C Clears the copy count in the display.
Refer to
Page 18
Page 19
——
Page 20
Page 20
Page 20
Page 12
Page 12
——
Pages 27 – 36
——
1
ENERGY-SAVER Key
C Can save power while the copier is not in use.
RESET Key C Resets all features to the initial power-on state.
2
STOP Key
CStops the copy run.
——
3
START Key
CUsed to start an operation.
——
0
NOTE
10
Contents
Page 23
——
C The Control Panel displayed above shows only copier functions. Please refer to the
appropriate operating instructions for other control panel functions or in the Panasonic
Document Management System CD-ROM for the Printer control panel functions.
7
Control Panel
0 1
-. /
Before Starting
LCD Display
6
5
4
Warning Indicators
J Add Paper
? Add Toner
I Misfeed
2 Call Service
; =
No
4
5
3 2
Contents
INTERRUPT Key, MEMORY IN Key, M1/M2 Keys
C Interrupt Key interrupts other copy or print jobs while making copies.
C Memory In Key registers two copy jobs for recall at a later time.
C M1/M2 Keys are used to store a Job in Memory or to recall a Job stored in Memory.
Cursor Keys C Select copy ratio and function modes using (G or F).
Refer to
Pages 21, 23
——
——
8
C Used to select the paper tray manually.
PAPER TRAY Key
COPY SIZE Key
C Used to select Reduction/Enlargement only. For additional details, see page 13.
ORIGINAL SIZE Key
C Used to select the original size manually. For additional details, see page 13.
9
PRINT Key
C When selecting the Printer ON/OFF Line.
——
:
COPY Key
C Press when using the unit as a photocopier.
——
;
Alarm LED (Red)
C Lights when trouble occurs.*
——
=
Active LED (Green) C Lights when machine is active.
6
7
NOTE
——
——
——
C The Control Panel displayed above shows only copier functions. Please refer
to the appropriate operating instructions for the control panel functions or in
the Panasonic Doccument Management System CD-ROM for the Printer
control panel functions.
∗ When the machine detects a problem or an alarm status is activated, the ;
Alarm LED lights up or begins to flash.
LED Lights: Machine detected a trouble status
C No paper in the selected tray or toner has run out.
C Machine detected trouble, such as paper misfeed or jam.
LED Flashes: Machine detected an alarm status
C No paper in the tray. (Tray not selected)
C Running low on toner, etc.
11
Basic Copy
Full Size Copying
■ Copying the Same Size Originals (1:1)
Copy size is automatically selected.
ORIGINAL SIZE Key
CLEAR Key
1
2 3
Place the Original
LCD Display (Sample)
Number of Copies* Press START**
Up to 999
READY TO COPY
COPIES:001
Select the Original Size on units
without the ADF.
■ Manually Selecting Exposure Control or Original Type
# Select the Original Type
: Originals are mainly composed of photo.
TEXT/PHOTO: Combined originals with text and photo.
TEXT
: Originals are mainly composed of text.
$ Select Exposure Control
Press the DARKER/LIGHTER keys to adjust the exposure.
NOTE
∗ Use Clear key when canceling the copy count.
∗∗ While the copier is warming up, you may position your original on the copier, enter
your copy job selections and press the Start key. The COPY JOB RESERVED
indicator displays until the warm up cycle is completed and the copy job is
automatically start.
12
Basic Copy
Reduction or Enlargement Copying
■ Copying with Preset Ratios
Place the
Original
2
Select the
ORIGINAL SIZE
3
4 5
Making Copies
1
RESET
Number of
Copies
Select the COPY
SIZE
Example: Reduction
Original size
Copy size
LEDGER
LETTER
LDR ->LTRB [LTRB ]
ZOOM: 65% COPIES:001
The correct ratio is automatically selected.
Reduction and enlargement ratios (%)
Original
Size
Ledger
Copy Size
Legal
Letter
Invoice
Ledger
100
77
65
50
Legal
121
100
79
61
Letter
129
100
100
65
Invoice
200
155
129
100
C When changing the paper tray, press the
Paper Tray key.
NOTE
C If the desired copy size is different from the paper size loaded in the paper
tray, use the sheet bypass. (See page 17)
C Press the RESET key to cancel all job settings.
13
Basic Copy
Automatic Document Feeder
■ ADF
1. Features
# Automatic Original Feeding
C The ADF tray can hold up to 50 Letter size originals of 20 lb (80 g/m2) paper (up to 30 Legal or
Ledger size originals). Accommodates from Invoice to Ledger size originals.
C Automatic original size detection.
$ 2 in 1 Copy
C To make a 1-Sided copy (full size or reduction), from two 1-Sided originals side-by-side.
2. Components
C Set the originals up to the upper limit arrow.
ADF Tray
Original Guides
Adjust to the original’s width
14
Basic Copy
Automatic Document Feeder
3. Operation
■ Operation Procedure
ADF
Face-Up
2 3
Number of
Copies
Place the
Original
Inappropriate Originals
C Paper with a smooth surface such as glossy
and coated papers
CTransparencies
C Originals with a lead edge that is “creased”,
“folded”, “punched” or “glued”
NOTE
Press
START
C Paste-ups
C Pressure sensitive or carbon backed papers
C Paper with excessive curl
C Stapled originals
C Freshly printed copies from a laser printer
C To copy these kinds of originals, use the Platen Glass instead.
15
Making Copies
1
Basic Copy
Zoom Copying
■ Zoom
RESET
Copies with variable zoom ratios from 50% to 200% in 1% increments.
1
2
3
Place the Select ORIGINAL
Original
SIZE
(without using ADF)
Press Cursor (G or F)
keys to select Zoom Ratio
4 5
Number
of Copies
Press
START
B
LTR ->LTRB [LTRB ]
ZOOM:125% COPIES:001
(Example: 125% Zoom)
ATTENTION
NOTE
16
C When changing the paper size after setting the zoom ratio, please use the paper
tray key.
C Press the RESET key to cancel all job settings.
Basic Copy
Using the Sheet Bypass
■ Copying on Special Paper, etc.
1
Place the original.
Open the sheet bypass.
Sheet
Bypass
3
# Place the sheets of paper into
the tray. (approximately up to
50 Letter size sheets/20 lb)
Making Copies
2
Pull out the sheet bypass tray
until it stops.
(For Ledger size only)
Do not fill above.
Side Guides
Insert the paper until it stops.
$ Adjust the side guides.
Incorrect adjustment may cause the
paper to wrinkle, misfeed or skew.
Press START.
ATTENTION
NOTE
C Do not feed curled paper through the sheet bypass to avoid misfeed.
C Adjust the side guides properly to avoid skewing, wrinkling or misfeeding.
17
Creative Features
2 in 1 Copy
■ 2 in 1 Copy
From two 1-Sided originals, side by
side, to 1-Sided pages.
1 \ 2 (Layout)*
1 \ 2 (Layout)*
2 \ 1 (Layout)*
2 \ 1 (Layout)*
Landscape (Orientation)*
Portrait (Orientation)*
■ Procedure
ADF
Face-Up
1
Place the
Originals
NOTE
18
2
Press 2
in 1 key
(3 )
COPY SIZE
(Reduction/
Enlargement
Only)
4 5
Number of
Copies
Press
START
CPress the RESET key to cancel all job settings.
CNumbers in parenthesis “ ( ) ” represent that, an additional step is required to activate
the feature.
∗ The Orientation and Layout can be set in the Copier Settings function mode.
(See page 29)
Creative Features
2 PAGE COPY
■ 2 PAGE COPY
Copying two facing pages on a ledger size original
on two separate Letter size sheets.
Making Copies
■ Procedure
1
2
Place the Press the 2
Originals PAGE COPY
key
Platen
3
ORIGINAL SIZE
(Letter or Ledger
size Only)
4 5
Number of
Copies
Press
START
Ledger size original
Book Mark
Center book
by length
and width
according
to center
marks.
Letter
NOTE
C To reset all job settings, press the RESET key.
19
Creative Features
BOOK/EDGE/MARGIN
■ BOOK Key
Eliminates dark inner binding shadows when copying from a book.
■ EDGE Key
Creates a blank edge.
■ MARGIN Key
Shifts the image to the right or left.
■ Procedure
3
2
1
Place the
Original
Press Cursor (G or F) keys to adjust
the void width while the button is
blinking. (approx. 5 sec.)
CVoid/Margin width: 5-99 mm
Press BOOK, EDGE
or MARGIN key
Book
BOOK MARGIN
CENTER VOID = 20mm ∨∧
Edge
EQUAL RATE
VOID MARGIN = 5mm ∧
Margin**
LEFT MARGIN
10mm ∨∧
NOTE
20
∗
4 5
Number
of Copies
Press
START
∗
Initial Book Margin setting (Factory setting): 20 mm
∗
Initial Equal Rate setting (Factory setting): 5 mm
∗
Initial Left Margin setting (Factory setting): 10 mm
Initial setting (Factory setting) can be changed in the Copier Settings function mode.
(See page 29)
∗∗ If a part of the copied image is missing when using the Margin mode, change the
Frame Reduction setting to ON.
(See page 29)
CPress the RESET key to cancel all job settings.
Creative Features
Job Memory
■ Two Copy Jobs Can Be Programmed in Memory (M1, M2) for recall at a
later time.
To Store a Job in Memory
JOB MEMORY
PRESS M1,M2 TO STORE.
Making Copies
# Set up the copy job to be stored in memory,
by first selecting each function you wish the
copier to perform.
$ Press the MEMORY IN (F2) key.
% Press the M1 (F3) or M2 (F4) key.
To Recall a Job Stored in Memory
& Place the Original
RECALL JOB MEMORY
LOADING...
( Press the M1 (F3) or M2 (F4) key.
The stored contents will be displayed.
) Press START
NOTE
CStored job(s) will not be deleted even if the power switch is turned Off.
C When storing a new job into programmed memory, the previously stored job
will be overwritten.
21
Creative Features
Sort Copy
■ Sort Copy
The sort copy has 2 available electronic sorting functions as follows:
Note: Before using the sort copy, select the desired sorting mode by setting its function first
(See page 28).
Sort
Sort-Rotate
Multiple copies
sorted
automatically.
1
1
1
Multiple copies sorted
automatically and
Stacked in alternate
direction.
1
1
1
Platen Glass
(Up to Letter size)
ADF
1
ADF : Place the
Originals
Platen: Place the
First Original
2
(3 )
COPY SIZE
(Reduction/
Enlargement
Only)
Select the
SORT Mode
4 5
Number of
Copies
Press
START
From Platen Glass only:
6
9
NOTE
22
ANOTHER ORIGINAL?
1:YES 2:NO
Press “1” key.
Repeat steps 6 and 7
until all originals are
scanned and stored
into the copier’s memory.
7
10
Place next Original
8
Press START
ANOTHER ORIGINAL?
1:YES 2:NO
Press “2” key.
CWhen the memory becomes full during original scanning, the message
“OUT OF MEMORY ” “CONTINUE 1:YES 2:NO” will be displayed in the message
display. If this occurs, follow the instructions in the message display.
For additional memory consult your authorized servicing dealer.
CTo reset all job settings, press the RESET key.
Other Features
Energy Saver/Interrupt Mode
INTERRUPT (F1) Key ENERGY-SAVER Key
ENERGY SAVER
■ These modes can save power while the copier is
not in use.
# To enter this mode
Press the ENERGY-SAVER key or the copier will
automatically enter the Energy Saver Mode after 15
minutes* from the last copy. The indicator will flash.
$ To cancel this mode and make copies
Press the ENERGY-SAVER key again.
Sleep Mode
# Automatically enters the Sleep Mode after 30
minutes from the last copy. The copier power will
drop and the indicator will light.
$ To make copies, press the ENERGY-SAVER key.
Interrupt Mode
INTERRUPT
C This mode can interrupt other copy jobs while
making copies.
# Press the INTERRUPT (F1) key, the indicator will
light.
$ Make another copy job using the platen glass.
% Press the INTERRUPT (F1) key again to
continue the original job.
Note: The ADF can not be used with interrupt.
(Use only the Platen)
NOTE
∗
Energy saver time (15 minutes) and Sleep time (30 minutes) can be changed
by the key operator. (See page 30)
Modes
Normal Operation
Energy Saver Mode
Sleep Mode
Power Consumption
Approximately 92 Wh
Approximately 40 Wh
Approximately 1.5 Wh
Warm Up Time
N/A
30 sec. recovery
30 sec. recovery
23
Making Copies
Energy Saver Mode
Other Features
Skyshot Mode
■ Skyshot allows copying a manuscript without generating dark borders
even if the platen cover or ADF is opened.
Skyshot mode eliminates dark borders around the originals, and is especially convenient for
copying small-sized originals like bank checks or documents with unusual shapes (round, oval,
etc.). These documents can be reproduced without generating any unnecessary black areas
simply by making a copy with the cover open.
Two types of Skyshot modes can be selected;
Digital Skyshot Mode : The scanning area (size) is not pre-determined.
Manual Skyshot Mode : The scanning area (size) is pre-registered into memory (M1 and M2) in
advance. (See page 29)
■ Digital Skyshot Mode
1
Place the Original on
the platen (Opening the
Platen Cover/ADF)
2
3
Number of
Copies
Press
START Key
Note:The default setting of Digital Skyshot Mode is “NORMAL”. In this setting, the unit scans once.
If there are black areas around the borders in the copies, set the Digital Skyshot Mode to
“QUALITY” to soften the dark borders. In this setting, the unit scans twice.
# Press the FUNCTION key.
FUNCTION MODE (1-2)
ENTER NO. OR ∨ ∧
2:COPIER SETTINGS
PRESS SET TO SELECT
COPIER PARAM. (00-14)
ENTER NO. OR ∨ ∧
06 DIGITAL SKYSHOT
2:NORMAL
$ Press the 2 key to select COPIER SETTINGS.
% Press the SET key.
& Press 6 and SET key to select DIGITAL
SKYSHOT.
( Press 1-3 key to select the Digital Skyshot Mode.
1: OFF
NONE
2: NORMAL Default setting (usually select this
mode).
3: QUALITY For better definition, select the
Quality mode.
) Press the SET key.
* Press the RESET key.
NOTE
24
C An incorrect exposure may occur when there is a black line at the edge of
the original or an image which the copier interprets as a black pattern in the
Skyshot mode.
C An incorrect position detection of the original may occur when a strong light
shines onto the glass during Skyshot mode.
Other Features
■ Manual Skyshot Mode
When using this function, the custom size should be registered into memory (M1, M2) in
advance. (See page 29)
Platen
Upperleft
corner
2
2
Place the
Original
Select the Custom
Size (M1 or M2)
3 4
Number of
Copies
Press
START
# Press the FUNCTION key.
FUNCTION MODE (1-2)
ENTER NO. OR ∨ ∧
2:COPIER SETTINGS
PRESS SET TO SELECT
COPIER PARAM. (00-14)
ENTER NO. OR ∨ ∧
07 MANUAL SKYSHOT
2:M1 ON
$ Press the 2 key to select COPIER SETTINGS.
% Press the SET key.
& Press 7 and SET key to select MANUAL SKYSHOT.
( Press 2 or 3 key to select the Custom Size.
1: OFF
NONE
2: M1 ON
M1 size is ON*
3: M2 ON
M2 size is ON*
4: M1, M2 ON Both sizes are ON
) Press the SET key.
* Press the RESET key.
NOTE
∗
The default size for M1 is: 70(X) × 160(Y) mm, and M2 is: 95(X) × 220(Y) mm
C When changing the M1 or M2 size, consult with the key operator.
C When using the Manual Skyshot mode, M1 and M2 are turned ON and other
job memory cannot be used.
C Press the RESET key to cancel all job settings.
25
Making Copies
1
Combined Function Table
2-ORIGINAL H
COPY
Zoom Copy
2 in 1 Copy
2 Page Copy
Book
Edge
Margin
Non-Sort
Sort
Sort-Rotate
Manual Skyshot
Job Memory Retrieval
Job Memory Storing
O
O
O
O
O
O
O
O
A
A
O
2 in 1 Copy
O
A
A
O
O
O
O
O
O
A
A
O
2 Page Copy
O
A
A
O
O
O
O
O
O
A
A
O
Book
O
O
O
A
O
O
O
O
O
A
A
O
Edge
O
O
O
O
A
O
O
O
O
A
A
O
Margin
O
O
O
O
O
A
O
O
O
A
A
O
Non-Sort
O
O
O
O
O
O
A
A
A
A
A
O
Sort
O
O
O
O
O
O
A
A
A
A
A
O
Sort-Rotate
O
O
O
O
O
O
A
A
A
A
A
O
Manual Skyshot
O
✕
✕
O
O
O
–
–
–
A
A
✕
Interrupt
O
✕
O
O
O
O
–
–
–
✕
✕
✕
2-ORIGINAL H
COPY
Margin
O : Possible Combined Functions.
✕ : Unavailable Combined Functions.
A : Next Selection is Carried Out.
– : Indicates that SORT mode cannot be used. Non-sort operation is carried out.
26
Remarks
A
First
Selections
SORT
Other
Functions
SORT
Zoom Copy
Next
Selections
Other
Functions
Margin
Function
■ Using Function Modes to Change the Initial Copy Modes
Options
General
Functions
Copier
Settings
LAN Settings
Printer
Settings
Input Identification Code
Copier
Settings for
Key Operator
■ Procedure
LAN Settings
for Key
Operator
Printer
Settings for
Key Operator
Making Copies
General
Functions for
Key Operator
FUNCTION Key
RESET Key
COPY SIZE PAPER
Key
TRAY Key
FUNCTION MODE (1-2)
ENTER NO. OR ∨ ∧
# Press the FUNCTION Key
$ Press 1 (GENERAL FUNCTIONS) or 2
(COPIER SETTINGS) key. You may also use
the (G or F) keys.
% Press the SET key.
& Press the Keypad to select function modes
or use the (G or F) keys.
( Follow the on screen instructions.
) After setting, press the SET key to set up the
function.
■ Checking the Copier’s Total Counter
To display the copier’s Total Counter, press the COPY SIZE and PAPER TRAY keys
simultaneously.
NOTE
C Please refer to each option’s operating instructions for function settings.
27
Function
General Functions
No.
Function
Initial
Setting
00
SORT MODE DEFAULT
Selects the sort mode.
C NON-SORT, SORT
NON-SORT
02
POWER ON DEFAULT
Select mode.*
C Copy, Fax
Copy
05
SORT MEMORY USAGE
Displays the amount of sort memory used on
the panel.
C OFF, DISPLAY
OFF
06
DEPT. COUNTER
Copy usage and copy limit of the selected
department and total copy usage will appear
on the screen.
Consult
your
service
technician.
08
SORT-ROTATE DEFAULT
Select Sort-Rotate mode.
COFF, ON
OFF
09
KEY OPERATOR MODE
Input the key operator ID code.
NOTE
28
Modes
∗
Not available for plain copier, but will be available when installing options with
advanced functions. (See page 51)
Function
Copier Settings
Modes
Function
Initial
Setting
00
MARGIN DEFAULT
Selects the margin position and shift value.
C POSITION (Left, Right, Top, Bottom)
C VALUE (5 - 99 mm)
LEFT
10 mm
01
EDGE DEFAULT
EQUAL RATE
5 mm
02
BOOK MARGIN DEF.
Selects the edge mode (Equal Rate = set the
same value for X & Y or Individual = set the
value for X & Y individually) and width.
C EQUAL RATE (X & Y ), INDIVIDUAL
C 5 - 99 mm
Selects the book Center Void margin width.
C 5- 99 mm
03
FRAME MARGIN
Select the reduction ratio in margin mode.
C INVALID, VALID
INVALID
05
2 in 1 WITH FRAME
Selects whether or not to disable edge deletion.
C INVALID, VALID
INVALID
06
DIGITAL SKYSHOT
Enables or disables the use of skyshot mode.
C OFF, NORMAL, QUALITY
NORMAL
07
MANUAL SKYSHOT
Enables or disables the use of Manual
Skyshot.
C OFF; M1 ON; M2 ON; M1, M2 ON
OFF
08
AUTO EXPOSURE
Automatically adjusts the copy density for text
and photographic originals.
C INVALID, VALID
VALID
12
2 in 1 DEFAULT
Selects the orientation and layout for 2 in 1 Copy. PORTRAIT
L\R
C ORIENTATION (Portrait, L-Scape)
C LAYOUT (L \ R, R \ L)
13
2 PAGE MODE DEF.
Selects the 2 page mode.
C L \ R, R \ L
14
KEY OPERATOR MODE
Input key operator ID code.
NOTE
20 mm
L\R
C Certain Functions or Parameters are available for selection only when their
respective option is installed.
29
Making Copies
No.
Function
General Functions for Key Operator
No.
Function
Initial
Setting
Consult
your
service
technician.
1 min.
00
PAPER SIZE
Sets the paper size of each paper tray.
C Tray-1, Tray-2, Tray-3, Tray-4
01
AUTO RESET TIME
Selects the Control Panel reset time.
C OFF, 30 sec, 1 min., 2 min., 3 min., 4 min.
02
ENERGY SAVER MODE
Sets the Energy Saver mode and time.
C INVALID, ENERGY-SAVER, SLEEP
Energy save mode timer : 1-120 minutes
Sleep mode timer
: 1-120 minutes
03
ENERGY SAVER TIME
04
LANGUAGE DEFAULT
05
SPECIAL TRAY 1
Sets the on time and off time for Energy Saver mode.
CStart time - End time
Selects the message language of the display.
A-ENGLISH
C A-ENGLISH, C-FRENCH, SPANISH
Sets the paper tray for special paper (ex: colored). NONE
C NONE, TRAY 1, TRAY 2, BYPASS
06
SPECIAL TRAY 2
09
KEY/TOUCH BEEP
10
BYPASS SET BEEP
11
ORIG. SET BEEP ADF
Sets the sound when put paper(s) on ADF.
C 1: INVALID 2: VALID
15
TOTAL COUNT
Total print out volume from the main unit.
16
PC PRINT COUNT
Total print out volume from the PC.
20
DATE & TIME
Sets the date & time.
21
DAYLIGHT TIME
Sets daylight saving time.
C INVALID, VALID
25
COPY SETTING LIST
Prints list containing Current Setting and
Standard Setting.
NOTE
30
Modes
Sets the paper tray for special paper.
C NONE, TRAY 1, TRAY 2, BYPASS
Sets the panel touch sound.
C OFF, SOFT, LOUD
Sets the sound when put paper(s) on bypass tray.
C 1: INVALID 2: VALID
SLEEP
NONE
SOFT
INVALID
VALID
VALID
C It is necessary to input the Key Operator ID code before changing items on
this page.
C The Special Tray 1 and 2 are not auto-selectable in the switching mode.
∗ Not available for plain copier, but will be available when installing options
with advanced functions. (See page 51)
Function
Copier Settings for Key Operator
Modes
01
ORIGINAL (HOME)
02
TEXT CONTRAST
03
T/P CONTRAST
04
PHOTO CONTRAST
10
MAX. COPY SETTING
12
M1, SIZE
13
M2, SIZE
16
MEM. FULL ACTION
NOTE
Initial
Setting
Function
Selects original setting
C TEXT, T/P (Text/Photo), PHOTO
Selects contrast for Text mode
C1 ~ 5
Selects contrast for Text/Photo mode
C1 ~ 5
Selects contrast for Photo mode
C1 ~ 5
Determines whether to limit number of copies
C 1 ~ 999
Input a size in memory 1 for frequent usage
size.
C X: 5~432/Y: 5~297 mm
(See page 25)
Input a size in memory 2 for frequent usage
size.
C X: 5~432/Y: 5~297 mm
(See page 25)
Selects the memory full action
C PRINT, CANCEL
T/P
(Text/Photo)
3
3
3
999
70 × 160 mm
(X) (Y)
95 × 220 mm
(X) (Y)
Print
C It is necessary to input the Key Operator ID code before changing items on
this page.
31
Making Copies
No.
Function
Function Setting
■ Changing the Auto Exposure Setting
You can select whether the copying density is adjusted automatically for text and photographic
originals.
1
Press the FUNCTION key.
2
Proceed as Follows:
FUNCTION Key
FUNCTION MODE (1-2)
ENTER NO. OR ∨ ∧
# Press the 2 key to select COPIER SETTINGS.
2:COPIER SETTINGS
PRESS SET TO SELECT
$ Press the SET key.
COPIER PARAM. (00-14)
ENTER NO. OR ∨ ∧
% Press 8 and SET key to select AUTO
EXPOSURE MODE.
08 AUTO EXPOSURE
2:VALID
& Press 1 or 2 key to select whether Auto
Exposure is to be carried out or not.
( Press the SET key to set up the AUTO
EXPOSURE MODE.
) Press the RESET key to exit the Function mode.
32
Function
Function Setting for Key Operator
■ Changing the Paper Size
The Paper Trays are designed to accommodate Invoice, Letter, Letter R, Legal and Ledger size
paper. To change the paper size, perform the steps shown below.
2
Proceed as Follows:
FUNCTION Key
Making Copies
1
Press the FUNCTION key.
FUNCTION MODE (1-2)
ENTER NO. OR ∨ ∧
# Press the 1 key to select GENERAL
FUNCTIONS.
1:GENERAL FUNCTIONS
PRESS SET TO SELECT
$ Press the SET key.
GENERAL PARAM. (0-9)
ENTER NO. OR ∨ ∧
% Press 9 key.
09 KEY OPERATOR MODE
ENTER PASSWORD=_ ■ ■
& Input the Key Operator ID code (3 digit)
and the SET key.
KEY OPR. MODE (00-25)
ENTER NO. OR ∨ ∧
( Press 00 and 1 or 2 key to select
the PAPER SIZE.
00 PAPER SIZE
1:TRAY-1[LTRB]
) Press SET to select the paper tray and
press (G or F) keys to set the paper
size.
Paper size changes are as follows.
Letter R
Invoice R
A3
B4
A4
Letter
A4R
Legal
B5
Ledger
FLS2
FLS1
A5R
B5R
* Press the SET key to set up the PAPER
SIZE.
+ Press the RESET key to exit the Function
mode.
33
Function
Function Setting for Key Operator
3
Changing the Paper Guide and Paper Size Indicator in the Paper Tray
# Pull the Paper Tray out and remove
paper.
$ Adjust the paper guide a to the
required paper length.
Stopper
Paper
Guide a
Paper
Guide b
% Adjust the Paper Guide b to the
required paper width.
Pinch the stopper to move the Paper
Guide b.
& Change the Paper Size Indicator.
Size
Indicator
( Close the Paper Tray.
NOTE
34
C It is recommended that the paper guide b be fixed in place with screws.
Consult an authorized servicing dealer for details on how to fasten with
screws.
Function
■ Department Counter
The Key Operator can manage, limit copies, counters and code numbers for each department.
(Maximum department counters: 50)
2
Proceed as Follows:
FUNCTION Key
FUNCTION MODE (1-2)
ENTER NO. OR ∨ ∧
# Press the 1 key to select GENERAL
FUNCTIONS.
1:GENERAL FUNCTIONS
PRESS SET TO SELECT
$ Press the SET key.
GENERAL PARAM. (0-9)
ENTER NO. OR ∨ ∧
& Press the Key Operator ID code (3 digit)
and SET key.
KEY OPR. MODE (00-25)
ENTER NO. OR ∨ ∧
( Press 14 and the SET key to select
DEPT. COUNTER MODE.
% Press 9 key.
09 KEY OPERATOR MODE
ENTER PASSWORD=_ ■ ■
Continued on the next page...
NOTE
C To reset the function mode, press the RESET key.
C Contact your authorized servicing dealer to enable the Department Counter
feature.
35
Making Copies
1
Press the FUNCTION key.
Function
Function Setting for Key Operator
3
Select the Department Counter Mode.
DEPT.COUNTER MODE
1:TOTAL COUNTER
DEPT. CODE (01-50)
ENTER NO. OR ∨ ∧
4
Press 2 and the SET key.
Change the Department ID Code, limit the maximum number of copies
and Department Counter number.
I.D CODE
01:1234
# Press the Keypad and the SET key to input the
Department ID Code.
01: 1234
Department ID Code
Department No.
MAX COPIES
01:123456
$ Press the Keypad and the SET key to input the
maximun number of copies.
01: 123456
Maximun number of copies (6 digits)
Department No.
DEPT.COUNTER
01:123456
% Press the Keypad and the SET key (G or F keys) to
select the Department No.
01: 123456
Counter (6 digits)
Department No.
& Press 0 and the SET key (Input “0”) to clear the counter.
NOTE
36
C To reset the function mode, press the RESET key.
Accessories
Components
PCL6 Emulation Kit
(DA-PC210)
C Printer Controller for PCL6*
10/100 Ethernet Interface/
Internet Fax Kit
(DA-NE200)
C Network Interface Board
NOTE
∗
2nd/4th Paper Feed Module
(DA-DS182)
C To increase the paper feed
sources and capacity.
Paper Feed Module × 1
(550 sheets)
3rd Paper Feed Module
(DA-DS183)
C To increase the paper feed
sources and capacity.
Paper Feed Module × 1
(550 sheets)
PCL6 is a Page Description Language of the Hewlett-Packard Company.
37
Options
Image Memory
(DA-SM8B/SM16B/SM64B/SM28B)
C 8/16/64/128 MB
C To increase the memory capacity for
electronic sorting and sort printing.
Problem Solving
J)
Adding Paper (J
■ 550-Sheet Paper Tray
1
Pull the Paper Tray out.
2
Place the paper with the copying
surface facing upward.
3
Make sure paper is not loaded
above the overfill indicator located
in the Paper Tray.
4
Firmly push the Paper Tray back
into the copier.
ATTENTION
38
Special papers, like glossy paper, mailing
labels and transparencies cannot be used
in the paper tray.
Use the Sheet Bypass for special paper.
C Do not use paper with folds or wrinkles.
Refer to page 34 for details on adjusting the paper tray size.
C Unused paper should always be placed into a bag and the opening should be sealed
for storage.
If the paper is left exposed, problems such as paper curl, paper jams, wrinkles or
loss of copied image quality may occur.
Problem Solving/U13
?)
Adding the Toner and Replacing Toner Waste Container (?
1
Open the Front Cover.
2
Remove the Toner Waste Container by
slowly pulling it towards the left as
illustrated.
3
Seal the container with the enclosed
cap and dispose of it properly.
Cap
4
1
2
ATTENTION
# Turn the empty Toner Bottle
counter-clockwise until it stops. The
Arrow mark (Unlocked symbol )
visible on the end of the Toner
Bottle is aligned with the Arrow
mark on the machine.
Note: To prevent toner spill, ensure
that the key is facing upwards
before removing the toner bottle.
$ Pull the empty Toner Bottle out.
Note: If the bottle will not pull out from
the machine, turn the bottle
slightly in either direction to
release the key and try it again.
C For optimum copy quality use the recommended Panasonic toner. Store toner in a cool
dark place. Do not unseal toner before use. Use it as fast as possible after unsealing.
C When U13 is displayed the Add Toner Warning Indicator will begin to flash. This message
is to prompt you that the toner bottle is nearly empty (approx. 300-sheets can be printed).
This message will continue to be displayed until the bottle is replaced. When the countdown counter reaches 0, the copier will stop operating. To clear the message and enable
the copier to operate, replace the empty toner bottle with a new one.
39
J
?
Problem Solving
?)
Adding the Toner and Replacing Toner Waste Container (?
5
# Shake the new Toner Bottle four
or five times to loosen the
contents.
2
1
$ Remove the cap from the Toner
Bottle.
6
1
2
2-1
2-3
Incorrect
Correct
2-2
7
Install a new Toner Waste
Container.
8
Close the Front Cover.
ATTENTION
40
# Align the Key of the bottle, also
represented by the Arrow mark
(Unlocked symbol ) visible on
the end of the Toner Bottle with
the Arrow mark on the machine.
Note: To prevent toner spill,
ensure that the key is facing
upwards before installing the
bottle.
$ Insert the bottle as far as it will
go, then turn it clockwise (160°,
approx. 1/2 turn) until it locks
(Locked symbol ).
Note: If the bottle is not inserted
all the way into the machine
as illustrated, turn the bottle
slightly in either direction to
engage the key and try it
again.
C Do not reuse the toner from the Toner Waste Container.
Problem Solving
Removing a Misfed Paper
■ Paper Misfeed Indicators and Locations
When a paper misfeed occurs, the misfeed indicator and the misfeed
location(s) will be displayed on the panel display.
I Misfeed Indicator
Paper Misfeed Locations
A: ADF (see page 45)
(J70, J71)
B: Copier (Paper Exit, Paper Entry/Transport)
area (see page 42-43)
(J51 - J59, J80)
C: Paper Feed Module (see page 44)
(J00 - J50)
I
NOTE
C Make sure that the misfeed indicator goes off after removing the misfed
paper.
C The misfeed indicator will not go off if the paper is still jammed in the copier.
Check again and remove all misfed paper.
41
Problem Solving
Removing a Misfed Paper
■ Paper Exit Area
C Make sure that the misfeed indicator
goes off after removing all misfed
paper.
1
ATTENTION
42
Remove the misfed paper.
C Make sure that the misfeed indicator goes off after removing all misfed paper.
Problem Solving
■ Paper Entry/Transport Area
C Make sure that the misfeed indicator
goes off after removing all misfed
paper.
1
Open the Right Cover.
2
Remove the misfed paper.
3
If copy paper is fed far into the copier:
# Turn the right paper clearing knob.
$ Remove the misfed paper.
4
# Open the Heat Roller Cover.
$ Remove the misfed paper.
% Close the Right Cover.
Caution
heated
surface
Caution: This fuser area may be
hot.
I
ATTENTION
C Make sure that the misfeed indicator goes off after removing all misfed paper.
43
Problem Solving
Removing a Misfed Paper
■ Paper Feed Module
C Make sure that the misfeed indicator
goes off after removing all misfed
paper.
1
# Pull the Paper Tray out.
$ Remove the misfed paper.
% Return the Paper Tray to the original
position.
2
# Open the Feed Cover.
$ Remove the misfed paper.
% Close the Feed Cover.
ATTENTION
44
C Make sure that the misfeed indicator goes off after removing all misfed paper.
Problem Solving
■ ADF
C Make sure that the misfeed indicator
goes off after removing all misfed
paper.
1
# Open the Entry Cover.
$ Remove the misfed paper.
% Close the Entry Cover.
2
# Open the ADF Cover.
Note: To prevent damaging the originals,
open the ADF Cover before
removing the misfed original(s).
$ Remove the misfed paper.
% Close the ADF Cover.
& Close the ADF.
I
ATTENTION
C Make sure that the misfeed indicator goes off after removing all misfed
paper.
C To prevent original(s) damage, please make sure to open the ADF Cover
before removing misfed original(s).
45
Troubleshooting
Before Calling Service
Action
Check
Unit Does Not Operate
Check if the Power Switch is turned On and
that the power cord is connected into the
outlet.
Does the display light?
(No)
Does the Energy Saver key flash (or light)
and displays are turned OFF? (See page
23)
(No)
Does any of the U## codes and messages
appear on the display?
(U01, U07, U13, U14, U20 and U21) (See
page 48)
(Yes)
Press Energy Saver key on the Control
Panel.
(Yes)
Perform actions in accordance with each
message.
(Yes)
(No)
Does the add paper indicator and message
appear on the display? (J)∗
(No)
Add paper. (See page 38)
(Yes)
Does the paper misfeed indicator and
message appear on the display? (I)
(No)
Remove the misfed paper. (See page 41)
(Yes)
Does E#-## indicator and message appear
on the display?
Turn the copier Off, then On. If the Error
Code does not clear, call for service.
(Yes)
When the Add Toner Warning Indicator begins to flash∗ or is lit, replace the toner bottle with a new
one. After this warning is activated, machine operation will begin with the Toner Charging Mode
(approximately 3 minutes to complete) each time the power switch is turned Off then On or if the
Front/Right Cover is opened and then closed.
Note: ∗When the warning indicator starts flashing, a 300-sheet count-down counter is activated,
and upon reaching 0 the machine will stop operating. The 300-sheet counter is based on
6% fill, depending on the density some pages may print Blank.
Machine operation and displays are as follows:
1. When turning the power switch to On or opening and then closing the Front/Right Cover, the
machine starts to warm-up and the LCD displays:
PLEASE WAIT...
46
Troubleshooting
2. The Toner Charging Mode starts and the LCD displays:
CHARGING TONER
Add Toner Warning Indicator:
C Flashing = Toner Bottle is nearly empty
C Lit
= Toner Bottle is empty
3. This message is displayed for approximately 200 seconds.
CHARGING TONER
❚❚❚❚❚
∗
Each “ ❚ ” is approximately 10 sec.
4. This massage will continue to be displayed until the warm-up cycle is completed, and if the toner
bottle was replaced. Upon completion, the Add Toner Warning Indicator automatically turns Off.
Check
Action
Light Copies
Press the Darker key until the indicator
LED is set to Darker. (See page 12)
Does the exposure indicator say “Lighter”?
(No)
(Yes)
Does the add toner indicator and message
appear on the display? (?)
Add Toner. (See page 39)
(Yes)
Marked Copies
Is the copier platen glass or platen cover
dirty?
Clean the Glass or Platen Cover.
(See page 48)
Others
(Yes)
47
Troubleshooting
User Error Codes (U Code)
The self-diagnostic functions detect troubles in the important components of the copier.
When any trouble occurs, the copier stops.
Code
U01
U07
U13
Display Message
CLOSE FRONT/RT COVER
CLOSE FEED COVER
TONER IS RUNNING LOW
NO WASTE TONER BOX
U14
WASTE TONER BOX IS FULL
U20
CLOSE ADF COVER
U21
CLOSE PLATEN COVER
Check Points
Front Cover is open.
Feed Cover is open.
1. Toner Bottle is incorrectly installed.
2. Low Toner.
1. Toner Waste Container is incorrectly
installed.
2. Toner Waste Container is full of toner.
ADF Cover is open.
While the copier is initializing, the ADF
Cover was opened. (Optional ADF installed)
■ If the measures outlined above do not solve the problem, call your Service provider.
Copier Care
■ As a rule, clean weekly.
Platen/Platen Cover
Platen
Cover
Platen
(glass)
48
# Wipe marks off with a cloth and a neutral
detergent.
$ Wipe again with a dry cloth.
Troubleshooting
Replacing the Battery
The copier has an internal battery (Product No.: CR2032) which maintains the date
setting in the event of a power outage.
■ Battery Replacement Required Message
REPLACE BATTERY
U90
■ Battery Replacement Procedure
1
Turn the power Off.
Pull out the Battery Holder.
2
Replace the Battery.
3
Reinstall the Battery Holder.
4
Turn the power On.
Set the Date and Time. (See P.30)
CAUTION
C The service life of the battery is approximately 1 year when the machine is
turned “Off”.
denotes hazards that could result in minor injury or damage to the machine.
A THIS PRODUCT CONTAINS A LITHIUM BATTERY. DANGER OF EXPLOSION IF BATTERY IS
INCORRECTLY REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS OF YOUR LOCAL SOLID WASTE OFFICIALS.
Others
ATTENTION
49
Specifications
■ DP-1810F (Copier)
Type
Desktop
Platen Type
Fixed
Acceptable Originals
Sheets, Books (max. Ledger)
Copying Method
Laser Electrophotography
Fixing Method
Heat Roller Fixing
Imaging Method
Dry-Type Single component imaging
Resolution
Max. 600 dpi
Maximum Copy Size
Ledger - Invoice via paper tray
Void Area
Max. 0.2 in (5 mm)
Warm Up Time
Approx. 30 seconds (68°F/20°C)
First Copy Time
Approx. 6.5 seconds (Letter
Multi-Copy Speed
18 Letter size copies per minute
Enlargement Ratios
Preset: 121%, 129%, 155%, 200%
Variable: from 101% to 200% in 1% increments
Reduction Ratios
Preset: 79%, 77%, 65%, 61%, 50%
Variable: from 99% to 50% in 1% increments
Paper Feed
Paper tray (550 sheets × 1) + Sheet bypass (50 sheets)
2nd Paper feed module (550 sheets - option)
3rd Paper feed module (550 sheets - option)
4th Paper feed module (550 sheets - option)
Paper Weight
Paper Tray: 16 - 24 lb (60 - 90 g/m2)
[Sheet Bypass: 15 - 34 lb (56 - 128 g/m2)]
Quantity Selector
Max. 999 sheets (output tray capacity is 250 sheets)
Electrical Consumption
AC 120V, 50/60Hz, 9A
Energy Consumption
Max. 1.2 kW, 1.5 Wh in Sleep Mode
Dimensions (W × D × H)
23.1 × 25.5 × 20.6 in
(588 × 647 × 522 mm)
Weight
99 lb (45 kg)
Operating Environment
Temperature: 50 - 95°F (10 - 35°C) Relative Humidity: 45 - 85%
(However, the humidity should be 70% or less at a temperature of 95°F (35°C),
and the temperature should be 86°F (30°C) or less at a humidity level of 85%.)
C Specifications are subject to change without notice.
50
, from 1st tray)
Specifications
■ 2nd/4th Paper Feed Module (DA-DS182)
DA-DS182
Paper Size
Invoice/Letter/Legal/Ledger
Paper Weight
16 – 24 lb (60 – 90 g/m2)
Electrical Requirements
Supplied from the copier
Dimensions (W × D × H)
21.7 × 6.1 × 23.0 in
(550 × 155 × 585 mm)
Weight
20.9 lb (9.5 kg)
■ 3rd Paper Feed Module (DA-DS183)
DA-DS183
Paper Size
Invoice/Letter/Legal/Ledger
Paper Weight
16 – 24 lb (60 – 90 g/m2)
Electrical Requirements
Supplied from the copier
Dimensions (W × D × H)
21.7 × 6.1 × 20.1 in
(550 × 155 × 585 mm)
Weight
20.9 lb (9.5 kg)
Others
C Specifications are subject to change without notice.
51
Options and Supplies
■ The DP-1810F is a digital photocopier which can produce images with great clarity. Furthermore, its
copying functionality can also be greatly enhanced by the addition of the following options and supplies.
We hope you find that the wide ranging capabilities will make your office-place more productive and efficient.
■ Options
Part Name
Part No.
Remarks
2nd/4th Paper Feed Module
DA-DS182
3rd Paper Feed Module
DA-DS183
Plain Stand (High)
DA-DA180
For USA/Canada only
Plain Stand (Medium)
DA-DA181
For USA/Canada only
Plain Stand (Low)
DA-DA182
For USA/Canada only
Base Stand
DA-DA183
For USA/Canada only
Image Memory (8 MB)
DA-SM8B
For Electronic Sorting and Sort Printing
Image Memory (16 MB)
DA-SM16B
For Electronic Sorting and Sort Printing
Image Memory (64 MB)
DA-SM64B
For Electronic Sorting and Sort Printing
Image Memory (128 MB)
DA-SM28B
For Electronic Sorting and Sort Printing
Key Counter Cable Kit
DA-KH200
■ For Printer
Part Name
Part No.
PCL6 Emulation Kit
DA-PC210
Remarks
Printer Controller for PCL6*.
(Local Printing, for Network Printing below)
■ For Fax
Part Name
Part No.
Handset Kit
Expansion Flash
Memory Card
Verification Stamp
Remarks
UE-403167
Telephone Handset Kit (For USA and Canada)
UE-403117
Telephone Handset Kit (For other countries)
UE-410046
2 MB Flash Memory Card
UE-410047
4 MB Flash Memory Card
UE-410048
8 MB Flash Memory Card
DZHT000027
X-Stamp (For USA and Canada)
DZHT000004
X-Stamp (For other countries)
■ For Network Printing / Email (Internet Fax)
Part Name
Part No.
10/100 Ethernet Interface/
Internet Fax Kit
DA-NE200
Remarks
Internet Fax Communication
■ Supplies
Part Name
Part No.
Toner Bottle
DQ-TU10C
∗
NOTE
52
Remarks
Toner Waste Container included
PCL6 is a Page Description Language of the Hewlett-Packard Company.
memo
53
U.S.A. Only
WARRANTY
PANASONIC DOCUMENT IMAGING COMPANY MAKES NO WARRANTIES, GUARANTEES OR
REPRESENTATIONS, EXPRESSED OR IMPLIED, TO THE CUSTOMER WITH RESPECT TO THIS
PANASONIC MACHINE, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
PANASONIC DOCUMENT IMAGING COMPANY ASSUMES NO RISK AND SHALL NOT BE SUBJECT
TO LIABILITY FOR ANY DAMAGE, INCLUDING, BUT NOT LIMITED TO DIRECT, INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS OF PROFITS SUSTAINED BY THE
CUSTOMER IN CONNECTION WITH THE USE OR APPLICATION OF THIS PANASONIC MACHINE.
SEE YOUR DEALER FOR DETAILS OF DEALER’S WARRANTY.
For Service, Call:
Panasonic Document Imaging Company
A Business Unit of Matsushita Electric Corporation of America
Two Panasonic Way
Secaucus, New Jersey 07094
Panasonic Canada Inc.
5770 Ambler Drive,
Mississauga, Ontario L4W 2T3
S0302-0
DZSD001712-0
March 2002
Printed in Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
