Transferring Images to a Computer
You can connect the camera to a computer and operate the camera to transfer images on the card to the computer. This is called direct image transfer.
The direct image transfer can be performed with the camera while you look at the LCD monitor.
The images transferred to the computer will be saved in the [ Pictures ] or [ My Pictures ] folder and organized in folders by shooting date.
Caution for Image Transfer
Before connecting the camera to a computer, install the EOS Utility
on your computer.
Preparing Image Transfer
1
Set the camera’s power switch to
<
2
>.
2
Connect the camera to a computer.
Use the interface cable provided with the camera.
When connecting the cable to the camera, use the cable protector
(p.36). Connect the cable to the
digital terminal with the plug’s
< camera.
> icon facing the back of the
Connect the cord’s plug to the computer’s USB terminal.
Use the provided interface cable or one from Canon (p.454). When
connecting the interface cable, use the provided cable protector (p.36).
393
d Transferring Images to a Computer
3
Set the camera’s power switch to
<
1
>.
When the computer displays a screen to select the program, select [ EOS
Utility ].
X The EOS Utility screen will appear on the computer.
After the EOS Utility screen appears, do not operate EOS Utility. If any screen other than EOS Utility’s main window is displayed, [ Direct transfer ]
in step 5 on page 396 will not be displayed. (The image transfer function will
not be available.)
If the EOS Utility screen does not appear, refer to the EOS Utility
Before disconnecting the cable, turn off the camera. Hold the plug (not the cord) to pull out the cable.
3
Transferring RAW+JPEG Images
For RAW+JPEG images, you can specify which image to transfer.
On the next page in step 2, select
[ RAW+JPEG transfer ], and select the image to be transferred: [ JPEG only ],
[ RAW only ], or [ RAW+JPEG ].
394
d Transferring Images to a Computer
3
Selecting the Images to be Transferred
Sel.Image
1
Select [Image transfer].
Under the [ 3 2 ] tab, select [ Image transfer ], then press < 0 >.
2
Select [Image sel./transfer].
3
Select [Sel.Image].
4
Select the images to be transferred.
Turn the < 5 > dial to select the image to be transferred, then press
< 0 >.
Turn the < 5 > dial to display the [ X ] on the screen’s upper left, then press < 0 >.
If you press the < u > button and turn the < 6 > dial counterclockwise, you can select an image from a three-image display. To return to the single-image display, turn the < 6 > dial clockwise.
To select other images to be transferred, repeat step 4.
When [ Sel.Image
] is selected, you can check the image’s transfer status on the upper left of the screen: No mark: Not selected. X : Selected for transfer. l : Transfer failed. k : Transfer succeeded.
The procedures for [ RAW+JPEG transfer
] (p.394) and above steps 1 to
4 can also be performed while the camera is not connected to a computer.
395
d Transferring Images to a Computer
5
Transfer the image.
On the computer screen, check that
EOS Utility’s main window is displayed.
Select [ Direct transfer ], then press
< 0 >.
On the confirmation dialog, select
[ OK ], and the images will be transferred to the computer.
Images selected with [ Sel.
n ] and
[ All image ] can also be transferred in this way.
Sel.
n
Select [ Sel.
n ] and select [ Folder images not transfer’d ]. When you select a folder, all the images in that folder not yet transferred to the computer will be selected.
Selecting [ Folder images failed transf.
] will select the selected folder’s images that failed to transfer.
Selecting [ Clear folder transf. history ] will clear the transfer history of the images in the selected folder. After clearing the transfer history, you can select [ Folder images not transfer’d ] and again transfer all the images in the folder.
All image
If [ All image ] is selected and you select [ Card images not transferred ], all the images on the card not yet transferred to a computer will be selected.
For a description of [ Card images failed transfer ] and [ Clear card’s transf. history ], see “ Sel.
n ” above.
If any screen other than EOS Utility’s main window is displayed on the computer, [ Direct transfer ] is not displayed.
During the image transfer, certain menu options cannot be used.
396
You can also transfer movies.
Up to 9,999 images can be transferred in one batch.
Shooting is possible during the image transfer.
advertisement
Related manuals
advertisement
Table of contents

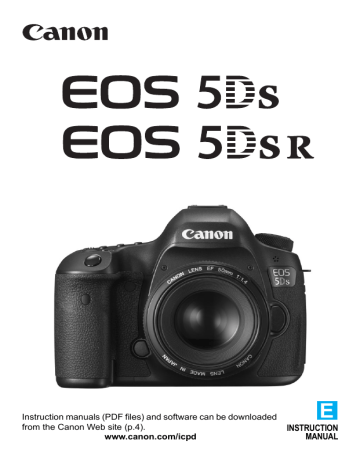

- 1 Cover
